V3.0 - Fuse holders and J1

[vikbez]

Hello;

Was about to order the new version to try it :)
I have two questions for parts not in BOM

I found J1 to match either:

• LCSC C22451132
• LCSC C2982040

Are these good candidates ? (only the second one available right now)

For F1 and F2 (fuse holders):
I just cannot find them at all. Every part I find have holes rotated 90deg , or have only 2 pins total:

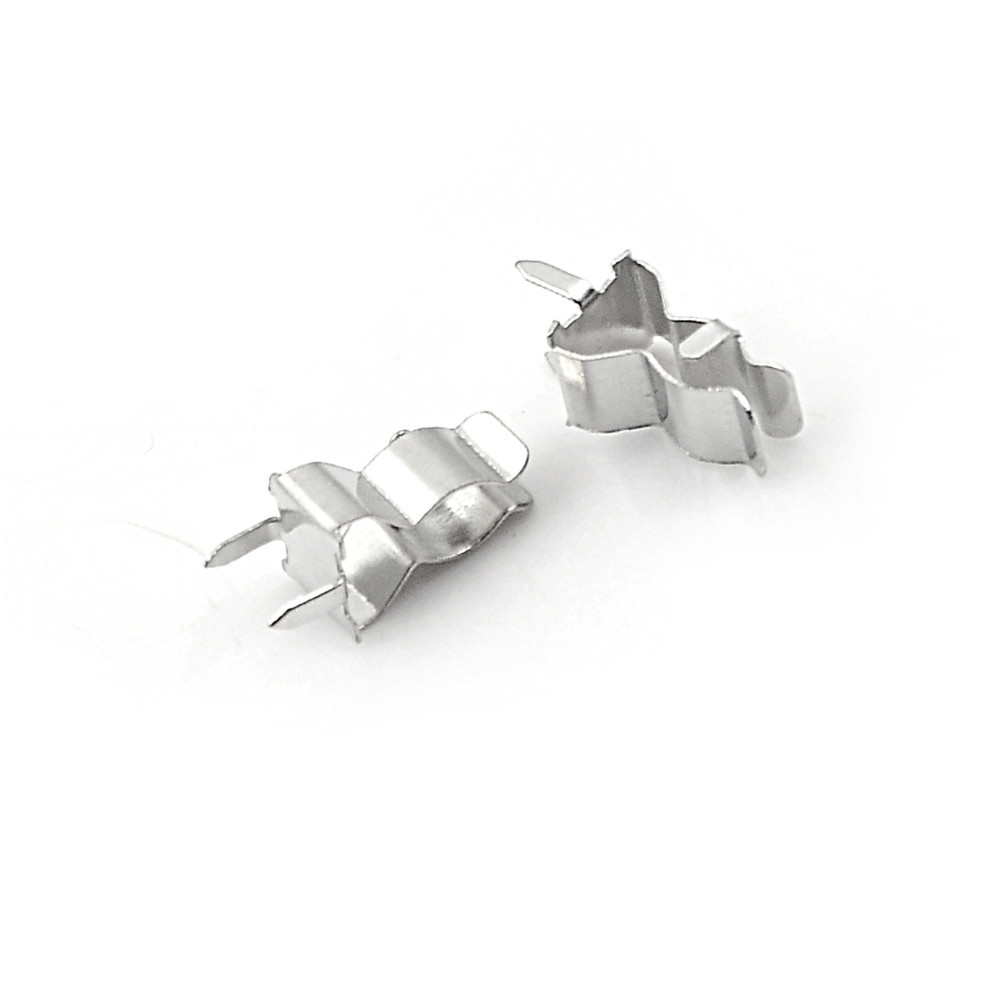

• 90deg rotated holder
• 2 pins inline holder

Maybe these would be more appropriate for the design as they are more easy to find ?

Thanks !

[bitfieldlabs]

Hi. Yes, the J1 connectors look fine. They are not in the JLC BOM because I couldn't find an exact match for the series I am usually using.

I agree, I will have to change the fuse holders to more common ones, I just didn't get around to doing it yet.

[bitfieldlabs]

These are the fuse holders I am using: https://jlcpcb.com/partdetail/Schurter-07510062/C3205391
Not on stock though.

[Numiah]

For the users from Netherlands, Germany etc.
I used these :https://www.conrad.nl/nl/p/eska-120700-120700-zekeringclip-geschikt-voor-buiszekering-5-x-20-mm-6-3-a-250-v-ac-1-stuk-s-524314.html
