| Version: | 1.0 |
|---|---|
| Source: | https://github.com/mseknibilel/OpenStack-Folsom-Install-guide |
| Keywords: | Multi node OpenStack, Folsom, Nova, Nova-Network, Keystone, Glance, Cinder, KVM, Ubuntu Server 12.10 (64 bits). |
Copyright (C) Bilel Msekni <bilel.msekni@telecom-sudparis.eu>
- Roy Sowa <Roy.Sowa@ssc-spc.gc.ca>
- Marco Consonni <marco_consonni@hp.com>
- Dennis E Miyoshi <dennis.miyoshi@hp.com>
- Houssem Medhioub <houssem.medhioub@it-sudparis.eu>
- Djamal Zeghlache <djamal.zeghlache@telecom-sudparis.eu>
Wana contribute ? Read the guide, send your contribution and get your name listed ;)
0. What is it? 1. Requirements 2. Getting Ready 3. Keystone 4. Glance 5. Nova 6. Cinder 7. Adding a compute node 8. Start your first VM 9. Licencing 10. Contacts 11. References 12. Credits 13. To do
OpenStack Folsom Install Guide is an easy and tested way to create your own OpenStack plateform.
Version 1.0
Status: testing

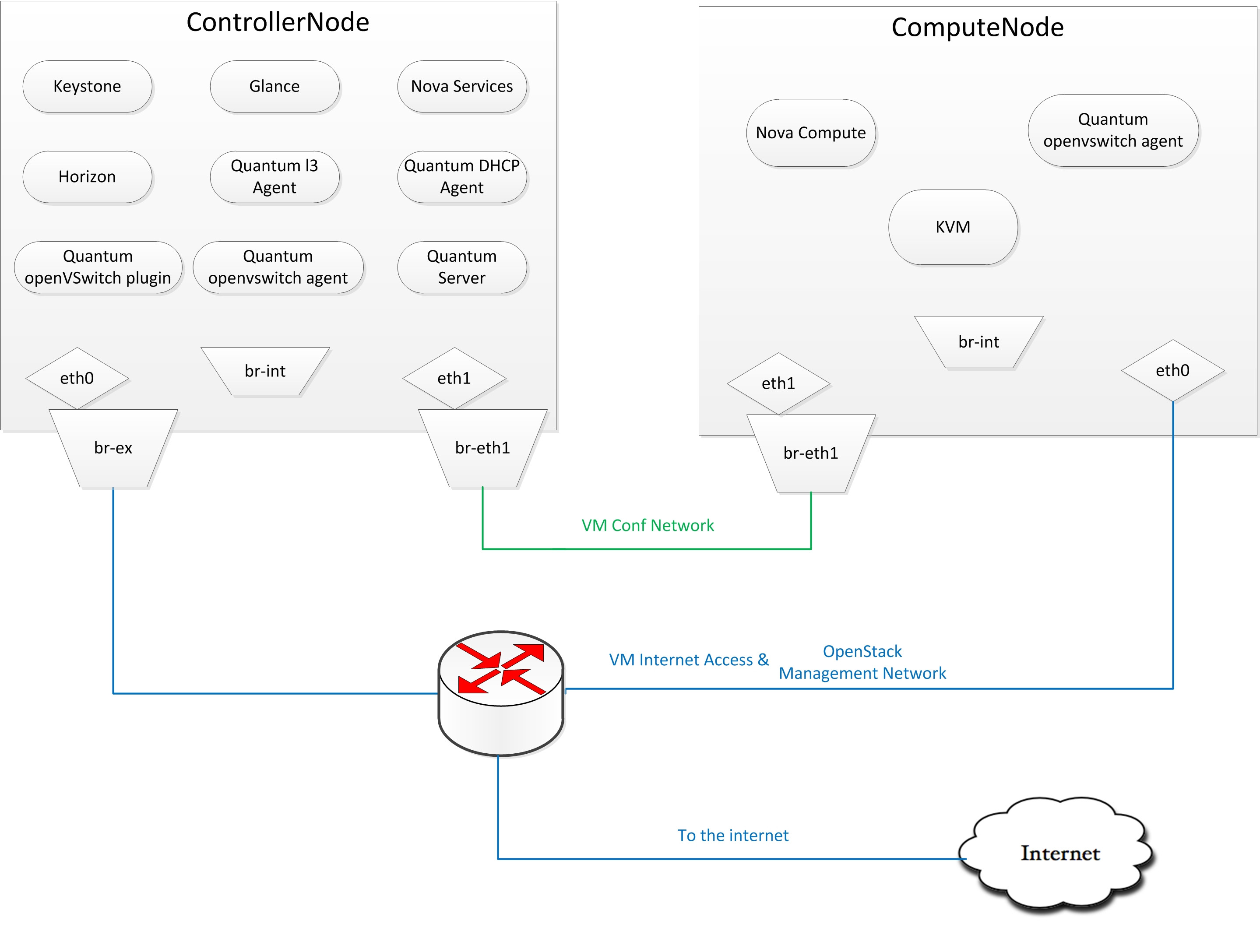

| Node Role: | NICs |
|---|---|
| Control Node: | em1 (10.111.80.201), em2.90 (10.222.90.201) |
| Compute Node: | em1 (10.111.80.202), em2.90 (10.222.90.202) |
Note 1: This is my current network architecture, you can add as many compute node as you wish.
After you install Ubuntu 12.10 Server 64bits, Go to the sudo mode and don't leave it until the end of this guide:
sudo su
Update your system:
apt-get update apt-get upgrade apt-get dist-upgrade
First, take a good look at your working routing table:
Destination Gateway Genmask Flags Metric Ref Use Iface 0.0.0.0 10.222.90.254 0.0.0.0 UG 0 0 0 em2.90 10.111.80.0 0.0.0.0 255.255.255.0 U 0 0 0 em1 10.222.90.0 0.0.0.0 255.255.255.0 U 0 0 0 em2.90
/etc/network/interfaces:
auto lo iface lo inet loopback auto em1 iface em1 inet static address 10.111.80.201 netmask 255.255.255.0 auto em2.90 iface em2.90 inet static address 10.222.90.201 netmask 255.255.255.0 gateway 10.222.90.254 dns-nameservers 8.8.8.8 8.8.4.4 dns-search despexds.net vlan-raw-device em2
Install MySQL:
apt-get install mysql-server python-mysqldb
Configure mysql to accept all incoming requests:
sed -i 's/127.0.0.1/0.0.0.0/g' /etc/mysql/my.cnf service mysql restart
Install RabbitMQ:
apt-get install rabbitmq-server
Install other services:
apt-get install ntp
Configure the NTP server to synchronize between your compute nodes and the controller node:
sed -i 's/server ntp.ubuntu.com/server ntp.ubuntu.com\nserver 127.127.1.0\nfudge 127.127.1.0 stratum 10/g' /etc/ntp.conf service ntp restart
Install other services:
apt-get install vlan bridge-utils
Enable IP_Forwarding:
sed -i 's/#net.ipv4.ip_forward=1/net.ipv4.ip_forward=1/g' /etc/sysctl.conf
Add 8021q to /etc/modules:
echo "8021q" >> /etc/modules
This is how we install OpenStack's identity service:
Start by the keystone packages:
apt-get install keystone
Create a new MySQL database for keystone:
mysql -u root -p CREATE DATABASE keystone; GRANT ALL ON keystone.* TO 'keystoneUser'@'localhost' IDENTIFIED BY 'keystonePass'; quit;
Adapt the connection attribute in the /etc/keystone/keystone.conf to the new database:
connection = mysql://keystoneUser:keystonePass@localhost/keystone
Restart the identity service then synchronize the database:
service keystone restart keystone-manage db_sync
Fill up the keystone database using the two scripts available in the Scripts folder of this git repository. Beware that you MUST comment every part related to Quantum if you don't intend to install it otherwise you will have trouble with your dashboard later:
#Modify the HOST_IP variable before executing the scripts chmod +x keystone_basic.sh chmod +x keystone_endpoints_basic.sh ./keystone_basic.sh ./keystone_endpoints_basic.sh
Create a simple credential file and load it so you won't be bothered later:
vi creds #Paste the following: export OS_TENANT_NAME=admin export OS_USERNAME=admin export OS_PASSWORD=admin_pass export OS_AUTH_URL="http://10.111.80.201:5000/v2.0/" export OS_NO_CACHE=1 # Load it: source creds
To test Keystone, we use a simple curl request:
curl http://10.111.80.201:35357/v2.0/endpoints -H 'x-auth-token: ADMIN'
Reboot, test connectivity and check Keystone again.
After installing Keystone, we continue with installing image storage service a.k.a Glance:
apt-get install glance
Create a new MySQL database for Glance:
mysql -u root -p CREATE DATABASE glance; GRANT ALL ON glance.* TO 'glanceUser'@'localhost' IDENTIFIED BY 'glancePass'; quit;
Update /etc/glance/glance-api-paste.ini with:
[filter:authtoken] paste.filter_factory = keystone.middleware.auth_token:filter_factory auth_host = 10.111.80.201 auth_port = 35357 auth_protocol = http admin_tenant_name = service admin_user = glance admin_password = service_pass
Update the /etc/glance/glance-registry-paste.ini with:
[filter:authtoken] paste.filter_factory = keystone.middleware.auth_token:filter_factory auth_host = 10.111.80.201 auth_port = 35357 auth_protocol = http admin_tenant_name = service admin_user = glance admin_password = service_pass
Update /etc/glance/glance-api.conf with:
sql_connection = mysql://glanceUser:glancePass@localhost/glance
And:
[paste_deploy] flavor = keystone
Update the /etc/glance/glance-registry.conf with:
sql_connection = mysql://glanceUser:glancePass@localhost/glance
And:
[paste_deploy] flavor = keystone
Restart the glance-api and glance-registry services:
service glance-api restart; service glance-registry restart
Synchronize the glance database:
glance-manage db_sync
To test Glance's well installation, we upload a new image to the store. Start by downloading the cirros cloud image to your node and then uploading it to Glance:
mkdir images cd images wget https://launchpad.net/cirros/trunk/0.3.0/+download/cirros-0.3.0-x86_64-disk.img glance image-create --name myFirstImage --is-public true --container-format bare --disk-format qcow2 < cirros-0.3.0-x86_64-disk.img
Now list the images to see what you have just uploaded:
glance image-list
Start by adding this script to /etc/network/if-pre-up.d/iptablesload to forward traffic to em2.90:
#!/bin/sh iptables -t nat -A POSTROUTING -o em2.90 -j MASQUERADE exit 0
Install these packages:
apt-get install nova-api nova-cert nova-doc nova-scheduler nova-consoleauth
Prepare a Mysql database for Nova:
mysql -u root -p CREATE DATABASE nova; GRANT ALL ON nova.* TO 'novaUser'@'%' IDENTIFIED BY 'novaPass'; quit;
Now modify authtoken section in the /etc/nova/api-paste.ini file to this:
[filter:authtoken] paste.filter_factory = keystone.middleware.auth_token:filter_factory auth_host = 10.111.80.201 auth_port = 35357 auth_protocol = http admin_tenant_name = service admin_user = nova admin_password = service_pass signing_dirname = /tmp/keystone-signing-nova
Change your /etc/nova/nova.conf to look like this:
[DEFAULT] # LOGS/STATE verbose=True logdir=/var/log/nova state_path=/var/lib/nova lock_path=/run/lock/nova # AUTHENTICATION auth_strategy=keystone # SCHEDULER scheduler_driver=nova.scheduler.multi.MultiScheduler compute_scheduler_driver=nova.scheduler.filter_scheduler.FilterScheduler # CINDER volume_api_class=nova.volume.cinder.API # DATABASE sql_connection=mysql://novaUser:novaPass@10.111.80.201/nova # COMPUTE libvirt_type=kvm libvirt_use_virtio_for_bridges=True start_guests_on_host_boot=True resume_guests_state_on_host_boot=True api_paste_config=/etc/nova/api-paste.ini allow_admin_api=True use_deprecated_auth=False nova_url=http://10.111.80.201:8774/v1.1/ root_helper=sudo nova-rootwrap /etc/nova/rootwrap.conf # APIS ec2_host=10.111.80.201 ec2_url=http://10.111.80.201:8773/services/Cloud keystone_ec2_url=http://10.111.80.201:5000/v2.0/ec2tokens s3_host=10.111.80.201 cc_host=10.111.80.201 metadata_host=10.111.80.201 #metadata_listen=0.0.0.0 enabled_apis=ec2,osapi_compute,metadata # RABBITMQ rabbit_host=10.111.80.201 # GLANCE image_service=nova.image.glance.GlanceImageService glance_api_servers=10.111.80.201:9292 # NETWORK network_manager=nova.network.manager.FlatDHCPManager force_dhcp_release=True dhcpbridge_flagfile=/etc/nova/nova.conf dhcpbridge=/usr/bin/nova-dhcpbridge firewall_driver=nova.virt.libvirt.firewall.IptablesFirewallDriver public_interface=em2 flat_interface=em1 flat_network_bridge=br100 fixed_range=192.168.6.0/24 network_size=256 flat_network_dhcp_start=192.168.6.0 flat_injected=False connection_type=libvirt multi_host=True
Don't forget to update the ownership rights of the nova directory:
chown -R nova. /etc/nova chmod 644 /etc/nova/nova.conf
Add this line to the sudoers file:
sudo visudo #Paste this line anywhere you like: nova ALL=(ALL) NOPASSWD:ALL
Synchronize your database:
nova-manage db sync
Restart nova-* services:
cd /etc/init.d/; for i in $( ls nova-* ); do sudo service $i restart; done
Check for the smiling faces on nova-* services to confirm your installation:
nova-manage service list
Use the following command to create fixed network:
nova-manage network create private --fixed_range_v4=192.168.6.0/24 --num_networks=1 --bridge=br100 --bridge_interface=em1 --network_size=256 --multi_host=T
Create the floating IPs:
nova-manage floating create --ip_range=10.222.90.128/26
Create the floating to the nova project, run the next command many times as your network IPs:
nova floating-ip-create
Add ICMP ping and SSH access to the default security group:
nova secgroup-add-rule default icmp -1 -1 0.0.0.0/0 nova secgroup-add-rule default tcp 22 22 0.0.0.0/0
Although Cinder is a replacement of the old nova-volume service, its installation is now a seperated from the nova install process.
Install the required packages:
apt-get install cinder-api cinder-scheduler cinder-volume iscsitarget open-iscsi iscsitarget-dkms
Configure the iscsi services:
sed -i 's/false/true/g' /etc/default/iscsitarget
Restart the services:
service iscsitarget start service open-iscsi start
Prepare a Mysql database for Cinder:
mysql -u root -p CREATE DATABASE cinder; GRANT ALL ON cinder.* TO 'cinderUser'@'localhost' IDENTIFIED BY 'cinderPass'; quit;
Configure /etc/cinder/api-paste.ini like the following:
[filter:authtoken] paste.filter_factory = keystone.middleware.auth_token:filter_factory service_protocol = http service_host = 10.111.80.201 service_port = 5000 auth_host = 10.111.80.201 auth_port = 35357 auth_protocol = http admin_tenant_name = service admin_user = cinder admin_password = service_pass
Edit the /etc/cinder/cinder.conf to:
[DEFAULT] rootwrap_config=/etc/cinder/rootwrap.conf sql_connection = mysql://cinderUser:cinderPass@localhost/cinder api_paste_confg = /etc/cinder/api-paste.ini iscsi_helper=ietadm volume_name_template = volume-%s volume_group = cinder-volumes verbose = True auth_strategy = keystone #osapi_volume_listen_port=5900
Then, synchronize your database:
cinder-manage db sync
Finally, don't forget to create a volumegroup and name it cinder-volumes:
dd if=/dev/zero of=cinder-volumes bs=1 count=0 seek=2G losetup /dev/loop2 cinder-volumes fdisk /dev/loop2 #Type in the followings: n p 1 ENTER ENTER t 8e w
Proceed to create the physical volume then the volume group:
pvcreate /dev/loop2 vgcreate cinder-volumes /dev/loop2
Note: Beware that this volume group gets lost after a system reboot. (Click Here to know how to load it after a reboot)
Restart the cinder services:
service cinder-volume restart service cinder-api restart
Update your system:
apt-get update apt-get upgrade apt-get dist-upgrade
Install ntp service:
apt-get install ntp
Configure the NTP server to follow the controller node:
sed -i 's/server ntp.ubuntu.com/server 10.111.80.201/g' /etc/ntp.conf service ntp restart
Install other services:
apt-get install vlan bridge-utils
Enable IP_Forwarding:
nano /etc/sysctl.conf # Uncomment net.ipv4.ip_forward=1, to save you from rebooting, perform the following sysctl net.ipv4.ip_forward=1
Add this script to /etc/network/if-pre-up.d/iptablesload to forward traffic to em2.90:
#!/bin/sh iptables -t nat -A POSTROUTING -o em2.90 -j MASQUERADE exit 0
It's recommended to have two NICs but only one (em2.90) needs to be internet connected:
auto em1 iface em1 inet static address 10.111.80.202 netmask 255.255.255.0 dns-nameservers 8.8.8.8 auto em2.90 iface em2.90 inet static address 10.222.90.202 netmask 255.255.255.0 gateway 10.222.90.254
KVM is needed as the hypervisor that will be used to create virtual machines.
Enable live migration by updating /etc/libvirt/libvirtd.conf file:
listen_tls = 0 listen_tcp = 1 auth_tcp = "none"
Edit libvirtd_opts variable in /etc/init/libvirt-bin.conf file:
env libvirtd_opts="-d -l"
Edit /etc/default/libvirt-bin file
libvirtd_opts="-d -l"
Restart the libvirt service to load the new values:
service libvirt-bin restart
Install nova's required components for the compute node:
apt-get install nova-compute nova-network nova-api-metadata
Modify the /etc/nova/nova.conf like this:
[DEFAULT] # LOGS/STATE verbose=True logdir=/var/log/nova state_path=/var/lib/nova lock_path=/run/lock/nova # AUTHENTICATION auth_strategy=keystone # SCHEDULER scheduler_driver=nova.scheduler.multi.MultiScheduler compute_scheduler_driver=nova.scheduler.filter_scheduler.FilterScheduler # CINDER volume_api_class=nova.volume.cinder.API # DATABASE sql_connection=mysql://novaUser:novaPass@10.111.80.201/nova # COMPUTE libvirt_type=kvm libvirt_use_virtio_for_bridges=True start_guests_on_host_boot=True resume_guests_state_on_host_boot=True api_paste_config=/etc/nova/api-paste.ini allow_admin_api=True use_deprecated_auth=False nova_url=http://10.111.80.201:8774/v1.1/ root_helper=sudo nova-rootwrap /etc/nova/rootwrap.conf # APIS ec2_host=10.111.80.201 ec2_url=http://10.111.80.201:8773/services/Cloud keystone_ec2_url=http://10.111.80.201:5000/v2.0/ec2tokens s3_host=10.111.80.201 cc_host=10.111.80.201 metadata_host=10.111.80.203 # RABBITMQ rabbit_host=10.111.80.201 # GLANCE image_service=nova.image.glance.GlanceImageService glance_api_servers=10.111.80.201:9292 # NETWORK network_manager=nova.network.manager.FlatDHCPManager force_dhcp_release=True dhcpbridge_flagfile=/etc/nova/nova.conf dhcpbridge=/usr/bin/nova-dhcpbridge firewall_driver=nova.virt.libvirt.firewall.IptablesFirewallDriver public_interface=em2.90 flat_interface=em1 flat_network_bridge=br100 fixed_range=192.168.6.0/24 network_size=256 flat_network_dhcp_start=192.168.6.0 flat_injected=False connection_type=libvirt multi_host=True
Restart nova-* services:
cd /etc/init.d/; for i in $( ls nova-* ); do sudo service $i restart; done
Check for the smiling faces on nova-* services to confirm your installation:
nova-manage service list
To start your first VM:
Run a glance image-list first to find the UUID from the image to boot:
nova boot --image deb3fd68-ff77-4994-881b-361d4142639e --flavor m1.tiny test
I Hope you enjoyed this guide, please if you have any feedbacks, don't hesitate.
OpenStack Folsom Install Guide by Bilel Msekni is licensed under a Creative Commons Attribution 3.0 Unported License.
To view a copy of this license, visit [ http://creativecommons.org/licenses/by/3.0/deed.en_US ].
Bilel Msekni: bilel.msekni@telecom-sudparis.eu
- Configuring Floating IP addresses [http://www.mirantis.com/blog/configuring-floating-ip-addresses-networking-openstack-public-private-clouds/]
- Enabling Ping and SSH on VMs [http://docs.openstack.org/trunk/openstack-compute/admin/content/enabling-ping-and-ssh-on-vms.html]
- Instances not Receiving DHCP Offers with Nova-Network Method [bilelmsekni#14]
This work has been based on:
- Emilien Macchi's Folsom guide [https://github.com/EmilienM/openstack-folsom-guide]
- OpenStack Documentation [http://docs.openstack.org/trunk/openstack-compute/install/apt/content/]
- OpenStack Quantum Install [http://docs.openstack.org/trunk/openstack-network/admin/content/ch_install.html]
- Vlan configuration [https://wiki.ubuntu.com/vlan]
This guide is under testing. Your suggestions are always welcomed.
