Error in WebGL Habitat-Sim while running the webserver

[rutadesai]

🐛 Bug

I followed the instruction on https://github.com/facebookresearch/habitat-sim#webgl to run the webgl demo. However, in step 5., when I run: python -m http.server 8000 --bind 127.0.0.1 , I get the following error:

127.0.0.1 - - [14/Mar/2020 14:53:19] "GET /build_js/esp/bindings_js/bindings.html HTTP/1.1" 200 -
127.0.0.1 - - [14/Mar/2020 14:53:20] "GET /build_js/esp/bindings_js/WebApplication.css HTTP/1.1" 200 -
127.0.0.1 - - [14/Mar/2020 14:53:20] "GET /build_js/esp/bindings_js/WindowlessEmscriptenApplication.js HTTP/1.1" 200 -
127.0.0.1 - - [14/Mar/2020 14:53:20] "GET /build_js/esp/bindings_js/bundle.js?4c536547307b8acf0c58 HTTP/1.1" 200 -
127.0.0.1 - - [14/Mar/2020 14:53:20] code 404, message File not found
127.0.0.1 - - [14/Mar/2020 14:53:20] "GET /build_js/esp/bindings_js/hsim_bindings.js HTTP/1.1" 404 -
127.0.0.1 - - [14/Mar/2020 14:53:20] code 404, message File not found

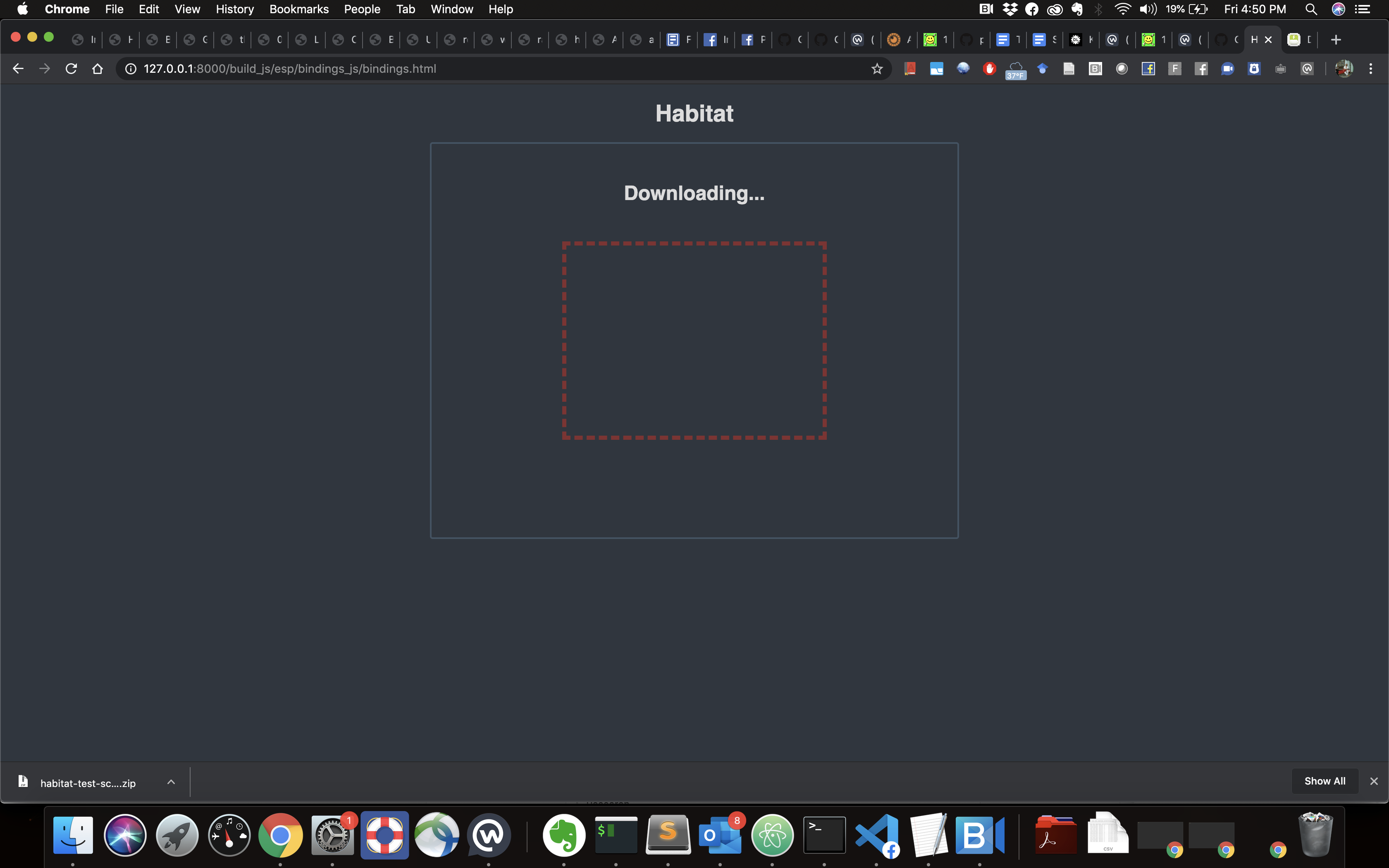

Corresponding output in the browser:

Detailed view from the terminal:

python -m http.server 8000 --bind 127.0.0.1
Serving HTTP on 127.0.0.1 port 8000 (http://127.0.0.1:8000/) ...
127.0.0.1 - - [14/Mar/2020 14:53:19] "GET /build_js/esp/bindings_js/bindings.html HTTP/1.1" 200 -
127.0.0.1 - - [14/Mar/2020 14:53:20] "GET /build_js/esp/bindings_js/WebApplication.css HTTP/1.1" 200 -
127.0.0.1 - - [14/Mar/2020 14:53:20] "GET /build_js/esp/bindings_js/WindowlessEmscriptenApplication.js HTTP/1.1" 200 -
127.0.0.1 - - [14/Mar/2020 14:53:20] "GET /build_js/esp/bindings_js/bundle.js?4c536547307b8acf0c58 HTTP/1.1" 200 -
127.0.0.1 - - [14/Mar/2020 14:53:20] code 404, message File not found
127.0.0.1 - - [14/Mar/2020 14:53:20] "GET /build_js/esp/bindings_js/hsim_bindings.js HTTP/1.1" 404 -
127.0.0.1 - - [14/Mar/2020 14:53:20] code 404, message File not found
127.0.0.1 - - [14/Mar/2020 14:53:20] "GET /build_js/esp/bindings_js/hsim_bindings.js HTTP/1.1" 404 -

System Info

ENVIRONMENT INFO:
Platform: Darwin-18.7.0-x86_64-i386-64bit
Machine: x86_64
Processor: i386
Libc version:
Mac version: 10.14.6
Python version: 3.6.10
Architecture: 64bit
Win version:
System OS: Darwin
Release: 18.7.0
Version: Darwin Kernel Version 18.7.0: Tue Aug 20 16:57:14 PDT 2019; root:xnu-4903.271.2~2/RELEASE_X86_64
Operational System: darwin
GCC version: Apple LLVM version 10.0.1 (clang-1001.0.46.4)
CMAKE version: cmake version 3.14.0
NVIDIA-SMI:
Pip packages versions:

Conda packages versions:
attrs 19.3.0 py_0 19.1.0
numba 0.48.0 pypi_0 pypi
numpy 1.18.1 pypi_0 pypi
numpy-quaternion 2019.12.11.22.25.52 pypi_0 pypi
pillow 7.0.0 py36h4655f20_0
scipy 1.4.1 py36h9fa6033_0 1.3.0
tqdm 4.43.0 pypi_0 pypi

[dhruvbatra]

CC: @apsdehal and @msbaines

[msbaines]

This is a regression caused by #334 which changed RUNTIME_OUTPUT_DIRECTORY

You can temporarily workaround via:

cp -v build_js/Release/bin/hsim_bindings.* build_js/esp/bindings_js/

[dhruvbatra]

CC: @mosra about the regression.

[rutadesai]

Thanks, all!

I tried what @msbaines suggested. I don't get the 404 (file not found) error anymore. No other errors are seen in the terminal. But the browser still doesn't show anything. I also see wasm streaming compile failed: TypeError: Failed to execute 'compile' on 'WebAssembly': Incorrect response MIME type. Expected 'application/wasm'. falling back to ArrayBuffer instantiation error in the browser.

Terminal output:

(habitat) rutadesai-mbp:habitat-sim rutadesai$ python -m http.server 8000 --bind 127.0.0.1
Serving HTTP on 127.0.0.1 port 8000 (http://127.0.0.1:8000/) ...
127.0.0.1 - - [30/Mar/2020 23:43:29] "GET /build_js/esp/bindings_js/hsim_bindings.js HTTP/1.1" 200 -
127.0.0.1 - - [30/Mar/2020 23:43:29] "GET /build_js/esp/bindings_js/hsim_bindings.wasm HTTP/1.1" 200 -

Output in the browser:

[vidhiJain]

I tried the same steps and copied the RUNTIME_OUTPUT_DIRECTORY bindings but I still get the file not found error.

The viewer.html and bindings.html code seems to load 'hsim_bindings.js' which is a huge monolith of javascript. I have not found the way to check the path for the scenes yet. How to proceed in this case?

[apsdehal]

Hi,
As per the error message, it seems like you are missing the required files in the /build_js/esp/bindings_js/ folder itself. Can you copy them into that folder? The first point of https://github.com/facebookresearch/habitat-sim#webgl describes where to find the test data.
