ipredsim with multiple endpoints

[john-harrold]

In the example below I have two endpoints in my model and I'm trying to simulate and get those two endpoints with residual error. When I run the simulation below ipredSim will only return NA. Can someone point out where I'm going wrong?

library(rxode2)

my_model <- function() {
ini({
   # Typical Value of System Parameters
   TV_F1           = fixed(c(.Machine$double.eps, 0.744, .Machine$double.xmax))
   TV_ka           = c(.Machine$double.eps, 0.282, .Machine$double.xmax)
   TV_CL           =   log(c(.Machine$double.eps, 0.200, .Machine$double.xmax))
   TV_Vc           =   log(c(.Machine$double.eps, 3.61, .Machine$double.xmax))
   TV_Vp           =   log(c(.Machine$double.eps, 2.75, .Machine$double.xmax))
   TV_Q            =   log(c(.Machine$double.eps, 0.747, .Machine$double.xmax))
   TV_MW           = fixed(c(.Machine$double.eps, 140, .Machine$double.xmax))
   TV_BM_IC        = fixed(c(.Machine$double.eps, 1000, .Machine$double.xmax))
   TV_kdeg_BM      = fixed(c(.Machine$double.eps, 0.1, .Machine$double.xmax))
   TV_Emax         = fixed(c(.Machine$double.eps, 100.0, .Machine$double.xmax))
   TV_EC50         = fixed(c(.Machine$double.eps, 300, .Machine$double.xmax))

   # Between-subject variability:
     ETAka +     ETACL +     ETAVc +     ETAVp +     ETAQ +      ETABM_IC +  ETAEmax ~
   c(0.416,
     0,          0.09875,
     0,          0.0786,     0.116,
     0,          0.0619,     0.0377,     0.0789,
     0,          0,          0,          0,          0.699,
     0,          0,          0,          0,          0,          0.05,
     0,          0,          0,          0,          0,          0,          0.10)

   # Error model parameters
   prop_err_pk  =  c(.Machine$double.eps, 0.1, .Machine$double.xmax)
   add_err_pk   =  c(.Machine$double.eps, 0.1, .Machine$double.xmax)

   prop_err_pd  =  c(.Machine$double.eps, 0.1, .Machine$double.xmax)
   add_err_pd   =  c(.Machine$double.eps, 0.1, .Machine$double.xmax)

})
model({
   # System Parameters
   F1          = TV_F1
   ka          = TV_ka*exp(ETAka)
   CL          = exp(TV_CL + ETACL)
   Vc          = exp(TV_Vc + ETAVc)
   # AMTIFY:Cc
   Cc          = Ac/(Vc)
   Vp          = exp(TV_Vp + ETAVp)
   Q           = exp(TV_Q + ETAQ)
   MW          = TV_MW
   BM_IC       = TV_BM_IC*exp(ETABM_IC)
   kdeg_BM     = TV_kdeg_BM
   Emax        = TV_Emax*exp(ETAEmax)
   EC50        = TV_EC50

   # Static Secondary Parameters
   WTTV        = 70
   CL_IND      = CL*(1.0+sex*.1)*(1.0+subtype*.1)
   kel         = CL_IND/Vc*((wt/WTTV))^(-0.35)
   kcp         = Q/Vc*((wt/WTTV))^(-0.35)
   kpc         = Q/Vp*((wt/WTTV))^(-0.35)
   ksyn_BM     = kdeg_BM*BM_IC

   # Dynamic Secondary Parameters
   STIM        = 1.0+ Emax*Cc/(EC50+Cc)

   # non-zero initial conditions
   BM(0)           = BM_IC

   # Defining ODEs
   d/dt(At)    = (-ka*At)
   d/dt(Ac)    = ((ka*At*F1/Vc  -kel*Cc - kcp*Cc  + kpc*Cp*Vp/Vc))*Vc
   d/dt(Cp)    = (kcp*Cc*Vc/Vp - kpc*Cp)
   d/dt(BM)    = ksyn_BM*STIM-(kdeg_BM*BM)

   # Outputs and error models
   C_ng_ml     = Cc*MW
   C_ng_ml ~ add(add_err_pk) + prop(prop_err_pk)

   BM_obs      = BM
   BM_obs  ~ add(add_err_pd) + prop(prop_err_pd)

})
}


sd_sam = c(c(15, 30)/60/24,
           c(1, 3, 6, 12)/24,
           c(1, 3, 7, 14, 21))



ev = et()

# Converting mg to ng
conv = 1e6

nsub = 10
scens = list(
  sd3iv = list(
    desc    = "SD 3 mg IV",
    cmt     = "Ac",
    dtimes  = 0,
    tsam    = sd_sam,
    damts   = 3
  ),
  sd3sc = list(
    desc = "SD 3 mg SC",
    cmt  = "At",
    dtimes  = 0,
    tsam = sd_sam,
    damts= 30
  ),
  sd10iv = list(
    desc    = "SD 30 mg IV",
    cmt     = "Ac",
    dtimes  = 0,
    tsam    = sd_sam,
    damts   = 30
  )
)

max_sub = 0
set.seed(5447)
rxSetSeed(5447)
ev   = et()
iCov = NULL
for(scen in names(scens)){
  # Generating subject IDs
  scen_subs      = c(1:nsub)+max_sub

  # Generating covariates
  scen_sex       = sample(c(0,1),nsub,replace=TRUE)
  scen_subtype   = sample(c(0,1),nsub,replace=TRUE)
  scen_wt        = exp(rnorm(nsub, 0, sd=.1))*70
  for(tmp_sub_idx in 1:length(scen_subs)){
    tmp_ev =
    et(id   = scen_subs[tmp_sub_idx],
       amt  = scens[[scen]][["damts"]]*conv,
       time = scens[[scen]][["dtimes"]],
       cmt  = scens[[scen]][["cmt"]]
      )|>
    et(id   = scen_subs[tmp_sub_idx],
       time = unique(c(scens[[scen]][["tsam"]])),
       cmt   = "C_ng_ml"
    ) |>
    et(id   = scen_subs[tmp_sub_idx],
       time = unique(c(scens[[scen]][["tsam"]])),
       cmt   = "BM_obs"
    )
     ev = etRbind(ev, tmp_ev)
    iCov = rbind(iCov,
      data.frame(
        id      = scen_subs[tmp_sub_idx],
        sex     = scen_sex[[tmp_sub_idx]],
        wt      = scen_wt[[tmp_sub_idx]],
        subtype = scen_subtype[[tmp_sub_idx]]
      )
    )
  }
  max_sub = max(scen_subs)
}

sim = rxSolve(my_model, events=ev, iCov=iCov)

[mattfidler]

It seems to be an error in rxode2 somewhere.

This work-around fixes this for now:

library(rxode2)
#> rxode2 4.1.0.9000 using 11 threads (see ?getRxThreads)
#>   no cache: create with `rxCreateCache()`

my_model <- function() {
  ini({
    # Typical Value of System Parameters
    TV_F1           = fixed(c(.Machine$double.eps, 0.744, .Machine$double.xmax))
    TV_ka           = c(.Machine$double.eps, 0.282, .Machine$double.xmax)
    TV_CL           =   log(c(.Machine$double.eps, 0.200, .Machine$double.xmax))
    TV_Vc           =   log(c(.Machine$double.eps, 3.61, .Machine$double.xmax))
    TV_Vp           =   log(c(.Machine$double.eps, 2.75, .Machine$double.xmax))
    TV_Q            =   log(c(.Machine$double.eps, 0.747, .Machine$double.xmax))
    TV_MW           = fixed(c(.Machine$double.eps, 140, .Machine$double.xmax))
    TV_BM_IC        = fixed(c(.Machine$double.eps, 1000, .Machine$double.xmax))
    TV_kdeg_BM      = fixed(c(.Machine$double.eps, 0.1, .Machine$double.xmax))
    TV_Emax         = fixed(c(.Machine$double.eps, 100.0, .Machine$double.xmax))
    TV_EC50         = fixed(c(.Machine$double.eps, 300, .Machine$double.xmax))

    # Between-subject variability:
    ETAka +     ETACL +     ETAVc +     ETAVp +     ETAQ +      ETABM_IC +  ETAEmax ~
      c(0.416,
        0,          0.09875,
        0,          0.0786,     0.116,
        0,          0.0619,     0.0377,     0.0789,
        0,          0,          0,          0,          0.699,
        0,          0,          0,          0,          0,          0.05,
        0,          0,          0,          0,          0,          0,          0.10)

    # Error model parameters
    prop_err_pk  =  c(.Machine$double.eps, 0.1, .Machine$double.xmax)
    add_err_pk   =  c(.Machine$double.eps, 0.1, .Machine$double.xmax)

    prop_err_pd  =  c(.Machine$double.eps, 0.1, .Machine$double.xmax)
    add_err_pd   =  c(.Machine$double.eps, 0.1, .Machine$double.xmax)

  })
  model({
    # System Parameters
    F1          = TV_F1
    ka          = TV_ka*exp(ETAka)
    CL          = exp(TV_CL + ETACL)
    Vc          = exp(TV_Vc + ETAVc)
    # AMTIFY:Cc
    Cc          = Ac/(Vc)
    Vp          = exp(TV_Vp + ETAVp)
    Q           = exp(TV_Q + ETAQ)
    MW          = TV_MW
    BM_IC       = TV_BM_IC*exp(ETABM_IC)
    kdeg_BM     = TV_kdeg_BM
    Emax        = TV_Emax*exp(ETAEmax)
    EC50        = TV_EC50

    # Static Secondary Parameters
    WTTV        = 70
    CL_IND      = CL*(1.0+sex*.1)*(1.0+subtype*.1)
    kel         = CL_IND/Vc*((wt/WTTV))^(-0.35)
    kcp         = Q/Vc*((wt/WTTV))^(-0.35)
    kpc         = Q/Vp*((wt/WTTV))^(-0.35)
    ksyn_BM     = kdeg_BM*BM_IC

    # Dynamic Secondary Parameters
    STIM        = 1.0+ Emax*Cc/(EC50+Cc)

    # non-zero initial conditions
    BM(0)           = BM_IC

    # Defining ODEs
    d/dt(At)    = (-ka*At)
    d/dt(Ac)    = ((ka*At*F1/Vc  -kel*Cc - kcp*Cc  + kpc*Cp*Vp/Vc))*Vc
    d/dt(Cp)    = (kcp*Cc*Vc/Vp - kpc*Cp)
    d/dt(BM)    = ksyn_BM*STIM-(kdeg_BM*BM)

    # Outputs and error models
    C_ng_ml     = Cc*MW
    add_err_0 = add_err_pk
    prop_err_0 = prop_err_pk
    C_ng_ml ~ add(add_err_pk) + prop(prop_err_pk)

    BM_obs      = BM

    BM_obs  ~ add(add_err_pd) + prop(prop_err_pd)

  })
}


sd_sam = c(c(15, 30)/60/24,
           c(1, 3, 6, 12)/24,
           c(1, 3, 7, 14, 21))



ev = et()

# Converting mg to ng
conv = 1e6

nsub = 10
scens = list(
  sd3iv = list(
    desc    = "SD 3 mg IV",
    cmt     = "Ac",
    dtimes  = 0,
    tsam    = sd_sam,
    damts   = 3
  ),
  sd3sc = list(
    desc = "SD 3 mg SC",
    cmt  = "At",
    dtimes  = 0,
    tsam = sd_sam,
    damts= 30
  ),
  sd10iv = list(
    desc    = "SD 30 mg IV",
    cmt     = "Ac",
    dtimes  = 0,
    tsam    = sd_sam,
    damts   = 30
  )
)

max_sub = 0
set.seed(5447)
rxSetSeed(5447)
ev   = et()
iCov = NULL
for(scen in names(scens)){
  # Generating subject IDs
  scen_subs      = c(1:nsub)+max_sub

  # Generating covariates
  scen_sex       = sample(c(0,1),nsub,replace=TRUE)
  scen_subtype   = sample(c(0,1),nsub,replace=TRUE)
  scen_wt        = exp(rnorm(nsub, 0, sd=.1))*70
  for(tmp_sub_idx in 1:length(scen_subs)){
    tmp_ev =
      et(id   = scen_subs[tmp_sub_idx],
         amt  = scens[[scen]][["damts"]]*conv,
         time = scens[[scen]][["dtimes"]],
         cmt  = scens[[scen]][["cmt"]]
         )|>
      et(id   = scen_subs[tmp_sub_idx],
         time = unique(c(scens[[scen]][["tsam"]])),
         cmt   = "C_ng_ml"
         ) |>
      et(id   = scen_subs[tmp_sub_idx],
         time = unique(c(scens[[scen]][["tsam"]])),
         cmt   = "BM_obs"
         )
    ev = etRbind(ev, tmp_ev)
    iCov = rbind(iCov,
                 data.frame(
                   id      = scen_subs[tmp_sub_idx],
                   sex     = scen_sex[[tmp_sub_idx]],
                   wt      = scen_wt[[tmp_sub_idx]],
                   subtype = scen_subtype[[tmp_sub_idx]]
                 )
                 )
  }
  max_sub = max(scen_subs)
}

my_model <- my_model()

sim = rxSolve(my_model, events=etTrans(ev, my_model, addCmt=TRUE), iCov=iCov)
#> using C compiler: ‘gcc (Ubuntu 11.4.0-1ubuntu1~22.04.2) 11.4.0’

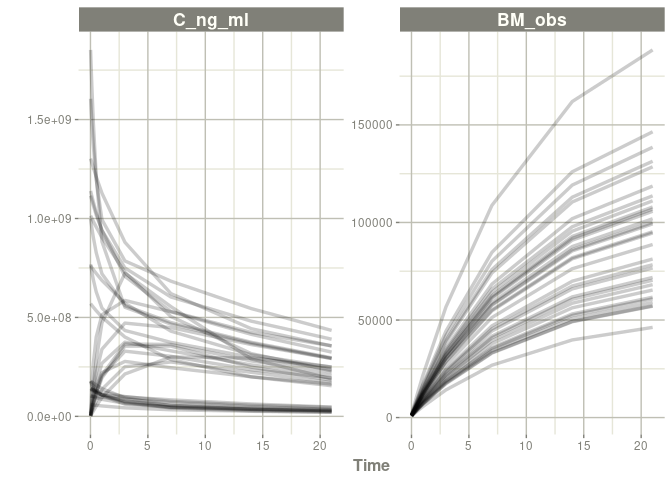

plot(sim, ipredSim)

^{Created on 2025-10-02 with reprex v2.1.1}
