EIYM Protector v2

.NET Assembly Protector & Obfuscator

Developed by MasonGroup (Freemasonry) Team: Battal Alqhtani & Turki Alotibi

---

About

EIYM Protector is an advanced .NET assembly protector built with dnlib. It applies multiple layers of obfuscation and protection to your .NET executables and libraries, making reverse engineering extremely difficult.

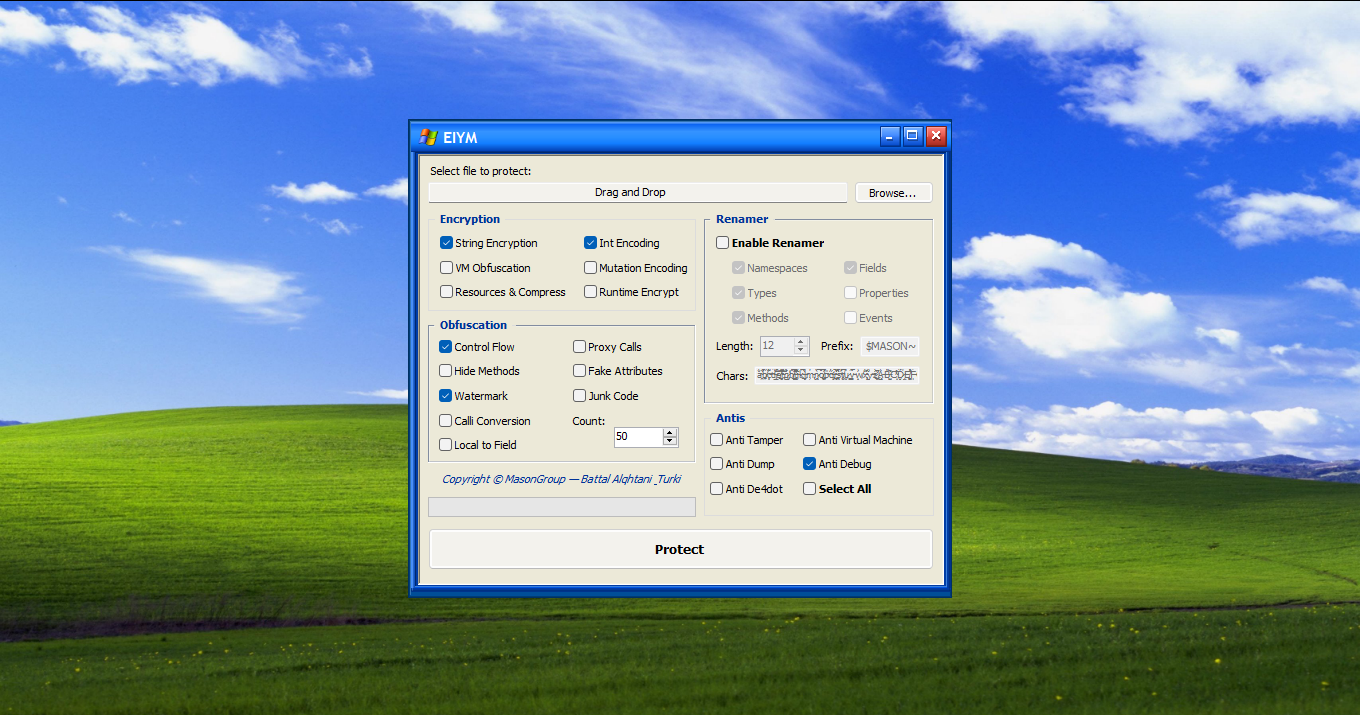

Simply select your .exe or .dll, choose your protections, and click Protect. You can also drag and drop files directly onto the application.

---

Features (21 Protections)

1. String Encryption

Encrypts all hardcoded strings using XOR with per-string random keys. Strings are decrypted at runtime.

Before:

computerInfo.OSFullName.Replace("Microsoft", null),

After:

computerInfo.OSFullName.Replace(g\u0348\u0318\u0329\u0341\u031B\u0345\u0334\u035C\u0303\u031B\u030618.\u0310\u0353\u0347\u0332\u032F\u032F\u030E\u0345\u0344\u0315\u034B\u034A67("^\u0096huT||", "\u0001\u0017", \u0345\u0310\u031B\u030D\u0340\u0318\u0322\u033C\u0331\u0335\u0301\u03257.\u0300\u0316\u0314\u033Bj\u0357S\u0309\u0325\u0325\u0344\u032015(730685 ^ 730730, 631441 ^ 631453)), null),

2. Int Encoding

Replaces integer constants with mathematical expressions using 4 methods: XOR, ADD, SUB, and double-XOR.

Before:

int port = 8080;

After:

int port = 95847 ^ 87767;

3. Control Flow Obfuscation

Inserts fake conditional branches at method entry points. Real code always executes, but decompilers show confusing junk paths.

4. Anti Debug (8 Layers)

Multi-layered debugger detection system:

• Debugger.IsAttached — managed debugger check
• Debugger.IsLogging — logging-based detection
• Process scanning — detects debugger tools by process name (dnSpy, x64dbg, OllyDbg, IDA, etc.)
• Timing checks — detects single-stepping via GetTickCount measurements
• Entry point guard — additional check at program start
• Background thread monitor — continuous loop checking for debugger attachment
• Scattered checks — anti-debug checks injected randomly throughout user methods
• Multiple exit strategies — Environment.Exit with random codes, infinite loops

5. Anti Virtual Machine

Detects analysis VMs using WMI hardware queries:

• VMware (manufacturer check)
• VirtualBox (model check)
• Hyper-V (Microsoft Corporation + VIRTUAL model)

If a VM is detected, the application exits immediately.

6. Anti Dump

Injects compiler-styled trap types (<>c__AntiDump, <>f__DumpTrap, etc.) that break memory dumping tools like MegaDumper and ExtremeDumper. Trap types use <> naming convention so they appear as compiler-generated code.

7. Anti Tamper

Dual integrity verification at runtime:

• Size check — verifies the file size hasn't been modified
• Checksum verification — computes and validates a hash of the assembly bytes

If tampering is detected, the application exits.

8. Anti De4dot

Injects decoy types, interfaces, and attributes that crash de4dot (the popular .NET deobfuscator) when it tries to process the assembly.

9. Resources Encoding

Multi-layer resource encryption:

1. Resources are wrapped in satellite assemblies
2. Compressed with DeflateStream
3. Encrypted with 3-layer XOR (positional key + rolling key + NOT + secondary key)
4. 16-byte header stores encryption keys
5. Resources are renamed to obfuscated names
6. Runtime resolver automatically decrypts resources when accessed
7. 15-30 decoy resources added with fake headers (PNG, BMP, ICO, BAML, zlib, .resources magic)

10. Proxy Calls

Redirects method calls through dynamically generated proxy delegate methods, hiding the real call targets from static analysis.

11. Hide Methods

Applies decompiler-confusing attributes to methods, making them harder to analyze in tools like dnSpy and ILSpy.

12. Fake Attributes

Adds misleading .NET attributes to types and methods (e.g., fake CompilerGenerated, DebuggerHidden, Obfuscation attributes).

13. Watermark

Embeds an encrypted build stamp with:

• UTC timestamp (XOR-encoded)
• Unique build ID
• Encrypted signature string
• Dummy fields for noise

14. VM Obfuscation

Converts method bodies into custom virtual machine bytecode. Methods are interpreted at runtime by an injected VM engine, making static analysis of the original IL nearly impossible.

15. Calli Conversion

Replaces direct call instructions with indirect calli instructions using function pointers. This breaks most decompilers and static analysis tools.

16. Local to Field

Converts method local variables to static fields in <Module>, scattering data across the assembly and confusing decompilers.

17. Mutation Encoding

Adds mathematical mutations to integer operations — wrapping simple math in nested XOR/ADD/SUB layers that produce the same result but are much harder to analyze.

18. Junk Code

Injects fake classes with fake methods, fields, and properties. Configurable count (default: 50, max: 500). Each junk class contains:

• 3-10 random fields
• 5-15 methods with random math operations
• 2-5 properties

19. Scattered Anti-Debug

Injects anti-debug checks (Debugger.IsAttached / IsLogging) randomly throughout existing user methods. ~30% of eligible methods get a check at their entry point.

20. Metadata Confusion

Corrupts assembly metadata to break analysis tools and decompilers while keeping the runtime functional.

21. Runtime Encryption (RE)

The most advanced protection layer in the entire suite — method bodies are encrypted at build time using AES-256-CBC and replaced with lightweight stubs. The original IL code is completely removed from the assembly metadata.

At runtime, a custom dispatcher intercepts calls, decrypts the original IL bytecode, and reconstructs the method using System.Reflection.Emit.DynamicMethod. The rebuilt method executes from memory only — it never exists on disk in its original form and is invisible to static analysis tools.

Architecture:

• AES-256-CBC Decryptor — dedicated decryption engine with per-assembly random key and IV
• IL Rebuilder — full instruction-by-instruction reconstruction engine supporting all .NET opcodes, branches, locals, exception handlers, and token resolution
• Delegate Cache — each method is rebuilt once and cached as a delegate for near-native performance on subsequent calls
• Compact Storage — encrypted bodies stored via RuntimeHelpers.InitializeArray with FieldRVA for minimal PE overhead

Before (original IL visible in dnSpy / ILSpy):

public static int Multiply(int x, int y)
{
    return x * y;
}

public static string DoWork(int a, int b)
{
    int sum = a + b;
    string grade = GetGrade(sum);
    return "Sum=" + sum + " Grade=" + grade;
}

public static int Fibonacci(int n)
{
    if (n <= 1) return n;
    int a = 0, b = 1;
    for (int i = 2; i <= n; i++)
    {
        int temp = a + b;
        a = b;
        b = temp;
    }
    return b;
}

After (method bodies replaced — only stubs visible):

public static int Multiply(int x, int y)
{
    // Original code is GONE — replaced with encrypted dispatcher call
    return (int)VmybbmOtgN1.UXerZObhCpDJ18(
        729982902 ^ 729982903,       // XOR-obfuscated method index
        new object[] { x, y }        // parameters packed as object array
    );
}

public static string DoWork(int a, int b)
{
    return (string)VmybbmOtgN1.UXerZObhCpDJ18(
        767991271 ^ 767991271,
        new object[] { a, b }
    );
}

public static int Fibonacci(int n)
{
    return (int)VmybbmOtgN1.UXerZObhCpDJ18(
        848283082 ^ 848283087,
        new object[] { n }
    );
}

What an attacker sees in dnSpy:

• Every protected method contains only a stub that calls the dispatcher
• The original IL bytecode exists nowhere in the PE file — it is AES-encrypted in opaque byte arrays
• Even memory dumps cannot recover the original code in readable form since DynamicMethod is invisible to reflection
• The dispatcher, rebuilder, and all helper methods use obfuscated names

Protection scope: All eligible static methods are encrypted. Constructors, Main, virtual methods, and generic methods are excluded for CLR compatibility.

---

Renamer

Disabled by default. When enabled, renames code elements to random strings.

Option	What it renames
Namespaces	All namespace names
Types	Classes, structs, enums
Methods	Methods (skips constructors, Main, virtual, InitializeComponent)
Fields	Field names
Properties	Property names
Events	Event names

Settings:

• Length: Random name length (5-50 chars)
• Prefix: Prepended to each name (default: $MASON~)
• Chars: Character set for random names

Safety: Automatically skips entry points, constructors, virtual/abstract methods, WinForms InitializeComponent, property accessors, event handlers, runtime special names, serializable fields, and resource-related types.

---

How to Use

1. Browse or drag and drop your .exe / .dll file
2. Check the protections you want (or use Select All)
3. Configure the renamer if needed
4. Click Protect
5. Choose where to save the protected file

---

v2 vs v1 — What Changed

Feature	v1 (Old)	v2 (New)
Anti Debug	Single Debugger.IsAttached check	8-layer system: managed checks, process scanning, timing detection, background thread, scattered checks
Anti Dump	Basic trap types	Compiler-styled trap types (<>c__) that survive metadata confusion
Anti Tamper	Not available	Dual verification: file size + checksum
Anti De4dot	Not available	Decoy types/interfaces that crash de4dot
Resources Encoding	Simple XOR with random key	Satellite assembly wrapping + DeflateStream compression + 3-layer XOR encryption + runtime resolver + 15-30 decoy resources
VM Obfuscation	Not available	Full custom VM interpreter for method bodies
Calli Conversion	Not available	Indirect call instruction replacement
Local to Field	Not available	Local-to-static-field conversion
Mutation Encoding	Not available	Mathematical mutation layers on integer ops
Proxy Calls	Not available	Delegate-based call proxying
Hide Methods	Not available	Decompiler-confusing method attributes
Fake Attributes	Not available	Misleading .NET attributes
Scattered Anti-Debug	Not available	Anti-debug checks spread across user methods
Metadata Confusion	Not available	Metadata corruption for tool resistance
Runtime Encryption	Not available	AES-256 method body encryption + DynamicMethod rebuild at runtime
Drag & Drop	Not available	Drag and drop files onto the app
Renamer Safety	Could break WinForms/resources	Smart skipping of WinForms, serializable, resources
Stability	P/Invoke crashes on some systems	All managed code, no native P/Invoke crashes
Protections Total	7	21

---

Requirements

• .NET Framework 4.7.2+
• dnlib 4.5.0 (included via NuGet)

---

Build

Open MasonProtector.sln in Visual Studio
Build → Rebuild Solution (Debug or Release)

---

License

MIT License — See LICENSE for details.

---

MasonGroup (Freemasonry) — Battal Alqhtani & Turki Alotibi
