• Family: three_jaw_scroll_chuck — family-assembly
• Closes [family-assembly] three_jaw_scroll_chuck #81
• A nine-body parametric RÖHM DURO-M geared scroll chuck: one-piece body, rear cover, scroll plate (Archimedean spiral thread on the face, straight-bevel crown ring on the back), three outward-stepped BB jaws engaged in the spiral through underside arc teeth, and three straight-bevel radial drive pinions meshing the crown ring.

Official manufacturer references — copied from Family Issue #81

Only the two primary review references are reproduced here; the complete reference set remains in Issue #81.

RÖHM DURO-M product and cutaway reference (the cutaway on the right page shows the drive train this PR models: key → radial bevel pinion → bevel ring on the scroll back → spiral → jaw teeth)

Primary DIN 6350 dimensional drawing and table

---

Generated — benchmark views (what the model sees)

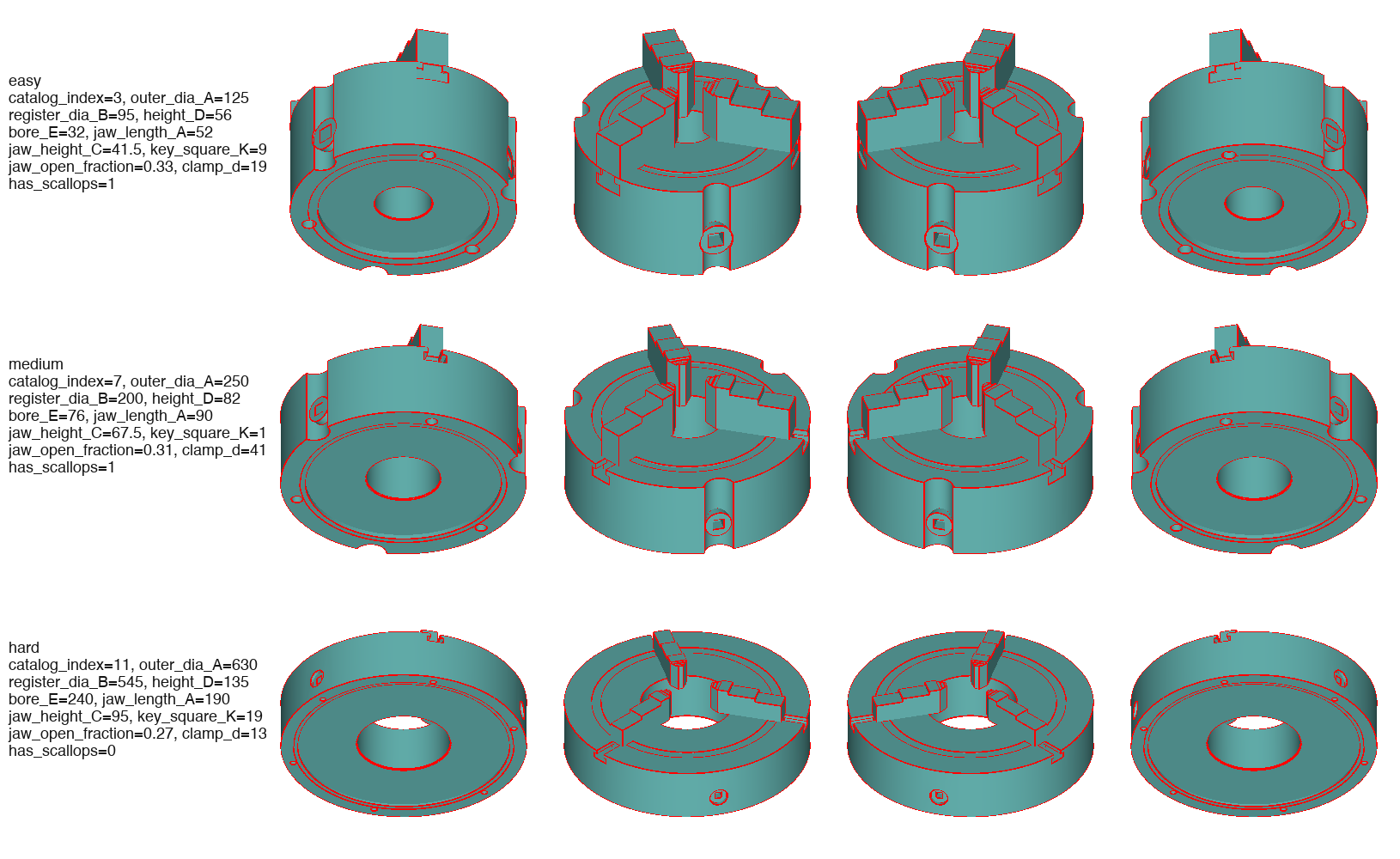

Image below — preview_views.png: four benchmark viewing directions used by the model.

---

Generated — easy / medium / hard samples

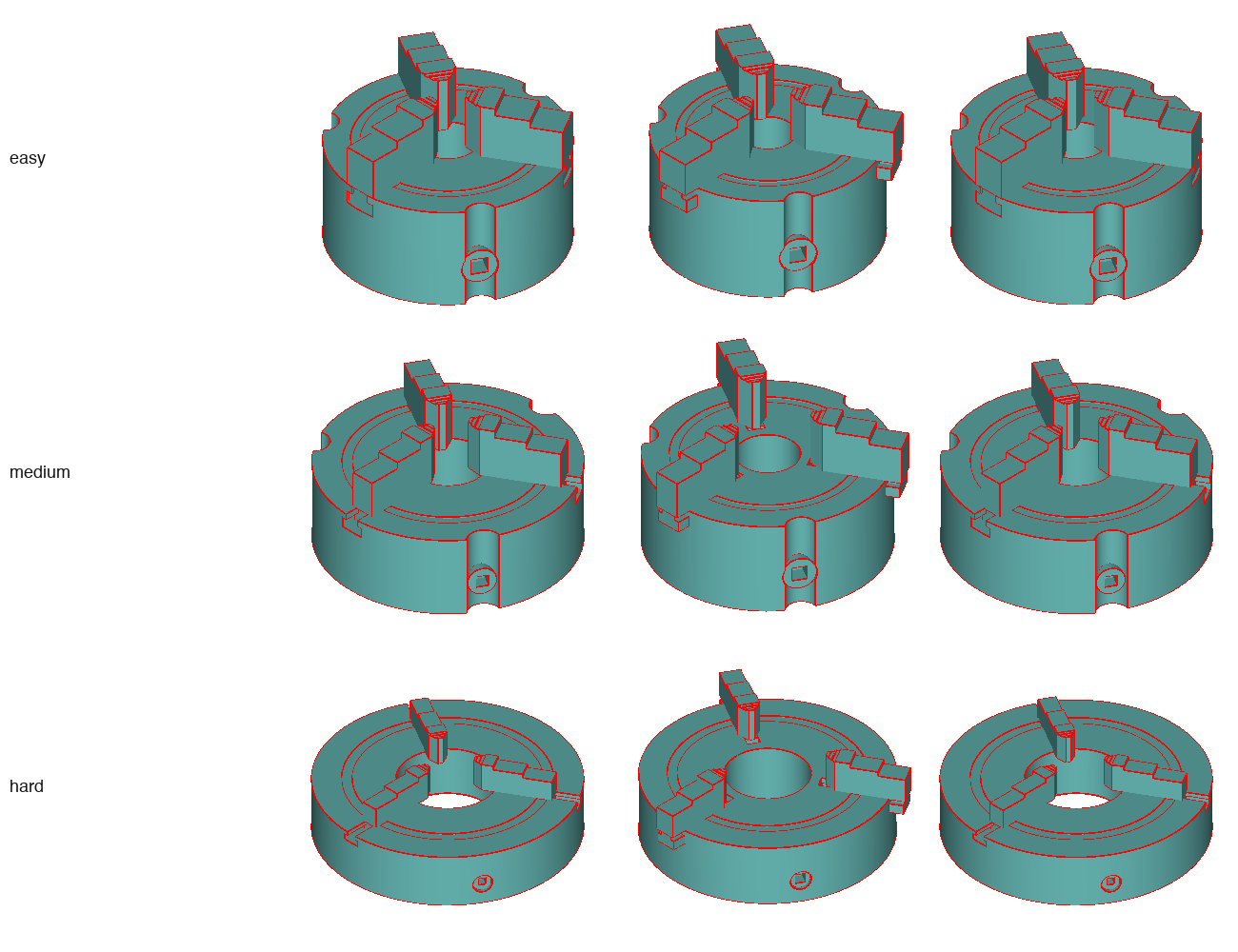

Image below — preview.png: easy samples are the top row, medium samples are the middle row, and hard samples are the bottom row.

---

Extremes — smallest & largest sampled instances

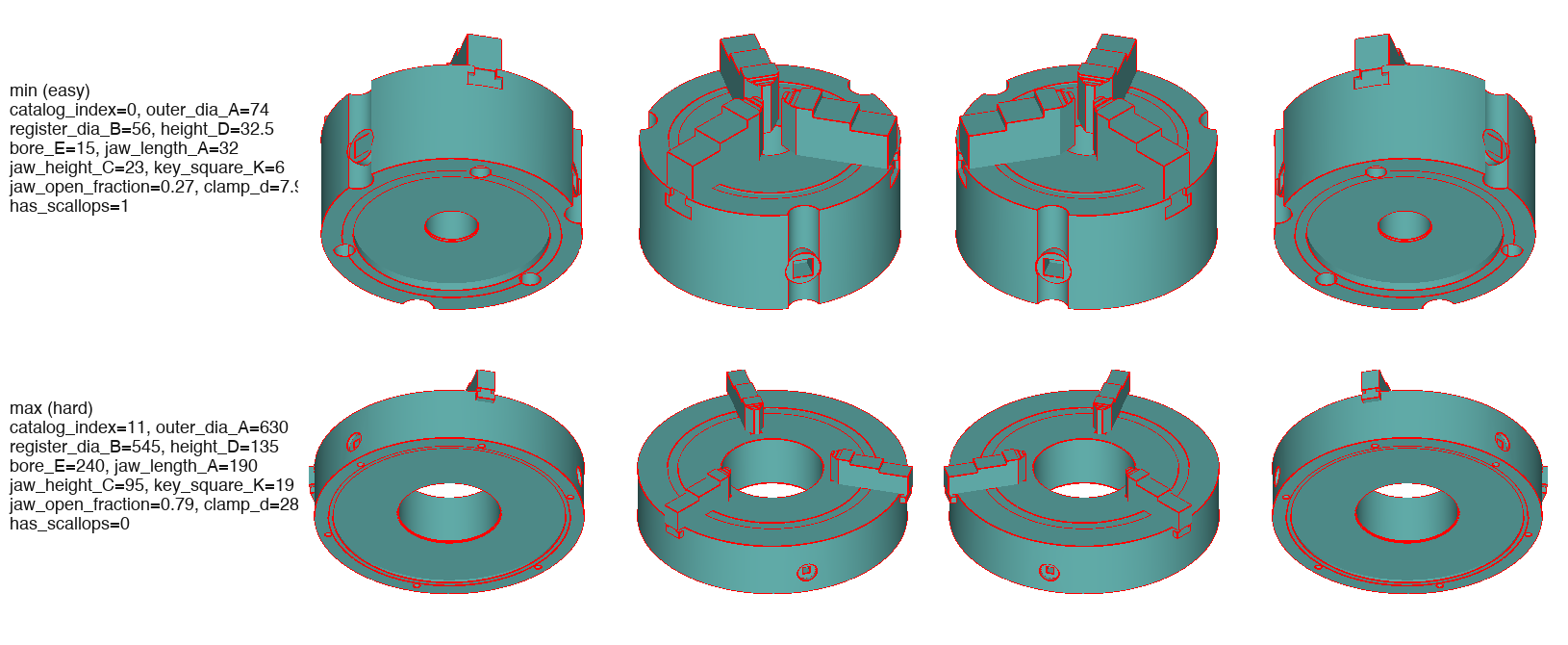

Image below — preview_extremes.png: the smallest sampled instance is the top row, and the largest sampled instance is the bottom row.

---

Three-view + iso — hard example

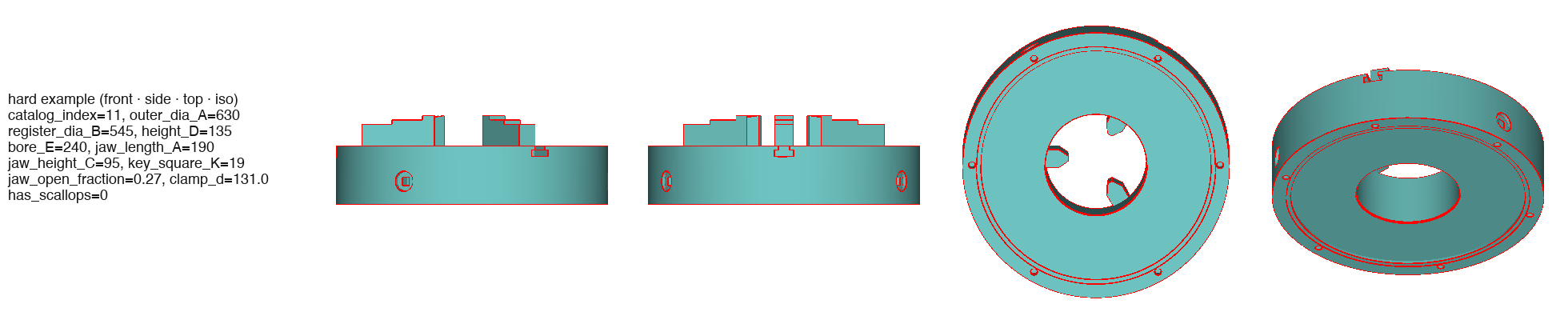

Image below — preview_hard_zoom.png: front/side/top/iso of a hard example (the benchmark views are all diagonal isos).

---

Per-part renders (assembly evidence)

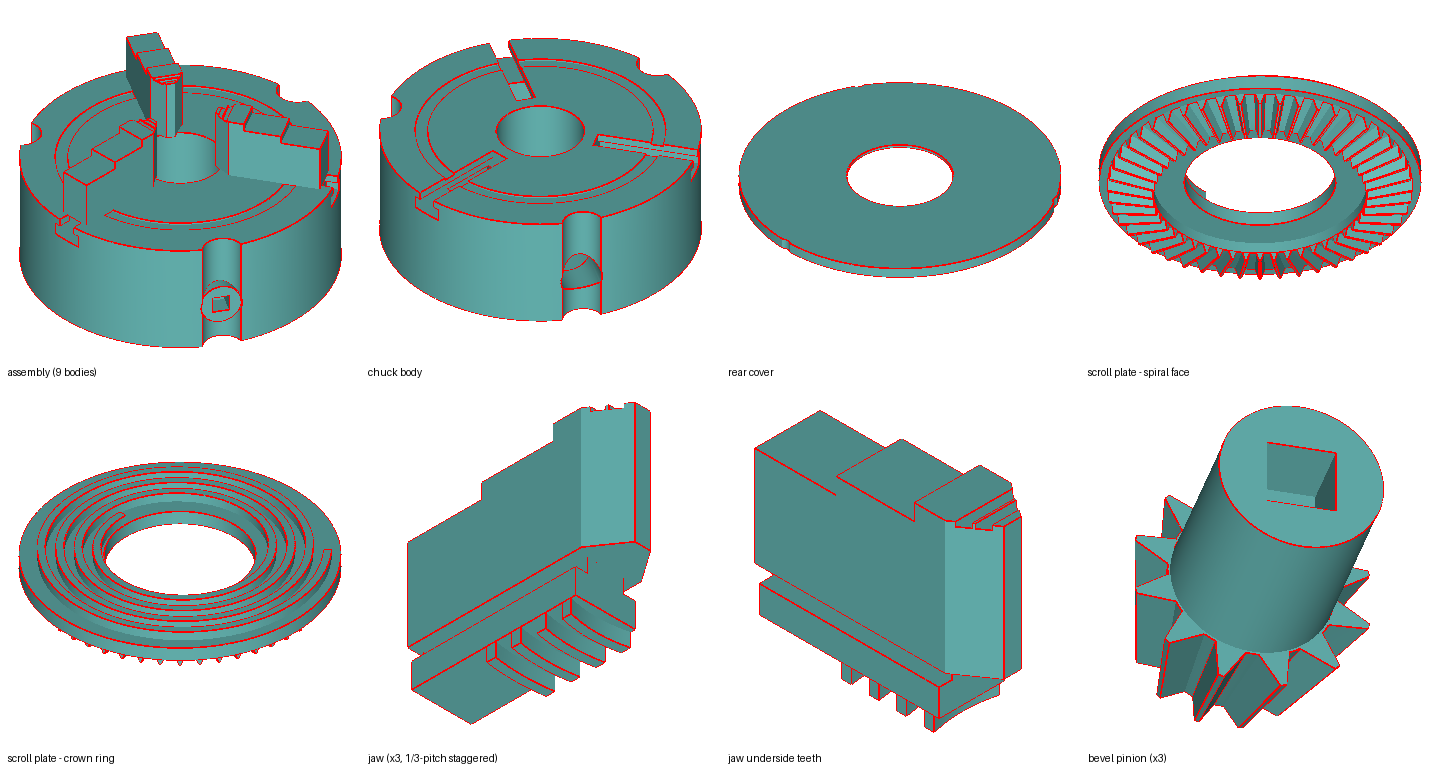

Image below — preview_parts.png: every component in isolation next to the assembly — body, cover, scroll plate from both sides (spiral face / crown ring), jaw from both sides (steps / underside arc teeth), bevel pinion.

How it's parameterized

• catalog_index is discrete and maps one-to-one to all 12 official DIN 6350 cylindrical-centre-mount catalogue rows, sizes 74–630.
• Parameters carry the drawing symbol (repo convention [docs] dimension-table columns must be named physical-quantity + drawing symbol (height_G, not G) #100): chuck outer_dia_A, register_dia_B, register_depth_C, height_D, bore_E, bolt_circle_F, mount_thread_G, key_square_K; jaw BB jaw_length_A … jaw_step_H, including the previously unused BB rows jaw_serration_D (drives the scroll thread pitch) and jaw_tongue_E (drives the T-flange height).
• refine() copies the selected row's values verbatim; no dimensions are mixed across rows.
• jaw_open_fraction is the only continuous operating-state parameter: clamp_d = grip_min_A1 + jaw_open_fraction × (grip_max_A1 − grip_min_A1).
• Easy covers indices 0–3, medium 4–7 and hard 8–11; coverage enforces all 12 rows.
• The internal drive train derives per row in part.py:_layout (mirrored in check()): crown tooth count Z_w solves the axial budget and rounds up to a multiple of 3 (so all three pinion meridians are in phase), module m = 2·R_ring/Z_w, tan δ_wheel = Z_w/Z_p with Z_p = 12, shared pitch-cone apex on the chuck axis. Z_w ranges 45–84, δ_wheel ≈ 75–82° across the rows. Details and every proportion: NOTES.md.
• check() also bounds nose collision (clamp_d ≥ 0.16·jaw_width_B), guideway engagement (≥ 30 % of jaw length) and spiral engagement (≥ 2 pitches); all 12 rows stay feasible over their full published A1 range.

Engagement verification (all 12 rows × A1 extremes)

Measured with OCC boolean/extrema probes on every row at jaw_open_fraction 0.15 and 0.85:

• 9 solids everywhere, each compound member exactly one solid;
• pairwise intersection volume = 0 for all 36 body pairs (no interpenetration);
• spiral ↔ jaw-teeth interleave gap = the design running clearance (0.20–0.54 mm by size);
• crown ↔ pinion mesh backlash 0.18–1.6 mm (≈ 0.2–0.4 module);
• jaws overhang the body OD only at large A1 openings, which the catalogue's own chucking ranges imply.

bench2 validate three_jaw_scroll_chuck → PASS (12-row coverage, distinct difficulties, 9 non-degenerate solids per instance).

Visible modeling simplifications and constraints

• Exact catalogue data: 12 coupled product rows, chuck A/B/C/D/E/F/G/K dimensions, mounting-hole count, BB jaw A/B/C/D/E/F/G/H envelopes and published A1 gripping ranges.
• Bevel teeth are straight with planar flanks and computed backlash (no involute/octoid curvature); the scroll thread is rectangular in section; jaw teeth are concentric arc segments at the local spiral gap radii (the arc-vs-spiral deviation is inside the side clearance, per size).
• The rear DIN 6350 register is a recess cut into the back (per the catalogue section view); mounting holes are blind from the back, so the front face stays clean.
• G threads are nominal cylindrical holes; no false helical detail.
• Cover screws, pinion retaining details, lubrication features and edge breaks below catalogue resolution are not modelled. NOTES.md lists every derived proportion.

Checklist

• bench2 validate three_jaw_scroll_chuck passes locally
• preview.png, preview_views.png, preview_extremes.png, preview_hard_zoom.png, preview_parts.png regenerated from the current geometry and manually inspected
• family.json declares "solids": 9; every sampled body is non-degenerate
• all 12 official catalogue rows are reachable and remain coupled
• every PARAM_SPEC.source and check() rule cites the catalogue or an honest proportion/operating-state derivation
• the family directory contains exactly the package deliverables (source + NOTES.md + 5 renders)
• final commits are DCO-signed and the PR diff touches only designs/three_jaw_scroll_chuck/

Sources used

• RÖHM DURO-M product page and mechanism description: https://www.roehm.biz/en/duro-m/
• RÖHM Lathe Chucks catalogue: https://www.roehm.biz/fileadmin/user_upload/produkte/PG3_Handspannfutter/en_03_Lathe_chucks_FINISH_231121_en.pdf
  • DURO-M cutaway and operating principle (spiral ring + radial bevel drive): PDF p.19 / printed pp.3034–3035
  • DIN 6350 product rows and A1 chucking ranges: PDF pp.20–22 / printed pp.3042–3044
  • Cylindrical-centre-mount dimensions: PDF p.26 / printed p.3048
  • Outward-stepped BB jaw dimensions (incl. serration D / tongue E bands): PDF p.32 / printed p.3060
• Scroll-plate spare part showing the spiral face + bevel-ring back: https://www.carbideanddiamondtooling.com/Scroll-Plate-for-3-Inch-Scroll-Chuck--ID-658-7-887-303_p_423521.html
• Scroll chuck mechanism overview: https://en.wikipedia.org/wiki/Chuck_(engineering)
