QuestLearn

QuestLearn is a tool which utilizes Google Classroom to create a reward-based economy.

Overview

QuestLearn will be hosted as a web application for use in online learning

• Usable by students and teachers It will be accessible through two different portals
• Teachers connect to Google Classroom
  • Create a reward system
  • Create custom Quests (Assignments)
• Students connect through Google Classroom
  • They can gain currency called QuestCoin
  • QuestCoin is earned through completing assignments or goals
  • Can create a digital avatar which is customizable

Stack

• Software Interfaces
• Google Classroom API - v1 and Google OAuth
• Google Cloud - v2.8.0
  • Google Cloud for storing data
  • Pub/Sub will be used to prevent querying the API repeatedly via a polling service; instead utilizing messaging system
• Mongo DB - 4.0
• Express.js - 4.17.1
• Angular - 10.0.0
• Node.js - 14.15.5

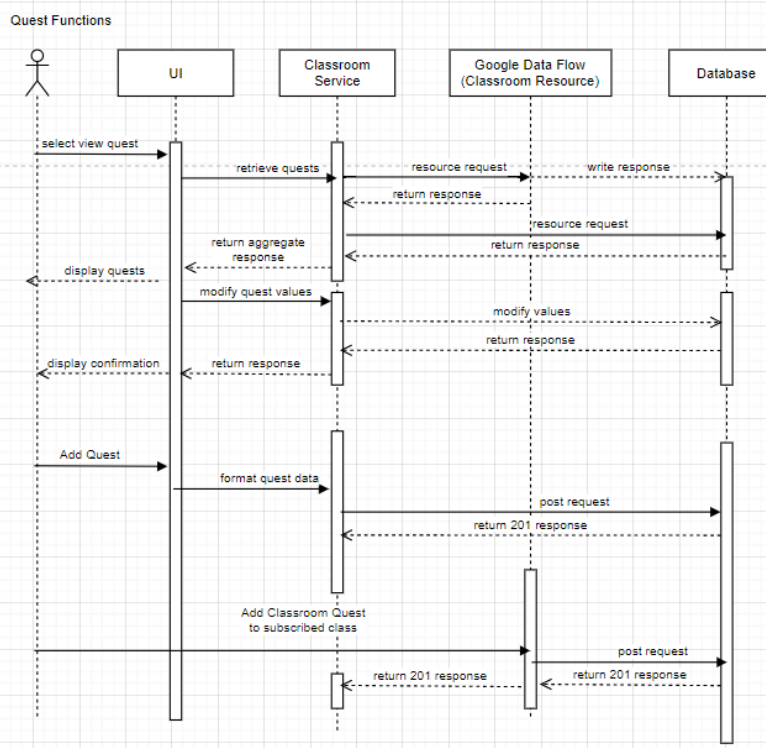

Sequence Diagram

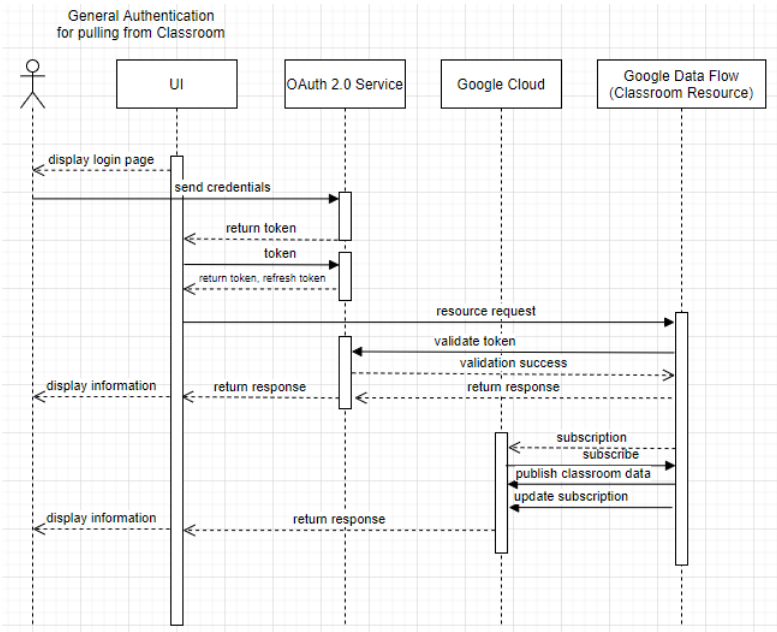

# User registration

# Classroom Service

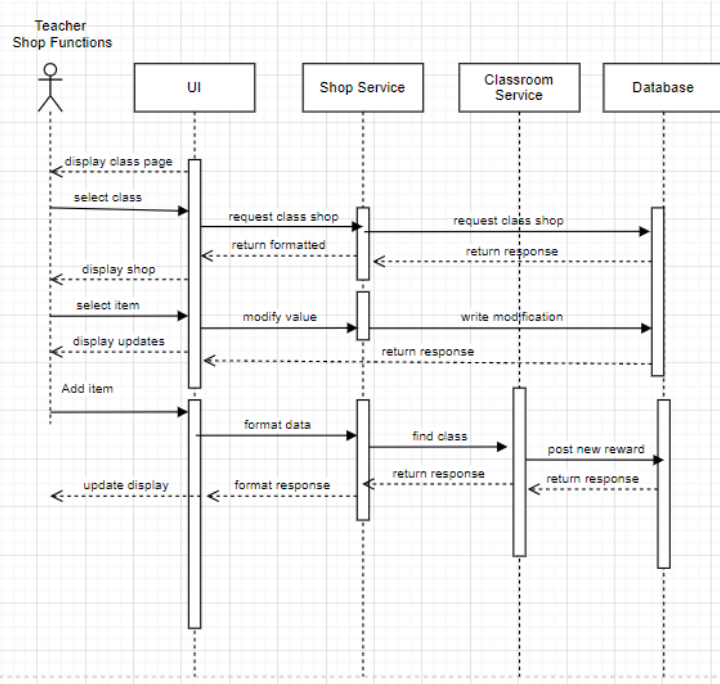

# Shop Service

Full report

Our full final report, with code analyis and more diagrams, can be found here.
