CyberPower PowerPanel Cloud

Note: For best viewing experience, read this documentation on GitHub.

Home Assistant custom integration for CyberPower UPS devices connected via PowerPanel Cloud.

Monitor battery status, power consumption, load, voltage, temperature and more — directly from your Home Assistant dashboard. Get instant notifications on power outages through dedicated events.

Prerequisites

1. A CyberPower UPS registered in PowerPanel Cloud
2. Two-factor authentication must be DISABLED on the PowerPanel Cloud account:
   • Open the PowerPanel Cloud mobile app
   • Go to Account → Security
   • Turn off Two-Factor Authentication
   • The integration uses the mobile app's login flow, which does not support 2FA — login will fail otherwise
3. Temperature unit must be set to Celsius in the PowerPanel Cloud app:
   • Open the PowerPanel Cloud mobile app
   • Go to Account → Settings
   • Set Temperature Unit to °C (Celsius)
   • The API returns raw values without unit indicators — this integration assumes Celsius

Supported devices

Works with any CyberPower UPS registered in PowerPanel Cloud, including models with:

• RWCCARD100 cloud network card
• RWCCARD200 cloud network card
• Built-in cloud connectivity

Tested with:

Model	Cloud Card	Status
OLS2000EA	RWCCARD100	Fully working

If you have a different model working, please open an issue so we can add it to the list.

Features

Sensors

Sensor	Unit	Description
Battery	%	Battery charge level
Battery Runtime	min	Estimated remaining runtime on battery
Battery Health (BHI)	%	Battery health indicator
Power Consumption	W	Real-time power draw (Energy Dashboard compatible)
Load	%	Load percentage (calculated from watts / rated power)
Input Voltage	V	Utility input voltage
Output Voltage	V	UPS output voltage
Input Frequency	Hz	Utility input frequency
Output Frequency	Hz	UPS output frequency
UPS Temperature	°C	Internal UPS temperature
Environment Temperature	°C	External sensor temperature
Environment Humidity	%	External sensor humidity
Status	—	Device status (Normal / Warning / Critical / Offline)
Last Update	timestamp	Last successful API data update

Temperature and humidity sensors require a compatible environmental sensor connected to the UPS. They will show as "Unknown" if not available.

Binary sensors

Sensor	Description
On Battery	on when UPS is running on battery (power outage)

Configuration entities

Entity	Type	Description
UPS Rated Power	number	Per-device rated power in watts — used to calculate Load %

Set the rated power to your UPS model's watt rating (not VA). For example, OLS2000EA = 1800W. If not configured, Load % will show as "Unknown" until you set it.

Power outage events

The integration fires Home Assistant events when the power state changes — faster than polling the binary sensor:

Event	Fired when
cyberpower_cloud_power_outage_started	UPS switches to battery (power outage detected)
cyberpower_cloud_power_outage_ended	UPS returns to mains power

Event data:

{
  "device_sn": "...",
  "device_name": "...",
  "device_model": "..."
}

Other features

• Multiple UPS support — one account can monitor multiple devices
• Energy Dashboard — Power Consumption sensor is compatible with HA Energy Dashboard
• Auto re-authentication — automatic token refresh on expiry
• Configurable polling — update interval from 60 to 3600 seconds (default: 300)
• Error resilience — stops polling after 3 consecutive failures to avoid account lockout, creates repair issues
• Diagnostics — built-in diagnostics export for troubleshooting (sensitive data redacted)
• Firmware version — displayed in device info when reported by the API

Installation

HACS (recommended)

1. Open HACS in Home Assistant
2. Go to Integrations > click the three-dot menu (top right) > Custom repositories
3. Add repository URL: https://github.com/Csontikka/ha-cyberpower-cloud
4. Select category: Integration
5. Click Add
6. Search for "CyberPower PowerPanel Cloud" and click Download
7. Restart Home Assistant

Manual installation

1. Download the latest release from GitHub
2. Copy the custom_components/cyberpower_cloud folder to your Home Assistant config/custom_components/ directory
3. Restart Home Assistant

Setup

1. Go to Settings > Devices & Services > Add Integration
2. Search for "CyberPower PowerPanel Cloud"
3. Enter your PowerPanel Cloud email and password
4. The integration will discover all UPS devices on your account

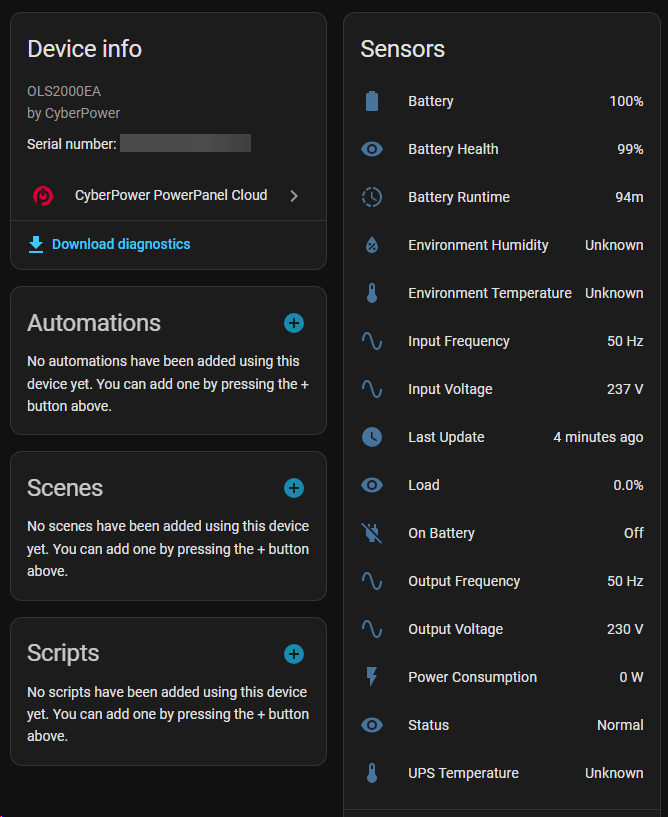

After setup:

1. Open the device page for your UPS
2. Set the UPS Rated Power (watts) in the Configuration section — this is required for the Load % sensor to work correctly

Configuration

Options

Click Configure on the integration card to adjust:

Option	Range	Default	Description
Update interval	60–3600 s	300 s	How often to poll the CyberPower Cloud API

How often does the UPS upload to the cloud? The CyberPower cloud card (RWCCARD100/200) pushes data to the PowerPanel Cloud approximately every 60 seconds during normal operation. Polling the API more often than that is wasteful — you will just get the same values back. For most users, the default 300 s is a good balance between freshness and API load. If you need near-real-time data (e.g. during a power event), the cyberpower_cloud_power_outage_started / _ended events fire on state changes regardless of the poll interval. You can verify actual data freshness via the Last Update sensor — it shows the timestamp reported by the API for each device.

Per-device settings

Each UPS device has its own configurable UPS Rated Power (watts) on the device page. This value is used to calculate the Load % sensor.

Common rated power values:

Model	VA	Watts
OLS1000EA	1000	900
OLS1500EA	1500	1350
OLS2000EA	2000	1800
OLS3000EA	3000	2700

Check your UPS model's datasheet for the exact watt rating. VA and watts are not the same.

Energy Dashboard

The Power Consumption sensor can be added to the Home Assistant Energy Dashboard:

1. Go to Settings > Dashboards > Energy
2. Under Individual devices, click Add device
3. Select your UPS Power Consumption sensor

Automation examples

Power outage notification

automation:
  - alias: "Power outage alert"
    trigger:
      - platform: event
        event_type: cyberpower_cloud_power_outage_started
    action:
      - service: notify.mobile_app
        data:
          title: "Power Outage!"
          message: "UPS {{ trigger.event.data.device_name }} is running on battery"

Power restored notification

automation:
  - alias: "Power restored"
    trigger:
      - platform: event
        event_type: cyberpower_cloud_power_outage_ended
    action:
      - service: notify.mobile_app
        data:
          title: "Power Restored"
          message: "UPS {{ trigger.event.data.device_name }} is back on mains power"

Low battery warning

automation:
  - alias: "UPS low battery warning"
    trigger:
      - platform: numeric_state
        entity_id: sensor.my_ups_battery
        below: 30
    action:
      - service: notify.mobile_app
        data:
          title: "UPS Battery Low"
          message: "Battery at {{ states('sensor.my_ups_battery') }}% — {{ states('sensor.my_ups_battery_runtime') }} minutes remaining"

Error handling

Situation	Behavior
No internet at startup	Integration retries automatically (ConfigEntryNotReady)
Invalid credentials	Stops polling, creates a repair issue, prompts for re-authentication
API errors (3 consecutive)	Stops polling, creates a repair issue
Token expiry	Automatic re-login and retry

Troubleshooting

Diagnostics Export

Download the integration diagnostics file for bug reports — it includes the integration state and configuration (with sensitive data redacted).

1. Go to Settings → Devices & Services
2. Find CyberPower PowerPanel Cloud → click the integration
3. Click the three-dot menu → Download diagnostics
4. Attach the .json file to your GitHub issue

Debug Logs

To see detailed logs in the HA log viewer, add to configuration.yaml:

logger:
  default: info
  logs:
    custom_components.cyberpower_cloud: debug

This enables per-request API traces, coordinator update summaries, login/token refresh events, and event-firing logs. After restarting Home Assistant, check Settings → System → Logs.

Removal

1. Go to Settings → Devices & Services → CyberPower PowerPanel Cloud
2. Click the three-dot menu → Delete
3. Optionally remove custom_components/cyberpower_cloud/ and restart Home Assistant

How it works

This integration uses the internal CyberPower PowerPanel Cloud API (iotapi.cyberpower.com) — the same API used by the official PowerPanel Cloud mobile app. There is no official public API; this integration was built through reverse engineering.

Data is polled at a configurable interval (default: 5 minutes). Two API endpoints are used per update cycle:

• /device/read/status — battery status, load (watts), BHI
• /status/log — voltage, frequency, temperature readings

Supported languages

Available in 30 languages:

Translations were machine-generated — if you spot any issues, please open an issue or submit a PR!

Known limitations

• Cloud-only — requires an active internet connection; does not work with local/USB-connected UPS
• Polling-based — not real-time; the minimum interval is 60 seconds
• No UPS control — read-only monitoring; cannot shutdown, test, or configure the UPS
• Temperature sensors — only available with compatible environmental sensors (e.g., EMHD1)

Support

Found a bug or have an idea? Open an issue — feedback and feature requests are welcome!

If you find this integration useful, consider buying me a coffee ☕ or sponsoring me on GitHub.

License

MIT
