Viettel Digital Talent 2025 - Capstone Project

Table of Contents

• 0. Diagram
• 1. Kubernetes Deployment
• 2. ArgoCD & Jenkins Setup
• 3. Application Deployment via ArgoCD
• 4. CI/CD
• 5. Monitoring
• 6. Logging
• 7. Security

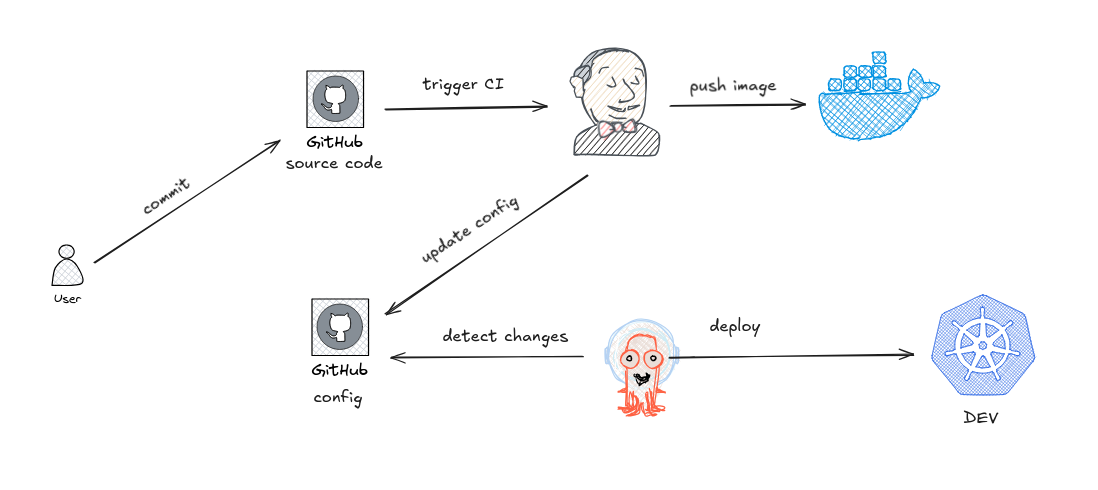

0. Diagram

1. Kubernetes Deployment

Tool: kubeadm

Installation Steps & Configuration

• Please refer to the detailed kubeadm/README.md for comprehensive setup instructions.

Server Address:

• Master: 192.168.111.111
• Worker 1: 192.168.111.112
• Worker 2: 192.168.111.113
• Monitor: 192.168.111.114

Overview:
This repository demonstrates the deployment of a complete web application ecosystem within a Kubernetes cluster. It integrates various DevOps tools, including Kubernetes itself, Jenkins for CI/CD, ArgoCD for GitOps-based delivery, and Prometheus for monitoring. The aim is to provide an end-to-end platform for scalable and robust cloud-native applications.

• System Validation Logs:

  kubectl get nodes -o wide

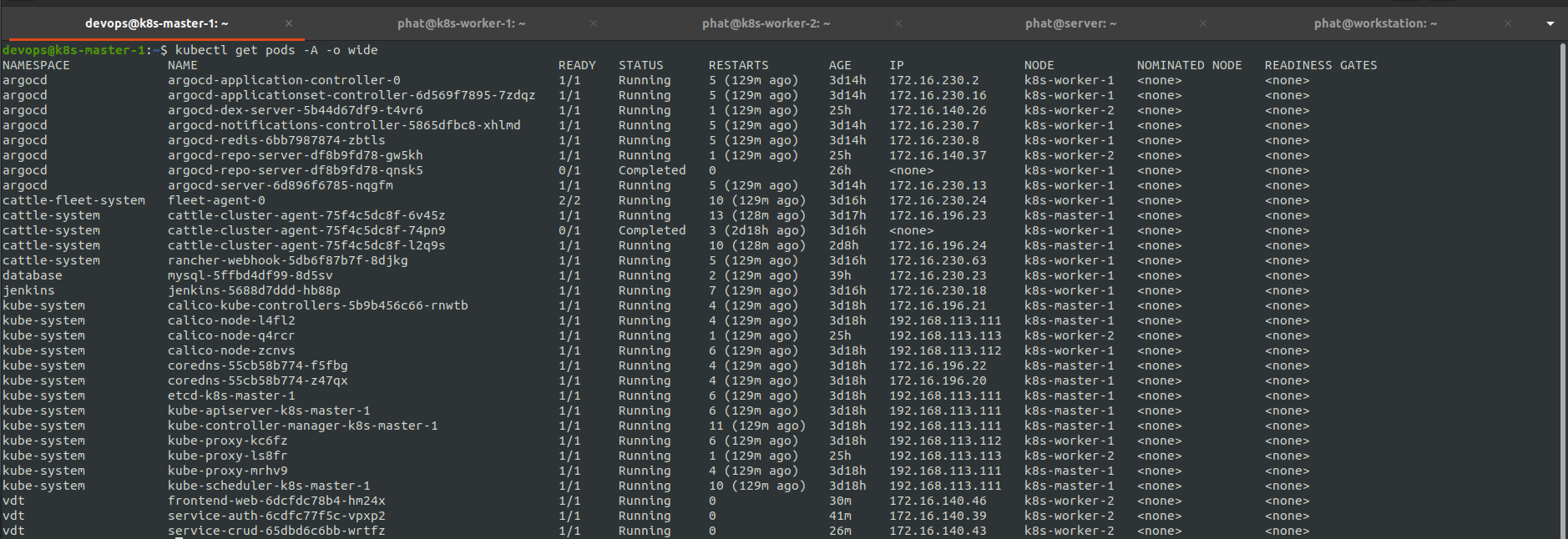

  kubectl get pods -A -o wide

• Screenshots:

•

•

2. ArgoCD & Jenkins Setup

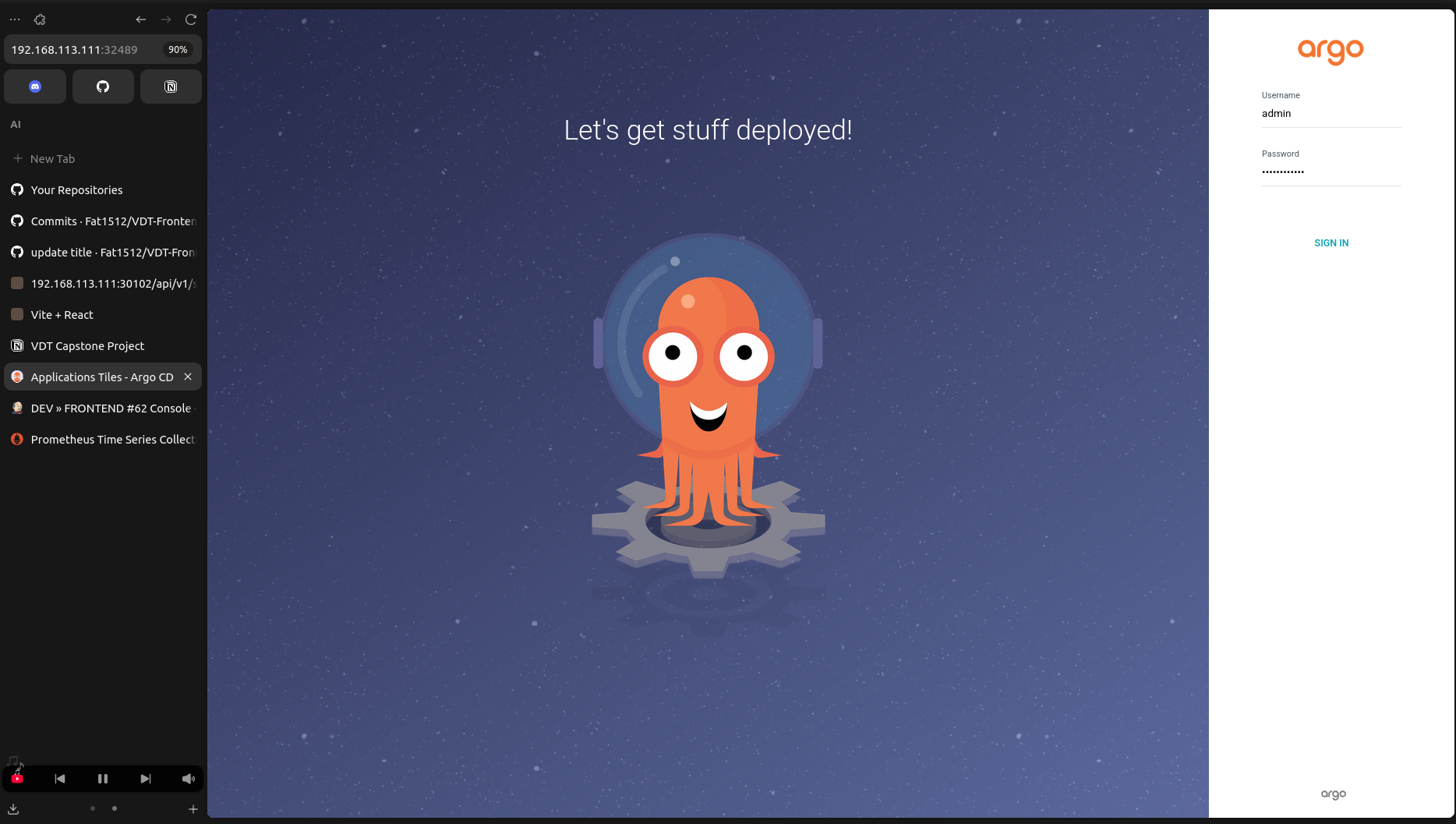

ArgoCD

• Manifest: ArgoCD Manifest
• ArgoCD Service Address: 192.168.113.111:32489
• Install ArgoCD:

kubectl create namespace argocd
kubectl apply -n argocd -f https://raw.githubusercontent.com/argoproj/argo-cd/stable/manifests/install.yaml

• Check Deployment:

# Patch the argocd-server service to change its type from ClusterIP to NodePort.
kubectl patch svc argocd-server -n argocd -p '{"spec": {"type": "NodePort"}}'

# Retrieve password
kubectl -n argocd get secret argocd-initial-admin-secret -o jsonpath="{.data.password}" | base64 -d

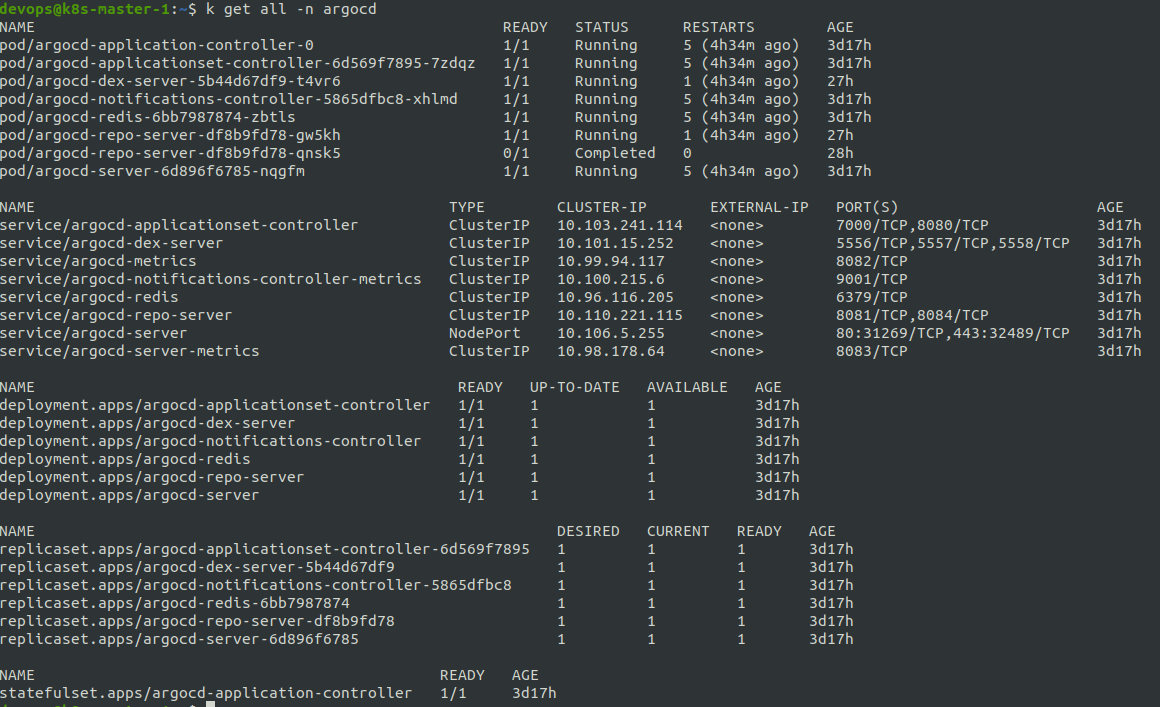

kubectl get all -n argocd

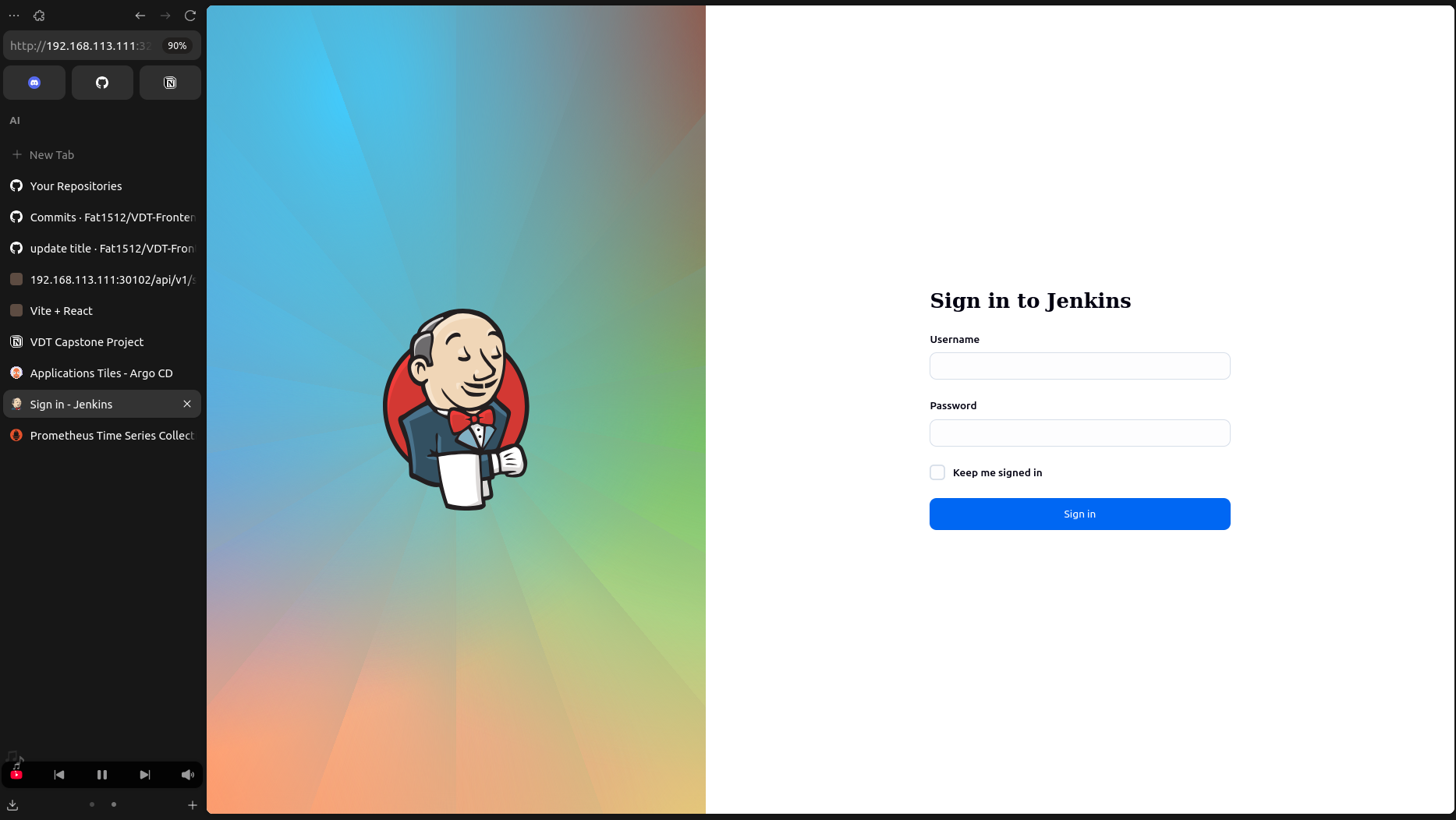

Jenkins

• Manifest: Jenkins Manifest
• Jenkins Service Address: 192.168.113.111:32474
• Install Jenkins:

cd jenkins
kubectl apply -f jenkins-ns.yaml
kubectl apply -f jenkins-pv.yaml
kubectl apply -f jenkins-sa.yaml
kubectl apply -f jenkins-deployment.yaml
kubectl apply -f jenkins-service.yaml

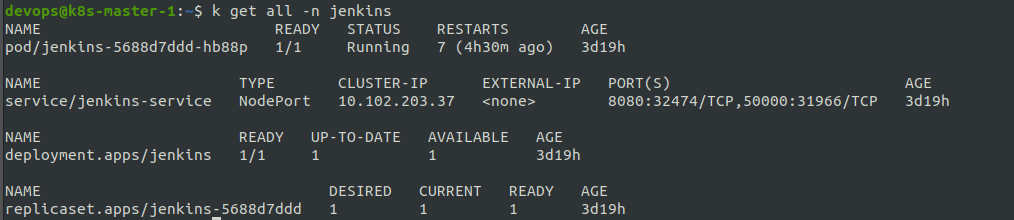

• Check Deployment:

kubectl get all -n jenkins

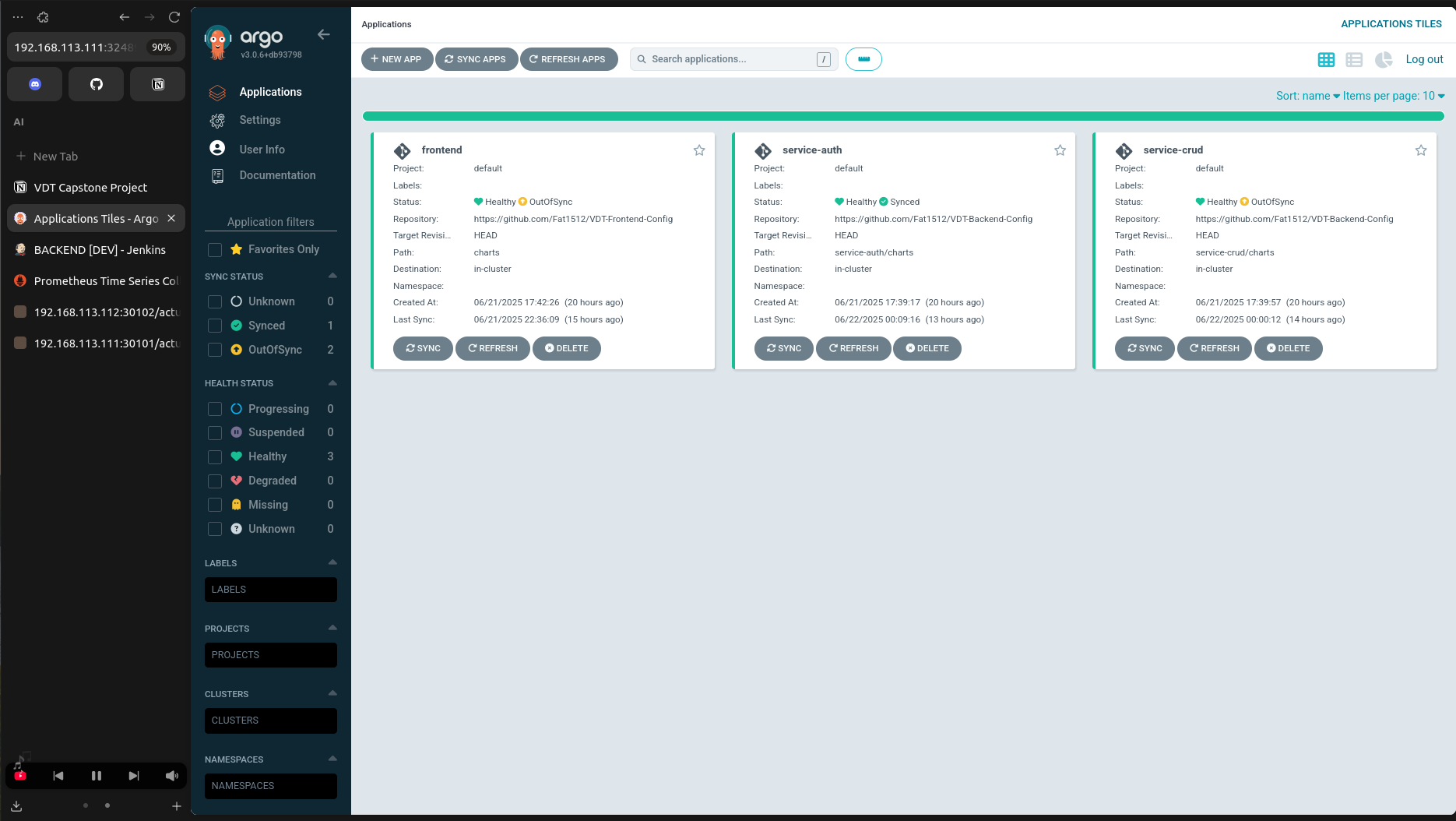

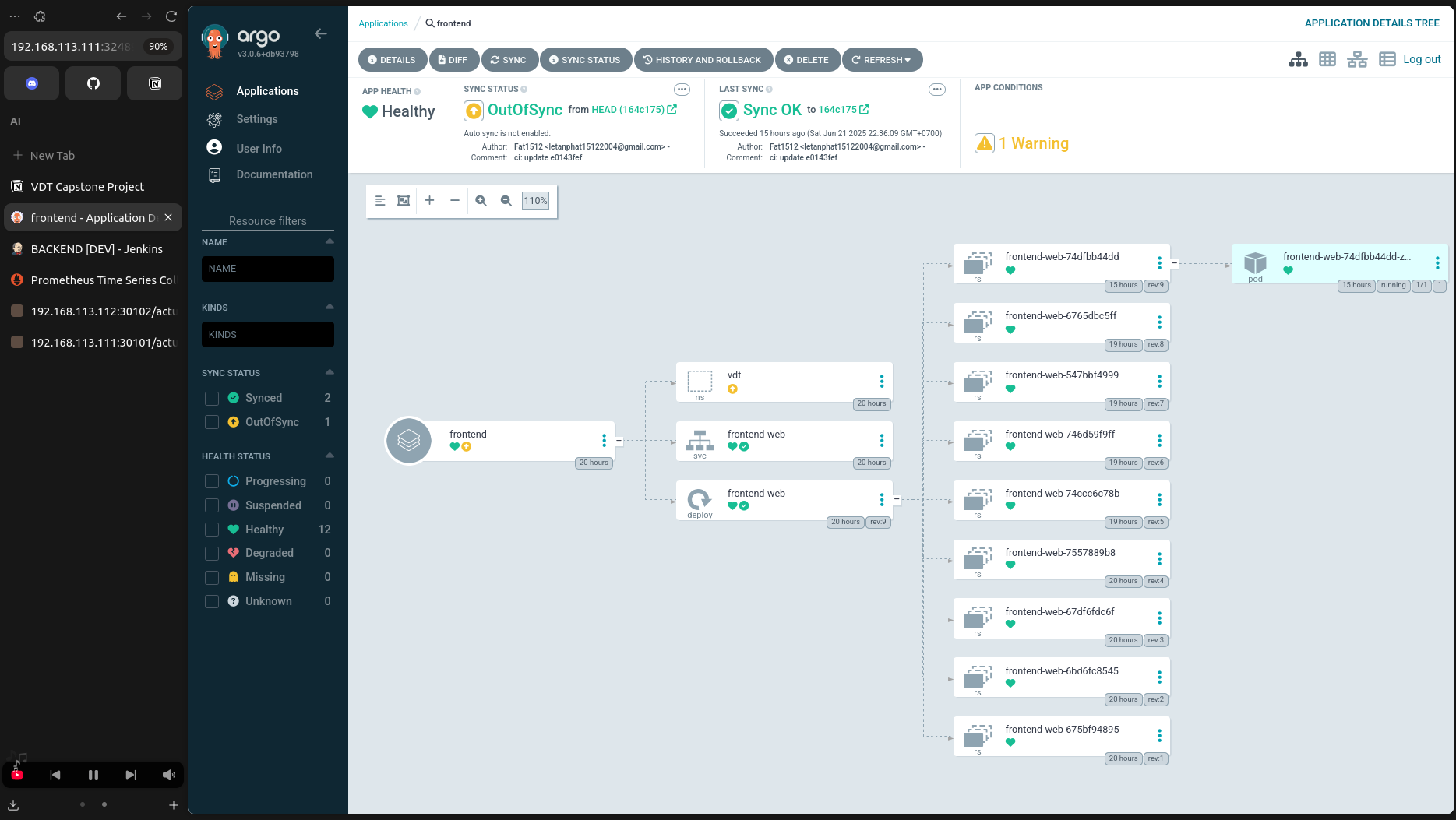

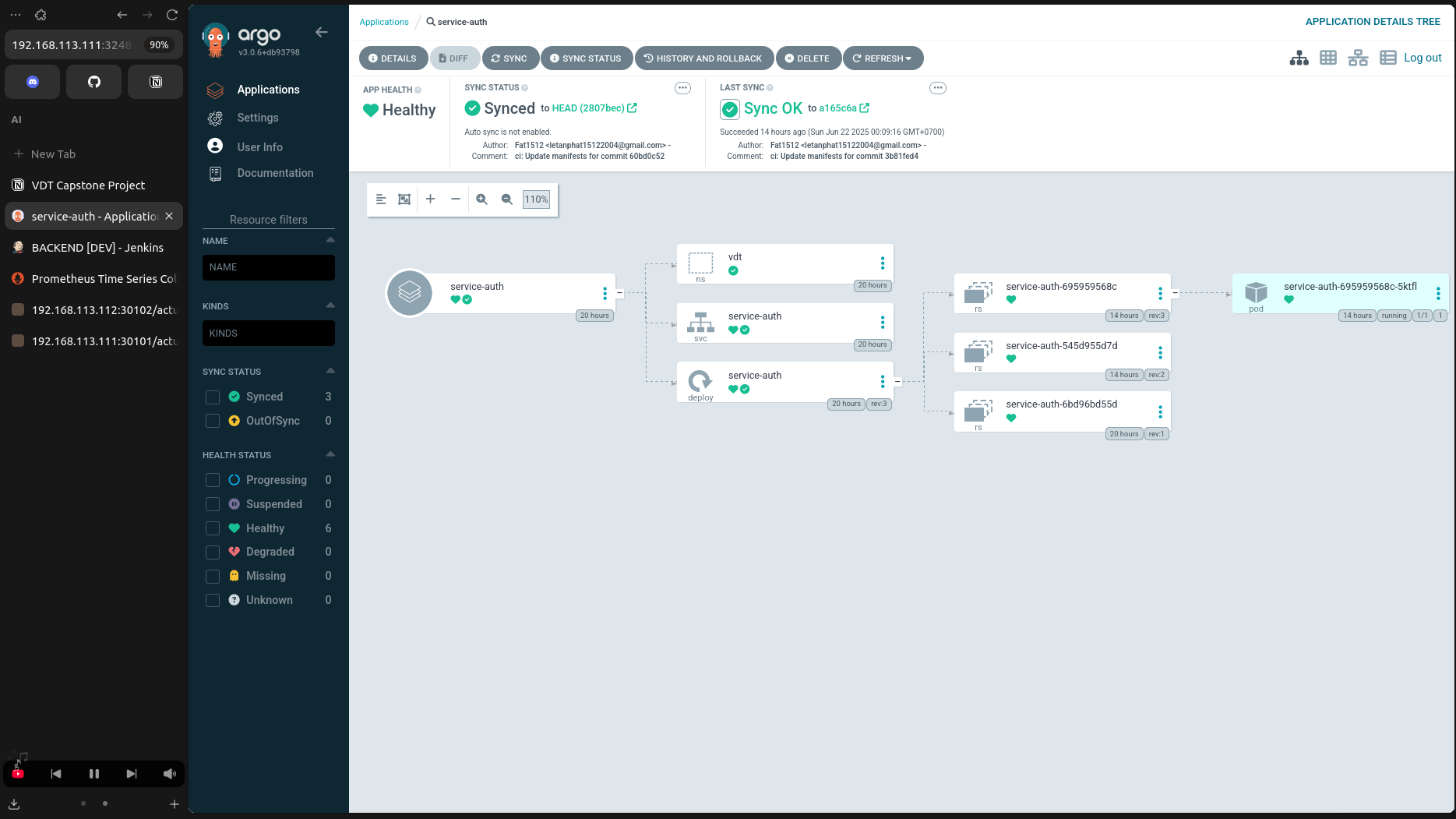

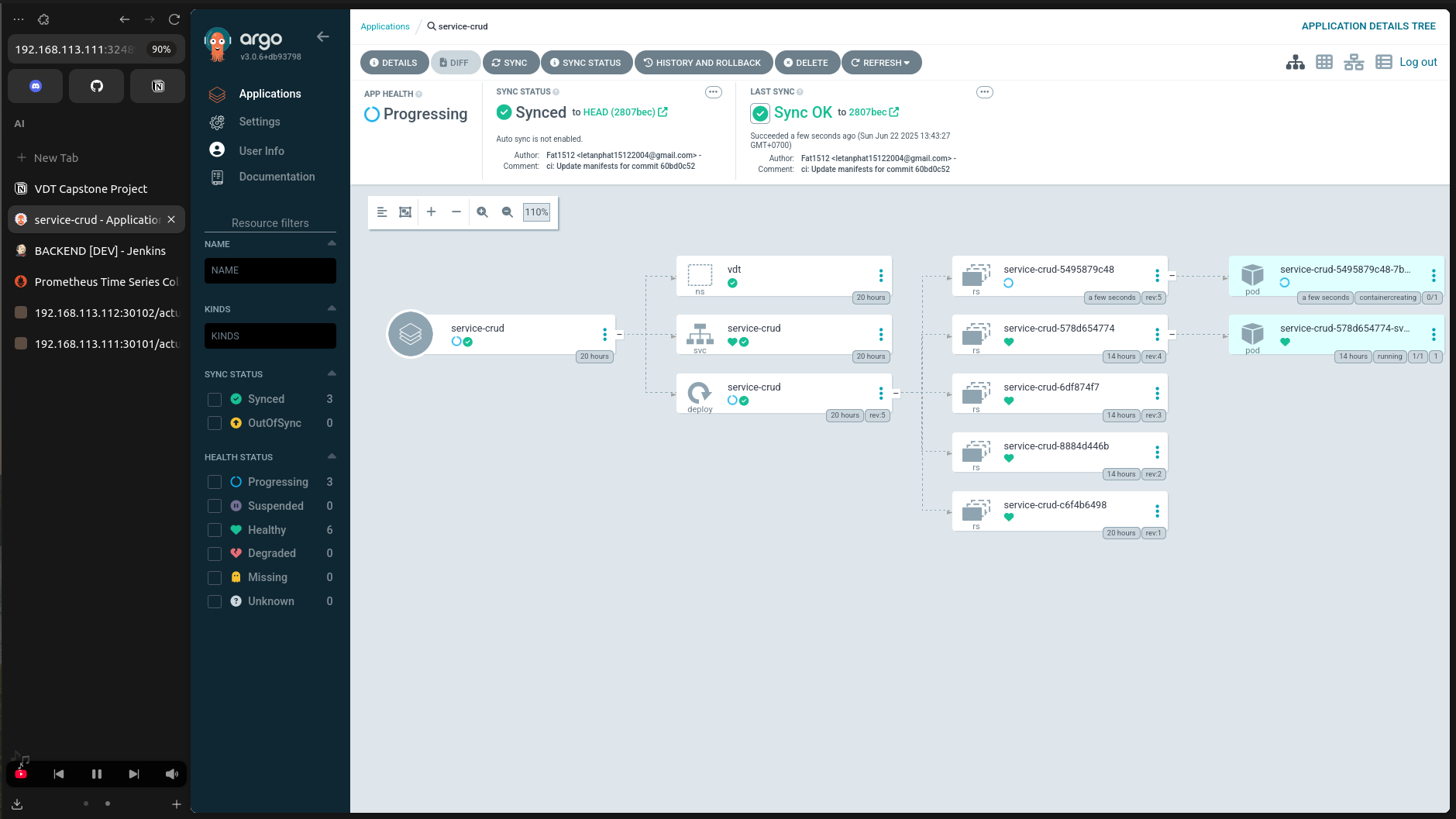

3. Application Deployment via ArgoCD

Description

• Backend Helm Chart and values file: Backend Config

• Frontend Helm Chart and values file: Frontend Config

• The application consists of one frontend service and two backend services.

Application

  kubectl get svc -n vdt

• Frontend Service: 192.168.113.111:32647

• Auth Service: 192.168.113.111:30101

• Crud Service: 192.168.113.111:30102

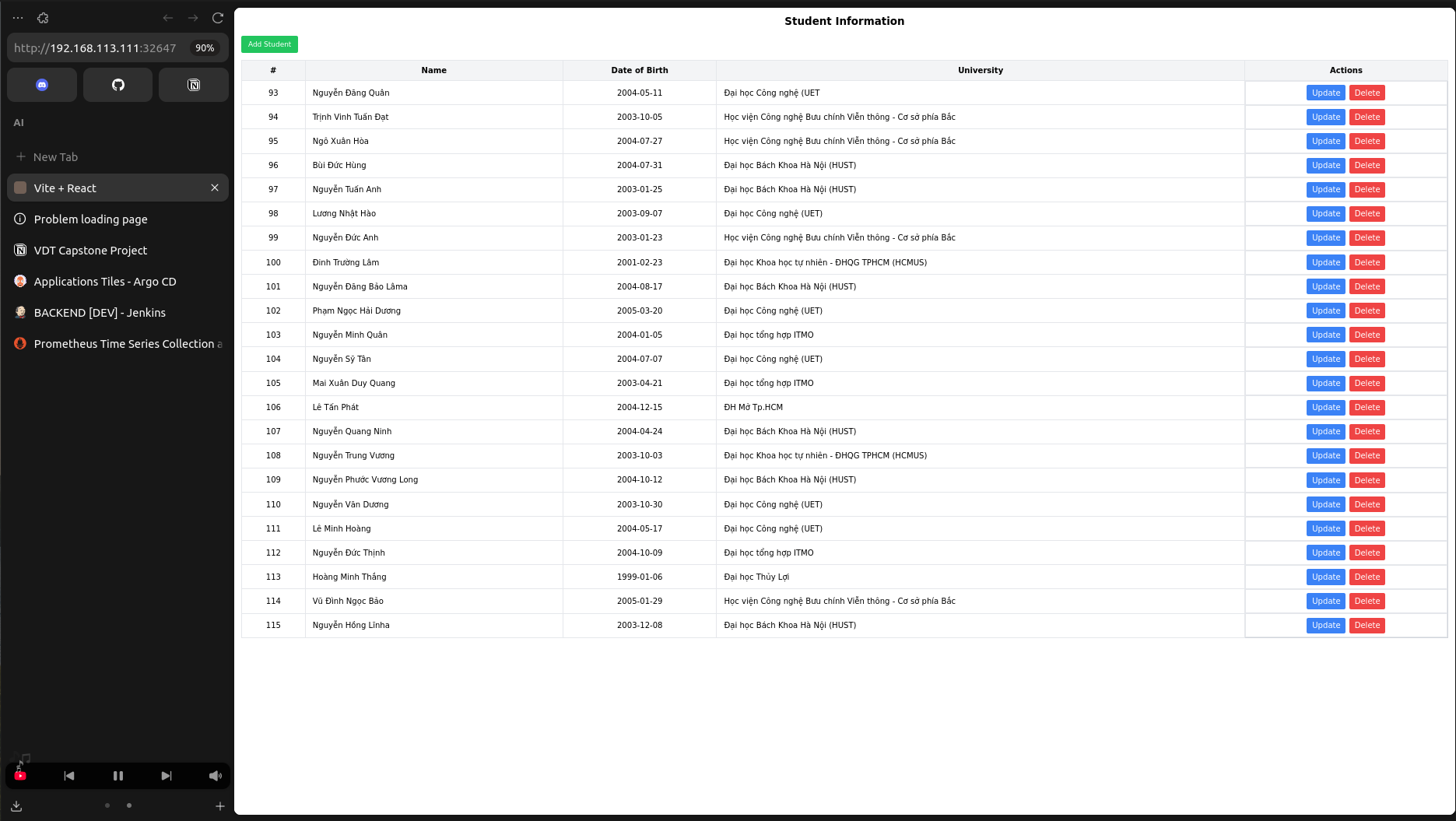

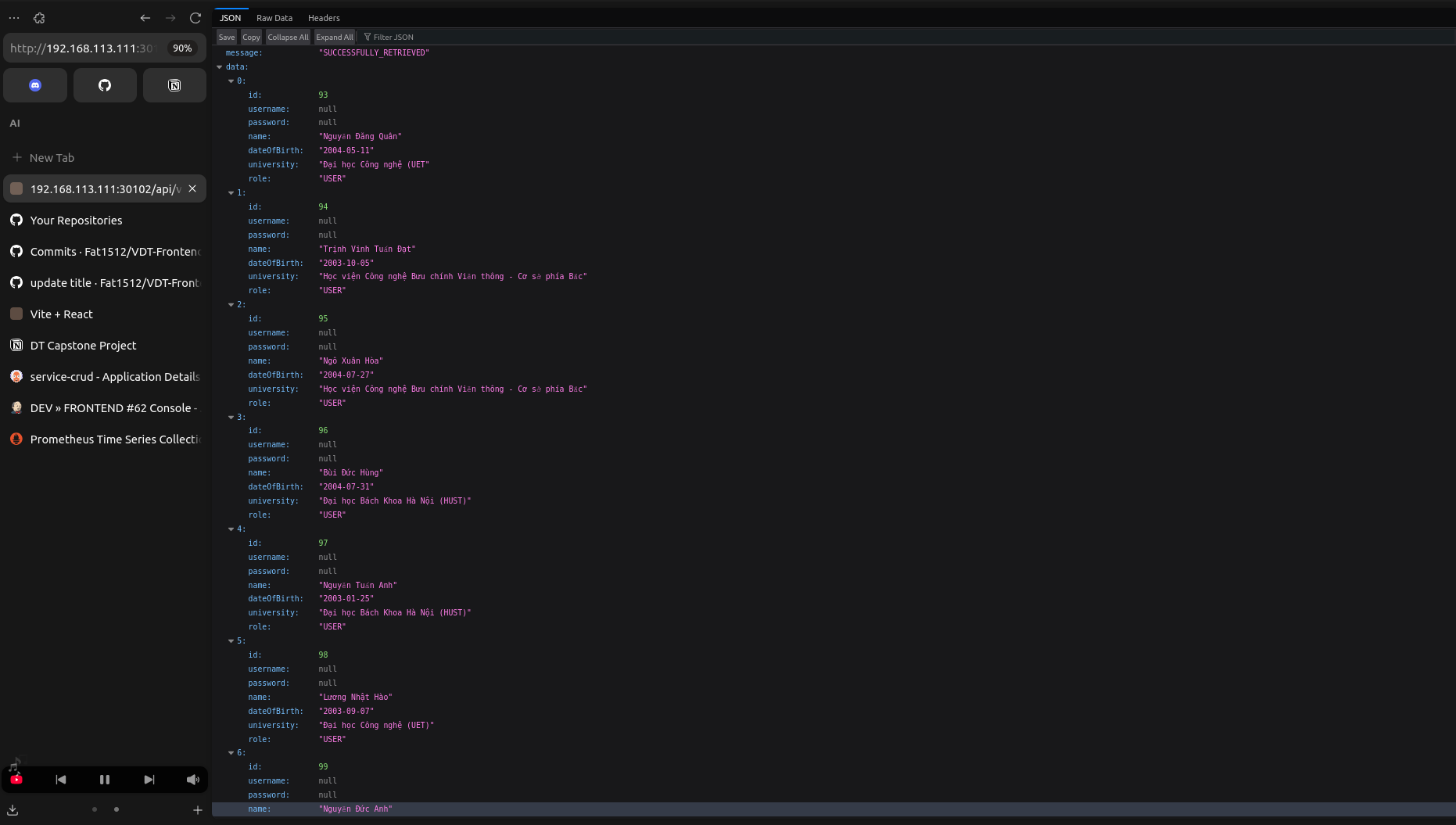

Demo

---

4. CI/CD

Jenkinsfile

• Backend Jenkinsfile: Backend Jenkinsfile
• Frontend Jenkinsfile: Frontend Jenkinsfile

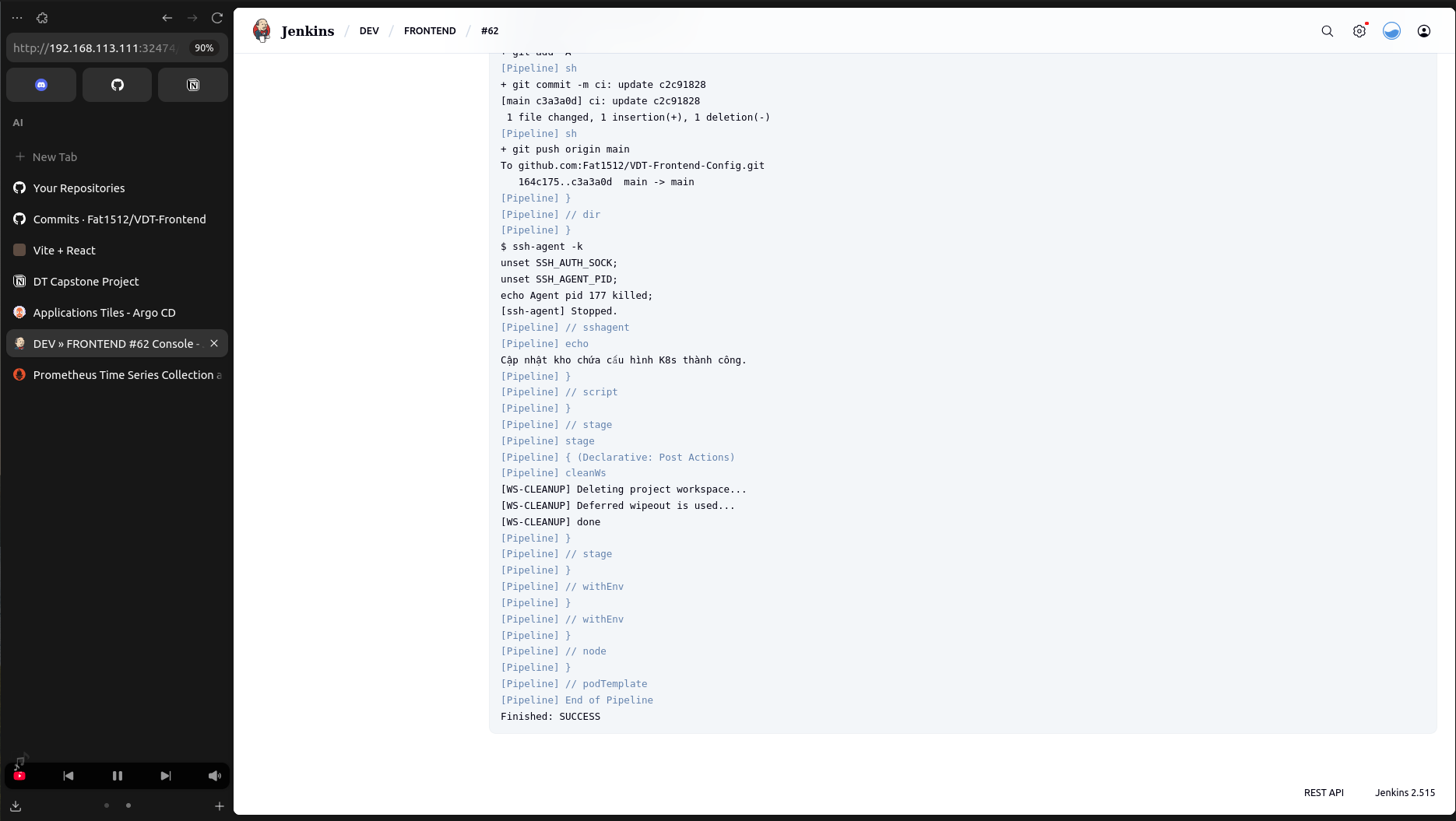

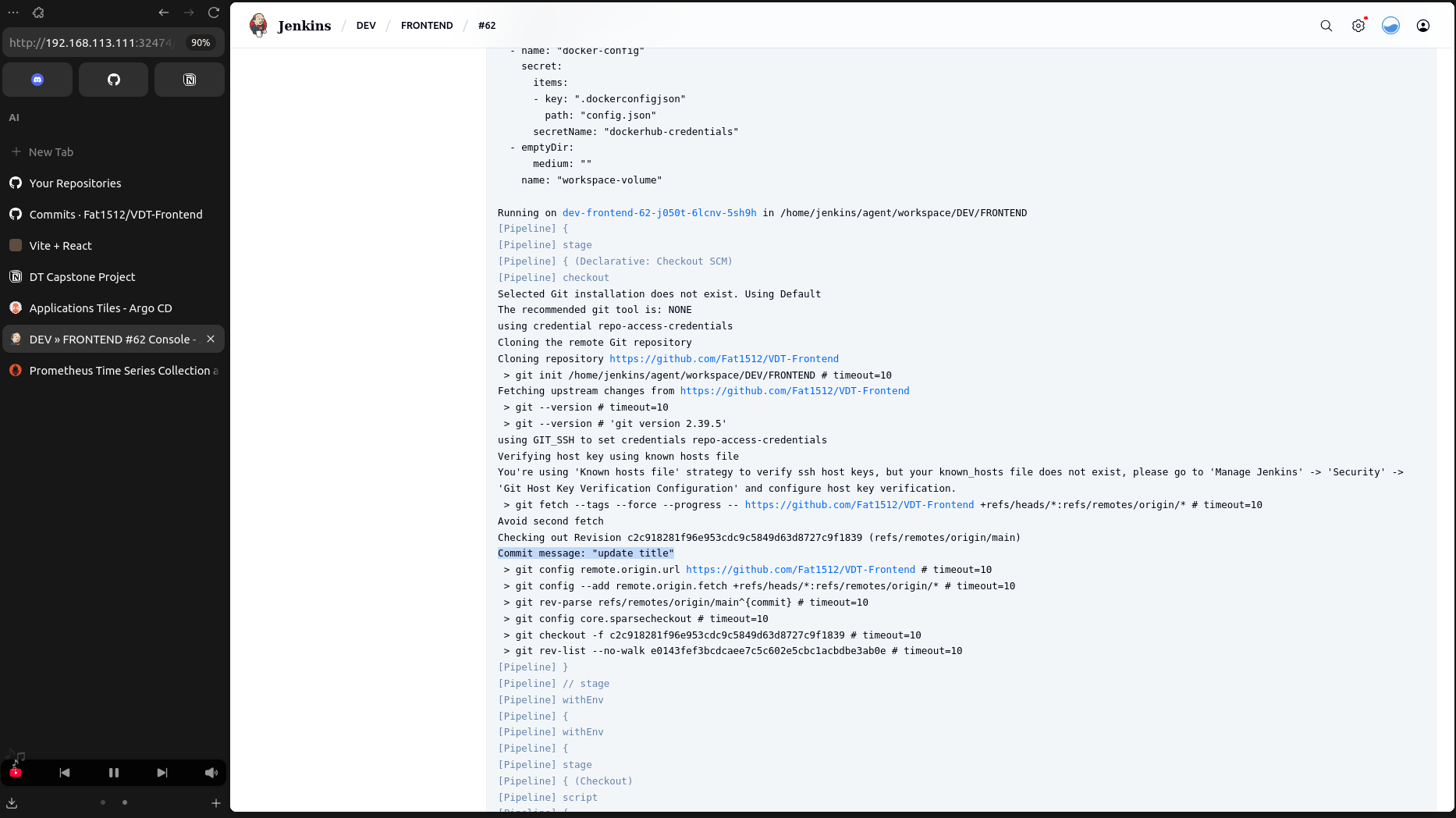

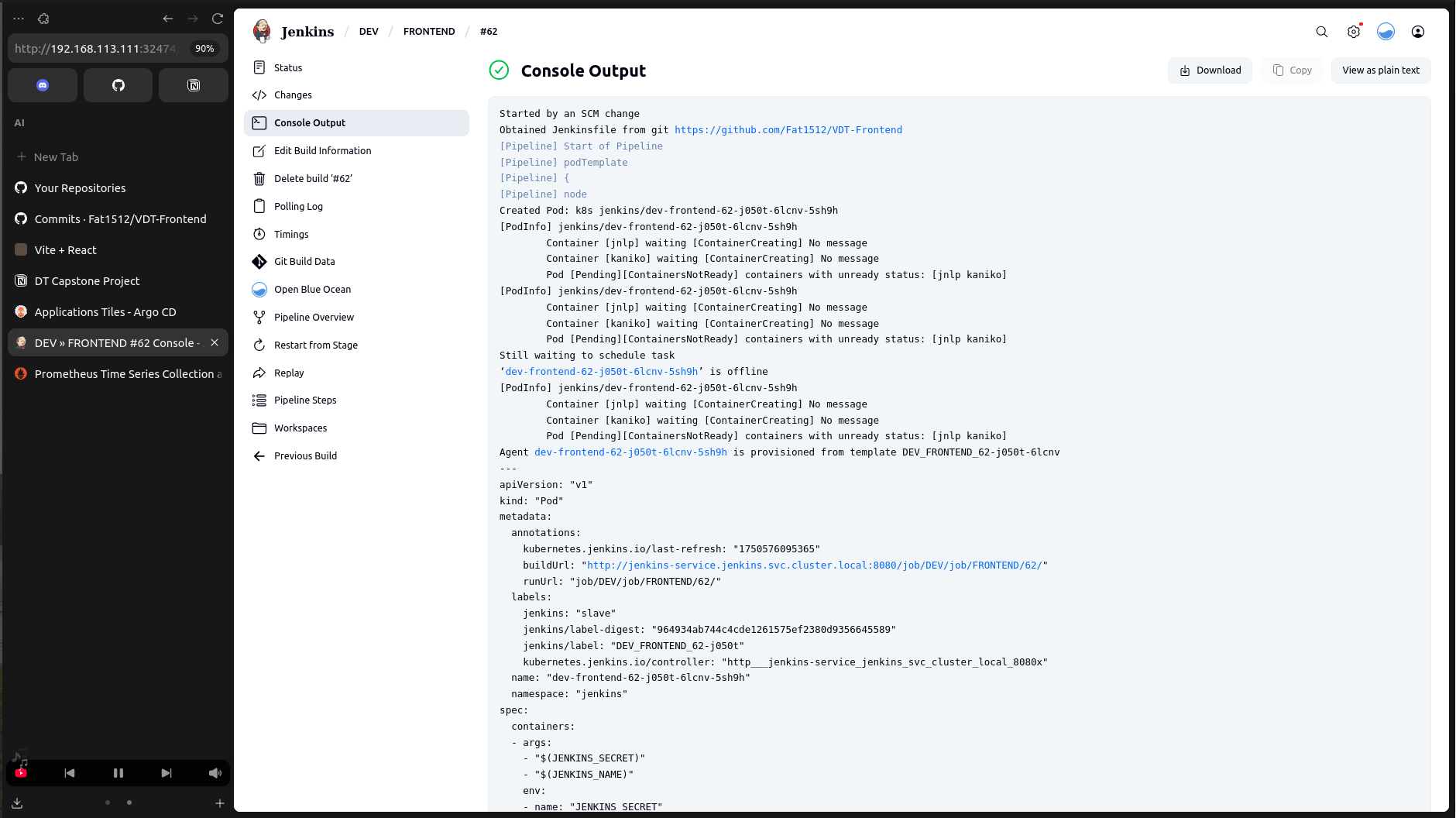

Build Logs

• Reference: Log file

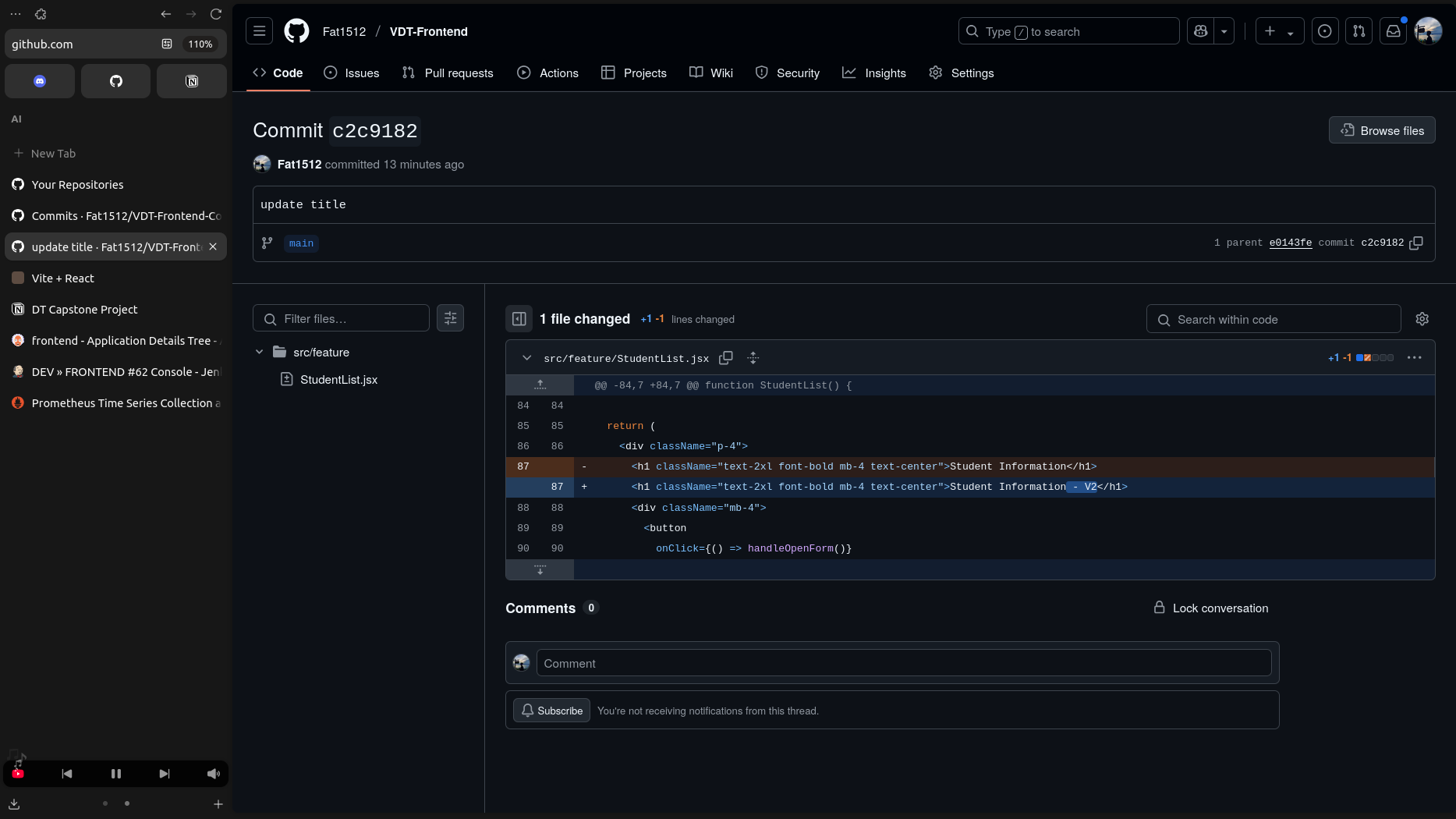

• Example: Update frontend title and observe pipeline triggers.

• Pipeline is automatically triggered on commit changes

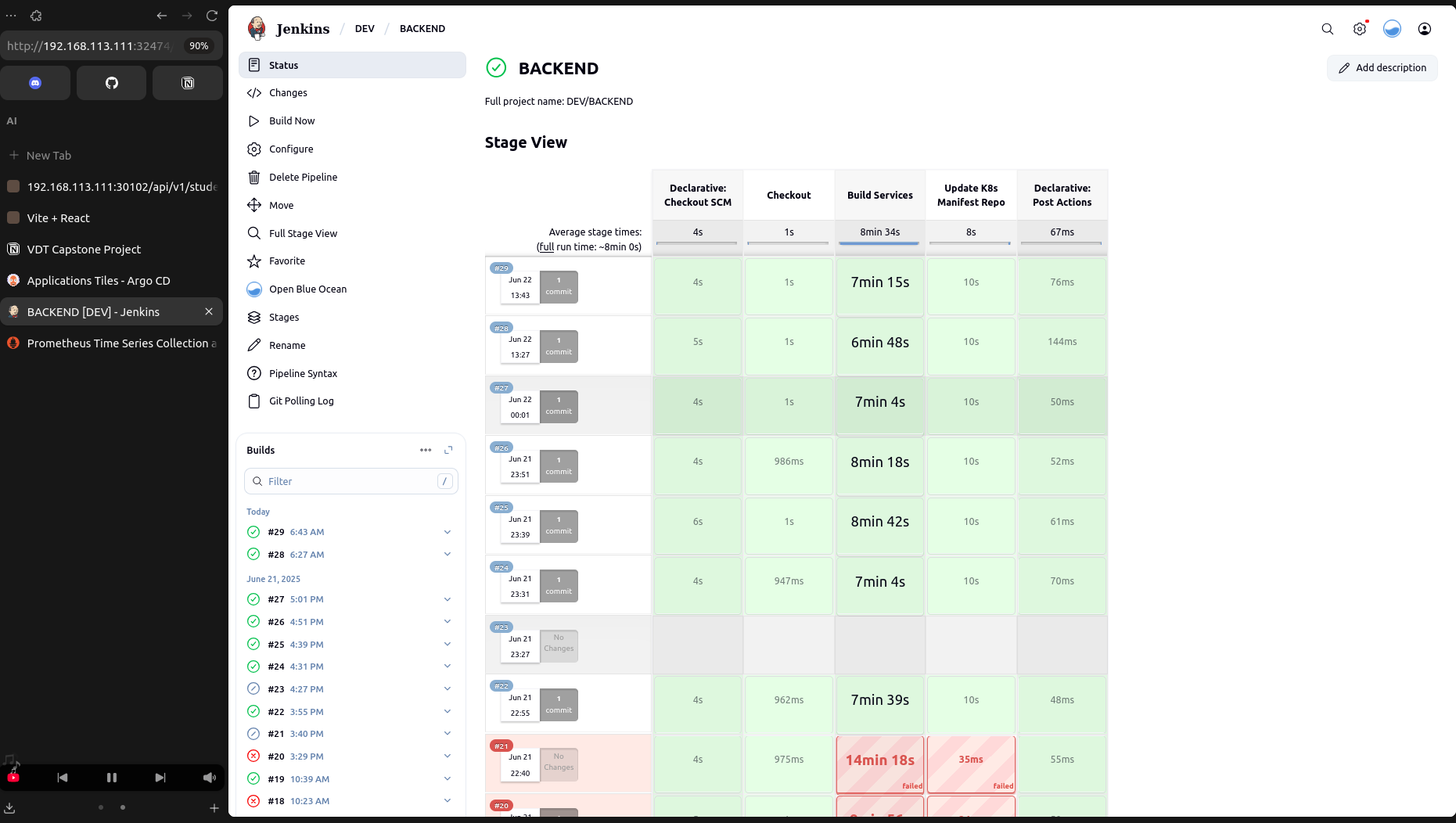

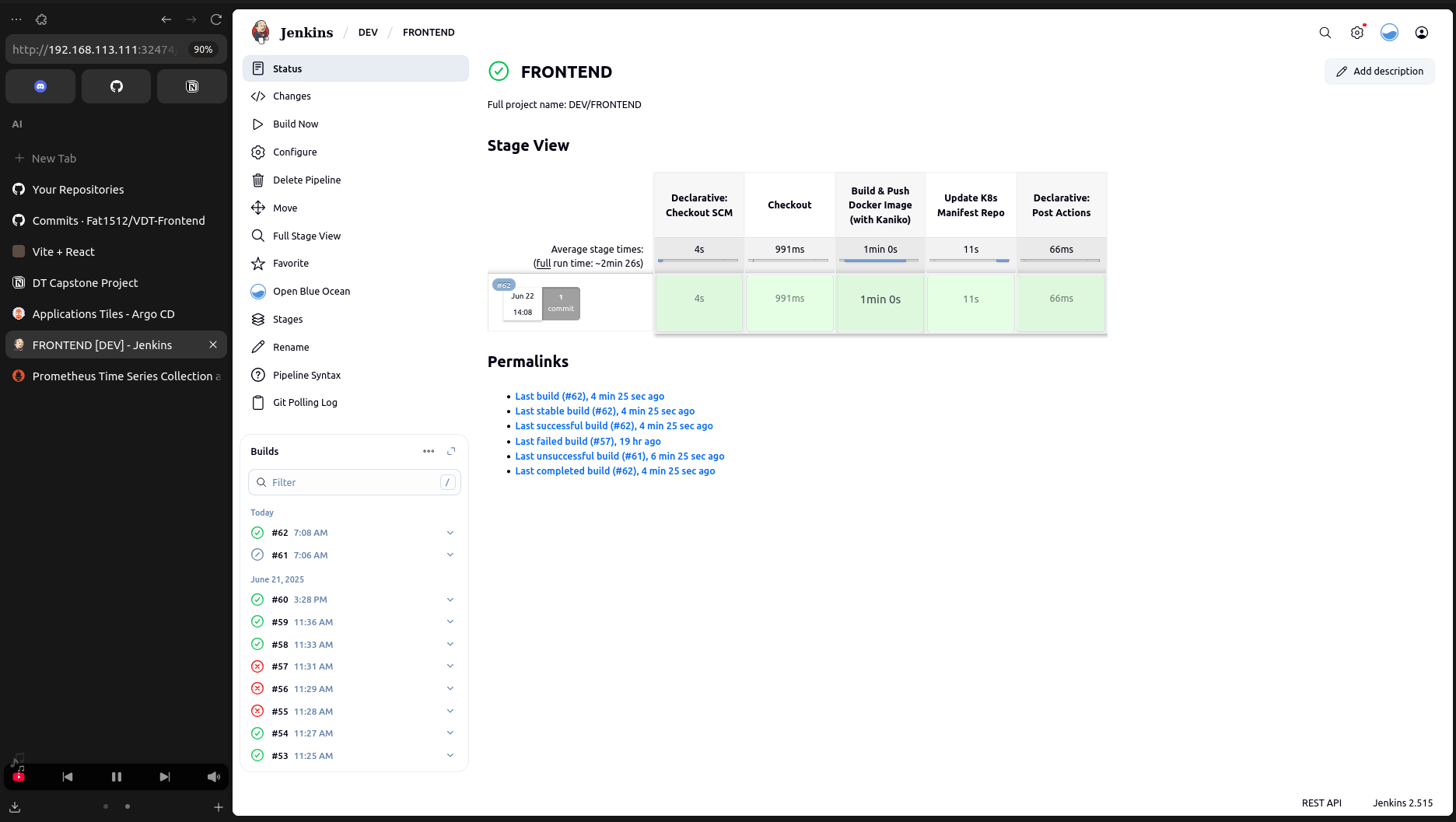

Stage View

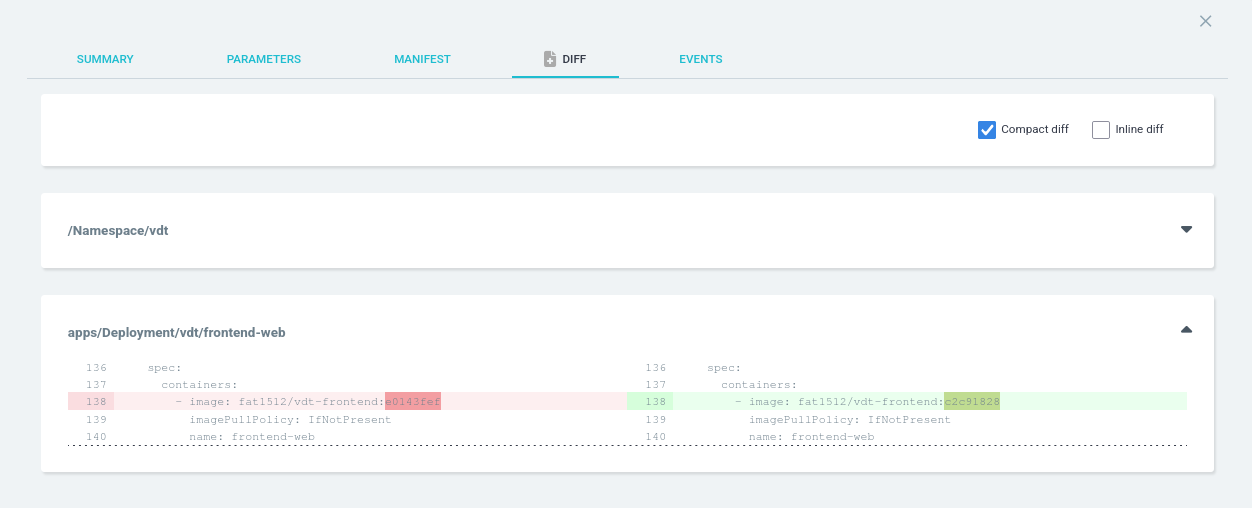

Continuous Delivery Changes

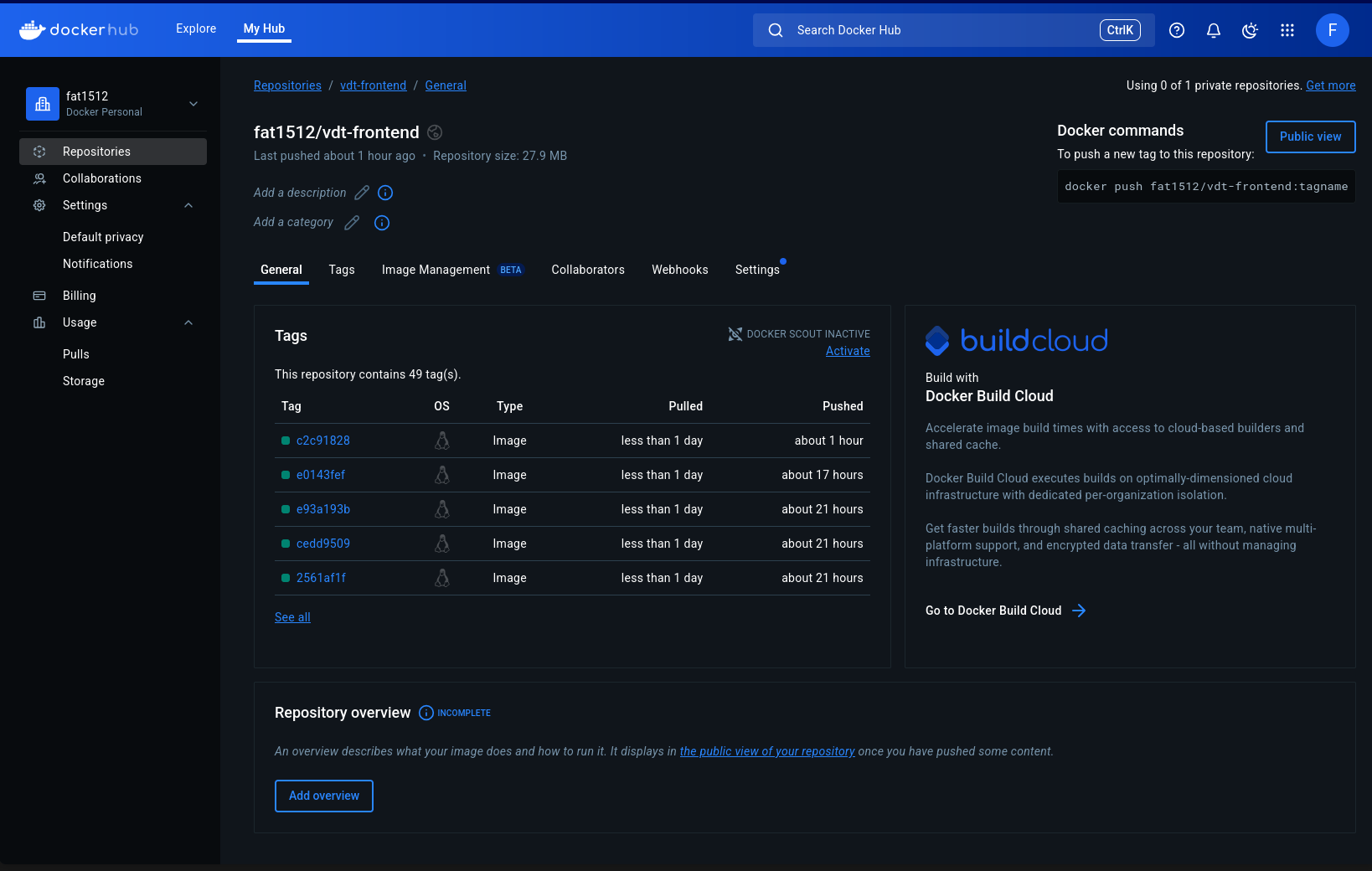

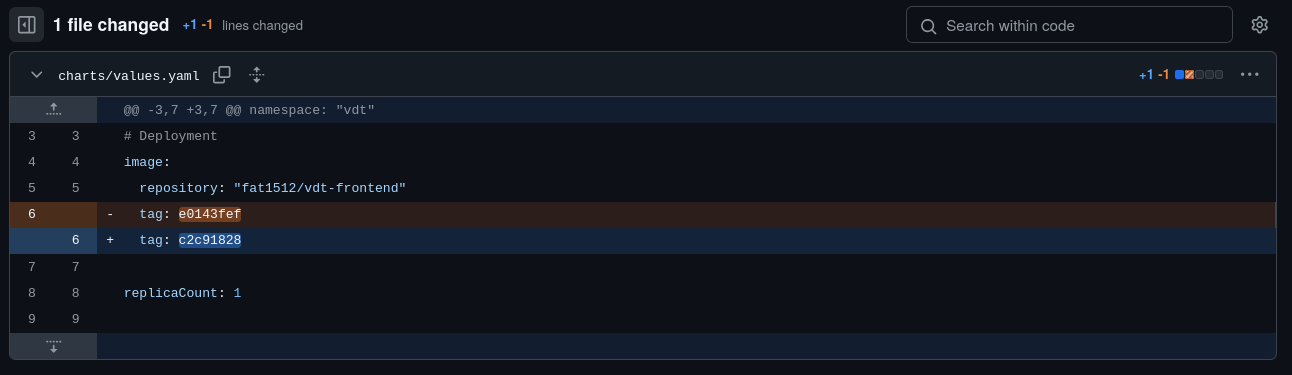

• CD repository and DockerHub images get updated automatically after successful builds.

• ArgoCD automatically detects and synchronizes changes.

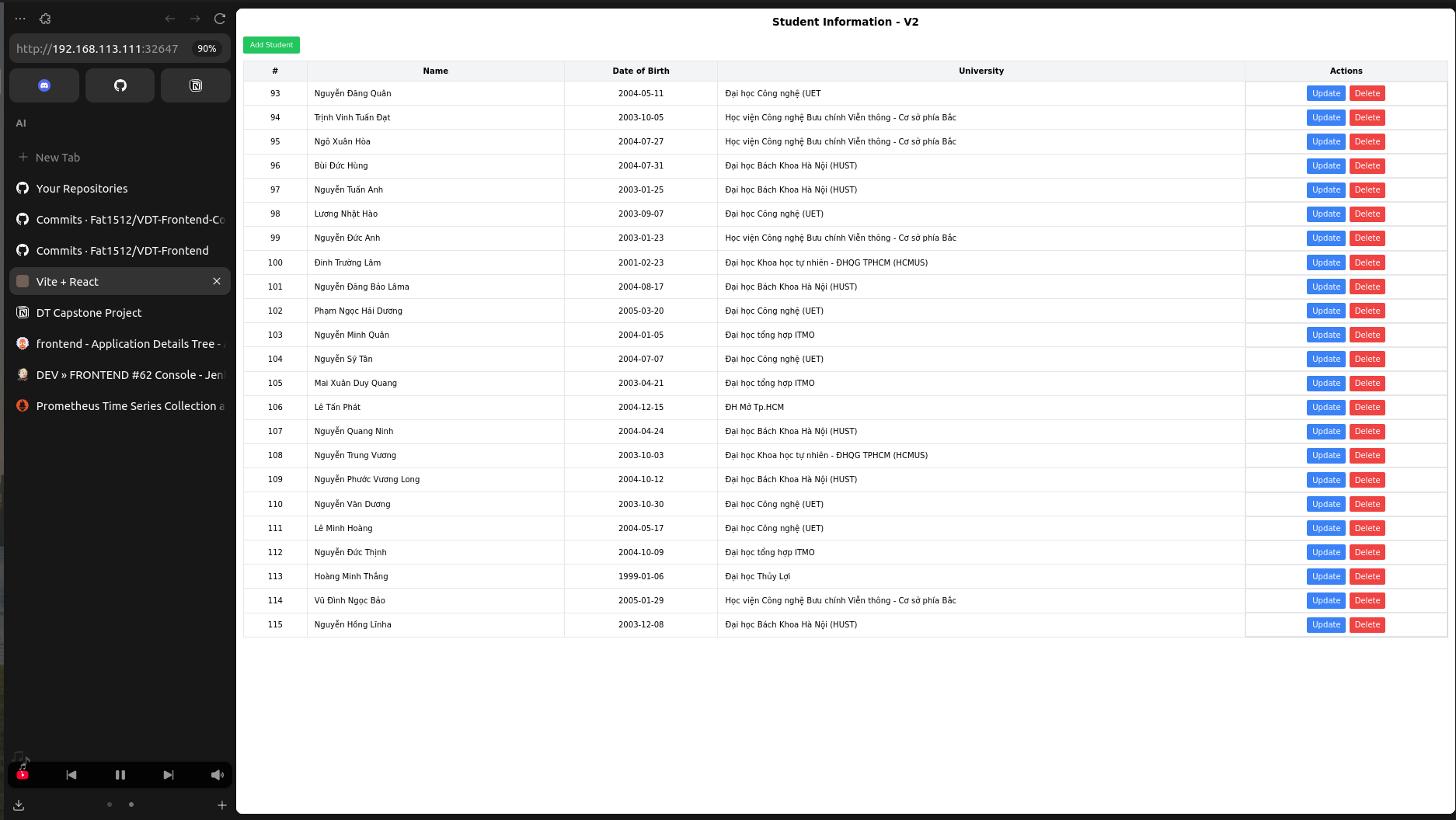

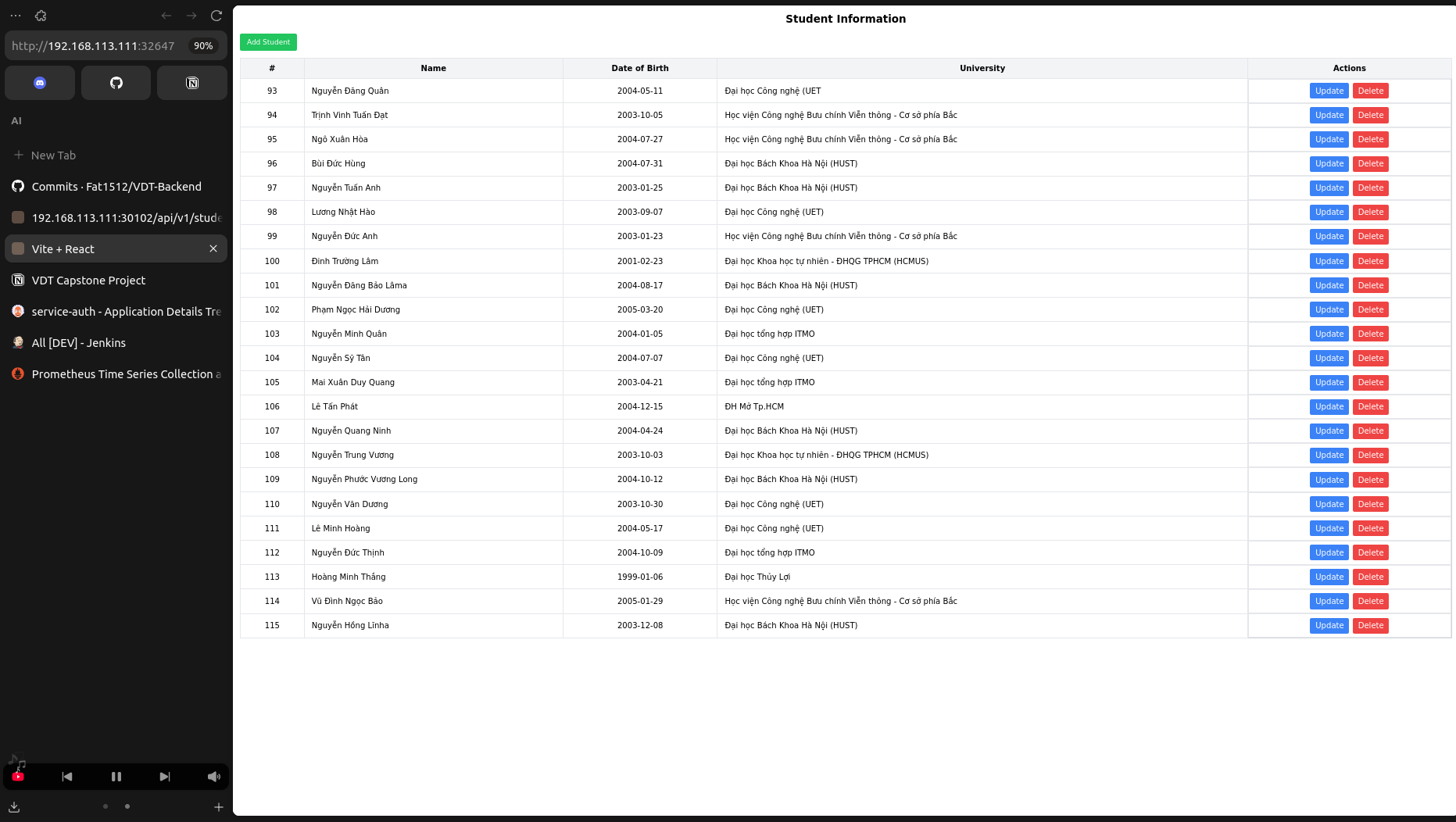

Before and After

5. Monitoring

Prometheus

• Ansible config: playbook

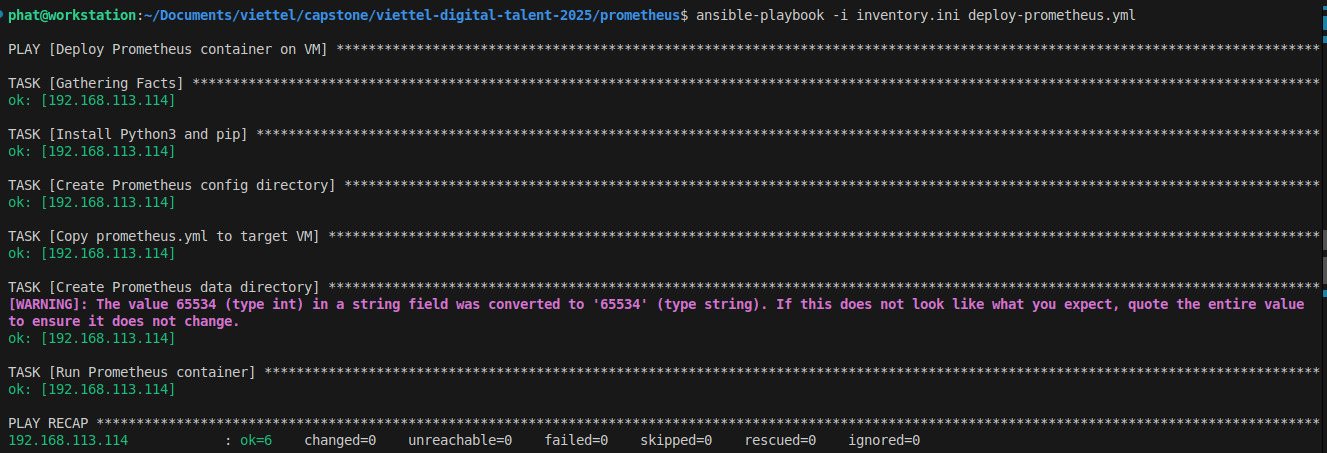

• Deploy Prometheus using Ansible

ansible-playbook -i inventory.ini deploy-prometheus.yml

• SSH into monitoring server and check status to ensure that container is up:

  docker ps

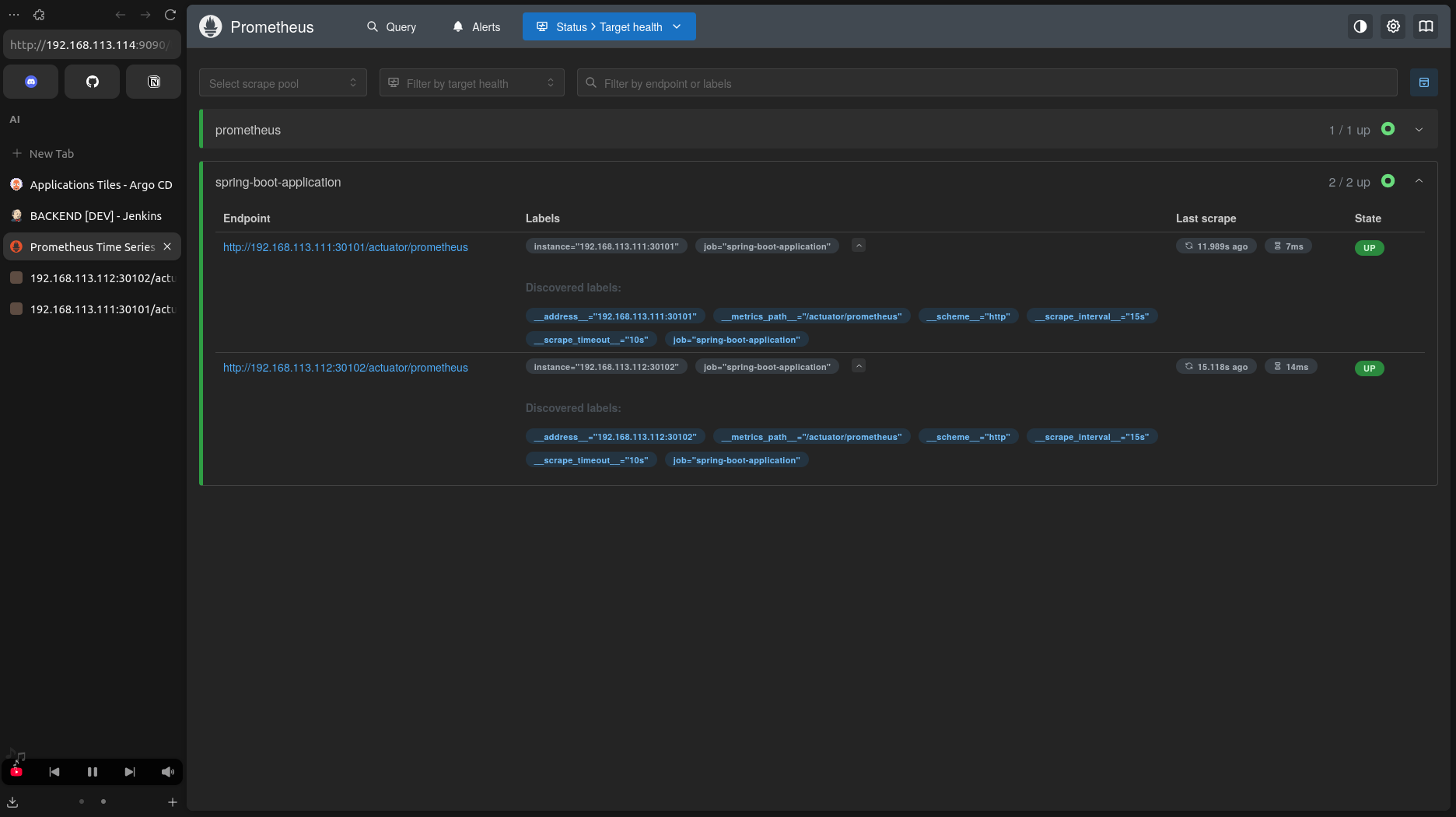

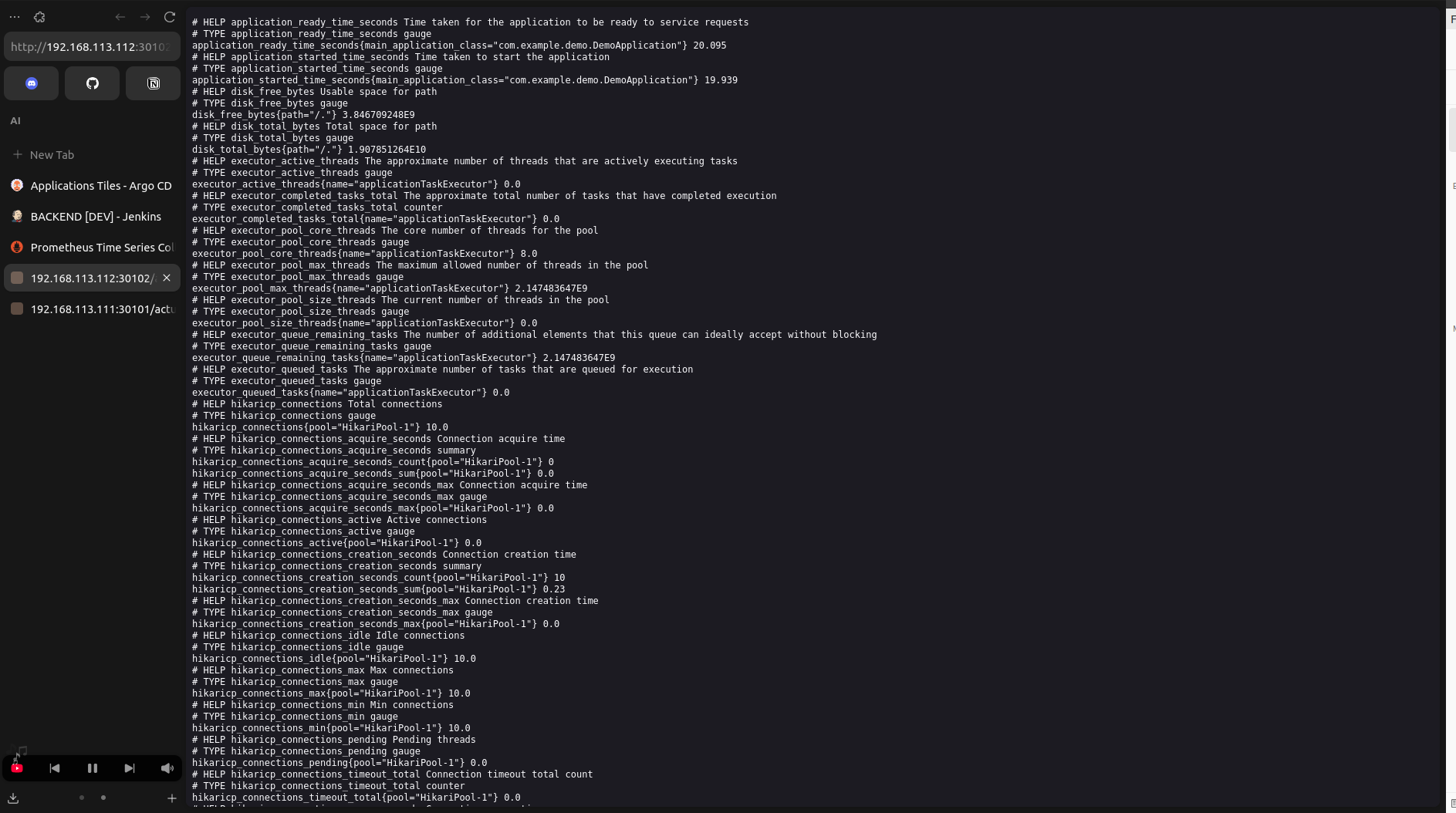

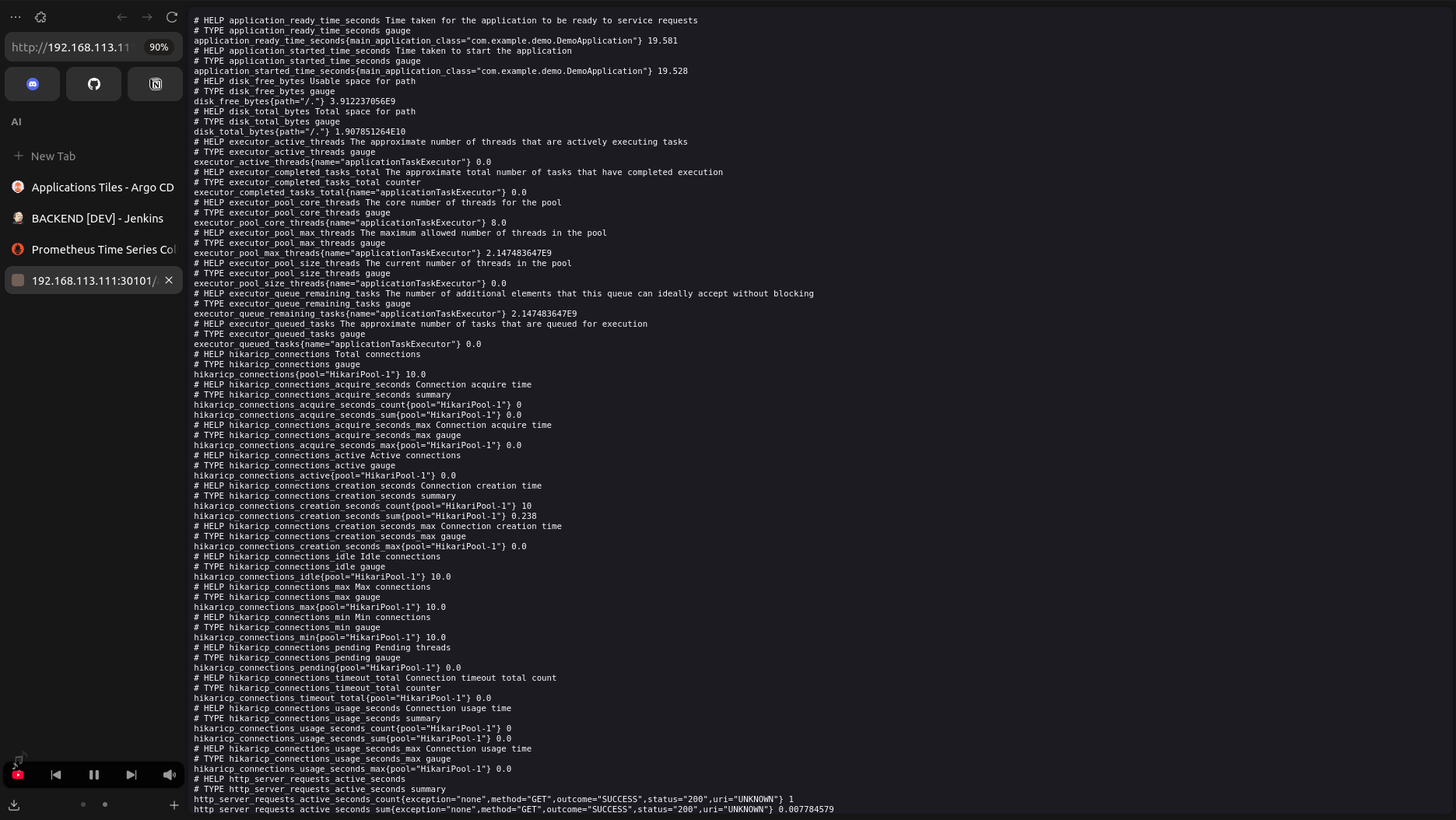

• API service monitoring:

6. Logging

• To be continued

7. Security

HAProxy

• To be continued

Authentication & Authorization

• Authentication / Authorization docs: See author_authen.md

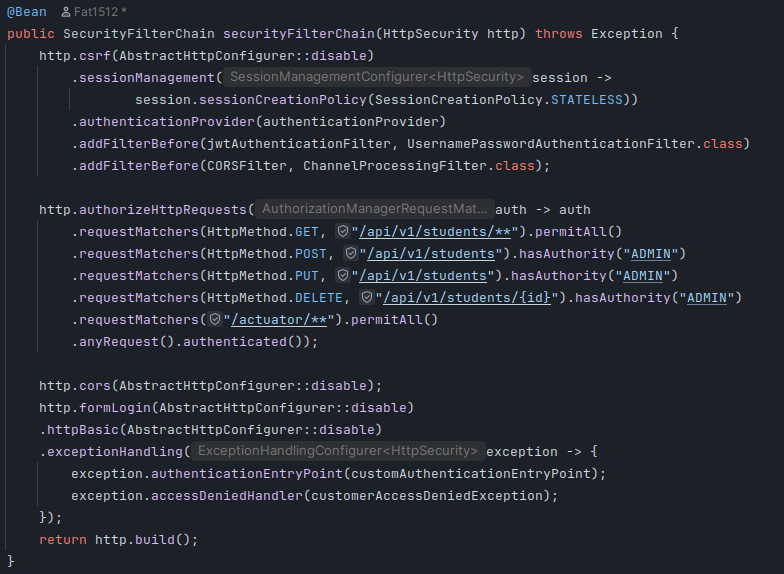

• Security App Config:

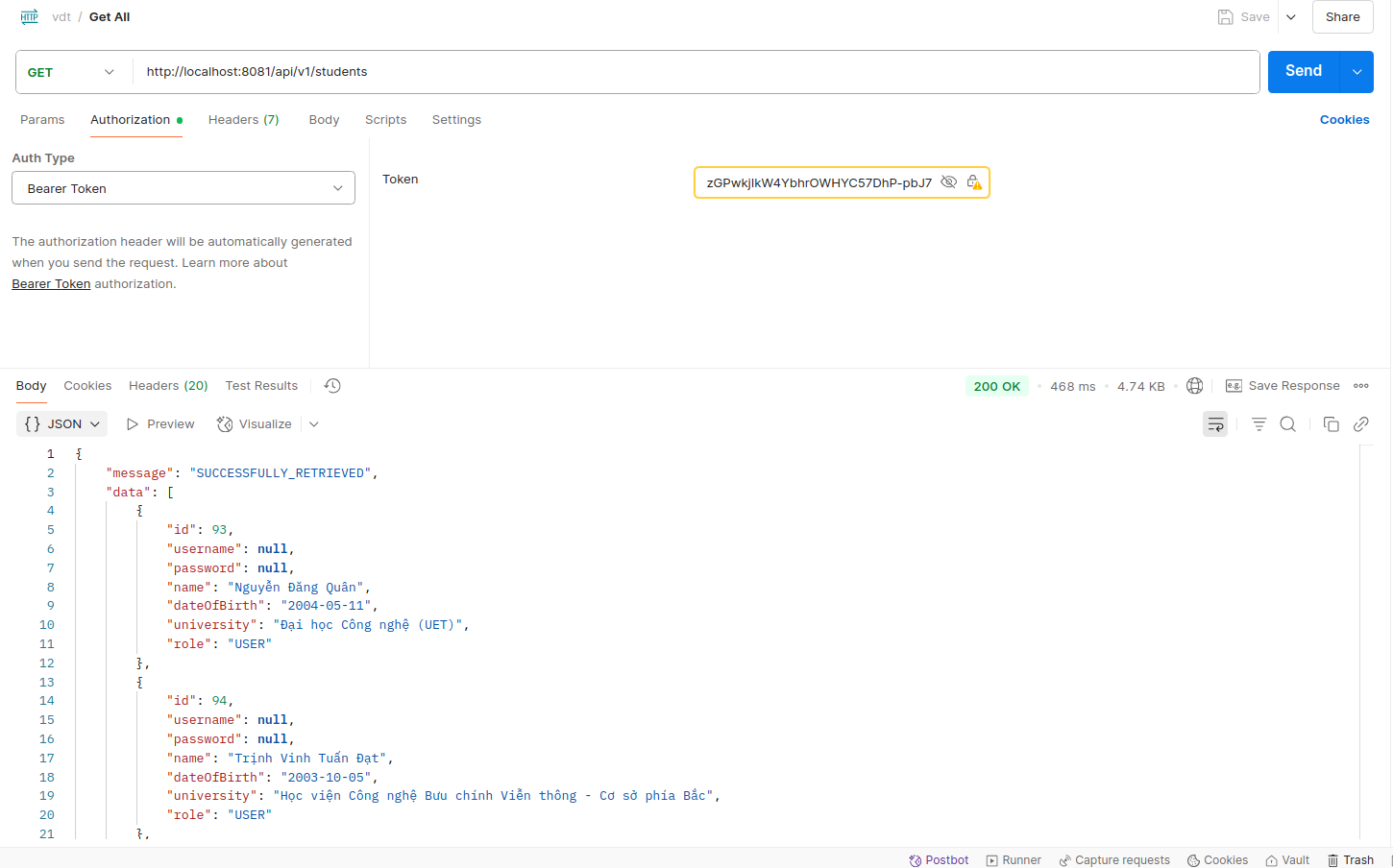

• User role is allowed to get

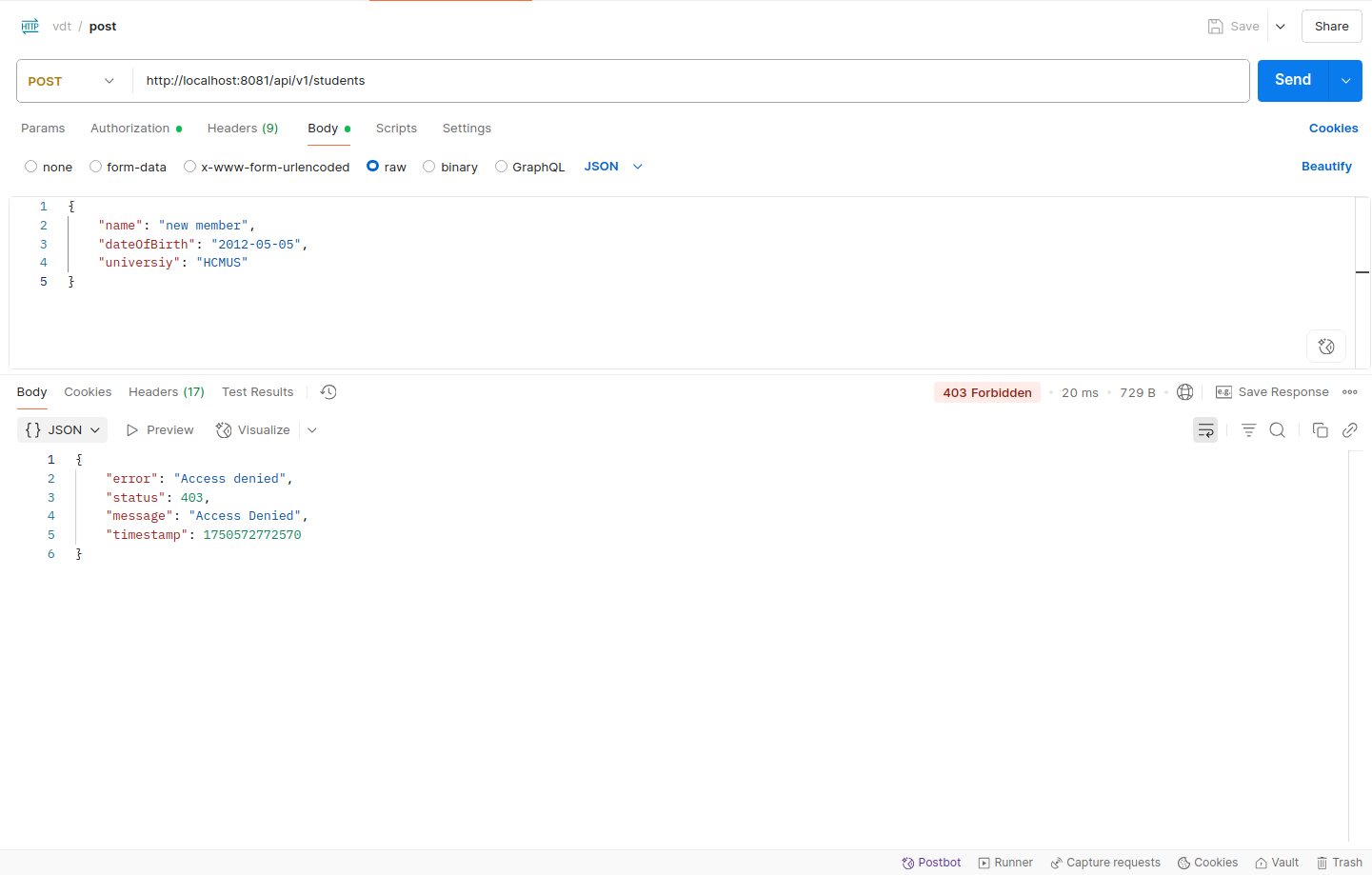

• User role is forbidden to perform post

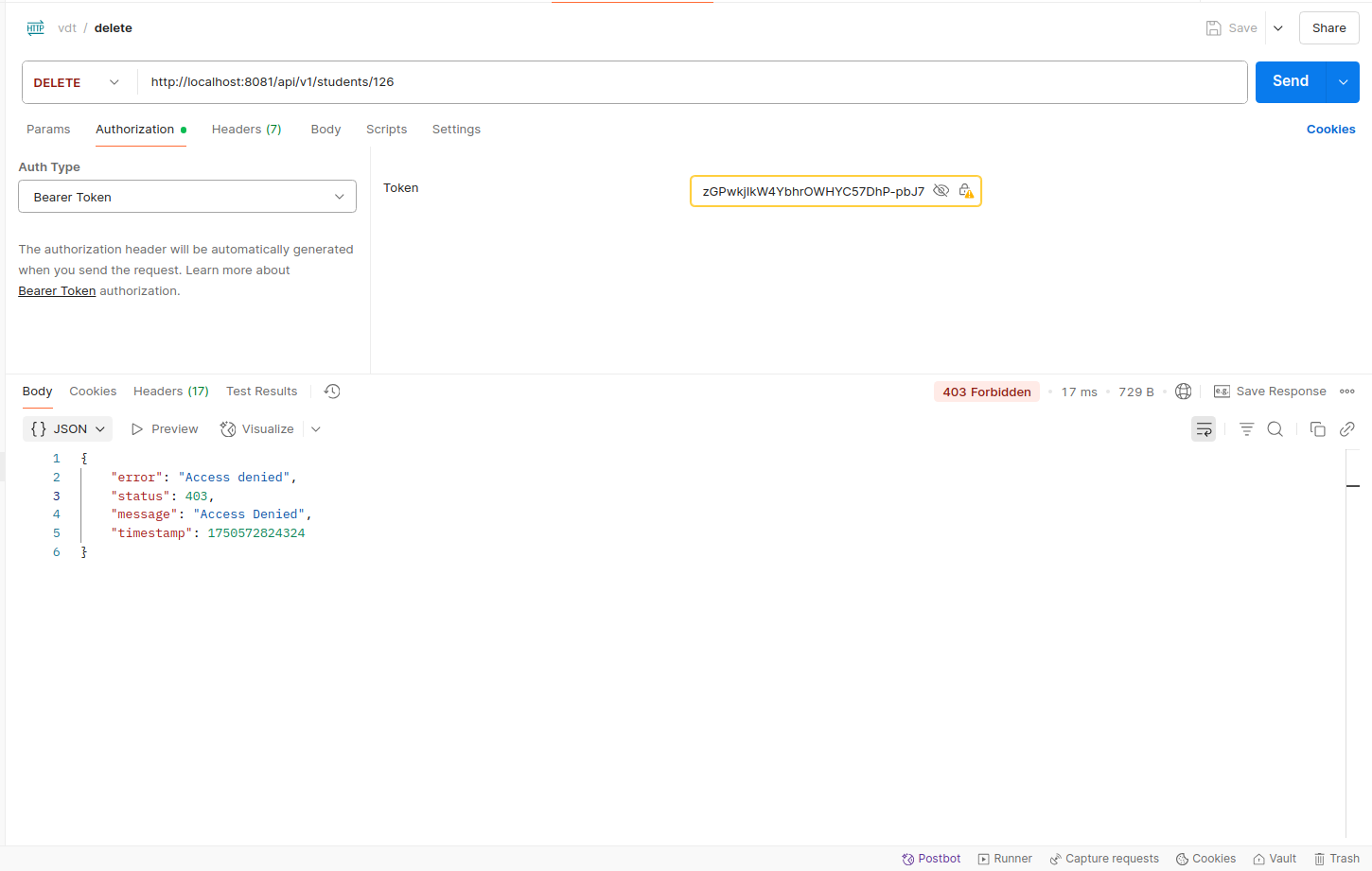

• User role is forbidden to perform delete

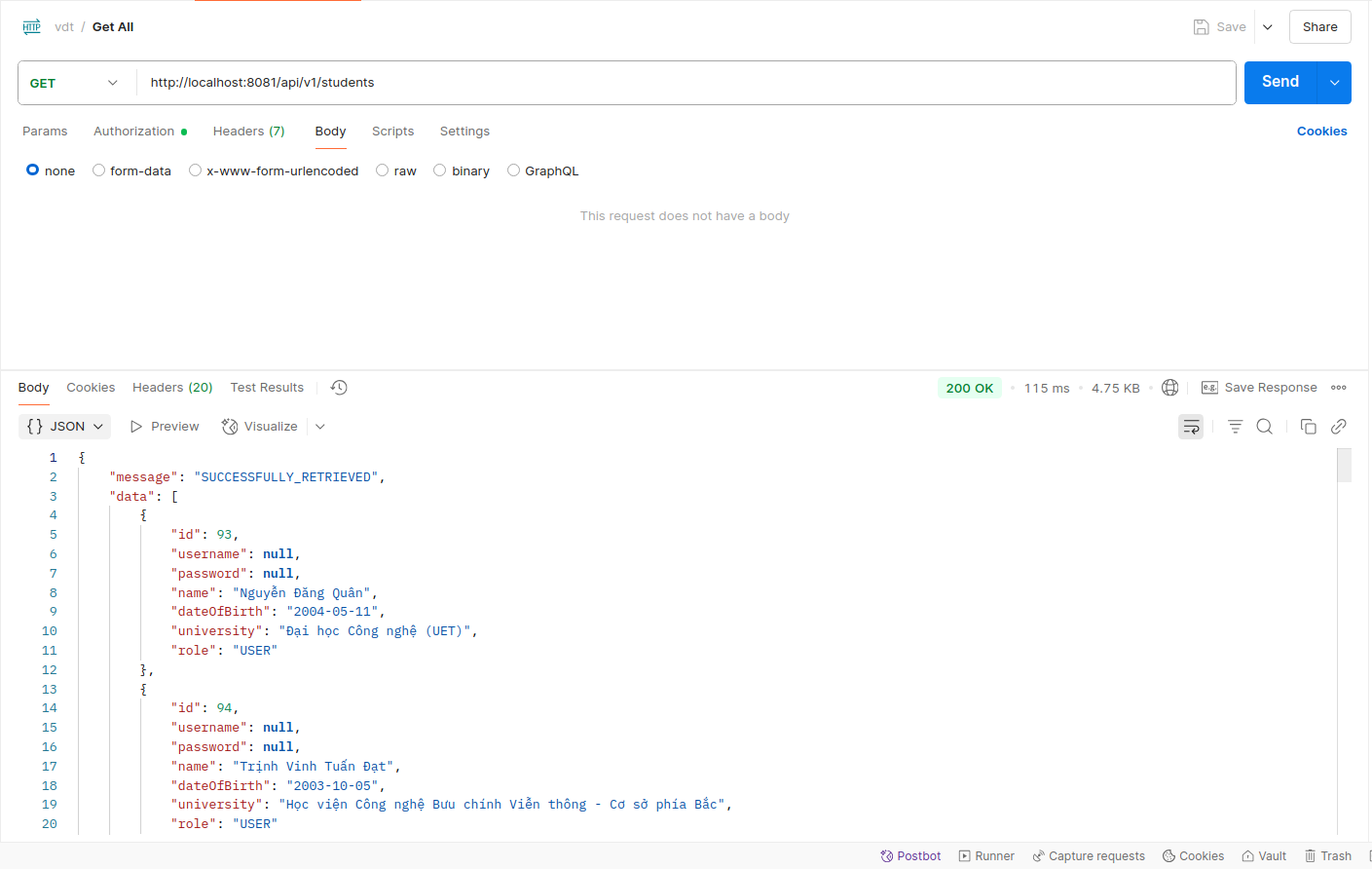

• Admin role is allowed to get

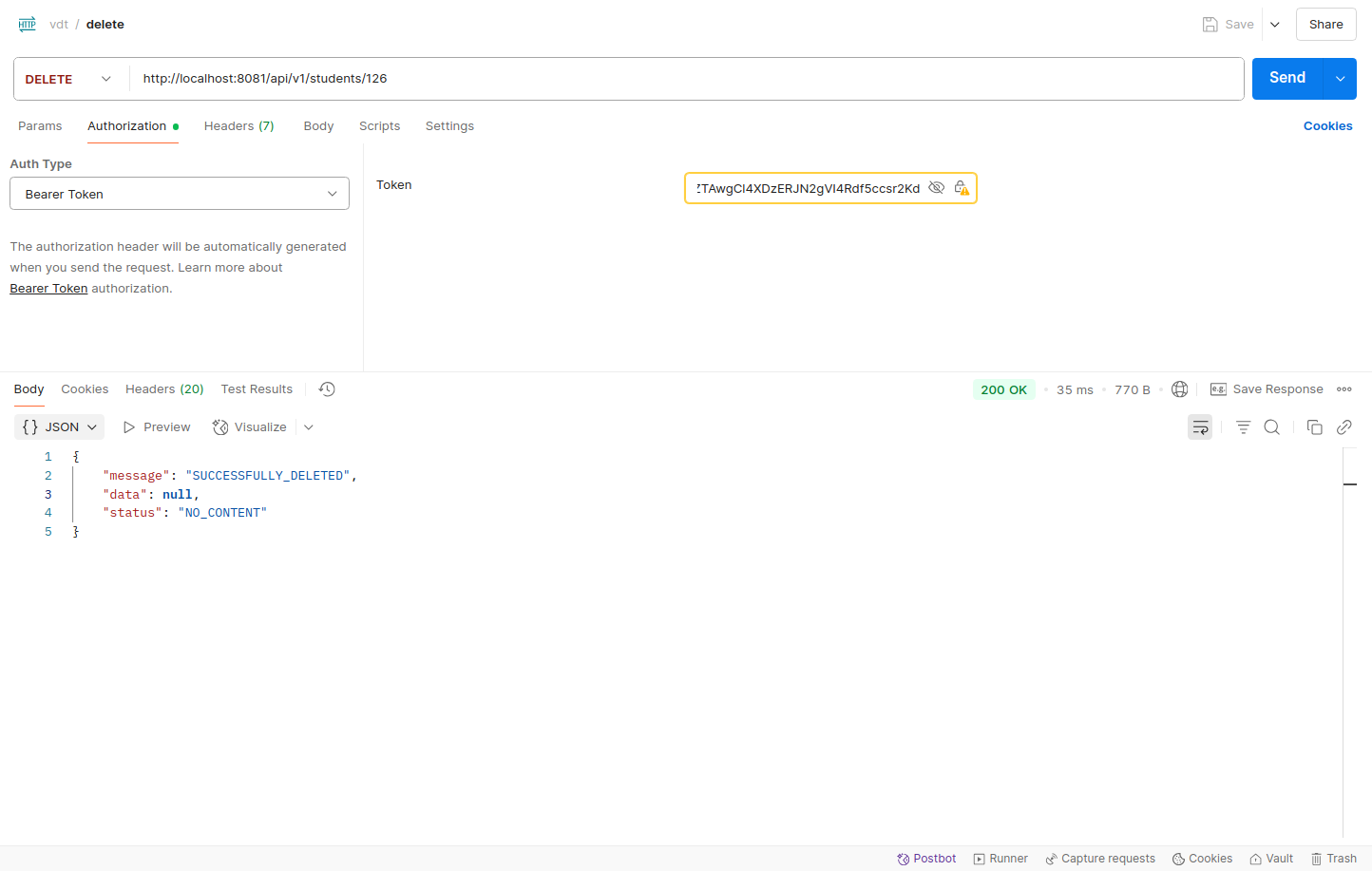

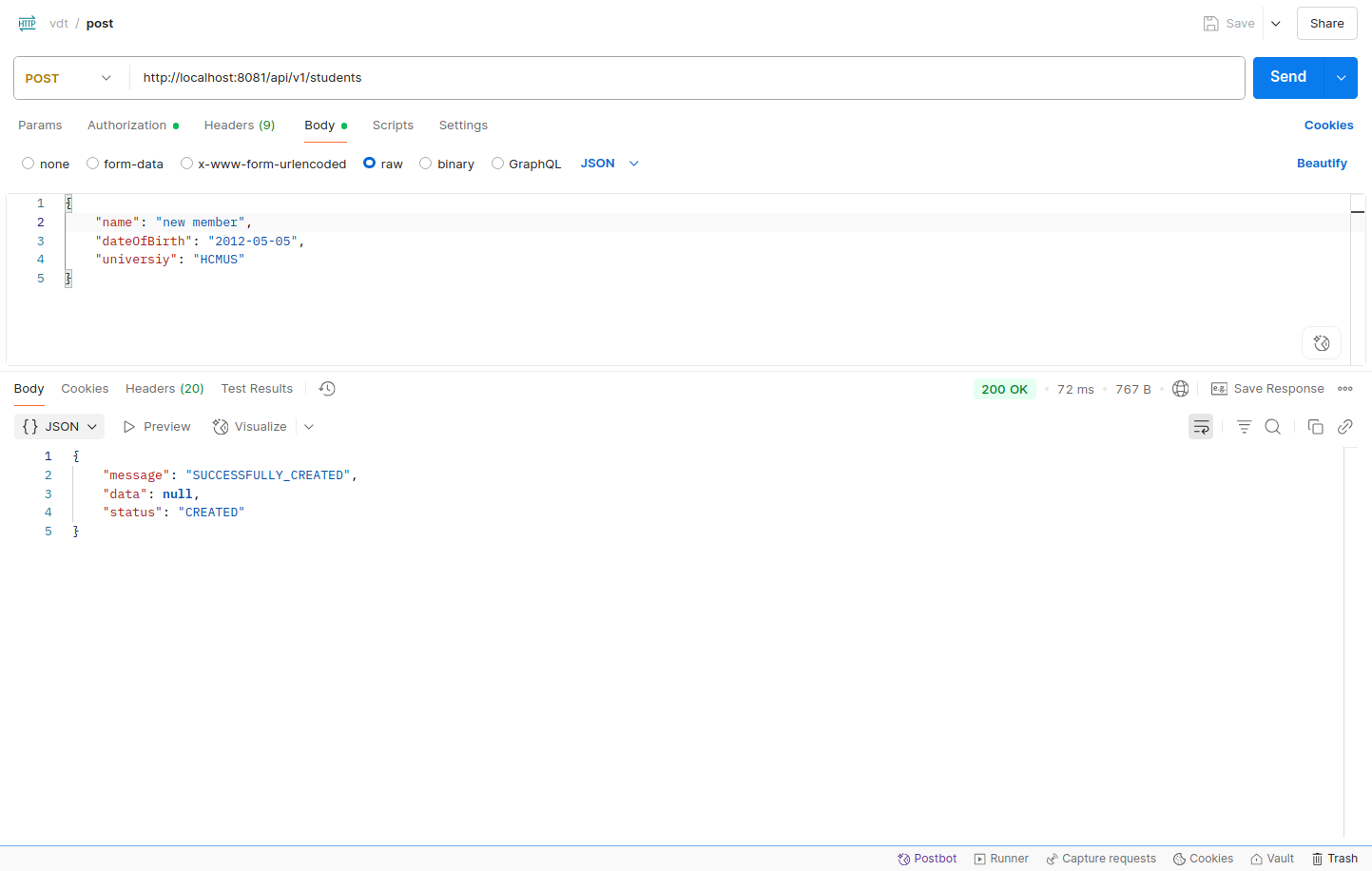

• Admin role is allowed to perform post

• Admin role is allowed to perform post

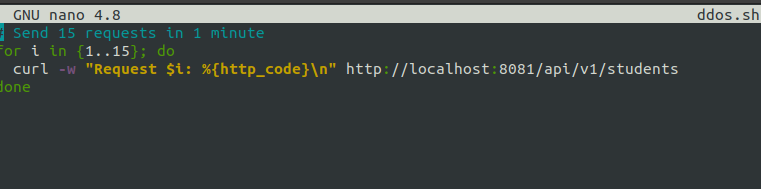

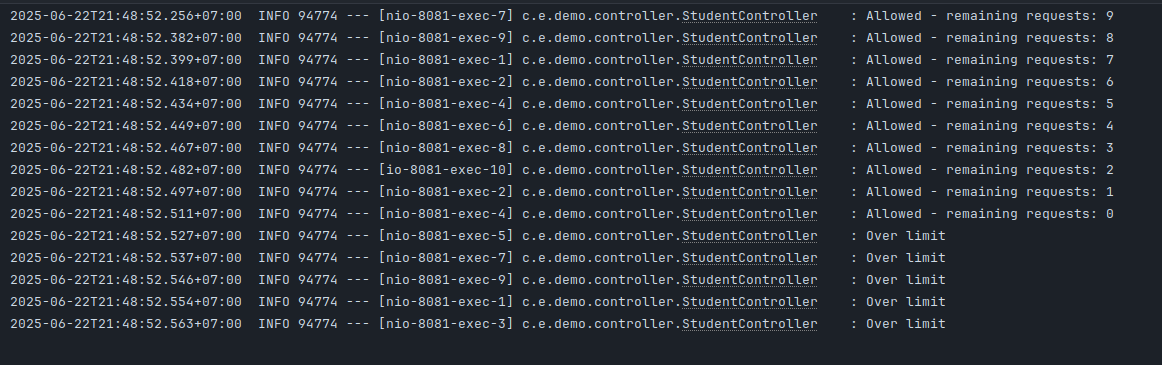

Rate Limiting

• Rate limiting docs: See rate_limitation.md

Overview:

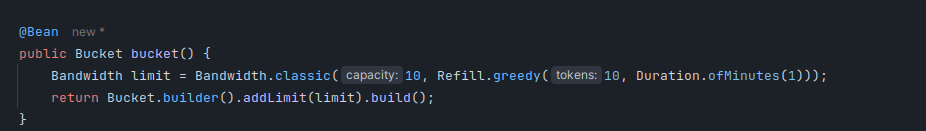

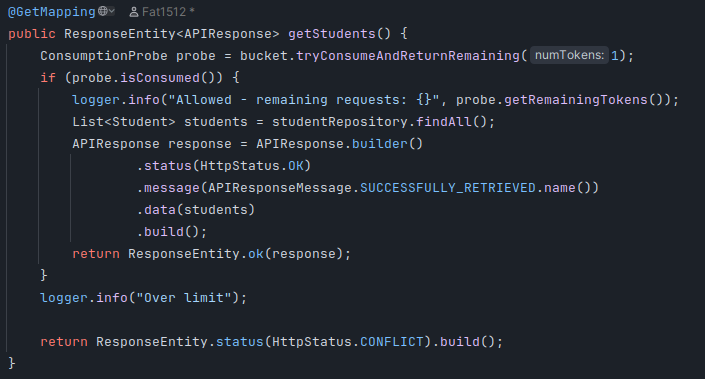

The API endpoint /api/v1/students allows clients to retrieve student records. To prevent abuse and overuse, a token bucket algorithm is used to limit the number of requests.

• Capacity: 10 tokens

• Refill Rate: 10 tokens per minute

• This means each client can send up to 10 requests per minute.

• Once all tokens are used, further requests are blocked until the bucket refills after 1 minute.
