Examples of use
-
The buttons 'R' Grbl sends to the respective commands of different groups and then displays the results
-
The buttons 'W' are used to write the value to Grbl
-
Button 'RST' resets all coordinate systems offsets and G28, G30
-

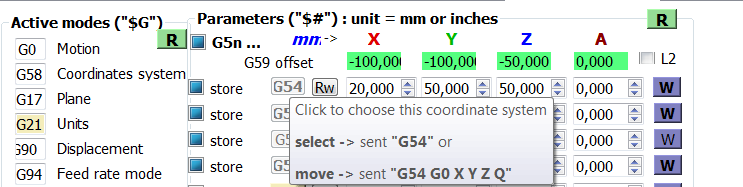

Coordinates systems : XYZT represent :
-
the value of the offset G5N for writing in Grbl
-
or the displacement value at the command G5N XYZT
-
Button 'Rw' will copy the current value of work in XYZ
-
The button 'G54' sends the command "G54 Xn Yn Zn" to Grbl
-
The button 'G5n ...' poster coordinate systems work values
-

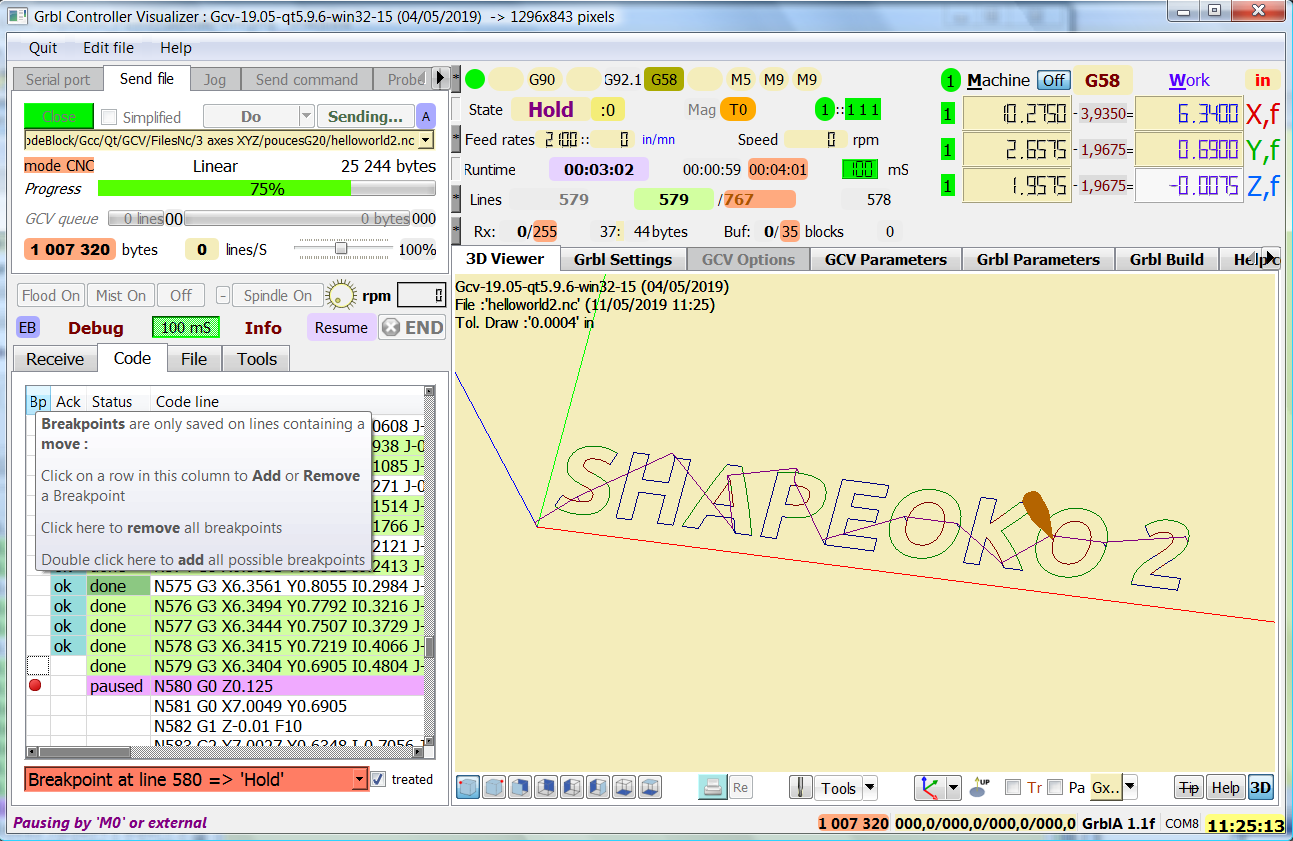

- a breakpoint in a inches code
- push 'Resume' button for run
- click on a line future, for a new breakpoint
