🛡️ OpsGuardian: AI-Powered DevOps Copilot

OpsGuardian is an AI-powered DevOps Copilot that understands natural language commands, makes intelligent decisions, executes safe actions, and explains its reasoning—all while strictly enforcing security policies and permissions.

Think of it as ChatGPT for DevOps, but with enterprise-grade guardrails.

---

🧠 Project Goal

OpsGuardian bridges the gap between AI autonomy and infrastructure security by enabling:

• Natural Language Execution: Run complex DevOps tasks via simple chat.
• Intent Understanding: LLM-driven reasoning to determine the best course of action.
• Permission Enforcement: Native integration with Auth0 (JWT + RBAC).
• Safe Guardrails: Policy checks and mandatory confirmation steps for "destructive" actions.
• Observability: Real-time technical flow visualization in the UI.

---

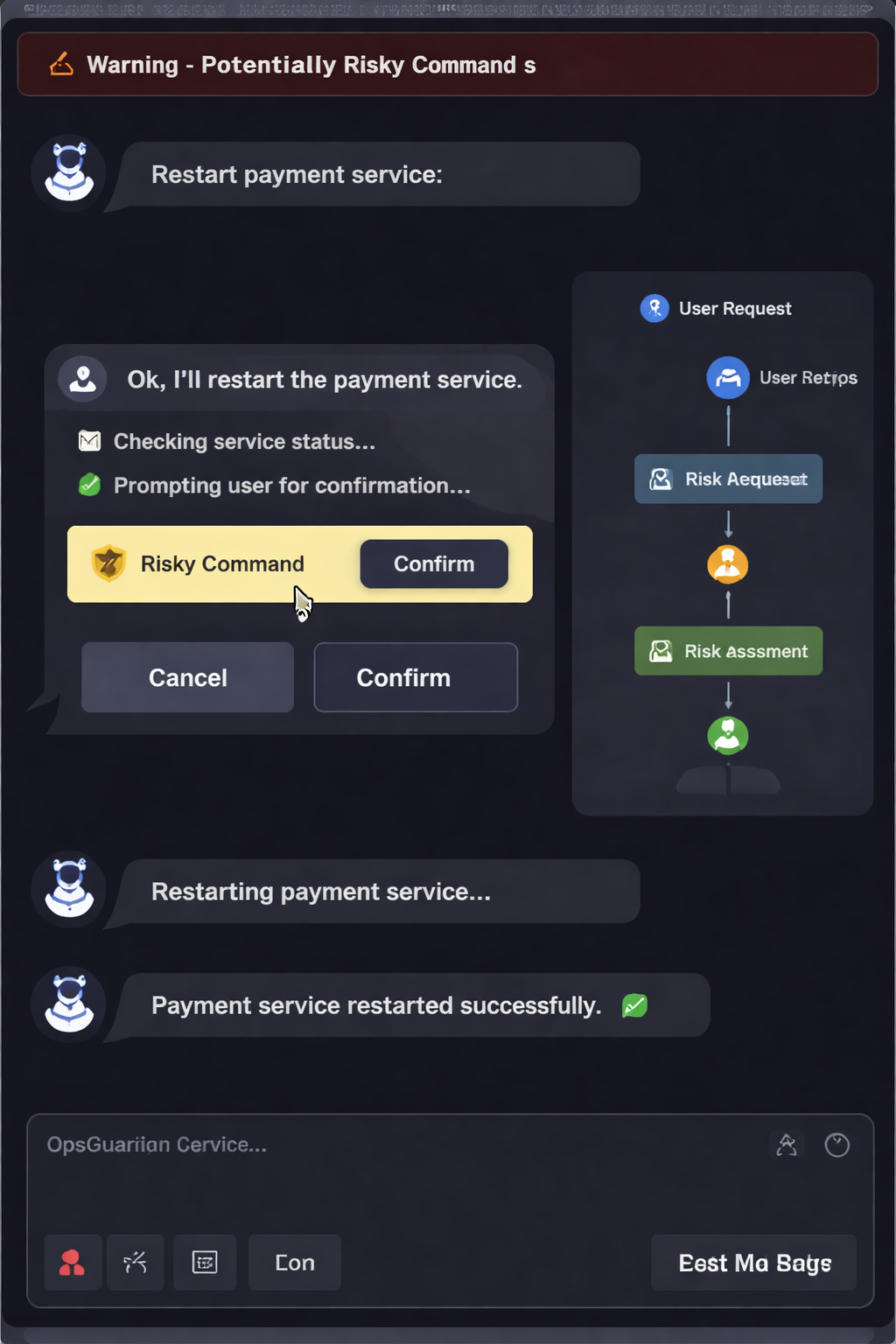

📺 Demo

Example Flow:

1. Input: User types "Restart payment service".
2. Reasoning: AI displays its thought process (e.g., "Checking service status...").
3. Safety Check: A confirmation button appears because the action is flagged as "Risky."
4. Validation: System validates the user's Auth0 JWT for the required permissions.
5. Execution: Once confirmed, the service restarts and the UI flow updates in real-time.

---

🏗️ Architecture

High-Level Component Map

           ┌─────────────┐
           │  Frontend   │
           │ (JS Chat UI)│
           └─────┬───────┘
                 │
                 ▼
          ┌─────────────┐
          │ Spring Boot │
          │   API       │
          └─────┬───────┘
                 │
      ┌──────────┴──────────┐
      │  Auth0 JWT Validation│
      │  (issuer + audience) │
      └──────────┬──────────┘
                 │
          ┌─────────────┐
          │    LLM      │
          │ Decision Engine│
          └─────┬───────┘
                 │
     ┌───────────┴───────────┐
     │   Agent Service        │
     │  - Policy Check        │
     │  - RBAC Enforcement    │
     │  - Confirmation Layer  │
     └───────────┬───────────┘
                 │
      ┌──────────┴───────────┐
      │ External APIs        │
      │ - GitHub             │
      │ - AWS                │
      │ - Logs / Metrics     │
      └──────────┬───────────┘
                 │
                 ▼
              ┌───────┐
              │  UI   │
              │ Response │
              └───────┘

Logic Flow (Mermaid)

flowchart LR
    A["🧑 User Chat UI"] -->|Natural Language Command| B["🤖 AI Layer (LLM)"]
    B --> C["🧠 Agent Layer"]
    C --> C1["Planner"]
    C --> C2["Executor"]
    C1 -->|"Task Plan"| C2
    C2 -->|"Tool Selection"| D["🧰 Tool Registry"]
    D --> E1["GitHub Tool"]
    D --> E2["Logs Tool"]
    D --> E3["DevOps Tool"]
    C2 --> F["🛡️ Policy Engine"]
    F -->|"Allow / Warn / Confirm"| G["🔐 Auth0 RBAC"]
    G --> H["⚙️ Execution Layer"]
    H --> E1
    H --> E2
    H --> E3
    H --> I["📊 Response + Status"]
    I --> J["💬 Chat UI + Flow Visualization"]

Loading

✅ Features Implemented

🤖 LLM Decision Engine

• Converts natural language into structured actions

Example:

{
  "action": "RESTART_SERVICE",
  "target": "payment-service",
  "reason": "Service instability detected"
}

---

🔐 Secure Execution

• Auth0 JWT validation
• Role-Based Access Control (RBAC)
• Permission-based execution

---

🛡️ Safety Guardrails

• Risk detection before execution
• Mandatory confirmation for critical actions

Flow:
LLM → Risk Check → Confirm → Execute

---

💬 Chat UI

• Natural language input
• AI reasoning displayed step-by-step
• Confirmation buttons
• Flow visualization

---

🔗 Integrations

• GitHub (issues, repositories)
• DevOps simulation APIs
• Logs & metrics

---

🧠 Transparent AI Reasoning

🧠 Understanding request...
📊 Analyzing intent...
⚙️ Deciding action...
🔐 Validating JWT...
🛡️ Checking permissions...
⚠️ Confirmation required
🚀 Executing...
✅ Done

---

⚡ Demo Script

Try these commands:

• Restart payment service
• Show logs for orders
• Scale checkout service to 3
• Create GitHub issue

---

🛠️ Setup

Backend

git clone <repo-url>
cd copilot_backend
./mvnw spring-boot:run

OpsGuardian requires minimal configuration for Auth0 authentication and LLM integration.

---

🔐 Auth0 Configuration

spring:
  security:
    oauth2:
      resourceserver:
        jwt:
          issuer-uri: https://dev-frvjdwj3fq0gwfb7.us.auth0.com/

• issuer-uri: Your Auth0 domain URL
• Used for validating incoming JWT tokens
• Ensures only authenticated users can access the API

---

🔑 Auth0 Machine-to-Machine (M2M)

auth0:
  domain: <DOMAIN>
  m2m:
    client-id: <CLIENT_ID>
    client-secret: <CLIENT_SECRET>

• domain: Your Auth0 tenant domain
• client-id / client-secret: Credentials for backend-to-backend communication
• Used by the agent to securely call external APIs on behalf of the user

⚠️ Do NOT commit real credentials to GitHub. Use environment variables instead.

---

🤖 LLM Configuration

llm:
  api:
    key: <API_KEY>
  model: gpt-4o-mini

• api.key: Your LLM provider API key
• model: LLM used for intent parsing and decision-making

---

🌐 Server Configuration

server:
  port: 8080

• Defines the port where the backend runs
• Default: http://localhost:8080

---

📝 Logging (Debug Mode)

logging:
  level:
    org.springframework.security: DEBUG

• Enables detailed logs for authentication and authorization
• Useful for debugging JWT validation and RBAC issues

---

Frontend

• Open: src/main/resources/static/index.html
• Ensure JWT is set in app.js

---

⚙️ Commands

Input	Action
Restart payment service	RESTART_SERVICE
Scale checkout service	SCALE_SERVICE
Show logs	FETCH_LOGS
Create GitHub issue	CREATE_GITHUB_ISSUE

---

🛡️ Policies

• ❌ No production restarts
• ⚠️ Scaling requires confirmation
• 🔐 RBAC enforced

---

📝 Roadmap

• Streaming AI responses
• Session memory
• AWS integrations
• Better UI (timestamps, history)

---

👀 Hackathon Highlights

• 🔥 AI agent with real guardrails
• 🔐 Security-first design (Auth0 + RBAC)
• 🧠 Transparent AI reasoning
• ⚙️ Extensible architecture

---

🎯 Vision

A production-ready AI DevOps agent that:

• Understands natural language
• Makes safe decisions
• Executes securely
• Explains everything

---

📂 Project Structure

copilot_backend/
├─ service/AgentService.java
├─ llm/LlmService.java
├─ model/AgentDecision.java
├─ model/AgentResponse.java
│
└─ static/
   ├─ index.html
   ├─ app.js

---

📦 License

MIT License
