All-about-ESP8266

The ESP8266 is a low-cost Wi-Fi microchip, with built-in TCP/IP networking software, and microcontroller capability, produced by Espressif Systems in Shanghai, China.

The chip was popularized in the English-speaking maker community in August 2014 via the ESP01 module, made by a third-party manufacturer Ai-Thinker. This small module allows microcontrollers to connect to a Wi-Fi network and make simple TCP/IP connections using Hayes-style commands. However, at first, there was almost no English-language documentation on the chip and the commands it accepted. The very low price and the fact that there were very few external components on the module, which suggested that it could eventually be very inexpensive in volume, attracted many hackers to explore the module, the chip, and the software on it, as well as to translate the Chinese documentation.

The ESP8285 is a similar chip with a built-in 1 MiB flash memory, allowing the design of singlechip devices capable of connecting via Wi-Fi.

These microcontroller chips have been succeeded by the ESP32 family of devices.

ESP8266-IC

List 1	List 2
Manufacturer	Espressif Systems
Type	32-bit microcontroller
CPU	Tensilica Diamond Standard 106Micro (aka. L106) @ 80 MHz (default) or 160 MHz
Memory	32 KiB instruction,80 KiB user data
Input	17 GPIO pins
Power	3.3 V DC
Successor	ESP32

ESP8266 Functions

ESP8266 has many applications when it comes to the IoT. Here are just some of the functions the chip is used for:

• Networking: The module’s Wi-Fi antenna enables embedded devices to connect to routers and transmit data
• Data Processing: Includes processing basic inputs from analog and digital sensors for far more complex calculations with an RTOS or Non-OS SDK
• P2P Connectivity: Create direct communication between ESPs and other devices using IoT P2P connectivity
• Web Server: Access pages written in HTML or development languages

ESP8266 Applications

The ESP8266 modules are commonly found in the following IoT devices:

• Smart security devices, including surveillance cameras and smart locks
• Smart energy devices, including HVACs and thermostats
• Smart industrial devices, including Programmable Logic Controllers (PLCs)
• Smart medical devices, including wearable health monitors

Chip versus Modules versus Development Boards

As discussed above, the ESP8266 is just the name of the chip. There are essentially three formats you can buy this in:

• ESP8266 Chip: This is the basic chip manufactured by Espressif, which comes unshielded and needs to be soldered onto a module. This is unsuitable for most users, apart from perhaps volume device manufacturers that can factor this into the production process under the unit cost of a module.

• ESP8266 Modules: These are the surface-mountable modules that contain the chip, which are ready to be mounted onto an MCU, produced by Espressif, Ai-Thinker and certain other manufacturers. They are usually shielded and pre-approved by the FCC for use. This means they’re a good option for device manufacturers looking to scale production.

• ESP8266 Development Boards: These are the complete IoT MCU development boards that have the modules preinstalled. They’re used for developers and manufacturers to create prototypes during the design stage, before they start production. Development boards are produced by several different manufacturers and the specifications differ between models. Some core specifications to be aware of when assessing ESP8266 IoT development board options include:

  • GPIO pins
  • ADC pins
  • Wi-Fi antennas
  • LEDs
  • Shielding*
  • Flash Memory

Many international markets require shielded Wi-Fi devices, as Wi-Fi produces considerable Radio Frequency Interference (RFI), and shielding minimizes this interference. This should, therefore, be a key consideration for all developers and embedded-device manufacturers.

Manufacturers of Modules and Boards

Some of the largest manufacturers of ESP8266 modules and development boards are:

• Espressif
• Ai-Thinker
• WeMos
• Adafruit
• Olimex

ESP8266 Modules

• Espressif Systems The Espressif Systems esp8266 is available in the following modules:

Model	Antennae	Dimensions	GPIO & ADC Pins	Flash	LEDs	Shielded
ESP-WROOM-02	PCB trace	18 × 20	18	2 MiB	No	Yes
ESP-WROOM-02D	PCB trace	18 × 20	18	2 MiB	No	Yes
ESP-WROOM-02U	U.FL socket	18 × 20	18	2 MiB	No	Yes
ESP-WROOM-S2	PCB trace	16 × 23	20	2 MiB	No	Yes

• Ai-Thinker Current Ai-Thinker esp8266 modules are the following:

Model	Antennae	Dimensions	GPIO & ADC Pins	Flash	LEDs	Shielded
ESP-01S	PCB trace	14.4 × 24.7	6	1 MiB	Yes	No
ESP-01M	PCB trace	18 × 18	16	1 MiB	No	Yes
ESP-07S	U.FL socket	17 × 16	14	4 MiB	No	Yes
ESP-08S	None	17 × 16	10	4 MiB	No	Yes
ESP-12F	PCB trace	24 × 16	20	4 MiB	Yes	Yes
ESP-12S	PCB trace	24 × 16	14	4 MiB	Yes	Yes

Older and discontinued models include: ESP-01, ESP-02, ESP-03, ESP-04, ESP-05, ESP-06, ESP-7, ESP-08, ESP-09, ESP-10, ESP-11, ESP-12, ESP-12E, and ESP-13 and ESP-14.

SDKs

There is now a wide range of software development kits (SDKs) available, enabling developers to program the chip directly without using a separate MCU.

Espressif provides two official SDKs for use with ESP8266, which are:

• A FreeRTOS based SDK

• A Non-OS SDK Aside from the Espressif options, there are plenty of commercial and open-source SDKs on the market, including:

• ESP Arduino Core – C++ based firmware

• ESP8266 BASIC – Open-source BASIC-like environment for IoT

• ESP-Open-RTOS – FreeRTOS open-source framework for ESP8266

• ESP-Open-SDK – Open integrated SDK for ESP8266

• Espruino – Javascript SDK and firmware

• Micropython – Python for embedded devices

• Moddable SDK – Javascript SDK

• Mongoose OS – C or Javascript open-source OS

• NodeMCU – Open-source Lua based firmware, similar to Node.js

• Sming – Asynchronous C/C++ framework

• uLisp – Lisp-based framework

• ZBasic – Visual Basic 6 adapted for ESP8266

• Zerynth – Python framework for IoT

Which is the best ESP8266 Module or Development Board for IoT?

As the above comparisons show, there are many options available with ESP8266 IoT boards and modules. To help you with your decision making, we’ve summarized some of the most popular below.

Popular ESP8266 Modules

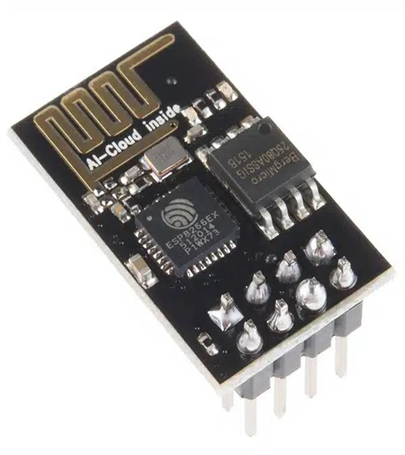

Ai-Thinker ESP-01

The ESP-01 is one of the biggest selling IoT Wi-Fi modules on the market. It’s widely used in smart home and networking projects.

The default AT firmware enables it to be used in combination with an Arduino. However, you can easily update the firmware with a USB-to-ESP-01 adaptor module.

A common complaint with this board is that the pin posts make it difficult to plug it directly into a breadboard, but this can be easily overcome by building or buying an adaptor module.

There are two versions available, one with 500kb of flash and the other with 1Mbit of flash.

Ai-Thinker ESP-05

This module was developed to provide Wi-Fi connectivity for MCUs such as Raspberry Pi and PIC and other Wi-Fi projects. It, therefore, does not have GPIOS.

It fits into a breadboard without any problems, but there are some complaints about being stuck with the factory set firmware unless you’re prepared to do some serious modifications.

Ai-Thinker ESP-12

This is a more fully featured module with 11 GPIO pins, an ADC, 4Mbits of flash, and 10-bit resolution. However, the module is not breadboard friendly, meaning you’ll need to use an adaptor.

There are two versions available, ESP-12F, which has 20 GPIOS and ESP-12S, which has 14.

Popular ESP8266 Boards

Espressif NodeMCU module V1.0

This board has the ESP-12E module and comes with 4 Mbits of flash and features a row of pins on each side of the breadboard. The board comes with four communication interfaces: SPI, I2C, UART, and I2S, with 16 GPIO and one ADC. The RAM is 160KB, divided into 64KB for instruction and 96KB for data.

Adafruit Huzzah ESP8266 Breakout

This microcontroller operates at a logic level of 3.3V and is clocked at 80MHz. It comes programmed with the Lua Interpreter, which makes programming simple, with no boot loading required. Alternatively, you can use the Arduino IDE to program it.

There is an onboard CP2104 USB-to-serial converter, therefore you can simply plug it into your computer and upload your code. The board is also lightweight and small, so it’s useful for projects with space constraints.

WeMos D1 Mini

The WeMos D1 Mini was designed to be one of the smallest possible development boards for the ESP8266 module. It has a micro USB connection and compatibility with several firmware options.
