App 2052/optionally sync mcp config with secrets by HeyItsChloe · Pull Request #1001 · OpenHands/agent-canvas

HeyItsChloe · 2026-06-01T21:09:26Z

A human has tested these changes.

Why

MCP server config and the Secrets store are entirely separate. When a user
installs an MCP server that requires credentials (API keys, tokens, etc.),
those values are written only into mcp_config and are therefore invisible
to the Automation Server when running automations. Users had to re-enter the
same credentials manually in Settings → Secrets, with no indication that this
step was necessary.

Summary

Adds an "Also save as secret" toggle to every envField in the MCP
install modal. Password-type fields are pre-checked; non-password fields
default to off. On successful install, checked fields are fire-and-forget
upserted to the Secrets store so the Automation Server can access them
immediately.

Issue Number

https://linear.app/all-hands-ai/issue/APP-2052/mcp-server-configuration-form-should-allow-setting-secrets-needed-by
#926

How to Test

npm install && npm run dev
Open the MCP page and click Install on any stdio-based server
(e.g. Slack, Tavily).
Confirm each envField shows an "Also save as secret" toggle.
Password-type fields should be pre-checked; plain-text fields should be
unchecked.
Toggle fields on/off as desired, fill in credentials, and click Install.
After the modal closes, navigate to Settings → Secrets and confirm the
checked fields appear with the field label as their description.
To verify the unhappy path: disconnect from the network, install a server
with a checked toggle, and confirm the modal still closes and a toast
error appears — no modal-level error is shown.

Video/Screenshots

https://github.com/user-attachments/assets/116ec279-fc28-484a-8165-d3e5c6fc4a80

Type

Notes

The secret save is intentionally fire-and-forget and runs after
onClose(), so a Secrets API failure never blocks the MCP install flow.
SecretsService.createSecret is an upsert internally; re-installing a
server overwrites the existing secret for that key name rather than
creating a duplicate.
The toggle only appears on envFields (environment variables / credentials).
argFields are CLI positional arguments and are not candidates for secret
storage.
35 / 35 unit tests pass; lint and TypeScript are clean.

🐳 Docker images for this PR

• GHCR package: https://github.com/OpenHands/agent-canvas/pkgs/container/agent-canvas

Component	Value
Image	`ghcr.io/openhands/agent-canvas`
Architectures	amd64, arm64
Agent Server	`ghcr.io/openhands/agent-server:1.24.0-python`
Automation	`openhands-automation==1.0.0a5`
Commit	`aadce623c2b6e78c924ba33c44d75bcfb89b2a40`

Pull (multi-arch manifest)

# Multi-arch manifest — Docker automatically pulls the correct architecture
docker pull ghcr.io/openhands/agent-canvas:sha-aadce62

Run

docker run -it --rm \
  -p 8000:8000 \
  ghcr.io/openhands/agent-canvas:sha-aadce62

All tags pushed for this build

ghcr.io/openhands/agent-canvas:sha-aadce62-amd64
ghcr.io/openhands/agent-canvas:APP-2052-optionally-sync-mcp-config-with-secrets-amd64
ghcr.io/openhands/agent-canvas:pr-1001-amd64
ghcr.io/openhands/agent-canvas:sha-aadce62-arm64
ghcr.io/openhands/agent-canvas:APP-2052-optionally-sync-mcp-config-with-secrets-arm64
ghcr.io/openhands/agent-canvas:pr-1001-arm64
ghcr.io/openhands/agent-canvas:sha-aadce62
ghcr.io/openhands/agent-canvas:APP-2052-optionally-sync-mcp-config-with-secrets
ghcr.io/openhands/agent-canvas:pr-1001

About Multi-Architecture Support

Each tag (e.g., sha-aadce62) is a multi-arch manifest supporting both amd64 and arm64
Docker automatically pulls the correct architecture for your platform
Individual architecture tags (e.g., sha-aadce62-amd64) are also available if needed

…add tests - useSaveFieldsAsSecrets: wrap returned fn in useCallback for stable identity, pass field.label as secret description, truncate key lists >3 in toasts, update JSDoc to document upsert behaviour - SaveAsSecretToggle: replace hidden input with sr-only for AT accessibility, move data-testid to label, add aria-hidden to decorative track, replace div with button for keyboard-reachable info trigger with aria-label - InstallServerModal: add stateRef to avoid stale closure in onSuccess callback, add comment explaining why argFields have no secret toggle - translation.json: plural-safe English wording for MCP$SECRETS_SAVED - tests: add use-save-fields-as-secrets.test.ts (9 tests), add save-as-secret-toggle.test.tsx (9 tests), extend install-server-modal with save-as-secret describe block (8 tests); 35/35 pass Co-authored-by: openhands <openhands@all-hands.dev>

vercel · 2026-06-01T21:09:31Z

The latest updates on your projects. Learn more about Vercel for GitHub.

Project	Deployment	Actions	Updated (UTC)
agent-canvas	Ready	Preview, Comment	Jun 1, 2026 9:59pm

github-actions · 2026-06-01T21:16:59Z

✅ Mock-LLM Docker E2E Test Results

12/12 passed

Commit: b3d2178a · Workflow run · Test artifacts

Status	Test	Duration
✅	mock-llm-auth-modes.spec.ts › auth mode: non-public key rotation › recovers when localStorage has a stale session API key	3.8s
✅	mock-llm-auth-modes.spec.ts › auth mode: public gate › shows the auth screen when no key is configured	1.2s
✅	mock-llm-auth-modes.spec.ts › auth mode: public gate › rejects an incorrect key with an inline error	1.3s
✅	mock-llm-auth-modes.spec.ts › auth mode: public gate › allows access after pasting the correct key	1.8s
✅	mock-llm-auth-modes.spec.ts › auth mode: public gate › re-prompts when the server rotates its key (stale localStorage)	1.5s
✅	mock-llm-automation.spec.ts › mock-LLM automation lifecycle › step 1: setup LLM profile and register automation trajectory	231ms
✅	mock-llm-automation.spec.ts › mock-LLM automation lifecycle › step 2: create automation and dispatch run via the UI	27.8s
✅	mock-llm-automation.spec.ts › mock-LLM automation lifecycle › step 3: verify automation and run on the automations page	4.2s
✅	mock-llm-conversation.spec.ts › mock-LLM agent-server conversation › step 1: create an LLM profile pointing at the mock LLM server	4.2s
✅	mock-llm-conversation.spec.ts › mock-LLM agent-server conversation › step 2: activate the mock-llm profile and verify settings API	4.3s
✅	mock-llm-conversation.spec.ts › mock-LLM agent-server conversation › step 3: run a conversation with the mock LLM	4.4s
✅	mock-llm-conversation.spec.ts › mock-LLM agent-server conversation › step 4: resume conversation from sidebar after navigating away	3.7s

_{Posted by the Mock-LLM E2E workflow · results are deterministic (scripted LLM responses)}

…rets

github-actions · 2026-06-01T22:06:20Z

✅ Mock-LLM Docker E2E Test Results

12/12 passed

Commit: aadce623 · Workflow run · Test artifacts

Status	Test	Duration
✅	mock-llm-auth-modes.spec.ts › auth mode: non-public key rotation › recovers when localStorage has a stale session API key	3.8s
✅	mock-llm-auth-modes.spec.ts › auth mode: public gate › shows the auth screen when no key is configured	1.2s
✅	mock-llm-auth-modes.spec.ts › auth mode: public gate › rejects an incorrect key with an inline error	1.4s
✅	mock-llm-auth-modes.spec.ts › auth mode: public gate › allows access after pasting the correct key	1.8s
✅	mock-llm-auth-modes.spec.ts › auth mode: public gate › re-prompts when the server rotates its key (stale localStorage)	1.5s
✅	mock-llm-automation.spec.ts › mock-LLM automation lifecycle › step 1: setup LLM profile and register automation trajectory	463ms
✅	mock-llm-automation.spec.ts › mock-LLM automation lifecycle › step 2: create automation and dispatch run via the UI	29.8s
✅	mock-llm-automation.spec.ts › mock-LLM automation lifecycle › step 3: verify automation and run on the automations page	4.1s
✅	mock-llm-conversation.spec.ts › mock-LLM agent-server conversation › step 1: create an LLM profile pointing at the mock LLM server	4.2s
✅	mock-llm-conversation.spec.ts › mock-LLM agent-server conversation › step 2: activate the mock-llm profile and verify settings API	4.4s
✅	mock-llm-conversation.spec.ts › mock-LLM agent-server conversation › step 3: run a conversation with the mock LLM	4.3s
✅	mock-llm-conversation.spec.ts › mock-LLM agent-server conversation › step 4: resume conversation from sidebar after navigating away	3.7s

_{Posted by the Mock-LLM E2E workflow · results are deterministic (scripted LLM responses)}

github-actions · 2026-06-01T22:07:51Z

📸 Snapshot Test Report

Warning

Snapshot comparison step crashed (timeout, OOM, or runner error) — diff results below may be incomplete or absent.
Check the CI logs for the full error output (look for the "Run snapshot comparison" step).

❌ 1 snapshot differ from the main branch baseline. Add the update-snapshots label to acknowledge intentional changes.

Category	Count
🔴 Changed	1
🆕 New	0
✅ Unchanged	72
Total	73

How to resolve:

Unintentional diffs — the baselines on main may have moved since this branch was created. Merge the latest main into this branch and re-run CI.

Intentional changes — add the update-snapshots label. CI will pass and the new screenshots become the baseline when this PR merges.

🔴 Changed snapshots (1)

`mcp-page`

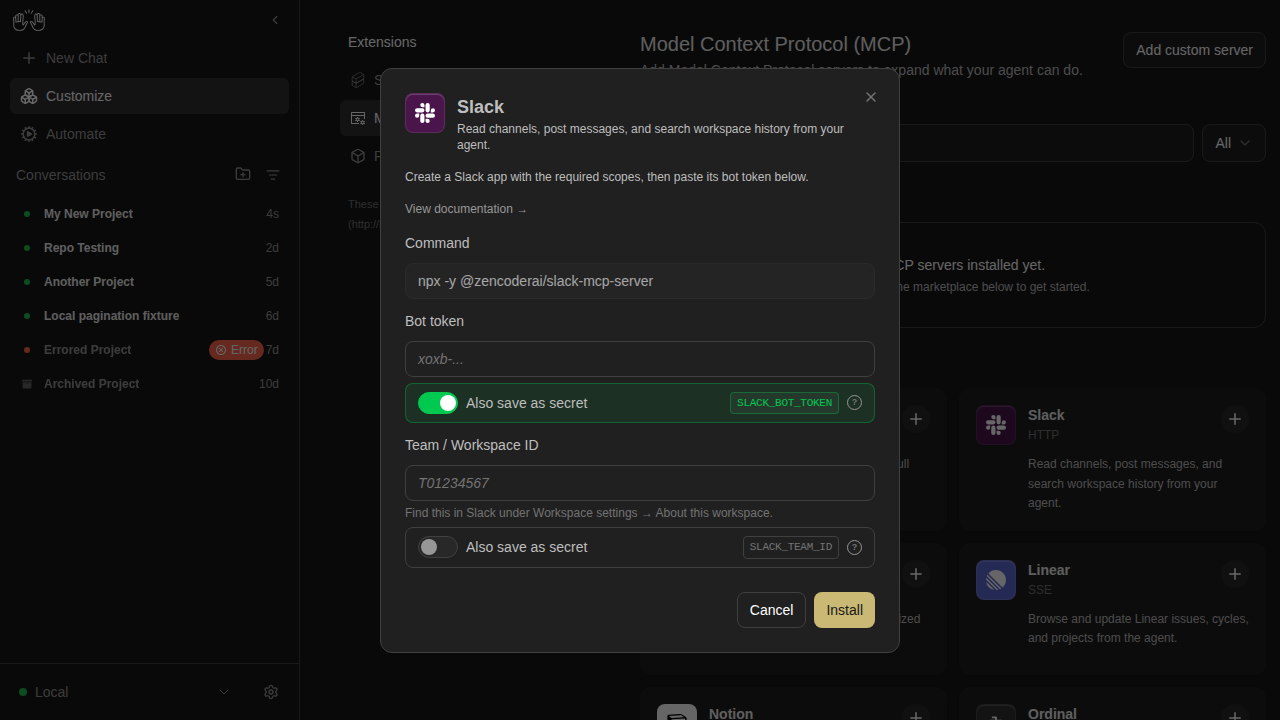

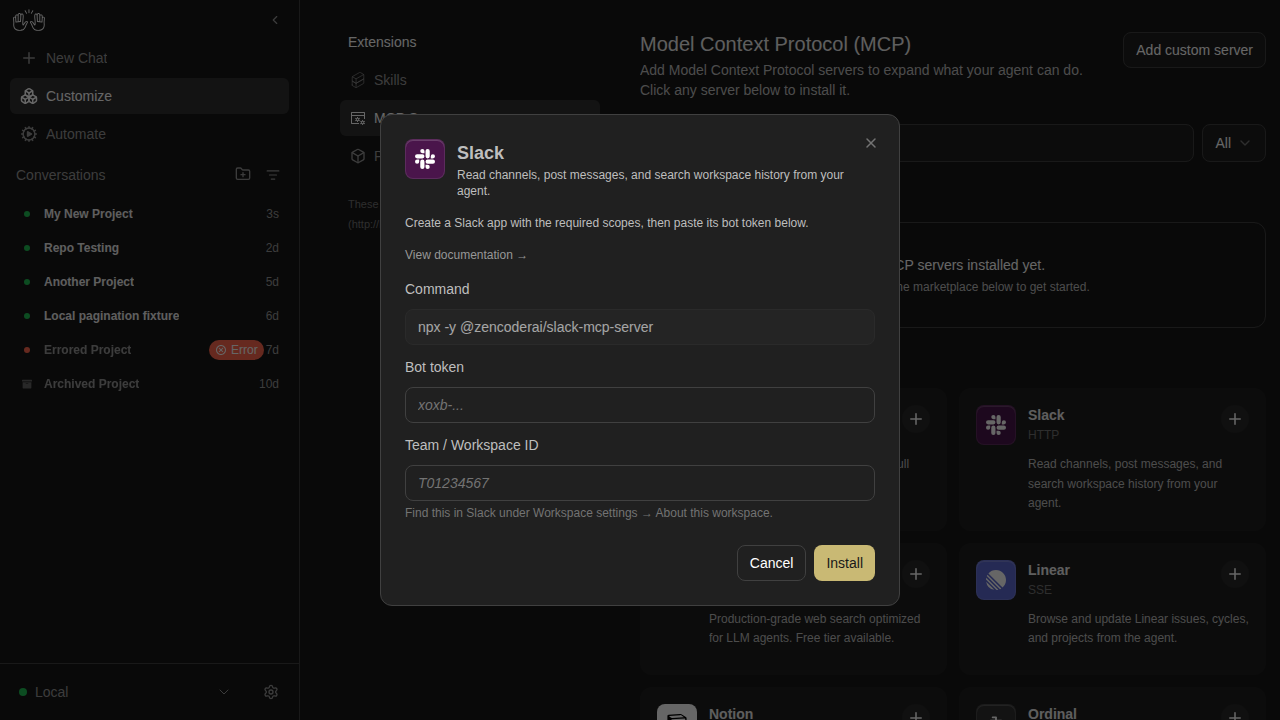

mcp-slack-install-2-modal

Expected (main)	Actual (PR)	Diff

✅ Unchanged snapshots (72)

archived-conversation

conversation-panel-with-archived-badges
conversation-view-archived
conversation-view-sandbox-error

automations

automations-delete-modal
automations-list-active-inactive
automations-no-automations
automations-search-no-results

backends-extended

backend-add-blank-disabled
backend-add-cloud-advanced-open
backend-add-cloud-no-key-disabled
backend-add-cloud-with-key-enabled
backend-add-form-partially-filled
backend-add-invalid-url-disabled
backend-add-local-ready
backend-add-name-only-disabled
backend-add-two-column-layout
backend-add-whitespace-host-disabled
backend-after-switch
backend-cancel-nothing-saved
backend-dropdown-two-backends
backend-edit-prefilled
backend-manage-after-removal
backend-manage-two-listed
backend-remove-cancelled
backend-remove-confirmation
backend-switch-overlay

backends

backend-add-modal
backend-manage-modal
backend-selector-open

changes-tab

changes-deleted-file
changes-diff-viewer
changes-empty

collapsible-thinking

reasoning-content-collapsed
reasoning-content-expanded
think-action-collapsed
think-action-expanded

mcp-page

mcp-custom-server-1-editor-open
mcp-custom-server-2-url-filled
mcp-custom-server-3-all-filled
mcp-custom-server-4-installed
mcp-custom-server-editor
mcp-empty-installed
mcp-search-filtered
mcp-slack-install-1-marketplace
mcp-slack-install-3-filled
mcp-slack-install-4-installed

onboarding

onboarding-step-0-choose-agent
onboarding-step-1-check-backend
onboarding-step-2-setup-llm
onboarding-step-3-say-hello

projects-workspace-browser

projects-workspace-browser

settings-page

add-backend-modal
analytics-consent-modal
home-screen
settings-app-page
settings-page

settings-secrets

secrets-add-form-filled
secrets-add-form
secrets-after-save
secrets-delete-confirm
secrets-list

settings-verification

condenser-settings
verification-settings-off
verification-settings-on

sidebar

sidebar-collapsed
sidebar-conversation-panel
sidebar-filter-menu

skills-page

skills-empty
skills-loaded
skills-no-match
skills-search-filtered
skills-type-filter

Generated by the Snapshot Tests workflow. This comment was created by an AI agent (OpenHands) on behalf of the repo maintainers.

HeyItsChloe · 2026-06-01T22:55:33Z

"Save As A Secret" Toggle render conditions: a field renders the toggle if and only if it was an envField at init time.

WILL render:
stdio envFields — every field in template.envFields[]
- starts CHECKED when field.type === "password"
- starts UNCHECKED when field.type === "text" (or any other value)

WILL NOT render:
stdio argFields — never given a savedAsSecret key
- shttp / sse api_key — no savedAsSecret entry is created for shttp/sse transports at all
- command, url — readonly/disabled display fields, never in state

HeyItsChloe and others added 2 commits June 1, 2026 13:19

add toggles to form fields

063de40

Merge branch 'main' into APP-2052/optionally-sync-mcp-config-with-sec…

aadce62

…rets
