fix(settings): validate condenser Max Size and block invalid values

[VascoSch92]

• A human has tested these changes.

Summary

Fixes #863. The Condenser "Max Size" field accepted values the backend rejects (negatives, below the minimum, non-integers), so users could only discover the problem via an unclear error when saving.

The backend SDK (CondenserSettings.max_size) enforces ge=20 with no upper bound, so any value below 20 — including the spinner going under 0 — fails validation on save. This change surfaces those rules in the UI as immediate, localized feedback.

Issue Number

#863

Changes

• Constrain the input. Added a condenser.max_size entry to FIELD_METADATA (min: 20, step: 1), mirroring the existing llm.top_p / llm.temperature constraints. This floors the
  native number spinner at 20 and matches the backend ge=20.
  • Live validation feedback. SchemaField now shows an inline red message as the user types, via the existing SettingsInput error prop (the same pattern used in backend-form-modal /
    edit-automation-modal):
    • below the minimum → "Value must be at least 20."
    • non-integer (e.g. 0.9) → "Please enter a whole number."
    • non-numeric entry (e.g. a typed letter) → "Please enter a whole number." Detected via the input's native validity.badInput flag, read from a raw input event listener (React's
    • non-numeric entry (e.g. a typed letter) → "Please enter a whole number." Detected via the input's native validity.badInput flag, read from a raw input event listener (React's onChange is skipped when a number input's value
      stays empty, so it can't be relied on here).
  • i18n. Added SCHEMA$ERROR$WHOLE_NUMBER and SCHEMA$ERROR$MIN_VALUE (with {{min}} interpolation) across all 15 locales.

Video/Screenshots

Screen.Recording.2026-05-29.at.12.33.40.mov

Type

• Bug fix
• Feature
• Refactor
• Breaking change
• Docs / chore

Notes

• The validation is generic to numeric SchemaFields, not condenser-specific.
• The min: 20 floor is hardcoded on the frontend because the schema endpoint doesn't expose pydantic's min/max; a comment links it to the SDK constraint so it stays in sync.
• Browser caveat: in Chrome, type="number" blocks letter keystrokes outright, so the non-numeric message only appears in browsers that allow typing them (Firefox/Safari); floats and below-minimum work everywhere.

---

🐳 Docker images for this PR

• GHCR package: https://github.com/OpenHands/agent-canvas/pkgs/container/agent-canvas

Component	Value
Image	ghcr.io/openhands/agent-canvas
Architectures	amd64, arm64
Agent Server	ghcr.io/openhands/agent-server:1.24.0-python
Automation	openhands-automation==1.0.0a5
Commit	a5d083896fd2aaea4cdb166b6b4005ae45be2380

Pull (multi-arch manifest)

# Multi-arch manifest — Docker automatically pulls the correct architecture
docker pull ghcr.io/openhands/agent-canvas:sha-a5d0838

Run

docker run -it --rm \
  -p 8000:8000 \
  ghcr.io/openhands/agent-canvas:sha-a5d0838

All tags pushed for this build

ghcr.io/openhands/agent-canvas:sha-a5d0838-amd64
ghcr.io/openhands/agent-canvas:863-bug-condenser-max-number-of-events-indicator-can-go-under-0-amd64
ghcr.io/openhands/agent-canvas:pr-925-amd64
ghcr.io/openhands/agent-canvas:sha-a5d0838-arm64
ghcr.io/openhands/agent-canvas:863-bug-condenser-max-number-of-events-indicator-can-go-under-0-arm64
ghcr.io/openhands/agent-canvas:pr-925-arm64
ghcr.io/openhands/agent-canvas:sha-a5d0838
ghcr.io/openhands/agent-canvas:863-bug-condenser-max-number-of-events-indicator-can-go-under-0
ghcr.io/openhands/agent-canvas:pr-925

About Multi-Architecture Support

• Each tag (e.g., sha-a5d0838) is a multi-arch manifest supporting both amd64 and arm64
• Docker automatically pulls the correct architecture for your platform
• Individual architecture tags (e.g., sha-a5d0838-amd64) are also available if needed

[vercel]

The latest updates on your projects. Learn more about Vercel for GitHub.

Project	Deployment	Actions	Updated (UTC)
agent-canvas	Ready	Preview, Comment	May 29, 2026 12:13pm

[all-hands-bot]

✅ Review complete.

This review was performed through OpenHands Cloud Automation. You can log in and view the conversation here.

[all-hands-bot]

Overall this is a clean, well-scoped fix. The PR correctly constraints condenser.max_size at the UI level to match the backend's ge=20 rule, and the approach — extracting a pure getNumericFieldError function and using the native bad-input flag for unparseable entries — is sound. Good test coverage and full i18n for all 15 locales. A few observations below.

This review was generated by an AI agent (OpenHands) on behalf of the user through OpenHands Automation. View conversation

[github-actions]

📸 Snapshot Test Report

Warning

Snapshot comparison step crashed (timeout, OOM, or runner error) — diff results below may be incomplete or absent.
Check the CI logs for the full error output (look for the "Run snapshot comparison" step).

Warning

One or more snapshot tests crashed during generation — some snapshots below may be incomplete.
Check the CI logs for the full error output (look for the "Generate current PR snapshots" step).

✅ 7 snapshots changed — acknowledged via the update-snapshots label. New baselines will be uploaded when this PR merges.

Category	Count
🔴 Changed	7
🆕 New	0
✅ Unchanged	66
Total	73

🔴 Changed snapshots (7)

backends-extended

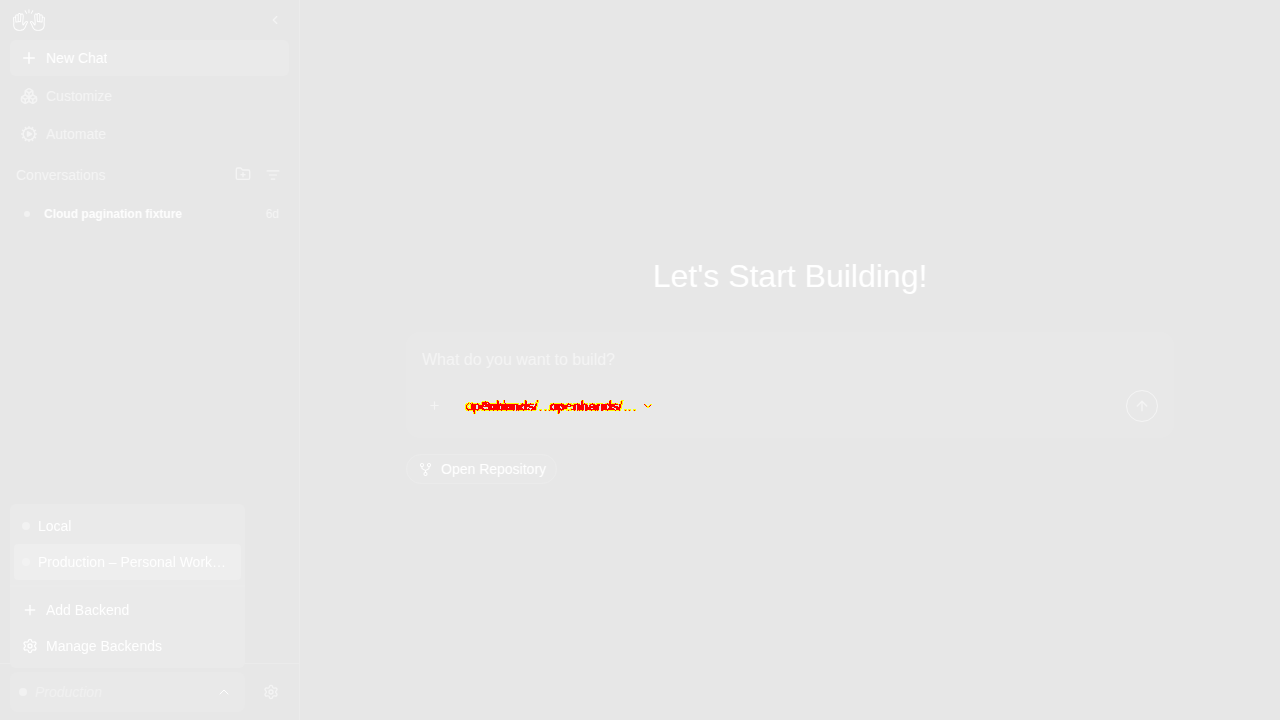

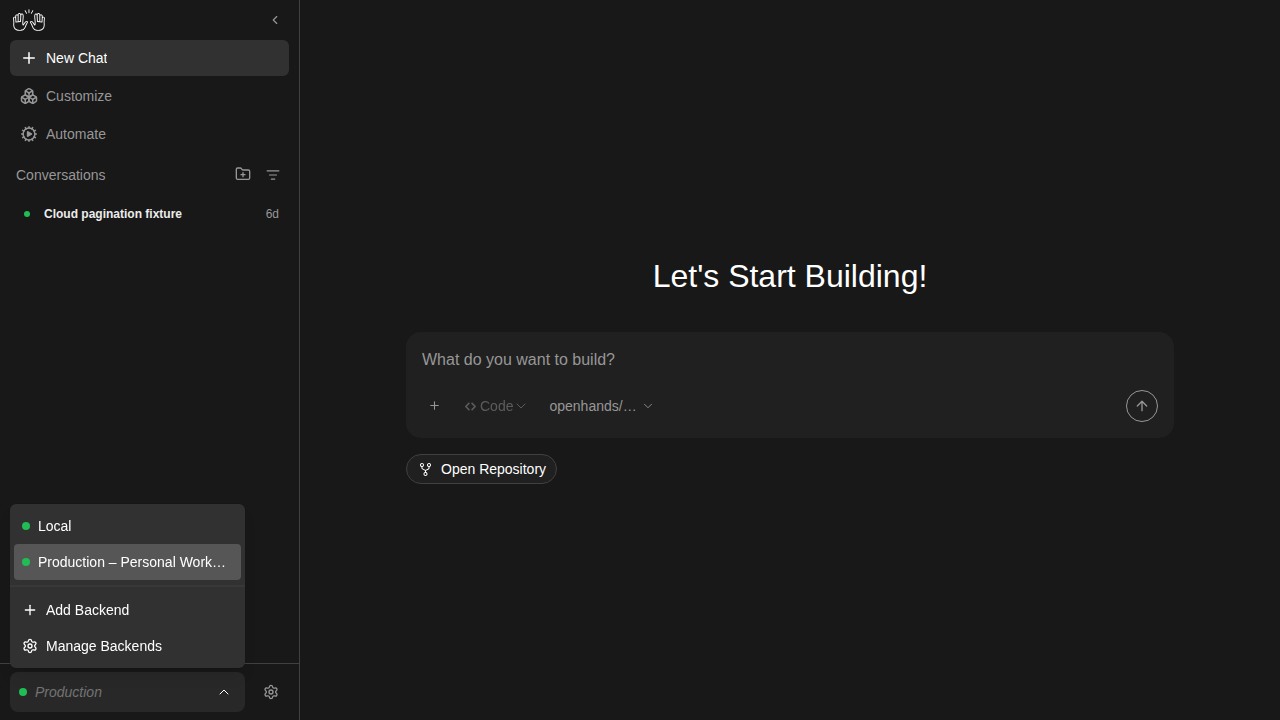

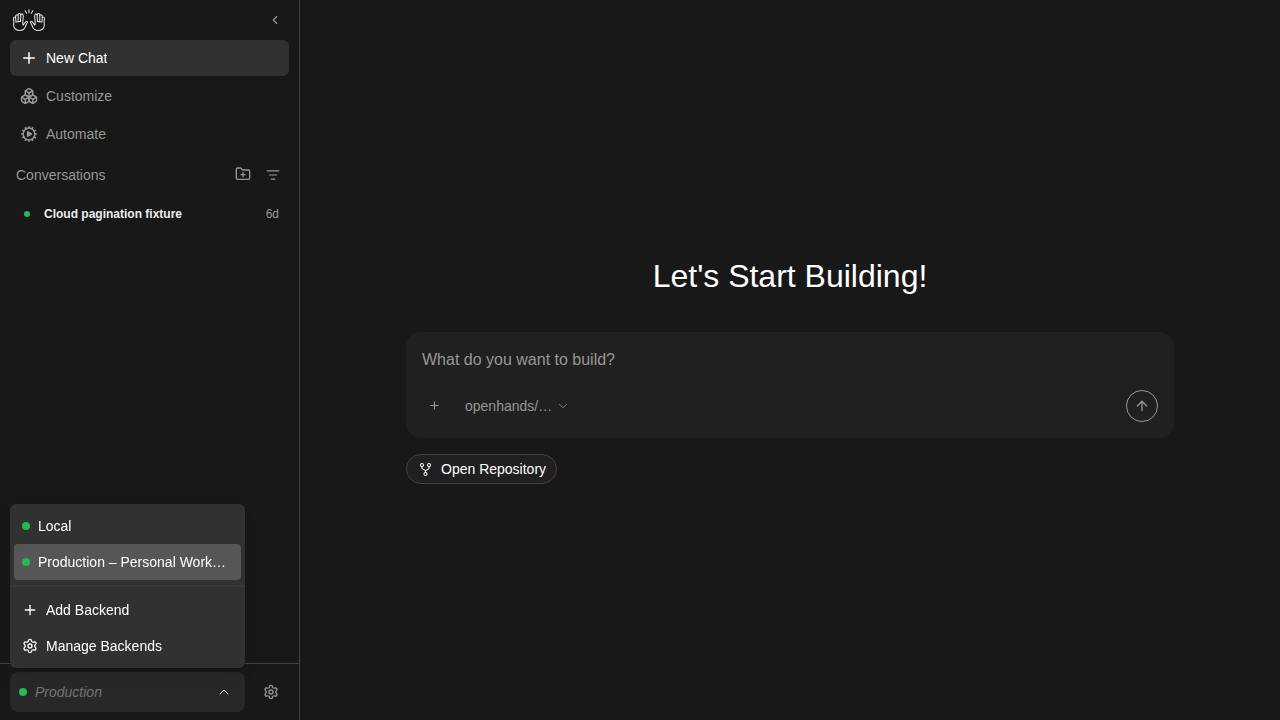

backend-after-switch

Expected (main)	Actual (PR)	Diff

mcp-page — 5 snapshots

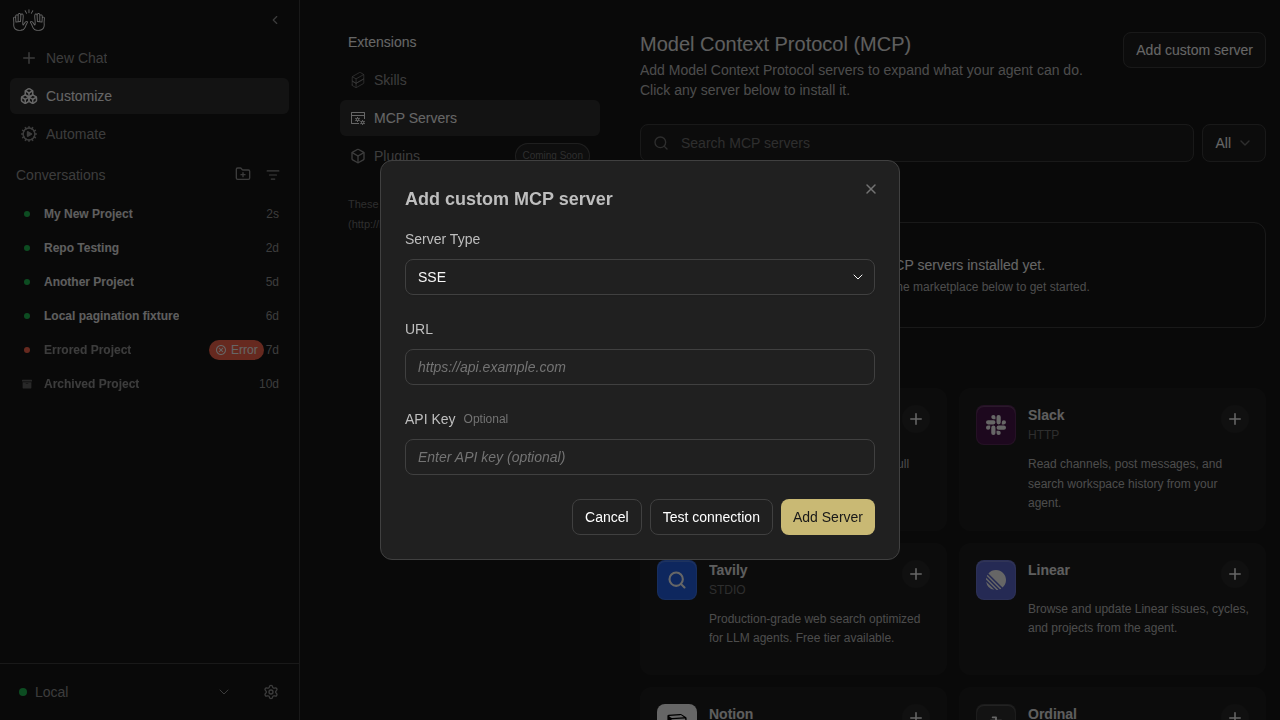

mcp-custom-server-1-editor-open

Expected (main)	Actual (PR)	Diff

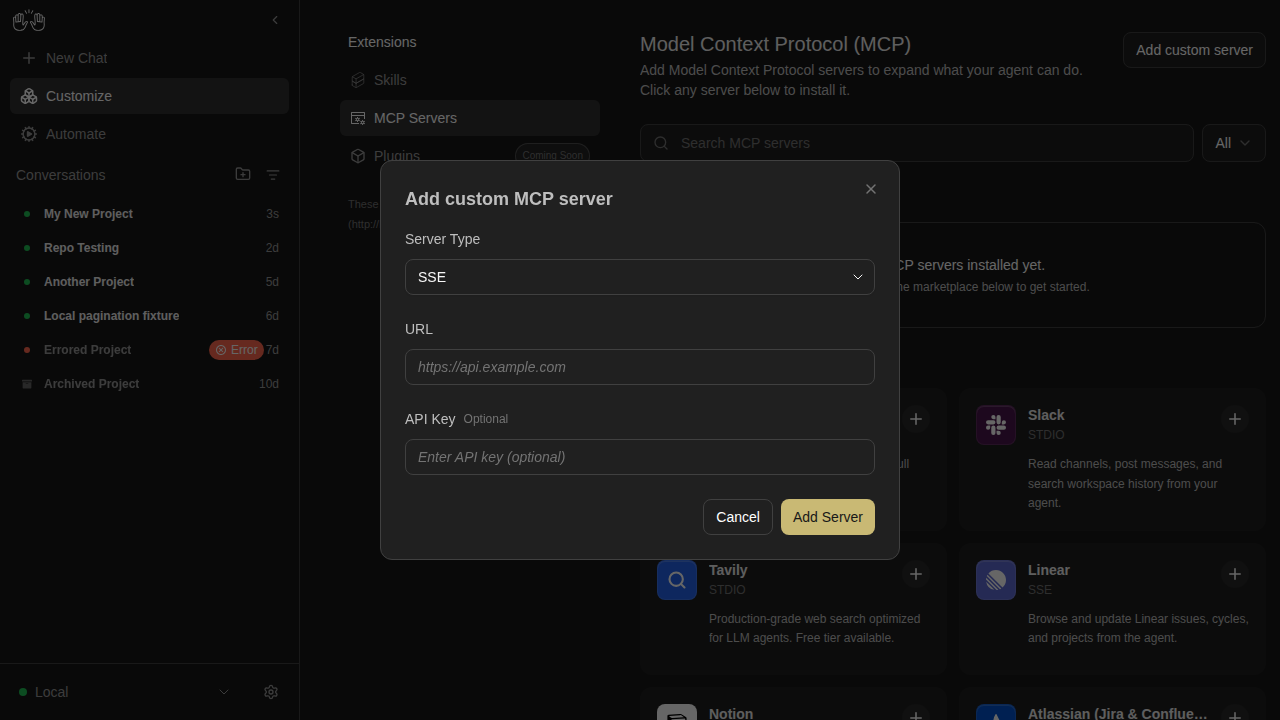

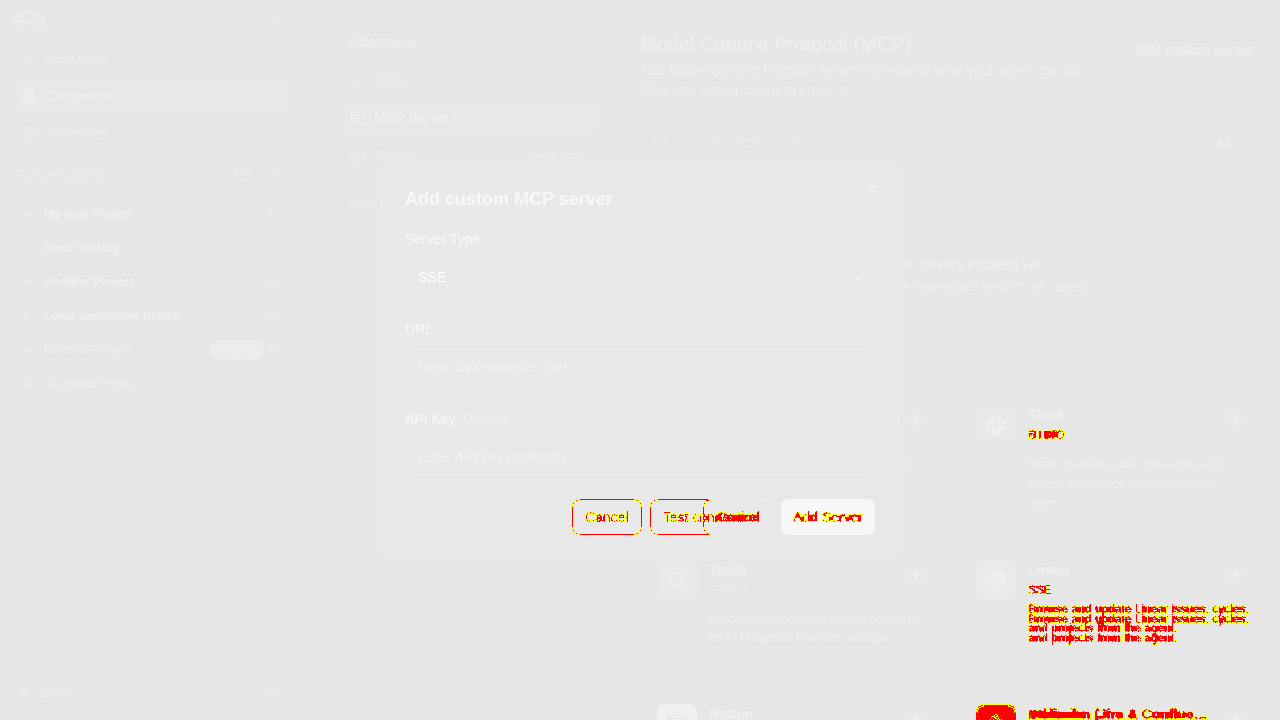

mcp-custom-server-editor

Expected (main)	Actual (PR)	Diff

mcp-empty-installed

Expected (main)	Actual (PR)	Diff

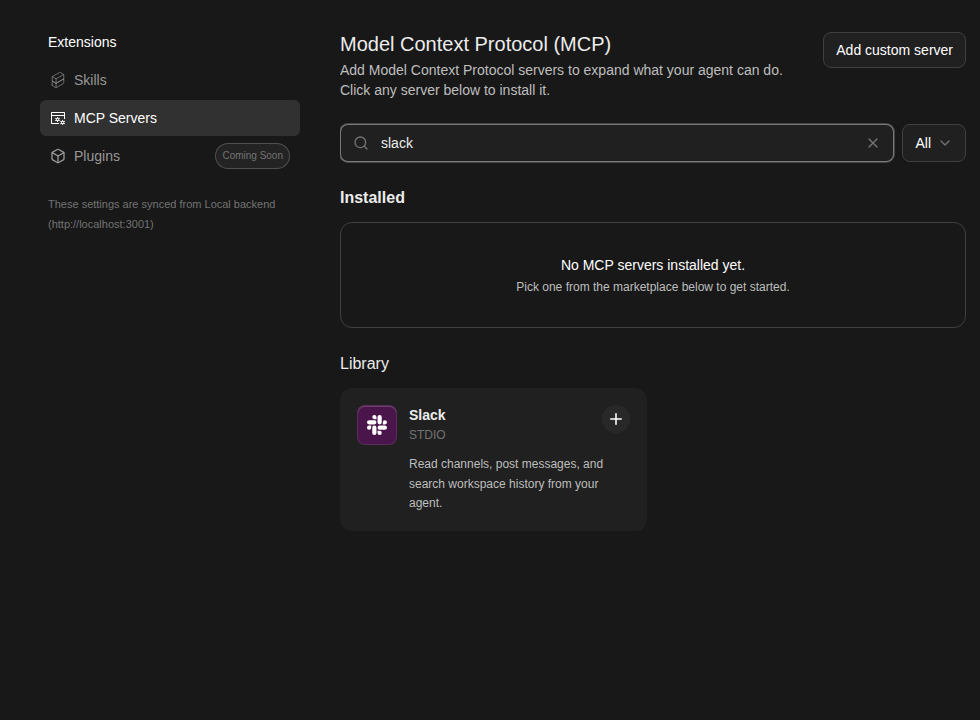

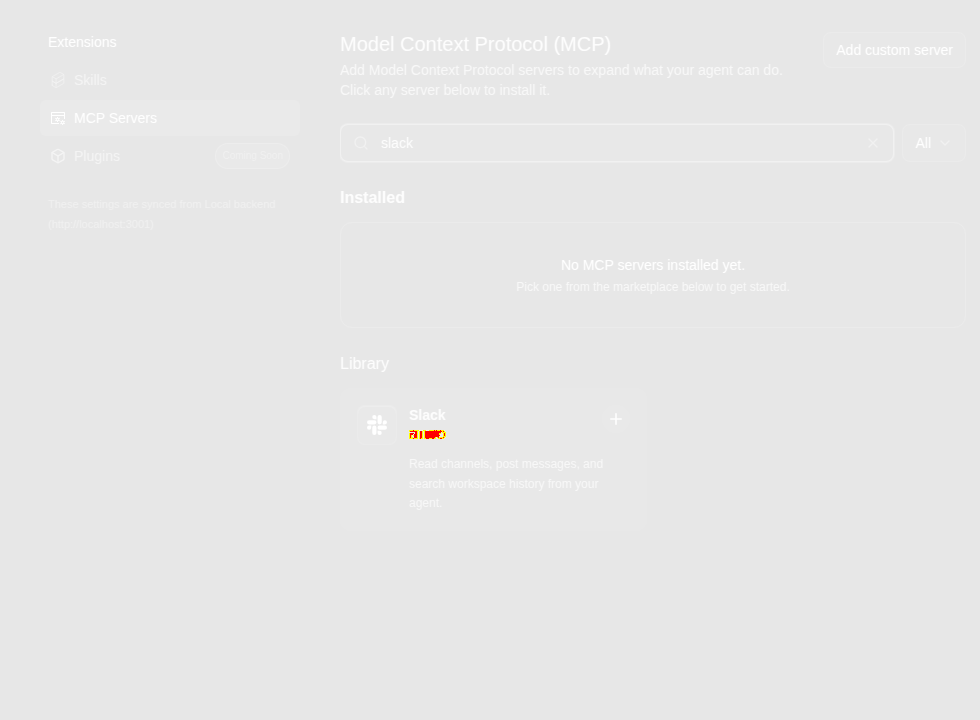

mcp-search-filtered

Expected (main)	Actual (PR)	Diff

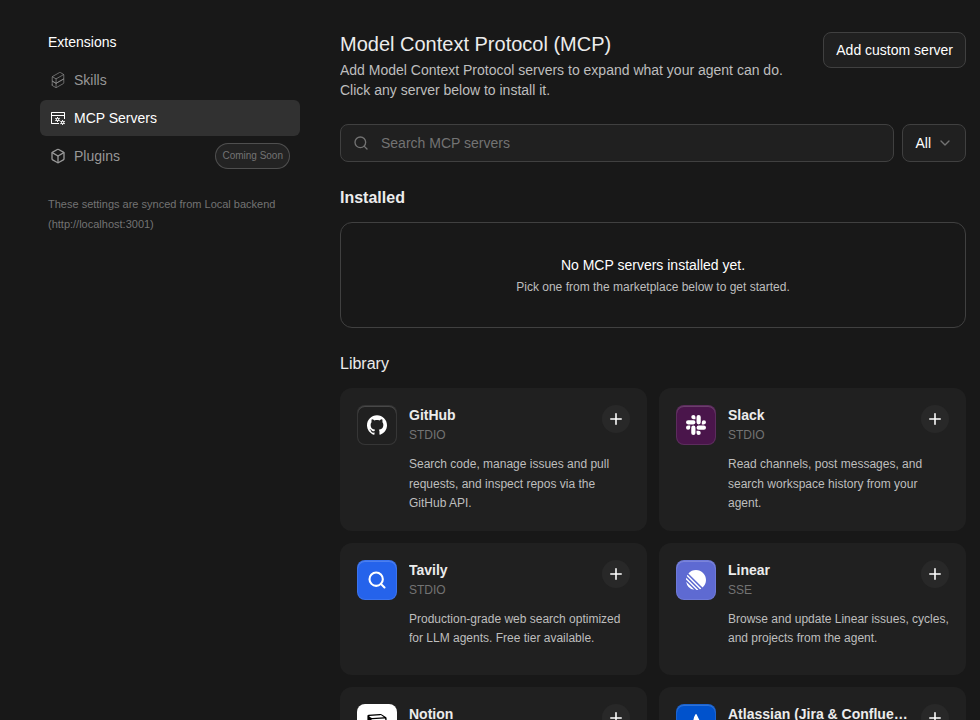

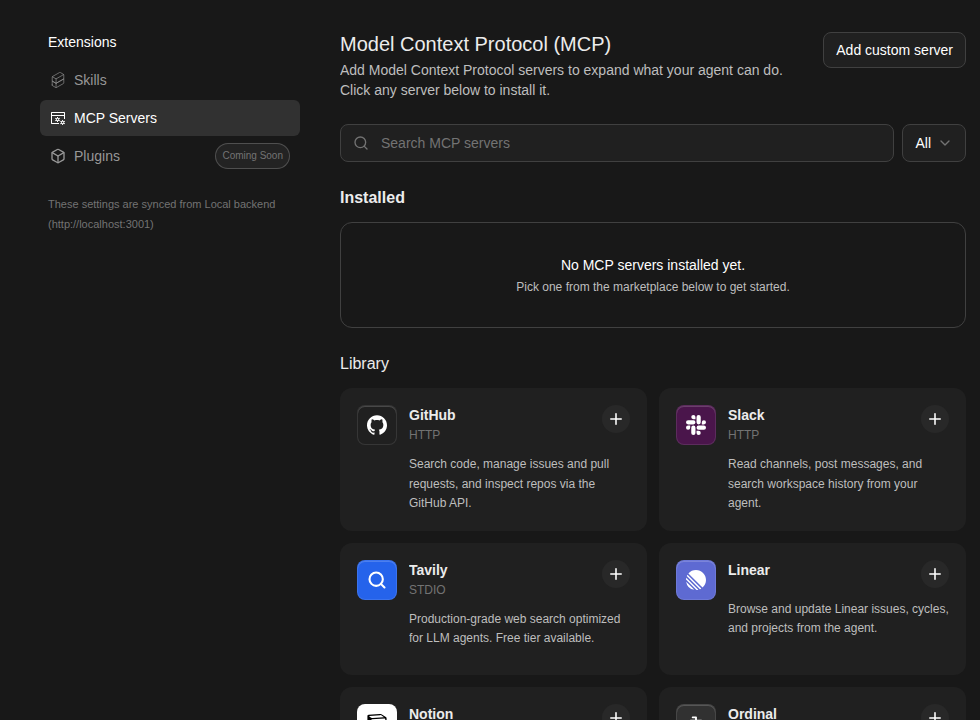

mcp-slack-install-1-marketplace

Expected (main)	Actual (PR)	Diff

settings-page

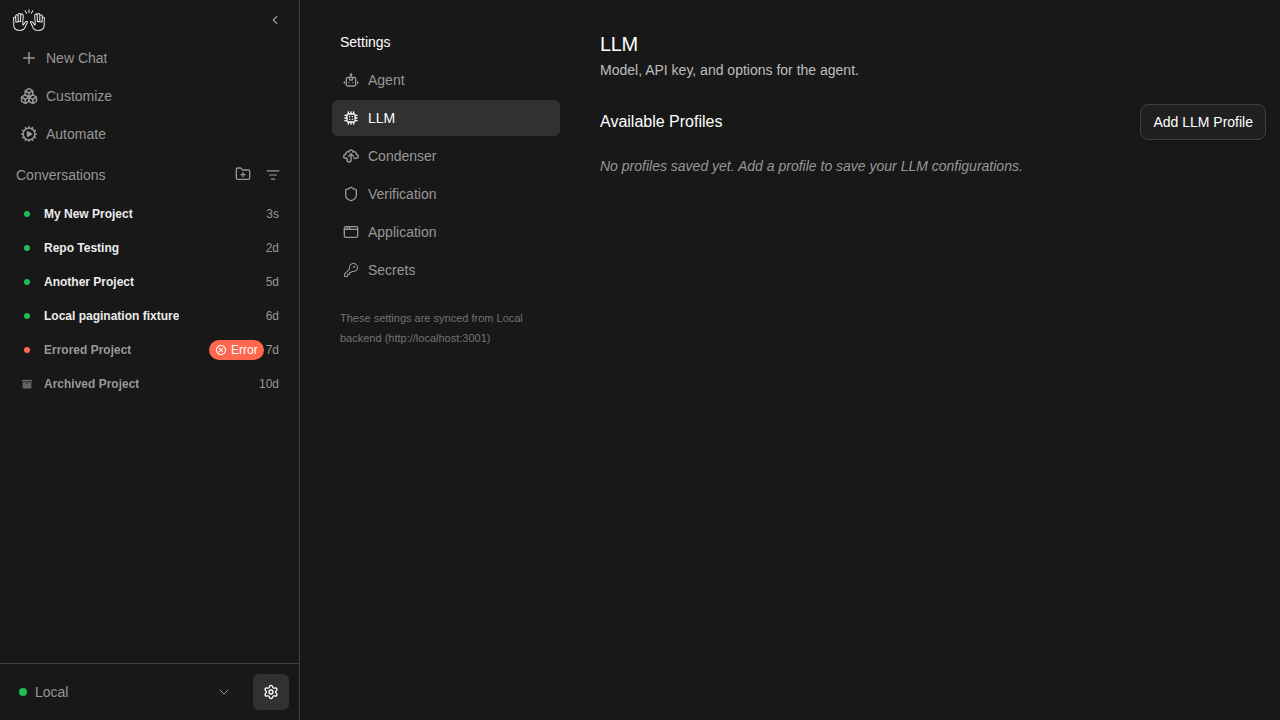

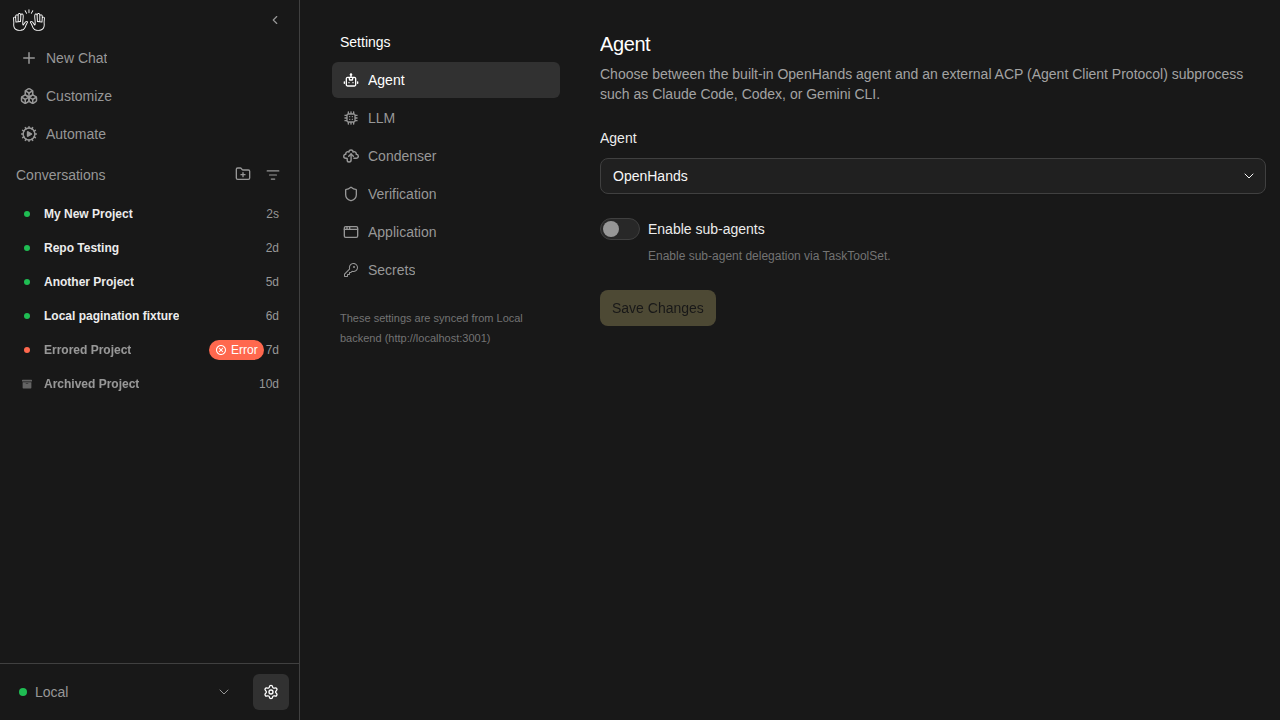

settings-page
