Description

IoT-based measurement solution of environmental parameters in the home environment using ESP-IDF, MQTT, ASP.NET, Angular. The main purpose of this project is to collect data from sensors, send using MQTT protocol and display it in a web application.

Also, continuation of my Engineer's thesis, that I managed to expand with new functionalities.

Technologies used

API:

• .Net 8
• ASP.Net Core
• Entity Framework Core
• MQTTNet
• Scrutor
• Docker

Front-end:

• Angular
• Angular Material
• Chart.js with zoom extension
• Docker

Device:

• C/C++
• ESP-IDF
• PlatformIO

Infrastructure

• Microsoft SQL Server
• Docker Compose
• (Optional) Kubernetes
• ESP32-WROOM

First run

• Make sure that the application is deployed correctly via Docker or Kubernetes
• Make sure that the device is connected

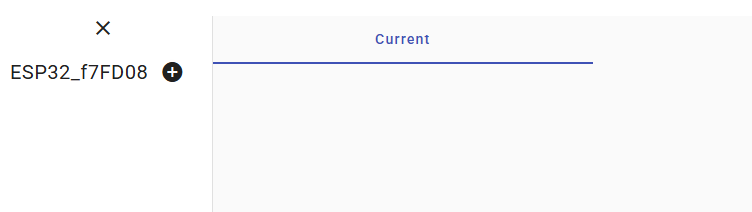

• Open sidebar and click on three lines
• You see your device name with plus next to it

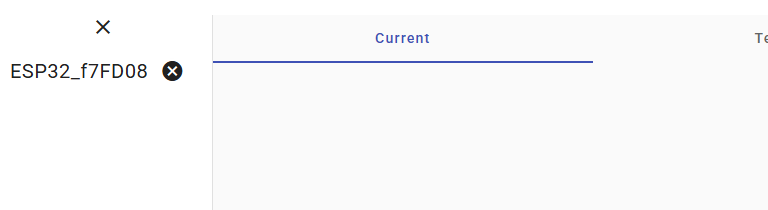

• Click on the plus and it should change to X button, it means that you've permitted logging for this device
• Refresh the page and after a while you should be able to select the device from select box, then choose it.
• Now you should see the data from the device

Getting started - Docker launch

Prerequisites

• Install Docker
• Clone repository git clone https://github.com/RobertMut/HomeStation2.git
• Set up device
• Prepare compose.yaml file

  volumes:
      sqlserver_data:
  networks:
      homestation:
          driver: bridge

  services:
      homestation_db:
          container_name: homestationDb
          image: mcr.microsoft.com/mssql/server:2022-latest
          environment:
              MSSQL_SA_PASSWORD: "<StrongPass>" #SA_PASSWORD is deprecated - https://learn.microsoft.com/en-us/sql/linux/quickstart-install-connect-docker?view=sql-server-ver16&tabs=cli&pivots=cs1-bash#run-the-container-2
              ACCEPT_EULA: "Y"
          ports:
              - "1433:1433"
          networks:
              - homestation
          volumes:
              - sqlserver_data:/var/opt/mssql
          restart: always
          healthcheck:
              test: /opt/mssql-tools18/bin/sqlcmd -S localhost -C -I -U sa -P $$MSSQL_SA_PASSWORD -Q "IF NOT EXISTS (SELECT * FROM sys.databases WHERE name = 'homestation') BEGIN CREATE DATABASE homestation; END; SELECT 1;" -b -o /dev/null
              interval: 5s
              timeout: 30s
              retries: 30
              start_period: 5s

      homestation_api:
          container_name: homestationApi
          environment:
              ASPNETCORE_HTTP_PORTS: "80"
              Database__ConnectionString: "Data Source=homestationDb,1433;Database=homestation;User Id=sa;Password=<StrongPass>;Encrypt=False;TrustServerCertificate=True" //Define password, or move to secrets
          build:
              context: ./Web
              dockerfile: Dockerfile
          ports:
              - "1883:1883"
              - "8180:80"
          networks:
              - homestation
          depends_on:
              homestation_db:
                  condition: service_started
          restart: always

      homestation_web:
          container_name: homestationWeb
          build:
              context: ./Web/web.client
              args:
                  - HREF=/homestation/ #If you want to use /homestation/ suffix to address otherwise replace with /
          ports:
              - "8080:80"
              - "8443:443"
          depends_on:
              - homestation_api
          networks:
              - homestation
          restart: always

Run

• Run docker compose -f compose.yaml up -d in the same directory as compose.yaml
• Wait for the containers to start
• Open http://localhost:8080/homestation/ in your browser

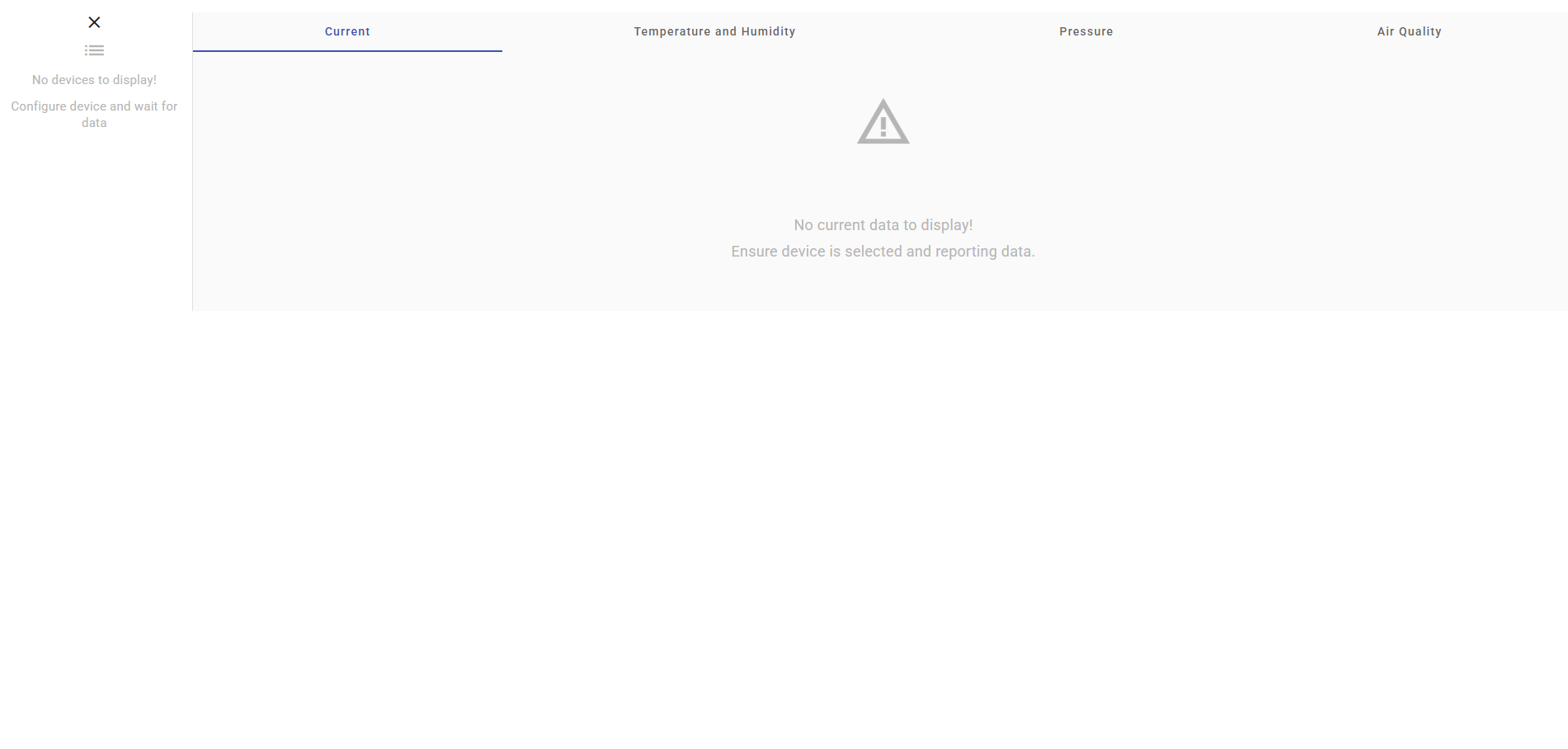

• You should be welcomed with this page:

Getting started - Kubernetes

Prerequisites

• Install kubernetes
• Create registry (skip if already installed)
• Install ingress-nginx with parameter --set controller.extraArgs.tcp-services-configmap=ingress-nginx/tcp-services
• Clone repository git clone https://github.com/RobertMut/HomeStation2.git
• Set up device
• Create namespace kubectl create namespace homestation
• Prepare tcp-services ConfigMap

  apiVersion: v1
  kind: ConfigMap
  metadata:
    name: tcp-services
    namespace: ingress-nginx
  data:
    1883: "homestation/homestationapi:1883" #Customize MQTT port, should be the same as service port

• Apply ConfigMap kubectl apply -f Miscellaneous/ingress-nginx.yaml
• Run commands (or patch manually). If you want other MQTT port than default, should specify it under "containerPort": 1883 and "port": 1883 in the patch command

kubectl patch deployment ingress-nginx-controller -n ingress-nginx --patch '{ "spec": { "template": { "spec": { "containers": [ { "name": "controller", "ports": [ { "name": "mqtt", "containerPort": 1883, "protocol": "TCP" } ] } ] } } } }'
kubectl patch service ingress-nginx-controller -n ingress-nginx --patch '{ "spec": { "ports": [ { "appProtocol": "mqtt", "name": "mqtt", "nodePort": 30843, "port": 1883, "protocol": "TCP", "targetPort": "mqtt" } ] } }

• Prepare secrets file (skip if you don't want to use secrets):

  #Secrets are encrypted using base64
  apiVersion: v1
  kind: Secret
  metadata:
    name: homestation-secrets
    namespace: homestation
  data:
    #Data Source=homestationDb,1433;Database=homestation;User Id=sa;Password=<StrongPass>;Encrypt=False;TrustServerCertificate=True
    ConnectionString: RGF0YSBTb3VyY2U9aG9tZXN0YXRpb25EYiwxNDMzO0RhdGFiYXNlPWhvbWVzdGF0aW9uO1VzZXIgSWQ9c2E7UGFzc3dvcmQ9PEF3ZXNvbWVQYXNzd29yZD47RW5jcnlwdD1GYWxzZTtUcnVzdFNlcnZlckNlcnRpZmljYXRlPVRydWU=
    #StrongPass
    DbPassword: U3Ryb25nUGFzcw==

• Edit database deployment file

  apiVersion: v1
  kind: PersistentVolume
  metadata:
    name: sqlserver-data
    namespace: homestation
  spec:
    accessModes:
      - ReadWriteOnce
    capacity:
      storage: 5Gi
    hostPath:
      path: "/var/opt/mssql"
  ---
  kind: PersistentVolumeClaim
  apiVersion: v1
  metadata:
    name: sqlserver-claim
    namespace: homestation
  spec:
    accessModes:
      - ReadWriteOnce
    resources:
      requests:
        storage: 5Gi
  ---
  apiVersion: apps/v1
  kind: Deployment
  metadata:
    annotations:
      kompose.cmd: kompose -f compose.yaml convert
      kompose.version: 1.35.0 (9532ceef3)
    labels:
      app.kubernetes.io/name: homestationdb-deployment
    name: homestationdb-deployment
    namespace: homestation
  spec:
    replicas: 1
    selector:
      matchLabels:
        app.kubernetes.io/name: homestationdb
    strategy:
      type: Recreate
    template:
      metadata:
        annotations:
          kompose.cmd: kompose -f compose.yaml convert
          kompose.version: 1.35.0 (9532ceef3)
        labels:
          app.kubernetes.io/name: homestationdb
      spec:
        containers:
          - name: homestationdb
            image: mcr.microsoft.com/mssql/rhel/server:2022-latest
            ports:
              - name: "1433port" #Customize SQL Server port
                containerPort: 1433
              - name: "1434port" #Customize SQL Server port
                containerPort: 1434
            env:
              - name: ACCEPT_EULA
                value: "Y"
              - name: MSSQL_DATA_DIR
                value: /var/opt/mssql/data
              - name: MSSQL_SA_PASSWORD #SA_PASSWORD is deprecated - https://learn.microsoft.com/en-us/sql/linux/quickstart-install-connect-docker?view=sql-server-ver16&tabs=cli&pivots=cs1-bash#run-the-container-2
                valueFrom:
                  secretKeyRef:
                    key: DbPassword
                    name: homestation-secrets #Specify other secret if needed, or remove everything under valueFrom: and replace with `value: "<your password>"`
            volumeMounts:
              - name: sqlserver-data
                mountPath: "/var/opt/mssql"
        volumes:
          - name: sqlserver-data
            persistentVolumeClaim:
              claimName: sqlserver-claim
        restartPolicy: Always
  ---
  apiVersion: v1
  kind: Service
  metadata:
    annotations:
      kompose.cmd: kompose -f compose.yaml convert
      kompose.version: 1.35.0 (9532ceef3)
    labels:
      app.kubernetes.io/name: homestationdb
    name: homestationdb
    namespace: homestation
  spec:
    ports:
      - name: "1433port" #Customize SQL Server port
        port: 1433 #Used for communication between pods, ingresses etc.
        targetPort: 1433 #Same as container port
        protocol: TCP
      - name: "1434port" #Customize SQL Server port
        port: 1434 #Used for communication between pods, ingresses etc.
        targetPort: 1434 #Same as container port
        protocol: UDP
    selector:
      app.kubernetes.io/name: homestationdb

• Apply deployment file kubectl apply -f Miscellaneous/homestationdb-deployment.yaml
• Run database preparation job - kubectl apply -f Miscellaneous/homestationdb-prepare.yaml

  apiVersion: batch/v1 #This job should be run after the database is up
  kind: Job
  metadata:
    name: homestationdb-prepare
    namespace: homestation
  spec:
    template:
      spec:
        containers:
          - name: homestationdb-prepare
            image: mcr.microsoft.com/mssql-tools
            command: ["/opt/mssql-tools/bin/sqlcmd"]
            env:
              - name: DbPassword
                valueFrom:
                  secretKeyRef:
                    key: DbPassword
                    name: homestation-secrets #Specify secret name or replace with `value: "<your password>"`, after removing valueFrom:
            args: [ "-S", "homestationDb", "-U", "sa", "-P", "$(DbPassword)", "-C", "-I", "-Q", "IF NOT EXISTS (SELECT * FROM sys.databases WHERE name = 'homestation') BEGIN CREATE DATABASE homestation; END;" ]
        restartPolicy: Never
    backoffLimit: 4

• Edit compose.yaml file

  volumes:
      sqlserver_data:
  networks:
      homestation:
          driver: bridge

  services:
      homestation_db:
          container_name: homestationDb
          image: mcr.microsoft.com/mssql/server:2022-latest
          environment:
              MSSQL_SA_PASSWORD: "<StrongPass>" #SA_PASSWORD is deprecated - https://learn.microsoft.com/en-us/sql/linux/quickstart-install-connect-docker?view=sql-server-ver16&tabs=cli&pivots=cs1-bash#run-the-container-2
              ACCEPT_EULA: "Y"
          ports:
              - "1433:1433"
          networks:
              - homestation
          volumes:
              - sqlserver_data:/var/opt/mssql
          restart: always
          healthcheck:
              test: /opt/mssql-tools18/bin/sqlcmd -S localhost -C -I -U sa -P $$MSSQL_SA_PASSWORD -Q "IF NOT EXISTS (SELECT * FROM sys.databases WHERE name = 'homestation') BEGIN CREATE DATABASE homestation; END; SELECT 1;" -b -o /dev/null
              interval: 5s
              timeout: 30s
              retries: 30
              start_period: 5s

      homestation_api:
          container_name: homestationApi
          environment:
              ASPNETCORE_HTTP_PORTS: "80"
              Database__ConnectionString: "Data Source=homestationDb,1433;Database=homestation;User Id=sa;Password=<StrongPass>;Encrypt=False;TrustServerCertificate=True" //Define password, or move to secrets
          build:
              context: ./Web
              dockerfile: Dockerfile
          ports:
              - "1883:1883"
              - "8180:80"
          networks:
              - homestation
          depends_on:
              homestation_db:
                  condition: service_started
          restart: always

      homestation_web:
          container_name: homestationWeb
          build:
              context: ./Web/web.client
              args:
                  - HREF=/homestation/ #If you want to use /homestation/ suffix to address otherwise replace with /
          ports:
              - "8080:80"
              - "8443:443"
          depends_on:
              - homestation_api
          networks:
              - homestation
          restart: always

• Build images - docker-compose -f compose.yaml build
• Tag two images (homestation2-homestation_api, homestation2-homestation_web) with prefix to your registry
• Push images to registry e.g docker push <address:port>/homestation2-homestation_api:<your tag>, docker push <address:port>/homestation2-homestation_web:<your tag>
• Edit api deployment file

  apiVersion: apps/v1
  kind: Deployment
  metadata:
    annotations:
      kompose.cmd: kompose -f compose.yaml convert
      kompose.version: 1.35.0 (9532ceef3)
    name: homestationapi-deployment
    namespace: homestation
  spec:
    replicas: 1
    selector:
      matchLabels:
        app.kubernetes.io/name: homestationapi
    template:
      metadata:
        labels:
          app.kubernetes.io/name: homestationapi
      spec:
        containers:
          - env:
              - name: MQTT__Port
                value: "1883" #Pod Internal MQTT Port
              - name: MQTT__Address
                value: "0.0.0.0" #Listen on all
              - name: ASPNETCORE_HTTP_PORTS
                value: "80" #Pod internal HTTP port
              - name: Database__ConnectionString
                valueFrom:
                  secretKeyRef:
                    key: ConnectionString
                    name: homestation-secrets #Specify other secret if needed, or remove everything under valueFrom: and replace with `value: "<your connection string>"`
            image: <registry ip:registry port>/homestation2-homestation_api:<your image tag> #specify image registry
            name: homestationapi
            ports:
              - containerPort: 1883 #Customize MQTT port
                protocol: TCP
              - containerPort: 8180 #Customize HTTP port
                protocol: TCP
        restartPolicy: Always
  ---
  apiVersion: v1
  kind: Service
  metadata:
    labels:
      app.kubernetes.io/name: homestationapi
    name: homestationapi
    namespace: homestation
  spec:
    ports:
      - name: "1883" #Customize MQTT port
        port: 1883 #Service port to communication, should be the same in a ingress
        protocol: TCP
        targetPort: 1883 #Container port should be the same as target port
      - name: "80" #Customize HTTP port, rules same as above
        port: 8180
        protocol: TCP
        targetPort: 80
    selector:
      app.kubernetes.io/name: homestationapi
  ---
  apiVersion: networking.k8s.io/v1
  kind: Ingress
  metadata:
    name: homestationapiingress
    namespace: homestation
    annotations:
      nginx.ingress.kubernetes.io/use-regex: "true"
      nginx.ingress.kubernetes.io/rewrite-target: /api/$1
  spec:
    rules:
      - http:
          paths:
            - path: /api/(.*)
              backend:
                service:
                  name: homestationapi
                  port:
                    number: 8180 #HTTP port
              pathType: ImplementationSpecific
    ingressClassName: nginx

• Apply deployment file kubectl apply -f Miscellaneous/homestationapi-deployment.yaml
• Prepare web deployment file

  apiVersion: apps/v1
  kind: Deployment
  metadata:
    namespace: homestation
    annotations:
      kompose.cmd: kompose -f compose.yaml convert
      kompose.version: 1.35.0 (9532ceef3)
    name: homestationweb-deployment
  spec:
    replicas: 1
    selector:
      matchLabels:
        app.kubernetes.io/name: homestationweb
    template:
      metadata:
        annotations:
          kompose.cmd: kompose -f compose.yaml convert
          kompose.version: 1.35.0 (9532ceef3)
        labels:
          app.kubernetes.io/name: homestationweb
      spec:
        containers:
          - image: <address:port>/homestation2-homestation_web:<your image tag> #specify registry
            name: homestationweb
            env:
              - name: TARGET_URL
                value: "http://homestationApi/homestation/"
            ports:
              - name: "https"
                containerPort: 8443 #Customize HTTPS port - will be deleted in future, ingress configuration uses HTTP
              - name: "http"
                containerPort: 8080 #Customzize HTTP port
        restartPolicy: Always
  ---
  apiVersion: v1
  kind: Service
  metadata:
    namespace: homestation
    annotations:
      kompose.cmd: kompose -f compose.yaml convert
      kompose.version: 1.35.0 (9532ceef3)
    labels:
      io.kompose.service: homestationweb
    name: homestationweb
  spec:
    ports:
      - name: "http" #customize HTTP port
        port: 8080 #Service port to communication, should be the same in a ingress
        protocol: TCP
        targetPort: 80
      - name: "https" #customize HTTPS port
        port: 8443 #Service port to communication, should be the same in a ingress
        protocol: TCP
        targetPort: 443
    selector:
      app.kubernetes.io/name: homestationweb
  ---
  apiVersion: networking.k8s.io/v1
  kind: Ingress
  metadata:
    name: homestationwebingress
    namespace: homestation
    annotations:
      nginx.ingress.kubernetes.io/use-regex: "true"
      nginx.ingress.kubernetes.io/rewrite-target: /homestation/
  spec:
    rules:
      - http:
          paths:
            - path: /homestation/
              backend:
                service:
                  name: homestationweb
                  port:
                    number: 8080 #Exposed HTTP port, should be the same as service port
              pathType: Prefix
    ingressClassName: nginx

• Apply deployment file kubectl apply -f Miscellaneous/homestationweb-deployment.yaml
• After a while you should be welcomed with this page:

Device Set-up

Prerequisites

• Install Visual Studio Code
• Install PlatformIO
• Install ESP-IDF (if not installed with PlatformIO)
• If you use repository's code and NodeMCU ESP32-WROOM

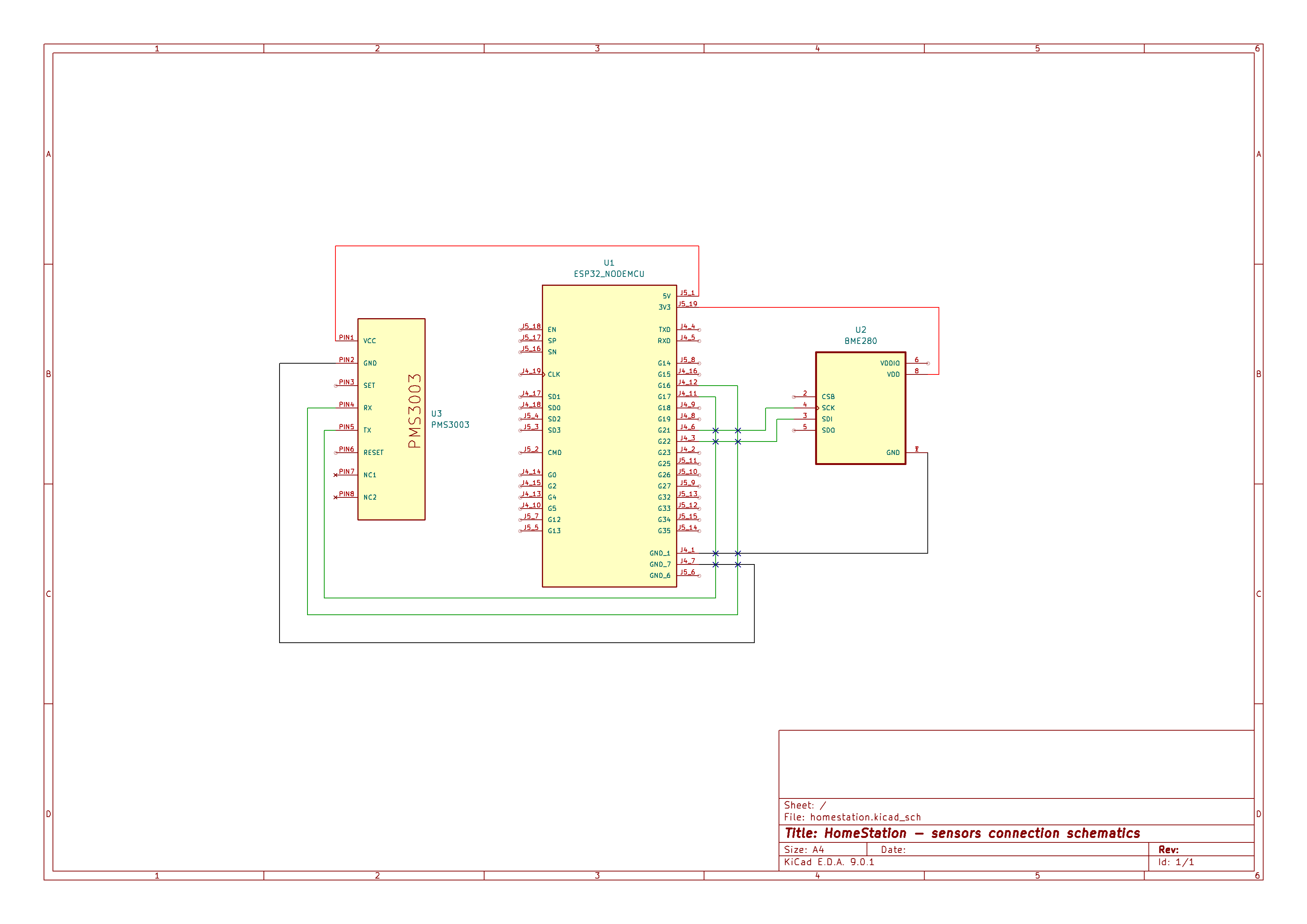

  • Connect the sensors (Plantower PMS 3003, Bosch BME280) to device
  • Set Wi-Fi credentials in main.cpp

  225   wifi_manager* wifi = new wifi_manager("SSID", "Password");


  • Set MQTT broker address in main.cpp

  183    mqtt_cfg->broker = {
  184      .address = {
  185          .uri = "mqtt://addr:port", //e.g 192.168.1.10:1883
  186          .hostname = "192.168.1.10", //e.g localhost
  187          .path = "/mqtt", //default path
  189          .port = 1883 //default port
  190      }
  191  };


• If you use own device
  • Setup MQTT client address and port to HomeStation's API
  • Send data using this interface

    {
      "deviceid": 0, //the device id number,
      "temperature": 0.0, //double e.g 24.9,
      "humidity": 0.0, //double e.g 100321.6,
      "pressure": 0.0, //double e.g 44.4,
      "pm1_0": "0", //uint e.g 9,
      "pm2_5": "0", //uint e.g 1,
      "pm10": "0", //uint e.g 2
    }
