Prefab Icon Renderer

A tool for generating icons from 3D Unity prefabs with support for backgrounds, frames, and full render parameter customization.

Features

• Prefab folder sources - Select one or more asset folders and discover prefabs automatically
• Prefab dropdown - Pick a prefab from the discovered folder contents without dragging it manually
• Auto naming - Generate names from prefab name and icon resolution
• Collision policy - Choose whether existing files get _N suffixes or are overwritten
• Batch processing - Render all discovered prefabs with the same render settings
• Full customization - Backgrounds, frames, tints, and transformations
• Public API - Use from EditorWindow or directly from code

Installation

Install the package through Unity Package Manager from the GitHub repository:

https://github.com/UnioGame/unigame.prefabicons.git

1. Open Window → Package Manager in Unity.
2. Click + and choose Add package from git URL....
3. Paste the Git URL above.
4. Click Add.

You can also add the package manually to Packages/manifest.json:

{
  "dependencies": {
    "com.unigame.prefabicons": "https://github.com/UnioGame/unigame.prefabicons.git"
  }
}

If your manifest already contains other dependencies, add only the "com.unigame.prefabicons" line inside the existing "dependencies" object.

Repository: UnioGame/unigame.prefabicons

Usage Through UI

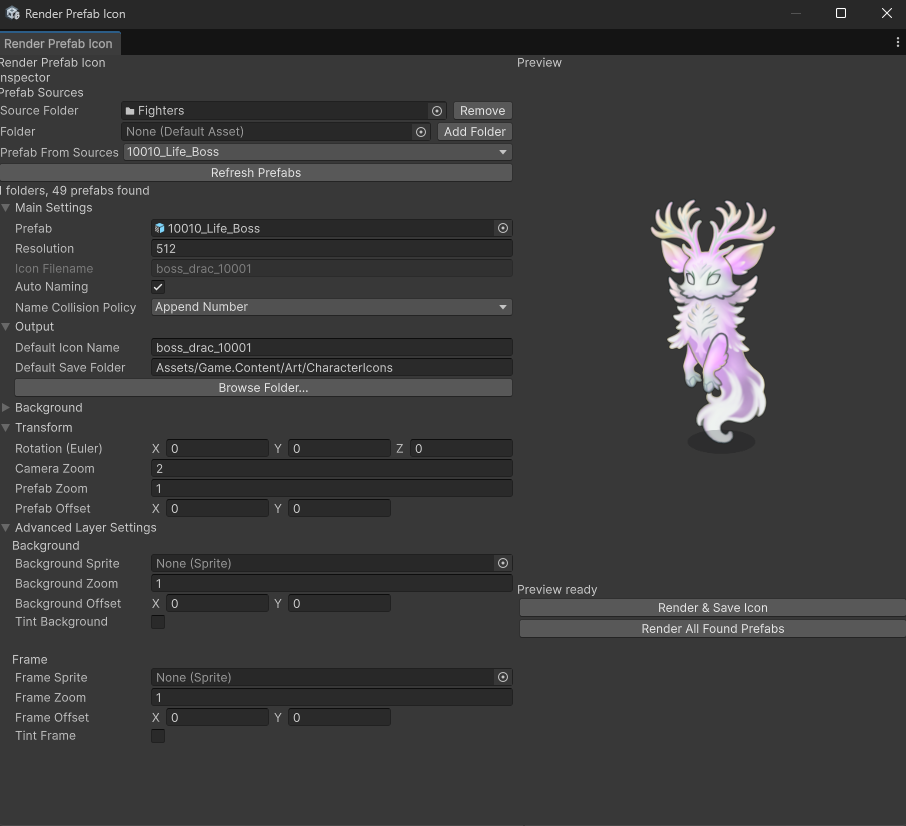

1. Open window: UniGame/Tools → Render Prefab Icon

2. Add prefab source folders in Prefab Sources:

   • Click Add Folder after selecting a folder asset.
   • Click Refresh Prefabs after changing folder contents.
   • Use Prefab From Sources to select one discovered prefab.

3. Optionally select a prefab manually in Prefab. Manual selection still works even if no source folders are configured.

4. Configure output:

   • Default Save Folder - Folder where PNG sprites are written.
   • Auto Naming - When enabled, output names use {PrefabName}_{Resolution}.
   • Name Collision Policy:
     • AppendNumber creates Name.png, then Name_1.png, Name_2.png, and so on.
     • Overwrite writes to the same Name.png, which is useful for regenerating a whole icon set.
   • Icon Filename - Used only when Auto Naming is disabled.

5. Configure render parameters:

   • Resolution - Icon size (128-1024)
   • Rotation - Object rotation
   • Camera Zoom - Camera zoom level
   • Prefab Zoom - Prefab scale
   • Prefab Offset - X/Y axis offset

6. Expand Advanced Layer Settings to configure layers:

   • Background - Background sprite
   • Frame - Frame around the icon
   • Tints for each layer

7. Click Render & Save Icon for a single icon or Render All Found Prefabs for batch rendering.

Batch Rendering Notes

• Batch rendering uses the prefabs discovered from Prefab Sources.
• Batch rendering requires Auto Naming to be enabled.
• All prefabs in the batch use the same render settings, save folder, background, frame, rotation, zoom, and offset.
• Use Overwrite when you want to regenerate an existing icon set in place.
• Use AppendNumber when you want to preserve existing files and create new variants.

Code API Usage

Simple Render and Save

using PrefabIconRenderer;
using UnityEditor;

var settings = new PrefabIconSettings
{
    prefab = myPrefab,
    resolution = 512,
    fileName = "MyIcon",
    folderPath = "Assets/GeneratedSprites"
};

var engine = new IconRendererEngine(settings);
var result = engine.RenderAndSave();

if (result.Success)
{
    Debug.Log($"Saved: {result.SavedPath}");
}

Render to Memory

var settings = new PrefabIconSettings
{
    prefab = myPrefab,
    resolution = 256,
    objectRotation = new Vector3(20f, 45f, 0f)
};

var engine = new IconRendererEngine(settings);
var result = engine.RenderToTexture();

if (result.Success)
{
    // Use texture2D
    myImage.texture = result.Texture;
}

Render Specific GameObject

var engine = new IconRendererEngine();
engine.settings.resolution = 512;
engine.settings.cameraZoom = 5f;

// Render to texture
var result = engine.RenderGameObjectToTexture(myGameObject);
if (result.Success)
    Debug.Log("Icon ready");

// Render and save
var savedResult = engine.RenderGameObjectAndSave(myGameObject, "custom_icon", "Assets/Icons");

Full Customization with Layers

var settings = new PrefabIconSettings
{
    prefab = myPrefab,
    resolution = 512,
    transparentBackground = false,
    backgroundColor = Color.white,

    // Transform
    objectRotation = new Vector3(25f, -30f, 0f),
    cameraZoom = 2f,
    prefabZoom = 1.2f,
    prefabOffset = new Vector2(0.1f, -0.05f),

    // Background
    backgroundSprite = bgSprite,
    backgroundZoom = 1f,
    tintBackground = true,
    backgroundTintColor = new Color(0.8f, 0.8f, 1f),

    // Frame
    frameSprite = frameSprite,
    frameZoom = 1.1f,
    tintFrame = false,

    fileName = "AdvancedIcon",
    folderPath = "Assets/GeneratedSprites"
};

var engine = new IconRendererEngine(settings);
var result = engine.RenderAndSave();

Batch Processing

foreach (var prefab in prefabsToRender)
{
    var settings = new PrefabIconSettings
    {
        prefab = prefab,
        resolution = 512,
        fileName = IconRendererEngine.CreateAutoFileName(prefab, 512),
        folderPath = "Assets/GeneratedSprites",
        nameCollisionPolicy = PrefabIconNameCollisionPolicy.AppendNumber
    };

    var engine = new IconRendererEngine(settings);
    var result = engine.RenderAndSave();
}

Save With Overwrite Policy

var settings = new PrefabIconSettings
{
    prefab = myPrefab,
    resolution = 512,
    folderPath = "Assets/GeneratedSprites",
    nameCollisionPolicy = PrefabIconNameCollisionPolicy.Overwrite
};

var engine = new IconRendererEngine(settings);
var fileName = IconRendererEngine.CreateAutoFileName(myPrefab, settings.resolution);
var result = engine.RenderAndSave(fileName, settings.nameCollisionPolicy);

PrefabIconSettings Parameters

Core

• prefab - Prefab to render
• resolution - Icon size (128-1024, default: 512)
• fileName - Output file name when auto naming is disabled (default: "NewIcon")
• folderPath - Save folder path (default: "Assets/GeneratedSprites")
• autoNaming - Whether UI output names are generated as {PrefabName}_{Resolution} (default: true)
• nameCollisionPolicy - Save behavior when target PNG already exists (default: AppendNumber)

Background

• transparentBackground - Transparent background (default: true)
• backgroundColor - Background color (default: white)

Transform

• objectRotation - Object rotation in Euler degrees (default: Vector3.zero)
• cameraZoom - Camera zoom level (default: 2)
• prefabZoom - Prefab scale (default: 1)
• prefabOffset - X/Y offset (default: Vector2.zero)

Background Layer

• backgroundSprite - Background sprite
• backgroundZoom - Background scale (default: 1)
• backgroundOffset - Background offset (default: Vector2.zero)
• tintBackground - Tint background (default: false)
• backgroundTintColor - Background tint color (default: white)

Frame Layer

• frameSprite - Frame sprite
• frameZoom - Frame scale (default: 1)
• frameOffset - Frame offset (default: Vector2.zero)
• tintFrame - Tint frame (default: false)
• frameTintColor - Frame tint color (default: white)

Name Collision Policy

• PrefabIconNameCollisionPolicy.AppendNumber - Keep existing files and append _1, _2, etc.
• PrefabIconNameCollisionPolicy.Overwrite - Reuse the same output path and replace the existing PNG.

API Methods

IconRendererEngine

• RenderToTexture() - Render prefab to texture in memory
• RenderAndSave() - Render prefab and save to PNG file
• RenderAndSave(string fileName, PrefabIconNameCollisionPolicy collisionPolicy, ISet<string> reservedPaths = null) - Render and save with an explicit output name and collision policy
• RenderGameObjectToTexture(GameObject) - Render any GameObject to texture
• RenderGameObjectAndSave(GameObject, string fileName, string folderPath) - Render any GameObject and save
• CreateAutoFileName(GameObject, int resolution) - Build the default auto name {PrefabName}_{Resolution}
• ResolveIconPath(string fileName, PrefabIconNameCollisionPolicy collisionPolicy, ISet<string> reservedPaths = null) - Resolve the final PNG path before saving
• UpdateSettings(PrefabIconSettings) - Update engine settings
• GetSettings() - Get a copy of current settings

PrefabIconRenderResult

• Success - Whether render succeeded
• Texture - Rendered texture (if successful)
• SavedPath - Path to saved file (if saved)
• ErrorMessage - Error message (if failed)

License

MIT
