Vehicle Dynamics Simulator

An easy to interface and configure as well as lightweight ROS 2 vehicle dynamics simulator focused on realistic actuator dynamics and kinematics. Simulates vehicle motion with configurable delay, filtering, and acceleration/velocity limits to accurately represent real world vehicle behavior, with all parameters easily observable on real-world robots.

The main intended use case is as development tool for trajectory following controllers, such as those (RPP, MPPI etc.) part of the Nav2 stack, both in manual development and in automated testing pipelines.

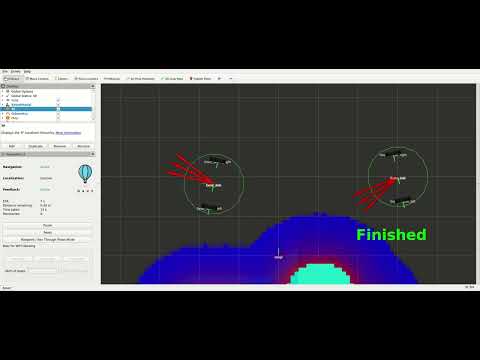

The video below shows an example with the Nav2 MPPI controller. The robot on the right has close to ideal actuators, and drives well, while the one on the left has more realistic actuation limits:

Small differences show up quickly when executing delicate maneuvers like a 180° turn. Right, a differential drive robot with close to ideal actuation, left, the same robot but with considerable actuator limitations. The left robot overshoots its goal several times as a result of the actuator tracking the control signal slower than the controller requires.

Key README contents:

Quick Start
System Architecture
Core Components
Configuration

For a bit more introduction, feel free to read my blog post.

Features

Single-yaml config file: One ROS param file with doubles and bools to configure the vehicle. No URDF or other additional files required.
Three vehicle models: Bicycle (includes Ackermann), differential drive and omnidirectional. Many variations possible (see Configuration).
Realistic actuator dynamics: Dead time delays, first order filtering, velocity/acceleration limits.
Realistic localization noise: Odometry drift and map pose measurement noise for realistic sensor and fusio modelling, including the intermediate odom frame.
Nav2 integration: Full compatibility with Nav2 navigation stack (publishes all the required topics + example setup provided).
High frequency simulation: 1000 Hz internal simulation (publish rate configurable separately).
RViz visualization: Real time 3D vehicle visualization with joint states (URDF generated exclusively from ROS parameters).
Flexible clock modes: Can follow wall clock, external simulation time (/clock topic) or act as time source.

Note: This simulator focuses on vehicle kinematics and dynamics (motion, actuators, localization). It does not simulate collisions, terrain, sensors (lidar, cameras), or other environmental aspects typically found in full physics simulators like Gazebo.

Quick Start

Prerequisites

Docker and Docker Compose
Git

Build and Run

# Clone repository
git clone https://github.com/abaeyens/vehicle_dynamics_sim.git
cd vehicle_dynamics_sim
git submodule update --init --recursive

# Set up environment and build Docker image
./create_dot_env
docker compose build --pull

# Start container
docker compose run --rm --name sim app bash

# Inside container: build ROS 2 workspace
colcon build
source install/setup.bash

# Run simulator (default: bicycle model)
ros2 run vehicle_dynamics_sim sim_node

In another terminal:

# Enter running container
docker exec -it sim bash

# Send velocity commands
ros2 run vehicle_dynamics_sim publish_some_velocities

If desired, run unit and integration tests and print the results:

colcon test --packages-select vehicle_dynamics_sim
xunit-viewer -r build/vehicle_dynamics_sim/test_results -c

All tests run sequentially, allowing supervision of the vehicle movements in RViz and PlotJuggler. See also src/vehicle_dynamics_sim/test/README.md.

Visualization

RViz

View the vehicle in 3D with coordinate frames and motion:

# In another terminal in the container
rviz2 -d layout.rviz

The RViz layout shows:

Vehicle model with realistic Ackermann steering geometry (depends on the configured model)
TF tree (map → odom → base_link)
Odometry path visualization

Example RViz visualization

PlotJuggler

Analyze vehicle dynamics data in real-time:

# In another terminal in the container
ros2 run plotjuggler plotjuggler --layout plotjuggler_layout.xml

Monitors:

Commanded vs actual velocities
Steering angles
Position and heading over time
Actuator responses

Basic Usage Examples

Run with Different Vehicle Models

# Bicycle (includes Ackermann steering) - default
ros2 run vehicle_dynamics_sim sim_node

# Differential drive
ros2 run vehicle_dynamics_sim sim_node --ros-args \
  -p model:=differential

# Custom parameters from file
ros2 run vehicle_dynamics_sim sim_node --ros-args \
  --params-file src/vehicle_dynamics_sim/params/all_vehicles.yaml

Send Velocity Commands

# Using command line
ros2 topic pub twist_reference geometry_msgs/msg/Twist \
  "{linear: {x: 1.0}, angular: {z: 0.5}}" -r 10

# Using the provided script
ros2 run vehicle_dynamics_sim publish_some_velocities

Run with Nav2

Launch the full Nav2 navigation stack with the simulator:

# Terminal 1: Start simulator
ros2 run vehicle_dynamics_sim sim_node \
  --remap twist_reference:=cmd_vel_nav
  --ros-args -p model:=differential \

# Terminal 2: Launch Nav2
ros2 launch nav2_example navigation.launch.py

# Terminal 3: Publish map for Nav2
ros2 launch nav2_example serve_map.launch.xml

# Terminal 4: Visualize in RViz
rviz2 -d layout.rviz

Then use RViz's "2D Nav Goal" tool to send navigation goals.

System Architecture

flowchart TB
    Input["twist_reference<br/>(input, for example from Nav2)"] --> BP

    ClockIn["/clock<br/>(optional)"]

    subgraph SimNode["SimNode"]
        direction TB

        subgraph Vehicle["Vehicle Model"]
            direction TB

            BP["Behavior Preprocessing<br/>(depends on vehicle type)"]

            subgraph Actuators["Actuators (depends on vehicle type)"]
                direction LR
                subgraph Drive["Drive Actuator"]
                    direction TB
                    D1["1. Dead time delay"]
                    D2["2. Velocity saturation"]
                    D3["3. Low pass filter"]
                    D4["4. Acceleration limit"]
                    D1-->D2-->D3-->D4
                end

                subgraph Steer["Steering Actuator"]
                    direction TB
                    S1["1. Dead time delay"]
                    S2["2. Position saturation"]
                    S3["3. Low pass filter"]
                    S4["4. Velocity limit"]
                    S1-->S2-->S3-->S4
                end

            end
            BP --> Drive
            BP --> Steer

            Kin["Kinematic Model<br/>(Bicycle/Differential/Omni)"]

            Drive --> Kin
            Steer --> Kin
        end

        Loc["Localization (optional)<br/>• Odometry drift<br/>• Measurement noise"]
        Kin --> Loc
    end

    ClockIn ----> SimNode

    ClockOut["/clock<br/>(optional)"]
    TF["/tf, /tf_static"]
    RD["/robot_description"]
    JS["/joint_states"]
    Odom["odom"]
    TA["twist_actual"]

    SimNode ----> ClockOut
    Kin ----> TA
    Loc --> TF
    Loc --> Odom
    Vehicle ----> RD
    Vehicle ----> JS

    RSP["Robot State Publisher"]

    RD --> RSP
    JS --> RSP
    RSP --> TF

    SimNode ~~~ RSP

    style SimNode fill:#e1f5ff
    style Vehicle fill:#fff4e1
    style BP fill:#d9ffd9
    style Drive fill:#ffe1e1
    style Steer fill:#ffe1e1
    style D1 fill:#d955d9
    style D2 fill:#d955d9
    style D3 fill:#d955d9
    style D4 fill:#d955d9
    style S1 fill:#d955d9
    style S2 fill:#d955d9
    style S3 fill:#d955d9
    style S4 fill:#d955d9
    style Kin fill:#d9ffd9
    style Loc fill:#f5e1ff
    style RSP fill:#fff0b3

The current dynamics puts the inertia in the actuator objects; for some vehicles, like the omnidirectional one, this is not ideal. Likely we'll therefore deviate from that in the future.

Core Components

SimNode (`sim.hpp`, `sim.cpp`)

Main ROS 2 node that orchestrates the simulation.

Responsibilities:

Time management (simulation clock or following external clock)
Command input handling (twist messages)
Vehicle state propagation
Output publishing (TF, odometry, joint states, URDF)
Localization simulation coordination

Key Topics:

Subscribed:
- twist_reference (geometry_msgs/Twist) - Velocity commands
- twist_stamped_reference (geometry_msgs/TwistStamped) - Timestamped velocity commands
Note: Both stamped and non-stamped are provided because Nav2 switched from non-stamped to stamped in ROS 2 Kilted, and we want to support both. Adjust the remap in sim.launch.xml as required.
Published:
- /tf (tf2_msgs/TFMessage) - Transform tree
- /tf_static (tf2_msgs/TFMessage) - Static transforms
- /joint_states (sensor_msgs/JointState) - Joint positions for visualization
- /robot_description (std_msgs/String) - URDF model
- twist_actual (geometry_msgs/TwistStamped) - Actual velocity after dynamics
- odom (nav_msgs/Odometry) - Odometry messages (pose + actual velocity)
- clock (builtin_interfaces/Time) - Optional simulation time

Vehicle models (`vehicles.hpp`, `vehicles.cpp`)

Base Class: Vehicle

Manages pose (position, heading)
Publishes twist and joint states
Provides robot description (URDF)

Bicycle Vehicle (Ackermann Steering)

Implements Ackermann steering geometry for car-like vehicles.

Kinematics:

v_angular = v_forward * tan(steering_angle) / wheelbase

Key Parameters:

wheel_base: Distance between front and rear axles [m]
drive_on_steered_wheel: Front wheel drive (true) or rear wheel drive (false)
track_steered: Wheel spacing steered axle [m]
vis_track_fixed: (visualization only) Wheel spacing fixed axle [m]
vis_tire_diameter: (visualization only) Wheel diameter [m]

Use cases: Cars, Ackermann robots, outdoor autonomous vehicles

Differential Vehicle (Tank Steering)

Implements differential drive kinematics with two independently driven wheels.

Kinematics:

v_forward = (v_left + v_right) / 2
v_angular = (v_right - v_left) / track

Key Parameters:

track: Distance between left and right wheels [m]
vis_tire_diameter: (visualization only) Wheel diameter [m]

Behavior: Prioritizes rotation by scaling linear velocity if needed to respect actuator limits.

Use cases: Indoor mobile robots (e.g. Turtlebot), wheelchairs, tank drive platforms

Actuator Models (`vehicles.hpp`, `vehicles.cpp`)

DriveActuator - Models velocity-controlled actuators (drive motors)

Dynamic sequence:

Dead time delay
Velocity saturation (±max_velocity)
First order low pass filter (time_constant)
Acceleration limiting (±max_acceleration)

Parameters:

dead_time: Transport delay [s]
time_constant: Filter time constant [s]
max_velocity: Velocity limit [m/s]
max_acceleration: Acceleration limit [m/s²]

The figure below shows these parameters visually (except for max_velocity): Modeled DriveActuator response (cyan) for a step reference (red), showing the effect of three of the key parameters (dead time, acceleration limits and the low pass effect).

SteeringActuator - Models position-controlled actuators (steering mechanisms)

Dynamic sequence:

Dead time delay
Position saturation (±max_position)
First order low pass filter with angle wrapping
Angular velocity limiting

Parameters:

dead_time: Transport delay [s]
time_constant: Filter time constant [s]
max_position: Steering angle limit [rad] (0 = unlimited)
max_velocity: Angular velocity limit [rad/s]

DeadTimeDelay - Pure time delay model using queue-based history

Simulates delays from:

Hydraulic systems
Network latency
Signal processing chains

Used in both DriveActuator and SteeringActuator.

Other components

Localization (`localization.hpp`, `localization.cpp`)

Simulates realistic localization with two error sources:

1. Odometry Drift (Random Walk)

Accumulates with distance traveled
Represents wheel slip, encoder errors, IMU drift
Parameters: odom_walk_velocity_translation, odom_walk_velocity_rotation [m²/m, rad²/m]

2. Map Measurement Noise (Sampling)

Time-correlated noise
Represents GPS, SLAM, vision-based localization
Parameters: map_sample_noise_translation, map_sample_noise_rotation [m²/s, rad²/s]

Output:

Smooth but drifting odometry (odom → base_link)
Noisy but bounded map corrections (map → odom)

Note: All noise parameters are variances (σ²), not standard deviations.

URDF Generation (`urdf.hpp`, `urdf.cpp`)

Programmatic URDF generation for vehicle visualization.

Features:

Dynamic robot description based on parameters
Ackermann steering joints for bicycle vehicles
Cylindrical wheels with correct orientation
Compatible with robot_state_publisher and RViz

Extension

Please see extending_the_simulator.md.

Configuration Reference

Complete parameter documentation. See src/vehicle_dynamics_sim/params/all_vehicles.yaml for example values.

Note: Parameters prefixed with vis_ only affect visualization.

Global Parameters

Parameters at sim_node namespace level:

Parameter	Type	Default	Description
`step_rate`	double	1000.0	Internal simulation frequency [Hz]
`pub_rate`	double	50.0	Output publishing frequency [Hz]
`twist_reference_max_oldness`	double	1.0	Max age of commands before zeroing them out [s]
`be_reference_clock`	bool	false	Publish clock messages (sim time source)
`simulate_localization`	bool	false	Enable localization error simulation
`model`	string	"bicycle"	Vehicle type ("bicycle", "differential", "omni")

Vehicle Parameters

Common to all vehicles

Parameter	Type	Description
`base_link_offset`	double	Distance from the fixed_axle to the base_link frame, measured along positive x [m]

Bicycle Model (`model_params.bicycle`)

Parameter	Type	Description
`wheel_base`	double	Front-to-rear axle distance [m]
`drive_on_steered_wheel`	bool	if false, drive on fixed axle, if true drive on the steered wheel(s)
`reverse`	bool	if false, the steered axle is in front of the fixed axle, if true the steered axle is behind the fixed axle
`vis_track_fixed`	double	Rear wheel spacing [m] (0 = single wheel)
`vis_track_steered`	double	Front wheel spacing [m] (0 = single wheel)
`vis_tire_diameter`	double	Wheel diameter for visualization [m]

Differential Model (`model_params.differential`)

Parameter	Type	Description
`track`	double	Left-to-right wheel distance [m]
`vis_tire_diameter`	double	Wheel diameter, for visualization [m]

Actuator Parameters

Common structure for drive_actuator and steering_actuator:

Parameter	Type	Description
`dead_time`	double	Transport delay [s]
`time_constant`	double	Low pass filter time constant [s]
`max_velocity`	double	Velocity limit [m/s] or [rad/s]
`max_acceleration`	double	Acceleration limit [m/s²] (drive only)
`max_position`	double	Position limit [rad] (steering only, 0=unlimited)

Localization Parameters (`localization`)

Parameter	Type	Description
`odom_walk_velocity_translation`	double	Drift random walk velocity - translational [m²/m]
`odom_walk_velocity_rotation`	double	Drift random walk velocity - rotational [rad²/m]
`map_sample_noise_translation`	double	Map -> base_link localization noise density - translational [m²/s]
`map_sample_noise_rotation`	double	Map -> base_link localization noise density - rotational [rad²/s]

Note: All noise parameters are variances (σ²), not standard deviations.
Example: odom_walk_velocity_translation: 0.0025 means σ = 0.05 m per meter traveled.

Clock Modes

The simulator supports three mutually exclusive clock modes. Overview (more detailed description after the table):

Behavior	`use_sim_time`	`be_reference_clock`
1. Real time	Behaves close to a real hardware system	false
2. Follow External Clock	true	false
3. Reference clock	false	true

1. Real Time

Uses system wall-clock time
Behaves the closest to a real hardware system.

2. Following External Clock

Simulator reads time from /clock topic
Synchronizes with other simulation tools (Gazebo, etc.)
Must set be_reference_clock: false

3. Reference Clock

Simulator publishes /clock topic
Other nodes must set use_sim_time: true

Example Configurations

Note: See also all_vehicles.yaml for a list of (almost all) parameters.

Ackermann Car for Navigation

sim_node:
  ros__parameters:
    model: bicycle
    model_params:
      bicycle:
        wheel_base: 2.7  # Typical car wheelbase
        drive_on_steered_wheel: false  # Rear-wheel drive
        vis_track_steered: 1.5
        vis_track_fixed: 1.5
        drive_actuator:
          max_velocity: 15.0  # ~54 km/h
          max_acceleration: 3.0
        steering_actuator:
          max_position: 0.61  # ~35 degrees

Small forklift for Navigation

sim_node:
  ros__parameters:
    model: bicycle
    model_params:
      bicycle:
        wheel_base: 2.0
        reverse: true  # steered wheel behind fixed axle
        drive_on_steered_wheel: true
        vis_track_fixed: 1.1
        vis_track_steered: 0.0  # single rear wheel
        drive_actuator:
          max_velocity: 5.0  # 18 km/h
          max_acceleration: 3.0
        steering_actuator:
          max_position: 0.0  # can turn all around

Indoor Mobile Robot

sim_node:
  ros__parameters:
    model: differential
    model_params:
      differential:
        track: 0.5  # Compact robot
        drive_actuators:
          max_velocity: 0.8
          max_acceleration: 1.0
          dead_time: 0.05  # Fast response

Perfect Localization for Algorithm Testing

sim_node:
  ros__parameters:
    simulate_localization: false  # No localization errors

Troubleshooting

Vehicle doesn't move:

Check twist commands are being published
Check topic mapping (use rqt_graph to visualize node connections)
Verify twist_reference_max_oldness isn't too short
Check actuator velocity limits aren't too restrictive

Erratic motion:

Check dead_time isn't too large
Verify max_acceleration is reasonable
Look for command saturation in PlotJuggler

TF errors:

Ensure robot_state_publisher node is running
Check joint names match between URDF and joint_states
Verify clock settings (use_sim_time consistency across all nodes)

Nav2 integration issues:

Confirm odom frame is being published
Check base_link_offset accounts for Nav2's expectations
Verify cmd_vel topic remapping if needed

Performance issues:

step_rate: 1000 Hz provides good accuracy. Not worth reducing due to high simulator efficiency (CPU usage is negligible)
pub_rate: 50 Hz is sufficient for Nav2 and visualization. Adjust to match your real platform.

Key Dependencies

ROS 2 Jazzy or later
Eigen3 - Linear algebra
fmt - String formatting
robot_state_publisher - TF tree publishing

Note: Because the robot_state_publisher version distributed with Kilted and earlier does not yet support receiving the robot description over a topic, we backported that node from rolling to Jazzy and included it as a submodule in this repo. When building, this backported package automatically overlays the system install one.

API Reference

All header files in src/vehicle_dynamics_sim/include/vehicle_dynamics_sim/ contain comprehensive docstrings with:

Physical interpretation
Mathematical models
Units and coordinate frames
Usage examples

Key Classes

SimNode (sim.hpp) - Main simulation node
Vehicle (vehicles.hpp) - Base vehicle class
BicycleVehicle (vehicles.hpp) - Ackermann steering implementation
DifferentialVehicle (vehicles.hpp) - Tank steering implementation
DriveActuator (vehicles.hpp) - Velocity actuator model
SteeringActuator (vehicles.hpp) - Position actuator model
DeadTimeDelay (vehicles.hpp) - Time delay model
Localization (localization.hpp) - Localization simulator

Utility Functions

URDF generation (urdf.hpp) - Programmatic robot description
Conversions (conversions.hpp) - Pose/transform utilities
Parameter helpers (declare_and_get_parameter.hpp) - ROS 2 parameter loading

TODO

Support running faster than real time.

Contributing

Contributions welcome! Please create an issue where we can discuss how to integrate your ideas most effectively.

Also always welcome: bug reports.

Name		Name	Last commit message	Last commit date
Latest commit History 16 Commits
.colcon		.colcon
external		external
src		src
.clang-format		.clang-format
.gitignore		.gitignore
.gitmodules		.gitmodules
Dockerfile		Dockerfile
LICENSE.txt		LICENSE.txt
README.md		README.md
create_dot_env		create_dot_env
docker-compose.yml		docker-compose.yml
extending_the_simulator.md		extending_the_simulator.md
layout.rviz		layout.rviz
plotjuggler_layout.xml		plotjuggler_layout.xml

License

abaeyens/vehicle_dynamics_sim

Folders and files

Latest commit

History

Repository files navigation
