Documentation

NOTE: This documentation applies to the branch next. It contains a lot of changes to the master branch.

Overview

The mideaas project consists of three subprojects

• mideaas-app - The most high level project, IDE customization.
• mideaas-ide - Generic IDE, used by mideaas-app
• mideaas-editor - The collaborative code editor used by mideaas-ide.

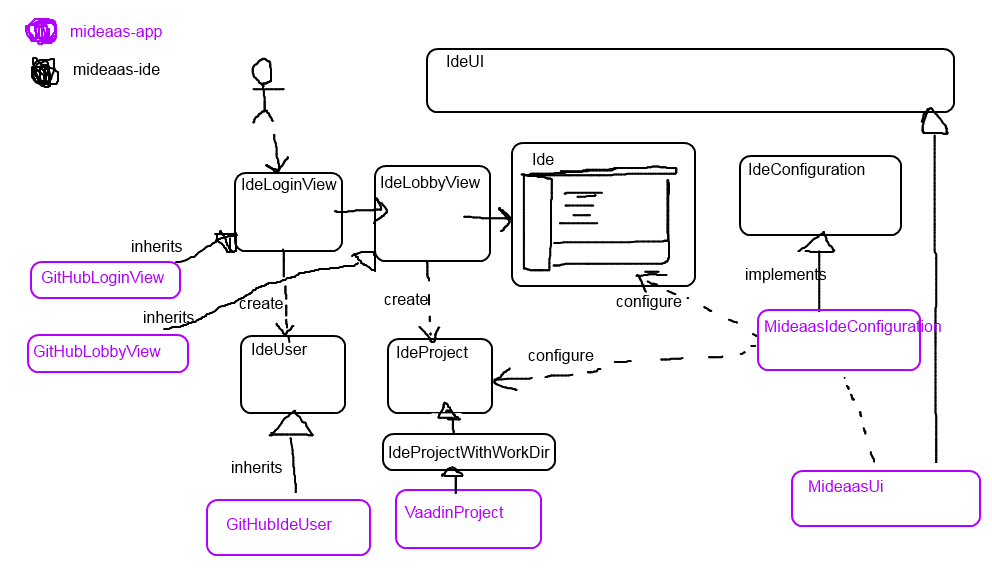

Some of the more important classes of mideaas-app and mideaas-ide are shown in the image

The IdeUI class in mideaas-ide can be extended to create custom IDE environments. The MideaasUI in mideaas-app is one such environment. The IdeUI class receives an IdeConfiguration object that can be used to configure the IDE. For example, to define custom IdeLoginView, IdeLobbyView, customize projects to have certain error checkers and so on.

mideaas-editor

Class MultiUserEditor implements a collaborative code editor with the help of the AceEditor addon. Used by mideaas-ide. The mideaas-app should not need to know (much) about this.

mideaas-ide

Some of the more important classes and interfaces in org.vaadin.mideaas.ide:

Ide

The IDE. A Vaadin component for editing IdeProject.

IdeUI

The Vaadin UI class for IDEs. Implements navigation using Vaadin Navigator.

IdeConfiguration

The configuration object passed to IdeUI for configuring the Ide and related things. Has an ideCreated method that can customize a newly created Ide.

IdeProject

The project edited in Ide. Can be extened to create different kinds of projects. All the projects are created by IdeConfiguration.createProject

Project contents at a specific point in time can be get with getSnapshot().

The projects are not stored persistently anywhere. It's the responsibility of somebody else to store the project contents (to disk or to a Git repository or whatever) if that's needed. Similarly it's somebody elses responsibility to read project contents (from disk or from a Git repository or whatever) when creating a project. (The opening of project is done in IdeLobbyView).

IdeUser

The user in the Ide. Can be extended, for example GitHubIdeUser.

IdeLoginView

Vaadin View for logging in. Must call IdeUI.logIn(IdeUser) to move forward after a successful login.

IdeLobbyView

Vaadin View for selecting a project. Shown after the user has logged in. Must call IdeUI.startProject("name", mapOfFileContents) to create and open a project for editing. TODO: startProject parameters?

mideaas-app

Some of the more important classes and interfaces in org.vaadin.mideaas.app:

MideaasUI (extends IdeUI)

The UI class for MIDEaaS projects.

MideaasIdeConfiguration (implements IdeConfiguration)

The configuration object for MIDEaaS, passed to IdeUI.

VaadinProject (extends IdeProject)

A project containing Vaadin-specific things.

Has a (temporary) build dir. Can be written to disk with writeToDisk().

Sub-packages:

• org.vaadin.mideaas.app.git - Git stuff
• org.vaadin.mideaas.app.guards
• org.vaadin.mideaas.app.java - Java-compilation stuff
• org.vaadin.mideaas.app.maven - Maven building stuff
• org.vaadin.mideaas.app.test - Testing integration
