Immersive 180° VR Video Conversion Pipeline

This repository contains the source code for a video processing pipeline that converts standard 2D videos into an immersive 180° VR format. The project includes a Next.js frontend for file uploads and a Python backend for video processing.

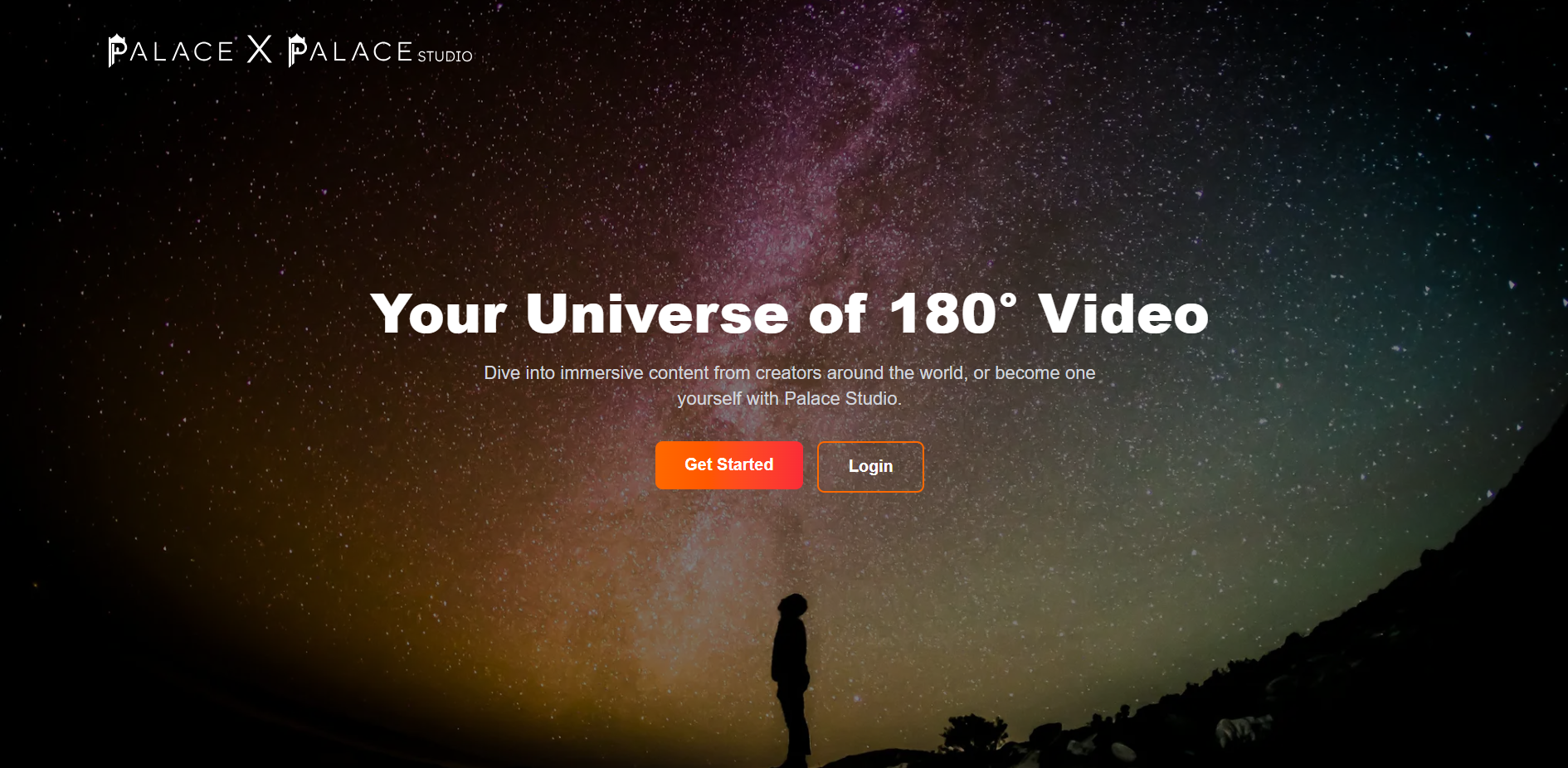

A live demonstration is available at: https://palacevr.vercel.app/

Projection Method

Standard equirectangular projection for 180° video can cause peripheral distortion. This project implements a custom projection pipeline to mitigate these effects and improve viewing comfort.

The pipeline consists of the following stages:

1. Seamless Border Extension: The video frame is extended with a reflected border to create a seamless peripheral view, eliminating black bars.
2. Fisheye Projection: The extended frame is warped into a fisheye projection. This mapping preserves detail in the center of the field of view while gradually reducing resolution towards the edges.
3. 2D-to-3D Conversion: A monocular depth estimation model (Intel MiDaS) is used to generate a depth map for the video. This depth map is then used to create a stereoscopic 3D output, adding depth perception to the VR experience.

Features

• Custom 180° Projection: Implements a fisheye projection to reduce distortion in VR.
• Monocular 2D-to-3D Conversion: Generates stereoscopic 3D video from a 2D source using AI-based depth estimation.
• User Authentication and Storage: Manages user accounts and stores converted videos using Supabase.
• GPU-Accelerated: The pipeline is accelerated using PyTorch, CuPy, and NVENC for efficient processing.
• VR Metadata Injection: The output video is injected with the necessary metadata to be correctly interpreted as 180° VR content by compatible players and platforms.

Implementation Details

The complete processing workflow is demonstrated in the following Google Colab notebook:

• Colab Notebook
• Sample inception clip 2d to vr 180
• Loom video demo recording

Technology Stack

• Frontend: Next.js, React, Tailwind CSS
• Backend: Python, FastAPI
• Machine Learning: PyTorch, Intel MiDaS
• GPU Computing: CuPy, OpenCV
• Video Processing: FFmpeg

Contributing

Contributions are welcome. Please open an issue to report bugs or suggest features, or submit a pull request with improvements.
