alias db1='docker exec -it --user postgres db1 bash -c "cd ~; bash "'
alias db2='docker exec -it --user postgres db2 bash -c "cd ~; bash "'
alias db3='docker exec -it --user postgres db3 bash -c "cd ~; bash "'
alias rst='docker exec -it --user postgres pgbackrest bash -c "cd ~; bash "'
$ db1
postgres@db1:~$
Note: docker run komudu ile --shm-size=1g gibi vermek çok iyi olacaktır. default 64M gibi bir şey sanırım. pgbackrest ve diğer komutlarda sorun yaşanabilir...
run.sh çalıştırıldıktan sonra postgresql replication kurulumu yapılacaktır. Bu işlem için DB1 ve DB2 üzerinde DATA dizini silinip pg_basebackup komudu çalıştırlması yeterlidir. Eski sistemlerde kullanılan recovery.conf ve diğer ayarlara gerek yoktur.

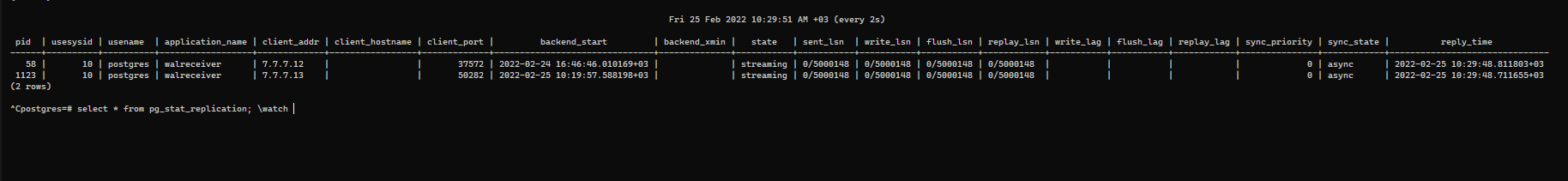

select * from pg_stat_replication \watch
- Aynı extension kurulu olmalıdır.
- "postgres" kullanıcı için pg_hba.conf girilen "all all" kesinlikle yeterli degildir. Dockerlarda replication için satır girilmiştir.
- "repuser" gibi bir role acilaiblir. tüm yetkileri readonly olacaktir.
docker exec -it --user postgres db1 bash
$psql
postgres=#create role repuser password 'parola' login replication;
pg_hba.conf
host replication all 7.7.7.0/24 trust
diğer örnekler;
select pg_drop_replication_slot('db2');
select * from pg_stat_replication;

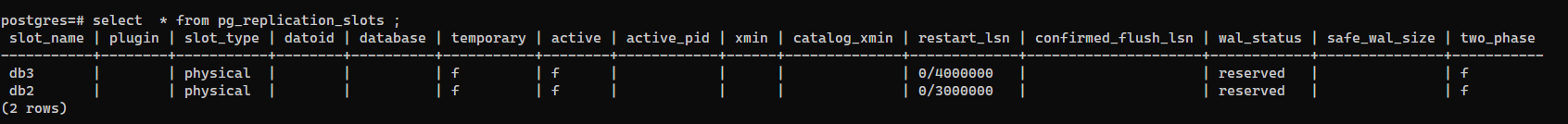

select * from pg_replication_slots;
default(replica) isneirse -> alter system set wal_level TO 'logical';
select pg_conf_reload();
select pg_drop_replication_slot('db2')
Sunucular çok uzun süre kapalı kalırsa, pgbacrest wal'ları arşive kaldıracak ve aradaki kayıplar kapatılamayacaktır. Bu durumda tekrardan Slotlar silinir ve replication kurulabilir.
Stream replicaiton active durumu false olduğu görülebilir:
2022-03-22 11:37:10.377 +03 [495] DETAIL: The primary's identifier is 7076434890037256232, the standby's identifier is 7076435427321561129.
2022-03-22 11:37:15.381 +03 [496] FATAL: database system identifier differs between the primary and standby
2022-03-22 11:37:15.381 +03 [496] DETAIL: The primary's identifier is 7076434890037256232, the standby's identifier is 7076435427321561129.
2022-03-22 11:37:20.391 +03 [497] FATAL: database system identifier differs between the primary and standby
select pg_drop_replication_slot('db2');
select pg_drop_replication_slot('db3');
tekrardan aşağıdaki adımlar yapılır....
docker exec -it --user postgres db2 bash
rm -rf /var/lib/postgresql/data/*
pg_basebackup --username=repuser --host=7.7.7.11 --pgdata=/var/lib/postgresql/data/ --write-recovery-conf --create-slot --slot=db2
docker start db2
docker exec -it db3 bash
rm -rf /var/lib/postgresql/data/*
pg_basebackup --username=repuser --host=7.7.7.11 --pgdata=/var/lib/postgresql/data/ --write-recovery-conf --create-slot --slot=db3
docker start db3
docker exec --user postgres db1 psql -xc "select * from pg_stat_replication "

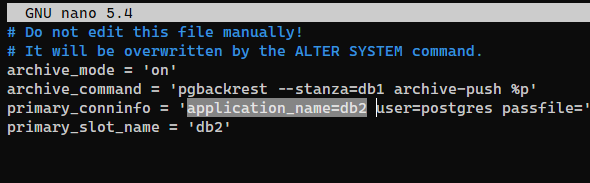

postgres@db2:~$ nano /var/lib/postgresql/data/postgresql.auto.conf
kullan@KUHEYLAN:~$ docker exec --user postgres db1 psql -xc "select * from pg_stat_replication"
-[ RECORD 1 ]----+------------------------------
pid | 60
usesysid | 16384
usename | repuser
application_name | db2
client_addr | 7.7.7.12
client_hostname |
client_port | 51156
backend_start | 2022-04-04 11:51:09.088472+03
backend_xmin |
state | streaming
sent_lsn | 0/160000D8
write_lsn | 0/160000D8
flush_lsn | 0/160000D8
replay_lsn | 0/160000D8
write_lag |
flush_lag |
replay_lag |
sync_priority | 0
sync_state | async
reply_time | 2022-04-04 11:52:59.411602+03
-[ RECORD 2 ]----+------------------------------
pid | 68
usesysid | 16384
usename | repuser
application_name | db3
client_addr | 7.7.7.13
client_hostname |
client_port | 42480
backend_start | 2022-04-04 11:52:10.289554+03
backend_xmin |
state | streaming
sent_lsn | 0/160000D8
write_lsn | 0/160000D8
flush_lsn | 0/160000D8
replay_lsn | 0/160000D8
write_lag |
flush_lag |
replay_lag |
sync_priority | 0
sync_state | async
reply_time | 2022-04-04 11:53:00.471779+03
postgres@db1:~$ psql
psql (14.1 (Debian 14.1-1.pgdg110+1))
Type "help" for help.
postgres=# \x
Expanded display is on.
postgres=# select * from pg_stat_replication;
-[ RECORD 1 ]----+------------------------------
pid | 590
usesysid | 10
usename | postgres
application_name | db2
client_addr | 7.7.7.12
client_hostname |
client_port | 59980
backend_start | 2022-03-11 14:48:40.315767+03
backend_xmin |
state | streaming
sent_lsn | 0/F000148
write_lsn | 0/F000148
flush_lsn | 0/F000148
replay_lsn | 0/F000148
write_lag |
flush_lag |
replay_lag |
sync_priority | 0
sync_state | async
reply_time | 2022-03-11 14:59:27.831192+03
-[ RECORD 2 ]----+------------------------------
pid | 584
usesysid | 10
usename | postgres
application_name | walreceiver
client_addr | 7.7.7.13
client_hostname |
client_port | 39164
backend_start | 2022-03-11 14:44:20.876102+03
backend_xmin |
state | streaming
sent_lsn | 0/F000148
write_lsn | 0/F000148
flush_lsn | 0/F000148
replay_lsn | 0/F000148
write_lag |
flush_lag |
replay_lag |
sync_priority | 0
sync_state | async
reply_time | 2022-03-11 14:59:27.831188+03
postgres=#
Aşağıdaki hata görüyorsanız "pgbackrest --stanza=??? backup komudunu pgbackrest sunucu üzerinden çalıştırın diyor.
postgres@db2:~$ pgbackrest --stanza=db2 backup
2022-03-09 16:26:30.534 P00 INFO: backup command begin 2.37: --exec-id=101-70c3d7ee --log-level-console=info --pg1-path=/var/lib/postgresql/data --repo1-host=7.7.7.100 --repo1-host-user=postgres --repo1-retention-full=5 --stanza=db2
ERROR: [072]: backup command must be run on the repository host
$ docker exec -it --user postgres pgbackrest bash
postgres@pgbackrest:/$ pgbackrest --stanza=demo --log-level-console=info stanza-create
$ docker exec -it db1 bash
$ docker exec -it --user postgres db1 bash
$ docker exec -it --user postgres db1 psql
$ docker exec -it --user postgres pgbackrest bash
postgres@pgbackrest:/$ ssh db1
postgres@db1's password:
Linux db1 5.10.93.2-microsoft-standard-WSL2 #1 SMP Wed Jan 26 22:38:54 UTC 2022 x86_64
The programs included with the Debian GNU/Linux system are free software;
the exact distribution terms for each program are described in the
individual files in /usr/share/doc/*/copyright.
Debian GNU/Linux comes with ABSOLUTELY NO WARRANTY, to the extent
permitted by applicable law.
Last login: Wed Mar 2 15:11:50 2022 from 7.7.7.100
postgres@db1:~$
$ docker exec -it --user postgres db1 psql
psql (14.1 (Debian 14.1-1.pgdg110+1))
Type "help" for help.
postgres=# show archive_mode;
archive_mode
--------------
on
(1 row)
postgres=# show archive_command;
archive_command
------------------------------------------
pgbackreset --stanza=demo arhive-push %p
(1 row)
postgres=# \q
docker exec --user postgres pgbackrest bash -c "pgbackrest --stanza=dbs stanza-create"
docker exec --user postgres pgbackrest bash -c "pgbackrest --stanza=dbs info"
docker exec --user postgres db1 psql -c "alter system set archive_command to 'pgbackrest --stanza=dbs archive-push %p'"
docker exec --user postgres db2 psql -c "alter system set archive_command to 'pgbackrest --stanza=dbs archive-push %p'"
docker exec --user postgres db3 psql -c "alter system set archive_command to 'pgbackrest --stanza=dbs archive-push %p'"
docker restart db1
sleep 15
docker restart db2
sleep 5
docker restart db3
