API

By Christian Hasbani and Antoine Chenevier

Student at ESIREM in 4A ILC

Objectif : Create a Flask API for CRUD management of a transaction system

Workflows

Pull : GitHub action pull

Push : GitHub action push

Documentation

We have a list of transactions, each transaction is a tuple (P1, P2, t,s,hash), where s is equal to the amount of money transferred from person P1 to person P2 at time t and hash is the key of the tuple.

We have the current date in second since 01-01-2023.

curl

Here are examples of curl commands to access the different routes in app.py

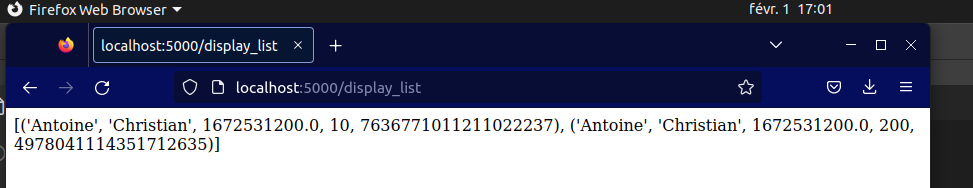

route /display_list

@app.route("/display_list", methods=['GET'])
def getList():

curl -X GET http://localhost:5000/display_list

Function to return all of the dictionary

route /display_list/<Person>

@app.route("/display_list/<Person>", methods=['GET'])
def getListPerson(Person):
  ...

curl -X POST -d "Person=person" http://localhost:5000/display_list/<Person>

Function to return all of the dictionary of a person

route /display_solde/<Person>

@app.route("/display_solde/<Person>", methods=['GET'])
def getSolde(Person):
  ...

curl -X GET -d "Person=person" http://localhost:5000/display_solde/<Person>

Function to display the solde of a person

route /add_element/

@app.route("/add_element/", methods=['POST','GET'])
def addElement():

curl -X GET http://loccurl -X POST http://localhost:5000/add_element/ -d "p1=christian&p2=antoine&solde=10"

Function to add an element in the dictionary

route /importeCSV

@app.route("/importeCSV", methods=['GET'])
def importeCSV():
  ...

curl -d  "filePath=tab.csv" -X  GET http://localhost:5000/importeCSV

Function to import a CSV file

route /hash_verification

@app.route("/hash_verification", methods=['GET'])
def hash_vefication():
  ...

curl -X GET http://localhost:5000/hash_verification

Hash verification

route /hash_correction

@app.route("/hash_correctionn", methods=['GET'])
def hash_vefication():
  ...

curl -X GET http://localhost:5000/hash_correction

Hash correction

Building the docker image

We built the docker image using the following command in the terminal

docker build -t flask-app .

Using the docker images command

Running the docker image in a container

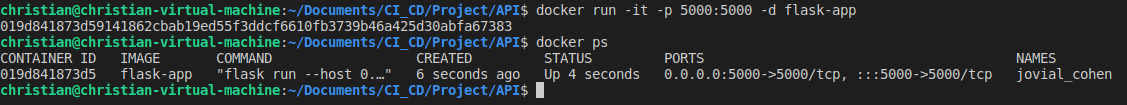

sudo docker run -it -p 5000:5000 -d flask-app

This will lauch our flask application on localhost port 5000 We use docker ps to display running containers

We can see at the end we have the follow result

Update

We have already implemented all the features in the app.py file before releasing
