I was curious about the performance differences, so I implemented the package name cache as a Marisa trie. Here are some of my results.

Methodology

I used ionelmc/pytest-benchmark to measure performance in my tests. I ran pkgnames with a few different prefixes:

  1. '' — empty string, to measure results when all package names are returned
  2. 'i' — a large number of packages to be returned, but filtered from all packages
  3. 'ipy' — a small number of packages

Base

First, I ran the benchmarks against the existing package

---------------------------------------------------------------- benchmark 'pkgnames method=<function pkgnames at 0x7fed776fe550>': 4 tests ---------------------------------------------------------------
Name (time in ms)                            Min                 Max                Mean            StdDev              Median               IQR            Outliers      OPS            Rounds  Iterations
-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
test_pkgnames_speed[0-pkgnames]          32.1004 (1.0)       39.3018 (1.16)      32.8190 (1.01)     1.2665 (4.77)      32.5297 (1.00)     0.6084 (2.23)          1;2  30.4702 (0.99)         31           1
test_pkgnames_speed[ipy-pkgnames]        32.2818 (1.01)      33.8813 (1.0)       32.5978 (1.0)      0.4063 (1.53)      32.4363 (1.0)      0.3085 (1.13)          4;4  30.6769 (1.0)          30           1
test_pkgnames_speed[i-pkgnames]          42.8242 (1.33)      44.0079 (1.30)      43.3055 (1.33)     0.2656 (1.0)       43.3043 (1.34)     0.2733 (1.0)           7;1  23.0918 (0.75)         24           1
test_pkgnames_speed[<all>-pkgnames]     484.3362 (15.09)    492.8921 (14.55)    487.4714 (14.95)    3.8232 (14.39)    485.3129 (14.96)    6.1898 (22.64)         1;0   2.0514 (0.07)          5           1
-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

Filtering the package names results in pretty damn decent results... though, if all packages were requested, the performance was pretty poor, at ~0.5s.

All packages perf

First, I wanted to fix that 0.5s for requesting all packages.

I noticed pkgnames() printing each package line-by-line in a for loop

def pkgnames(prefix=''):
    matching_packages = get_package_names(prefix=prefix)
    for package in matching_packages:
        print(package)

In general, when doing perf work, the core tenet is not to make things faster, but to do less things. And also, when it comes to I/O, the language/OS has probably built better buffering than I ever could; I seek to provide as much data upfront, so those buffers can remain full.

I changed the printing to generate the entire response in one fell swoop, with '\n'.join(matching_packages), and just printing that whole fella

def pkgnames(prefix=''):
    matching_packages = get_package_names(prefix=prefix)
    response = '\n'.join(matching_packages)
    print(response)

And results from the benchmark:

------------------------------------------------------------- benchmark 'pkgnames method=<function pkgnames_bulk_print at 0x7fed776fe5e0>': 4 tests --------------------------------------------------------------
Name (time in ms)                                      Min                Max               Mean            StdDev             Median               IQR            Outliers      OPS            Rounds  Iterations
------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
test_pkgnames_speed[0-pkgnames_bulk_print]         31.5530 (1.0)      32.7390 (1.01)     31.9732 (1.0)      0.3079 (2.34)     31.8860 (1.0)      0.3953 (2.80)         10;0  31.2762 (1.0)          31           1
test_pkgnames_speed[ipy-pkgnames_bulk_print]       31.8123 (1.01)     32.3486 (1.0)      32.0379 (1.00)     0.1316 (1.0)      32.0156 (1.00)     0.1414 (1.0)           9;1  31.2131 (1.00)         32           1
test_pkgnames_speed[i-pkgnames_bulk_print]         32.8958 (1.04)     37.6176 (1.16)     33.4168 (1.05)     1.0162 (7.72)     33.1444 (1.04)     0.2340 (1.65)          2;3  29.9251 (0.96)         22           1
test_pkgnames_speed[<all>-pkgnames_bulk_print]     37.1408 (1.18)     39.4088 (1.22)     38.1502 (1.19)     0.6027 (4.58)     38.2545 (1.20)     0.7840 (5.54)          9;0  26.2122 (0.84)         25           1
------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

Aww yiss, the all-packages performance matched the filtered performance

Trie

Next, I wanted to try out the Marisa trie. It ended up being a lot simpler than I expected to implement, with instantiation just being Trie(packages), saving to file as easy as trie.save(path), and loading with trie = Trie(); trie.load(path).

I altered pkgnames to read from the trie, and these were the results

--------------------------------------------------------------------------- benchmark 'pkgnames method=<function pkgnames_trie at 0x7f4c3bdb6a60>': 4 tests ---------------------------------------------------------------------------
Name (time in us)                                    Min                    Max                   Mean                StdDev                 Median                   IQR            Outliers         OPS            Rounds  Iterations
---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
test_pkgnames_speed[0-pkgnames_trie]            121.5001 (1.0)         238.8821 (1.0)         130.4816 (1.0)          9.6921 (1.0)         127.7820 (1.0)          5.4599 (1.12)      153;161  7,663.9147 (1.0)        2374           1
test_pkgnames_speed[ipy-pkgnames_trie]          144.4730 (1.19)        372.6850 (1.56)        157.3764 (1.21)        21.5655 (2.23)        153.1346 (1.20)         4.8894 (1.0)       142;276  6,354.1947 (0.83)       3276           1
test_pkgnames_speed[i-pkgnames_trie]          1,346.6370 (11.08)     2,199.2889 (9.21)      1,394.0925 (10.68)       85.1560 (8.79)      1,379.6790 (10.80)       26.3505 (5.39)        18;20    717.3125 (0.09)        635           1
test_pkgnames_speed[<all>-pkgnames_trie]     60,827.8541 (500.64)   72,994.6129 (305.57)   62,315.6022 (477.58)   2,990.3667 (308.54)   61,359.3940 (480.19)   1,137.2961 (232.60)        1;1     16.0473 (0.00)         16           1
---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

And wow! The speeds were measured in microseconds, not milliseconds! For the 'i' input, the trie was 25x faster; for 'ipy', it was 200x faster!

But pulling all the packages from the trie was still 60ms, which was slower than the regular index.

Trie w/ All Packages

To address the all-packages performance w/ the trie, I made a special case: if an empty prefix is provided, simply parrot raw package names file (the original package names index)

def pkgnames(prefix=''):
    if not prefix:
        matching_packages = get_all_package_names()
    else:
        matching_packages = get_package_names(prefix=prefix)

    response = '\n'.join(matching_packages)
    print(response)
-------------------------------------------------------------------------------------------- benchmark 'pkgnames': 4 tests --------------------------------------------------------------------------------------------
Name (time in us)                      Min                    Max                   Mean                StdDev                 Median                 IQR            Outliers         OPS            Rounds  Iterations
-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
test_pkgnames_speed[0]            121.5001 (1.0)         168.2369 (1.0)         127.9703 (1.0)          6.5916 (1.0)         125.5025 (1.0)        4.6890 (1.0)       267;253  7,814.3134 (1.0)        2342           1
test_pkgnames_speed[ipy]          147.9900 (1.22)        319.0329 (1.90)        159.2223 (1.24)        13.8756 (2.11)        155.8540 (1.24)       5.0691 (1.08)      172;270  6,280.5287 (0.80)       3287           1
test_pkgnames_speed[i]          1,312.9509 (10.81)     2,971.6729 (17.66)     1,362.7967 (10.65)       90.5921 (13.74)     1,341.6645 (10.69)     20.2591 (4.32)        49;86    733.7851 (0.09)        690           1
test_pkgnames_speed[<all>]     17,952.0501 (147.75)   24,011.7370 (142.73)   20,125.1347 (157.26)   1,040.7176 (157.89)   19,827.9684 (157.99)   320.2048 (68.29)        9;11     49.6891 (0.01)         50           1
-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

17ms — not bad!

All packages optimization

I realized that for empty prefix / all-packages response, I was still splitting all the lines in the raw index, and rejoining them when emitting the response. I changed it to simply parrot the raw index file — read the file, then print it out.

----------------------------------------------------------------------------------------- benchmark 'pkgnames': 4 tests -----------------------------------------------------------------------------------------
Name (time in us)                     Min                   Max                  Mean              StdDev                Median                 IQR            Outliers         OPS            Rounds  Iterations
-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
test_pkgnames_speed[0]           123.2328 (1.0)        262.3170 (1.0)        133.0901 (1.0)       15.0659 (1.0)        129.9269 (1.0)        4.0630 (1.0)        80;175  7,513.7051 (1.0)        2289           1
test_pkgnames_speed[ipy]         150.7460 (1.22)       355.0630 (1.35)       164.6641 (1.24)      20.6171 (1.37)       159.6075 (1.23)       4.9237 (1.21)      119;213  6,072.9679 (0.81)       2132           1
test_pkgnames_speed[i]         1,390.0651 (11.28)    3,571.6922 (13.62)    1,485.3559 (11.16)    161.0224 (10.69)    1,461.4101 (11.25)     26.2756 (6.47)        14;34    673.2393 (0.09)        636           1
test_pkgnames_speed[<all>]     2,341.6900 (19.00)    3,823.8191 (14.58)    2,697.3013 (20.27)    194.8775 (12.94)    2,642.0900 (20.34)    220.8641 (54.36)        47;9    370.7409 (0.05)        263           1
-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

Boom! 2ms :) (Well, 4ms max)

Summary

So, with a few optimizations, overall performance is improved 10x — and in some cases, 200x. Success :)

@brunobeltran
Copy link
Copy Markdown
Owner

Man, this is great, thanks for the contrib! This is a good excuse to clear out the PR backlog here. Sorry ahead of time if it takes a couple of days to get back, currently on some paper deadlines.

@theY4Kman
Copy link
Copy Markdown
Author

theY4Kman commented May 17, 2020

Hell, thank you for building this thing; it scratched an itch I've had for a long time: getting so spoiled with apt install <tab><tab> and wanting it for pip.

Oh, yeah, I also removed all-packages.txt from data_files, because it was being included in the wheel with your full home directory path :P


I was intrigued about including a snapshot of the package index for immediate use after installation. Was that your intention? Would you like to keep that functionality? Maybe I could include it as an extra, for use with pip install pip-cache[full] or something

Comment thread pip_cache/__init__.py
Comment on lines +19 to +28
def get_pip_cache_data_dir():
return os.path.join(get_xdg_data_dir(), 'pip-cache')


def get_raw_index_filename():
return os.path.join(get_pip_cache_data_dir(), 'all-packages.txt')


def get_index_filename():
return os.path.join(get_pip_cache_data_dir(), 'all-packages.marisa')
Copy link
Copy Markdown
Author

Choose a reason for hiding this comment

The reason will be displayed to describe this comment to others. Learn more.

FYI: I changed these to methods, instead of global constants, so I could easily patch them out during testing

Comment thread pip_cache/__init__.py
if not os.path.isdir(pip_cache_data_dir):
os.mkdir(pip_cache_data_dir)

print('Connecting to PyPi...', end='', flush=True)
Copy link
Copy Markdown
Author

Choose a reason for hiding this comment

The reason will be displayed to describe this comment to others. Learn more.

FYA: there's a neat little package, manrajgrover/halo, which adds a little spinner in the console and can be used as a context manager

with Halo('Connecting to PyPi'):
    client = xmlrpclib.ServerProxy('https://pypi.python.org/pypi')

with Halo('Downloading package names'):
    packages = client.list_packages()

with Halo('Writing packages to cache'):
    with open(raw_index_filename, 'w') as f:
        f.write('\n'.join(packages))

with Halo('Indexing packages'):
    trie = marisa_trie.Trie(packages)
    trie.save(index_filename)

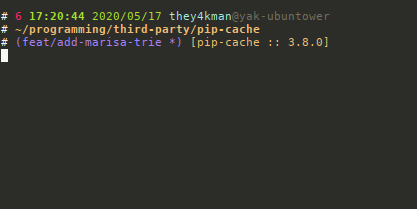

Peek 2020-05-17 17-20

I like to save the text of each thing, though

Peek 2020-05-17 17-21

class task(Halo):
    def __exit__(self, type, value, traceback):
        self.succeed()

with task('Connecting to PyPi'):
    client = xmlrpclib.ServerProxy('https://pypi.python.org/pypi')

with task('Downloading package names'):
    packages = client.list_packages()

with task('Writing packages to cache'):
    with open(raw_index_filename, 'w') as f:
        f.write('\n'.join(packages))

with task('Indexing packages'):
    trie = marisa_trie.Trie(packages)
    trie.save(index_filename)

Comment thread tests/conftest.py

@pytest.fixture(scope='session')
def pip_cache_dir(request):
path = request.config.cache.makedir('pip-cache-data')
Copy link
Copy Markdown
Author

Choose a reason for hiding this comment

The reason will be displayed to describe this comment to others. Learn more.

This'll create a directory under .pytest_cache/d/, which'll remain in between test runs. To clear the cache, py.test --cache-clear can be used; though, deleting .pytest_cache would prolly work just as well :P

Comment thread tests/conftest.py

if not request.config.cache.get(CACHE_KEY, None):
pip_cache.update_package_list()
request.config.cache.set(CACHE_KEY, True)
Copy link
Copy Markdown
Author

Choose a reason for hiding this comment

The reason will be displayed to describe this comment to others. Learn more.

This'll get stored as .pytest_cache/v/pip-cache/is-cache-built, and I think it's a JSON file
