Design and usability pass over the web UI, based on a template-level review (localhost is blocked on the review VM, so this is code-based, not pixel-based).
Separate from the code-review fixes in #13.

Navigation & chrome

  • Active page is now highlighted in the nav (with aria-current), including sub-pages like /tftp/open
  • Mobile menu closes on link tap and on outside tap
  • Added a small footer; dropped the jQuery dependency (vanilla JS toggle)
  • Fixed the logo/spacing hack in the header

DHCP page

  • Server status badge now reads Running/Stopped instead of an empty pill
  • Only the applicable Start or Stop button shows, with a text label
  • Lease-state changes update the badge in place + toast (no full reload)
  • Red X for "not reserved" replaced with a neutral bookmark affordance
  • Lease-state menu uses the app icon language instead of emoji
  • Lease table scrolls horizontally on mobile
  • alert() dialogs replaced with toasts

TFTP page

  • Directory breadcrumb trail replaces the bare path string + Back button
  • Upload button uses the upload icon instead of a text arrow
  • Files panel scrolls on small screens; header matches other pages

OS Images / Syslinux

  • Download progress actually auto-refreshes now (the old code triggered a nonexistent element, so bars were frozen until reload)
  • Themed DaisyUI progress bars instead of hand-rolled gray/blue ones
  • File sizes formatted server-side via a new formatBytes template func; removed the client-side reformatting JS

Status page

  • Fixed a pre-existing render failure: LastUpdated is a string, but the template called .Format on it, so the page errored mid-render
  • Added the remaining fields the status templates expected (OverallStatus, Description/LastCheck on services and per-DHCP-server IP/Description/LeaseCount/LastCheck) — the page was still erroring mid-render (HTTP 200 with a truncated body)

Provision page

  • Help copy no longer claims auto-save or editor syntax highlighting (save is manual; highlighting is in preview only)
  • Deleting a file removes its row + toast instead of reloading the page
  • alert() dialogs replaced with toasts

Login

  • Show/hide password toggle

Consistency

  • Page headers standardized (text-3xl, spacing)
  • Cards standardized on bg-base-200 (were a mix of bg-neutral / bg-base-100 / bg-base-200)
  • Removed nested <main> elements and duplicate container wrappers

Verification

  • go build, go vet, gofmt clean; go test ./... green
  • Executed every page template with mock data: all render fully with no template errors (HTTP status alone is not sufficient — the status page previously returned 200 with a truncated body)

UI renders

Rendered from the templates with representative mock data (static screenshots; live-polling triggers stripped for capture).

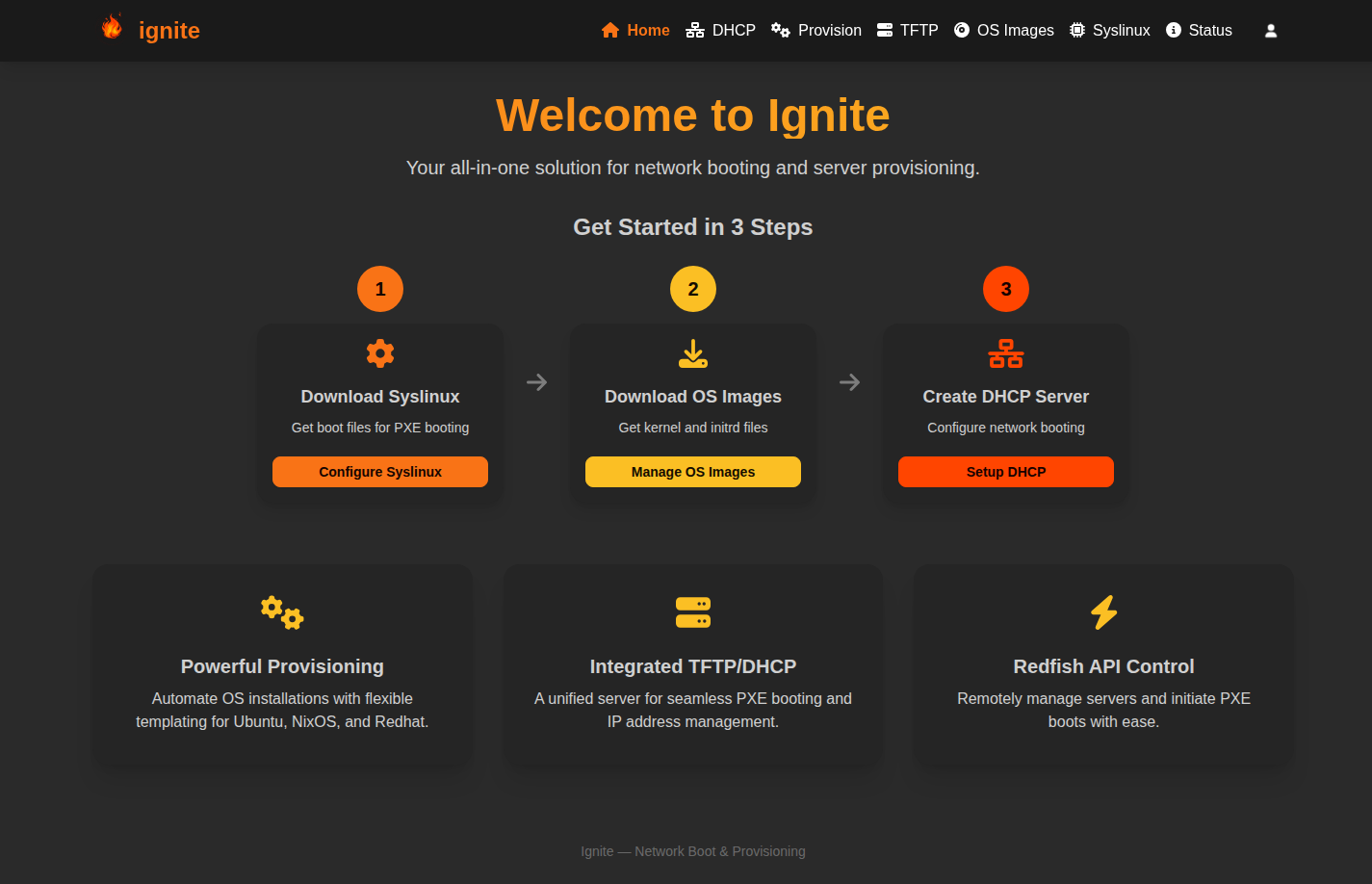

Home

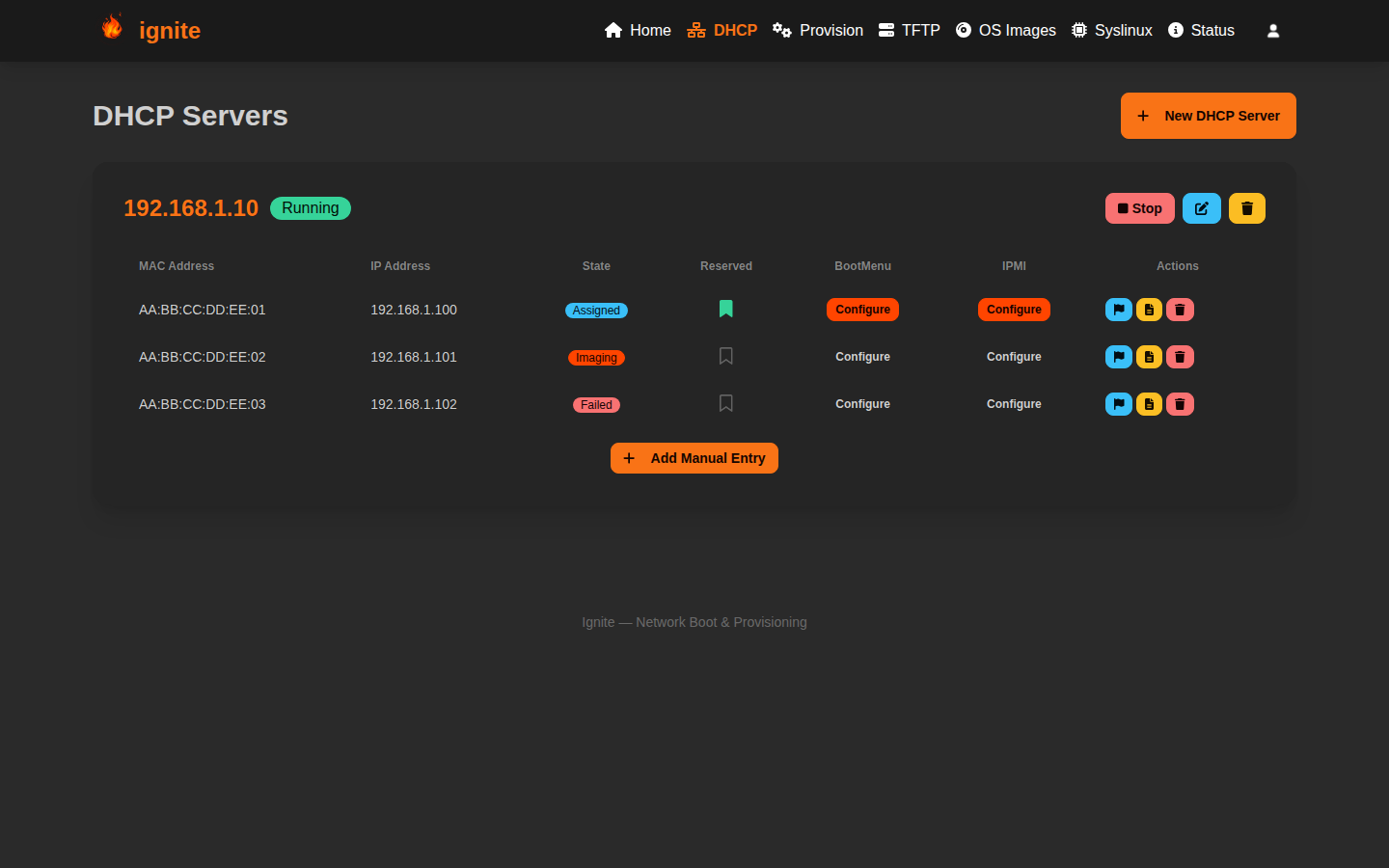

DHCP

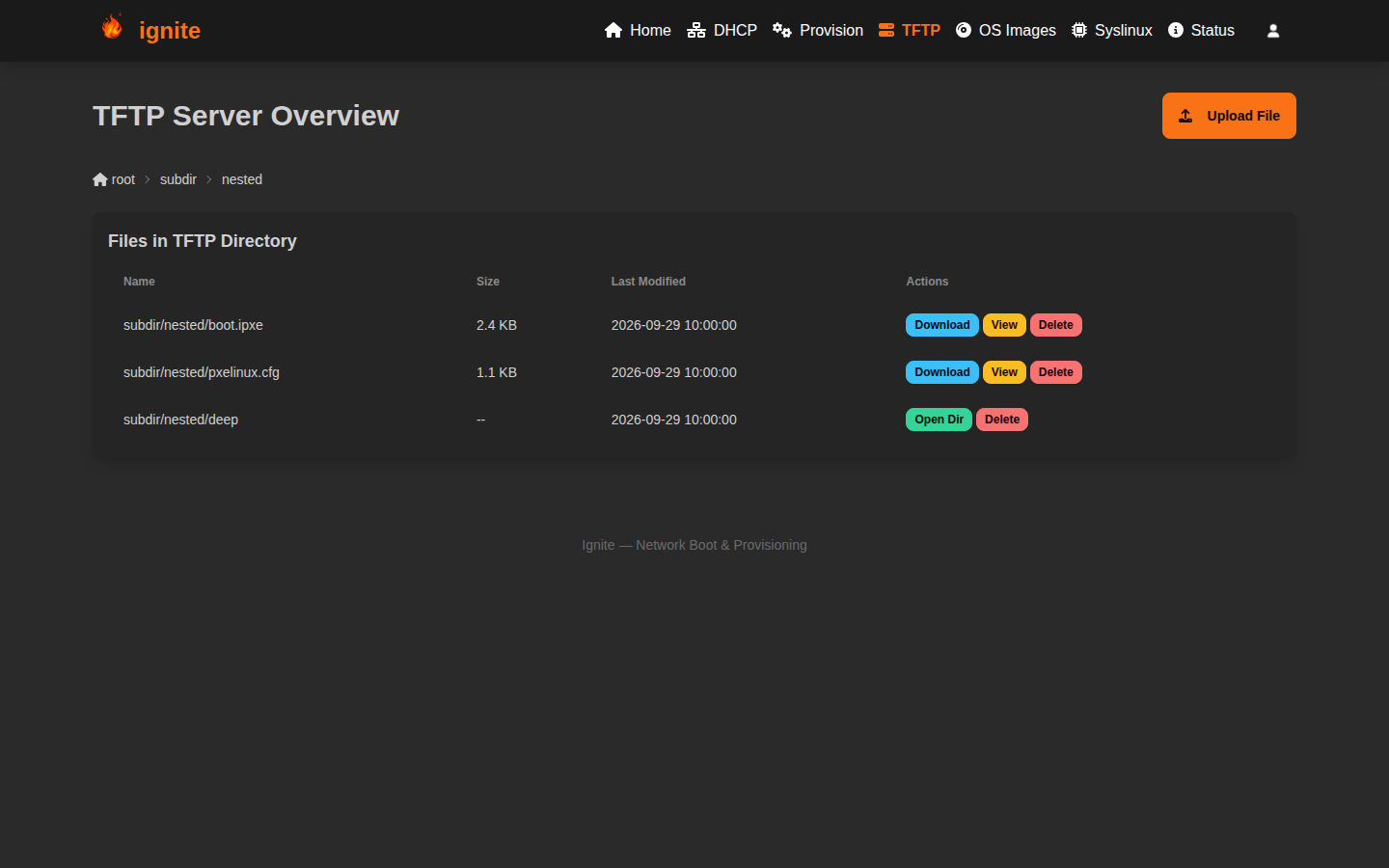

TFTP

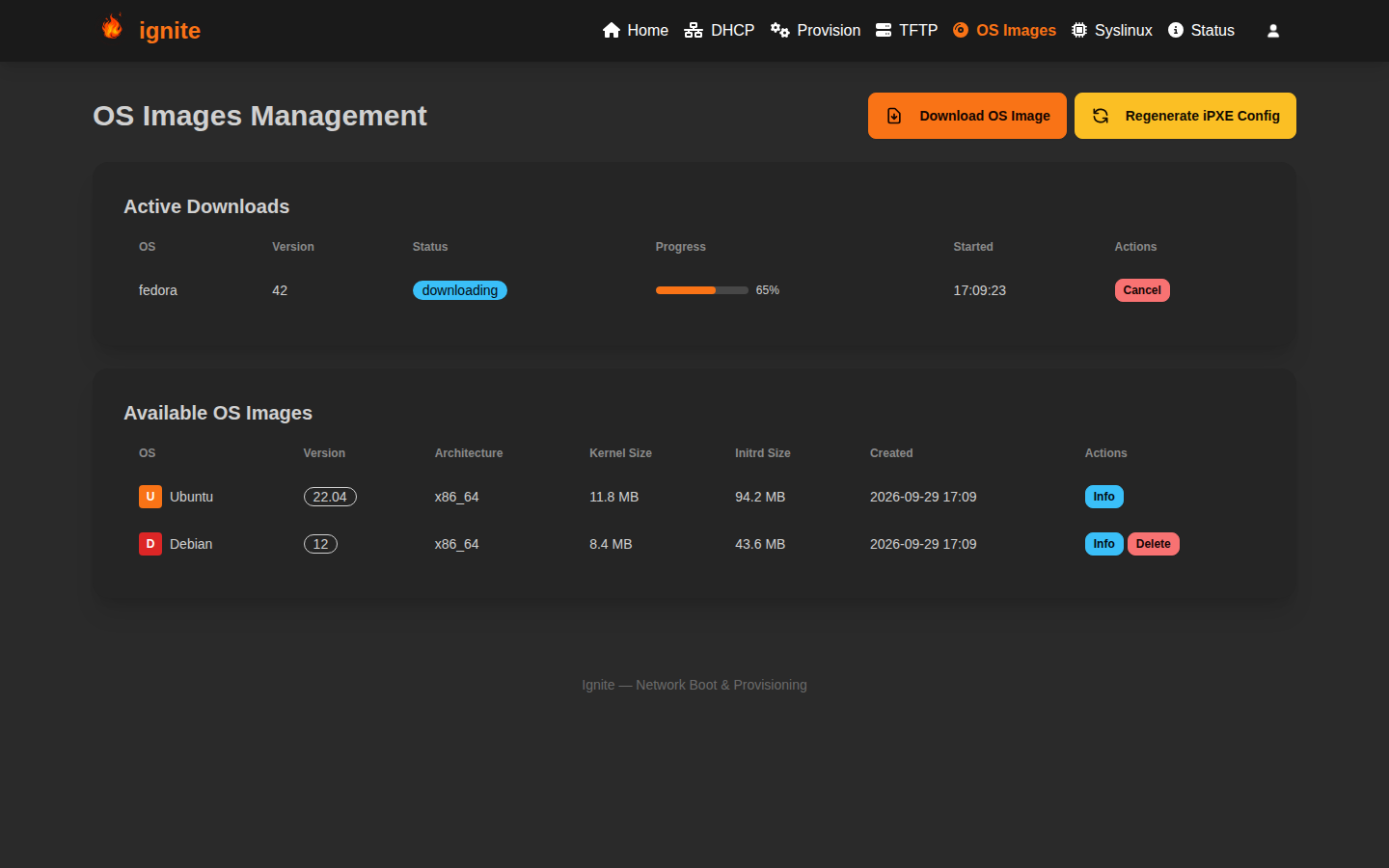

OS Images

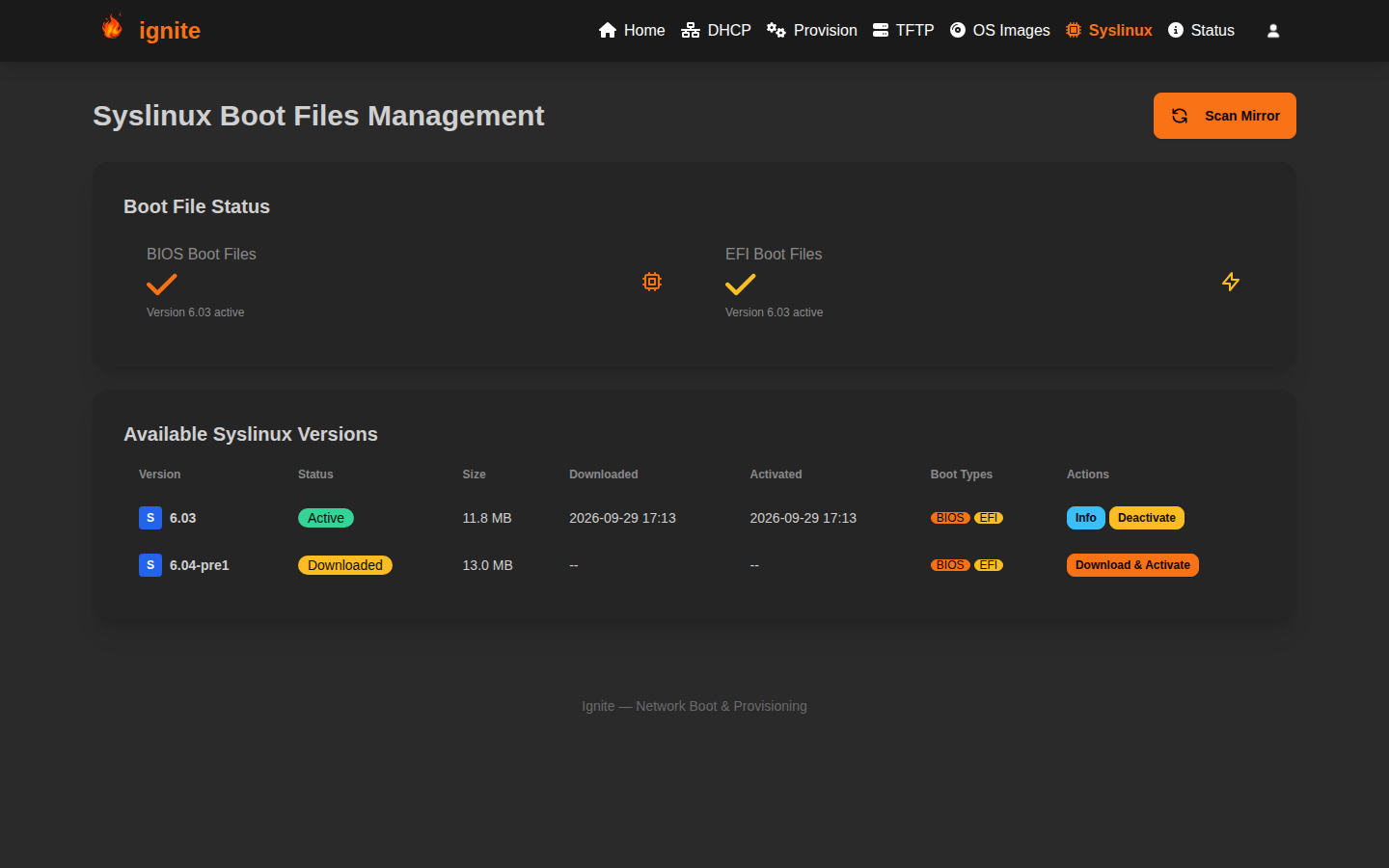

Syslinux

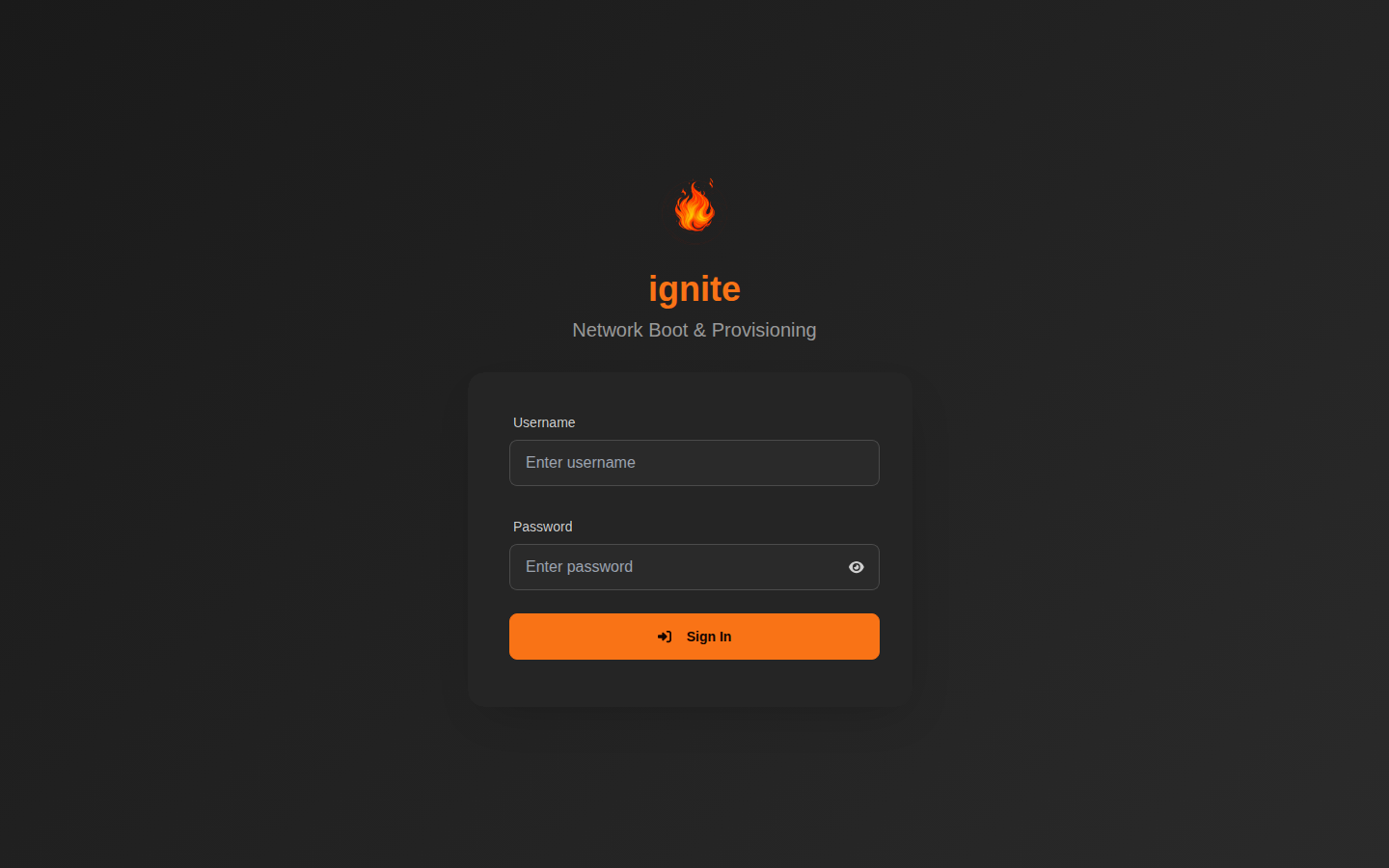

Login

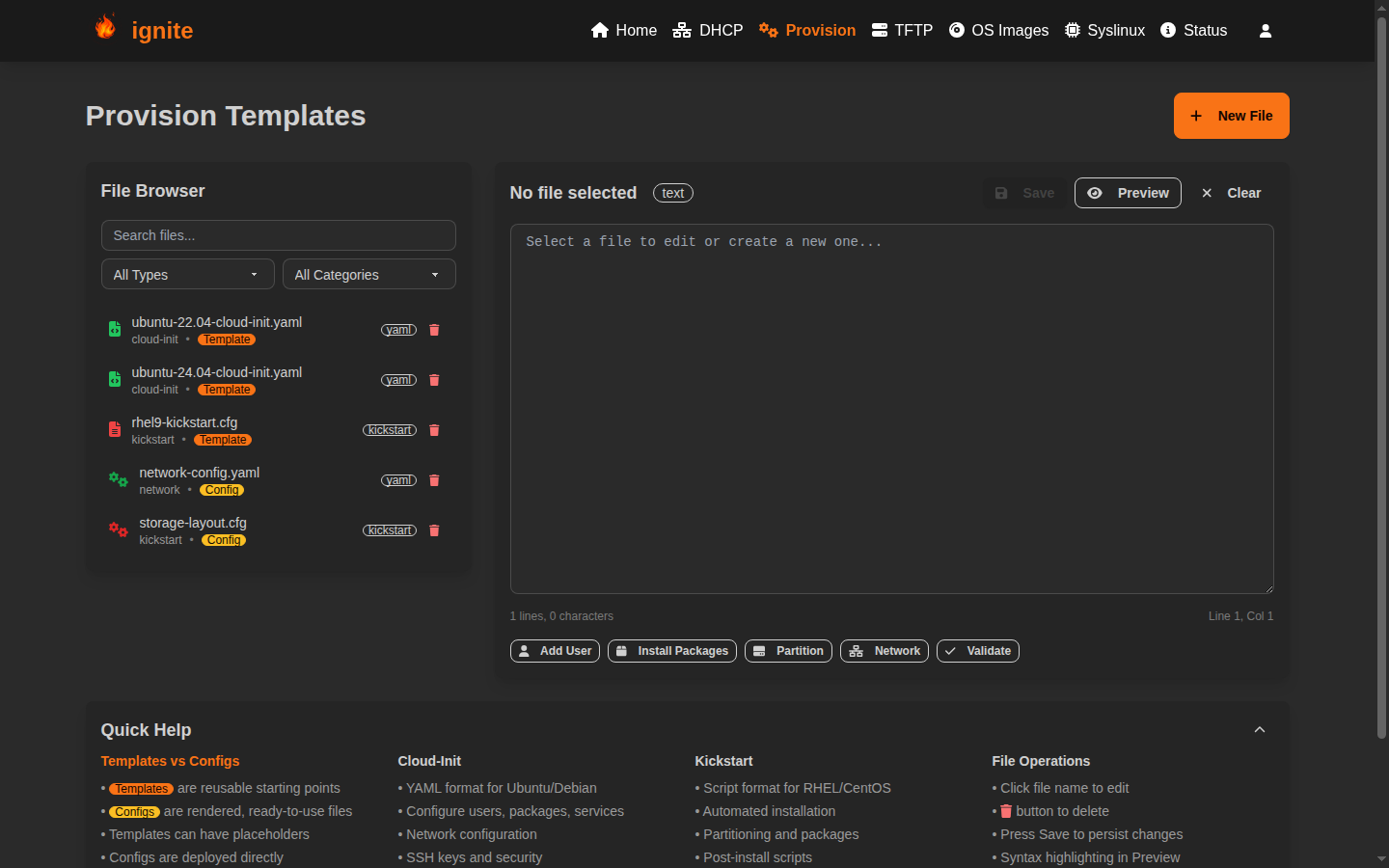

Provision

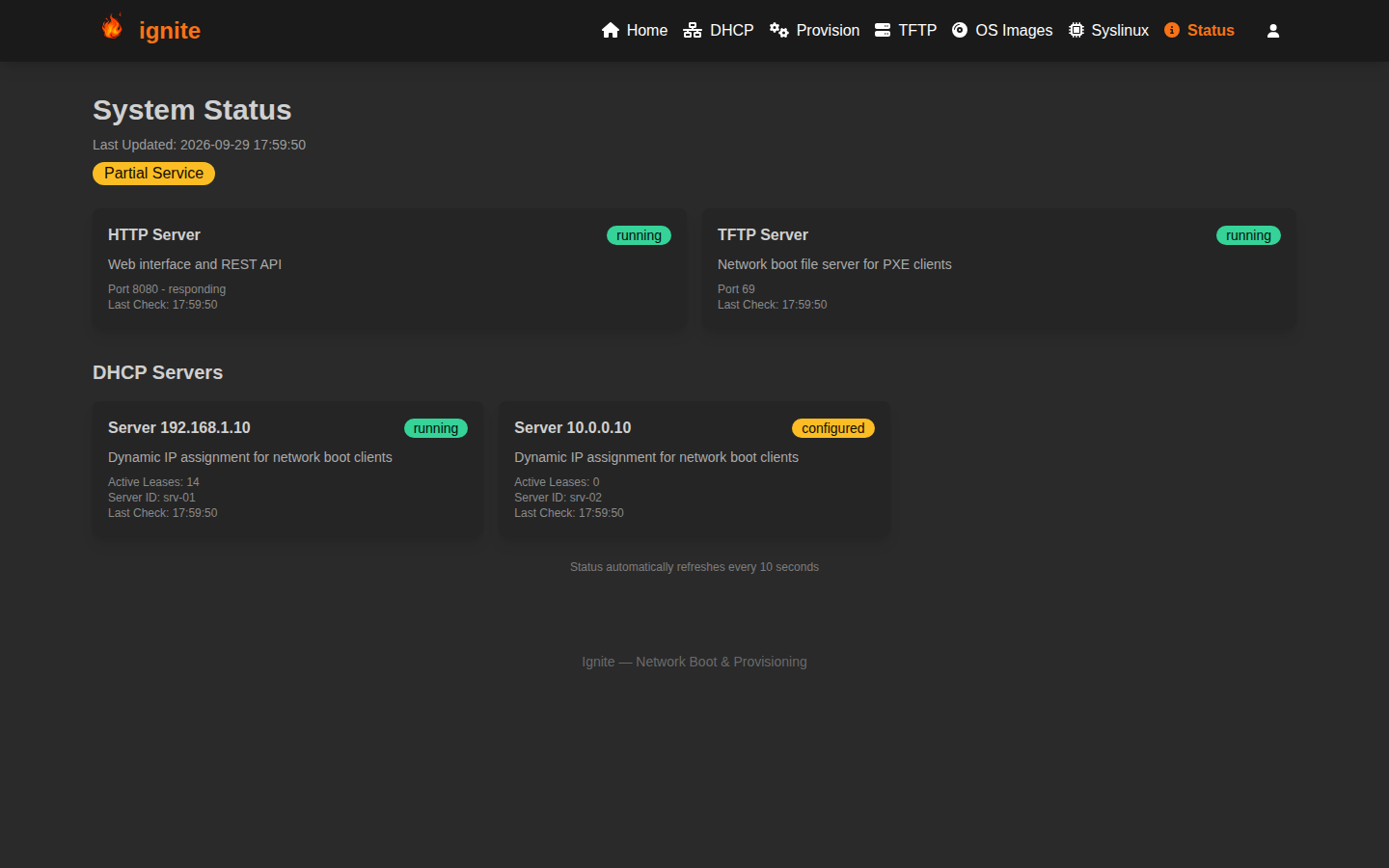

Status
