Overview

This custom integration fetches marine weather data from the Open-Meteo Marine API and exposes it in Home Assistant as sensors. It provides current wave and swell conditions for user-defined locations.

Features

• Current Marine Weather Data: Wave height, swell height, direction, and period
• Compass Conversion: Converts degrees into compass points (e.g., N, NE, SW)
• Multiple Locations: Define as many surf spots as needed in YAML
• Configurable Timezone: Each location can use its own IANA timezone string
• Throttled Updates: API requests limited to every 30 minutes
• Error Handling: Logs HTTP, request, or JSON errors to the Home Assistant log

---

Requirements

• Home Assistant 2023.12 or later
• HACS installed (if using HACS option)

---

Installation

Option 1: Manual Install

Copy the marine_weather folder (including all files such as __init__.py, sensor.py, const.py, manifest.json, and logo.png) into:

<config>/custom_components/marine_weather/

Option 2: Install via HACS (Custom Repository)

1. In Home Assistant, go to HACS → Integrations → Custom Repositories

2. Add this repository URL:

   https://github.com/cloudbr34k84/Open-Meteo-Marine-Weather


Type: Integration
3. Click Add
4. Search for Open Meteo Marine Weather in HACS and install
5. Restart Home Assistant

Post-Install

• Verify const.py is present (defines DOMAIN and API_URL)
• Confirm the integration loads without errors in Settings → Logs

---

Configuration

You can configure the integration inline or using split YAML files.

Option 1: Inline in configuration.yaml

sensor:
  - platform: marine_weather
    locations:
      - name: "Alexandra Headlands"
        latitude: -26.6715
        longitude: 153.1006
        timezone: "Australia/Brisbane"
      - name: "Kings Beach"
        latitude: -26.8017
        longitude: 153.1426
        timezone: "Australia/Brisbane"

Option 2: Split into separate files

⚠️ Use this only if your configuration.yaml includes:

sensor: !include_dir_merge_list sensors

Then create sensors/marine_weather.yaml:

- platform: marine_weather
  locations:
    - name: "Alexandra Headlands"
      latitude: -26.6715
      longitude: 153.1006
      timezone: "Australia/Brisbane"
    - name: "Kings Beach"
      latitude: -26.8017
      longitude: 153.1426
      timezone: "Australia/Brisbane"

Restart Home Assistant to apply changes.

---

Usage

Each defined location creates one entity:

<Location Name> Current

Example: Alexandra Headlands Current

---

Attributes include

• swell_wave_height (m) The vertical size of distant, organized swells (not local chop). Bigger swell = larger, more powerful surf.
• swell_wave_direction (° and compass) Direction the swell is coming from. Important for how it hits your coastline (e.g., east swell vs south swell).
• swell_wave_period (s) Time between swell waves. Longer period = more energy and better surf shape.
• swell_wave_peak_period (s) The dominant swell interval at the moment (the “strongest” period in the mix).
• wave_height (m) Overall wave size at the location (includes local wind chop plus swell).
• wave_direction (° and compass) Direction the breaking waves are coming from at your spot.
• timezone The timezone used when fetching data. Matches what you set in YAML (e.g., Australia/Sydney).
• models Which forecast model the API used. Usually "best_match".

---

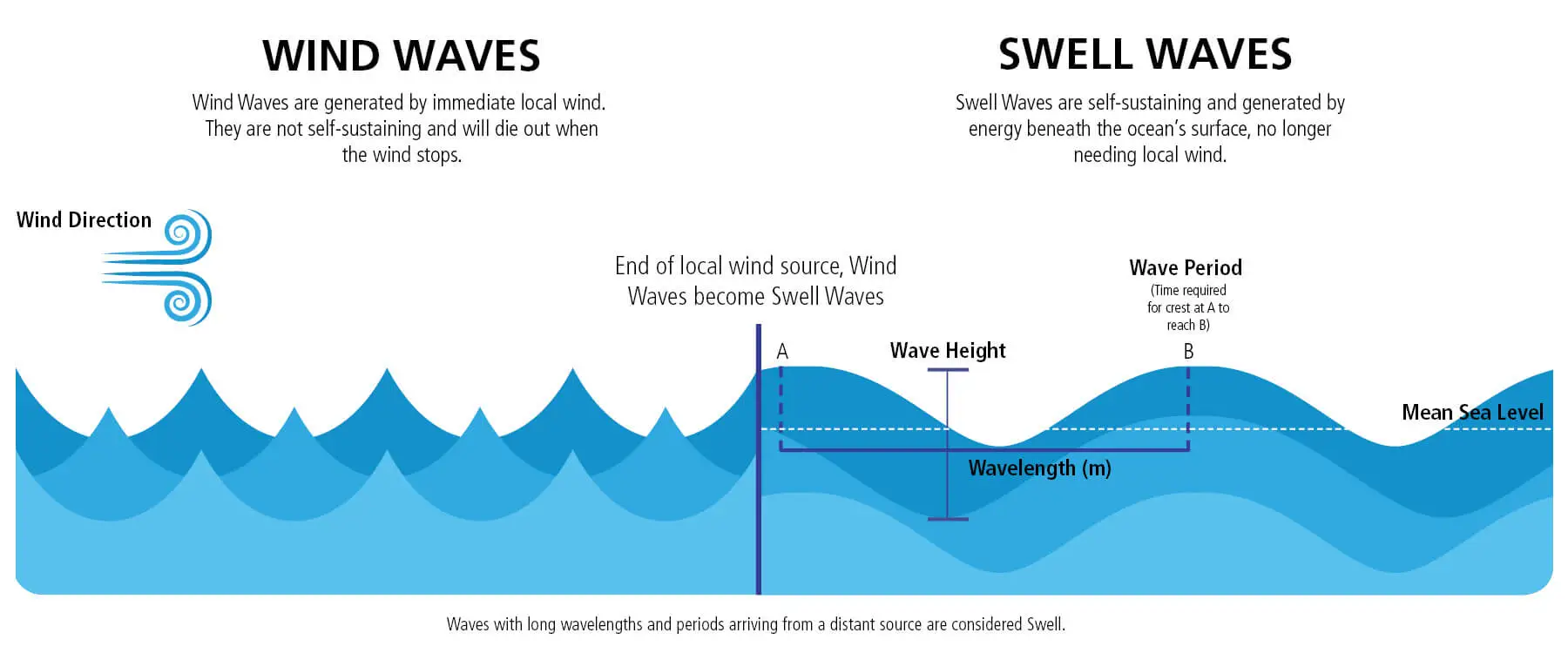

Understanding the Difference: Waves vs Swell

Waves (Wind Waves / Chop)

• Origin: Generated by local winds blowing at that moment
• Characteristics: Short-period, messy, irregular tops
• Direction: Moves with the local wind
• Example: Whitecaps on a windy day

Swell

• Origin: Produced by large, distant storms that blow for long periods
• Characteristics: Long-period, smooth, rolling, and rhythmic
• Distance: Can travel thousands of kilometers before reaching your coast
• Example: Clean, powerful surf arriving days after a storm far offshore

In summary: Local wind creates short, messy waves, while distant storms generate long, organized swells. Surf conditions are usually a combination of both — the swell provides the main energy, while local wind waves (seas/chop) affect cleanliness and ride quality.

---

Limitations

• UI setup not supported. YAML configuration only
• Forecast sensors not implemented. Only “current” data is available

---

FAQ

• Q: Why can’t I add this integration from the UI? A: This integration does not include a config flow. It must be configured via YAML.

• Q: My timezone shows as Australia/Sydney, but I’m in Europe. Why? A: Use the timezone: option in YAML for each location. Use a valid IANA timezone (e.g., Europe/Madrid).

• Q: I get “No module named const”? A: Make sure const.py is inside custom_components/marine_weather/.

• Q: Can I define locations in multiple YAML files? A: Yes. Use !include_dir_merge_list sensors in configuration.yaml and create a separate marine_weather.yaml.

---

Troubleshooting

• Error: No module named custom_components.marine_weather.const → Ensure const.py exists in the same folder as sensor.py

• Wrong timezone in attributes → Check that your YAML includes a valid IANA timezone string (e.g., Europe/Madrid)

• Entities not showing → Verify YAML syntax, run Check Configuration in Developer Tools, then restart Home Assistant

---

Support

• Post issues or feature requests on the GitHub repository

---

🌊 Marine Weather Integration — Roadmap

This file outlines planned features, improvements, and long-term vision for the Open Meteo Marine Weather integration. The roadmap is aspirational — not all features are guaranteed, but it reflects the intended direction.

---

Phase 1 — Quality & Compliance (short-term)

Goal: Get the integration accepted into HACS and ensure a solid foundation.

• HACS Approval Readiness

  • Repo structure must follow HACS rules (custom_components/marine_weather, brands/marine_weather, hacs.json, manifest.json).
  • Ensure info.md, README.md, and LICENSE are present and accurate.

• Error Handling

  • Gracefully handle missing or partial API data.
  • Show "N/A" or placeholder values instead of empty attributes.
  • Log structured warnings in HA’s system log.

• Unit Tests

  • Add pytest coverage for:

    • degrees_to_compass utility.
    • Attribute formatting functions.
    • Error/exception handling.

---

Phase 2 — Usability & Config (medium-term)

Goal: Improve user experience by reducing reliance on YAML and making the integration easier to manage.

• Config Flow (UI Setup)

  • Add support for HA’s config_flow.py.
  • Users can add integration from Settings → Devices & Services.

• Options Flow

  • Allow editing of locations and timezones via the UI.
  • Support multiple spots without restarting HA.

• Model Selection

  • Open-Meteo supports different models (ECMWF, GFS, ICON).
  • Let users select which model to use in config.

• Diagnostics Expansion

  • Extend diagnostics.py to show:

    • Last API payload summary.
    • API call frequency.
    • Error count / last error reason.

---

Phase 3 — Data Expansion (medium/long-term)

Goal: Provide richer marine weather coverage.

• Forecast Entities

  • Add 3h, 6h, and 24h forecast sensors.
  • Entities: wave_height_forecast_3h, swell_period_forecast_6h, etc.

• Wind & Weather

  • Expose wind wave attributes (height, direction, period).
  • Optionally integrate with HA’s weather entities for combined surf/wind dashboards.

• Separate Sensors

  • Current approach: one sensor with many attributes.
  • Planned: break attributes into dedicated sensors (e.g. sensor.swell_period, sensor.wave_height).
  • Improves Lovelace graphs and history tracking.

• Tide Integration

  • Detect local tide entity (e.g. sensor.local_tide).
  • Merge into Lovelace card display.
  • Support combined surf + tide dashboards.

---

Phase 4 — Visualization & UX (long-term)

Goal: Deliver a full surf dashboard experience inside Home Assistant by combining marine weather data, tide info, and wind conditions into a dedicated Lovelace card.

• Marine Wave Card (Core Feature)

  • Custom Lovelace card (custom:marine-wave-card) that visualizes swell, waves, and wind in a surf-report style interface.

  • Features include:

    • Surf height bars (color-coded).
    • Swell period overlays (line chart for consistency/quality).
    • Wind arrows (direction + speed/gusts).
    • 24-hour rolling history with 6-hour ticks.
    • Compact, surf-forecast-style presentation.

• Wave + Tide Chart Overlay

  • Optionally combine tide entity data with wave forecasts in the same chart (stacked or dual-axis).

• Directional Icons

  • Graphical compass arrows for swell/wave direction.

• Surf-Friendly Summary

  • Auto-generate plain-text conditions like: “3ft clean E swell, 12s period. Low tide 9:45am, rising.”

• Lovelace Card Bundle

  • Publish the Marine Wave Card to HACS as a standalone frontend package.

  • Provide presets that combine:

    • Marine Weather integration data.
    • Local tide entity.
    • Wind/weather entities.

• Preset Dashboards

  • Ready-made “Surf Spot” dashboard templates (e.g., Sunshine Coast example with Alexandra Headlands, Kings Beach, Moffat Beach).

---

Phase 5 — Advanced Features (future ideas)

Goal: Extend integration for power users and automation.

• REST/Coordinator Refactor

  • Migrate API fetch into a DataUpdateCoordinator.
  • Allow reuse by sensor, binary_sensor, weather, and other HA platforms.

• Adaptive Polling

  • Faster update intervals during surf hours.
  • Slower updates overnight.

• Alerts & Automations

  • Binary sensors or events, e.g.:

    • binary_sensor.big_swell_alert (swell > 2m).
    • binary_sensor.tide_dropping_fast.

• External API Expansion

  • Combine with other oceanographic APIs (NOAA, BOM, Surfline).
  • Offer hybrid data sources for redundancy.

---

Contribution Guidelines

• Issues & Ideas → Use GitHub Issues for bug reports, feature requests, or discussion.
• Pull Requests → Contributions welcome, especially for config flow, forecast support, and Lovelace card development.
• Testing → Please include sample config and logs when reporting issues.

---

📌 This roadmap will evolve. The focus is incremental quality improvements first, then usability, followed by data expansion and visualization.

---
