Segmentation of scientific image stacks across the full supervision spectrum, from no labels to fully labeled masks, in one tested Python package.
The toolkit segments volumetric images such as synchrotron and laboratory micro-computed tomography (micro-CT) stacks. It is organized around one practical question: how many labels exist? The unsupervised and label-free routes need none, and the U-Net needs annotated masks. An optional self-supervised denoiser raises the signal-to-noise ratio before any of them. Vector schematic: docs/ct_segmentation_pipeline.pdf.
Associated preprint: C. Renteria et al., "Deep learning segmentation of enamel rod architecture from synchrotron computed tomography for bioinspired material design," SSRN (2026), doi:10.2139/ssrn.6805001.

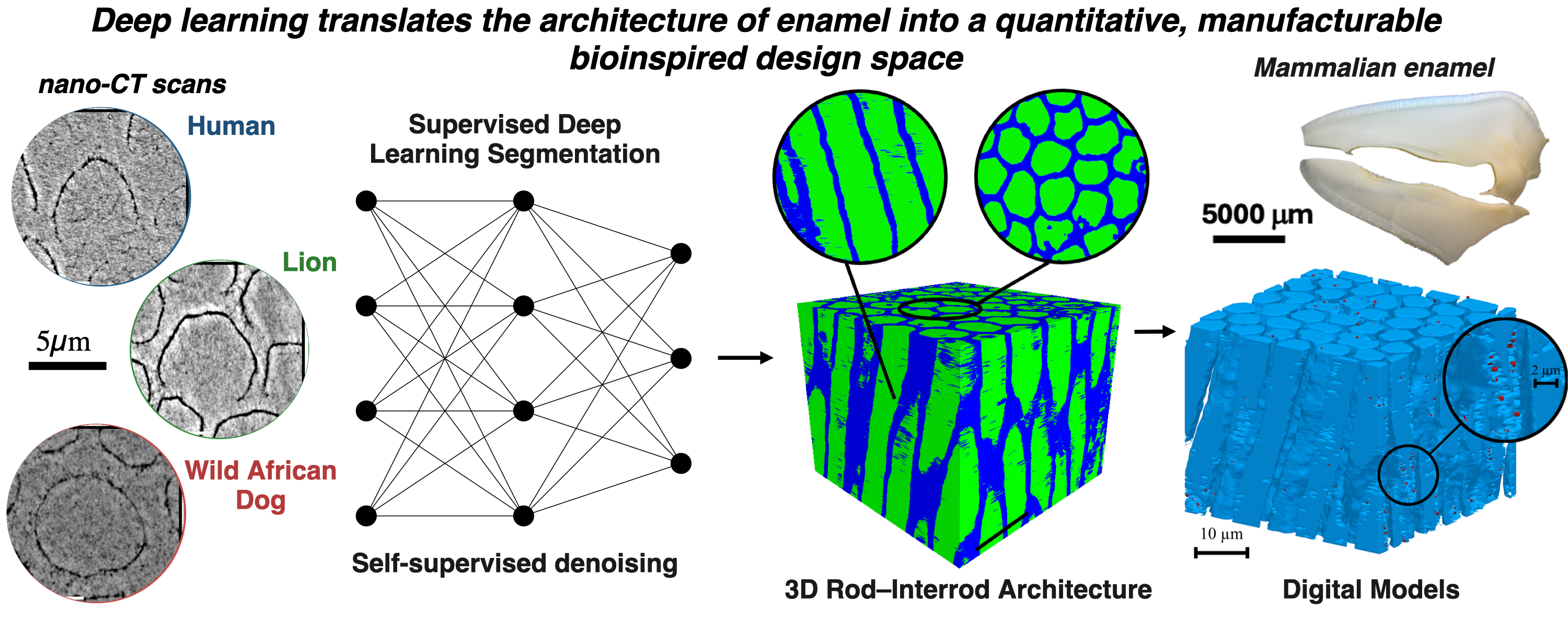

In the associated study, self-supervised denoising and U-Net segmentation of nano-CT scans of human, lion and wild African dog enamel recover the 3D rod–interrod architecture behind printable digital models (the study's graphical abstract).
| Route | Labels needed | Method | Entry point |
|---|---|---|---|
| Unsupervised | none | Multi-Otsu thresholding, k-means, or a Gaussian mixture model (GMM) on intensity | segment_otsu, segment_kmeans, segment_gmm |
| Label-free spectral-spatial | none | A Self-Organizing Map (SOM) over per-pixel features (multi-scale density, structure-tensor orientation and coherence, a Gabor filter bank, local variance), followed by clustering of the SOM nodes; the same features transfer to hyperspectral cubes | som_segment |
| Supervised | annotated masks | U-Net with training and inference | UNetSegmentation, python -m ct_seg.train |
| Denoising (optional) | none | 2.5D Noise2Inverse: a no-skip U-Net trained from one noisy reconstruction, with no clean reference, using a Laplacian Contrast Loss and edge-aware model selection | ct_seg.denoise |
The denoising subpackage was developed together by Austin Yunker (Argonne National Laboratory) and Cameron B. Renteria; upstream credit is in ct_seg/denoise/ACKNOWLEDGMENTS.md.
From PyPI:
pip install ct-segmentation-toolkit # classical, SOM, and U-Net segmentation
pip install "ct-segmentation-toolkit[denoise]" # + Noise2Inverse training (albumentations, PyYAML)
pip install "ct-segmentation-toolkit[viz]" # + napari labeling and the PyVista viewer
pip install "ct-segmentation-toolkit[mlops]" # + MLflow experiment trackingAs a signed container image:
docker pull ghcr.io/crentb/ct-segmentation-toolkit:v0.2.0From source, for development:
git clone https://github.com/crentb/ct-segmentation-toolkit.git
cd ct-segmentation-toolkit
python -m pip install -e ".[dev]" # core + pytest, ruff, black, mypy, pre-commitPython API:
import numpy as np
from ct_seg import segment_kmeans, som_segment, UNetSegmentation
volume = np.random.rand(16, 256, 256).astype("float32") # (slices, H, W) in [0, 1]
# Unsupervised intensity segmentation (no labels)
labels, info = segment_kmeans(volume, num_classes=4)
# Label-free spectral-spatial segmentation of a single slice
band_map = som_segment(volume[0], n_clusters=4)
# Supervised U-Net
model = UNetSegmentation(in_channels=1, num_classes=4)Command line:
# Unsupervised (otsu | kmeans | gmm)
python -m ct_seg.segment --input /path/to/tiffs --method kmeans --num_classes 4 --save_overlay
# Train a U-Net, then segment with it
python -m ct_seg.train --images /path/to/tiffs --masks /path/to/masks --num_classes 4
python -m ct_seg.segment --input /path/to/tiffs --method unet --model SegOutput/best_model.pth --num_classes 4The interactive tools ct_seg.labeling (napari) and ct_seg.viewer (napari and PyVista) require the [viz] extra.
Training integrates optional MLflow logging of run parameters, per-epoch loss and mean intersection-over-union, and the best checkpoint. With the extra installed it logs automatically; without MLflow, tracking is a no-op and training is unaffected.
pip install "ct-segmentation-toolkit[mlops]"
python -m ct_seg.train --images ... --masks ... --num_classes 4 # logs to ./mlruns
mlflow ui # browse runsA reproducible performance profile (forward and training-step latency, throughput, and peak GPU memory) is in docs/PERF.md:
python scripts/profile_unet.py --device cuda --sizes 256 512ct_seg/
segment.py classical (Otsu, k-means, GMM) and U-Net segmentation; command line
som_bands.py spectral-spatial features and SOM segmentation
model.py U-Net model
train.py U-Net training command line, with optional MLflow logging
tracking.py optional MLflow experiment tracking (no-op when MLflow is absent)
labeling.py napari labeling tool [viz]
viewer.py napari / PyVista volume viewer [viz]
denoise/ 2.5D Noise2Inverse: model, loss, training, inference, evaluation
docs/ overview figure (PNG, PDF, LaTeX source), performance profile, flame graphs
scripts/ profiling utilities
tests/ fast CPU test suite; slow tests are marked
pytest -m "not slow" # fast suite (what CI runs)
pytest # everythingEvery push and pull request runs one gate, defined in ci.yml:
- Quality: ruff, black, mypy (advisory), and pytest with coverage on Python 3.10 to 3.14.
- Security (blocking): gitleaks secret detection over the full history, bandit static analysis at medium severity and above, and pip-audit against known vulnerabilities.
- Container: image build, a trivy scan that blocks on fixable critical and high findings, the test suite run inside the image, and an SPDX software bill of materials signed keylessly with cosign.
The same gate re-runs weekly on main (scheduled-scan.yml), so a newly published vulnerability surfaces without a code change. A version tag re-runs it on the tagged commit before release.yml publishes to PyPI through Trusted Publishing (no stored tokens) and pushes a scanned, cosign-signed image with SLSA build provenance to the GitHub Container Registry. To verify a published image:
cosign verify ghcr.io/crentb/ct-segmentation-toolkit:v0.2.0 \
--certificate-identity-regexp 'github.com/crentb/' \
--certificate-oidc-issuer https://token.actions.githubusercontent.com
gh attestation verify oci://ghcr.io/crentb/ct-segmentation-toolkit:v0.2.0 --owner crentbTo report a vulnerability, see SECURITY.md.
Please cite the software and the associated preprint. GitHub's "Cite this repository" button reads CITATION.cff.
@software{renteria_ct_segmentation_toolkit,
author = {Renteria, Cameron B.},
title = {ct-segmentation-toolkit},
version = {0.2.0},
year = {2026},
publisher = {Zenodo},
doi = {10.5281/zenodo.21148567},
url = {https://github.com/crentb/ct-segmentation-toolkit}
}ct_seg.denoise implements the Noise2Inverse framework of Hendriksen, Pelt, and Batenburg (IEEE Transactions on Computational Imaging, 2020; original code). See ct_seg/denoise/ACKNOWLEDGMENTS.md.
