Ieaskul F. Mobenthey Fourses 2hp Expander Module
Fourse Expander is a 2hp Module that is used to accompany Fourses by Ieaskul F. Mobenthey.

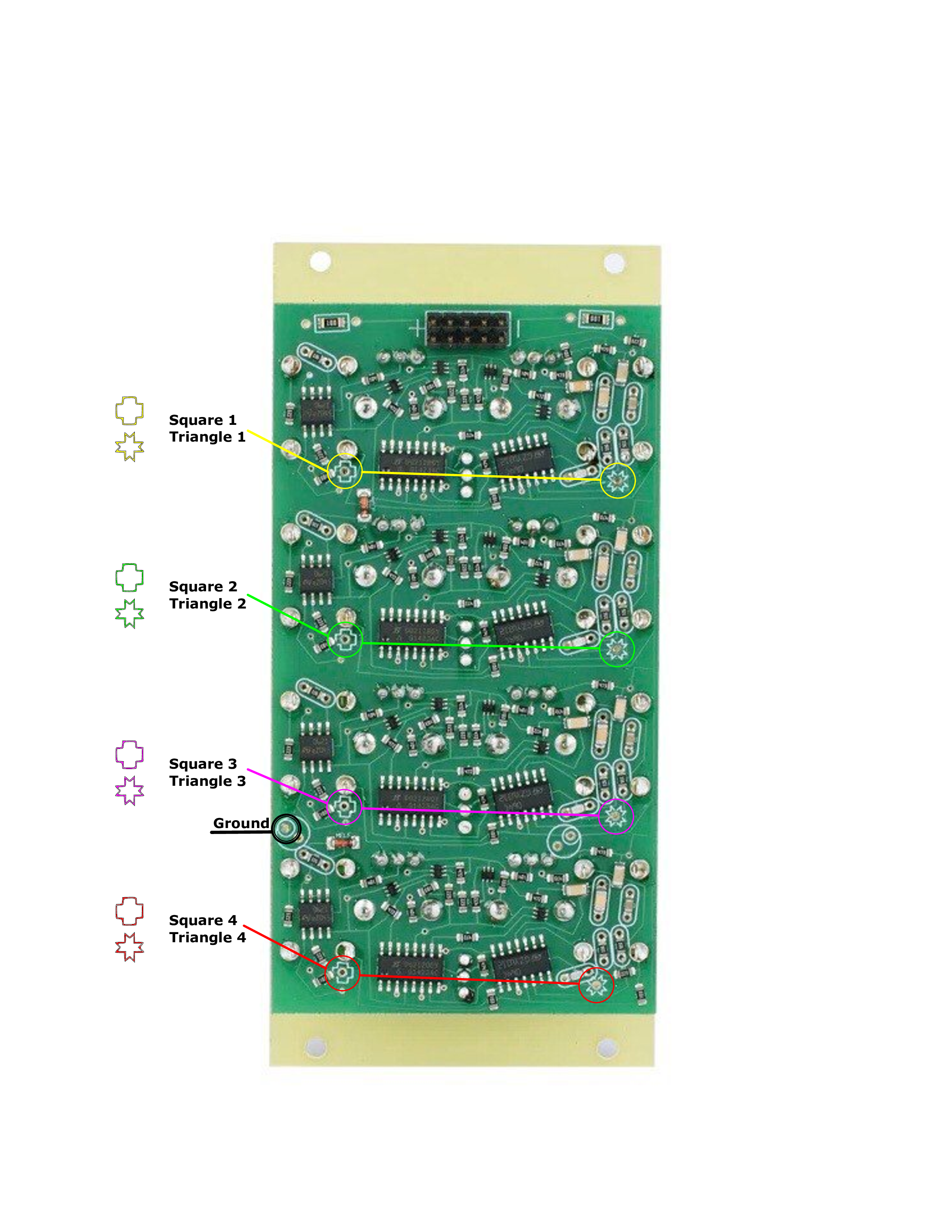

Fourses has four Square and four Triangle outputs that are buffered and available to be tapped into and used for extra CV Outputs.

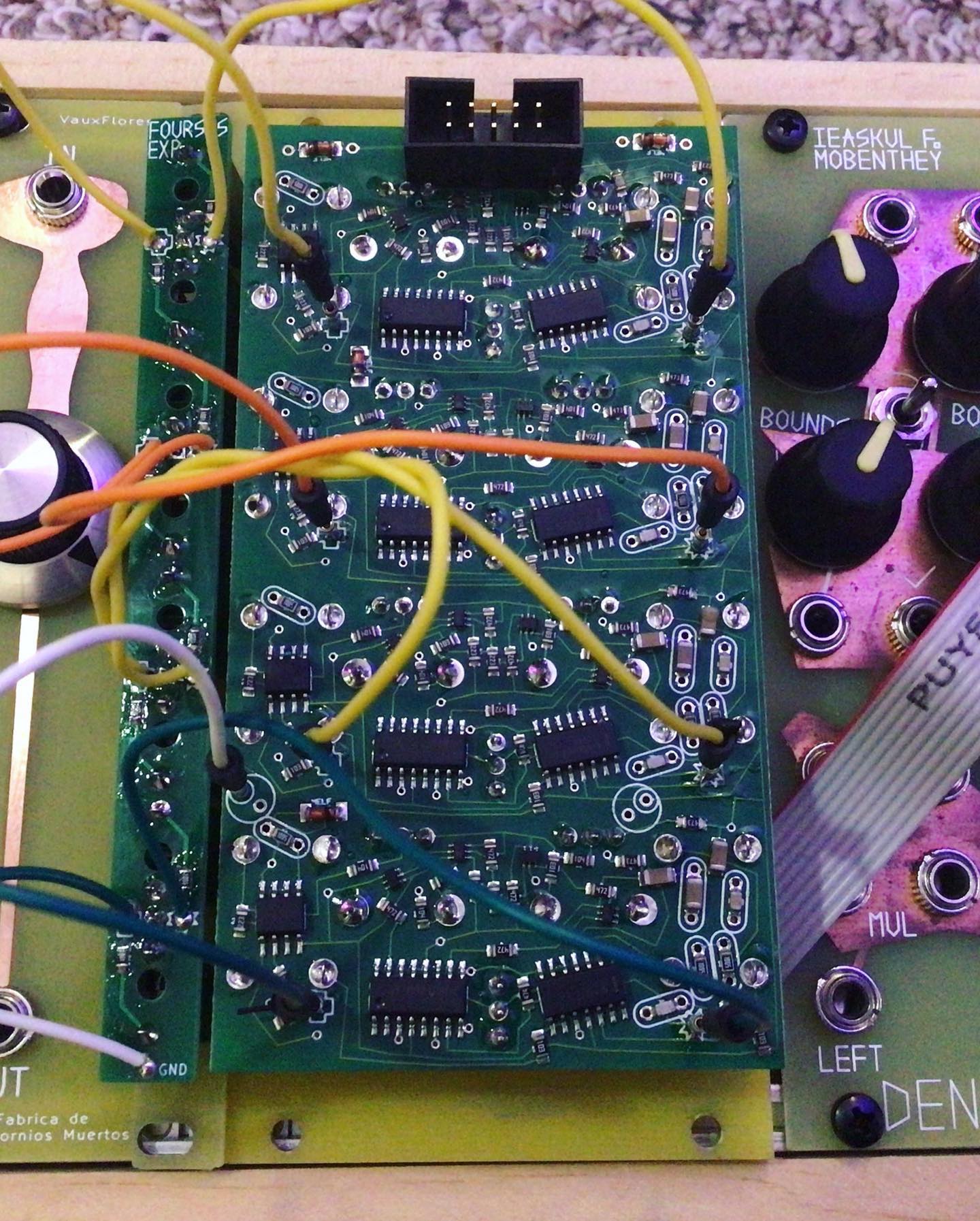

Making a connection between Fourses Expander and an IFM Fourses is very simple and straight forward, it only requires a total of 9 short wires, the 9th wire being Ground.

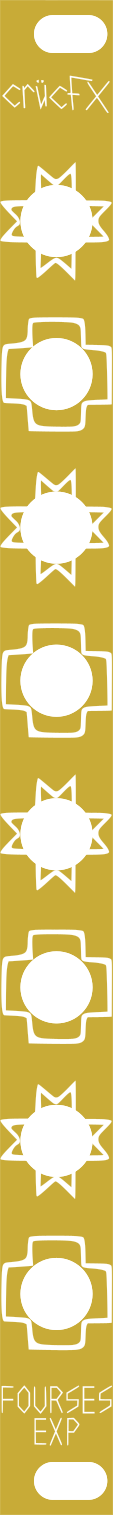

Feel free to download the Gerber files for the PCB and for the Panel. If using JLCPCB - Make sure to select "Confirm Production Files" - this way you can make sure that they plan to add the silkscreen to the panel... sometimes, for some reason, with bare FR4, no soldermask, they will skip your silkscreen. Selecting Confirm Production Files avoids any kind of issues or headaches.
*********** PLEASE NOTE *************
This is NOT an Official Ieaskul F. Mobenthey Module and is not endorsed by Peter Blasser. Please know that soldering to your IFM Fourses Module will VOID any and all Warranty on your Fourses Module.
Please do not print and sell these on the open market. If you do run these, feel free to distribute the extras from the minimum run of five units for the cost of shipping and a little extra. ^_^
