Data Engineering Capstone Project

Scope the Project and Gather Data

The purpose of this project is to demonstrate various skills associated with data engineering. In particular, developing ETL pipeline, constructing a data warehouse through Redshift database, and working with data transfers from/to S3. This project will combine crime data from 10 years and hourly weather data to create a Redshift data warehouse for future analysis or a back-end data source.

The problem with crime data is that it's not always available, or if the data is available, it is not clean or accessible, and if it is, it is behind a paywall. This project would allow the user to extract crime data easily by doing simple SQL queries.

Tools & technologies used

• for storage, Simple storage service S3 was used, and Redshift was used as a data warehouse.
• python was used as the primary language
• jupyter lab & vscode was used as text editors.
• boto3 was used to upload data to S3
• awswrangler was used to interact with S3 buckets & Redshift
• psycopg2 was used as a database adapter for python
• pandas & numpy were used to shape and modify the data.
• seaborn was used as a data visualizer.

Explore and Assess the Data

Crime data

• this data comes from Houston Police Department crime statistics
• consist of 120 monthly .xlsx files from June 2009 to May 2018
• it contains > 1 million rows of data.
• data before June 2009 is sparse & data after May 2018 is changed drastically.
• the data needed heavy cleaning, custom functions for each year created in data_clean_helper.py

Parameters

column	Description
date	Date of offense, include month/date/year
Hour	Approximate time when an event occurs, a value from 0-24
Offense Type	Type I offense
Beat	The geographic area of the city broken down for patrol and statistical purpose
Premise	Identify the type of location where crime occurs (apartment complex, parking lot.
Block Range	The value range of street
Street Name	Name of the street where the offense occurred
Type	Street type, rd, Blvd
Suffix	N, S, E, W
Offenses	Times offense happen within the time frame

Sample

Date	Hour	Offense Type	Beat	Premise	Block Range	Street Name	Type	Suffix	Offenses
02/01/2018	04	Burglary	10H10	Restaurant or Cafeteria	2700-2799	NAVIGATION	BLVD	-	1

Weather data

• This data comes from OpenWeather
• it was purchased for $10
• it includes hourly results for the city.
• data was chosen by matching city; in this case, the Houston metropolitan area was used.
• minimal cleaning was done with this dataset, values were converted from Kelvin to Fahrenheit, and the range was chosen from the matching date range of the crime data.
• temp, feels_like, humidity, rain, snow, and date time columns were used from this dataset.

Parameters

• city_name: City name

• lat : Geographical coordinates of the location (latitude)

• lon: Geographical coordinates of the location (longitude)

• main

  • main.temp Temperature
  • main.feels_like This temperature parameter accounts for the human perception of weather
  • main.pressure Atmospheric pressure (on the sea level), hPa
  • main.humidity Humidity, %
  • main.temp_min Minimum temperature at the moment. This is deviation from temperature that is possible for large cities and megalopolises geographically expanded (use these parameter optionally).
  • main.temp_max Maximum temperature at the moment. This is deviation from temperature that is possible for large cities and megalopolises geographically expanded (use these parameter optionally).

• wind

  • wind.speed Wind speed. Unit Default: meter/sec
  • wind.deg Wind direction, degrees (meteorological)

• clouds

  • clouds.all Cloudiness, %

• rain

  • rain.1h Rain volume for the last hour, mm
  • rain.3h Rain volume for the last 3 hours, mm

• snow

  • snow.1h Snow volume for the last hour, mm (in liquid state)
  • snow.3h Snow volume for the last 3 hours, mm (in liquid state)

• weather

  • weather.id Weather condition id
  • weather.main Group of weather parameters (Rain, Snow, Extreme etc.)
  • weather.description Weather condition within the group
  • weather.icon Weather icon id

• dt Time of data calculation, unix, UTC

• dt_isoDate and time in UTC format

• timezone Shift in seconds from UTC

Partial Sample

dt	dt_iso	timezone	city_name	lat	lon	temp	feels_like	temp_min	temp_max	humidity	wind_speed	wind_deg	rain_1h	snow_1h
1104537600	2005-01-01 00:00:00 +0000 UTC	-21600	Houston	29.760427	-95.369803	293.66	294.09	292.16	293.78	89	3.1	100

For further data explination, please see data folder.

Define the Data Model

Fact table

• crime_fact
  • crime_fact_id: primary key for table
  • numoffenses: number of offenses given the date &time
  • temp: temperature in fahrenheit given the date & time
  • feels_like the temperature from a human perception of weather, in fahrenheit
  • humidity: percentage of the humidity of given date & time
  • rain: rain volume for the last hour in mm
  • snow: show volume for the last hour in mm (in liquid state)
  • offense_dim_id: foreign key from offense_dim table
  • police_beat_dim_id: foreign key from police_beat_dim table
  • premise_dim_id: foreign key from premise_dim table
  • address_dim_id: foreign key from address_dim table
  • datetime_dim_id: foreign key from datetime_dim table

Dimension Tables

• premise_dim
  • premise_id:primary key for table
  • premise_location: Identify the type of location where crime occurs (apartment complex, parking lot.)
• offense_dim
  • offense_id: primary key for table
  • offense_type: type 1 offense [murder,rape, robbery, aggravated assult, burglary, theft, auto theft]
• address_dim
  • address_id: primary key for table
  • full_address: full addres of where the crime was commited
• police_beat_dim
  • police_beat_id: primary key for table
  • beat_name: name of the police beat ex '11H30'
• date_time_dim
  • date_time_id: primary key for table
  • date_time: date & time of crime commited
  • hour: hour value from date time data
  • day: day from the date time data
  • week: number of the week from the date time data( out of 52)
  • month: month number from the date time data
  • year: year value from the date time data
  • weekday: weekday value from the date time data

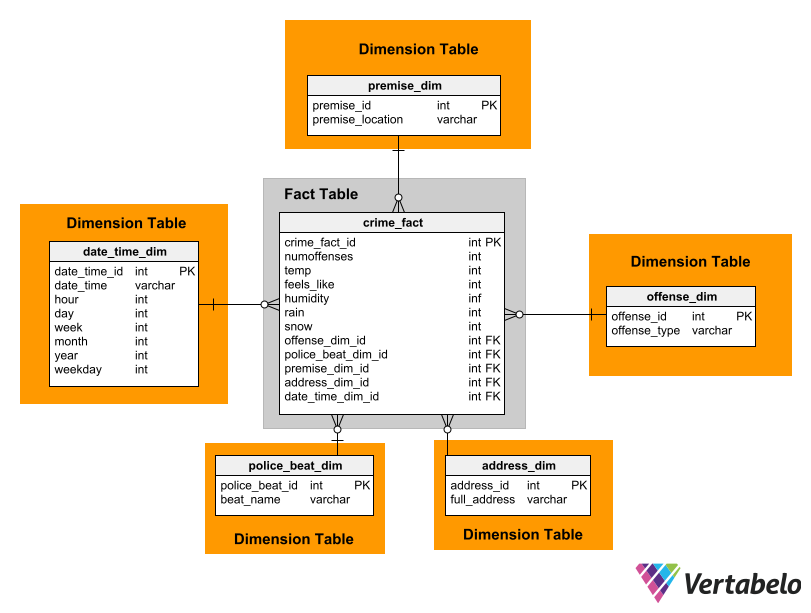

• A star schema was chosen for this particular project because I wanted to use a relational database.
• after the data had been clean, it was merged by similar column date_time, creating a very large data frame
• to match the schema, a data frame would need to be created for each dim and fact table.

date_time	offenses	offense_type	block_range	street_name	beat	premise_description	temp	feels_like	humidity_per	rain_vol_1h_mm	snow_vol_1h_mm
9/11/2015 12:00	1	Theft	6400-6499	Richmond	18F30	miscellaneous business (non-specific)	74.408	76.154	98	1.9	0

• the process of creating dim tables with matching primary keys and foreign keys were as follows

  • find all the unique values of a column and create a new data frame with a primary key with all the unique values
  • then merge a duplicate back with the original data frame change the index column to a foreign key col

• here are the custom functions that make it possible

def create_table_from_df(dataframe, column_name, new_col_name, new_pk_name):
    """ creates new dataframe with the selected column,
    find all the unique values and
    creates a new dataframe with a primary key
    with all the unique values
    """
    print("creating tables...")
    col_data_list = dataframe[column_name].unique().tolist()
    total_rows = len(col_data_list)
    df_table = pd.DataFrame(col_data_list, columns=[new_col_name])
    df_table = df_table.reset_index()
    df_table.rename(columns={'index': new_pk_name}, inplace=True)
    df_table[new_pk_name] = df_table[new_pk_name] + 1
    return df_table


def drop_add_pk(data, data_table, lo, ro):
    """ drops column that has been created already
    and replaces it with a primary key equivalent of the new table
    """
    data = data.merge(data_table, left_on=lo, right_on=ro)
    data.drop([lo, ro], axis=1, inplace=True)
    return data

Run ETL to Model the Data

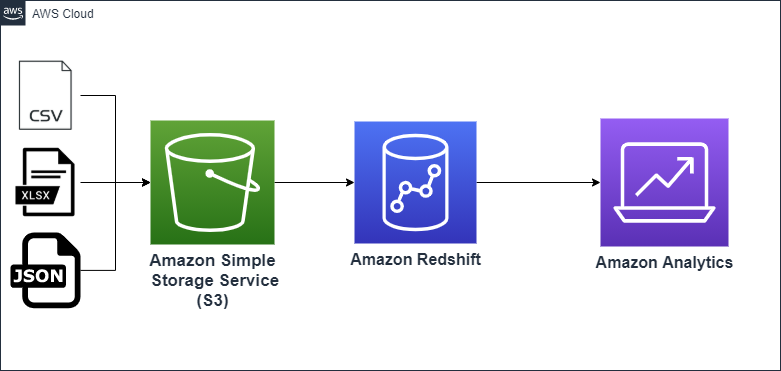

Here are the steps in creating our pipeline from scattering flat files to Redshift.

Step 1: 01_upload_data_S3.py

Data was uploaded to S3 buckets in a collection of CSV JSON & xlsx files.

• the bucket structure was as follows

bucket-name
    capstone/
         raw-data/
         iterm-data/
         final-data/
         load-data/

• The crime dataset was around 120 monthly .xlsx files that were uploaded first to an S3 bucket under: capstone/raw-data/crime-data/year/month and weather data that was converted from JSON and saved under: capstone/raw-data/weather-data/filename.

Step 2: 02_clean_data.py

• in this process , the crime datasets were heavily clean.
• by importing data_cleaning_helper.py, it contains 25 custom functions to combine and clean crime data by given year since they vary soo much.
• crime data is combined by year, and a few unused columns are dropped and saved under: capstone/iterm-data/crime-data/crime_20xx.csv.
• The weather data is minimized by dropping any duplicate columns
  • converting values from kelvin to Fahrenheit
  • clean and saved under capstone/iterm-data/weather-data/weather-09-18.csv.
• finally, weather and crime data is merged by similar column date_time and saved under capstone/load-data/crime-weather-final-09-18.csv
• multiple final files were created for testing
  • capstone/load-data/crime-weather-sample-100-09-18.csv 100 rows of data
  • capstone/load-data/crime-weather-sample-1000-09-18.csv 1K rows of data

Step 3: 03_create_tables.py

• sql_queries.py contains the schema that we will use to create tables in Redshift
• we establish a connection and check to make sure we delete/drop any tables in our redshift database before we create them
• AWS variables are contained in config.cfg and config_loader.pyreads the file and creates global variables that are used in to connect to AWS, specifically Redshift.

Step 4: 04_create_schema_upload.py

• some extra cleanup is done here before upload
• a full_address column is created by getting the median value of block_range and merging it with street_address.
• here, we split off columns from the large dataframe to create dim tables and matching foreign keys to the main(fact) table.
• then, each table is uploaded to Redshift

Step 5: 05_quality_check.py

• connects to redshift and check if tables were uploaded correclty
• checks for total rows of each table
• gives sample of each table

Sample results

• some tables were loaded and converted to dataframe

Get table names

SELECT
    table_name
FROM
    information_schema.tables
WHERE
    table_type='BASE TABLE'
AND
    table_schema='public';

---
(['offense_dim'],
 ['police_beat_dim'],
 ['premise_dim'],
 ['address_dim'],
 ['datetime_dim'],
 ['crime_fact'])

cout rows in crime_fact table

SELECT
   COUNT(crime_fact_id)
FROM
   crime_fact
---
([1125101],)

Join Tables

• tables used
  • crime_fact
  • datetime_dim
  • offense_dim
• get temperature, month , year and offense type
• create a dataframe

query = """
SELECT
     dd.date_time,dd.month,dd.year, cf.temp, od.offense_type
FROM
    crime_fact as cf
INNER JOIN
    datetime_dim as dd
ON
    cf.datetime_id = dd.datetime_id
INNER JOIN
    offense_dim as od
ON
    cf.offense_dim_id = od.offense_id
"""

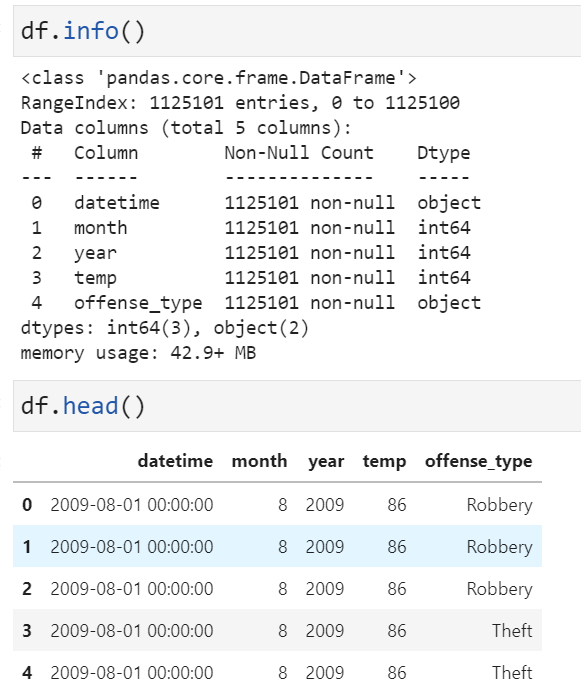

# 05_quality_check.py functions
query_data = data = get_data_redshift(query)
df = create_df(["datetime","month","year","temp","offense_type"],query_data)

Complete Project Write Up

• The goal of this project is to showcase some of the tools learned in the data engineering course.
• in the future, airflow can be used to automate future monthly crime data by creating a dag that cleans and uploads the data.
• The reason this model was chosen was that I wanted to see if it was possible to merge these two completely datasets.
• I choose S3 to upload the raw data to have a singular place to work with and not be dependent on the source (HPD website)
• And Redshift was chosen as a database because its best suited for analytics, its parallel processing across multiple nodes.

Scenarios

If the data was increased by 100x.

• Since this is a data warehouse, it's expected to increase many folds.

If the pipelines were run on a daily basis by 7am.

• Future upgrades would include an airflow set up and create a node to update a given time frame.

If the database needed to be accessed by 100+ people.

• Distributed workloads are built into Redshift.

Folder Structure

.
├── 01_upload_data_s3.py
├── 02_clean_data.py
├── 03_create_tables.py
├── 04_create_schema_upload.py
├── 05_quality_check.py
├── config.cfg
├── config_loader.py
├── explore_data.ipynb
├── data
│   ├── raw
│   └── readme.md
├── environment.yml
├── .gitignore
├── helper_functions
│   ├── data_clean_helper.py
│   ├── data_model_helper.py
│   ├── __init__.py
│   ├── readme.md
│   └── sql_queries.py
└── README.md
