refactor: Rename Builder Variable to Builder Token, add Font tokens by surajshetty3416 · Pull Request #676 · frappe/builder

surajshetty3416 · 2026-07-16T09:25:05Z

Renames the Builder Variable doctype to Builder Token (variable_name → token_name); token doc names are untouched, so existing var(--id) references keep resolving. Pre-model-sync patch migrates existing sites.
New Font token type: fontFamily can be var(--token), resolved when fonts load (editor and published pages).
Design System manager with Colors/Fonts/Dimensions tabs, token counts, and a copy-handle button per row.
Backward compatible: /builder_assets/variables.css keeps serving the token CSS and sync_builder_variables stays callable.

Demo

design-tokens-demo.1.mp4

Screenshots

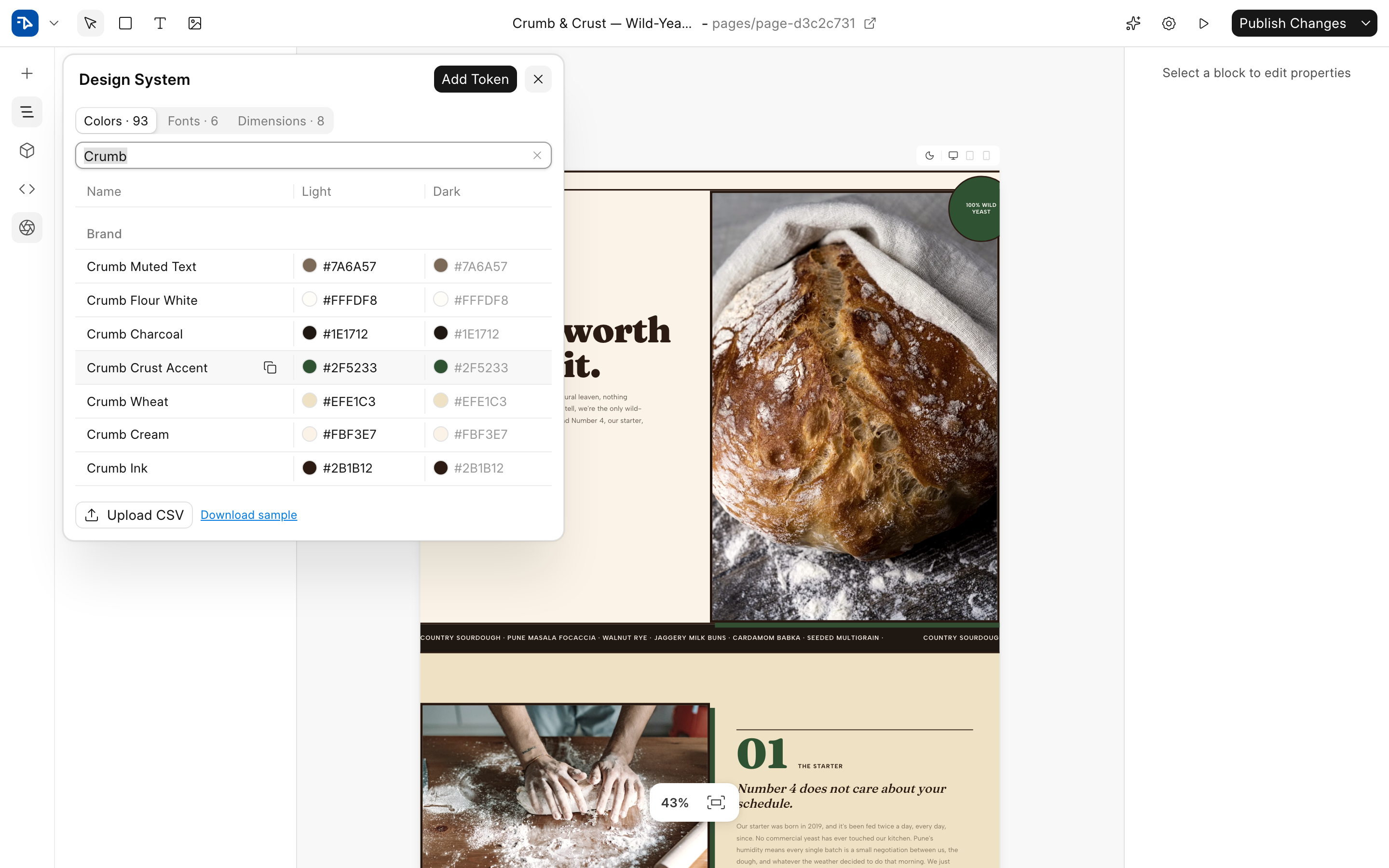

Design System manager — color tokens with light/dark values, search, per-row copy of the var(--id) handle:

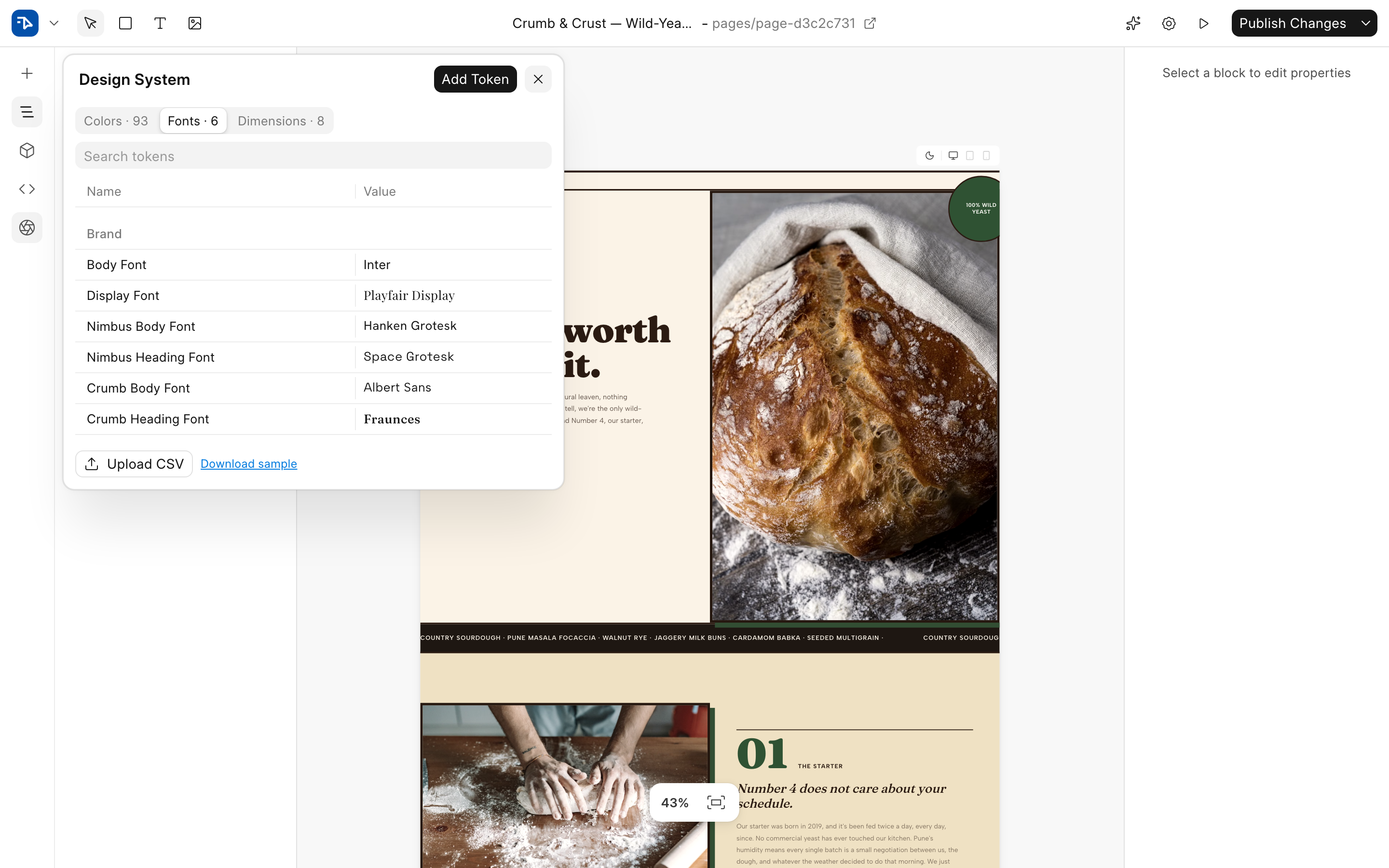

Font tokens render as type specimens:

Editing one token rethemes every block bound to it (accent flipped green → terracotta):

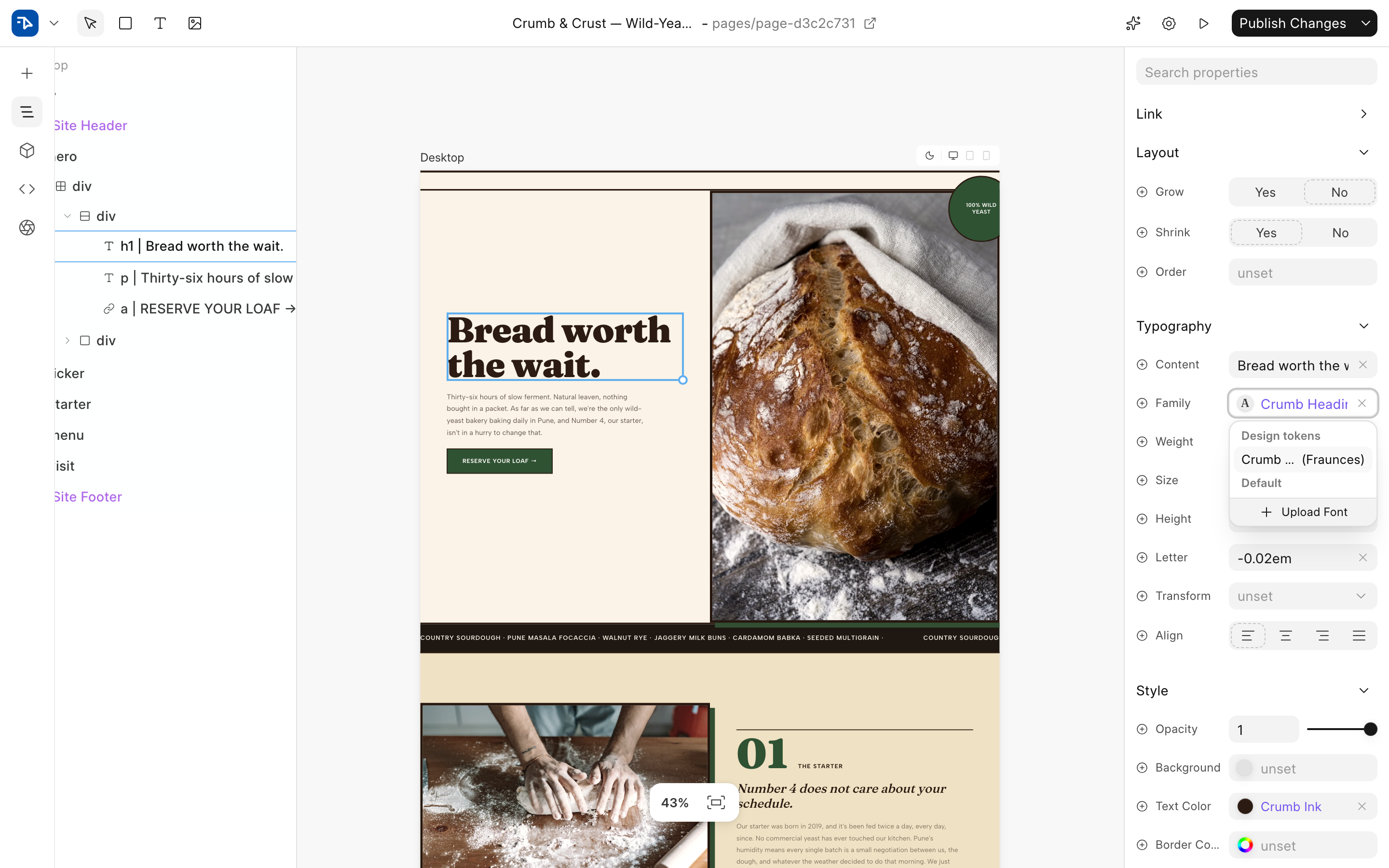

Typography Family lists font tokens first; picking one stores var(--id):

"Variable" was confusing for users and LLMs alike; the doctype is the site's design-token registry, so name it that. Only the DocType and the label field (variable_name -> token_name) are renamed - token doc names (the CSS --<id> handles) are untouched, so every existing page's var(--id) references keep resolving byte-for-byte. Pre-model-sync patch handles the rename (verified on a virgin site: all rows migrate, old table dropped). The variables.css route becomes tokens.css; published HTML is generated live so no stored references break. The historic refactor_builder_variables patch keeps operating on the old names it targets (it runs before the rename) with only its import repointed. Co-Authored-By: Claude <noreply@anthropic.com>

The css2 API returns 400 for any wght@ request a family does not carry (Italiana, Young Serif, Caprasimo are 400-only), which surfaced as CORS noise and dead font loads. On a weighted load failure, retry the family default; the browser synthesises the bold. Co-Authored-By: Claude <noreply@anthropic.com>

New token type "Font" (value = family name). Resolution is centralized where fonts load, so no caller cares whether a style is tokenized: - setFont() resolves var(--id) through the token registry before loading (covers canvas blocks, scraped HTML, Typography panel) - get_font_family() resolves tokens server-side so published pages Google Fonts links include tokenized families (unresolvable tokens are skipped, not emitted as bogus families) - the Typography Family control lists Font tokens first ("Design tokens" group) - picking one stores var(--id), so editing the token re-fonts every block bound to it; bound values display as "Label (Family)" - the canvas preloads every Font token family on boot Co-Authored-By: Claude <noreply@anthropic.com>

The variables popup becomes the Design System manager: type tabs filter the grid, Color keeps the Name/Light/Dark picker grid, Font and Dimension get a Name/Value layout (font values render as their own typeface specimen). New rows inherit the active tab's type; CSV import/export understands a Type column; left-panel tab renamed. Co-Authored-By: Claude Fable 5 <noreply@anthropic.com>

Colors/Fonts/Dimensions tabs now show how many tokens each holds. The count is search-independent (stable while filtering within a tab) and hides when a type is empty. Co-Authored-By: Claude Fable 5 <noreply@anthropic.com>

…andle A hover-revealed copy button on every Design System token row writes the token's CSS handle var(--<id>) to the clipboard, so it can be pasted straight into a style field. Shows a check tick for ~1.2s on success. Verified live: copies var(--wander-accent) etc. Co-Authored-By: Claude Fable 5 <noreply@anthropic.com>

Show a Font token as its friendly name in violet (like Text Color shows 'Ink Dark Blue') instead of the raw var(--uuid), with a specimen 'A' prefix rendered in the resolved family. Add a 'Save as Token' action to the dropdown so a plain family can be promoted to a Font token in place, alongside the existing Upload Font action. New FontInput/FontInputActions mirror ColorInput/NewBuilderToken; the Family control swaps its inline Autocomplete for FontInput. Autocomplete's ActionButton label/handler/icon become optional (component-only actions). Co-Authored-By: Claude Opus 4.8 (1M context) <noreply@anthropic.com>

/builder_assets/variables.css serves the same token CSS as tokens.css, so pages published (or cached) before the rename keep their stylesheet. builder.utils.sync_builder_variables stays callable as an alias. Co-Authored-By: Claude <noreply@anthropic.com>

greptile-apps · 2026-07-16T09:27:31Z

Confidence Score: 5/5

Safe to merge; migration is guarded by table-existence checks, compat aliases cover all old call sites, and the CSS token cache busting now covers both routes.

The rename is systematic and complete: the pre-model-sync patch, field rename, CSS compat route, frontend singleton composable, and copy/paste backward-compat shims all work together correctly. No functional regressions were found in the changed paths.

Files Needing Attention: No files require special attention.

_{Reviews (14): Last reviewed commit: "fix: add a way to cancel the new-token r..." | Re-trigger Greptile}

codecov · 2026-07-16T09:30:52Z

Codecov Report

❌ Patch coverage is 34.84848% with 43 lines in your changes missing coverage. Please review.
✅ Project coverage is 57.36%. Comparing base (f737b23) to head (34fde8b).

Files with missing lines	Patch %	Lines
builder/utils.py	24.24%	25 Missing ⚠️
...der/builder/doctype/builder_token/builder_token.py	26.66%	11 Missing ⚠️
...ilder/builder/doctype/builder_page/builder_page.py	72.72%	3 Missing ⚠️
builder/install.py	0.00%	2 Missing ⚠️
builder/api.py	50.00%	1 Missing ⚠️
builder/export_import_standard_page.py	0.00%	1 Missing ⚠️

Additional details and impacted files

@@             Coverage Diff             @@
##           develop     #676      +/-   ##
===========================================
- Coverage    57.59%   57.36%   -0.24%
===========================================
  Files           35       35
  Lines         4271     4306      +35
===========================================
+ Hits          2460     2470      +10
- Misses        1811     1836      +25

☔ View full report in Codecov by Harness.
📢 Have feedback on the report? Share it here.

🚀 New features to boost your workflow:

❄️ Test Analytics: Detect flaky tests, report on failures, and find test suite problems.
📦 JS Bundle Analysis: Save yourself from yourself by tracking and limiting bundle sizes in JS merges.

The hardcoded type: "Color" sat after the conditional spread of the parsed type, so every imported row became a Color token regardless of its Type cell. Parse the type case-insensitively (Color/Font/Dimension, defaulting to Color) and include typed rows in the sample CSV. Co-Authored-By: Claude <noreply@anthropic.com>

…nager The type tabs were hand-rolled buttons and the copy affordance a bare <button>; frappe-ui already ships both. Token counts fold into the tab labels. Co-Authored-By: Claude <noreply@anthropic.com>

The compat route is page-cached like tokens.css; without this, sites published before the rename keep serving stale token CSS until the cache TTL expires. Co-Authored-By: Claude <noreply@anthropic.com>

Font and Dimension tokens leaked into every color dropdown with broken swatches. Legacy rows with a blank or lowercase type still count as colors. Co-Authored-By: Claude <noreply@anthropic.com>

Template fixture exports made before the rename still declare doctype Builder Variable, so make_records failed on every group shipped by builder_hub. Route fixture imports through a rename map when the old doctype no longer exists on the site. Co-Authored-By: Claude <noreply@anthropic.com>

The rename patch is in pre_model_sync, so by the time refactor_builder_variables runs the Builder Variable table is gone and has_column raises TableMissingError, failing migrate on any site that had not already applied the refactor.

A hub or clipboard that predates the Builder Token rename still sends Builder Variable docs with variable_name, which is mandatory-field or missing-doctype death on an upgraded site. Normalize renamed docs in one place and use it for hub bundles, disk fixtures and pasted clipboards. Cross-site paste also mapped block refs to an id the server never assigns (autoname clears an incoming name outside imports), so pasted tokens never resolved. Reuse an equivalent token when one exists, else map to the id the insert returns.

Leftovers from the rename: the doctype field label and the New/Edit dialog still said Variable, and the manager's toasts, empty state and sample CSV counted variables. Also normalize a token's type in one place (tokenType) so a legacy blank or lower-cased type lands in the same tab it shows up in the color picker, and resolve font tokens from the cached token map instead of a query per tokenized font.

The new-row value input scheduled a 300ms debounced save on every keystroke. A short pause while typing (e.g. between "24" and "px") fired the save, created the token from a partial value, and unmounted the row's inputs mid-edit. Row creation now commits only on Enter or when focus leaves the row, as handleNewRowFocusOut already intended. The row's copy-handle button also used hidden/block on hover, which changed row height when the button was taller than the row's text. Switched to invisible/visible so the button always reserves its layout space. Renamed updateColor to updateRowValue: it sets row.value for every token type, not only colors. Co-Authored-By: Claude Sonnet 5 <noreply@anthropic.com> Claude-Session: https://claude.ai/code/session_01LJHQRHG8UXfdpGWaz5U3Jj

handleBlur re-resolved the input by matching option labels, so selecting one of two tokens that share a display name would get overwritten by the other on blur.

Right-clicking the not-yet-created row now shows a "Remove" option in the context menu, same as Esc.

surajshetty3416 and others added 8 commits July 16, 2026 14:50

feat(builder): token count pill on each Design System tab

d3df948

Colors/Fonts/Dimensions tabs now show how many tokens each holds. The count is search-independent (stable while filtering within a tab) and hides when a type is empty. Co-Authored-By: Claude Fable 5 <noreply@anthropic.com>

surajshetty3416 changed the title ~~Rename Builder Variable to Builder Token, add Font tokens and Design System manager~~ refactor: Rename Builder Variable to Builder Token, add Font tokens and Design System manager Jul 16, 2026

surajshetty3416 changed the title ~~refactor: Rename Builder Variable to Builder Token, add Font tokens and Design System manager~~ refactor: Rename Builder Variable to Builder Token, add Font tokens Jul 16, 2026

refactor: use frappe-ui TabButtons and Button in the Design System ma…

4d04197

…nager The type tabs were hand-rolled buttons and the copy affordance a bare <button>; frappe-ui already ships both. Token counts fold into the tab labels. Co-Authored-By: Claude <noreply@anthropic.com>

greptile-apps Bot reviewed Jul 16, 2026

View reviewed changes

Comment thread builder/builder/doctype/builder_token/builder_token.py

fix: token edits bust the variables.css compat cache too

473e9f2

The compat route is page-cached like tokens.css; without this, sites published before the rename keep serving stale token CSS until the cache TTL expires. Co-Authored-By: Claude <noreply@anthropic.com>

greptile-apps Bot reviewed Jul 16, 2026

View reviewed changes

Comment thread frontend/src/utils/colorOptions.ts

surajshetty3416 and others added 11 commits July 16, 2026 17:23

fix: color picker lists only Color tokens

796c9ef

Font and Dimension tokens leaked into every color dropdown with broken swatches. Legacy rows with a blank or lowercase type still count as colors. Co-Authored-By: Claude <noreply@anthropic.com>

Merge branch 'develop' into builder-tokens

85dc494

fix: rename patch guards on the Builder Token table, not the DocType

8f22f2d

Merge branch 'develop' into builder-tokens

bf9277a

fix: guard against an unloaded user font list in the font picker

37fdcdb

fix: stop blur from swapping a selected token for a same-named one

49ebc1f

handleBlur re-resolved the input by matching option labels, so selecting one of two tokens that share a display name would get overwritten by the other on blur.

stravo1 force-pushed the builder-tokens branch from dbb891d to 49ebc1f Compare July 27, 2026 15:55

fix: restore left rounding on token value cell boxes

aa73bc6

fix: add a way to cancel the new-token row besides Esc or reload

34fde8b

Right-clicking the not-yet-created row now shows a "Remove" option in the context menu, same as Esc.
