Trello Clone

A modern, full-stack Trello-like project management application built with React, Node.js, Express, and PostgreSQL.

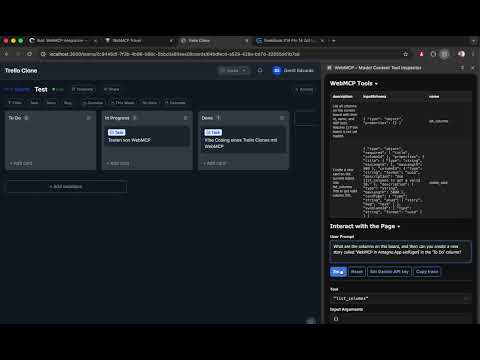

Demo

Features

Board Management: Create and organize teams and boards
Card System: Add rich cards with titles, descriptions, and assignments
Columns & Swimlanes: Organize cards with flexible column and swimlane layouts
Real-time Collaboration: Live updates via Socket.io
Activity Tracking: Complete activity feed for all board changes
Comments: Add and manage comments on cards
Labels & Assignments: Tag cards and assign to team members
OAuth Authentication: Sign in with Google or Microsoft accounts
User Profile: Edit display name and email; change password via the user menu
Theme Selection: Switch between light, dark, and system-default appearance (persisted across sessions)
Language Selection: Switch UI language between German, English, French, Italian, and Dutch; preference saved to user profile
Storage for Attachments: Use local or S3 compatible storages
Password Reset: Forgot-password flow with time-limited email links via Resend
Responsive UI: Modern React-based interface with Tailwind CSS
AI Agent Integration: 10 WebMCP tools let AI agents manage boards, cards, and assignees directly via natural language (Chrome 146+)

Tech Stack

Frontend

React 19 - UI framework
Vite 6 - Build tool and dev server
TypeScript 5.7 - Type safety
Tailwind CSS 4 - Styling
Zustand - State management
React Router 7 - Navigation
React Hook Form - Form handling with Zod validation
Axios - HTTP client
Socket.io Client - Real-time updates
dnd-kit - Drag and drop

Backend

Node.js 22 - Runtime
Express 5 - Web framework
TypeScript 5.7 - Type safety
Drizzle ORM 0.38 - Database ORM
PostgreSQL 17 - Database
Socket.io 4.8 - Real-time WebSocket communication
Passport.js - Authentication
Resend - Transactional email (password reset)
Pino - Logging

Development & Tooling

pnpm - Package manager (workspace monorepo)
Vitest - Unit testing
Drizzle Kit - Database migrations
ESLint - Code linting
Prettier - Code formatting
Docker & Docker Compose - Containerization

Project Structure

.
├── apps/
│   ├── api/                    # Express backend
│   │   ├── src/
│   │   │   ├── config/         # Configuration (env, database)
│   │   │   ├── db/             # Database schema and migrations
│   │   │   ├── middleware/     # Express middleware
│   │   │   ├── modules/        # Feature modules (teams, boards, cards, etc.)
│   │   │   ├── utils/          # Utilities
│   │   │   ├── ws/             # WebSocket setup
│   │   │   └── index.ts        # Entry point
│   │   ├── drizzle.config.ts   # Drizzle ORM config
│   │   └── package.json
│   └── web/                    # React frontend
│       ├── src/
│       │   ├── components/     # Reusable React components
│       │   ├── features/       # Feature-specific components
│       │   ├── stores/         # Zustand stores
│       │   ├── hooks/          # Custom React hooks
│       │   ├── api/            # API client functions
│       │   ├── utils/          # Utilities
│       │   ├── App.tsx
│       │   └── main.tsx        # Entry point
│       ├── vite.config.ts
│       └── package.json
├── packages/
│   └── shared/                 # Shared types and validation schemas
│       ├── types/              # TypeScript types
│       └── validation/         # Zod schemas
├── docs/
│   └── plans/                  # Development roadmap
├── docker-compose.yml          # Docker Compose configuration
├── Dockerfile                  # Root Dockerfile (if needed)
└── package.json

Prerequisites

Node.js 22+ or Docker
pnpm (install via npm install -g pnpm)
PostgreSQL 17+ (or use Docker)
.env file with required environment variables

Installation

1. Clone the Repository

git clone <repository-url>
cd trello-clone

2. Install Dependencies

pnpm install

3. Set Up Environment Variables

Create a .env file in the root directory:

# Database
DATABASE_URL=postgresql://trello:trello_secret@localhost:5432/trello_clone

# API secrets (generate secure values for production)
JWT_SECRET=your_jwt_secret_min_10_chars
JWT_REFRESH_SECRET=your_refresh_secret_min_10_chars

# Server URLs
API_PORT=3001
WEB_URL=http://localhost:5173
API_URL=http://localhost:3001

# OAuth (optional - leave empty to disable)
GOOGLE_CLIENT_ID=
GOOGLE_CLIENT_SECRET=
MICROSOFT_CLIENT_ID=
MICROSOFT_CLIENT_SECRET=

# File storage (optional - defaults to local)
STORAGE_TYPE=local
# UPLOAD_DIR=./uploads                 # local storage path (default: ./uploads)
# AWS_ACCESS_KEY_ID=                   # required when STORAGE_TYPE=s3
# AWS_SECRET_ACCESS_KEY=               # required when STORAGE_TYPE=s3
# AWS_REGION=us-east-1                 # required when STORAGE_TYPE=s3
# AWS_S3_BUCKET=my-bucket              # required when STORAGE_TYPE=s3
# CDN_URL=                             # optional: CDN prefix for S3 file URLs

# Email / Resend (optional - required for password reset)
RESEND_API_KEY=re_your_api_key
FROM_EMAIL=noreply@yourdomain.com

FRONTEND_URL=http://localhost:5173

# Environment
NODE_ENV=development

4. Set Up Database

Option A: Using Docker Compose (Recommended)

# Start PostgreSQL container
docker-compose up postgres

# In another terminal, run migrations
pnpm db:migrate

Option B: Local PostgreSQL

# Make sure PostgreSQL is running locally, then
pnpm db:migrate

5. Generate Database Types

pnpm db:generate

Running the Application

Development Mode

Start all services in parallel:

pnpm dev

This will run:

API: http://localhost:3001
Web: http://localhost:5173

The web app will proxy API calls and WebSocket connections to the backend.

Individual Services

Frontend only:

cd apps/web
pnpm dev

Backend only:

cd apps/api
pnpm dev

Building the Application

Build All Packages

pnpm build

Build Specific App

# Frontend
cd apps/web && pnpm build

# Backend
cd apps/api && pnpm build

Build Output

Frontend: apps/web/dist/ - Static HTML/CSS/JS files
Backend: apps/api/dist/ - Compiled JavaScript modules

Docker Deployment

Development

# Build and start all services
docker-compose up --build

# Services will be available at:
# - Web: http://localhost:3000
# - API: http://localhost:3001
# - Database: localhost:5432

Production Build

# Build individual images
docker build -f apps/api/Dockerfile -t trello-clone-api .
docker build -f apps/web/Dockerfile -t trello-clone-web .

# Or use docker-compose
docker-compose build

For detailed Docker information, see DOCKER.md.

Database Management

Generate Database Schema Types

pnpm db:generate

Run Migrations

pnpm db:migrate

Seed Database (if available)

pnpm db:seed

Reset Database

# Remove all data
dropdb trello_clone
createdb trello_clone

# Rerun migrations
pnpm db:migrate

Testing

Run All Tests

pnpm test

Run Tests for Specific App

cd apps/api && pnpm test
cd apps/web && pnpm test

Watch Mode

pnpm test:watch  # if configured

Linting & Formatting

Check Code Quality

pnpm lint

Format Code

pnpm format  # if configured

AI Agent Integration (WebMCP)

The board page exposes 10 tools via the WebMCP browser API, allowing AI agents to manage boards and cards through natural language.

Requirements

Chrome 146+ with the Model Context Protocol flag enabled (chrome://flags/#model-context-protocol)
No server-side changes required — tools are registered entirely in the frontend

Available Tools

Tool	Description
`list_current_team_boards`	List all boards for the current team
`list_columns`	List columns on the current board
`list_cards`	List cards, optionally filtered by column or search term
`create_card`	Create a new card in a column
`update_card`	Update a card's title, description, type, or due date
`move_card`	Move a card to a different column (top or bottom position)
`delete_card`	Permanently delete a card
`list_current_team_members`	List team members (use to find user IDs for assignment)
`assign_user`	Assign a team member to a card
`unassign_user`	Remove a team member from a card

How It Works

Tools are registered when a user opens a board page via the useBoardWebMCP hook (apps/web/src/hooks/useBoardWebMCP.ts). The hook calls createBoardWebMCPTools({ boardId, teamId }) (defined in apps/web/src/hooks/boardWebMCPTools.ts) and registers the resulting tool definitions with navigator.modelContext.

All tools read live board state from the Zustand boardStore and call the existing REST API for mutations. Store updates are applied optimistically after each successful API call so the UI stays in sync.

API Documentation

Base URL

Development: http://localhost:3001/api/v1
Production: Configure via API_URL environment variable

Main Endpoints

Authentication

POST /auth/register - Register new user
POST /auth/login - Login
POST /auth/refresh - Refresh JWT token
POST /auth/logout - Logout
POST /auth/forgot-password - Request password reset email
POST /auth/reset-password - Reset password with token
GET /auth/google - Google OAuth flow
GET /auth/microsoft - Microsoft OAuth flow

Teams

GET /teams - List user's teams
POST /teams - Create new team
GET /teams/:teamId - Get team details
PUT /teams/:teamId - Update team
DELETE /teams/:teamId - Delete team

Boards

GET /teams/:teamId/boards - List team's boards
POST /teams/:teamId/boards - Create board
GET /teams/:teamId/boards/:boardId - Get board
PUT /teams/:teamId/boards/:boardId - Update board
DELETE /teams/:teamId/boards/:boardId - Delete board

Cards

GET /boards/:boardId/cards - List cards
POST /boards/:boardId/cards - Create card
PUT /boards/:boardId/cards/:cardId - Update card
DELETE /boards/:boardId/cards/:cardId - Delete card

Real-time Updates

Uses Socket.io for real-time board, card, and activity updates
Connect to http://localhost:3001 with Socket.io client

For detailed API routes, see the route files in apps/api/src/modules/.

Development Workflow

Adding a New Feature

Create types in packages/shared/src/types/
Create validation schemas in packages/shared/src/validation/
Create backend module in apps/api/src/modules/
- *.controller.ts - Request handlers
- *.service.ts - Business logic
- *.routes.ts - Route definitions
Create API client in apps/web/src/api/
Create React components in apps/web/src/features/ or components/
Add stores in apps/web/src/stores/ if needed

Code Standards

TypeScript: All code must be type-safe
ESLint: Run pnpm lint before committing
Prettier: Code is auto-formatted on save
Testing: Write tests for critical business logic

Environment Variables Reference

Required for Development

DATABASE_URL - PostgreSQL connection string
JWT_SECRET - JWT signing secret (min 10 chars)
JWT_REFRESH_SECRET - Refresh token secret (min 10 chars)

Optional for Development

API_PORT - Backend port (default: 3001)
WEB_URL / API_URL - Service URLs (defaults to localhost)
FRONTEND_URL - Frontend base URL used in reset links (default: http://localhost:5173)
GOOGLE_CLIENT_ID / GOOGLE_CLIENT_SECRET - Google OAuth
MICROSOFT_CLIENT_ID / MICROSOFT_CLIENT_SECRET - Microsoft OAuth

File Storage

By default, uploaded attachments are stored on the local filesystem in an uploads/ directory relative to the API working directory, and served at /uploads.

STORAGE_TYPE - Storage backend: local (default) or s3
UPLOAD_DIR - Local storage path (default: ./uploads; only used when STORAGE_TYPE=local)

For S3-compatible storage (set STORAGE_TYPE=s3):

AWS_ACCESS_KEY_ID - AWS access key (or compatible provider key)
AWS_SECRET_ACCESS_KEY - AWS secret key
AWS_REGION - S3 region (e.g. us-east-1)
AWS_S3_BUCKET - S3 bucket name
CDN_URL - Optional CDN prefix for serving uploaded files (e.g. https://cdn.example.com)

Email (Password Reset)

Password reset emails are sent via Resend. Leave these unset to disable password reset:

RESEND_API_KEY - Resend API key (get one at resend.com)
FROM_EMAIL - Sender address for password reset emails (e.g. noreply@yourdomain.com)

Production

For production deployment, ensure:

All required variables are set
Secrets are stored securely (use secrets manager)
NODE_ENV=production
Database has proper backups
CORS origin matches actual deployment URL
If using S3, the bucket has appropriate access policies
FROM_EMAIL uses a domain verified in Resend

Troubleshooting

Database Connection Error

Error: connect ECONNREFUSED 127.0.0.1:5432

Solution: Ensure PostgreSQL is running. Use docker-compose up postgres or start your local PostgreSQL service.

Port Already in Use

Error: listen EADDRINUSE: address already in use :::3001

Solution: Change the port via environment variable or kill the process using the port:

# macOS/Linux
lsof -ti:3001 | xargs kill -9

# Or change port
API_PORT=3002 pnpm dev

pnpm Command Not Found

npm install -g pnpm

Build Fails with TypeScript Errors

# Clear and reinstall dependencies
rm -rf node_modules
pnpm install

# Regenerate database types
pnpm db:generate

Performance Optimization

Frontend

Code Splitting: Routes are automatically code-split with React Router
Image Optimization: Use appropriate formats and sizes
Caching: Static assets are cached in browser
Compression: Gzip enabled in production

Backend

Database Indexing: Indexes configured in schema
Connection Pooling: PostgreSQL connection pool configured
Caching: Implement caching where appropriate
Pagination: API endpoints support pagination

Security Considerations

CORS: Configured to specific origins
Helmet: Security headers enabled
JWT: Token-based authentication
SQL Injection: Protected via Drizzle ORM parameterized queries
Input Validation: Zod schema validation on all inputs
HTTPS: Use in production

Contributing

Create a feature branch: git checkout -b feature/your-feature
Make your changes and test them
Run linting: pnpm lint
Commit with clear messages
Push and create a pull request

License

MIT License - see LICENSE file for details.

Permission is hereby granted, free of charge, to any person obtaining a copy of this software and associated documentation files (the "Software"), to deal in the Software without restriction, including without limitation the rights to use, copy, modify, merge, publish, distribute, sublicense, and/or sell copies of the Software, and to permit persons to whom the Software is furnished to do so, subject to the following conditions:

The above copyright notice and this permission notice shall be included in all copies or substantial portions of the Software.

Support

For issues and questions:

Check existing documentation
Review the DOCKER.md for containerization info
Check database migrations in apps/api/src/db/migrations/
Review sample implementations in existing modules

Roadmap

See docs/plans/ for planned features and development roadmap.

Name		Name	Last commit message	Last commit date
Latest commit History 92 Commits
.github/workflows		.github/workflows
apps		apps
docs		docs
packages/shared		packages/shared
.dockerignore		.dockerignore
.env.example		.env.example
.gitignore		.gitignore
.npmrc		.npmrc
.prettierrc		.prettierrc
CLAUDE.md		CLAUDE.md
DOCKER.md		DOCKER.md
LICENSE		LICENSE
README.md		README.md
docker-compose.yml		docker-compose.yml
eslint.config.js		eslint.config.js
package.json		package.json
pnpm-lock.yaml		pnpm-lock.yaml
pnpm-workspace.yaml		pnpm-workspace.yaml
tsconfig.base.json		tsconfig.base.json

Folders and files

Latest commit

History

Repository files navigation

Trello Clone

Demo

Features

Tech Stack

Frontend

Backend

Development & Tooling

Project Structure

Prerequisites

Installation

1. Clone the Repository

2. Install Dependencies

3. Set Up Environment Variables

4. Set Up Database

Option A: Using Docker Compose (Recommended)

Option B: Local PostgreSQL

5. Generate Database Types

Running the Application

Development Mode

Individual Services

Building the Application

Build All Packages

Build Specific App

Build Output

Docker Deployment

Development

Production Build

Database Management

Generate Database Schema Types

Run Migrations

Seed Database (if available)

Reset Database

Testing

Run All Tests

Run Tests for Specific App

Watch Mode

Linting & Formatting

Check Code Quality

Format Code

AI Agent Integration (WebMCP)

Requirements

Available Tools

How It Works

API Documentation

Base URL

Main Endpoints

Authentication

Teams

Boards

Cards

Real-time Updates

Development Workflow

Adding a New Feature

Code Standards

Environment Variables Reference

Required for Development

Optional for Development

File Storage

Email (Password Reset)

Production

Troubleshooting

Database Connection Error

Port Already in Use

pnpm Command Not Found

Build Fails with TypeScript Errors

Performance Optimization

Frontend

Backend

Security Considerations

Contributing

License

Support

Roadmap

About

Topics

Resources

Packages
