HexBoard

SwiftUI Hexadecimal Keyboard

About HexBoard ⌨️

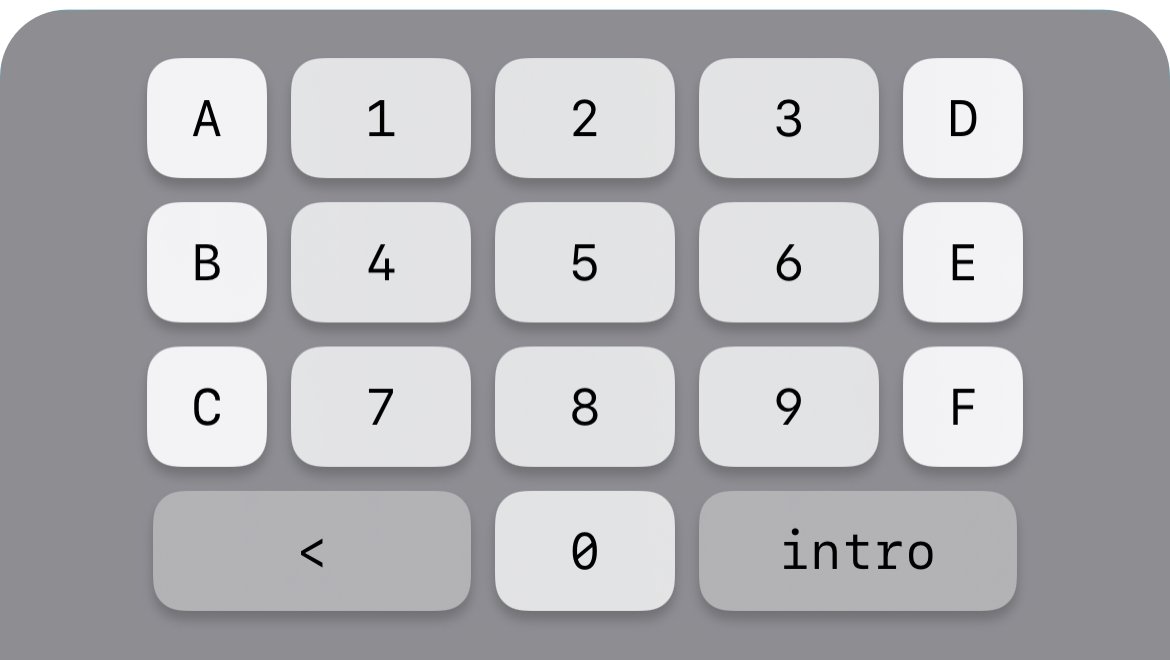

HexBoard is an Hexadecimal Keyboard for iOS made entirely using SwiftUI 3 and Swift 5.5.1

Usage 🔧

HexBoard is a SwiftUI HexBoardView that is initially positioned off the screen

It needs to be stacked in the last position of a ZStack in order to overlap all the other views when it shows

ZStack {
  //... your views here ...

  HexBoardView()
}

It needs two parameters to work:

• show: Bool - in order to toggle the view of the HexBoard
• text: String - the value on which the HexBoard works

Just inject the HexBoard as an Environment Object:

@main
struct HexBoardApp: App {
    @StateObject private var hexBoard = HexBoard()

    var body: some Scene {
        WindowGroup {
            MainView()
                .environmentObject(hexBoard)
        }
    }
}

And use it where needed:

 @EnvironmentObject var hexBoard: HexBoard

TextField("Text", text: $hexBoard.text)

Text(hexBoard.text)

Installation ⚙️

You need all the files (except the MainView that is an example) in your XCode project

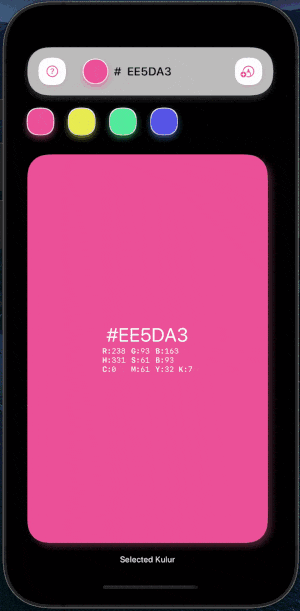

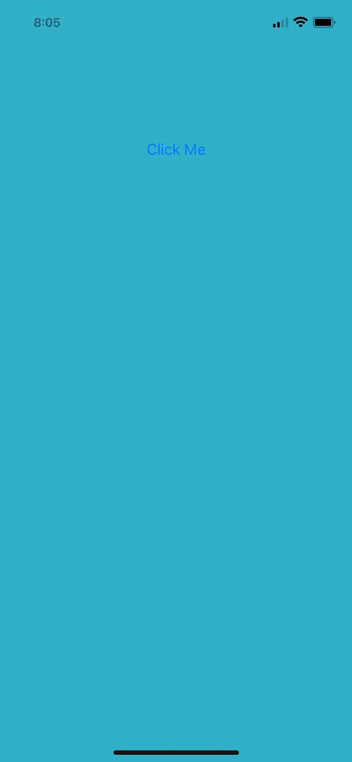

HexBoard working in a real iOS App 🔩

Created with 🛠️

• XCode 13
• Swift 5.5.1
• SwiftUI 3

Author ✒️

Goojoob.dev - Original development - goojoob

License 📄

This work is licensed under a Creative Commons Attribution 4.0 International license (CC BY 4.0).
