Autoware CLAW

ROSClaw Southbound Driver for Autoware — bridges LLM agents to Autoware via the Model Context Protocol (MCP).

Autoware CLAW lets an LLM agent query vehicle state, resolve GPS coordinates to lane-aligned goals, and send control commands to Autoware — all through a structured MCP tool interface. The agent runs inside an isolated NemoClaw sandbox with GPU-accelerated inference via Ollama, while an RViz panel provides an operator chat UI for oversight.

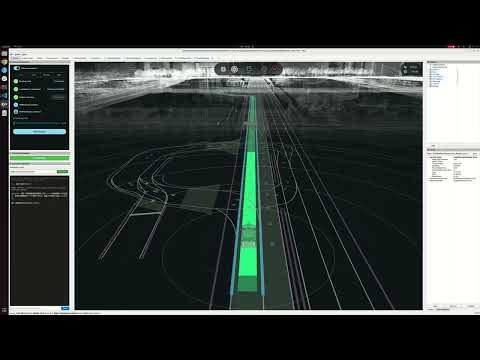

Demo

Architecture

System Overview

┌───────────────────────────────────────────────────────────────────────┐
│  Host Machine (ROS 2 Humble)                                          │
│                                                                       │
│  ┌─────────────────────┐          ┌────────────────────────────────┐ │
│  │  Autoware Planning   │          │  Docker Containers             │ │
│  │  Simulator           │          │                                │ │
│  │                      │          │  ┌──────────────────────────┐  │ │
│  │  - Localization       │          │  │  NemoClaw (LLM Agent)    │  │ │
│  │  - Perception         │          │  │  - OpenClaw sandbox      │  │ │
│  │  - Planning           │          │  │  - Web dashboard :18789  │  │ │
│  │  - Control            │          │  │  - Brave web search      │  │ │
│  │  - Vehicle Simulator  │          │  └───────────┬──────────────┘  │ │
│  └──────────┬───────────┘          │              │ internal-net     │ │
│             │                      │  ┌───────────▼──────────────┐  │ │
│             │ ROS 2 topics         │  │  Ollama (LLM Inference)  │  │ │
│             │                      │  │  - gemma4 model          │  │ │
│  ┌──────────▼───────────┐          │  │  - GPU accelerated       │  │ │
│  │  Autoware MCP Server │          │  └──────────────────────────┘  │ │
│  │  (ROS 2 Node)        │◄─── SSE/JSON-RPC ──►                     │ │
│  │  :8765               │          └────────────────────────────────┘ │
│  └──────────────────────┘                                             │
│                                                                       │
│  ┌───────────────────────────────────────────────────────────────┐   │
│  │  RViz2 + Autoware CLAW Chat Panel                             │   │
│  │  - Operator oversight & chat interface                        │   │
│  │  - Pre-configured layout with vehicle visualization           │   │
│  └───────────────────────────────────────────────────────────────┘   │
└───────────────────────────────────────────────────────────────────────┘

Three-Layer Design

MCP Server (host, ROS 2 node)
- Subscribes to Autoware ROS 2 topics and caches vehicle state with thread-safe locking
- Exposes 17 MCP tools via SSE transport on 127.0.0.1:8765
- Publishes control commands, gear, turn indicators, hazard lights, and heartbeat
- Resolves GPS coordinates to lane-aligned goals using Lanelet2 + MGRSProjector
NemoClaw + Ollama (Docker containers)
- NemoClaw: NVIDIA's LLM agent sandbox with Autoware MCP tools pre-configured
- Ollama: Local LLM inference server running gemma4 with GPU acceleration
- Network isolation: internal-net (Ollama, no internet) + egress-net (web search, MCP)
- L7 network policy restricts MCP access to /sse, /messages/**, /health
RViz Chat Panel (C++ / Qt)
- Operator-facing chat UI embedded in RViz
- Connects to NemoClaw gateway with health monitoring
- Dark theme, monospace font, persistent URL configuration

Data Flow

Operator types in RViz Chat Panel
        │
        ▼
NemoClaw receives message, reasons using gemma4 (Ollama)
        │
        ▼
NemoClaw calls MCP tools (e.g., autoware_get_vehicle_state)
        │
        ▼
MCP Server reads cached ROS 2 state / publishes commands
        │
        ▼
Autoware executes (planning, control, vehicle simulation)
        │
        ▼
Response flows back: Autoware → MCP → NemoClaw → RViz Chat

ROS 2 Topic Interface

Subscriptions (state caching):

Topic	Message Type	Purpose
`/localization/kinematic_state`	`nav_msgs/Odometry`	Vehicle pose (x, y, z, yaw)
`/vehicle/status/velocity_status`	`VelocityReport`	Longitudinal/lateral velocity
`/vehicle/status/steering_status`	`SteeringReport`	Steering tire angle
`/vehicle/status/gear_status`	`GearReport`	Current gear
`/vehicle/status/control_mode`	`ControlModeReport`	Control mode
`/api/operation_mode/state`	`OperationModeState`	Operation mode (AUTONOMOUS/LOCAL/REMOTE/STOP)
`/perception/object_recognition/objects`	`PredictedObjects`	Surrounding detected objects
`/perception/traffic_light_recognition/traffic_signals`	`TrafficLightGroupArray`	Traffic signal states
`/control/current_gate_mode`	`GateMode`	AUTO/EXTERNAL gate mode
`/api/autoware/get/engage`	`Engage`	Engage state

Publications (commands):

Topic	Message Type	Purpose
`/external/selected/control_cmd`	`Control`	Steering, velocity, acceleration
`/external/selected/gear_cmd`	`GearCommand`	Gear shifts
`/external/selected/turn_indicators_cmd`	`TurnIndicatorsCommand`	Turn signals
`/external/selected/hazard_lights_cmd`	`HazardLightsCommand`	Hazard lights
`/external/selected/heartbeat`	`Heartbeat`	Heartbeat for vehicle_cmd_gate
`/control/gate_mode_cmd`	`GateMode`	Switch AUTO/EXTERNAL mode
`/autoware/engage`	`Engage`	Engage/disengage
`/planning/mission_planning/goal`	`PoseStamped`	Navigation goal

Packages

Package	Language	Description
`autoware_claw`	Python	MCP server, ROS 2 node, coordinate resolver, Docker integration
`autoware_claw_rviz_plugins`	C++ / Qt	RViz chat panel plugin for operator interaction

MCP Tools (17 tools)

Display Tools (read-only)

Tool	Parameters	Description
`autoware_get_vehicle_state`	none	Position (x, y, z, yaw), velocity, steering angle, gear, system status
`autoware_get_operation_mode`	none	Current mode (AUTONOMOUS/LOCAL/REMOTE/STOP), transition state
`autoware_get_surrounding_objects`	`max_distance_m` (optional)	Detected objects: cars, trucks, buses, motorcycles, bicycles, pedestrians with position, velocity, dimensions, and classification
`autoware_get_traffic_signals`	none	Traffic signal groups: color (RED/AMBER/GREEN), shape (CIRCLE/ARROW), status (SOLID_ON/OFF/FLASHING), confidence
`autoware_get_diagnostics`	none	Engage state, MRM state/behavior, gate mode, control mode, gear

Coordinate Resolution Tools

Tool	Parameters	Description
`autoware_resolve_goal`	`lat`, `lon`, `search_radius` (opt, default: 50m)	Convert GPS lat/lon to lane-aligned goal candidates on Lanelet2 centerlines. Returns up to 5 candidates sorted by lateral distance
`autoware_get_lane_info`	`x`, `y`, `search_radius` (opt, default: 10m)	Lanelet ID, length, subtype, and speed limit near a map-frame coordinate

Navigation Commands

Tool	Parameters	Description
`autoware_set_goal`	`x`, `y`, `z` (opt), `yaw_rad`	Send navigation goal in map frame. Use `autoware_resolve_goal` first to get candidates
`autoware_engage`	`engage` (boolean)	Enable (`true`) or disable (`false`) Autoware autonomous control

Direct Vehicle Control

Tool	Parameters	Description
`autoware_set_gate_mode`	`mode` (AUTO/EXTERNAL)	Switch vehicle_cmd_gate: AUTO (Autoware planning) or EXTERNAL (MCP direct control)
`autoware_send_control`	`steering_rad`, `velocity_mps`, `acceleration_mps2` (opt)	Send direct steering, velocity, acceleration. Requires EXTERNAL gate mode
`autoware_send_gear`	`gear` (DRIVE/REVERSE/PARK/NEUTRAL/LOW)	Send gear command
`autoware_set_turn_indicators`	`command` (LEFT/RIGHT/DISABLE)	Set turn indicators
`autoware_set_hazard_lights`	`command` (ENABLE/DISABLE)	Set hazard lights on/off
`autoware_emergency_stop`	none	Send zero velocity, deceleration -2.5 m/s^2, and stop heartbeat

Heartbeat Control

Tool	Parameters	Description
`autoware_start_heartbeat`	none	Start heartbeat publisher (required for vehicle_cmd_gate to accept external commands)
`autoware_stop_heartbeat`	none	Stop heartbeat (vehicle_cmd_gate will trigger emergency stop)

Prerequisites

ROS 2 Humble with Autoware workspace built
Docker with NVIDIA Container Toolkit (for GPU inference)
NVIDIA GPU (required for Ollama + gemma4 inference)
Python packages: rosclaw, mcp, uvicorn, starlette (installed via pip)
Brave API key (optional, for NemoClaw web search): set BRAVE_API_KEY environment variable

For a detailed step-by-step guide on integrating autoware_claw into an Autoware workspace, see Building with Autoware.

Build

# Build autoware_claw and its RViz plugins
colcon build --packages-select autoware_claw autoware_claw_rviz_plugins
source install/setup.bash

During the first build, Docker images are built and the gemma4 model (~5 GB) is pulled into a persistent volume. Subsequent builds skip the download.

Launch Commands

Full Integration (recommended)

Launches Autoware planning simulator + MCP server + NemoClaw/Ollama Docker containers + RViz with chat panel:

ros2 launch autoware_claw planning_simulator.launch.xml \
  map_path:=/path/to/your/map

Example with a specific map:

ros2 launch autoware_claw planning_simulator.launch.xml \
  map_path:=$HOME/Downloads/shinjyuku/Shinjuku-Map/map

MCP Server Only

If you want to run only the MCP server against an already-running Autoware instance:

ros2 launch autoware_claw mcp_server.launch.xml

With custom configuration:

ros2 launch autoware_claw mcp_server.launch.xml \
  host:=0.0.0.0 \
  port:=9000 \
  config_file:=/path/to/custom_config.yaml

Launch Arguments

Planning Simulator Arguments

Argument	Default	Description
`map_path`	(required)	Point cloud and Lanelet2 map directory
`vehicle_model`	`sample_vehicle`	Vehicle model name
`sensor_model`	`sample_sensor_kit`	Sensor model name
`rviz`	`true`	Launch RViz
`rviz_config`	autoware_claw.rviz	RViz config with Claw panel

Autoware CLAW Arguments

Argument	Default	Description
`launch_claw`	`true`	Launch autoware_claw MCP server
`launch_nemoclaw_docker`	`true`	Start NemoClaw + Ollama containers
`mcp_host`	`127.0.0.1`	MCP server bind address
`mcp_port`	`8765`	MCP server port
`mcp_transport`	`sse`	MCP transport (sse or stdio)
`mcp_config_file`	`mcp_server.param.yaml`	MCP server config file

Perception Arguments

Argument	Default	Description
`perception/enable_object_recognition`	`true`	Enable object detection
`perception/enable_detection_failure`	`true`	Enable detection failure simulation
`perception/enable_traffic_light`	`false`	Enable traffic light recognition

Common Launch Patterns

# Without NemoClaw Docker (use external LLM agent)
ros2 launch autoware_claw planning_simulator.launch.xml \
  map_path:=/path/to/map \
  launch_nemoclaw_docker:=false

# Without perception (lighter resource usage)
ros2 launch autoware_claw planning_simulator.launch.xml \
  map_path:=/path/to/map \
  perception/enable_object_recognition:=false \
  perception/enable_detection_failure:=false

# Custom MCP port
ros2 launch autoware_claw planning_simulator.launch.xml \
  map_path:=/path/to/map \
  mcp_port:=9000

# With Brave web search enabled
BRAVE_API_KEY=your-key-here ros2 launch autoware_claw planning_simulator.launch.xml \
  map_path:=/path/to/map

Configuration

MCP Server (`config/mcp_server.param.yaml`)

/**:
  ros__parameters:
    # MCP transport
    transport: "sse"        # "sse" (HTTP) or "stdio" (stdin/stdout)
    host: "127.0.0.1"       # Bind address (use 0.0.0.0 for Docker access)
    port: 8765              # MCP server port

    # Heartbeat for vehicle_cmd_gate external input
    heartbeat_rate_hz: 20.0

    # Vehicle parameters
    wheelbase_m: 2.79       # Wheelbase for bicycle model (twist -> steering conversion)
    max_steering_rad: 1.0   # Max steering angle limit
    max_velocity_mps: 25.0  # Max velocity limit

    # Lanelet2 map (for coordinate resolver - GPS to lane alignment)
    map_path: ""            # Path to lanelet2_map.osm file
    map_origin_lat: 0.0     # Map origin latitude
    map_origin_lon: 0.0     # Map origin longitude
    map_origin_alt: 0.0     # Map origin altitude

Docker Services (`docker-compose.yml`)

Service	Image	Port	Purpose
`ollama`	`ollama/ollama:latest`	(internal only)	LLM inference with GPU, serves gemma4 model
`nemoclaw`	`autoware_claw-nemoclaw:latest`	`127.0.0.1:18789`	LLM agent sandbox + web dashboard

Network Security

NemoClaw runs inside Docker with layered network isolation:

┌─────────────────────────────────────────────┐
│  Docker                                      │
│                                              │
│  ┌──────────┐   internal-net   ┌──────────┐ │
│  │ NemoClaw │◄────────────────►│  Ollama  │ │
│  │          │   (no internet)  │  (GPU)   │ │
│  └────┬─────┘                  └──────────┘ │
│       │                                      │
│       │ egress-net (L7 policy restricted)    │
│       │                                      │
└───────┼──────────────────────────────────────┘
        │
        ▼ host.docker.internal:8765
   MCP Server (host)

internal-net (bridge, internal: true) — Ollama only. No external access.
egress-net (bridge) — NemoClaw can reach:
- Host MCP server via host.docker.internal:8765
- Brave Search API (if BRAVE_API_KEY is set)
L7 network policy (autoware-mcp-policy.yaml) restricts MCP endpoints to:
- GET /sse — SSE stream connection
- POST /messages/** — JSON-RPC tool calls
- GET /health — Health check
NemoClaw dashboard binds to 127.0.0.1:18789 only (not exposed to network)
Config lockdown — openclaw.json is owned by root with 444 permissions. Gateway auth token is generated at build time.

Interaction

After launching, you can interact with the LLM agent through:

RViz Chat Panel — Type messages directly in the chat panel embedded in RViz
NemoClaw Dashboard — Open http://localhost:18789 in a browser

The agent can autonomously:

Query vehicle state (autoware_get_vehicle_state)
Check surrounding traffic (autoware_get_surrounding_objects)
Find a route to a GPS location (autoware_resolve_goal -> autoware_set_goal)
Engage/disengage autonomous driving (autoware_engage)
Send direct vehicle controls in EXTERNAL mode (autoware_set_gate_mode -> autoware_send_control)
Trigger emergency stop (autoware_emergency_stop)

Project Structure

autoware_claw/
├── autoware_claw/                  # Python ROS 2 package
│   ├── autoware_claw/              # Python modules
│   │   ├── autoware_mcp_server.py  # MCP tool registration, handlers, SSE/stdio server
│   │   ├── autoware_ros_node.py    # ROS 2 subscriptions, publishers, state cache
│   │   ├── coordinate_resolver.py  # Lanelet2 GPS-to-lane mapping via MGRSProjector
│   │   ├── topic_adapters.py       # ROS message builders (Twist->Control, etc.)
│   │   └── types.py                # Dataclasses: VehicleState, DetectedObject, etc.
│   ├── config/
│   │   └── mcp_server.param.yaml   # MCP server configuration
│   ├── docker/
│   │   ├── nemoclaw.Dockerfile     # Multi-stage: Node.js builder + sandbox runtime
│   │   └── autoware-overlay/
│   │       ├── inject-mcp-config.py       # Injects MCP endpoint into openclaw.json
│   │       └── autoware-mcp-policy.yaml   # L7 network policy for sandbox
│   ├── docker-compose.yml          # Ollama + NemoClaw service definitions
│   ├── launch/
│   │   ├── mcp_server.launch.xml           # Standalone MCP server launch
│   │   └── planning_simulator.launch.xml   # Full integration launch
│   ├── CMakeLists.txt
│   ├── package.xml
│   ├── setup.py
│   └── setup.cfg
│
└── autoware_claw_rviz_plugins/     # C++ RViz2 plugin package
    ├── src/
    │   ├── autoware_claw_panel.hpp # Qt panel: URL input, status, chat display, message input
    │   └── autoware_claw_panel.cpp # Network communication, health checks, message handling
    ├── rviz/
    │   └── autoware_claw.rviz      # Pre-configured RViz layout with Claw panel
    ├── CMakeLists.txt
    └── package.xml

Troubleshooting

`autoware_shape_estimation` not found

If perception packages are not built, disable them:

ros2 launch autoware_claw planning_simulator.launch.xml \
  map_path:=/path/to/map \
  perception/enable_object_recognition:=false \
  perception/enable_detection_failure:=false

Docker GPU not available

Ensure NVIDIA Container Toolkit is installed:

nvidia-smi                           # GPU driver check
docker run --rm --gpus all nvidia/cuda:12.4.0-base-ubuntu22.04 nvidia-smi  # Docker GPU check

NemoClaw not connecting to MCP server

Verify the MCP server is running and healthy:

curl http://localhost:8765/health
# Expected: {"status": "ok", "connected": true}

gemma4 model download slow

The model (~5 GB) is cached in a Docker volume. If the initial pull is slow, you can pre-download it:

docker compose -f $(ros2 pkg prefix autoware_claw)/share/autoware_claw/docker/docker-compose.yml \
  run --rm ollama-pull

License

Apache-2.0

Name		Name	Last commit message	Last commit date
Latest commit History 24 Commits
autoware_claw		autoware_claw
autoware_claw_rviz_plugins		autoware_claw_rviz_plugins
docs		docs
README.md		README.md

Folders and files

Latest commit

History

Repository files navigation

Autoware CLAW

Demo

Architecture

System Overview

Three-Layer Design

Data Flow

ROS 2 Topic Interface

Packages

MCP Tools (17 tools)

Display Tools (read-only)

Coordinate Resolution Tools

Navigation Commands

Direct Vehicle Control

Heartbeat Control

Prerequisites

Build

Launch Commands

Full Integration (recommended)

MCP Server Only

Launch Arguments

Planning Simulator Arguments

Autoware CLAW Arguments

Perception Arguments

Common Launch Patterns

Configuration

MCP Server (config/mcp_server.param.yaml)

Docker Services (docker-compose.yml)

Network Security

Interaction

Project Structure

Troubleshooting

autoware_shape_estimation not found

Docker GPU not available

NemoClaw not connecting to MCP server

gemma4 model download slow

License

About

Resources

Uh oh!

Stars

Watchers

Forks

Releases

Packages 0

Uh oh!

Contributors

Uh oh!

Languages

MCP Server (`config/mcp_server.param.yaml`)

Docker Services (`docker-compose.yml`)

`autoware_shape_estimation` not found

Packages
