E0 · App-driving + screenshot recipe (#180)

[hellno]

Commits a documented, reusable way to drive the running GPUI wallet and capture per-window screenshots, so every later v4 GUI issue (E2–E7) can produce before/after evidence. Docs + scripts only — no crate touched.

Part of the v4 build epic #179 (E0 is the prerequisite for every GUI issue's evidence). Closes #180.

What's delivered

• scripts/deckard-drive.sh (committed, executable, not gitignored) — one entry point:
  • win — Swift CGWindowListCopyWindowInfo finder → the largest layer-0 deckard window's id + bounds.
  • shot <name> — screencapture -x -o -l<id>, occlusion-proof (region capture reads back whatever app is composited on top; -l<id> grabs the window's own bitmap).
  • click/clickpt/type/key/unlock/raise/deps — cliclick + osascript input at window-relative coords. raise uses NSRunningApplication.activate and self-reports isActive=<bool>; unlock warns loudly if the app isn't active.
• docs/dev/driving-the-app.md — the full macOS recipe (just demo funded Sepolia fork, passphrase deckard-demo; just run/just qa), the three primitives spelled out so you can rebuild them without the script, and the honest caveats below. Cross-links docs/dev/headless-gui-screenshots.md for the Linux/CI path.

Honest caveats (the point of E0 — these save hours)

• Synthetic input only lands when the app is the OS active app. raise reports isActive; false means nothing you type/click will land.
• Capture works even when input doesn't — a clean screencapture -l shot never proves your click registered. Verify from the next shot.
• The ⌘↵/click confirm, the ⌘K query, and Activity j/k/x/Esc are hand-rolled on_key_down and don't fire synthetically; registered actions (⌘,, ⌘⇧D) do.
• So: capture SCREENS via clicks; drive real BROADCASTS through the headless agent (just demo-deposit + just demo-agent); verify LOGIC via tests, not screenshots.

Proof (followed the recipe)

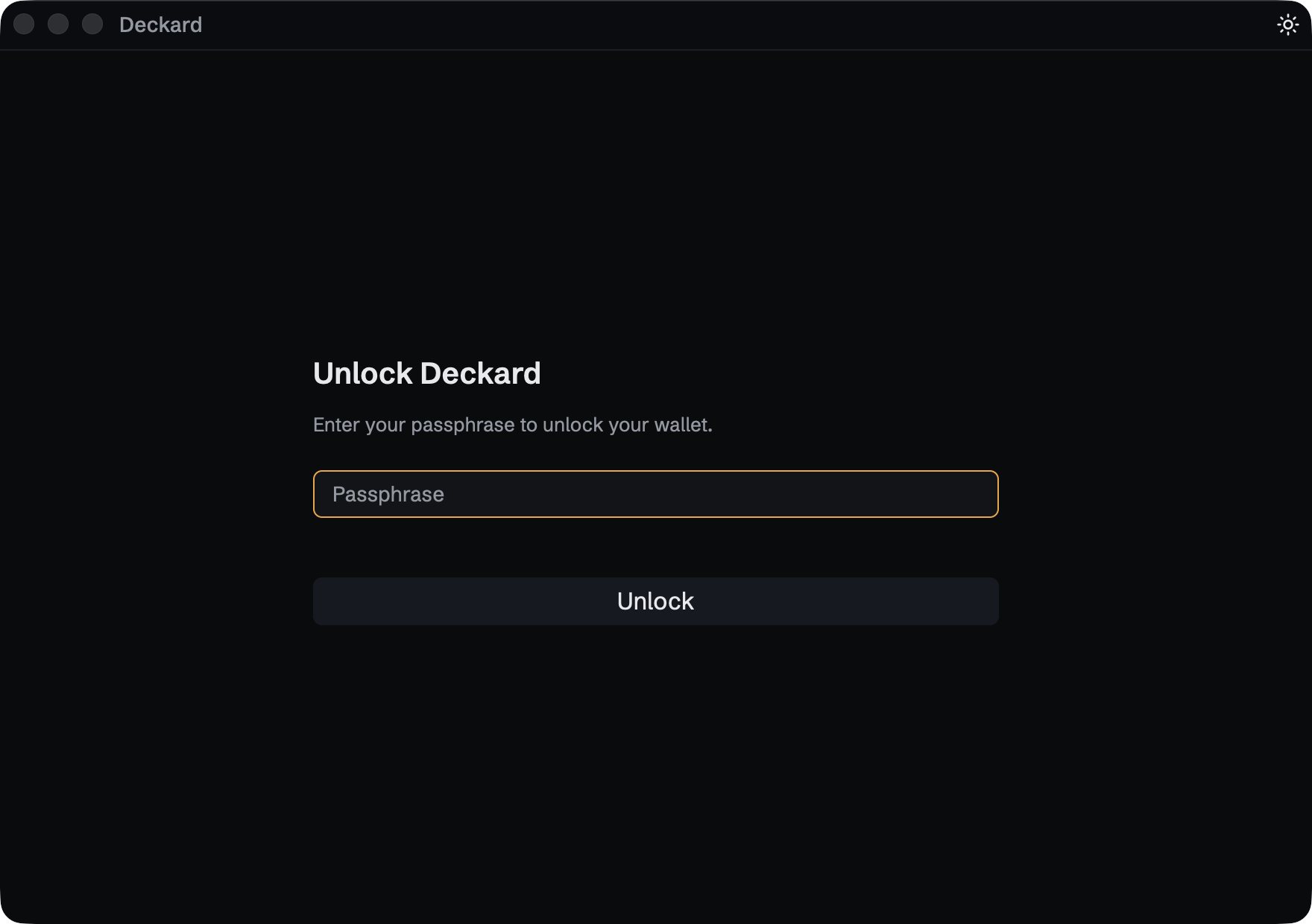

just demo (funded fork via sepolia.drpc.org, chain 11155111) → the Swift finder returned 36105 316 181 880 620 → window-scoped capture of the demo Unlock screen:

⚠️ On the unlock action: in this agent-driven Conductor session the running app could not be made the OS active app (NSRunningApplication.activate() returns true but isActive stays false on macOS 14+; the GPUI app exposes no AXWindow), so the synthetic passphrase+click did not land — exactly the limitation now documented as the #1 caveat. The launch + finder + occlusion-proof capture pipeline is fully validated (screenshot above). To capture the unlocked home screen, run just demo from a foreground Terminal (where the app can take focus) then scripts/deckard-drive.sh unlock — the script's unlock warns if focus is missing.

Definition of Done (#179 Implementer Contract)

• cargo fmt --all --check clean ✅
• just check green (clippy -D warnings, both feature configs) ✅
• cargo test --workspace green (0 failed) ✅
• No new/changed deps (Cargo.toml/Cargo.lock untouched) ✅
• Do-not-touch honored: no crates/ file changed ✅
• ⌘K coverage: n/a — E0 adds no user-facing app action (tooling only).
