Implementation of high-speed SM4 encryption and decryption on FPGA.
Please see this blog post for details.

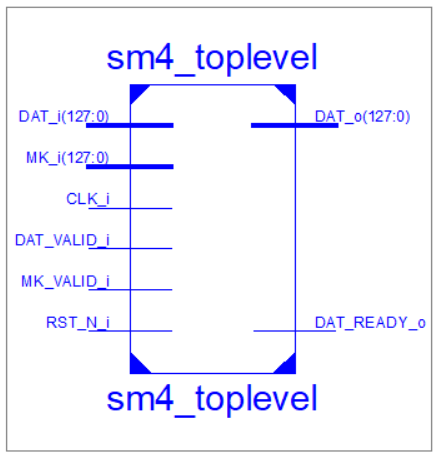

| Signal Name | Description |
|---|---|
| CLK_i | System clock |
| RST_N_i | Asynchronous reset input (falling edge valid) |
| MK_i | 128bit key input |
| MK_VALID_i | Indicates whether the key input is valid |
| DAT_i | 128 bit plaintext (ciphertext) block input |
| DAT_VALID_i | Indicates whether the block input is valid |
| DAT_o | 128 bit ciphertext (plaintext) block output |
| DAT_READY_o | Indicates whether the block output is valid |
keyexp implements key expansion algorithm.
decenc implements nonlinear iterative algorithm for encryption / decryption.
The top module can implement both encryption and decryption. In addition, it can be configured to use a fixed round key to save the resources.
| Parameters | Description | Default |
|---|---|---|
| MODE | 0: Encryption; 1: Decryption | |
| ENABLE_FIXED_RK | 0: Do not use fixed round key; 1: Use fixed round key | 0 |
| FIXED_RK | If fixed round key is used (ENABLE_FIXED_RK=1), specify 1024bit round key | 128’h0 |
Note: If you set ENABLE_FIXED_RK=1, then fixed round key is used, and the port MK_I and MK_VALID_I are out of function.
$ F_{max} = \frac{1}{T-WNS} = 130 MHz $
