splatter: Bounding boxes not working properly.

[thorwhalen]

• There seems to be a width <= height capping. For example (height=200, width=500) produces the same box dimensions as (height=200, width=200).
• Though the bounding box change, the points still seem to roam beyond it in a square containing the rectangular box. Bounding box should bound the nodes, not just produce a limited view. Again, this happens in rectangular boxes.

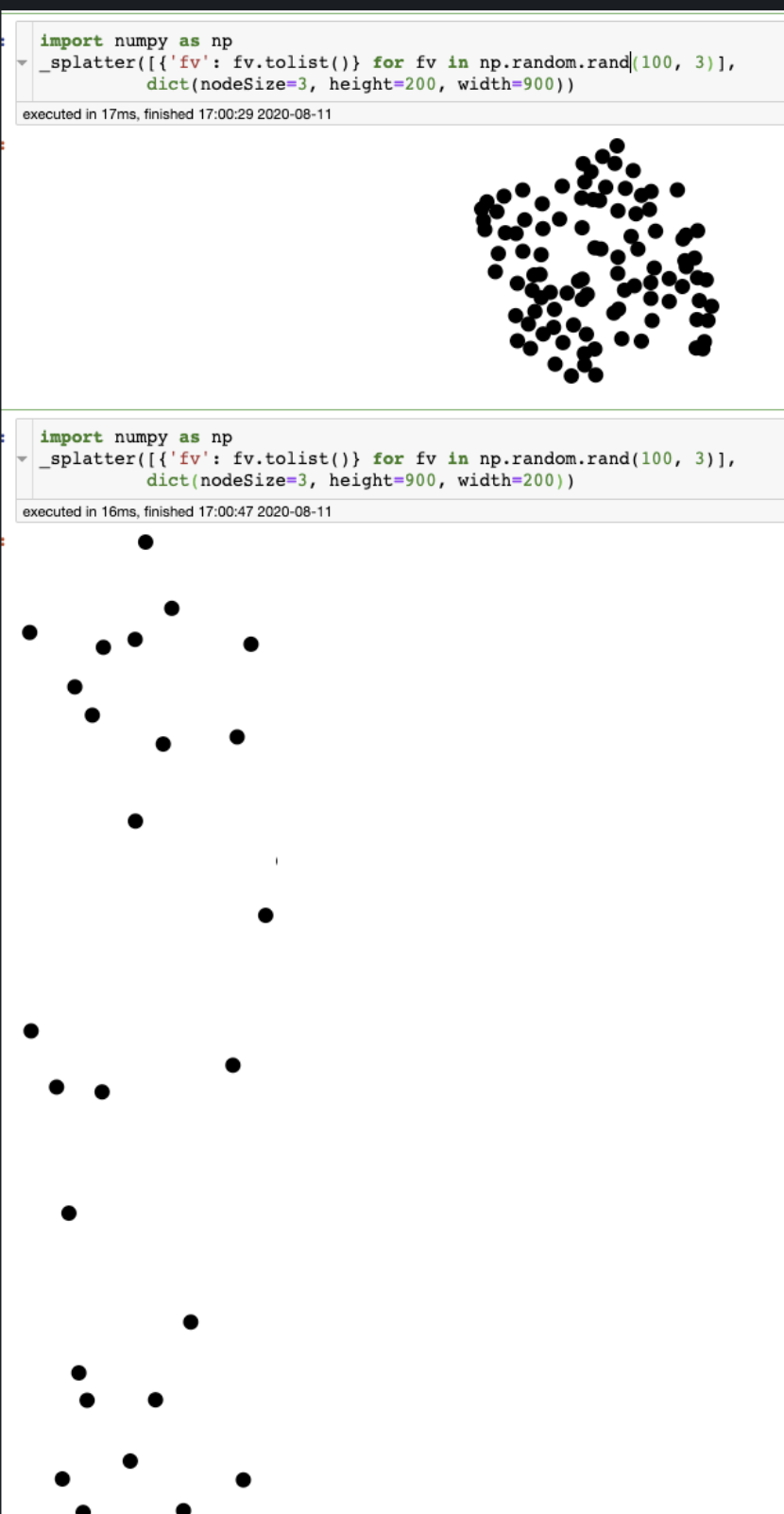

Some code to try to see capping:

import numpy as np
from oui.splatter import _splatter

_splatter([{'fv': fv.tolist()} for fv in np.random.rand(100, 3)],
          dict(nodeSize=3, height=200, width=900))

_splatter([{'fv': fv.tolist()} for fv in np.random.rand(100, 3)],
          dict(nodeSize=3, height=900, width=200)

Some code to try to see that bounding box affects view but now actually "bounding".

import numpy as np
from oui.splatter import _splatter

_splatter([{'fv': fv.tolist()} for fv in np.random.rand(100, 3)],
          dict(nodeSize=2, height=200, width=200))

_splatter([{'fv': fv.tolist()} for fv in np.random.rand(100, 3)],
          dict(nodeSize=2, height=200, width=100))

_splatter([{'fv': fv.tolist()} for fv in np.random.rand(100, 3)],
          dict(nodeSize=2, height=200, width=50))

[thorwhalen]

This is fine:

pts = {
    'foo': [[1, 1, 1]] * 10,
    'bar': [[1, 10, 1]] * 20,
    '': [[5, 10, 10]] * 15  # just include an empty tag to denote "untagged"
}
splatter(pts, figsize=(150, 150))

But this is not:

splatter(pts, figsize=(150, 80))
