re:Flow is a resilience process flow control engine that combines various workflow methods.
Let's take an example in Edge computing. The program process the data from the sensor in every 1 minute, and if it receives the external trouble event, we must record the data every 1 second. Besides, you should call the external alert API. But if a invoke API problem occurs, take another action, or periodically retry until a specified number of times. At the same time, we process to invoke other API asynchronous for functional safety.
Like the example above, for data pipe processing, we require schedule programming, event programming, and scalable flow processing, and consider data coding and control coupling. Resilience is also an essential feature of functional safety.
"re: Flow" is designed to handle this problem with a single programming API.
- Optimized Dynamic Work Processor: re:Flow is a versatile job execution tool that satisfies job execution conditions under any circumstances.
- Self-control process: Optimized for dynamic control environments such as various edge computing environments by dynamically changing its schedule status during job execution.
- Elastic scheduler: Scheduling is similar to the Unix crontab setting method and provides various setting functions through extended API.
- Accurate execution: You can precisely adjust the execution in 1 ms increments aiming at the almost real-time level.
- Resilience feature: provide the variety resilence feature. (timeout,retry,saga...)
- Easy coding: Simple, easy to understand coding method, the code is straightforward.
- Small footprint library: Provides a tiny size library without compromising other libraries.
- Data flow : re:Flow is process flow management but is not data flow based on DAG(Direct acycle graph)
Download [https://github.com/isocline/mvn-repo/raw/master/isocline/reflow/0.9-SNAPSHOT/reflow-0.9-20190703.053733-1.jar] or depend via Maven:
<dependency>
<groupId>isocline</groupId>
<artifactId>reflow</artifactId>
<version>0.9-SNAPSHOT</version>
</dependency>
<repositories>
<repository>
<id>reflow</id>
<url>https://raw.github.com/isocline/mvn-repo</url>
</repository>
</repositories>Modern Reflow versions have the following Java requirements:
- Java v1.8 or higher, both 32-bit and 64-bit versions are supported
- Older versions of Java are not supported
Repeated tasks every 1 seconds
import isocline.reflow.*;
public class SimpleRepeater implements Work {
public long execute(WorkEvent event) throws InterruptedException {
// DO YOUR WORK
return WAIT;
}
@Test
public void startMethod() throws Exception {
Re.play(new SimpleRepeater())
.interval(1 * Time.SECOND)
.finishTimeFromNow(5 * Time.SECOND)
.activate();
}
}OR
import isocline.reflow.*;
public class SimpleRepeater {
@Test
public void startMethod() throws Exception {
Re.play( (WorkEvent event) -> {
// DO YOUR WORK
return 10 * Time.SECOND;
})
.finishTimeFromNow(5 * Time.SECOND)
.activate();
}
}Real-time (Time sensitive) processing mode: Repeats exactly in milliseconds
import isocline.reflow.*;
public class PreciseRepeater implements Work {
private static Logger logger = Logger.getLogger(PreciseRepeater.class.getName());
private int seq = 0;
public long execute(WorkEvent event) throws InterruptedException {
logger.debug(activate + seq++);
return 10; // 10 milli seconds
}
@Test
public void startMethod() throws Exception {
Re.play(new PreciseRepeater())
.strictMode()
.activate();
}
}##Output
2019-06-16 16:00:00.000 DEBUG execute:0 2019-06-16 16:00:00.010 DEBUG execute:1 2019-06-16 16:00:00.020 DEBUG execute:2 2019-06-16 16:00:00.030 DEBUG execute:3 2019-06-16 16:00:00.040 DEBUG execute:4 2019-06-16 16:00:00.050 DEBUG execute:5 2019-06-16 16:00:00.060 DEBUG execute:6 2019-06-16 16:00:00.070 DEBUG execute:7
Repeated tasks every 1 hour
import isocline.reflow.*;
public class ScheduledWork implements Work {
public long execute(WorkEvent event) throws InterruptedException {
// DO YOUR WORK
return WAIT;
}
@Test
public void startMethod() throws Exception {
Re.play(new ScheduledWork())
.interval(1 * Time.HOUR)
.startTime("2020-04-24T09:00:00Z")
.finishTime("2020-06-16T16:00:00Z")
.activate();
}
}Or crontab style
import isocline.reflow.*;
import isocline.reflow.descriptor.CronDescriptor;
public class ScheduledWork implements Work {
public long execute(WorkEvent event) throws InterruptedException {
// DO YOUR WORK
return WAIT;
}
@Test
public void startMethod() throws Exception {
Re.play(new CronDescriptor("* 1,4-6 * * *"), new ScheduledWork())
.finishTime("2020-06-16T16:00:00Z")
.activate();
}
}import isocline.reflow.*;
public class EventReceiver implements Work {
public long execute(WorkEvent event) throws InterruptedException {
// DO YOUR WORK
return WAIT;
}
@Test
public void startMethod() throws Exception {
// Receiver
Re.play(this).on("example-event")
.activate();
// Emitter
WorkEventGenerator gen = new WorkEventGenerator();
gen.setEventName("example-event");
Re.play(gen)
.strictMode()
.interval(1 * Time.SECOND)
.startTime(Time.nextSecond())
.finishTimeFromNow(30 * Time.SECOND)
.activate();
}
}

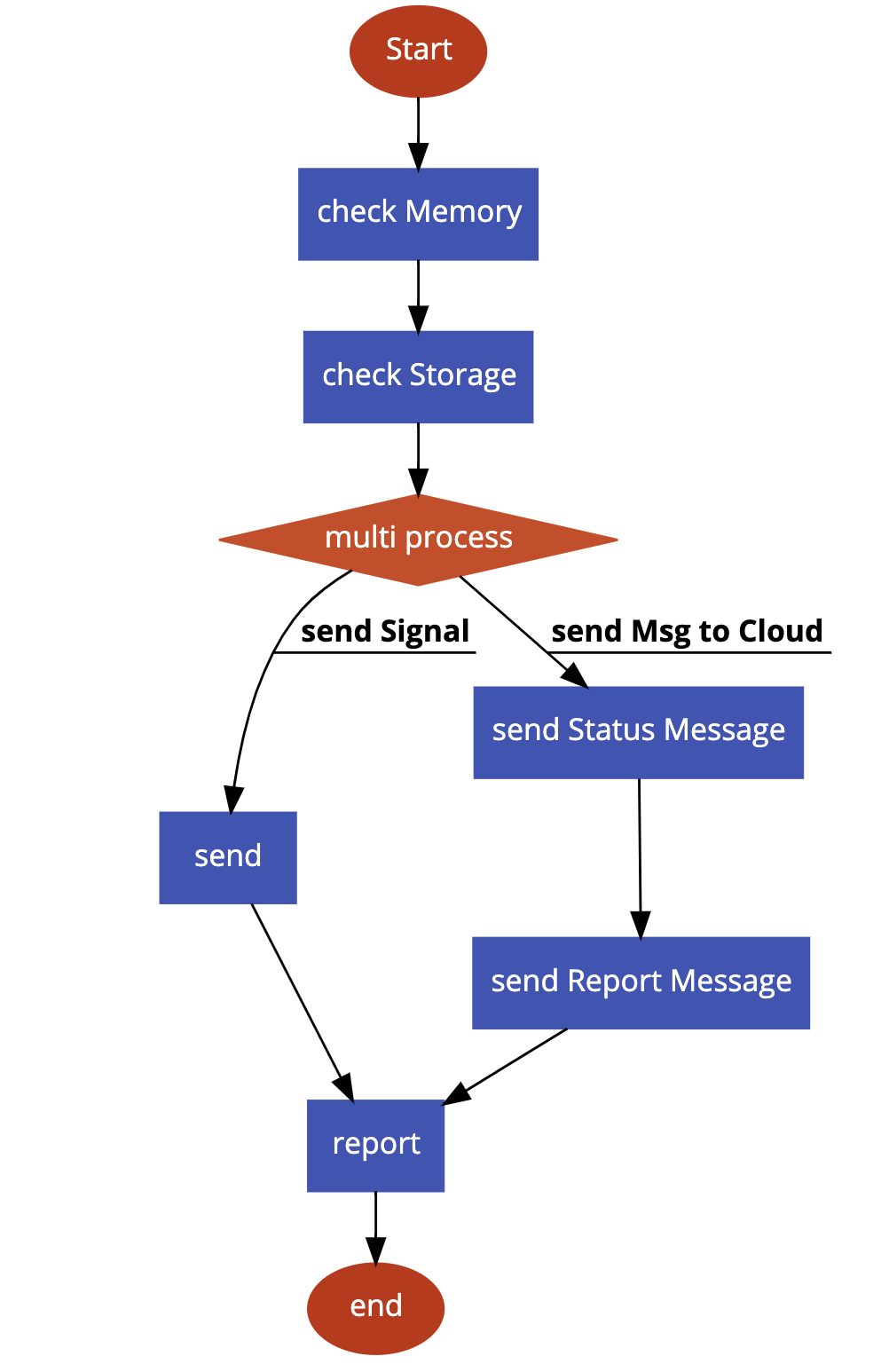

import isocline.reflow.*;
public class BasicWorkFlowTest {
public void checkMemory() {
log("check MEMORY");
}
public void checkStorage() {
log("check STORAGE");
}
public void sendSignal() {
log("send SIGNAL");
}
public void sendStatusMsg() {
log("send STATUS MSG");
}
public void sendReportMsg() {
log("send REPORT MSG");
}
public void report() {
log("REPORT");
}
@Test
public void startMethod() {
// design process flow
WorkFlow flow = WorkFlow.create();
WorkFlow p1 = flow.next(this::checkMemory).next(this::checkStorage);
WorkFlow t1 = flow.wait(p1).next(this::sendSignal);
WorkFlow t2 = flow.wait(p1).next(this::sendStatusMsg).next(this::sendReportMsg);
flow.waitAll(t1, t2).next(this::report).end();
// execute flow
Re.flow(flow).activate().block();
// Re.flow(this).activate().block(); // sync mode
}
}setup timeout for sendSignal method
@Test
public void testTimeout() {
// design process flow
WorkFlow flow = WorkFlow.create();
WorkFlow p1 = flow.next(this::checkMemory).next(this::checkStorage);
// timeout 1 seconds for sendSignal method
WorkFlow t1 = flow.wait(p1).next(this::sendSignal,e -> e.timeout(1000));
WorkFlow t2 = flow.wait(p1).next(this::sendStatusMsg).next(this::sendReportMsg);
flow.waitAll(t1, t2).next(this::report).end();
// execute flow
Re.flow(flow).activate().block();
// Re.flow(this).activate().block(); // sync mode
}Link [https://github.com/isocline/reflow/tree/master/src/test/java/isocline/reflow/examples]
