Bench Setup
- Basic setup guide
- Examples, maybe with photos
- OBD2 pinout, circle the CANH, CANL, 12V, GND pins
- Verifying CAN voltages
- General tips, crimping connectors etc
Basic bench setup.
-
DC power supply. 12V, minimum 1A DC power source. Prefered to use adjustable power supply.
-

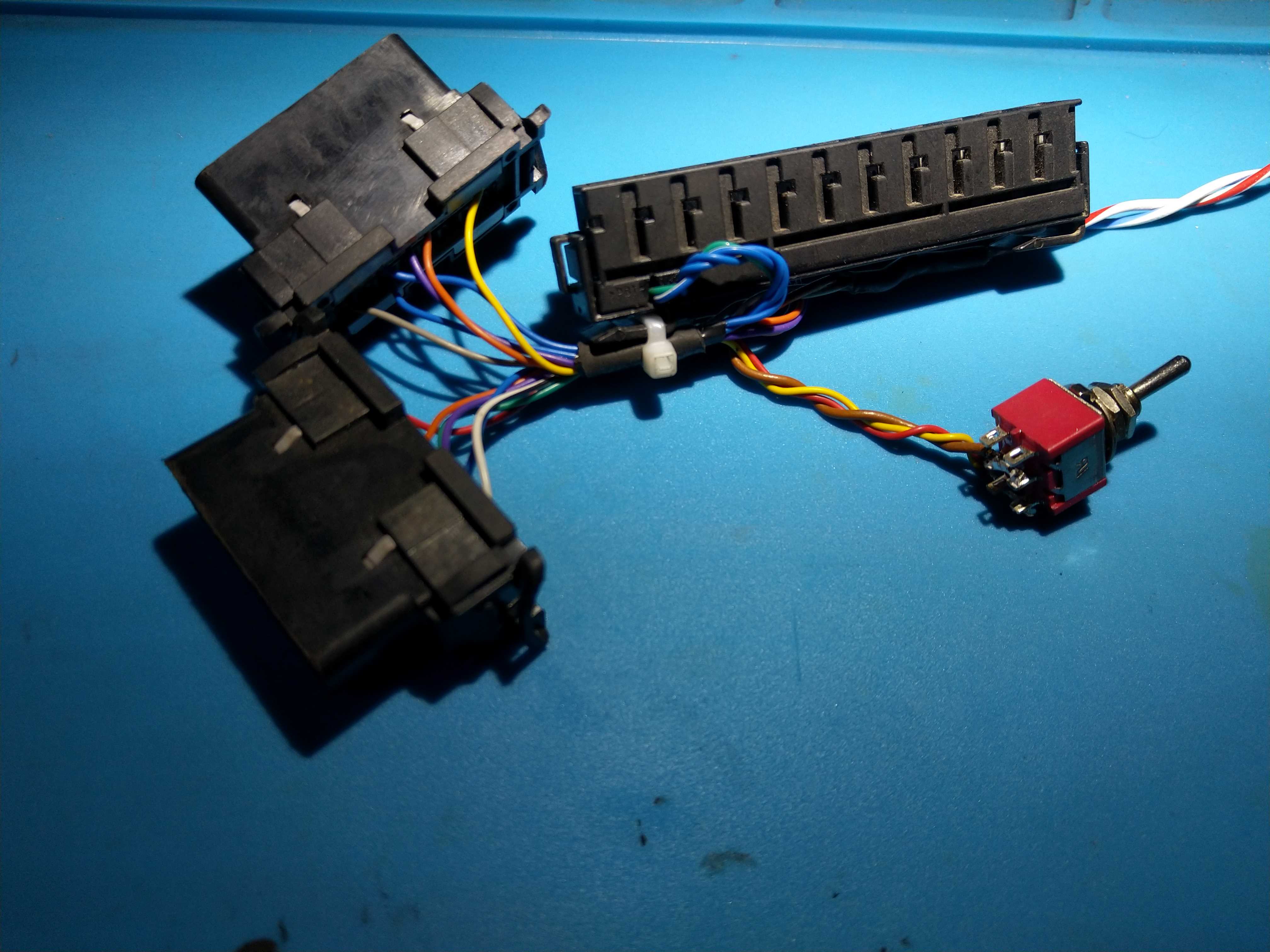

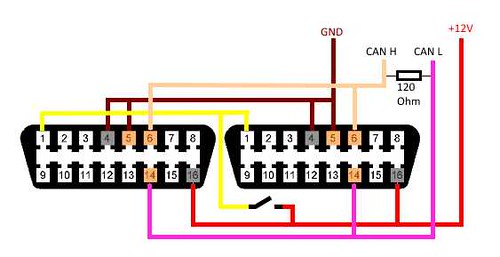

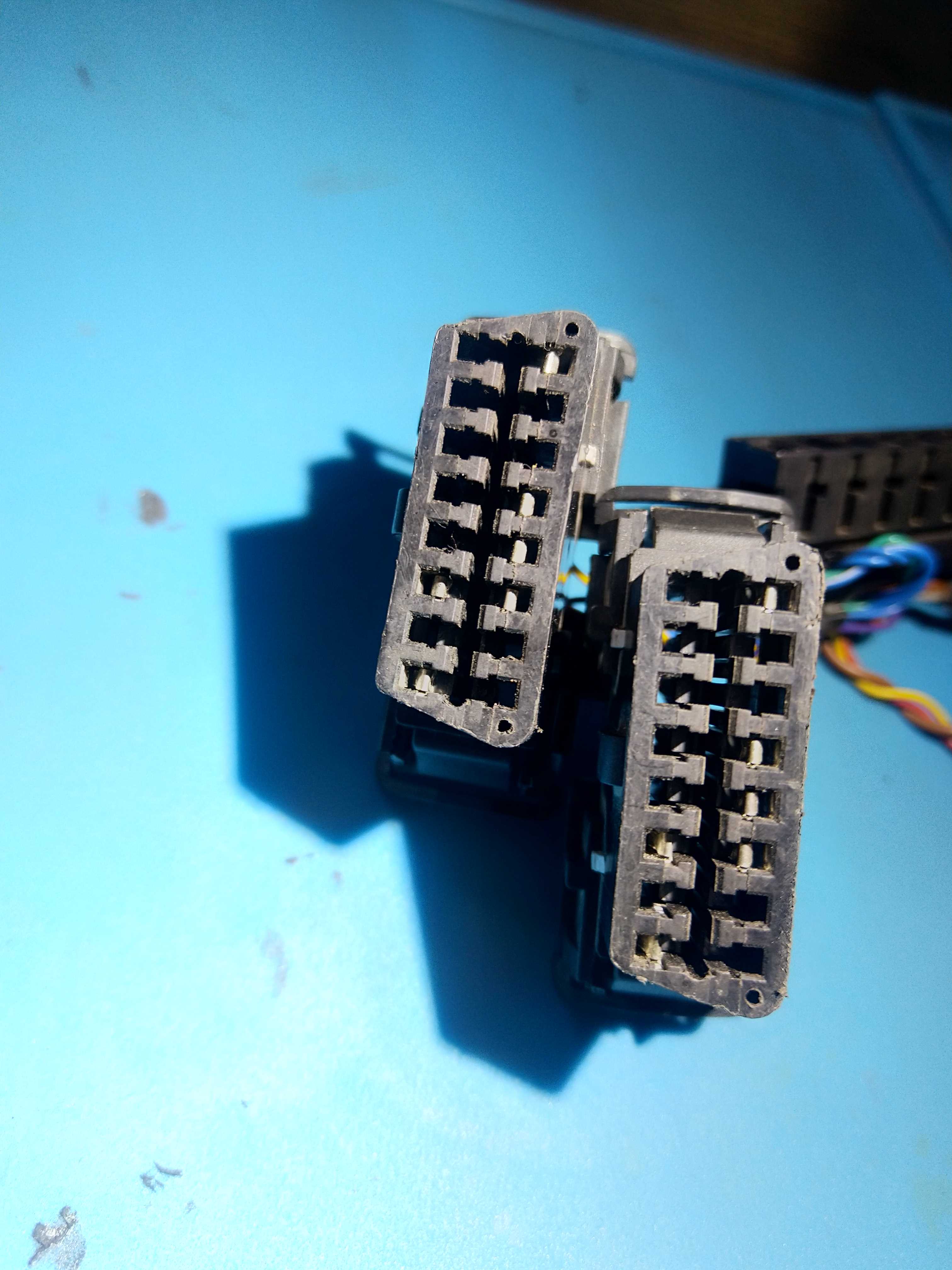

Standart OBDII socket can be used as well. For general purpose usage recommended to use Y type obd splitter, that may help in reversing, listening to Can bus during some process.
-
Using mb multiplexer may require switch for kl.15(ignition) at OBDII's pin 1.
-

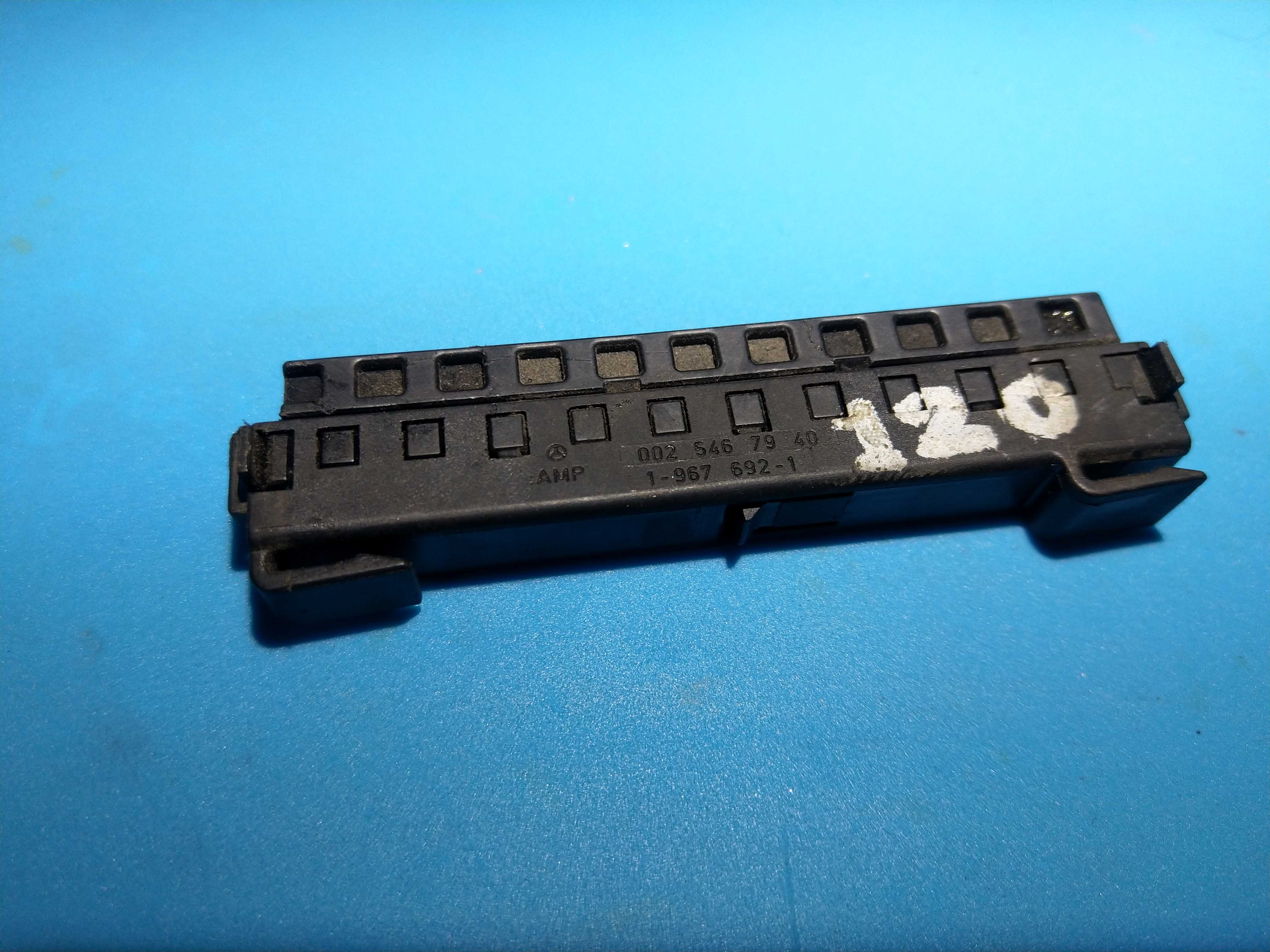

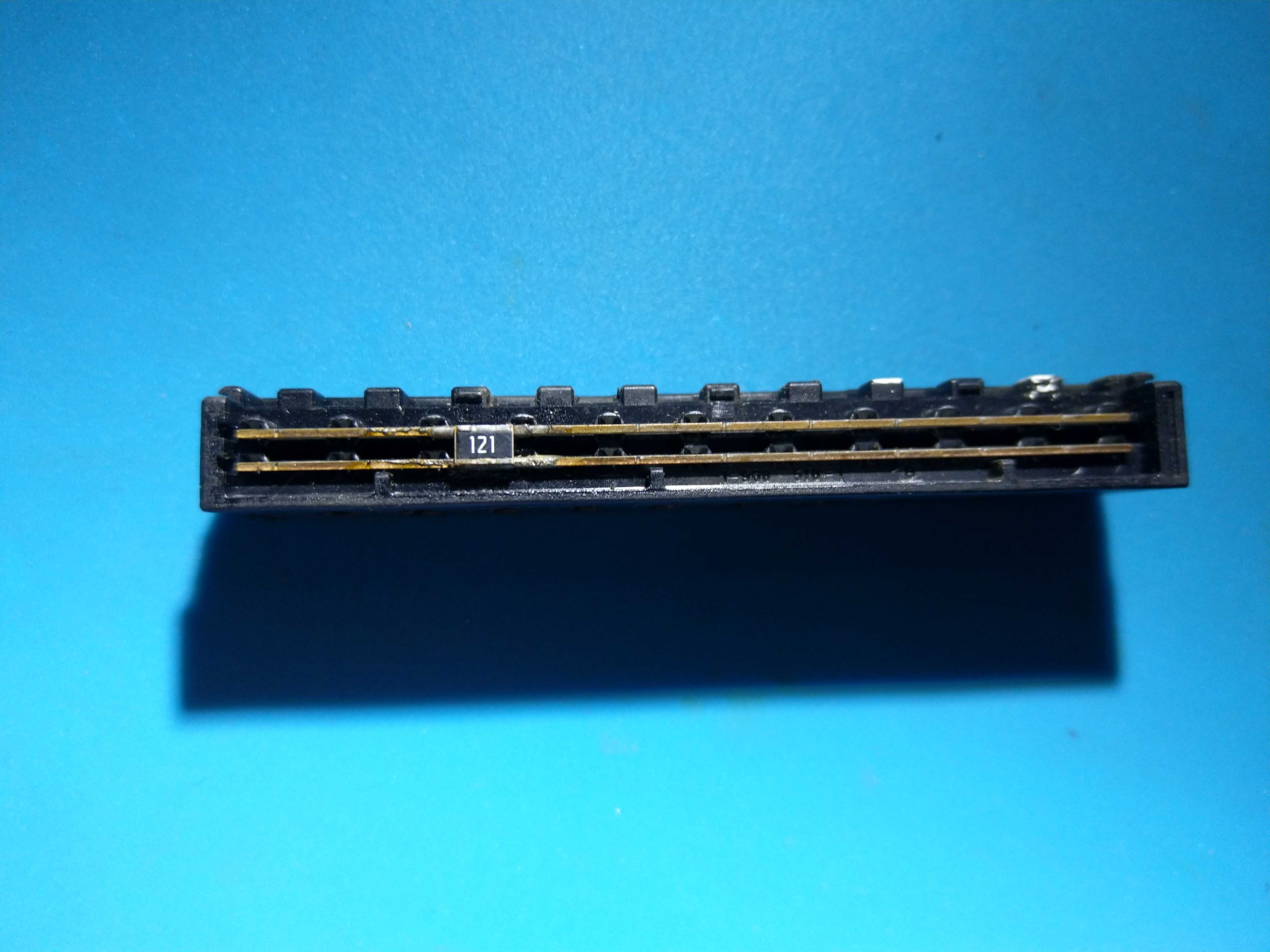

Optional usage of can bus terminator (p/n 0025467940) that intended to save your time. Not all units terminated with resistor (120 Ohm) so it must be statically soldered between hi/low lines. Next advantage that you can quickly network more than one unit.
