[yuxino]

Fixes #2

Problem

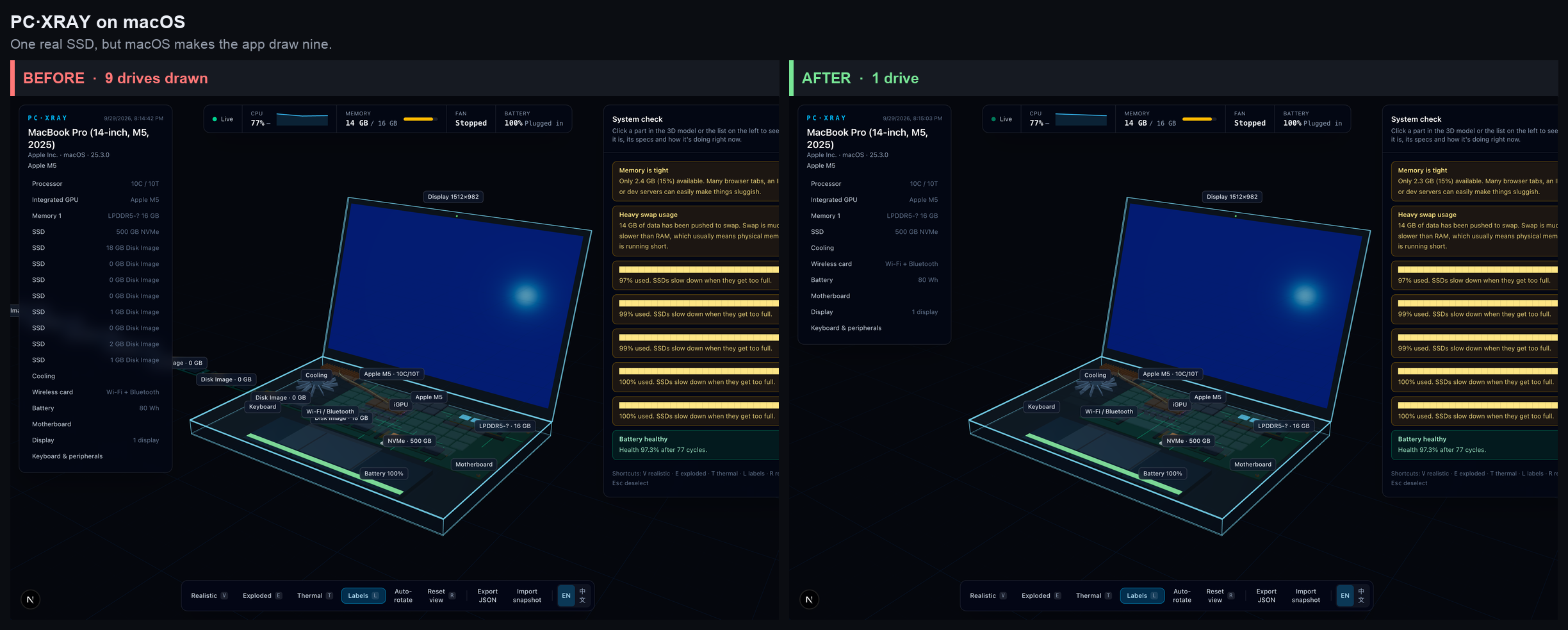

On macOS, systeminformation reports mounted disk images — installed app DMGs, the Xcode / iOS Simulator volume, any open .dmg — alongside real drives. They come back with type: "Disk Image" and were treated as hardware, so a single-SSD Mac was drawn with nine drives and the app warned about disks that do not exist.

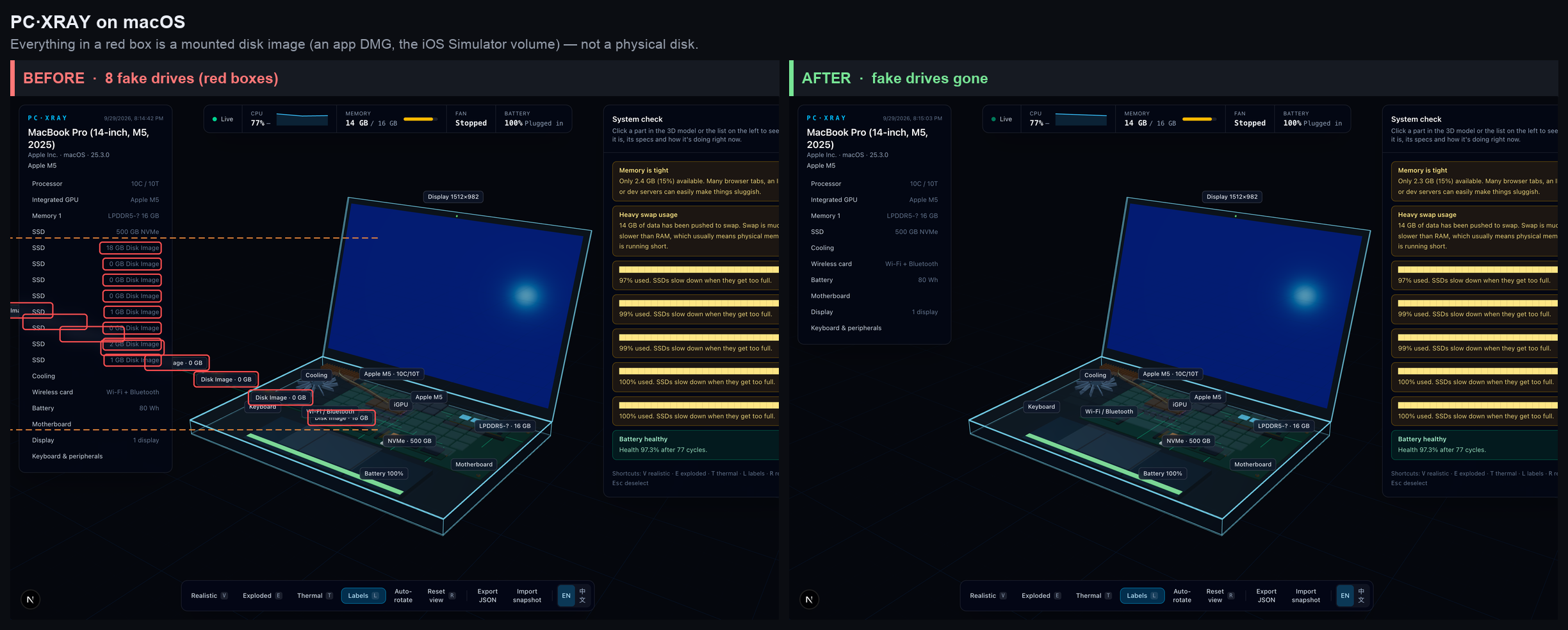

Annotated — every red box is a phantom entry, in the 3D view and in the parts list:

Change

diskLayout is filtered once, and that same set of devices is reused to skip the matching filesystems in fsSize:

const DISK_IMAGE_TYPE = "Disk Image";

// ... keep them out of the 3D scene and the parts list
.filter((d) => d.type !== DISK_IMAGE_TYPE)

// ... and out of `volumes`, which drives the insights panel
const diskImageDevices = (data.diskLayout as si.Systeminformation.DiskLayoutData[])
  .filter((d) => d.type === DISK_IMAGE_TYPE && d.device)
  .map((d) => `/dev/${d.device}`);
...
if (diskImageDevices.some((dev) => fs.fs === dev || fs.fs.startsWith(`${dev}s`))) continue;

The devices line up exactly: a diskLayout entry with device: "disk6" corresponds to the fsSize entry /dev/disk6s1, which is the iOS Simulator volume.

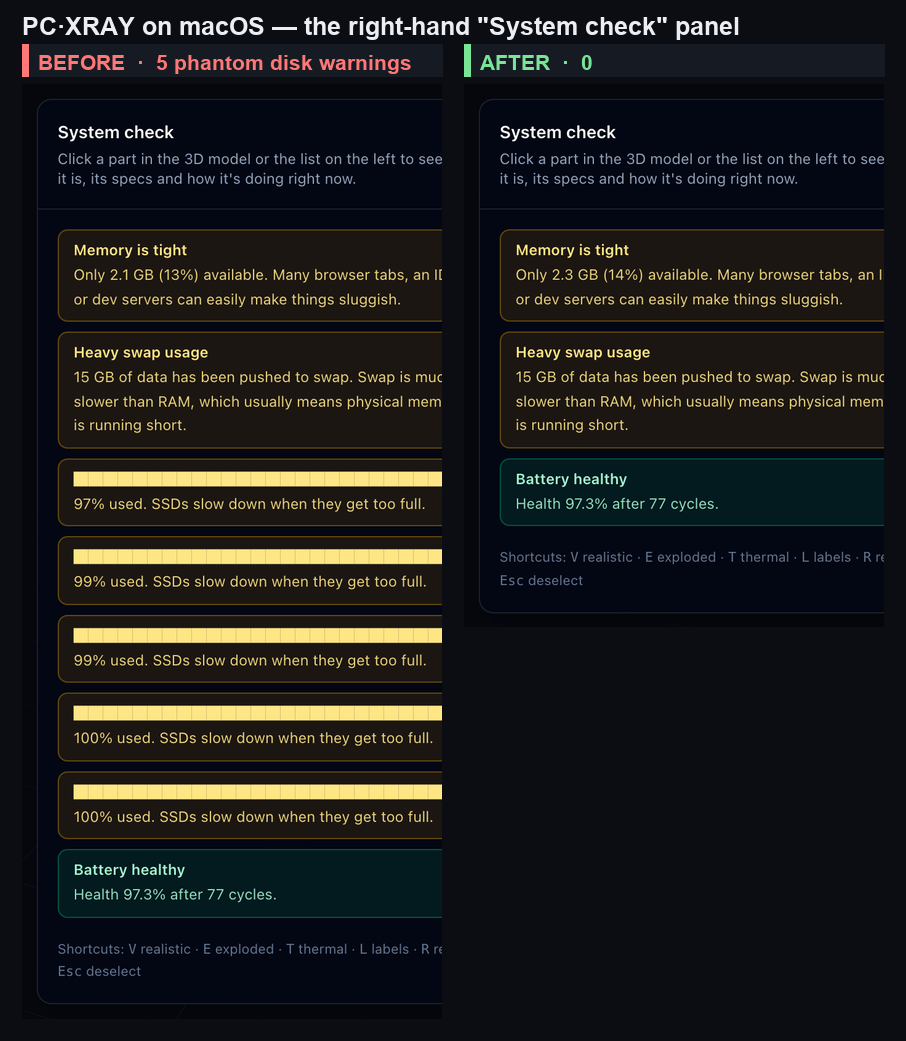

The right-hand panel

The first commit here only filtered diskLayout. That fixed the 3D view and the parts list, but the "System check" panel kept complaining, because it is driven by volumes, which was untouched:

volumes goes from 18 to 10 on this machine, and the five "is running out of space" warnings disappear. (The paths in the BEFORE panel are blacked out because they name the local apps that were mounted.)

Tested

• macOS — disks 9 → 1, volumes 18 → 10; /Volumes/, CoreSimulator and running out of space no longer appear anywhere in the rendered page.
• pnpm typecheck passes.
• Windows / Linux — type: "Disk Image" never occurs there, so both filters match nothing and behaviour is unchanged.

[kerwin2046]

@yuxino Thanks a lot for taking the time to investigate this and submit a fix! 🙌

Really appreciate the detailed investigation and testing, especially the part about filtering both diskLayout and fsSize. This makes PC·XRAY much more accurate on macOS.

Thanks for contributing to the project! 🚀
