🚀 EGS Installer Documentation 🚀

The online documentation provides enhanced navigation, better formatting, and the latest updates.

📑 Table of Contents

Section	Description
📚 Documentation	All documentation links and guides
🚀 Overview	Installation methods comparison
Getting Started	Prerequisites and initial setup
⚡ Quick Installer 🧪 (Beta)	Single-command beta installation
📋 Config-Based Installer	YAML configuration-based installation
🛠️ Config-Based Installation Steps	Step-by-step configuration guide
🌐 Multi-Cluster Setup	Multi-cluster deployment guide
🗑️ Uninstallation	How to uninstall EGS
📋 Quick Reference	Commands and operations summary
🔧 Troubleshooting	Generate diagnostic bundles
📦 Airgap Deployment	Offline/airgap installation

📚 Documentation

Category	Document	Description
🔑 License	EGS License Setup	License configuration guide
⚡ Quick Start 🧪 (Beta)	Quick Install Guide	Single-command beta installer with all options
📋 Configuration	Configuration Reference	Config-based installer detailed reference
🌐 Multi-Cluster	Multi-Cluster Example	Complete multi-cluster YAML example
📋 Prerequisites	Controller Prerequisites	Controller cluster requirements
📋 Prerequisites	Worker Prerequisites	Worker cluster requirements
🗂️ Setup	Namespace Creation	Pre-create namespaces script
✅ Validation	Preflight Check	Pre-installation validation
🔧 Operations	Slice & Admin Token	Token retrieval guide
💰 Operations	Custom Pricing	Custom pricing configuration
🔐 Security	Prometheus TLS Authentication	TLS setup for Prometheus
🔧 Troubleshooting	Troubleshooting Guide	Generate diagnostic bundles for support
📦 Airgap	Airgap Image Management	Airgap image pull and push

📚 User Guide: docs.avesha.io/documentation/enterprise-egs

🚀 Overview

The EGS Installer provides installation methods for deploying EGS components into Kubernetes clusters:

Method	Best For	Description	Documentation
⚡ Quick Installer 🧪 (Beta)	New users, PoC, simple setups	Beta single-command installer with auto-configuration, skip flags, and multi-cluster support	📖 Quick Install Guide
📋 Config-Based Installer	Production, teams, advanced setups	Version-controlled YAML configuration for repeatable, auditable installs	📖 Configuration Reference

All methods leverage Helm for package management, kubectl for Kubernetes interaction, and yq for YAML parsing.

Getting Started

Prerequisites

Before installation, ensure the following:

1. 📝 Registration

Complete the registration at Avesha EGS Registration to receive:

Access credentials
Product license file (egs-license.yaml)

📖 See EGS License Setup for detailed instructions.

2. 🔧 Required Binaries

Verify these tools are installed and in your PATH:

Binary	Minimum Version
yq	4.44.2
helm	3.15.0
kubectl	1.23.6
jq	1.6.0

3. 🌐 Kubernetes Access

Confirm administrative access to target clusters with appropriate kubeconfig files.

4. 📂 Clone Repository

git clone https://github.com/kubeslice-ent/egs-installation
cd egs-installation

5. 🔗 KubeSlice Networking (Optional)

Note: KubeSlice networking is disabled by default (kubesliceNetworking: enabled: false).

If enabling KubeSlice networking, ensure gateway nodes are labeled:

kubectl get nodes -l kubeslice.io/node-type=gateway

The installer can auto-label nodes when add_node_label: true is configured.

6. ✅ Preflight Check (Optional)

Validate your environment before installation:

./egs-preflight-check.sh --kubeconfig ~/.kube/config --kubecontext-list context1,context2

📖 See Preflight Check Guide for details.

7. 🗂️ Pre-create Namespaces (Optional)

For clusters with namespace policies:

./create-namespaces.sh --input-yaml namespace-input.yaml --kubeconfig ~/.kube/config

📖 See Namespace Creation Guide for details.

⚡ Quick Installer

🧪 Beta: The Quick Installer is currently in beta. For production or advanced setups, prefer the Config-Based Installer below.

New to EGS? Start here with our single-command installer!

Basic Installation

curl -fsSL https://repo.egs.avesha.io/install-egs.sh | bash -s -- \
  --license-file egs-license.yaml --kubeconfig ~/.kube/config

Common Commands

Scenario	Command
Single-cluster (full)	`curl -fsSL https://repo.egs.avesha.io/install-egs.sh \| bash -s -- --license-file egs-license.yaml --kubeconfig ~/.kube/config`
Skip prerequisites	Add `--skip-postgresql --skip-prometheus --skip-gpu-operator`
Multi-cluster	Add `--controller-kubeconfig <ctrl.yaml> --worker-kubeconfig <wkr.yaml>`
Register worker	`--register-worker --controller-kubeconfig <ctrl.yaml> --register-cluster-name <name> --register-project-name avesha`

📝 Registration Required

Complete the registration process at Avesha EGS Registration to receive your license file (egs-license.yaml).

📖 For complete Quick Installer documentation including topology examples, multi-cluster setup, worker registration, and all options:

→ View Full Quick Install Guide

📋 Config-Based Installer

For production environments where you need version-controlled, auditable configurations.

The Config-Based Installer uses egs-installer.sh with a managed egs-installer-config.yaml file. This approach is recommended when you need:

Multiple config files per environment, customer, or cluster topology
Fine-grained control over all installation parameters
Version-controlled, auditable installation configurations
Complex multi-cluster setups with custom monitoring endpoints

📖 Detailed configuration documentation: Configuration Reference

🛠️ Config-Based Installation Steps

Using Quick Installer? See the Quick Install Guide instead.

Step 1: Configure Prerequisites

⚙️ Choose ONE approach:

🅰️ Option A: EGS-Managed Prerequisites (Recommended)

Let EGS install Prometheus, GPU Operator, and PostgreSQL:

# egs-installer-config.yaml
global_kubeconfig: "path/to/kubeconfig"    # Required - Path to your kubeconfig file
global_kubecontext: "your-context"         # Required - Context to use
use_global_context: true

enable_install_controller: true
enable_install_ui: true
enable_install_worker: true
enable_install_additional_apps: true       # Enables prerequisites (PostgreSQL, Prometheus, GPU Operator)
enable_custom_apps: false                  # Set true for NVIDIA drivers on GKE
run_commands: false                        # Set true for MIG configuration
add_node_label: true                       # Auto-label gateway nodes

Run prerequisites installer:

./egs-install-prerequisites.sh --input-yaml egs-installer-config.yaml

🅱️ Option B: Pre-existing Infrastructure

If you have Prometheus, GPU Operator, or PostgreSQL already running:

Set enable_install_additional_apps: false
See EGS Controller Prerequisites for Prometheus/PostgreSQL configuration
See EGS Worker Prerequisites for GPU Operator/monitoring configuration

Step 2: Configure Controller

📝 PostgreSQL Note: KubeTally is enabled by default and requires PostgreSQL. If using EGS-managed PostgreSQL (enable_install_additional_apps: true), the default configuration below works automatically. If using your own PostgreSQL, update the kubeTally section with your PostgreSQL connection details.

kubeslice_controller_egs:
  skip_installation: false
  use_global_kubeconfig: true
  specific_use_local_charts: true
  kubeconfig: ""                               # Empty = uses global_kubeconfig
  kubecontext: ""                              # Empty = uses global_kubecontext
  namespace: "kubeslice-controller"
  release: "egs-controller"
  chart: "kubeslice-controller-egs"
  inline_values:
    global:
      imageRegistry: harbor.saas1.smart-scaler.io/avesha/aveshasystems
      kubeTally:
        enabled: true
        # PostgreSQL Configuration - Update if using your own PostgreSQL
        postgresSecretName: kubetally-db-credentials
        existingSecret: false                  # Set true if using pre-created secret
        postgresAddr: "kt-postgresql.kt-postgresql.svc.cluster.local"
        postgresPort: 5432
        postgresUser: "postgres"
        postgresPassword: "postgres"
        postgresDB: "postgres"
        postgresSslmode: disable
        prometheusUrl: http://prometheus-kube-prometheus-prometheus.egs-monitoring.svc.cluster.local:9090
    kubeslice:
      controller:
        endpoint: ""                           # Auto-fetched if empty
        replication:
          minio:
            install: "true"
            storage: 1Gi
            username: minioadmin
            password: minioadmin
            service:
              type: "LoadBalancer"
    serviceMonitor:
      enabled: true
      namespace: egs-monitoring
  helm_flags: "--wait --timeout 5m --debug"
  verify_install: false
  verify_install_timeout: 30

📖 See egs-installer-config.yaml for complete example.

PostgreSQL Configuration Options

Scenario	Configuration
EGS-Managed PostgreSQL	Use defaults above. PostgreSQL installed via `enable_install_additional_apps: true`
Pre-existing PostgreSQL	Update `postgresAddr`, `postgresPort`, `postgresUser`, `postgresPassword`, `postgresDB` with your values
Pre-created Secret	Set `existingSecret: true`, leave other postgres fields empty, ensure secret exists in `kubeslice-controller` namespace

📖 See EGS Controller Prerequisites for detailed PostgreSQL setup.

Step 3: Configure UI (Optional)

The UI typically requires no changes from defaults.

kubeslice_ui_egs:
  skip_installation: false
  use_global_kubeconfig: true
  kubeconfig: ""                               # Empty = uses global_kubeconfig
  kubecontext: ""                              # Empty = uses global_kubecontext
  namespace: "kubeslice-controller"
  release: "egs-ui"
  chart: "kubeslice-ui-egs"
  specific_use_local_charts: true
  inline_values:
    global:
      imageRegistry: harbor.saas1.smart-scaler.io/avesha/aveshasystems
    kubeslice:
      prometheus:
        url: http://prometheus-kube-prometheus-prometheus.egs-monitoring.svc.cluster.local:9090
      uiproxy:
        service:
          type: LoadBalancer                   # Use NodePort if LoadBalancer unavailable
      apigw:
        env:
          - name: DCGM_METRIC_JOB_VALUE
            value: nvidia-dcgm-exporter        # Must match Prometheus scrape job name
      egsCoreApis:
        enabled: true
  helm_flags: "--wait --timeout 5m --debug"
  verify_install: false

📖 See egs-installer-config.yaml for complete example.

Step 4: Configure Workers

kubeslice_worker_egs:
  - name: "worker-1"                           # Must match cluster_registration
    use_global_kubeconfig: true
    kubeconfig: ""                             # Empty = uses global_kubeconfig
    kubecontext: ""                            # Empty = uses global_kubecontext
    skip_installation: false
    specific_use_local_charts: true
    namespace: "kubeslice-system"
    release: "egs-worker"
    chart: "kubeslice-worker-egs"
    inline_values:
      global:
        imageRegistry: harbor.saas1.smart-scaler.io/avesha/aveshasystems
      kubesliceNetworking:
        enabled: false                         # Set true if using KubeSlice networking
      operator:
        env:
          - name: DCGM_EXPORTER_JOB_NAME
            value: gpu-metrics                 # Must match Prometheus scrape job name
      egs:
        prometheusEndpoint: "http://prometheus-kube-prometheus-prometheus.egs-monitoring.svc.cluster.local:9090"
        grafanaDashboardBaseUrl: "http://<grafana-lb>/d/Oxed_c6Wz"
      egsGpuAgent:
        env:
          - name: REMOTE_HE_INFO
            value: "nvidia-dcgm.egs-gpu-operator.svc.cluster.local:5555"
          - name: HEALTH_CHECK_INTERVAL
            value: "15m"
      monitoring:
        podMonitor:
          enabled: true
          namespace: egs-monitoring
    helm_flags: "--wait --timeout 5m --debug"
    verify_install: true
    verify_install_timeout: 60

📖 See egs-installer-config.yaml for complete example.

Step 5: Configure Cluster Registration

cluster_registration:
  - cluster_name: "worker-1"                   # Must match worker name
    project_name: "avesha"
    telemetry:
      enabled: true
      endpoint: "http://prometheus-kube-prometheus-prometheus.egs-monitoring.svc.cluster.local:9090"
      telemetryProvider: "prometheus"
    geoLocation:
      cloudProvider: ""                        # e.g., "GCP", "AWS", "azure"
      cloudRegion: ""                          # e.g., "us-central1", "us-east-1"

📖 See Multi-Cluster Example for multi-cluster registration.

Step 6: Configure Additional Applications (When `enable_install_additional_apps: true`)

If you set enable_install_additional_apps: true, configure the additional_apps section for PostgreSQL, Prometheus, and GPU Operator:

additional_apps:
  # GPU Operator - Required for GPU workloads
  - name: "gpu-operator"
    skip_installation: false
    use_global_kubeconfig: true
    kubeconfig: ""
    kubecontext: ""
    namespace: "egs-gpu-operator"
    release: "gpu-operator"
    chart: "gpu-operator"
    repo_url: "https://helm.ngc.nvidia.com/nvidia"
    version: "v25.3.4"
    specific_use_local_charts: true
    inline_values:
      hostPaths:
        driverInstallDir: "/home/kubernetes/bin/nvidia"
      toolkit:
        installDir: "/home/kubernetes/bin/nvidia"
      cdi:
        enabled: true
        default: true
      driver:
        enabled: false                         # Set true if nodes need NVIDIA drivers
    helm_flags: "--debug"
    verify_install: false
    verify_install_timeout: 600

  # Prometheus - Required for monitoring
  - name: "prometheus"
    skip_installation: false
    use_global_kubeconfig: true
    kubeconfig: ""
    kubecontext: ""
    namespace: "egs-monitoring"
    release: "prometheus"
    chart: "kube-prometheus-stack"
    repo_url: "https://prometheus-community.github.io/helm-charts"
    version: "v45.0.0"
    specific_use_local_charts: true
    inline_values:
      prometheus:
        service:
          type: ClusterIP
        prometheusSpec:
          additionalScrapeConfigs:
            - job_name: gpu-metrics
              scrape_interval: 1s
              metrics_path: /metrics
              kubernetes_sd_configs:
                - role: endpoints
                  namespaces:
                    names:
                      - egs-gpu-operator
      grafana:
        enabled: true
    helm_flags: "--debug"
    verify_install: false

  # PostgreSQL - Required for KubeTally
  - name: "postgresql"
    skip_installation: false
    use_global_kubeconfig: true
    kubeconfig: ""
    kubecontext: ""
    namespace: "kt-postgresql"
    release: "kt-postgresql"
    chart: "postgresql"
    repo_url: "oci://registry-1.docker.io/bitnamicharts/postgresql"
    version: "16.7.27"
    specific_use_local_charts: true
    inline_values:
      auth:
        postgresPassword: "postgres"
        username: "postgres"
        password: "postgres"
        database: "postgres"
      primary:
        persistence:
          enabled: true
          size: 10Gi
    helm_flags: "--debug"
    verify_install: false

📖 See egs-installer-config.yaml for complete additional_apps configuration.

⚠️ Multi-Cluster Note: For multi-cluster setups, you need additional entries for each worker cluster with their specific kubeconfig and kubecontext. See Multi-Cluster Example.

Step 7: Configure Projects (Optional)

Projects provide logical grouping for clusters. Default project avesha is created automatically:

projects:
  - name: "avesha"
    username: "admin"

Step 8: Configure Manifests and Commands (When `enable_custom_apps: true`)

If you set enable_custom_apps: true for NVIDIA driver installation or MIG configuration:

# Manifests for GPU quota and NVIDIA driver
manifests:
  - appname: "gpu-operator-quota"
    use_global_kubeconfig: true
    namespace: "egs-gpu-operator"
    skip_installation: false
    inline_yaml: |
      apiVersion: v1
      kind: ResourceQuota
      metadata:
        name: gpu-operator-quota
        namespace: egs-gpu-operator
      spec:
        hard:
          pods: "100"
        scopeSelector:
          matchExpressions:
            - operator: In
              scopeName: PriorityClass
              values:
                - system-node-critical
                - system-cluster-critical

  - appname: "nvidia-driver-installer"
    use_global_kubeconfig: true
    namespace: "kube-system"
    skip_installation: false
    manifest: "https://raw.githubusercontent.com/GoogleCloudPlatform/container-engine-accelerators/master/nvidia-driver-installer/cos/daemonset-preloaded.yaml"

# Commands for NVIDIA MIG configuration (when run_commands: true)
commands:
  - use_global_kubeconfig: true
    skip_installation: false
    namespace: kube-system
    command_stream: |
      kubectl create namespace egs-gpu-operator --dry-run=client -o yaml | kubectl apply -f - || true
      kubectl get nodes -o json | jq -r '.items[] | select(.status.capacity["nvidia.com/gpu"] != null) | .metadata.name' | xargs -I {} kubectl label nodes {} gke-no-default-nvidia-gpu-device-plugin=true cloud.google.com/gke-accelerator=true --overwrite || true

📖 See egs-installer-config.yaml for complete manifests and commands configuration.

Step 9: Configure Monitoring Endpoints (Multi-Cluster)

For multi-cluster setups, configure automatic endpoint fetching:

# Global monitoring endpoint settings
global_auto_fetch_endpoint: true               # Auto-fetch Prometheus/Grafana endpoints
global_grafana_namespace: egs-monitoring
global_grafana_service_type: ClusterIP         # Use LoadBalancer for multi-cluster
global_grafana_service_name: prometheus-grafana
global_prometheus_namespace: egs-monitoring
global_prometheus_service_name: prometheus-kube-prometheus-prometheus
global_prometheus_service_type: ClusterIP      # Use LoadBalancer for multi-cluster

⚠️ Multi-Cluster Critical: For multi-cluster setups where controller and workers are in different clusters, you must use LoadBalancer or NodePort service types. ClusterIP only works for single-cluster setups.

Step 10: Additional Configuration Options (Optional)

These optional settings are available in egs-installer-config.yaml:

Setting	Description	Default
`global_image_pull_secret`	Image pull secret for private registries	`""`
`precheck`	Run prechecks before installation	`true`
`kubeslice_precheck`	Run KubeSlice-specific prechecks	`true`
`verify_install`	Verify installations globally	`false`
`verify_install_timeout`	Verification timeout (seconds)	`600`
`use_local_charts`	Use local Helm charts	`true`
`local_charts_path`	Path to local charts	`"charts"`
`helm_flags`	Additional Helm flags	`"--debug"`
`enable_troubleshoot`	Enable troubleshooting mode	`false`

📖 See egs-installer-config.yaml for all available options.

Step 11: Run Installation

./egs-installer.sh --input-yaml egs-installer-config.yaml

Step 12: Access the EGS UI

After successful installation, access the EGS UI.

📝 Note: The installer script output will display the UI URL and access token automatically at the end of installation. The steps below are for manual access if you need to retrieve these details later.

Script Output Example

At the end of installation, the script displays access information like this:

┌─────────────────────────────────────────────────────────────────────────────────────┐
│                         🌐 KUBESLICE UI ACCESS INFORMATION                          │
├─────────────────────────────────────────────────────────────────────────────────────┤
│ Service Type: ⚖️  LoadBalancer                                                      │
│ Access URL  : 🔗 https://<EXTERNAL-IP>                                              │
│ Status      : ✅ Ready for external access via LoadBalancer                         │
└─────────────────────────────────────────────────────────────────────────────────────┘

┌─────────────────────────────────────────────────────────────────────────────────────┐
│                        🔐 KUBESLICE PROJECT ACCESS TOKENS                           │
├─────────────────────────────────────────────────────────────────────────────────────┤
│ 🔑 TOKEN: ✅ Available                                                              │
│                                                                                     │
├─────────────────────────────────────────────────────────────────────────────────────┤
eyJhbGciOiJSUzI1NiIsImtpZCI6....<TOKEN>....                                           │
├─────────────────────────────────────────────────────────────────────────────────────┤
│ 💡 USAGE: 📋 COPY THE ABOVE TOKEN AND PASTE IT ON PLACE OF ENTER SERVICE            │
│              ACCOUNT TOKEN IN BROWSER                                               │
└─────────────────────────────────────────────────────────────────────────────────────┘

┌─────────────────────────────────────────────────────────────────────────────────────┐
│                          🏁 INSTALLATION SUMMARY COMPLETE                           │
├─────────────────────────────────────────────────────────────────────────────────────┤
│ ✅ All configured components have been processed.                                   │
│ 📋 Access information displayed above for quick reference.                          │
│ 🔧 For troubleshooting, check logs in file egs-installer-output.log                 │
│ 📚 Refer to documentation https://docs.avesha.io/documentation/enterprise-egs       │
└─────────────────────────────────────────────────────────────────────────────────────┘

Simply copy the Access URL and Token from the script output to access the UI.

Manual Access (If Needed)

If you need to retrieve the UI access details manually (e.g., after the script has finished), follow these steps:

1. Get the UI URL

# Get the UI service external IP/hostname
kubectl get svc kubeslice-ui-proxy -n kubeslice-controller

# Example output:
# NAME                 TYPE           CLUSTER-IP     EXTERNAL-IP      PORT(S)
# kubeslice-ui-proxy   LoadBalancer   10.x.x.x       <EXTERNAL-IP>    443:xxxxx/TCP

Access the UI at: https://<EXTERNAL-IP>

2. Get the Admin Token

# Get the admin token for login (use absolute path to kubeconfig)
./fetch_egs_slice_token.sh -k /path/to/kubeconfig -p avesha -a -u admin

The script will output the admin token. Copy and paste it into the UI login screen.

Parameters:

-k /path/to/kubeconfig: Absolute path to your kubeconfig file
-p avesha: Project name (default: avesha)
-a: Fetch admin token
-u admin: Username for the admin token

3. Quick Token Retrieval (Alternative)

# Direct token retrieval using kubectl
kubectl get secret kubeslice-rbac-rw-admin -n kubeslice-avesha -o jsonpath='{.data.token}' | base64 -d

📖 For detailed token retrieval options: See Slice & Admin Token Guide

4. EGS UI Screenshots

After logging in, you'll have access to the following screens. Click on any screenshot to expand:

🖼️ Screenshot	Description	Click to View

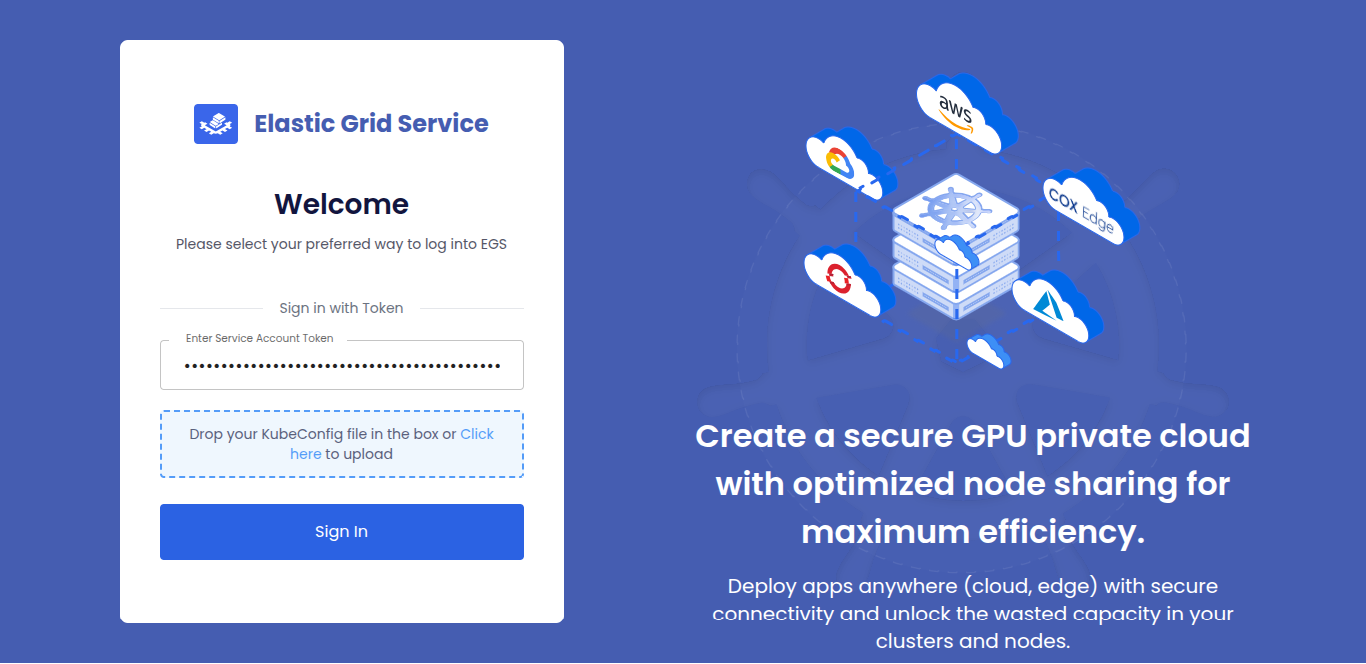

🔐 Login Page	Enter your service account token to access EGS	👁️ View Screenshot
📊 Dashboard Overview	GPU allocation and utilization at a glance	👁️ View Screenshot
💰 Cost Analysis	GPU cost breakdown and utilization costs	👁️ View Screenshot

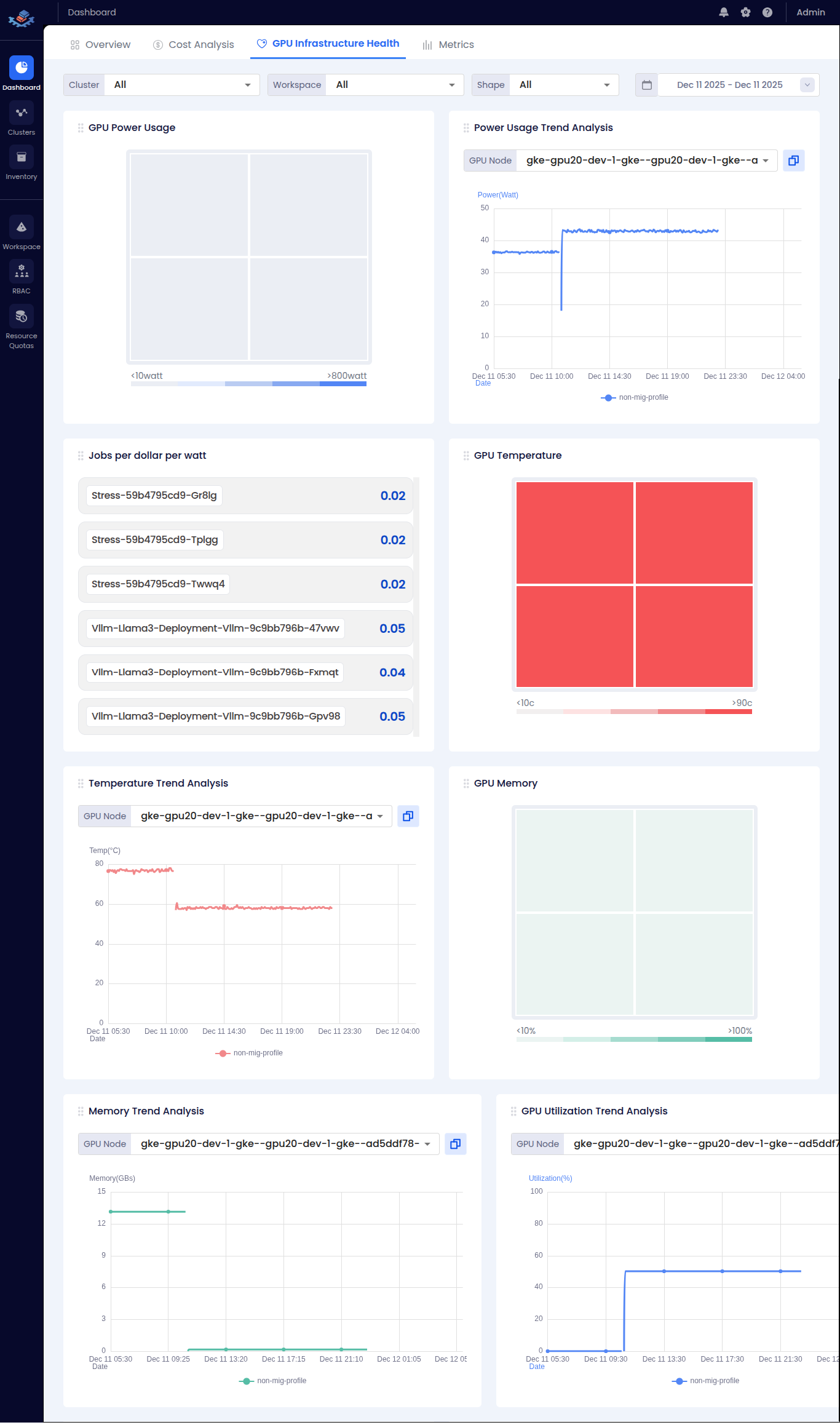

🔧 GPU Health	Power usage, temperature, and memory trends	👁️ View Screenshot

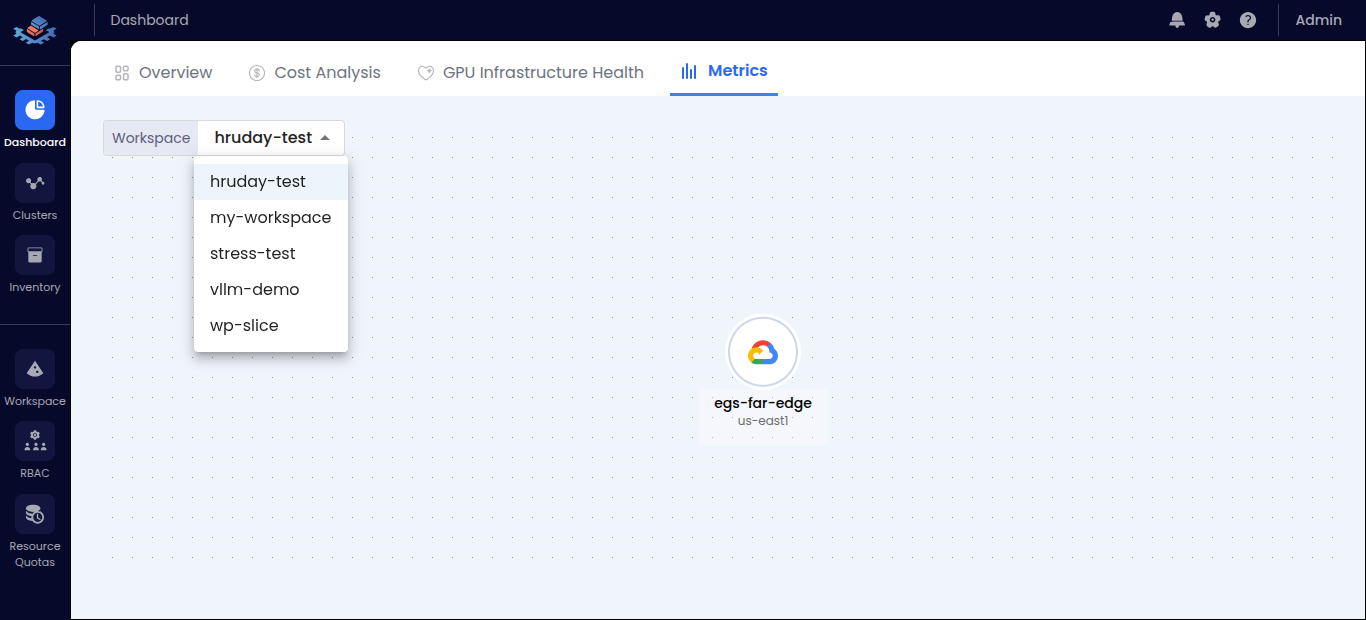

📈 Metrics	Workspace metrics and cluster visualization	👁️ View Screenshot

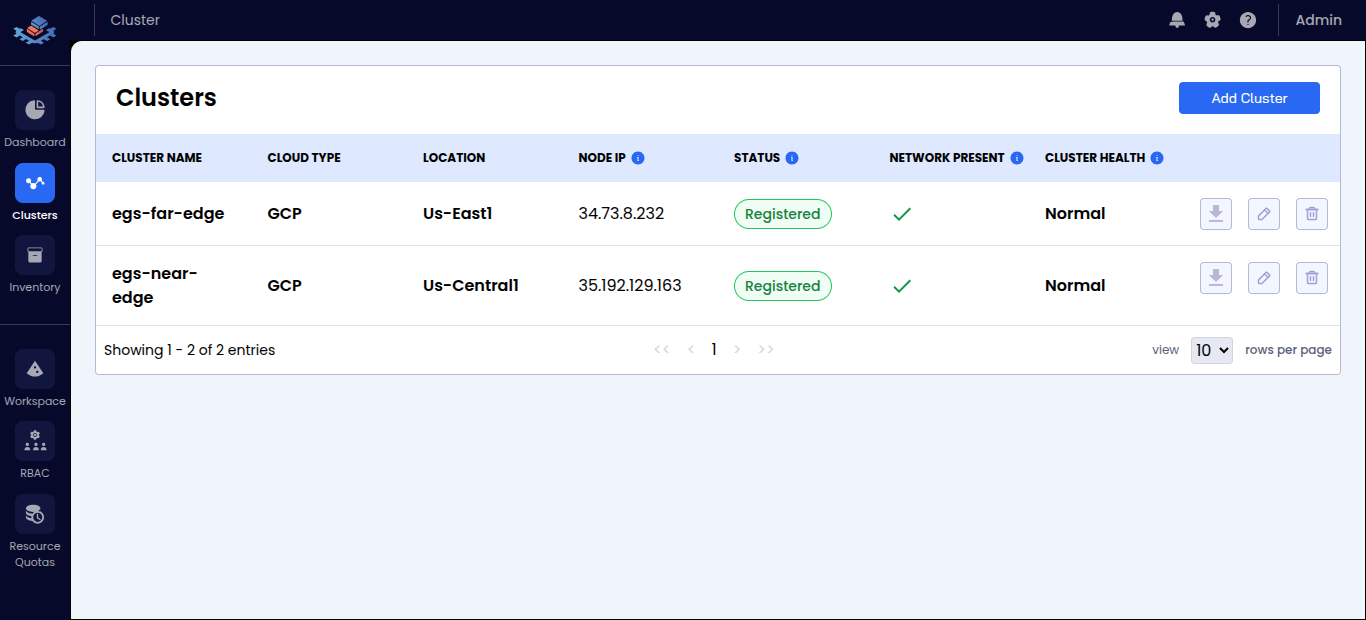

🖥️ Clusters	Registered clusters with status and health	👁️ View Screenshot

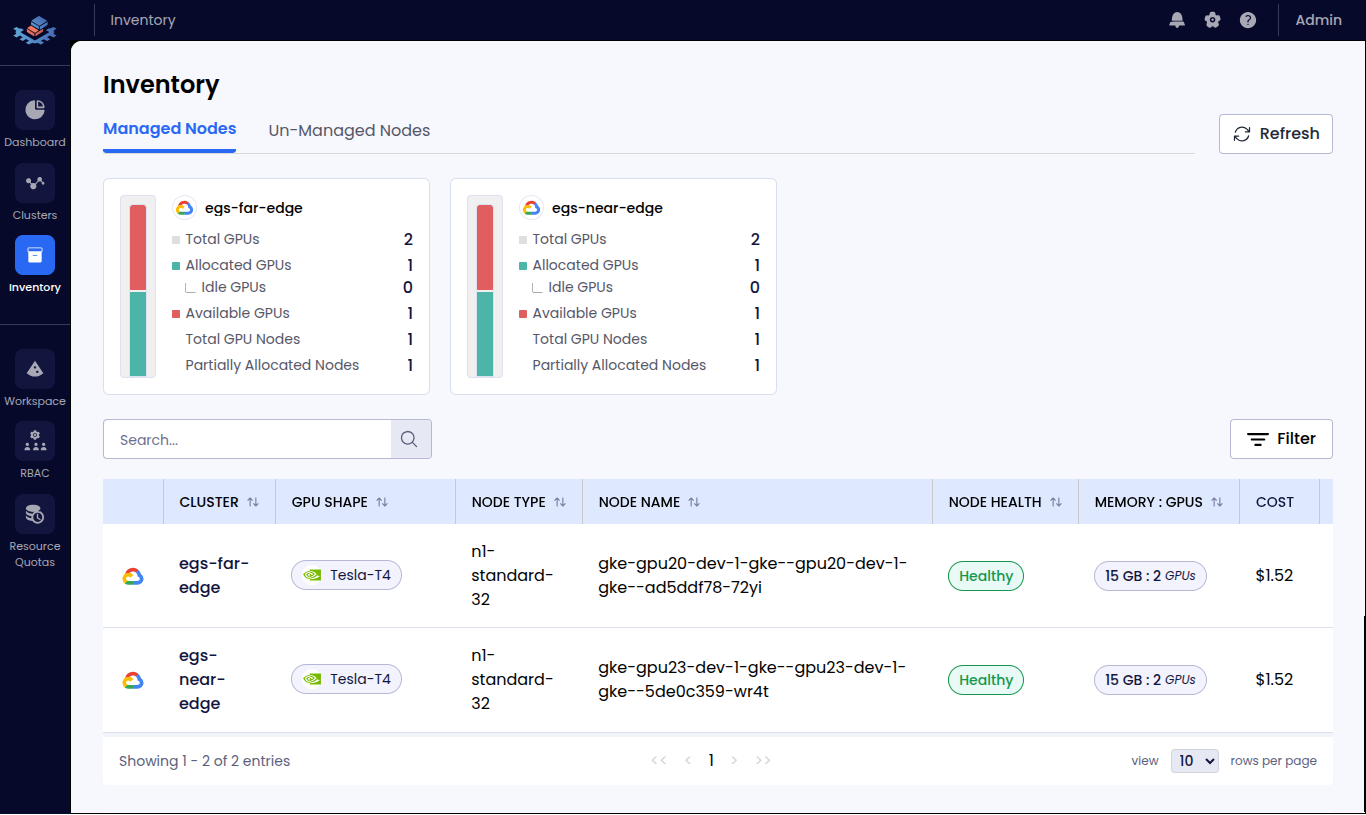

📦 Inventory	Managed GPU nodes across clusters	👁️ View Screenshot

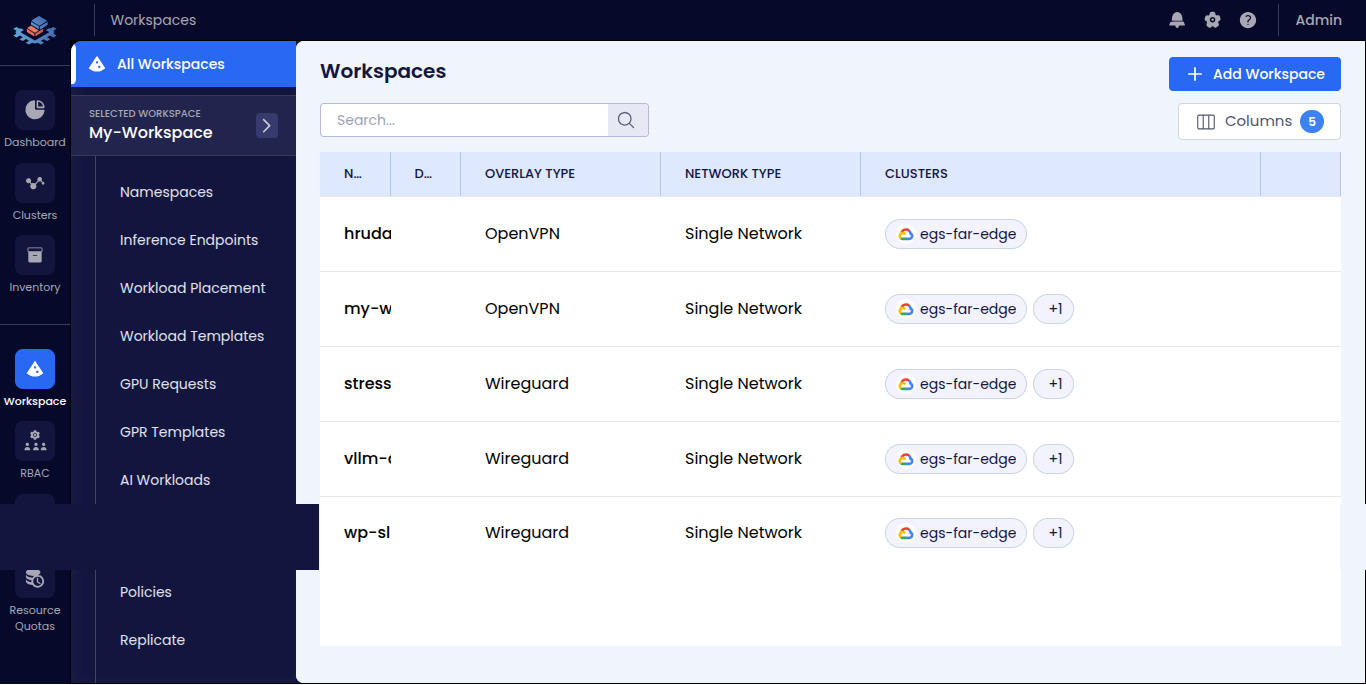

🗂️ Workspaces	Application workspaces and configurations	👁️ View Screenshot

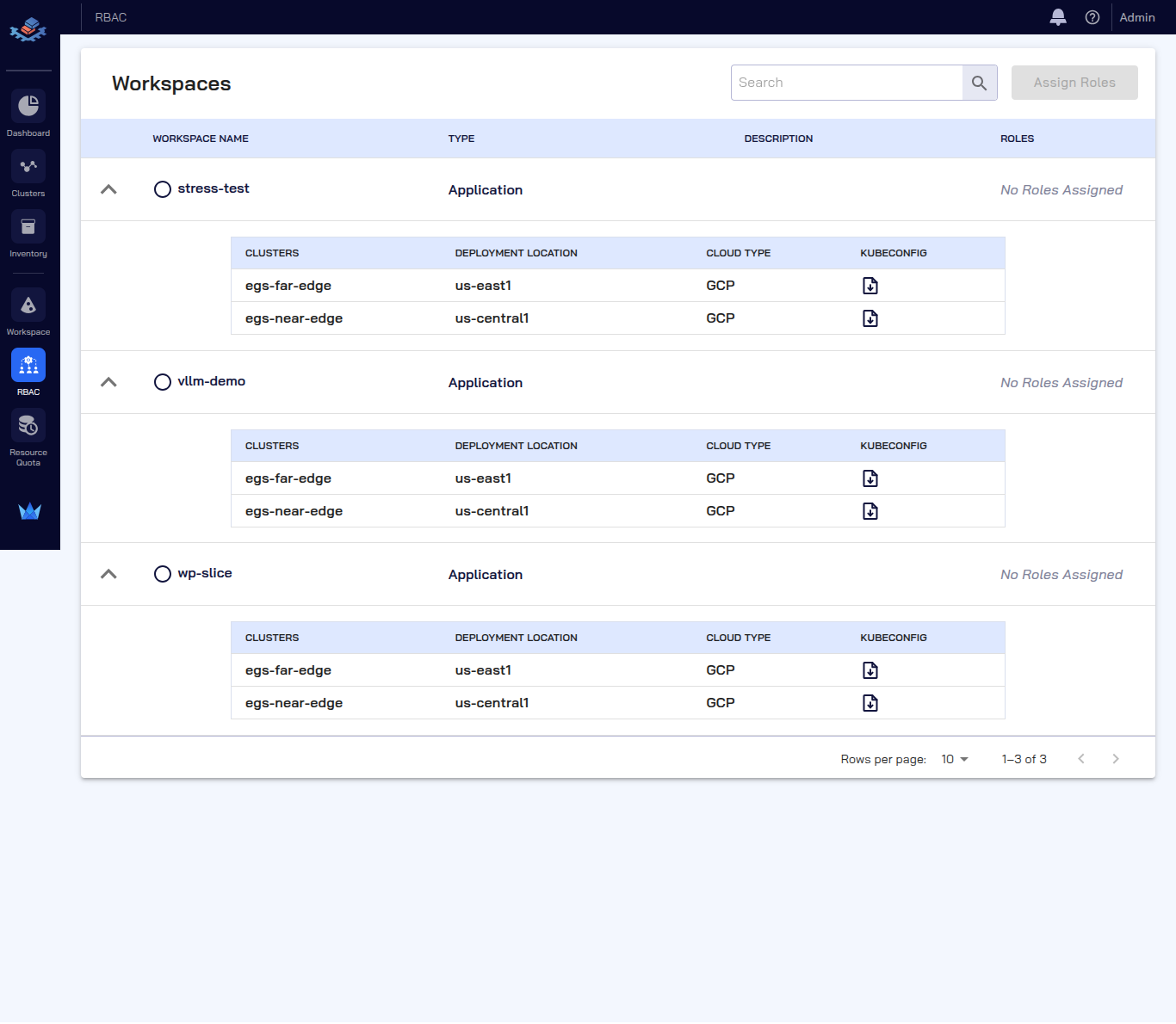

👥 RBAC	Role-based access control for workspaces	👁️ View Screenshot

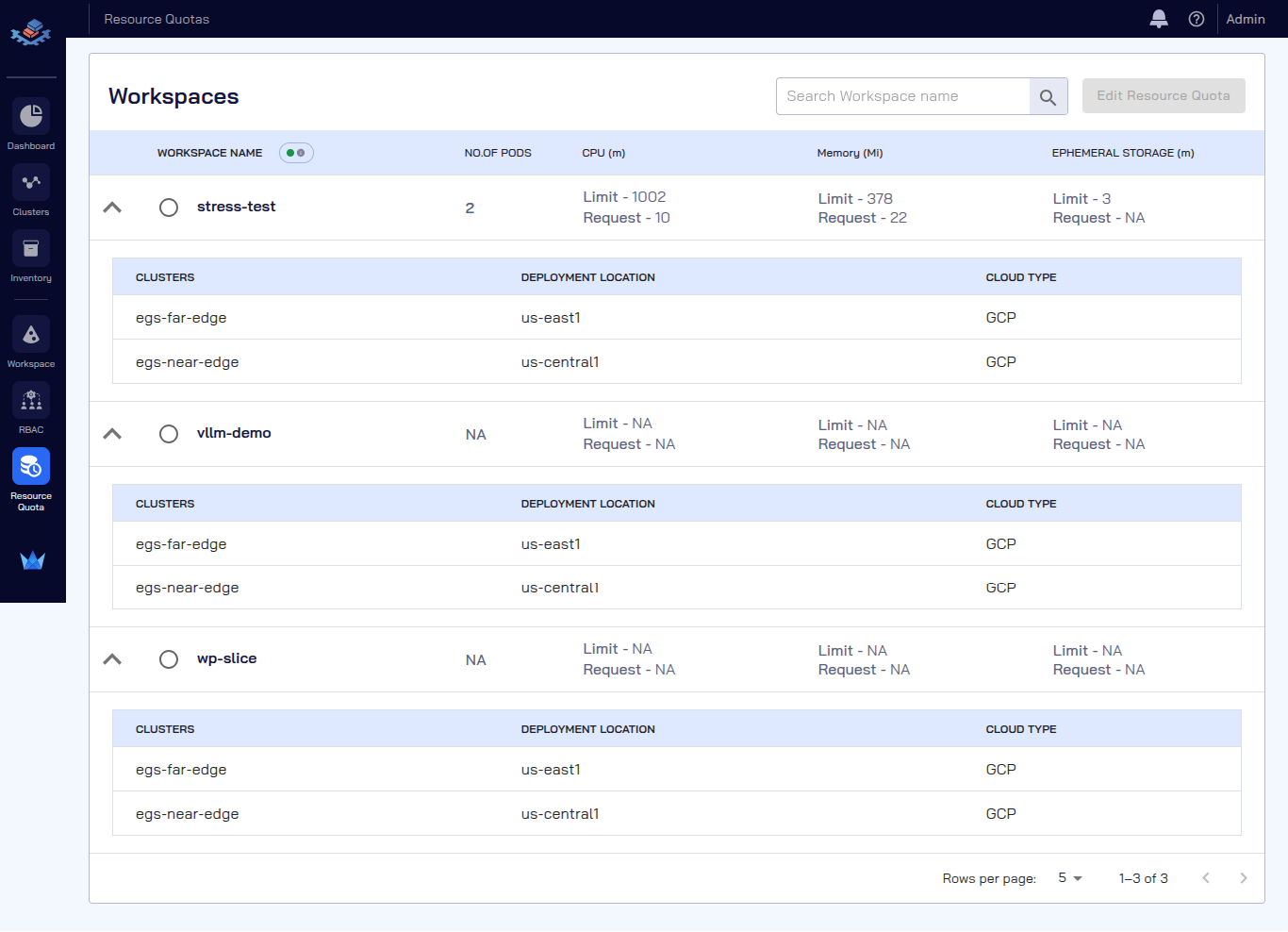

📋 Resource Quotas	Workspace resource limits and allocations	👁️ View Screenshot

🌐 Multi-Cluster Setup

For multi-cluster deployments with workers in different clusters:

Key Configuration Differences

Setting	Single-Cluster	Multi-Cluster
`use_global_kubeconfig`	`true`	`false` (per-worker)
Worker `kubeconfig`	Empty (uses global)	Worker-specific path
Prometheus endpoint	`*.svc.cluster.local`	LoadBalancer/NodePort IP
Grafana endpoint	`*.svc.cluster.local`	LoadBalancer/NodePort IP

Multi-Cluster Worker Configuration

kubeslice_worker_egs:
  - name: "worker-1"
    use_global_kubeconfig: false               # Do NOT use global kubeconfig
    kubeconfig: "worker-1-kubeconfig.yaml"     # Path to worker-1 specific kubeconfig
    kubecontext: "worker-1-context"            # Context name in the kubeconfig file
    skip_installation: false
    specific_use_local_charts: true
    namespace: "kubeslice-system"
    release: "egs-worker"
    chart: "kubeslice-worker-egs"
    inline_values:
      egs:
        prometheusEndpoint: "http://<worker-1-prometheus-lb>:9090"  # External endpoint
        grafanaDashboardBaseUrl: "http://<worker-1-grafana-lb>/d/Oxed_c6Wz"
    # ... other values

  - name: "worker-2"
    use_global_kubeconfig: false               # Do NOT use global kubeconfig
    kubeconfig: "worker-2-kubeconfig.yaml"     # Path to worker-2 specific kubeconfig
    kubecontext: "worker-2-context"            # Context name in the kubeconfig file
    skip_installation: false
    specific_use_local_charts: true
    namespace: "kubeslice-system"
    release: "egs-worker-2"                    # Unique release name
    chart: "kubeslice-worker-egs"
    inline_values:
      egs:
        prometheusEndpoint: "http://<worker-2-prometheus-lb>:9090"  # External endpoint
        grafanaDashboardBaseUrl: "http://<worker-2-grafana-lb>/d/Oxed_c6Wz"
    # ... other values

Adding Additional Workers

To add more workers, follow these steps:

Step 1: Add a new entry in kubeslice_worker_egs array with:

Unique name and release values
Worker-specific kubeconfig and kubecontext
Correct monitoring endpoints

Step 2: Add corresponding cluster_registration entry:

cluster_registration:
  - cluster_name: "worker-1"
    project_name: "avesha"
    telemetry:
      enabled: true
      endpoint: "http://<worker-1-prometheus-lb>:9090"  # Must be accessible from controller
      telemetryProvider: "prometheus"
    geoLocation:
      cloudProvider: "GCP"
      cloudRegion: "us-west1"

  - cluster_name: "worker-2"
    project_name: "avesha"
    telemetry:
      enabled: true
      endpoint: "http://<worker-2-prometheus-lb>:9090"  # Must be accessible from controller
      telemetryProvider: "prometheus"
    geoLocation:
      cloudProvider: "AWS"
      cloudRegion: "us-east-1"

⚠️ Critical: For multi-cluster, Prometheus endpoints must be externally accessible (LoadBalancer/NodePort), not *.svc.cluster.local.

📖 See Multi-Cluster Installation Example for complete configuration.

🗑️ Uninstallation

⚠️ Warning: This removes all EGS resources including slices, GPRs, and custom resources.

./egs-uninstall.sh --input-yaml egs-installer-config.yaml

📋 Quick Reference

Installation Methods Comparison

Feature	Quick Installer	Config-Based
Setup Time	Minutes	Varies
Configuration	Flags	YAML file
Multi-cluster	Supported	Supported
Version Control	Generated config	Full control
Best For	PoC, new users	Production

Common Operations

#	Operation	Command
1	Preflight check	`./egs-preflight-check.sh --kubeconfig ~/.kube/config`
2	Prerequisites only	`./egs-install-prerequisites.sh --input-yaml egs-installer-config.yaml`
3	Full installation	`./egs-installer.sh --input-yaml egs-installer-config.yaml`
4	Uninstall	`./egs-uninstall.sh --input-yaml egs-installer-config.yaml`

🔧 Troubleshooting

Need help diagnosing issues? Generate a comprehensive troubleshooting bundle with a single command!

Basic Bundle Generation

# ============ CUSTOMIZE THESE VALUES ============
export KUBECONFIG_PATH="~/.kube/config"      # Path to your kubeconfig file

# ============ GENERATE THE BUNDLE ============
curl -fsSL https://repo.egs.avesha.io/egs-troubleshoot.sh | bash -s -- \
  --kubeconfig $KUBECONFIG_PATH

Common Commands

Scenario	Command
Basic bundle	`curl -fsSL https://repo.egs.avesha.io/egs-troubleshoot.sh \| bash -s -- --kubeconfig $KUBECONFIG_PATH`
With cluster name	Add `--cluster-name "my-cluster"`
Skip logs (faster)	Add `--skip-logs`
Upload to S3	Add `--s3-bucket support-bucket --s3-region us-east-1`
S3 with prefix	Add `--s3-prefix "customer-name/"`
S3 with AWS profile	Add `--aws-profile my-profile`
Multi-cluster	Run separately for each cluster with respective kubeconfig

Prerequisites: kubectl, jq, tar, gzip (required), aws CLI (optional for S3), helm (optional)

📦 What's Collected

Category	Details
Cluster Info	Version, API resources, component statuses
Nodes	Node details, labels, capacity, GPU info, taints
CRDs	All EGS-related CRDs (controller, worker, networking, inventory, aiops, gpr, monitoring)
Namespaces	All EGS namespaces (kubeslice-, egs-, project namespaces, slice namespaces)
Resources	Pods, deployments, services, configmaps, events
Logs	Container logs (current and previous)
Helm	Helm releases and values
Storage	PVs, PVCs, storage classes
Metrics	Node and pod metrics (if metrics-server available)

📖 For complete Troubleshooting documentation including multi-cluster collection, S3 upload, bundle structure, and all options:

→ View Full Troubleshooting Guide

📦 Airgap Deployment

For airgap/offline deployments where clusters don't have internet access, EGS provides scripts to manage container images:

Extract Images: Use airgap-image-pull.sh to extract all container images from EGS Helm charts
Push to Private Registry: Use airgap-image-push.sh to push images to your private registry (Docker Hub, Nexus, etc.)

The scripts support both Docker Hub and private registries like Nexus, with auto-detection of registry type.

👉 For detailed instructions, see Airgap Image Management Documentation

Name		Name	Last commit message	Last commit date
Latest commit History 1,166 Commits
airgap-image-push		airgap-image-push
charts		charts
docs		docs
egs-apis		egs-apis
.gitignore		.gitignore
README.md		README.md
create-namespaces.sh		create-namespaces.sh
custom-pricing-data.yaml		custom-pricing-data.yaml
custom-pricing-upload.sh		custom-pricing-upload.sh
egs-install-prerequisites.sh		egs-install-prerequisites.sh
egs-installer-config.yaml		egs-installer-config.yaml
egs-installer.sh		egs-installer.sh
egs-only-config.yaml		egs-only-config.yaml
egs-preflight-check.sh		egs-preflight-check.sh
egs-troubleshoot.sh		egs-troubleshoot.sh
egs-uninstall.sh		egs-uninstall.sh
fetch_egs_slice_token.sh		fetch_egs_slice_token.sh
install-egs.sh		install-egs.sh
multi-cluster-example.yaml		multi-cluster-example.yaml
namespace-input.yaml		namespace-input.yaml

Folders and files

Latest commit

History

Repository files navigation

🌐 EGS Installer

🚀 EGS Installer Documentation 🚀

📑 Table of Contents

📚 Documentation

🚀 Overview

Getting Started

Prerequisites

1. 📝 Registration

2. 🔧 Required Binaries

3. 🌐 Kubernetes Access

4. 📂 Clone Repository

5. 🔗 KubeSlice Networking (Optional)

6. ✅ Preflight Check (Optional)

7. 🗂️ Pre-create Namespaces (Optional)

⚡ Quick Installer

Basic Installation

Common Commands

📝 Registration Required

→ View Full Quick Install Guide

📋 Config-Based Installer

🛠️ Config-Based Installation Steps

Step 1: Configure Prerequisites

🅰️ Option A: EGS-Managed Prerequisites (Recommended)

🅱️ Option B: Pre-existing Infrastructure

Step 2: Configure Controller

PostgreSQL Configuration Options

Step 3: Configure UI (Optional)

Step 4: Configure Workers

Step 5: Configure Cluster Registration

Step 6: Configure Additional Applications (When enable_install_additional_apps: true)

Step 7: Configure Projects (Optional)

Step 8: Configure Manifests and Commands (When enable_custom_apps: true)

Step 9: Configure Monitoring Endpoints (Multi-Cluster)

Step 10: Additional Configuration Options (Optional)

Step 11: Run Installation

Step 12: Access the EGS UI

Script Output Example

Manual Access (If Needed)

1. Get the UI URL

2. Get the Admin Token

3. Quick Token Retrieval (Alternative)

4. EGS UI Screenshots

🌐 Multi-Cluster Setup

Key Configuration Differences

Multi-Cluster Worker Configuration

Adding Additional Workers

🗑️ Uninstallation

📋 Quick Reference

Installation Methods Comparison

Common Operations

🔧 Troubleshooting

Basic Bundle Generation

Common Commands

📦 What's Collected

→ View Full Troubleshooting Guide

📦 Airgap Deployment

About

Resources

Uh oh!

Stars

Watchers

Forks

Releases 32

Packages 0

Uh oh!

Contributors

Uh oh!

Languages

Step 6: Configure Additional Applications (When `enable_install_additional_apps: true`)

Step 8: Configure Manifests and Commands (When `enable_custom_apps: true`)

Packages
