Active Directory Deployed in the Cloud (Azure)

This tutorial outlines the implementation of Active Directory within Azure Virtual Machines.

Environments and Technologies Used

• Microsoft Azure (Virtual Machines/Compute)
• Remote Desktop
• Active Directory Domain Services
• PowerShell

Operating Systems Used

• Windows Server 2022
• Windows 10 (21H2)

High-Level Deployment and Configuration Steps

• Setup Resources in Azure
• Ensure Connectivity between the client and Domain Controller
• Install Active Directory
• Create an Admin and Normal User Account in Active Directory
• Join Client to your domain
• Setup Remote Desktop for non-administrative users on Client
• Create a bunch of additional users and attempt to log into client with one of the users

Deployment and Configuration Steps

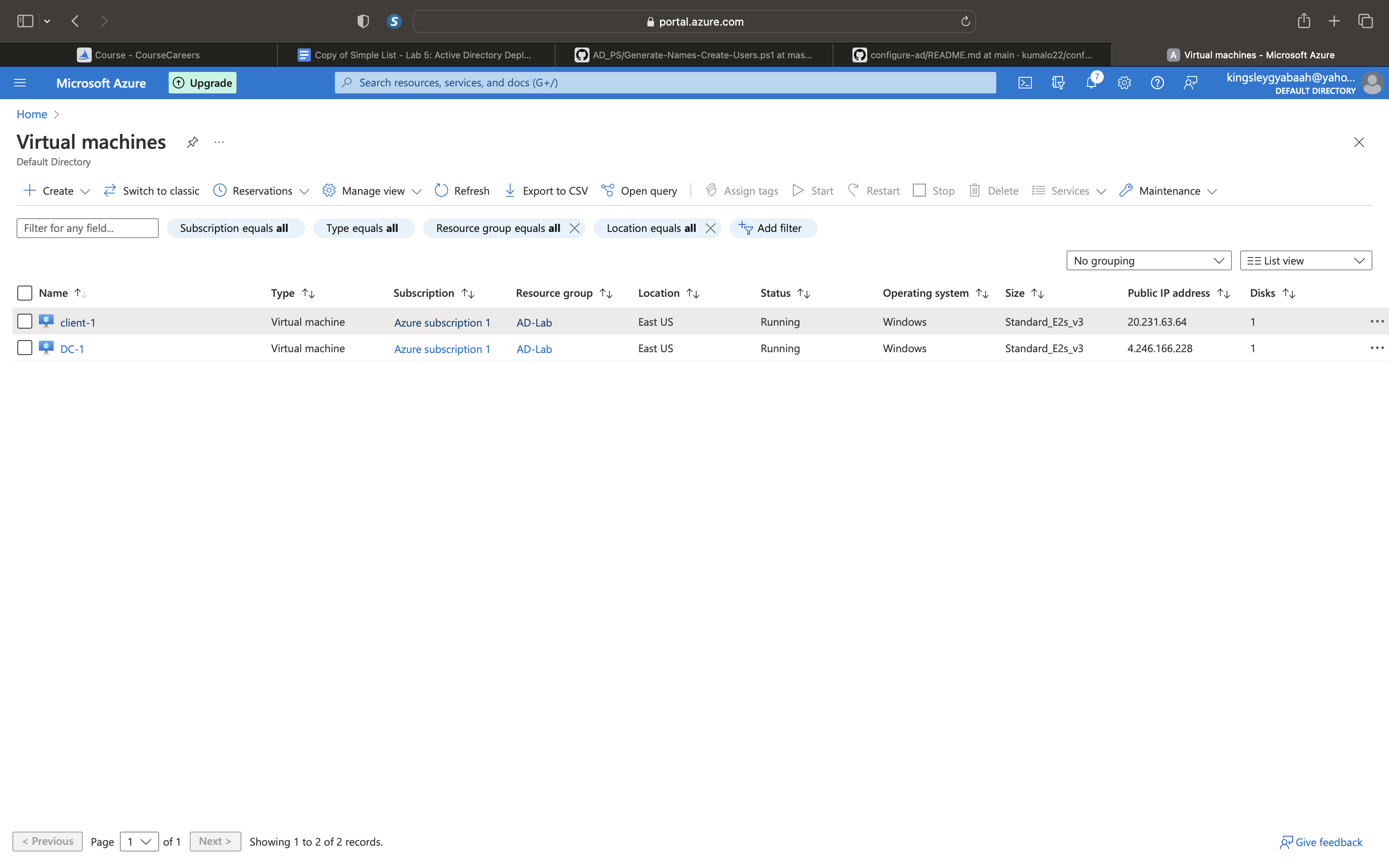

Setup Resources in Azure

• Create the Domain Controller VM (Windows Server 2022) named “DC-1”
• Set Domain Controller’s NIC Private IP address to be static
• Create the Client VM (Windows 10) named “Client-1”. Use the same Resource Group and Vnet
• Ensure that both VMs are in the same Vnet (you can check the topology with Network Watcher

Ensure Connectivity between the client and Domain Controller

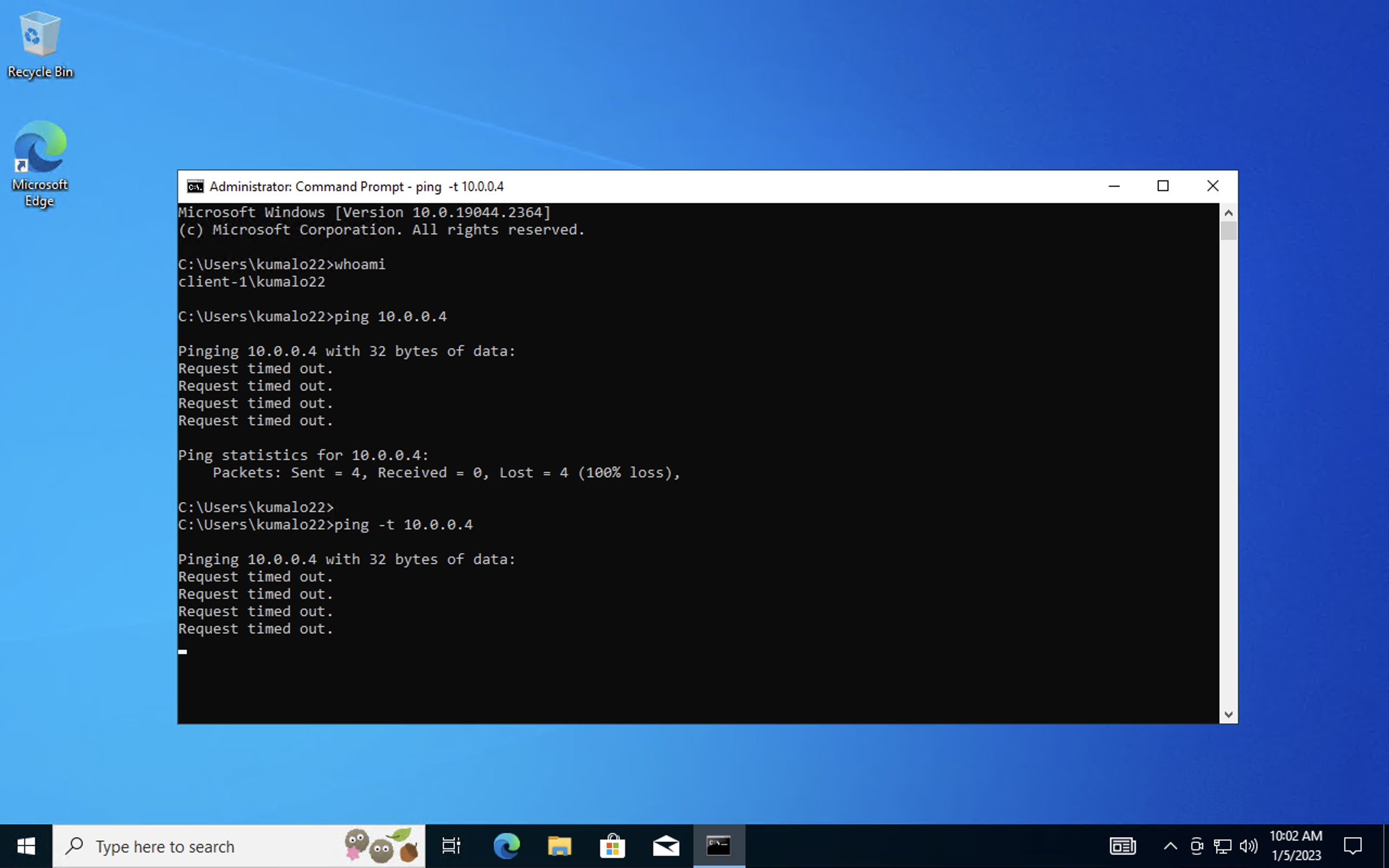

• Login to Client-1 with Remote Desktop and ping DC-1’s private IP address with ping -t (perpetual ping)
• Login to the Domain Controller and enable ICMPv4 in on the local windows Firewall

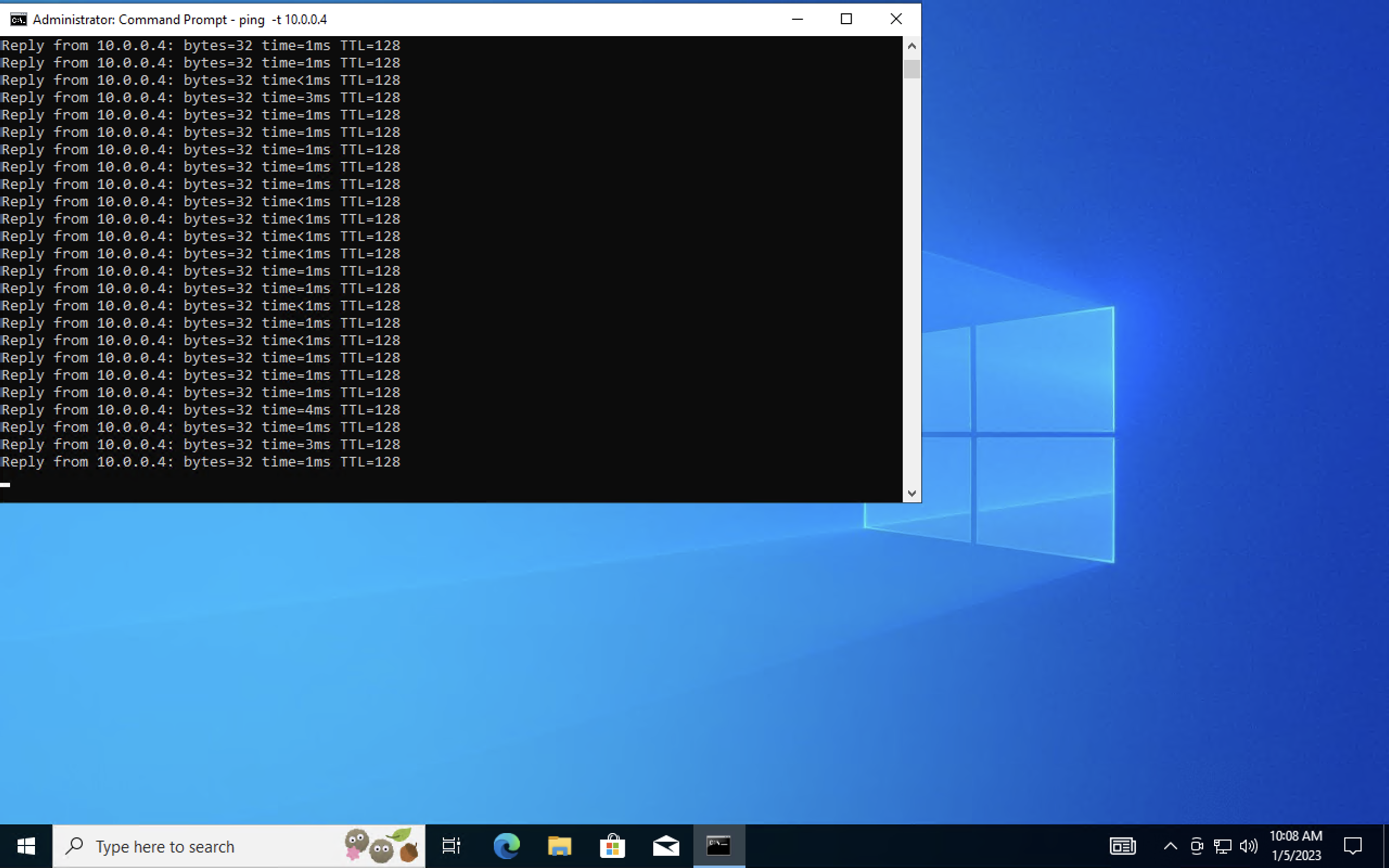

• Check back at Client-1 to see the ping succeed

Install Active Directory

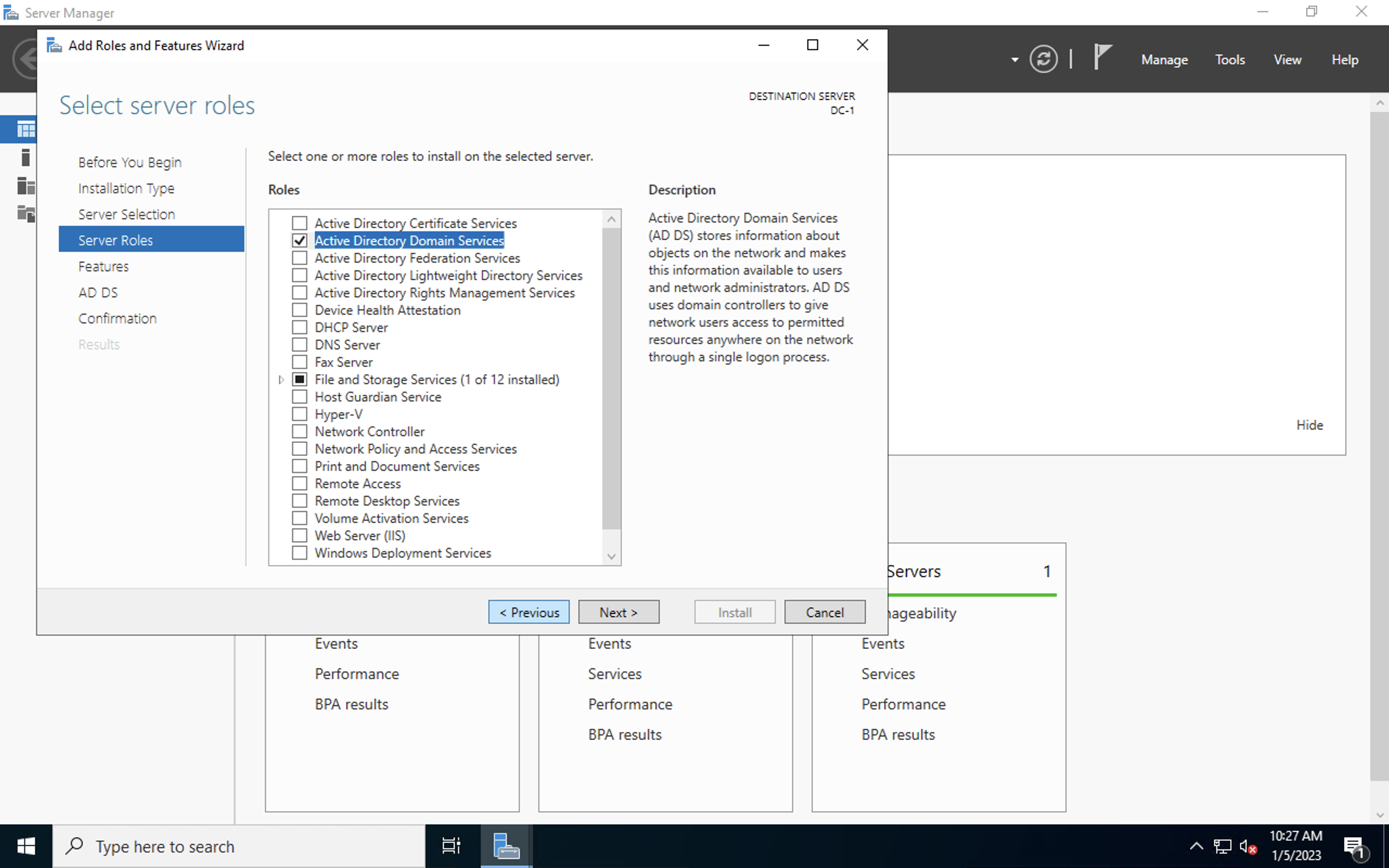

• Login to DC-1 and install Active Directory Domain Services
• Promote as a DC: Setup a new forest as mydomain.com

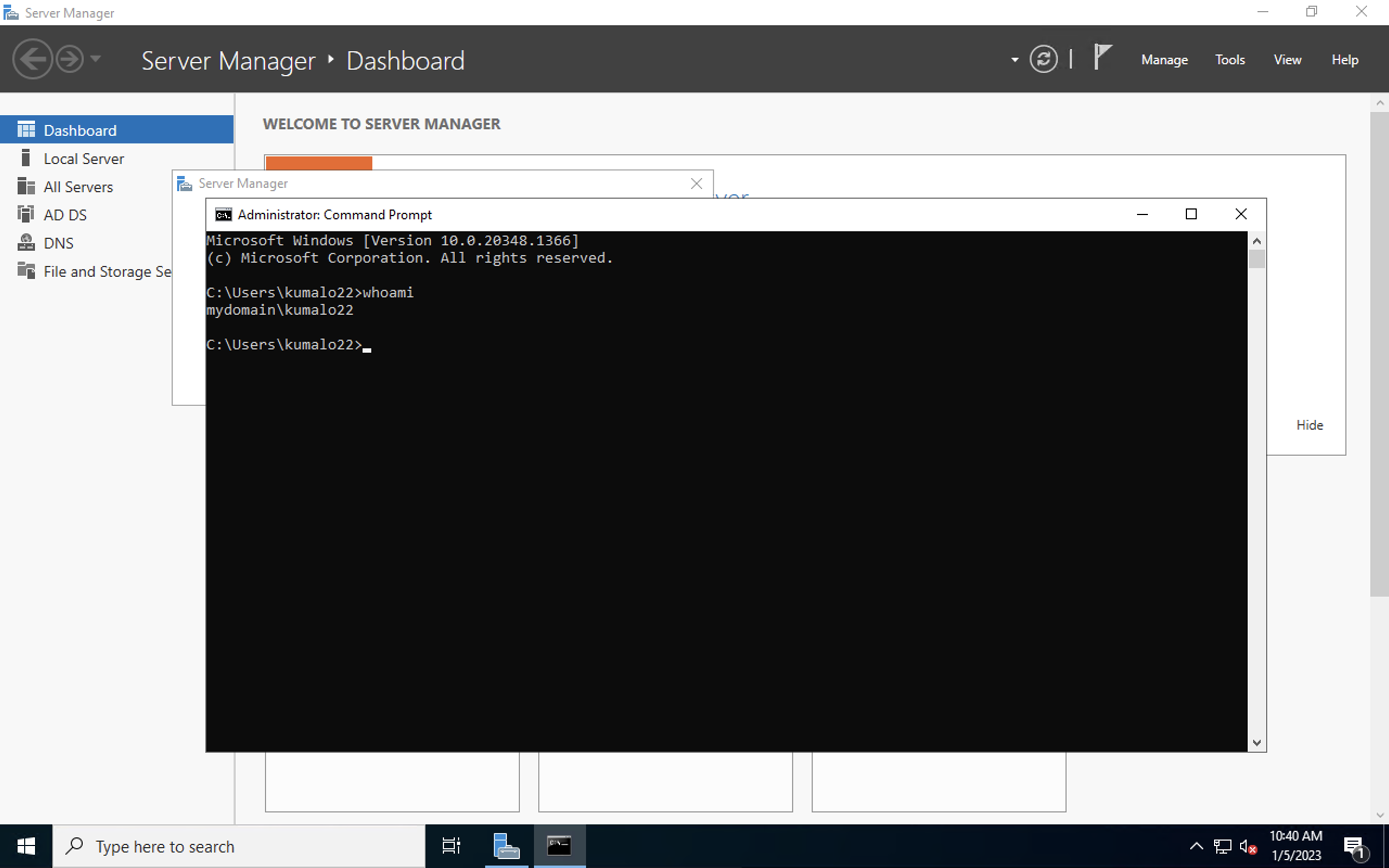

• Restart and then log back into DC-1 as user: mydomain.com\kumalo22

Create an Admin and Normal User Account in Active Directory

• Create an Admin and Normal User Account in AD

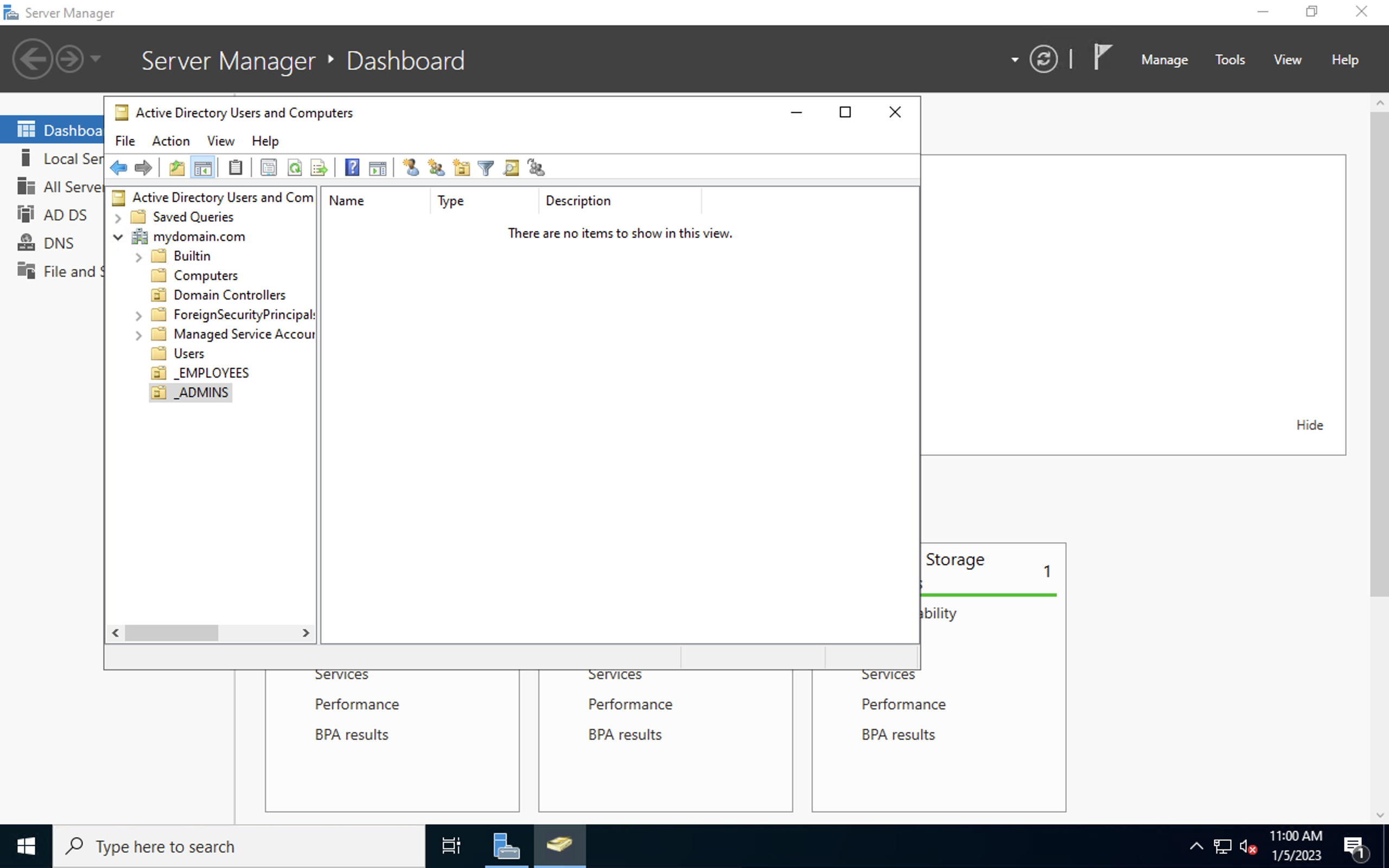

• Create a new OU named “_ADMINS”

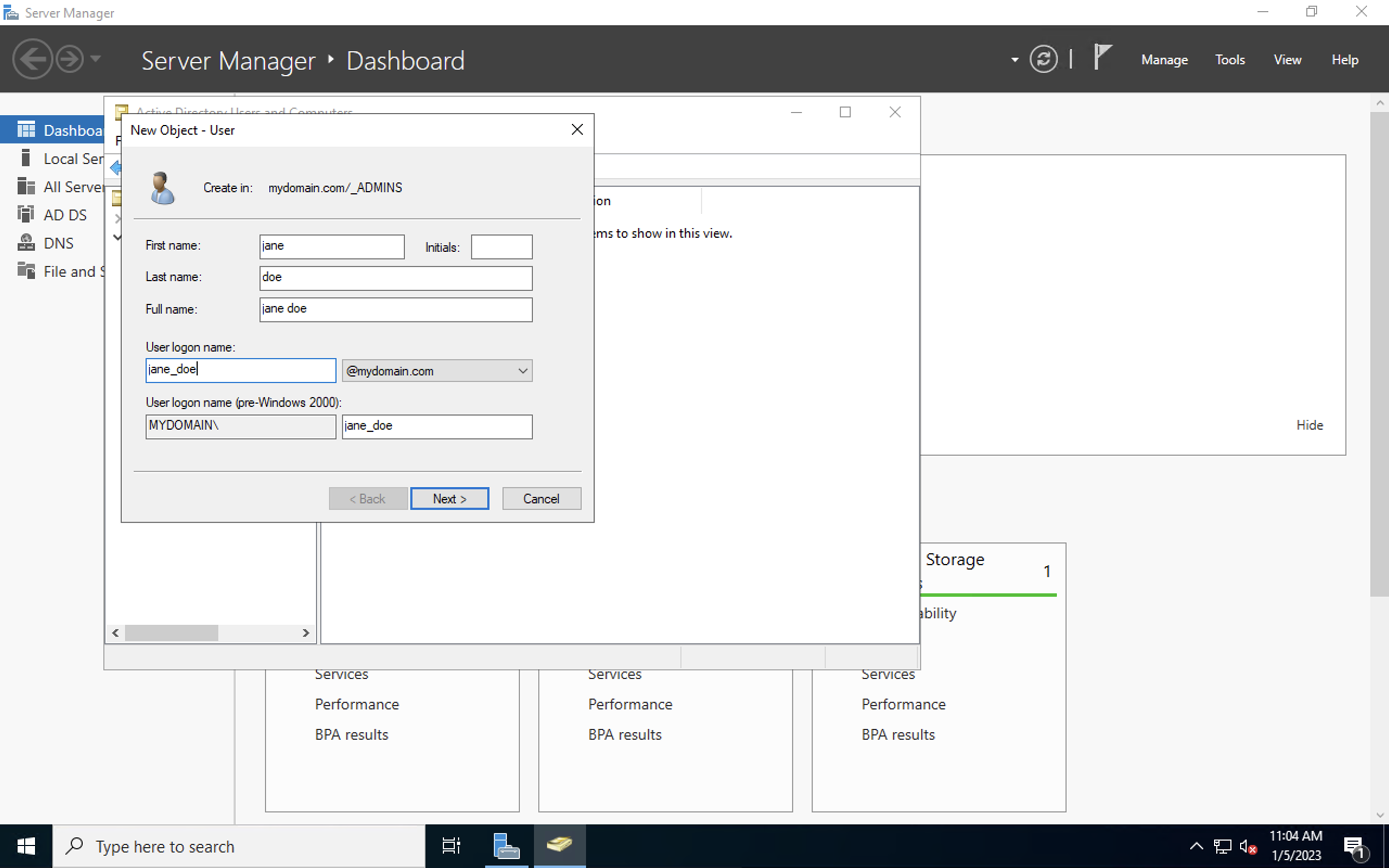

• Create a new employee named “Jane Doe” (same password) with the username of “jane_admin”

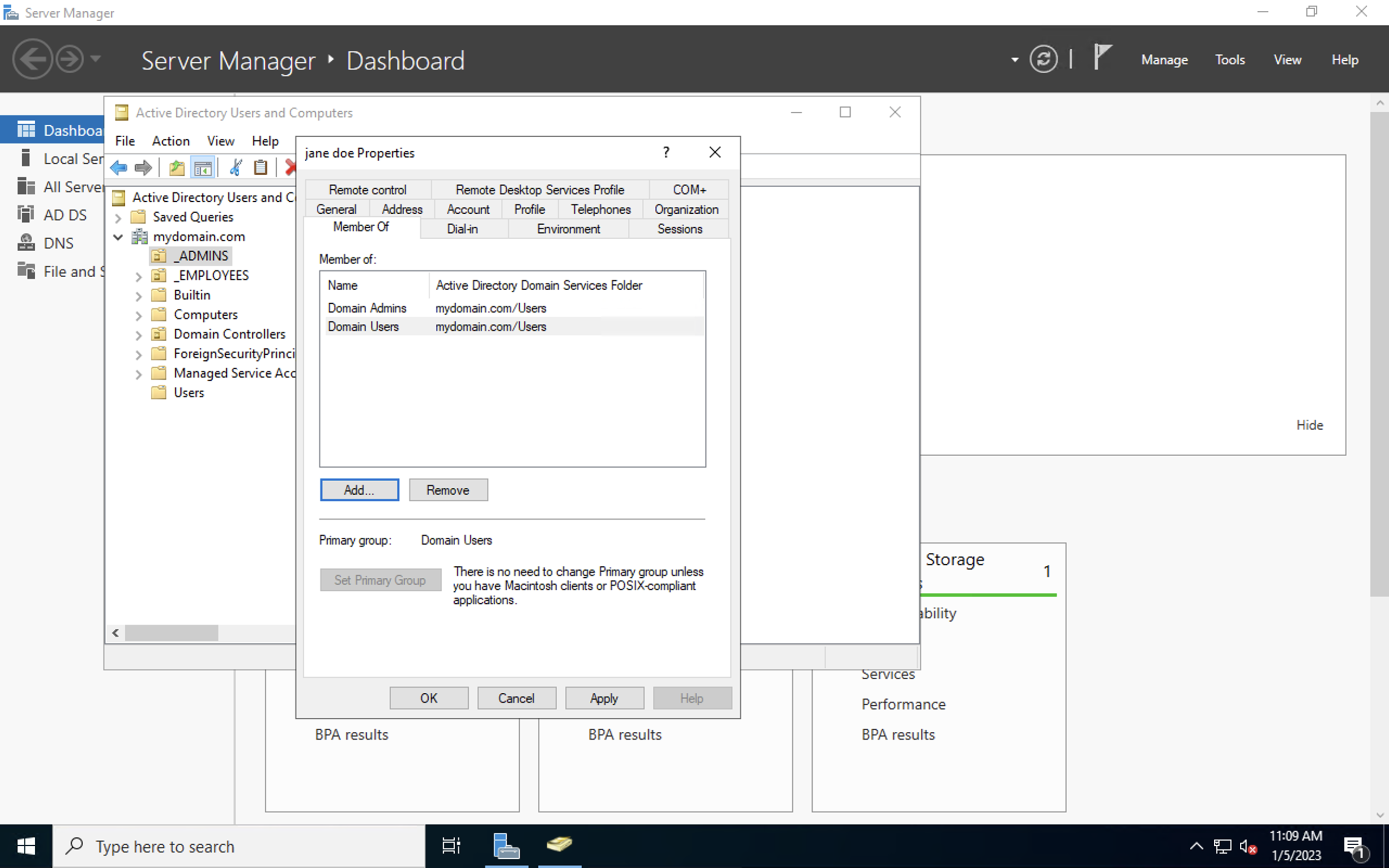

• Add jane_admin to the “Domain Admins” Security Group

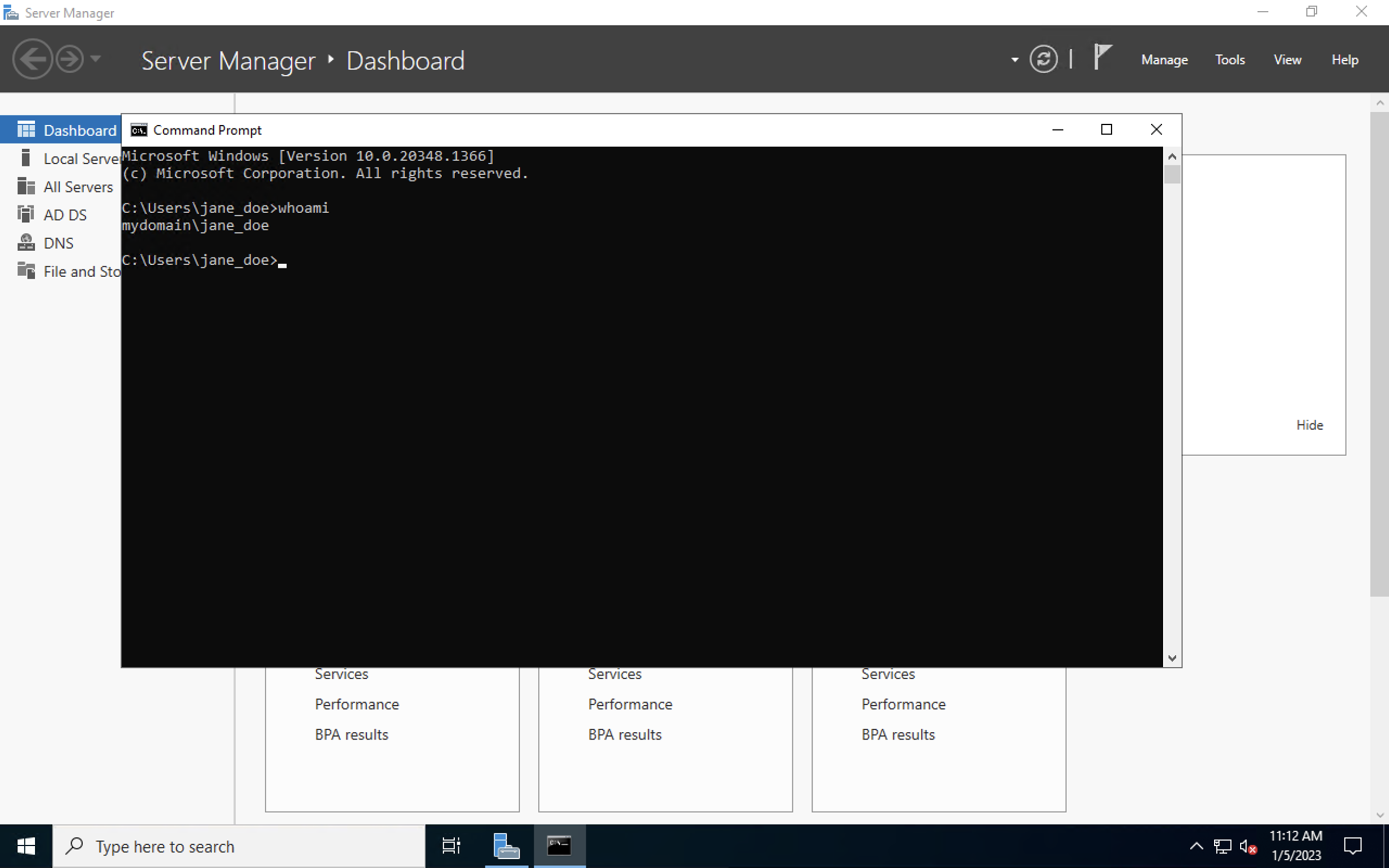

• Log out/close the Remote Desktop connection to DC-1 and log back in as “mydomain.com\jane_admin”

Join Client-1 to your domain (mydomain.com)

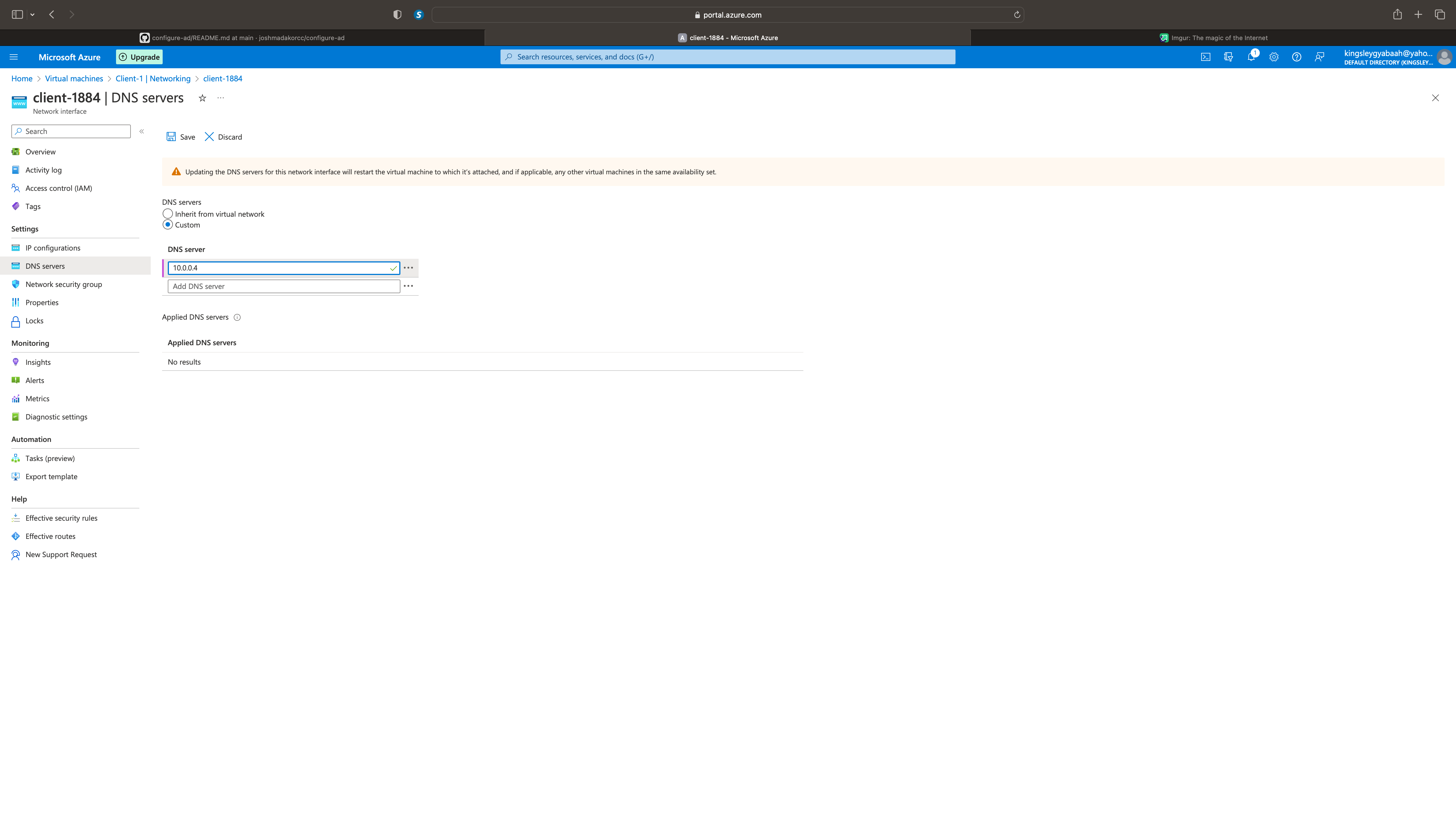

• From the Azure Portal, set Client-1’s DNS settings to the DC’s Private IP address
• From the Azure Portal, restart Client-1

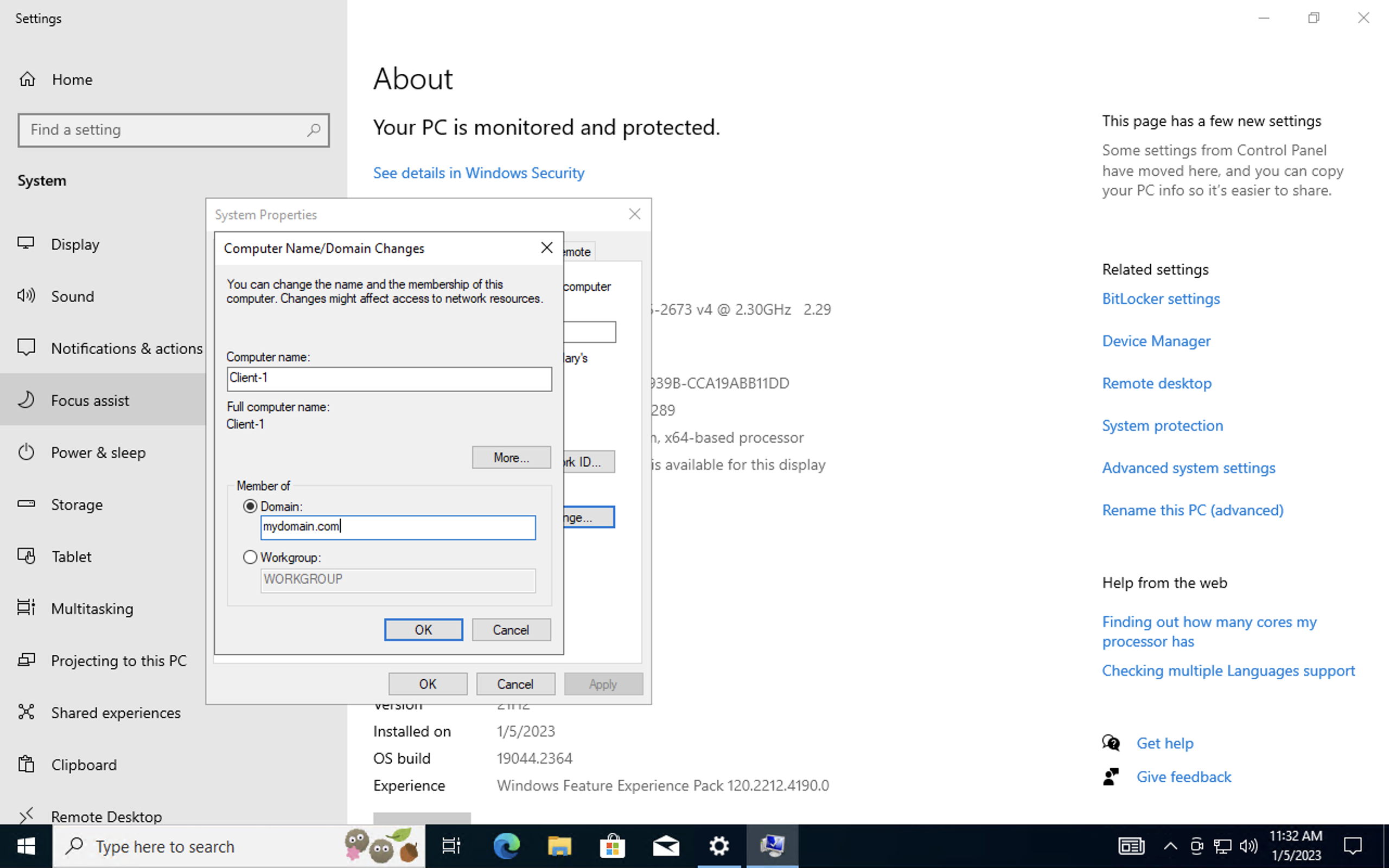

• Login to Client-1 (Remote Desktop) as the original local admin (labuser) and join it to the domain (computer will restart)
• Login to the Domain Controller (Remote Desktop) and verify Client-1 shows up in Active Directory Users and Computers (ADUC) inside the “Computers” container on the root of the domain

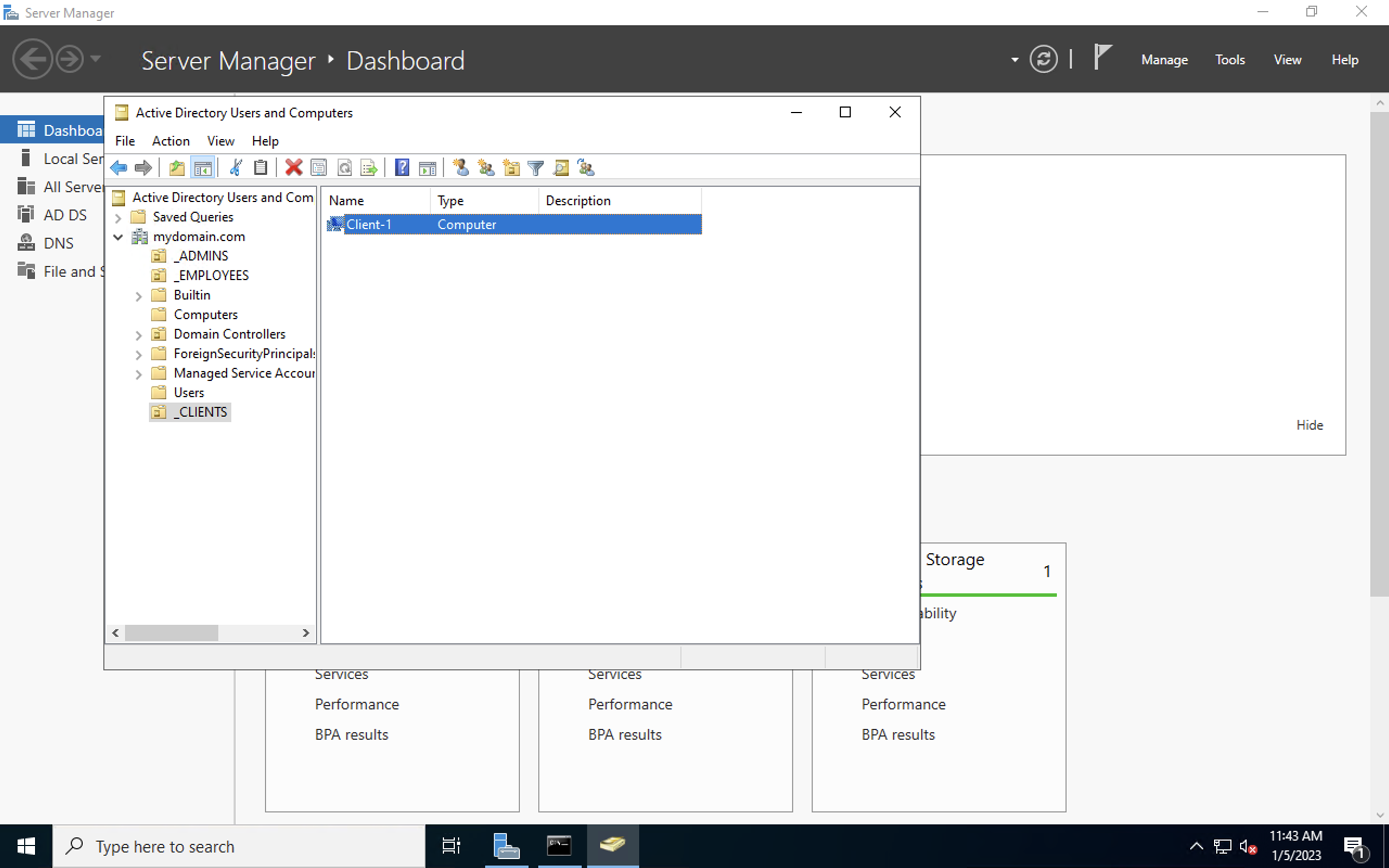

• Create a new OU named “_CLIENTS” and drag Client-1 into there

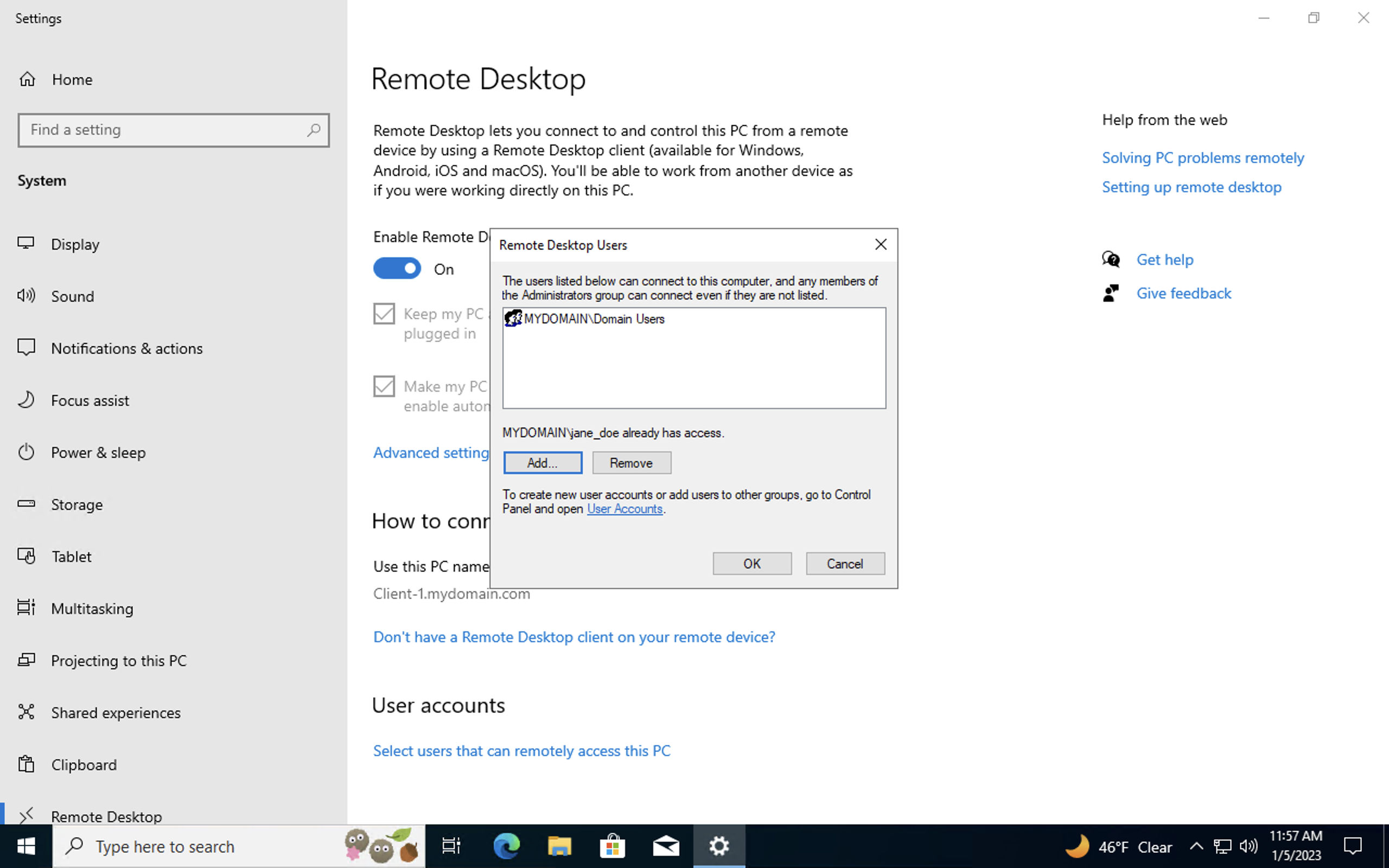

Setup Remote Desktop for non-administrative users on Client-1

• Log into Client-1 as mydomain.com\jane_admin and open system properties
• Click “Remote Desktop”
• Allow “domain users” access to remote desktop
• You can now log into Client-1 as a normal, non-administrative user now

Create a bunch of additional users and attempt to log into client-1 with one of the users

• Login to DC-1 as jane_admin

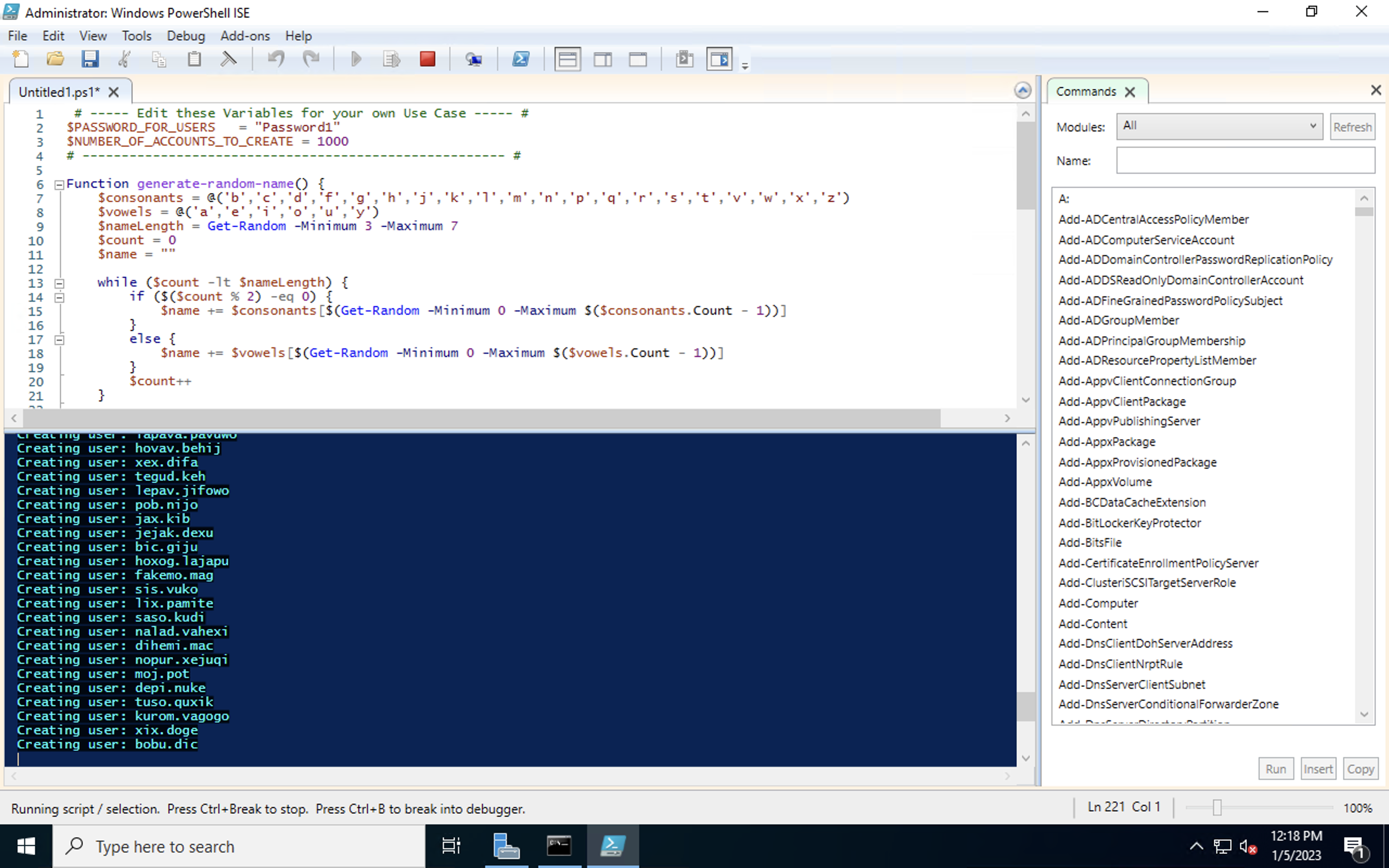

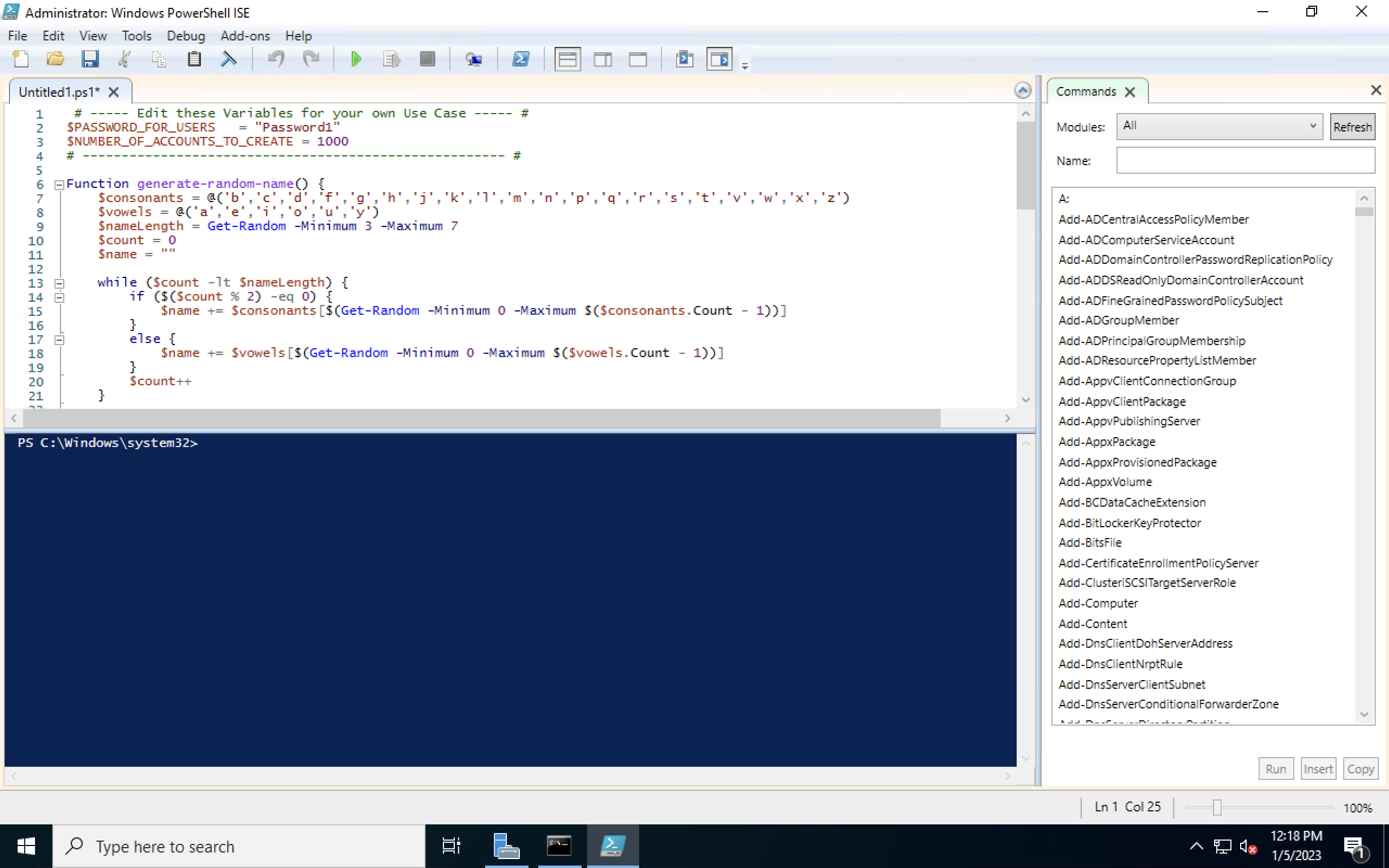

• Open PowerShell_ise as an administrator
• Create a new File and paste the contents of the script into it (https://github.com/joshmadakor1/AD_PS/blob/master/Generate-Names-Create-Users.ps1)
• Run the script and observe the accounts being created
• When finished, open ADUC and observe the accounts in the appropriate OU

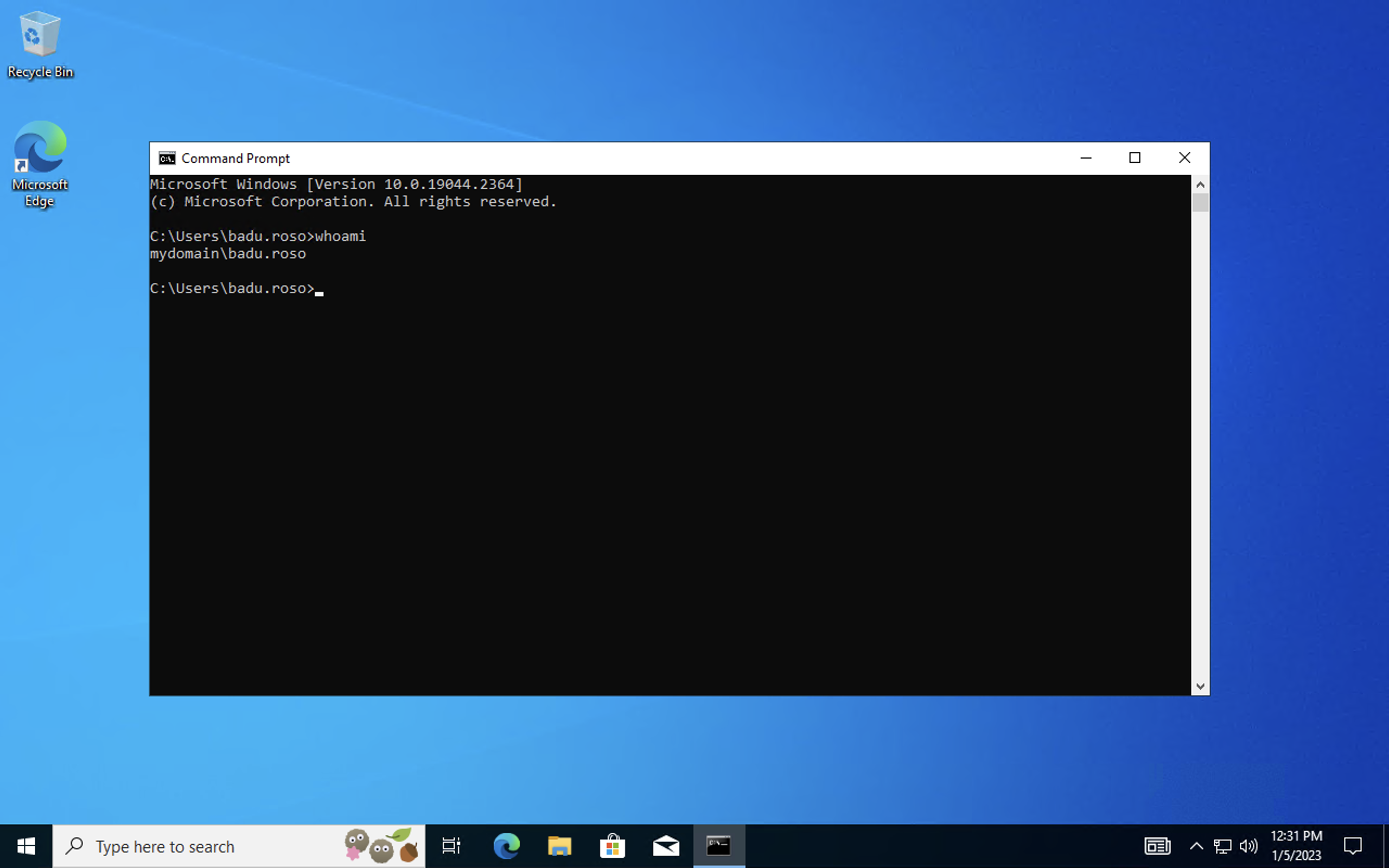

• Attempt to log into Client-1 with one of the accounts (take note of the password in the script)
