fix(benchmark): align metric comparisons with their scale

[Jim-jimu]

Goal And Delivered Outcome

• Outcome basis / optional anchor: a reproduced benchmark comparison defect, consistent with the rate-direction finding in #3335.
• Goal/source and gap: comparisons already expose both raw and rate deltas, but direction, factorial interaction direction, case ranking, and displayed deltas use the raw count even when totals differ. Incompatible metric definitions can also produce numeric conclusions.
• Observable before → after: 50/100 → 60/200 previously reported improvement from delta=10; it now reports regression from delta_rate=-0.2, displayed as -20 pp. Against 50/100, the dashboard now ranks 9/10 (+40 pp) ahead of 600/1000 (+10 pp). The regression and browser checks below cover these cases.
• Issue/task and intended base: related to [Task][RFC]: Qualify the integrated benchmark study upload and dashboard contract #5203; this does not close its broader dashboard acceptance. Base: loopx-project/loopx:main.

Implemented against

• Specification and revision: benchmark study upload/dashboard RFC, §4 and §4.1, plus the reproduced defect above.
• Criteria:

Criterion (spec clause)	Disposition	Symbol / path	Test or command
§4: case matrix exposes the largest eligible delta; formal comparisons honor qualification	implemented	study_projection.py, experiment_board.py	test_ratio_comparisons_round_trip_and_rank_on_the_same_scale; primary incompatibility regressions
§4.1: preserve native units and directions	implemented	factorial_contrast.py	ratio direction, incompatible metadata, and factorial interaction regressions
Remaining RFC upload/runtime/coverage work	out_of_scope	Existing study implementation	No claim of completing the parent RFC

• Self-check before submission: reviewed all comparison consumers, the existing fixed-total factorial qualification, current upstream, 42 open PRs, and [Task][RFC]: Qualify the integrated benchmark study upload and dashboard contract #5203's claim history. No overlapping public implementation was found at that check. Checked Python, CLI/local-store readback, frontend contracts, built browser output, and the repository checks disclosed below.

Scope And Continuation

• Completed scope and remaining work: complete within this scope. Positive-total pairs use rate deltas for direction and magnitude ranking; scalars use raw deltas. Raw delta and raw interaction differences retain their original meaning. Ratio labels use percentage points in Markdown and the dashboard.
• Compatibility: unit or direction mismatches, one-sided totals, zero totals, and non-finite differences return endpoint values with comparison_unavailable_reason, without numeric conclusions. An unavailable primary metric excludes the comparison; an unavailable auxiliary metric preserves primary eligibility and is omitted from paired binary transition counts. Consumers of invalid comparisons must handle this unavailable form. Both-missing optional metadata remains supported for historical board rows. The existing fixed-total factorial primary-metric contract remains enforced; mixed scalar/rate comparisons are not magnitude-ranked together.
• Ownership: comparison reasons remain local to benchmark readback. No shared control-plane vocabulary or runner/scoring policy changes.
• Slice boundary / successor: N/A; no successor is required for this repair. Duplicate-attempt aggregation, runner execution, uploads to external services, and automatic unit conversion are outside its scope.

Validation

• Tested revision: 3eb513743ac629609f2bd58e919ec02261be4c47; baseline 4d254fb6f5cca703c31a18d87488bf489ca486ef. The benchmark suite was rerun on the committed head. Build/browser/static checks used the same source content before commit. The broad Python run preceded the final unavailable-interaction guard and Markdown fallback; affected benchmark tests were rerun afterward.
• Run state: finished; the broad Python run was interrupted after failures, as disclosed below.
• Input classes: synthetic, public_fixture.

Check kind	Result	Public-safe evidence / limitation
regression_parity	passed	All 22 new Python regression cases fail on baseline and pass on head. The added browser ratio assertion also fails against the baseline build and passes after the fix.
unit	passed	python -m pytest -q tests/capabilities/test_benchmark*.py: 303 passed. Covers direction in both optimization senses, equal rates, incompatible metadata, unavailable auxiliary metrics, factorial qualification, and scalar compatibility.
real_entrypoint	passed	A committed regression writes synthetic upload envelopes to a temporary JSONL store, invokes benchmark study-dashboard, and verifies API/CLI parity and rate-based selection.
integration	passed	Dashboard build (including verified packaged chat assets), smoke:benchmark-study, and smoke:benchmark-study-browser. A separate built-browser check rendered real CLI-generated packets via a substituted local JSON response; it did not use an external backend.
static	passed	Required Ruff scope plus the changed benchmark modules; configured mypy scope (19 files); typecheck:control-plane; semantic diff advisory; diff hygiene; isolated public-boundary scan (3,591 files).
integration	passed	Risk-selected premerge automated checks passed. The benchmark-sensitive manual-review hold remains; this is not merge approval.
unit	failed	Broad python -m pytest -q: 1,728 passed, 124 skipped, 2 failed before interruption; not a complete suite pass. Both failures reproduce on clean baseline: source-session registry-loader allowlist drift, and top-level module budget 148 versus 147.
integration	failed	test:control-plane: 4,174 passed, 32 skipped, 1 failed. The SQLite capacity rehearsal fails at matched_fill; the same test fails on baseline with Node 22.22.3 / SQLite 3.51.3.
integration	failed	CLI output budget smoke: quota_should_run/small/json emits 21,871 characters against a 20,000 ceiling. Baseline reproduces the same result.

• Coverage and gaps: the changed comparison paths pass their regressions and real CLI/browser checks. Repository-wide validation is not all green, for the baseline-reproduced failures above; the remainder of the interrupted Python suite is unverified. No live benchmark, external upload service, or installed desktop application was exercised.

See validation disclosure guidance.

Frontend / Visual Evidence

• UI impact: changed.

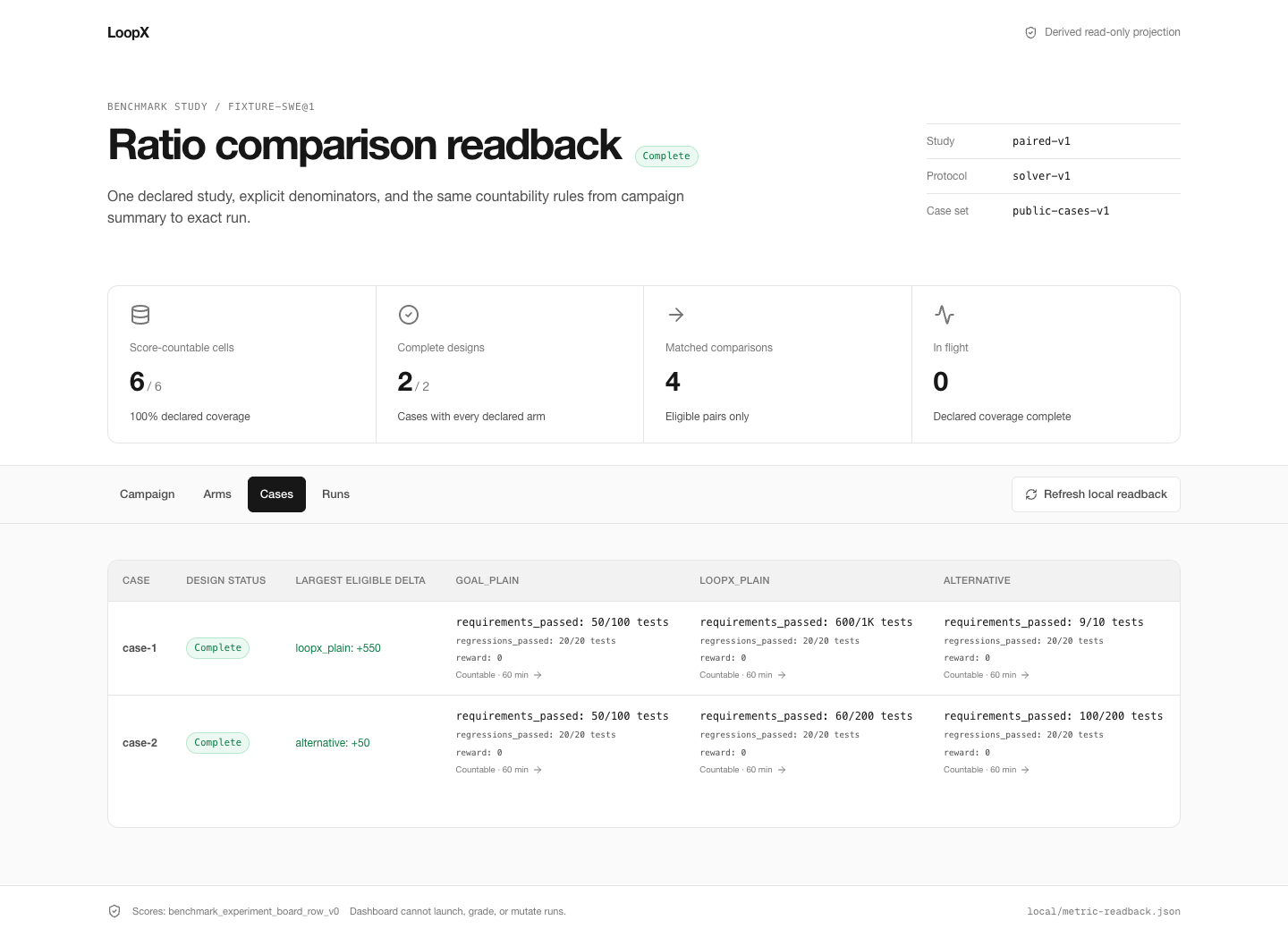

• Before:

• After:

• States and viewports shown: Cases at 1440 px, including positive and negative deltas. Browser assertions also cover flat rates, direction colors, legacy scalar labels, and 390 px overflow checks. Responsive layout is unchanged.
• Source data: synthetic; real local CLI projection for the screenshots. Before uses the original implementation; after uses the repaired projection and renderer.
• Attention review: the existing largest-delta cell now communicates the relevant magnitude, unit, and direction. No controls or visual sections were added; unavailable comparisons retain the existing empty-value display and raw run details remain accessible.

Type of Change

• Bug fix
• New feature
• Breaking change (invalid metric comparisons no longer expose numeric deltas)
• Refactoring (no functional changes)
• Documentation update
• Test update

LoopX Area

• Control plane (goals, todos, quota, scheduler, registry, runtime)
• Benchmark boundary (adapters, runners, verifiers, scoring, evidence)
• Capability or extension (providers, adapters, skills)
• Public docs or presentation surface (README, protocols, dashboard)
• Build, packaging, installer, or CI
• Host or runtime integration

Technical Direction

• Direction / acceptance reference, when applicable: long-horizon benchmark evidence; the study dashboard RFC criteria mapped above.

Shared-authority RFC fixture impact

• Production-scale fixture schema: N/A.
• Semantic dimensions changed, or reviewed no-impact rationale: benchmark comparison readback only; no shared Goal Authority or control-plane migration claim.
• Provider conformance arms run: N/A.
• Read-only legacy/file/PostgreSQL three-arm rehearsal: N/A; no authority promotion, runtime-routing, or compatibility-projection change.

Boundary Checklist

• Neither the diff nor this PR body/comments/attachments disclose private state, credentials, raw traces or verifier output, internal links, or local machine paths.
• I did not duplicate maintainer-owned benchmark work unless a maintainer split out a public issue for it.
• I kept the change scoped to the linked issue/task.
• I completed the visual evidence section for UI changes, or marked UI impact none.
• Every commit includes a DCO Signed-off-by trailer (git commit -s).

[loopx-agent]

Reviewer: model_agent; declaration_source=runtime_reported; model=gpt-6.1-sol; provider=OpenAI; reasoning_effort=xhigh; execution_observation_id=c430c8f62a9d1b345da84c47d35504743748d25e7a2b16e11bcde076d5b7e9d9.

Exact-head review: APPROVE
Head: 3eb5137

动机

维护者在比较同一测试用例的两个运行结果时，需要按通过比例识别改善或退步。

例如 80/100 → 90/200，旧实现按通过数量增加 10 判为改善，实际通过率从 80% 降到 45%；错误方向和排序会把维护者带到错误的分析对象。

本次验证确认比例比较按下降 35 个百分点解释，最大差异排序和页面显示同样使用比例；原始数量差仍保留供追溯。

本 PR 只修复已有指标比较与展示，不修改评分器、运行任务、已记录原始指标或上传权限。

改动思路

一个已有 benchmark reducer 统一判断可比较性与比较尺度，board、study 和页面消费其派生结果，避免三处各算一套方向。

当前 PR 同时覆盖 Python reducer、真实 CLI 输出、TS 数据解码和已有 Cases 页面，不新增运行或配置入口。

最强的反对理由是仅让一个局部输出变绿，而其它真实消费者仍按旧规则执行。因而本次从同一输入的 base/head 对照出发，再追踪所有受影响的共享消费者和恢复入口。未要求本 PR 完成无关的语言迁移、部署或上层路线图；原始记录/权限和失败后的当前 owner 都保留。

具体改动

spec_ref docs/architecture/rfcs/benchmark-study-upload-dashboard-v0.md；spec_revision 4d254fb。以下使用该不可变 pre-change 版本的实际章节标识；PR 自己改写后的文档没有被用作独立 oracle。

4. Dashboard projection：implemented；Every aggregate names its denominator; formal comparisons include only rows accepted by existing matched-pair or factorial contracts. 验证：303 benchmark tests and same frozen base/head input; real upload → study-dashboard CLI。

4.1 Benchmark-specific metric mapping：implemented；Other benchmark families keep their native metric names, units, directions and success thresholds. 验证：higher/lower direction, scalar/ratio, equal rates, unavailable auxiliary metric, fixed factorial total cases。

5. Privacy and provider boundary：implemented；Installing the capability or rendering a dashboard grants no provider permissions; raw/private material remains outside the contract. 验证：303 tests, 12-file boundary scan, real local synthetic CLI packet with no network/write authority。

关键代码讲解

• build_benchmark_metric_delta()（factorial_contrast.py:43）先检查单位、方向和分母形状，再计算比例；原始 delta 保留，方向由 delta_rate 决定。不能比较时留下端点和具体原因，不产生数值结论。
• benchmark_metric_comparison_value()（同文件:104）为已有 board/study 消费者提供同一个有效比较值，避免按 raw 数量排名。
• study_projection.py:1245 的 Cases 排序只比较相同尺度的有效主要指标；标量/比例混合时不编造最大差异。
• largestContrastLabel()（benchmark-study-page.tsx:67）把率差显示为百分点，正负/flat 颜色与 reducer 方向一致；TS parser 同步允许 unavailable，但拒绝不可用原因与数值结论并存。

全部 12 文件、+517/-33 已按 production、tests、docs、两张截图分类读审。Python 是已有专门 benchmark 计算 provider，并未新增通用控制面 Python 决策源。原始评分、上传 allowlist 和 factorial 资格 owner 保留。

对主干的风险

303 项 benchmark 测试通过、零跳过；TS 数据契约 smoke、浏览器 smoke 和生产 build 通过。相同冻结输入独立跑 base/head：80/100 → 90/200 在 base 为 +10/improved，在 head 为 raw+10、rate−0.35/regressed；另一个 1/1 候选为 +0.20，最大幅度正确选择前者。再通过真实本地 upload JSONL 和 CLI 产生 packet，构建页面显示 −35 pp，点击进入对应 run；390px 无页面横向溢出。无效 packet 显示不可用，恢复有效 packet 可重新读取。浏览器 smoke 的路由数据是合成 mock；这次额外页面的数据来自真实 owning CLI，未将 mock 当 reducer 证明。

零分母、单位/方向不一致、单边分母、同率、lower-is-better、标量兼容、非有限差值、四臂 auxiliary mismatch 和 mixed-scale ranking 都覆盖。semantic advisory 先跑、支持范围内零新词载体；全树 semantic smoke 通过。5 direct + 19 selected 全通过，12 文件边界扫描零命中。premerge 的非零退出是 benchmark-sensitive 维护者审查 hold，保留该合并门禁。未查询或等待 CI。

语义与 CI 对齐

比较方向是已有语义的正确派生；unavailable reason 是 benchmark 局部诊断集合，未创造跨领域 actor/权限协议。字段新增与 TS 解码、README 和回归测试一起交付；全树语义检查没有被缩小或修改。

低分母、元数据不一致和非有限差值已独立检查；四臂主要指标仍要求固定分母，未借本次修复放宽设计资格。未启动真实 benchmark/模型/外部上传，未验证旧独立 dashboard 的混合部署。

初次验证命令使用不存在的测试路径、canary 参数和缺少测试依赖的 interpreter；保留失败诊断后，使用实际测试清单、正确参数和 worktree environment 完成验证，未改变产品或放宽 oracle。

我的整体评价

APPROVE。修复了可复现的比例方向与排序错误，long_horizon 改善后续分析可靠性，user_experience 改善了数据到页面的一致解释；标量兼容和原始指标仍保留。

未来维护梳理已在当前边界落实：Applied bounded shared comparison scale helper。现有兼容路径有真实 reader/历史记录依据，未另造第二套决策源，也未引入未用框架。当前 PR 同时覆盖 Python reducer、真实 CLI 输出、TS 数据解码和已有 Cases 页面，不新增运行或配置入口。 本结论只针对上述精确 head；后续 head/base 或共享 caller 变化须重新判断。独立测试支持审查结论，合并仍由现有仓库维护者门禁和当前授权决定，未执行部署或合并。

English verdict: APPROVE — the exact head corrects the reproduced rate-direction/ranking defect across the affected real callers. Same-input immutable base/head probes distinguish the historical failure from the fix, with native local validation and a built frontend recovery/readback. Original metrics/receipts, scoped authority and legitimate recovery remain intact. 低分母、元数据不一致和非有限差值已独立检查；四臂主要指标仍要求固定分母，未借本次修复放宽设计资格。未启动真实 benchmark/模型/外部上传，未验证旧独立 dashboard 的混合部署。
