ADD_PANEL

Let's take a look at the panels available!

Like for the ADD_ITEM function, ADD_PANEL have some common needed parameters for all panels.

Parameters	TYPE	Optional	Description
item	Int	☒	The item's index in menu
id	Int	☒	The panel's type

Returns	VOID

---

UIMenuColorPanel

The first panel we all know, it comes in 2 variants: hair and makeup colors combinations.

Parameters	TYPE	Optional	Description
item	Int	☒	The item's index
id	Int	☒	The panel's type (id = 0)
title	String	☒	The panel's title
type	Int	☒	The panel's variant (0 = hair, 1 = makeup)
firstIndex	Int	☒	panel's starting index

Example:

• C#

NativeUIScaleform.CallFunction("ADD_PANEL", 0, 0, "Title", 0, 0);

• Lua

BeginScaleformMovieMethod(scaleformUI, "ADD_PANEL")
ScaleformMovieMethodAddParamInt(0) -- Item 0
ScaleformMovieMethodAddParamInt(0) -- UIMenuColorPanel
ScaleformMovieMethodAddParamTextureNameString("Title")
ScaleformMovieMethodAddParamInt(0) -- Hair variant
ScaleformMovieMethodAddParamInt(0) -- color index 0
EndScaleformMovieMethod()

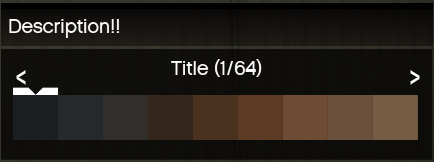

Result:

---

UIMenuPercentagePanel

Adds a customizable panel that will act similar as the ProgressItem.

Parameters	TYPE	Optional	Description
item	Int	☒	The item's index
id	Int	☒	The panel's type (id = 1)
title	String	☒	The panel's title
left_label	String	☒	The panel's left label (usually "0%")
right_label	String	☒	The panel's right label (usually "100%")
startIndex	Int	☒	panel's starting index (0 -> 100)

Example:

• C#

NativeUIScaleform.CallFunction("ADD_PANEL", 0, 1, "Title", "0%", "100%", 50);

• Lua

BeginScaleformMovieMethod(scaleformUI, "ADD_PANEL")
ScaleformMovieMethodAddParamInt(0) -- Item 0
ScaleformMovieMethodAddParamInt(1) -- UIMenuPercentagePanel
ScaleformMovieMethodAddParamTextureNameString("Title")
ScaleformMovieMethodAddParamTextureNameString("0%")
ScaleformMovieMethodAddParamTextureNameString("100%")
ScaleformMovieMethodAddParamInt(50) -- Start value
EndScaleformMovieMethod()

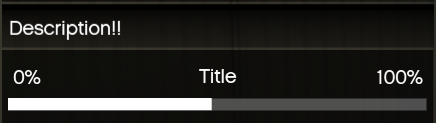

Result:

---

UIMenuGridPanel

This panel has 2 variants: classic grid panel with x,y coordinates and horizontal grid panel with y fixed at 0 and variable x.

Parameters	TYPE	Optional	Description
item	Int	☒	The item's index
id	Int	☒	The panel's type (id = 2)
top_label	String	☒	The panel's top label (leave empty for horizontal)
right_label	String	☒	The panel's right label
left_label	String	☒	The panel's left label
bottom_label	String	☒	The panel's bottom label (leave empty for horizontal)
startIndex_x	Float	☒	panel's starting x coordinate (0 -> 1)
startIndex_y	Float	☒	panel's starting y coordinate (0 -> 1)
animate	Bool	☒	if true the dot will be animated
horizontal	Int	☒	0 = classic variant, 1 = horizontal variant

Example:

• C#

NativeUIScaleform.CallFunction("ADD_PANEL", 0, 2, "Top", "Right", "Left", "Bottom", 0.5f, 0.5f, true, 0);
NativeUIScaleform.CallFunction("ADD_PANEL", 0, 2, "", "Right", "Left", "", 1, 0, true, 1);

• Lua

BeginScaleformMovieMethod(scaleformUI, "ADD_PANEL")
ScaleformMovieMethodAddParamInt(0) -- Item 0
ScaleformMovieMethodAddParamInt(2) -- UIMenuGridPanel
ScaleformMovieMethodAddParamTextureNameString("Top")
ScaleformMovieMethodAddParamTextureNameString("Right")
ScaleformMovieMethodAddParamTextureNameString("Left")
ScaleformMovieMethodAddParamTextureNameString("Bottom")
ScaleformMovieMethodAddParamFloat(0.5) -- X
ScaleformMovieMethodAddParamFloat(0.5) -- Y
ScaleformMovieMethodAddParamBool(true) -- animate
ScaleformMovieMethodAddParamInt(0) -- classic grid
EndScaleformMovieMethod()

BeginScaleformMovieMethod(scaleformUI, "ADD_PANEL")
ScaleformMovieMethodAddParamInt(0) -- Item 0
ScaleformMovieMethodAddParamInt(2) -- UIMenuGridPanel
ScaleformMovieMethodAddParamTextureNameString("")
ScaleformMovieMethodAddParamTextureNameString("Right")
ScaleformMovieMethodAddParamTextureNameString("Left")
ScaleformMovieMethodAddParamTextureNameString("")
ScaleformMovieMethodAddParamFloat(0.5) -- X
ScaleformMovieMethodAddParamFloat(0) -- Y
ScaleformMovieMethodAddParamBool(true) -- animate
ScaleformMovieMethodAddParamInt(1) -- Horizontal grid
EndScaleformMovieMethod()

Result:

---

UIMenuStatsPanel

The only panel that is not interactable as it shows only statistics based on values you give to it.

Parameters	TYPE	Optional	Description
item	Int	☒	The item's index in menu
id	Int	☒	The panel's type (id = 3)

Example:

• C#

NativeUIScaleform.CallFunction("ADD_PANEL", 0, 3);

• Lua

BeginScaleformMovieMethod(scaleformUI, "ADD_PANEL")
ScaleformMovieMethodAddParamInt(0) -- Item 0
ScaleformMovieMethodAddParamInt(3) -- UIMenuStatsPanel
EndScaleformMovieMethod()

This will only create the container and add it to the item, to add statistics you need 2 more functions: ADD_STATISTIC_TO_PANEL and SET_PANEL_STATS_ITEM_VALUE

ADD_STATISTIC_TO_PANEL

This function will add a new line to the container with a title and a starting value (default set to 0)

Parameters	TYPE	Optional	Description
item	Int	☒	The item's index in menu
panel	Int	☒	The panel's index in the item's panels list
title	String	☒	The statistic's title
value	Int	☑	The statistic's value ( 0 -> 100, if not specified will default to 0)

Example:

• C#

NativeUIScaleform.CallFunction("ADD_STATISTIC_TO_PANEL", 0, 0, "Statistic 1", 75);

• Lua

BeginScaleformMovieMethod(scaleformUI, "ADD_PANEL")
ScaleformMovieMethodAddParamInt(0) -- Item 0
ScaleformMovieMethodAddParamInt(0) -- Panel 0
ScaleformMovieMethodAddParamTextureNameString("Statistic 1")
ScaleformMovieMethodAddParamInt(75)
EndScaleformMovieMethod()

SET_PANEL_STATS_ITEM_VALUE

If we already have a statistic but we want to change its value, we call this function.

Parameters	TYPE	Optional	Description
item	Int	☒	The item's index in menu
panel	Int	☒	The panel's index in the item's panels list
line	Int	☒	The panel's stat index in the panel's list
value	Int	☒	The statistic's value we wanna set

Example:

• C#

NativeUIScaleform.CallFunction("SET_PANEL_STATS_ITEM_VALUE", 0, 0, 0, 50);

• Lua

BeginScaleformMovieMethod(scaleformUI, "ADD_PANEL")
ScaleformMovieMethodAddParamInt(0) -- Item 0
ScaleformMovieMethodAddParamInt(0) -- Panel 0
ScaleformMovieMethodAddParamInt(0) -- Line 0
ScaleformMovieMethodAddParamInt(50)
EndScaleformMovieMethod()

Result:
