🌟 RayTrophi - Advanced Real-Time Ray Tracing Engine

A high-performance, production-ready ray tracing renderer with hybrid CPU/GPU rendering

Features • Quick Start • Architecture • Performance • Gallery

📖 Overview

RayTrophi is a state-of-the-art physically-based ray tracing engine designed for architectural visualization, product rendering, and real-time graphics. It combines the flexibility of CPU rendering with the raw power of GPU acceleration through NVIDIA OptiX.

🎯 Key Highlights

Hybrid Rendering: Seamlessly switch between CPU (Embree/Custom BVH) and GPU (OptiX) acceleration
Production-Ready: Principled BSDF, advanced materials, volumetrics, subsurface scattering
High Performance: Optimized BVH construction (<1s for 3.3M triangles), 75% memory-optimized triangle structure
Real-time Preview: Modern interactive UI with ImGui, animation timeline
Industry Standard: AssImp loader supports 40+ 3D formats (GLTF, FBX, OBJ, etc.)

✨ Features

🎨 Rendering Capabilities

Materials
- ✅ Principled BSDF (Disney-style uber-shader)
- ✅ Lambertian, Metal, Dielectric
- ✅ Volumetric rendering with noise-based density
- ✅ Subsurface Scattering (SSS)
- ✅ Clearcoat, Anisotropic materials
- ✅ Hair System: GPU-accelerated hair rendering and simulation
Lighting
- ✅ Point lights, Directional lights
- ✅ Area lights (mesh-based)
- ✅ Emissive materials
- ✅ HDR/EXR Environment Maps (equirectangular projection)
- ✅ Global Volumetric Clouds:
  - Any Sky Mode: Decoupled rendering works seamlessly with HDRI, Solid Color, or Nishita Sky.
  - Physical Scattering: Henyey-Greenstein phase function with controllable Anisotropy (Silver Lining).
  - High Quality: Adaptive ray marching (up to 128 steps) and jittered sampling to eliminate banding artifacts.
  - Dynamic Control: Wind/Seed offsets, Coverage, Density, and Altitude layers.
  - Soft Horizon: Smart density fading prevents black horizon artifacts.
- ✅ Advanced Nishita Sky Model:
- Physical atmosphere (Air, Dust, Ozone, Altitude) matching Blender concepts.
- Day/Night Cycle: Automatic transition with procedural stars and moon.
- Moon Rendering: Horizon size magnification, redness, atmospheric dimming, and phases.
- Sun Glow: High Mie Anisotropy (0.98) for realistic sun halos.
- Light Sync: Automatically synchronizes Scene Directional Light with Sky Sun position.)
- ✅ Soft shadows with multiple importance sampling
Advanced Features
- ✅ Accumulative Rendering: Progressive path tracing for noise-free, high-quality output
- ✅ Adaptive Sampling: Intelligent sampling engine focusing on noisy areas
- ✅ Depth of Field (DOF)
- ✅ Motion Blur
- ✅ Intel Open Image Denoise (OIDN) integration
- ✅ Tone mapping & post-processing
- ✅ Advanced Animation:
  - Bone animation with quaternion interpolation
  - Multi-track timeline with keyframe editing (Location/Rotation/Scale/Material)
  - Batch Animation Rendering: Export animation sequences to image files with material keyframe support
  - Cancellable renders with "Stop Animation" button
  - Real-time playback preview with scrubbing
- ✅ Advanced Cloud Lighting Controls:
  - Light Steps control for volumetric cloud quality
  - Shadow Strength for realistic cloud shadows
  - Ambient Strength for cloud base illumination
  - Silver Intensity (Silver Lining) for sun-edge effects
  - Cloud Absorption for light penetration control
- ✅ Full Undo/Redo System (v1.2):
  - Object transforms (move, rotate, scale)
  - Object deletion and duplication
  - Light transforms (move, rotate, scale)
  - Light add/delete/duplicate
  - Keyboard shortcuts: Ctrl+Z (Undo), Ctrl+Y (Redo)
- ✅ Advanced Selection System (NEW v1.3):
  - Box Selection: Right-click drag to select multiple objects
  - Mixed Selection: Select lights + objects together
  - Ctrl+Click: Add/remove from selection
  - Select All/None buttons: Quick selection in Scene panel
  - Multi-object transform: Move multiple selected items at once
- ✅ Idle Preview (NEW v1.3):
  - During gizmo manipulation, pause mouse for 0.3s to preview position
  - See render result before releasing - adjust if needed
  - Blender-like UX for precise positioning

🚀 Performance & Optimization

Multi-BVH Support
- Embree BVH (Intel, production-grade)
- Custom ParallelBVH (SAH-based, OpenMP parallelized)
- OptiX GPU acceleration structure
Optimizations
- SIMD vector operations
- Multi-threaded tile-based rendering
- Progressive refinement
- Memory Optimization: Triangular footprint reduced from 612 to 146 bytes (75% reduction)
- Robust Texture System: Crash-proof loader for Unicode paths and corrupted formats
- Cached Texture Management (Optimized Hit/Miss logic)
- Deferred BVH Update (NEW v1.3): Gizmo manipulation doesn't block - BVH updates only when needed
- O(n) Multi-Delete (NEW v1.3): Delete 100+ objects instantly (was O(n²))

🖥️ User Interface

Modern ImGui-based Dark UI with Docking
Animation Timeline:
- Multi-track visualization with group hierarchy (Objects/Lights/Cameras/World)
- Per-Channel Keyframing: Separate Location/Rotation/Scale keyframes
- Expandable L/R/S sub-channels with color coding
- Context menu for insert/delete/duplicate operations
- Drag-to-move keyframes, zoom/pan/scrub navigation
Render Quality Presets (Low, Medium, High, Ultra)
Dynamic Resolution Scaling
Scene hierarchy viewer and Material editor
Performance metrics (FPS, rays/s, memory usage)
Box Selection: Right-click drag for multi-selection
Transform Gizmo Idle Preview: Pause during drag to preview position

�️ Procedural Tools & Systems

🏔️ Advanced Terrain Editor

Sculpting Brushes: Intuitive brushes for raising, lowering, smoothing, and flattening terrain geometry in real-time.
Hydraulic & Fluvial Erosion:
- Simulate realistic water flow and sediment transport
- Create natural-looking riverbeds and valleys automatically
- Control erosion strength, rain amount, and solubility
Heightmap Support: Import/Export 16-bit heightmaps for external workflows (World Machine, Gaea).
Node-Based Workflow: Non-destructive terrain generation using a powerful node graph editor. Combine noise, filters, and masks.

🌿 Procedural Vegetation & Foliage

GPU Instancing: Render millions of grass blades, trees, and rocks with zero performance cost using OptiX hardware acceleration.
Smart Scattering:
- Rule-based placement (slope, height, texture mask)
- Collision avoidance to prevent overlapping instances
Paint Mode: Manually paint forests or specific details using brush tools.
Dynamic Wind: All foliage responds to global wind parameters (strength, direction, gust).

💇 Hair & Fur System (New!)

GPU Simulated & Rendered: Fully accelerated by NVIDIA OptiX for real-time performance.
Grooming Brushes:
- Comb: Style hair direction naturally
- Cut/Grow: Adjust length interactively
- Smooth: Relax hair strands
Physics Integration: Hair strands collide with character meshes and respond to gravity/forces.
Material Support: Melanin-based hair BSDF for realistic rendering.

🌊 Realistic Water & Ocean

FFT Ocean Simulation: Fast Fourier Transform based deep ocean waves with foam generation.
Caustics: Realistic light refraction and caustic patterns on the seabed.
Underwater Volumetrics: Fog density and absorption based on depth.

🏞️ River Tool

Spline-Based Generation: Draw rivers using intuitive bezier curves.
Auto-Carving: Rivers automatically carve their path into the terrain.
Flow Mapping: Water texture flows along the spline direction naturally.
Physics Interaction: Objects float and drift according to river flow velocity.

�🚦 Quick Start

Prerequisites

Required:

Visual Studio 2022 (MSVC v143) - RECOMMENDED BUILD SYSTEM
Windows 10/11 (x64)
CMake 3.20+ (optional, VS2022 preferred)

Optional (for GPU rendering):

NVIDIA GPU (SM 5.0+): GTX 9xx, 10xx, 16xx, or RTX series
CUDA Toolkit 12.0+
OptiX 7.x SDK

GPU Compatibility:

GPU Series	Architecture	Mode	Performance
RTX 40xx	Ada Lovelace	Hardware RT	⚡ Fastest
RTX 30xx	Ampere	Hardware RT	⚡ Very Fast
RTX 20xx	Turing	Hardware RT	⚡ Fast
GTX 16xx	Turing	Compute	🔶 Good
GTX 10xx	Pascal	Compute	🔶 Moderate
GTX 9xx	Maxwell	Compute	🔶 Slower

📦 Dependencies & Environment Variables

The project uses absolute paths via system environment variables. Before building, you must set the following Environment Variables in your Windows system to point to your local installation paths:

Environment Variable	Description	Example Path
`SDL2_ROOT`	SDL2 Root Directory	`E:\RayTrophi_projesi\external_dependencies\SDL2-2.30.4`
`OPTIX_ROOT`	OptiX SDK Directory	`C:\ProgramData\NVIDIA Corporation\OptiX SDK 8.0.0`
`EMBREE_ROOT`	Embree Root Directory	`E:\RayTrophi_projesi\external_dependencies\embree-4.4.0.x64.windows`
`OIDN_ROOT`	Intel Open Image Denoise Root	`E:\RayTrophi_projesi\external_dependencies\oidn-2.3.0.x64.windows`
`ASSIMP_ROOT`	Assimp Root Directory	`E:\RayTrophi_projesi\external_dependencies\Assimp`
`CUDA_PATH`	CUDA Toolkit Directory	`C:\Program Files\NVIDIA GPU Computing Toolkit\CUDA\v12.x`

(Note: CUDA_PATH is usually set automatically when you install the CUDA Toolkit.)

All dependencies are managed automatically once these variables are correctly configured:

SDL2 (graphics output)
Embree 4.x (CPU BVH)
AssImp 5.x (model loading)
ImGui (UI)
OpenMP (parallelization)
stb_image (HDR/texture loading)
TinyEXR (EXR format support)
Intel OIDN (denoising)
CUDA/OptiX (GPU rendering - optional)

🔨 Build Instructions

Method 1: Visual Studio 2022 (RECOMMENDED)

# 1. Clone the repository
git clone https://github.com/maxkemal/RayTrophi.git
cd RayTrophi/raytrac_sdl2

# 2. Open the solution
# Double-click raytrac_sdl2.vcxproj or open in Visual Studio 2022

# 3. Build
# Set configuration to "Release" and platform to "x64"
# Build > Build Solution (Ctrl+Shift+B)

# 4. Run
# The executable will be in: x64/Release/raytracing_render_code.exe

Note: All dependencies (DLLs, resources) are automatically copied to the output directory by the build system.

Method 2: CMake

mkdir build
cd build
cmake .. -G "Visual Studio 17 2022" -A x64
cmake --build . --config Release -j 12

(Note: CMake build is fully supported and equivalent to the VS2022 project.)

▶️ Running

If built with Visual Studio:

cd x64/Release
raytracing_render_code.exe

If built with CMake:

cd build/Release
RayTrophi.exe

The UI will appear. Use File > Load Scene to import models (GLTF recommended).

🏗️ Architecture

Project Structure

RayTrophi/
├── raytrac_sdl2/                  # Main project
│   ├── source/
│   │   ├── src/                   # Source files by module
│   │   │   ├── Core/              # Main entry (Main.cpp), Project Management
│   │   │   ├── Render/            # Renderer, OptiX Wrapper, BVH Builders
│   │   │   ├── Scene/             # Scene Objects, Lights, Materials
│   │   │   ├── Physics/           # Terrain, Water, Gas, VDB, Physics Engines
│   │   │   ├── Device/            # CUDA Kernels (.cu) & GPU Logic
│   │   │   ├── UI/                # ImGui Panels & Editor Logic
│   │   │   ├── Utils/             # Helper Utilities (Loaders, Math)
│   │   │   └── ...
│   │   ├── include/               # Header files (.h)
│   │   │   ├── Renderer.h
│   │   │   ├── Material.h
│   │   │   └── ...
│   │   ├── raygen.ptx             # Compiled OptiX kernels
│   │   └── ...
│   ├── raytrac_sdl2.vcxproj       # Visual Studio project
│   ├── CMakeLists.txt             # CMake build configuration
│   └── raygen.ptx                 # OptiX shader
└── README.md                      # This file

Core Components

Renderer (src/Render/Renderer.cpp)
- Tile-based multi-threaded rendering
- Progressive refinement
- Denoising integration
BVH Systems
- EmbreeBVH (src/Render/EmbreeBVH.cpp): Industry-standard, optimized for speed
- ParallelBVHNode (src/Render/ParallelBVHNode.cpp): Custom SAH-based, OpenMP parallel build
- OptiX BVH (src/Render/OptixWrapper.cpp): GPU-accelerated structure
Material System (src/Scene/PrincipledBSDF.cpp)
- Modular property-based materials
- Texture support (albedo, roughness, metallic, normal, emission)
- sRGB/Linear color space handling
OptixWrapper (src/Render/OptixWrapper.cpp, src/Device/*.cu)
- CUDA/OptiX backend
- SBT (Shader Binding Table) management
- Texture object caching
Physics & Procedural (src/Physics/*)
- TerrainManager: Hydraulic erosion, sculpting
- WaterManager: FFT Ocean simulation
- EmitterSystem: Particle systems & forces

🎨 Gallery

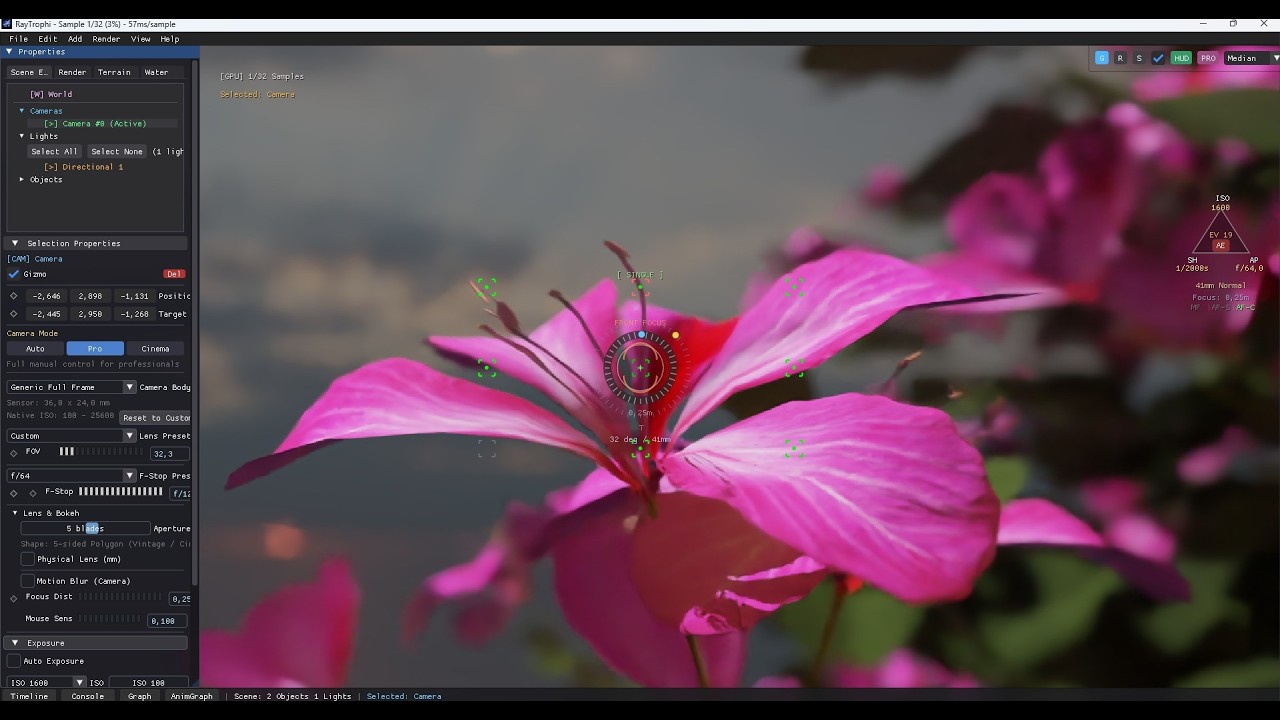

🎬 Demo Reel

▶️ Watch Full Demo Reel on YouTube

🖼️ Render Samples

Architectural Visualization

Complex architectural scene with advanced lighting - 3.3M triangles, Embree BVH

Product Rendering

Interior design with volumetric lighting and subsurface scattering

GPU Accelerated Rendering

Real-time GPU rendering with OptiX - 500M+ rays/second

Stylized Rendering

Stylized dragon with custom materials and procedural textures

CPU Path Tracing

Pure CPU path tracing with progressive refinement

Materials & Textures

Principled BSDF materials with PBR textures

Outdoor Scene

Outdoor environment with natural lighting

Real-time UI

Interactive ImGui interface with live parameter adjustments

🛠️ Building from Source - Detailed Guide

Dependencies Setup

Automatic (recommended): The Visual Studio project manages dependencies via vcpkg or manual paths.

Manual:

Download SDL2, Embree, AssImp from official sources
Update include/library paths in project properties

Build Configurations

Debug: Full symbols, slower (~10x)
Release: Optimized, production use
RelWithDebInfo: Optimized + symbols (profiling)

CMake vs Visual Studio

Feature	VS2022 .vcxproj	CMake
CPU Rendering (SDL)	✅ Working	⚠️ Has bugs
GPU Rendering (OptiX)	✅ Working	✅ Working
Dependency Management	✅ Excellent	⚠️ Manual
Build Speed	Fast	Slower
Recommendation	USE THIS	Experimental

Why VS2022?

All dependencies are pre-configured
Resource files (icons, PTX) auto-copied
No SDL refresh bugs in CPU rendering
Better debugging experience

📚 Usage Examples

Basic Rendering

#include "Renderer.h"
#include "SceneData.h"

int main() {
    Renderer renderer(1920, 1080, 8, 128);
    SceneData scene;
    OptixWrapper optix;

    // Load scene
    renderer.create_scene(scene, &optix, "path/to/model.gltf");

    // Render
    SDL_Surface* surface = /* ... */;
    renderer.render_image(surface, scene, /* ... */);

    return 0;
}

Switching BVH Backend

// Use Embree (fastest)
renderer.rebuildBVH(scene, true);  // use_embree = true

// Use custom ParallelBVH
renderer.rebuildBVH(scene, false); // use_embree = false

Material Creation

auto mat = std::make_shared<PrincipledBSDF>();
mat->albedoProperty.constant_value = Vec3(0.8, 0.1, 0.1); // Red
mat->roughnessProperty.constant_value = Vec3(0.3, 0.3, 0.3);
mat->metallicProperty.constant_value = Vec3(1.0, 1.0, 1.0); // Metallic

🐛 Known Issues & Limitations

Build System

⚠️ CMake build has SDL screen update bug in CPU rendering → Use VS2022 instead
DLL dependencies must be in same folder as .exe

Rendering

OptiX requires NVIDIA GPU with SM 5.0+ (GTX 9xx or newer)
RTX GPUs use hardware RT cores; GTX GPUs use compute-based ray tracing (slower)
Very large scenes (>10M triangles) may cause memory issues
Denoising uses Intel OIDN with CUDA acceleration on NVIDIA GPUs

Platform

Currently Windows-only (SDL2, DirectX dependencies)
Linux/macOS support would require porting

🗺️ Roadmap

Binned SAH for faster BVH construction
Index-based BVH (remove vector copying)
SBVH (Spatial BVH splits)
Linux/macOS support
Vulkan backend (alternative to OptiX)
Network rendering (distributed ray tracing)
USD format support
Light path visualization/debugging

🤝 Contributing

Contributions are welcome! Areas of interest:

Performance optimizations
New material models
Additional 3D format support
Bug fixes
Documentation improvements

How to contribute:

Fork the repository
Create a feature branch (git checkout -b feature/amazing-feature)
Commit your changes (git commit -m 'Add amazing feature')
Push to the branch (git push origin feature/amazing-feature)
Open a Pull Request

📝 License

This project is licensed under the MIT License - see the LICENSE file for details.

🙏 Acknowledgments

Embree - Intel's high-performance ray tracing kernels
OptiX - NVIDIA's GPU ray tracing engine
AssImp - Open Asset Import Library
ImGui - Dear ImGui for user interface
SDL2 - Simple DirectMedia Layer
Intel OIDN - Open Image Denoise
stb - Sean Barrett's public domain libraries (stb_image for HDR)
TinyEXR - Syoyo Fujita's EXR loader library

👤 Author

Kemal - @maxkemal

📧 Contact & Support

Issues: GitHub Issues
Discussions: GitHub Discussions

⭐ Star this repository if you find it useful!

Made with ❤️ and lots of ☕

Name		Name	Last commit message	Last commit date
Latest commit History 82 Commits
docs		docs
raytrac_sdl2		raytrac_sdl2
render_samples		render_samples
.editorconfig		.editorconfig
.gitattributes		.gitattributes
.gitignore		.gitignore
LICENSE.txt		LICENSE.txt
README.md		README.md
README_TR.md		README_TR.md
raytracing_Render_code.sln		raytracing_Render_code.sln

License

maxkemal/RayTrophi

Folders and files

Latest commit

History

Repository files navigation
