fix(chat): theme mermaid diagrams to the active palette and re-render on theme change

[BrunooMoniz]

Summary

Mermaid diagrams were always drawn with Mermaid's built-in dark theme: initMermaid() in static/js/markdown.js called mermaid.initialize({ startOnLoad: false, theme: 'dark', securityLevel: 'loose' }) exactly once (guarded by window.__odysseusMermaidReady). Because Mermaid bakes colours into the SVG at render time, a diagram never followed the app's CSS variables — on any light theme it was dark-filled with light text on a light page — and switching themes at runtime left already-rendered diagrams untouched. This PR drives Mermaid's themeable base theme from the app's existing theme tokens instead: initMermaid() now builds themeVariables from the live CSS variables (--bg, --panel, --fg, --border, --accent / --red, --font-family) so node fills, borders, edges, text, and font all track the active palette, and it re-initialises whenever that palette changes. renderMermaid() records each diagram's source before Mermaid overwrites the <pre> with an SVG, and theme.js dispatches an odysseus-theme-changed event from applyColors() that a small debounced listener uses to re-render every on-screen diagram with the new palette. It stays on the CDN-loaded Mermaid, keeps securityLevel: 'loose', and introduces no new colours, fonts, or components — only the theming and the re-render-on-switch.

Target branch

• This PR targets dev, not main. All PRs land in dev; main is curated by the maintainer at each release. If your PR is on main by accident, click "Edit" on this PR and change the base.

Linked Issue

Fixes #5586

Type of Change

• Bug fix (non-breaking — fixes a confirmed issue)
• New feature (non-breaking — adds new behaviour)
• Breaking change (changes or removes existing behaviour)
• Refactor / cleanup (behaviour unchanged)
• Documentation only
• CI / tooling / configuration

Checklist

• I searched open issues and open PRs — this is not a duplicate.
• This PR targets dev
• My changes are limited to the scope described above — no unrelated refactors or whitespace changes mixed in.
• I actually ran the app (docker compose up or uvicorn app:app) and verified the change works end-to-end. Type-checks and unit tests are not enough.

How to Test

Steps a reviewer can reproduce (full app):

1. docker compose up -d --build, open the chat.
2. Get the assistant to reply with a Mermaid diagram, e.g. prompt it to echo exactly:

   ```mermaid
   flowchart TD
     Start([Start]) --> Process[Process]
     Process --> Decision{Decision}
     Decision -->|Yes| End([End])
     Decision -->|No| Process
   ```


3. On current dev: the diagram renders with Mermaid's dark theme no matter which app theme is active — on a light preset it is dark-on-light and clashes, and switching themes afterwards does not retheme it. With this branch: the diagram uses the active palette. Open the theme picker, switch between a dark preset and a light one (for example dark ↔ light / paper), and the on-screen diagram re-renders to match each time.

What was verified for this change:

• Rendered through the patched theming (Mermaid theme: 'base' + themeVariables built from the app's CSS variables) in Chromium (desktop, 1280px) and WebKit (mobile, iPhone 12, 390px), for the built-in dark and light presets — see the screenshots below.
• node --check static/js/markdown.js and node --check static/js/theme.js — pass.
• python -m pytest tests/test_mermaid_theming_js.py — 2 passed (palette → themeVariables mapping for light vs dark; an odysseus-theme-changed dispatch re-initialises Mermaid with the new palette and re-renders the diagram from its saved source).
• python -m pytest tests/test_markdown_rendering_js.py — 13 passed (no regression in the renderer this touches).
• Full python -m pytest — 4618 passed, 5 skipped; the only 2 failures (tests/test_research_report_read.py) reproduce identically on unmodified dev and are unrelated to this change.

Files changed:

• static/js/markdown.js — initMermaid() builds Mermaid's base theme from the app's CSS variables (theme: 'base' + themeVariables) instead of a hard-coded theme: 'dark', and re-initialises when the palette signature changes; renderMermaid() captures each diagram's source before Mermaid replaces it with an SVG; a debounced odysseus-theme-changed listener re-renders on-screen diagrams with the new palette. Adds a small exported _mermaidThemeVariables(palette) used by the tests.
• static/js/theme.js — applyColors() dispatches an odysseus-theme-changed CustomEvent so theme-reactive renderers (Mermaid) can follow a palette change. No colour or behaviour change to the theme system itself.
• tests/test_mermaid_theming_js.py — node-driven tests (palette → themeVariables mapping for light and dark; a theme-change dispatch triggers re-initialise + re-render), following the existing tests/test_markdown_rendering_js.py convention.

Visual / UI changes — REQUIRED if you touched anything that renders

Anything that changes what the UI looks like — buttons, icons, padding, colors, fonts, spacing, layout, CSS, HTML, SVG, or any static/js/ module that draws to the DOM — needs all of the following.

• Screenshot or short clip of the change in the running app, attached below. Mobile screenshot too if the change affects mobile.
  • How the screenshots were captured: rendered through the patched theming — Mermaid theme: 'base' with themeVariables produced by the module's own _mermaidThemeVariables() from the app's CSS variables — in Chromium (desktop, 1280px) and WebKit (mobile, iPhone 12, 390px), using the built-in dark and light theme presets.
• Style match: the change uses Odysseus's existing visual language. Specifically:
  • Reuse existing CSS variables (--red, --fg, --bg, --card, --border, etc.) — do not introduce new color values, font sizes, or spacing units. (This change reads the existing --bg/--panel/--fg/--border/--accent/--red/--font-family variables to theme the diagram; it adds none.)
  • Reuse existing button/input/card/border classes. Don't invent parallel styling.
  • No Unicode emoji in UI or code. Use inline SVG (matching the monochrome icon style already in static/index.html) or plain text.
  • Monospaced font (Fira Code) for primary UI text. Don't override.
  • Dark theme is the default; any light-mode work must be wired through the existing theme system, not hard-coded.
• No new component patterns. If a similar widget already exists in the app, extend it instead of writing a parallel one.
• I am not an LLM agent submitting a bulk PR. If you are, please open an issue describing the problem first — bulk auto-generated PRs that don't match the project's visual style are closed on sight, even when the underlying fix is correct.

Screenshots / clips

Desktop — dark theme

Desktop — light theme

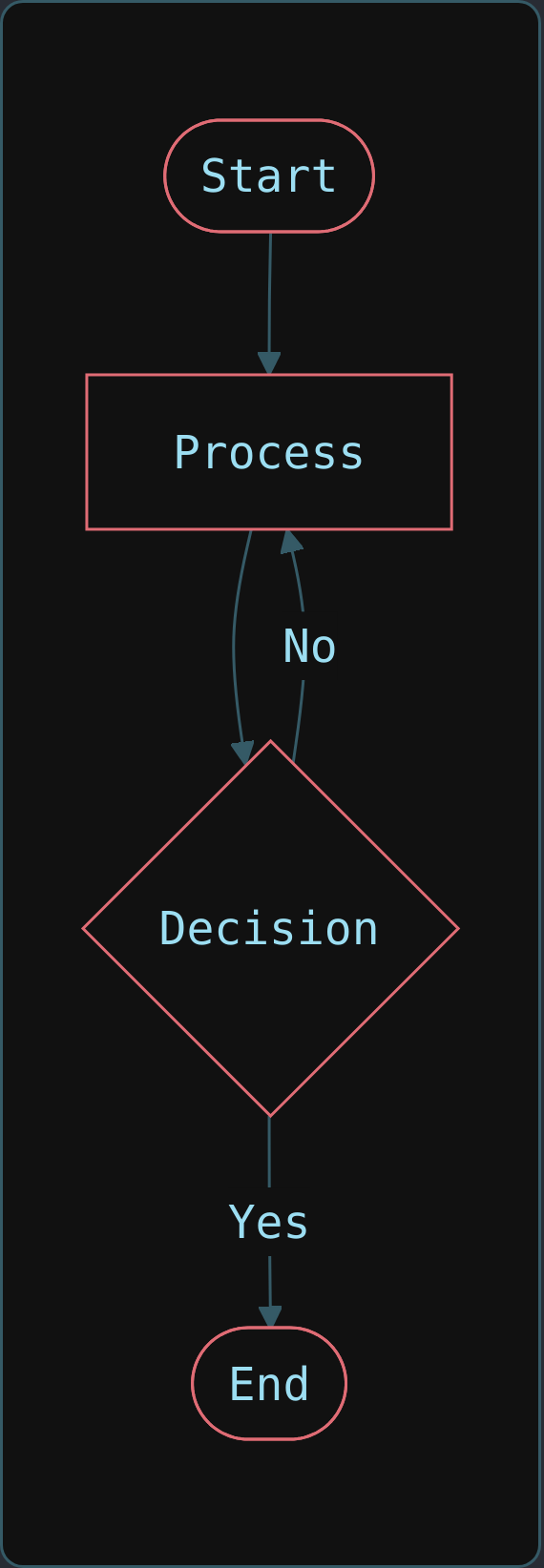

Mobile — dark theme

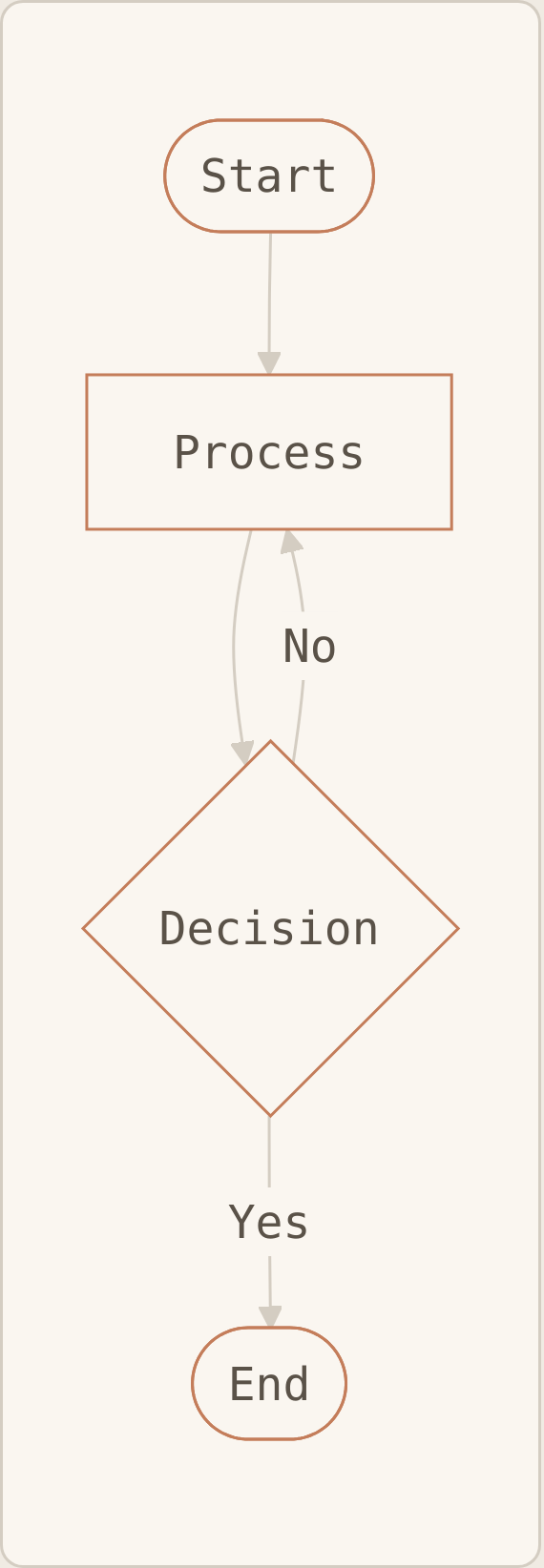

Mobile — light theme
