CatTransVAE

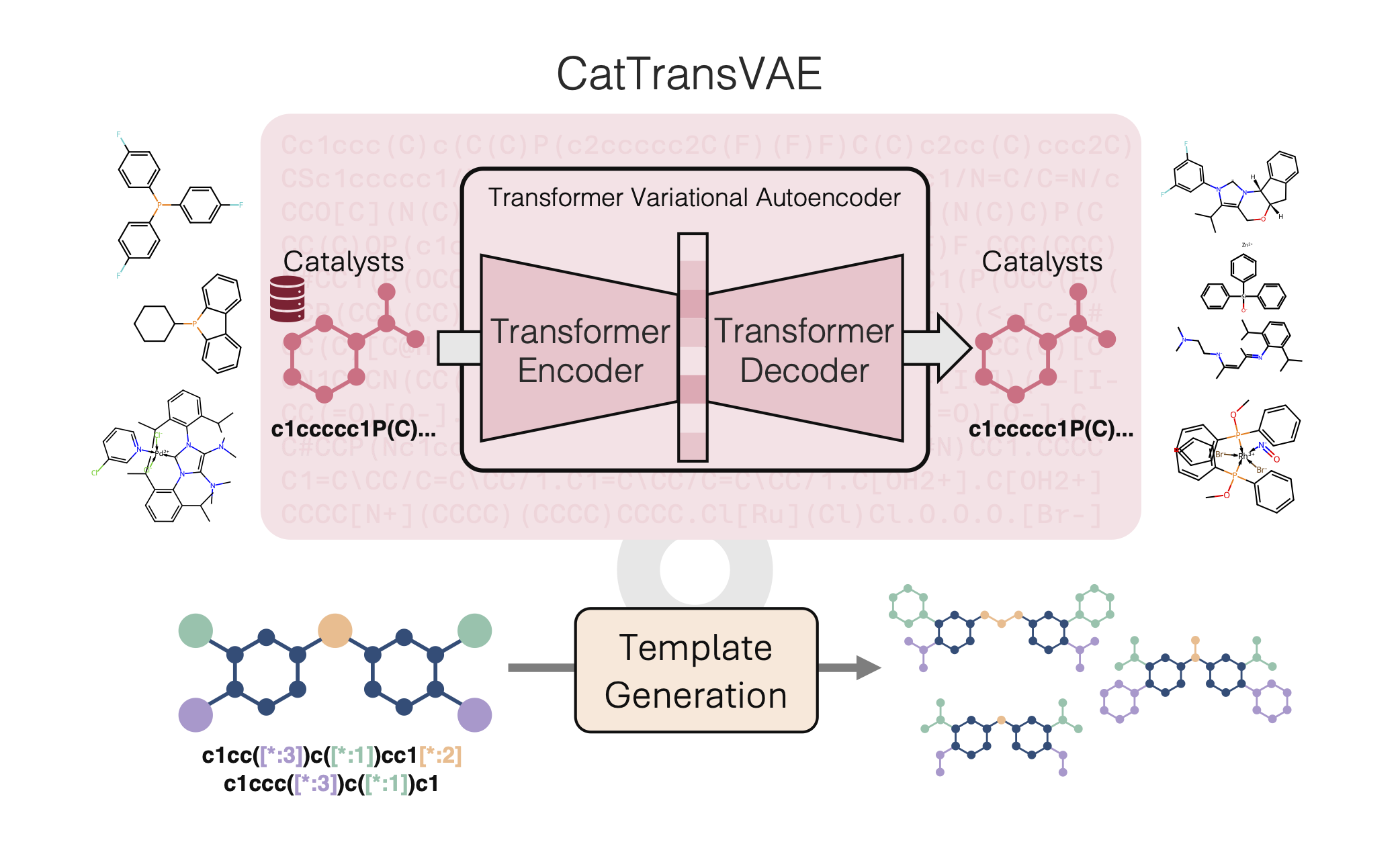

Catalyst-specialized chemical language model based on a Transformer variational autoencoder (VAE) designed to improve catalyst recognition and generative performance across diverse catalyst classes through template-guided molecular design with high task-validity and diversity.

🪄 Google Colab

• Quick start usage with google colab
• Include sampling, template-guied generation, and two-level embedding extraction

🦾 Model

Model	Version	Parameters	Link
TransVAE on pubchem10	019_pubchem10M_model_20_01_10	9.8M	download
CatTransVAE on CatalystSet_TMC_D	039_CatalystSet_TMC_D_L_10M01901_40_01_20	9.8M	download

📑 Datasets

• Pubchem: https://huggingface.co/datasets/hheiden/PubChem-124M-SMILES-SELFIES-InChI-IUPAC

• Pubchem10: Sample 10M molecules from PubChem dataset

• CatalystSet: Original sources mentioned in paper

  Dataset	Ref	Link
  OSCAR_DHBD	Paper	Data
  OSCAR_NHC	Paper	Data
  OSCAR_SEED	Paper	Data
  TEPid	Paper	Data
  ReaLigand	Paper	Data
  CLC-DB	Paper	Data
  tmQMg-L	Paper	Data
  Kraken	Paper	Data
  ORD	Paper	Data
  TMC_CSD	Paper	Data
  TMC_TMQMG	Paper	Data

🛠️ Installation

Install dependencies. This code was tested in Python 3.8 with PyTorch and rdkit.

conda create -f cattransvae.yaml
conda activate cattransvae

📔 Usage

• Build vocabulary
• Pre-train foundation model
• Fine-tune foundation model to catalyst dataset
• Test reconstruction
• Embedding space evaluation
• Sampling and generation
• Evaluate a set of sample cases
• Prediction 5-fold
• Optimization and guided generation

Build vocabulary:

• This is optional process. You can access dictionary in pubchem10 folder
• Please download pubchem dataset and rename to pubchem10M

python 01_build_vocab.py \
--data_type mol \
--data_source pubchem10M \
--vocab_name pubchem10M/pubchem10M_dict \
--weights_name pubchem10M/pubchem10M_weight

Pre-train foundation model:

• <DATA_SOURCE> : Dataset for pre-training e.g., pubchem10M, CatalystSet_S, CatalystSet_TMC_NoD, CatalystSet_TMC_D
• <SAVE_NAME> : Name of model

python 02_train_mol.py \
--model_type transvae \
--data_source <DATA_SOURCE> \
--vocab_path data/pubchem10M/pubchem10M_dict.pkl \
--char_weights_path data/pubchem10M/pubchem10M_weight.npy \
--save_name <SAVE_NAME> \
--d_model 256 \
--d_latent 512 \
--batch_size 256 \
--batch_chunks 1 \
--epochs 20 \
--beta 0.1 \
--kl_n_epoch 10 \
--warmup_steps 100000

Continue training from checkpoint:

• <DATA_SOURCE> : Dataset for pre-training e.g., pubchem10M, CatalystSet_S, CatalystSet_TMC_NoD, CatalystSet_TMC_D
• <SAVE_NAME> : Name of model
• <CHECKPOINT> : Previous pretrained model path data/<DATA_SOURCE>/checkpoints/<EPOCH_TO_CONTINUE>_<DATA_SOURCE>_<SAVE_NAME>.ckpt (e.g. data/pubchem10M/checkpoints/012_pubchem10M_model_20_05_10.ckpt)

python 02_train_mol.py \
--model_type transvae \
--data_source <DATA_SOURCE> \
--vocab_path data/pubchem10M/pubchem10M_dict.pkl \
--char_weights_path data/pubchem10M/pubchem10M_weight.npy \
--save_name <SAVE_NAME> \
--d_model 256 \
--d_latent 512 \
--batch_size 256 \
--batch_chunks 1 \
--epochs 20 \
--beta 0.1 \
--kl_n_epoch 10 \
--warmup_steps 100000
--checkpoint <CHECKPOINT>

Fine-tune foundation model to catalyst dataset:

• <DATA_SOURCE> : Dataset for finetuning e.g., CatalystSet_S, CatalystSet_TMC_NoD, CatalystSet_TMC_D
• <SAVE_NAME> : Name of model
• <CHECKPOINT> : Previous pretrained model path data/<DATA_SOURCE_PRETRAINED>/checkpoints/<EPOCH_BEST_PRETRAINED>_<DATA_SOURCE_PRETRAINED>_<SAVE_NAME_PRETRAINED>.ckpt (e.g. data/pubchem10M/checkpoints/019_pubchem10M_model_20_005_10.ckpt)

python 03_train_cat.py \
--model_type transvae \
--d_model 256 \
--d_latent 512 \
--data_source <DATA_SOURCE> \
--epochs 40 \
--save_name <SAVE_NAME> \
--beta 0.1 \
--kl_n_epoch 20 \
--warmup_steps 100000 \
--checkpoint <CHECKPOINT> \
--expansion pubchem10M \
--augmentation 0 \
--finetune true

Continue fine-tuning from checkpoint:

• <DATA_SOURCE> : Dataset for finetuning e.g., CatalystSet_S, CatalystSet_TMC_NoD, CatalystSet_TMC_D
• <SAVE_NAME> : Name of model
• <CHECKPOINT> : Previous fine-tuned model path data/<DATA_SOURCE>/checkpoints/<EPOCH_TO_CONTINUE>_<DATA_SOURCE>_<SAVE_NAME>.ckpt (e.g. data/CatalystSet_TMC_D/checkpoints/028_CatalystSet_TMC_D_L_10M01901_50_01_25.ckpt)

python 03_train_cat.py \
--model_type transvae \
--d_model 256 \
--d_latent 512 \
--data_source <DATA_SOURCE> \
--epochs 40 \
--save_name <SAVE_NAME> \
--beta 0.1 \
--kl_n_epoch 20 \
--warmup_steps 100000 \
--checkpoint <CHECKPOINT> \
--expansion pubchem10M \
--augmentation 0 \
--finetune false

Test reconstruction:

• <DATA_SOURCE> : Data source to test (test set), e.g. pubchem10M, CatalystSet_S, CatalystSet_TMC_NoD, CatalystSet_TMC_D
• <CHECKPOINT> : Trained model path to test data/<DATA_SOURCE>/checkpoints/<SELECTED_EPOCH>_<DATA_SOURCE>_<SAVE_NAME>.ckpt (e.g. data/CatalystSet_TMC_D/checkpoints/039_CatalystSet_TMC_D_L_10M01901_40_01_20.ckpt)
• <EXPERIMENT> : Name of experiment

python 06_test_recon.py \
--model_type transvae \
--data_source <DATA_SOURCE> \
--checkpoint <CHECKPOINT> \
--sample_mode rand \
--decode_method greedy \
--save_name <EXPERIMENT> \

Embedding space evaluation:

• <DATA_SOURCE> : Data source to test (test set), e.g. pubchem10M, CatalystSet_S, CatalystSet_TMC_NoD, CatalystSet_TMC_D
• <CHECKPOINT> : Trained model path to test data/<DATA_SOURCE>/checkpoints/<EPOCH>_<DATA_SOURCE>_<SAVE_NAME>.ckpt (e.g. data/CatalystSet_TMC_D/checkpoints/039_CatalystSet_TMC_D_L_10M01901_40_01_20.ckpt)
• <EXPERIMENT> : Name of experiment

python 08_test_embeddingspace.py \
--model_type transvae \
--data_source <DATA_SOURCE> \
--checkpoint <CHECKPOINT> \
--sample_mode rand \
--decode_method greedy \
--save_name <EXPERIMENT> \

Sampling and generation:

• <DATA_SOURCE> : Data source to test (test set), e.g. pubchem10M, CatalystSet_S, CatalystSet_TMC_NoD, CatalystSet_TMC_D
• <CHECKPOINT> : Trained model path to test data/<DATA_SOURCE>/<EPOCH>_<DATA_SOURCE>_<SAVE_NAME>.ckpt (e.g. data/CatalystSet_TMC_D/checkpoints/039_CatalystSet_TMC_D_L_10M01901_40_01_20.ckpt)
• <PROMPT> : 'none' or defined prompt e.g. 'CCCC[*:1]CC([*:2])'
• <EXPERIMENT> : Name of experiment
• decode_method : 'greedy', 'beam'
• sample_mode : 'rand', 'k_high_entropy', 'rand_training', 'rand_target'
• k_entropy : -1 (for random), 1, 10, 50, ... 512 (for k_high_entropy)
• temperature : 1.0 (default), or floating points
• top_k : used when do_sample is True
• do_sample : 'true' (select from probability), 'false' (select highest probability)
• dummy_attaches_enabled : 'true' (enable dummy augmentation), 'false' (use default (C) dummy)

python 07_test_sample.py \
--model_type transvae \
--data_source <DATA_SOURCE> \
--checkpoint <CHECKPOINT> \
--sample_mode rand \
--decode_method greedy \
--k_entropy -1 \
--temperature 1.0 \
--top_k 10 \
--do_sample 'true' \
--dummy_attaches_enabled 'false' \
--n_samples 10 \
--n_samples_per_batch 100 \
--prompt <PROMPT> \
--save_name <EXPERIMENT> \

python 07_test_sample.py \
--model_type transvae \
--data_source <DATA_SOURCE> \
--checkpoint <CHECKPOINT> \
--sample_mode k_high_entropy \
--decode_method beam \
--k_entropy 50 \
--temperature 1.0 \
--top_k 10 \
--do_sample 'true' \
--dummy_attaches_enabled 'true' \
--n_samples 10 \
--n_samples_per_batch 100 \
--prompt '[*:1]c1ccc([*:2]c2ccc([*:1])cc2)cc1' \
--save_name <EXPERIMENT> \

Evaluate a set of sample cases:

This is the code for testing 6 example case studies reported in paper.

• <DATA_SOURCE> : Data source to test (test set), e.g. pubchem10M, CatalystSet_S, CatalystSet_TMC_NoD, CatalystSet_TMC_D
• <CHECKPOINT> : Trained model path to test data/<DATA_SOURCE>/checkpoints/<EPOCH>_<DATA_SOURCE>_<SAVE_NAME>.ckpt (e.g. data/CatalystSet_TMC_D/checkpoints/039_CatalystSet_TMC_D_L_10M01901_40_01_20.ckpt)
• <PROMPT> : (prompts are defined inside python file)
• <EXPERIMENT> : Name of experiment

python 07_test_sample_cases.py \
--model_type transvae \
--data_source <DATA_SOURCE> \
--checkpoint <CHECKPOINT> \
--sample_mode rand \
--decode_method greedy \
--k_entropy 100 \
--temperature 1.0 \
--top_k -1 \
--do_sample 'true' \
--n_samples 10 \
--n_samples_per_batch 100 \
--prompt 'none' \
--save_name <EXPERIMENT>

Prediction 5-fold:

• <DATA_SOURCE> : Data source to test (test set), e.g. pubchem10M, CatalystSet_S, CatalystSet_TMC_NoD, CatalystSet_TMC_D
• <CHECKPOINT> : Trained model path to test data/<DATA_SOURCE>/checkpoints/<EPOCH>_<DATA_SOURCE>_<SAVE_NAME>.ckpt (e.g. data/CatalystSet_TMC_D/checkpoints/039_CatalystSet_TMC_D_L_10M01901_40_01_20.ckpt)
• <DATASET> : example of datasets are suzuki_7054_split_random.csv, suzuki_7054_split_metal.csv, vaskas_1947_8010.csv, vaskas_1947_2040.csv, tepid_4703_7030.csv, tepid_4703_scaffold_0.csv
• <EMBEDDING> : example of embedding are CatTransVAE (for two-level embedding), CatTransVAE_vae (for VAE embedding), CatTransVAE_emb (for Transformer embedding), MorganFP (for Morgan fingerprint)
• <SEED> : Seed
• <EXPERIMENT> : Name of experiment

python prediction/prediction_5fold.py \
--model_type transvae \
--data_source <DATA_SOURCE> \
--checkpoint <CHECKPOINT> \
--prediction_model_type xgboost \
--prediction_dataset <DATASET> \
--prediction_embeddings <EMBEDDING> \
--seed <SEED> \
--save_name <EXPERIMENT>

Optimization and guided generation:

• <DATA_SOURCE> : Data source to test (test set), e.g. pubchem10M, CatalystSet_S, CatalystSet_TMC_NoD, CatalystSet_TMC_D
• <CHECKPOINT_GEN> : Trained model path to test data/<DATA_SOURCE>/checkpoint/<EPOCH>_<DATA_SOURCE>_<SAVE_NAME>.ckpt (e.g. data/CatalystSet_TMC_D/checkpoints/039_CatalystSet_TMC_D_L_10M01901_40_01_20.ckpt)
• <CHECKPOINT_PRED> : Saved trained best xgboost model folder prediction/results/<DATASET>/<SEED>_<EMBEDDING>_<MODEL_NAME>.ckpt/<EXPERIMENT> (e.g. prediction/results/suzuki_7054_split_random_split_1.csv/1_CatTransVAE_039_CatalystSet_TMC_D_L_10M01901_40_01_20.ckpt/20260531_222307_7815518)
• decode_method : 'greedy', 'beam'
• sample_mode : 'rand', 'k_high_entropy', 'rand_training', 'rand_target'
• k_entropy : -1 (for random), 1, 10, 50, ... 512 (for k_high_entropy)
• temperature : 1.0 (default), or floating points
• top_k : used when do_sample is True
• do_sample : 'true' (select from probability), 'false' (select highest probability)
• dummy_attaches_enabled : 'true' (enable dummy augmentation), 'false' (use default (C) dummy)
• <PROMPT> : 'none' or defined prompt e.g. 'CCCC[*:1]CC([*:2])'
• <DATASET> : Already trained dataset
• <EMBEDDING> : Already trained embedding
• <SEED> : Seed
• <EXPERIMENT> : Name of experiment

python optimization/optimization.py \
--model_type transvae \
--data_source <DATA_SOURCE> \
--checkpoint_gen <CHECKPOINT_GEN> \
--checkpoint_pred <CHECKPOINT_PRED> \
--sample_mode $sample_mode \
--decode_method $decode_method \
--k_entropy $k_entropy \
--temperature $temperature \
--top_k $top_k \
--do_sample $do_sample \
--dummy_attaches_enabled $dummy_attaches_enabled \
--n_samples 1 \
--n_samples_per_batch 1 \
--prompt <PROMPT> \
--prediction_model_type xgboost \
--prediction_dataset <DATASET> \
--prediction_embeddings <EMBEDDING> \
--seed <SEED> \
--save_name <EXPERIMENT>

📄 Citation

Thank you for your interests, please kindly cite:

Kengkanna, A., & Ohue, M. (2026). Catalyst-specialized Chemical Language Model Based on Transformer Variational Autoencoder for Catalyst Design and Discovery. ChemRxiv. https://doi.org/10.26434/chemrxiv.15005198/v1‌
