OGD to LOD

Prototype — version 0.1. This tool is under active development. Expect rough edges, breaking changes, and incomplete features.

AI-assisted tool that turns Open Government Data (OGD) CSV files into Linked Open Data (LOD) mappings — from raw spreadsheet to a validated YARRRML/RML mapping ready to publish, with minimal manual effort.

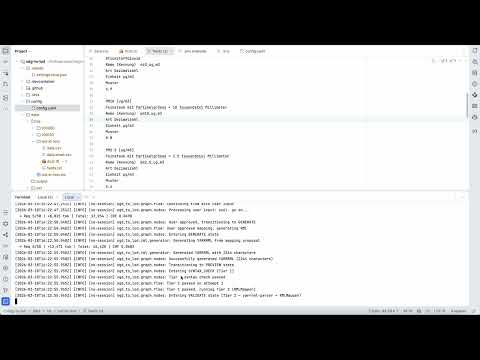

Demo

What it does

Publishing government data as Linked Open Data requires creating RDF mappings that describe how each CSV column maps to semantic concepts. This is tedious, error-prone, and requires both RDF expertise and deep knowledge of the dataset. OGD to LOD automates this step.

Given a CSV file and optional metadata, the tool:

1. Parses the CSV (auto-detects encoding and delimiter) and reads any provided context files (DCAT, Markdown, plain text, JSON — any mix)
2. Normalizes context using AI into a unified internal model with per-column descriptions, inferring missing descriptions from column names and sample values
3. Proposes a mapping structure (dimensions, measures, datatypes) for user review before generating anything
4. Generates a YARRRML mapping targeting the cube.link and schema.org vocabularies
5. Validates the mapping with a two-tier pipeline: YAML syntax check followed by a Docker-based yarrrml-parser + RMLMapper execution
6. Opens a GitHub PR in the target mappings repository with the generated mapping.yarrrml.yaml and the CSV source file

The result is a human-reviewable pull request that can be merged, adjusted, or rejected — the AI does the heavy lifting, a human stays in control.

Installation

Prerequisites

• Python 3.11+
• Docker (for full two-tier validation with yarrrml-parser and RMLMapper)

Setup

1. Clone the repository:

   git clone https://github.com/redlink-gmbh/ogd-to-lod.git
   cd ogd-to-lod

2. Create a virtual environment:

   python -m venv venv
   source venv/bin/activate  # On Windows: venv\Scripts\activate

3. Install dependencies:

   pip install -e ".[dev]"

4. Configure environment variables:

   cp .env.example .env
   # Edit .env with your credentials

5. Configure the application:

   # Edit config/config.yaml with your settings

Configuration

The application uses a YAML configuration file (config/config.yaml) with environment variable substitution.

Required Environment Variables

Variable	Description
APP_GITHUB_TOKEN	GitHub Personal Access Token with repo scope
AZURE_OPENAI_ENDPOINT	Azure OpenAI endpoint URL
AZURE_OPENAI_KEY	Azure OpenAI API key

Optional Environment Variables

Variable	Description	Default
GITHUB_REPO	Target repository for generated mappings	redlink-gmbh/ogd-to-lod-mappings
LOG_LEVEL	Logging level (DEBUG, INFO, WARNING, ERROR)	INFO

Configuration File

github:
  repo: "org/repo-name"
  token: "${APP_GITHUB_TOKEN}"
  mappings_folder: "mapping"  # Parent folder for all mappings (default: mapping)

azure:
  endpoint: "${AZURE_OPENAI_ENDPOINT}"
  api_key: "${AZURE_OPENAI_KEY}"
  deployment: "gpt-4"

sparql:
  endpoint: null  # Optional: for querying existing dimensions

rml:
  base_uri: "https://example.org/resource/"
  rmlmapper_use_docker: true
  rmlmapper_docker_image: "rmlio/rmlmapper-java:latest"
  yarrrml_parser_docker_image: "rmlio/yarrrml-parser:latest"

Usage

ogd-to-lod <csv_path> --output-folder <folder> [--context FILE ...]

Arguments

Argument	Description
csv_path	Path to the CSV file to map (required)
--output-folder FOLDER	Target subfolder name in the mappings directory (required). The CSV and YARRRML files are pushed to {mappings_folder}/{output-folder}/ in the repository.
--context FILE [FILE ...]	One or more context files describing the dataset. Any format is accepted: DCAT (JSON-LD, Turtle, RDF/XML), Markdown, plain text, JSON, or combinations thereof.

Options

Flag	Short	Description
--config	-c	Path to configuration file (default: config/config.yaml)
--base-uri	-b	Base URI for generated resources (overrides config)
--help		Show help message

Examples

# CSV only (no context)
ogd-to-lod data/population.csv --output-folder bev-bestand-2024

# With a DCAT metadata file
ogd-to-lod data/population.csv --output-folder bev-bestand-2024 --context metadata/population.dcat.jsonld

# With multiple context files (DCAT + column documentation)
ogd-to-lod data/population.csv --output-folder bev-bestand-2024 --context metadata/population.dcat.ttl docs/columns.md

# Override base URI
ogd-to-lod data/population.csv --output-folder bev-bestand-2024 --context metadata.ttl --base-uri https://example.org/data/

The resulting PR will contain two files in {mappings_folder}/{output-folder}/:

• mapping.yarrrml.yaml — the generated YARRRML mapping
• {csv_filename} — the CSV source file

Context Files

The --context flag accepts any number of files in any format. The AI normalizes all provided files into a unified internal DatasetContext that includes:

• Dataset-level metadata: title, description, publisher, keywords, temporal/spatial coverage, license, etc.
• Column-level metadata: description and comment per CSV column header

Multiple files are merged — dataset-level fields use the first non-null value (DCAT files take precedence), while column descriptions are unioned across all files. Columns without explicit documentation are inferred by the AI from column names and sample values, and surfaced to the user during the mapping proposal step for review.

PR Template

The PR description is generated from a Markdown template (config/pr_template.md) using {{placeholder}} syntax.

Placeholder Syntax

• {{Name}} — replaced with a dynamic value at render time
• {{Name|default value}} — uses the default if no value is provided

Available Placeholders

Placeholder	Key	Type	Data Source
{{Dataset Name}}	dataset_name	inline	Context title or mapping name
{{Dataset Description}}	dataset_description	inline	Context description
{{CSV Source}}	csv_source	inline	Public CSV URL
{{Context Files}}	context_files	inline	Comma-separated list of all --context filenames
{{Base URI}}	base_uri	inline	Base URI from config
{{Mapping Decisions}}	mapping_structure	block	AI proposal (dimensions/measures)
{{CSV Sample}}	csv_preview	block	Parsed CSV sample rows
{{RDF Sample}}	rdf_preview	block	RMLMapper output

Inline placeholders replace only the {{…}} token. Block placeholders replace the token and all example content below it (up to the next ### or --- boundary).

To add a custom placeholder, register it in _PLACEHOLDER_REGISTRY in src/ogd_to_lod/github/pr_template.py.

Development

Running Tests

pytest

Linting

ruff check .
ruff format .

Project Structure

ogd-to-lod/
├── src/ogd_to_lod/
│   ├── __init__.py
│   ├── cli.py                   # CLI entry point
│   ├── config.py                # Configuration management
│   ├── parsers/
│   │   ├── models.py            # CSVData, DatasetContext, ColumnContext, …
│   │   ├── csv_parser.py        # CSV parsing (encoding/delimiter auto-detect)
│   │   ├── dcat_parser.py       # Deterministic DCAT/RDF parser (rdflib)
│   │   ├── context_parser.py    # Multi-file context reader (format detection)
│   │   └── context_normalizer.py# AI-based extraction → DatasetContext
│   ├── ai/                      # Azure OpenAI integration
│   ├── graph/                   # LangGraph conversation flow
│   ├── rml/                     # YARRRML generation (prompts, AI-driven generator)
│   ├── github/                  # GitHub PR creation (commits mapping.yarrrml.yaml)
│   └── validation/              # Two-tier validation (YAML syntax + Docker: yarrrml-parser → RMLMapper)
├── tests/
├── config/
│   ├── config.yaml
│   └── pr_template.md
├── scripts/                     # Utility scripts (worktrees)
├── pyproject.toml
└── README.md

License

MIT
