add google elevation source? #28

Activity

1. temospena commented on Apr 25, 2021



   temospena

   on Apr 25, 2021

   Last edited by temospena

   CollaboratorAuthor

   More actions

   Due the api request limits, it needs another loop to make one request at a time per linestring.

   So, for the full lisbon_road_segments dataset, we can do:

   library(tidyverse)
   library(sf)
   library(slopes)
   library(googleway)
   set_key(Sys.getenv("GOOGLE_KEY"))


   Roads = st_transform(lisbon_road_segments, 4326)

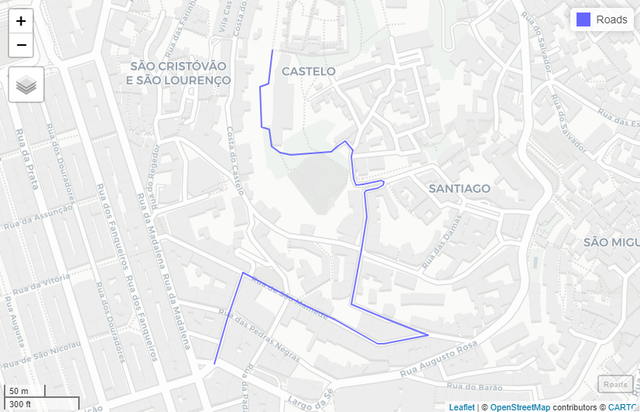

   # mapview::mapview(Roads)

   #a df with only corddinates in WGS84 (google does not like others)
   Roads_coords = data.frame(st_coordinates(Roads$geom))
   names(Roads_coords) = c("lon", "lat", "l")

   #a df without geometries
   Roads_xyz = Roads
   Roads_xyz$geom= NULL
   Roads_xyz$bbox= NULL
   Roads_xyz$geom= NA

   #get elevarion per point, and transform each line in a xyz linestring again
   for (i in 1:nrow(Roads)){
     google = google_elevation(Roads_coords[Roads_coords$l == i,])
     Roads_coords$elev[Roads_coords$l == i] = google$results$elevation
     Roads_coords$resol[Roads_coords$l == i] = google$results$resolution

     line = Roads_coords[Roads_coords$l == i,]
     Roads_xyz$geom[i] = st_as_sf(line, coords = c("lon","lat","elev")) %>% st_combine() %>%  st_cast("LINESTRING")
   }

   Roads_xyz = st_as_sf(Roads_xyz, dim = "XYZ", crs=st_crs(Roads))

   Roads$slope = slope_xyz(Roads_xyz) #to store the values in the original dataset

   summary(Roads$slope)
   #>      Min.   1st Qu.    Median      Mean   3rd Qu.      Max.
   #> 0.0004856 0.0064922 0.0279617 0.0455289 0.0780702 0.1995000

   summary(Roads_coords$resol) #check average resolution
   #>    Min. 1st Qu.  Median    Mean 3rd Qu.    Max.
   #>   1.193   1.193   1.193   1.193   1.193   1.193

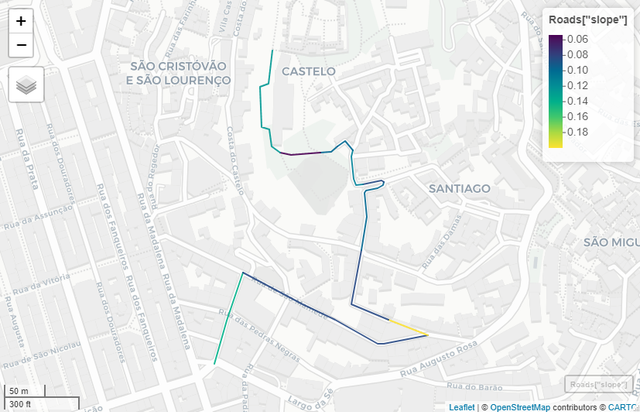

   mapview::mapview(Roads["slope"])


2. Robinlovelace commented on Apr 25, 2021



   Robinlovelace

   on Apr 25, 2021

   Member

   More actions

   Fantastic, I think that could be the basis of a new function to get slopes from Google's API. Hypothesis: will be faster and more accurate than the current approach that downloads raster DEMs covering the entire area.
