Pagination recognition

This repository is about my master thesis : Large Scale Web Data API Creation via Automatic Pagination Recognition - A Case Study on Event Extraction

I will introduce the code by following three parts:

1. Pagination Recognition
   • Follow Autopager
   • Use pretrained multilingual LASER
   • Use neural encoding to represent anchor tag(<a>) and button tag(<button>)
2. Pagination Recognition Service
   • Use FastAPI to build pagination recognition service
3. Auto Extraction Flow
   • Use RabbitMQ to trigger auto extraction, and integrat with page-level extraction system: Unsupervised Data ETL system

Environment preparation

Package installation

pip install -r requirements.txt

Environment activation

source {your_ENV}/bin/activate

Pagination Recognition

Baseline model are trained in 'notebooks/Training CRFSuite.ipynb'.

PRNSM are trained in notebooks with prefix 'Custom Training'.

Training/Testing data are located in 'autopager/autopager/data'.

Pagination Recognition Service

Execute following command under project directory:

. run_app.sh

Listening port: 9876 You can change any serving method with uvicorn parameters.

API docs

Open FastAPI docs (localhost:9876/docs) can view request detail. Request method include: API router: 'localhost:9876/autopager' API token: 'fake-API-token'

Method	path	required auth	description
GET	/	True	Return every prediction records
GET	/{tid}	True	Return {tid} prediction records
POST	/	True	Create a record with URL
POST	/file	True	Create a record with plain HTML
PUT	/{tid}	True	Modify a record
DELETE	/{tid}	True	Delete a record

Event Extraction Flow

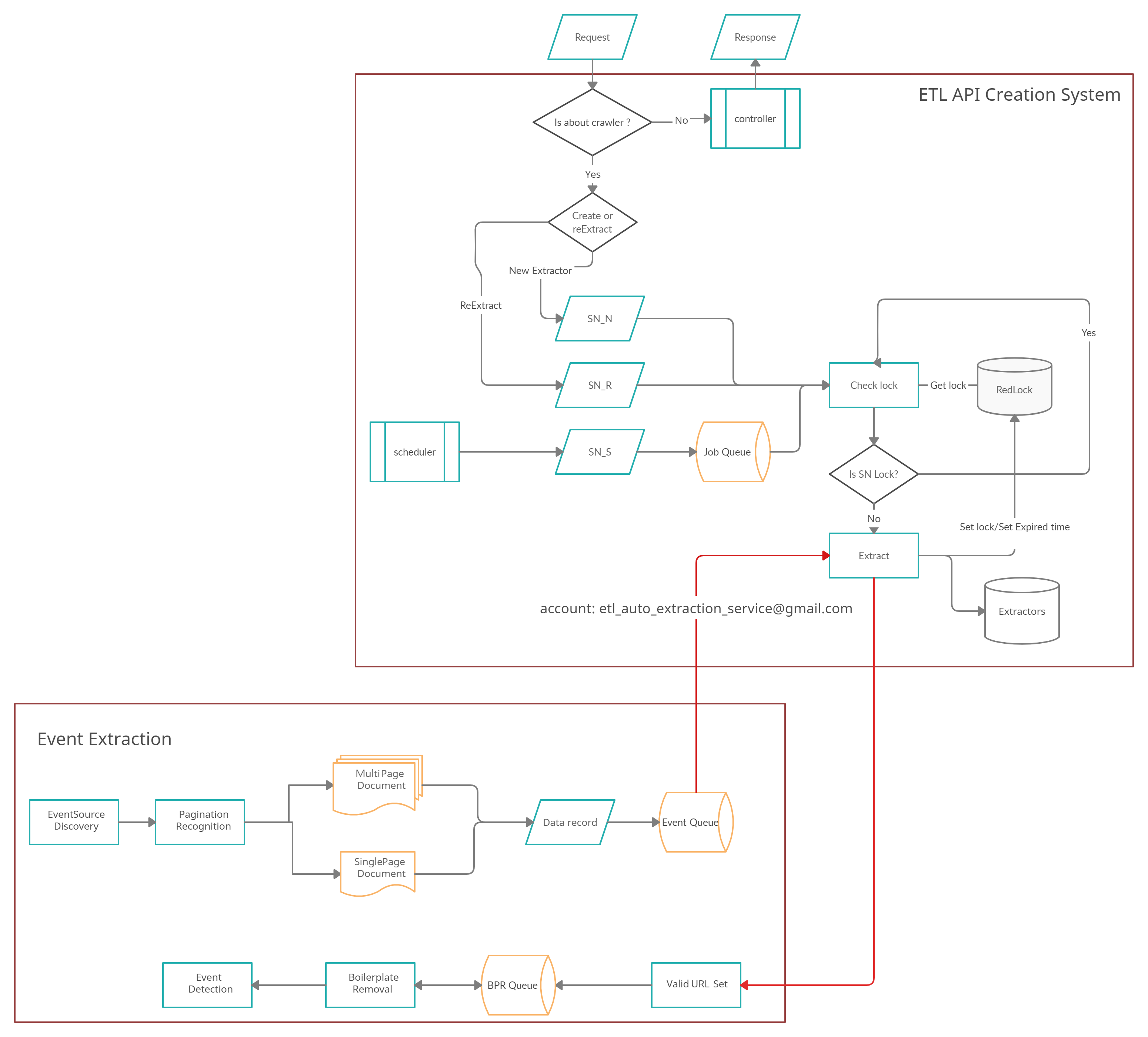

We integrate pagination recognition service with api creation system to reach large-scale event extraction, system flow is shown in following figure.

Code are located under 'queue_app/worker.py', after execute by:

python worker.py

Program will open connection to RabbitMQ(setting can be customized with dotenv package) to receive task from task source queue. (.env details can be accessed in my google shared folder)

Notice

1. Task message is required to have URL format.
2. Pagination prediction's results will be stored in container 'pageDB_v'.

CONTAINER ID        IMAGE                   COMMAND                  CREATED             STATUS              PORTS                                                                                                         NAMES
b86ae6e60415        mongo                   "docker-entrypoint.s…"   4 months ago        Up 44 hours         0.0.0.0:27000->27017/tcp                                                                                      pageDB_v

3. After pagination recognition, result task ID will be passed into data etl work queue then finish subsequent process automatically.

Evaluate Event Extraction

In folder queue_app, you can use 'Event_manual_throw.ipynb' to throw url to event's queue directly, and 'AEStatistic.ipynb' is used to calculate the # of Single/Multi page result and # of legal extractors.
