RC4 Decryption

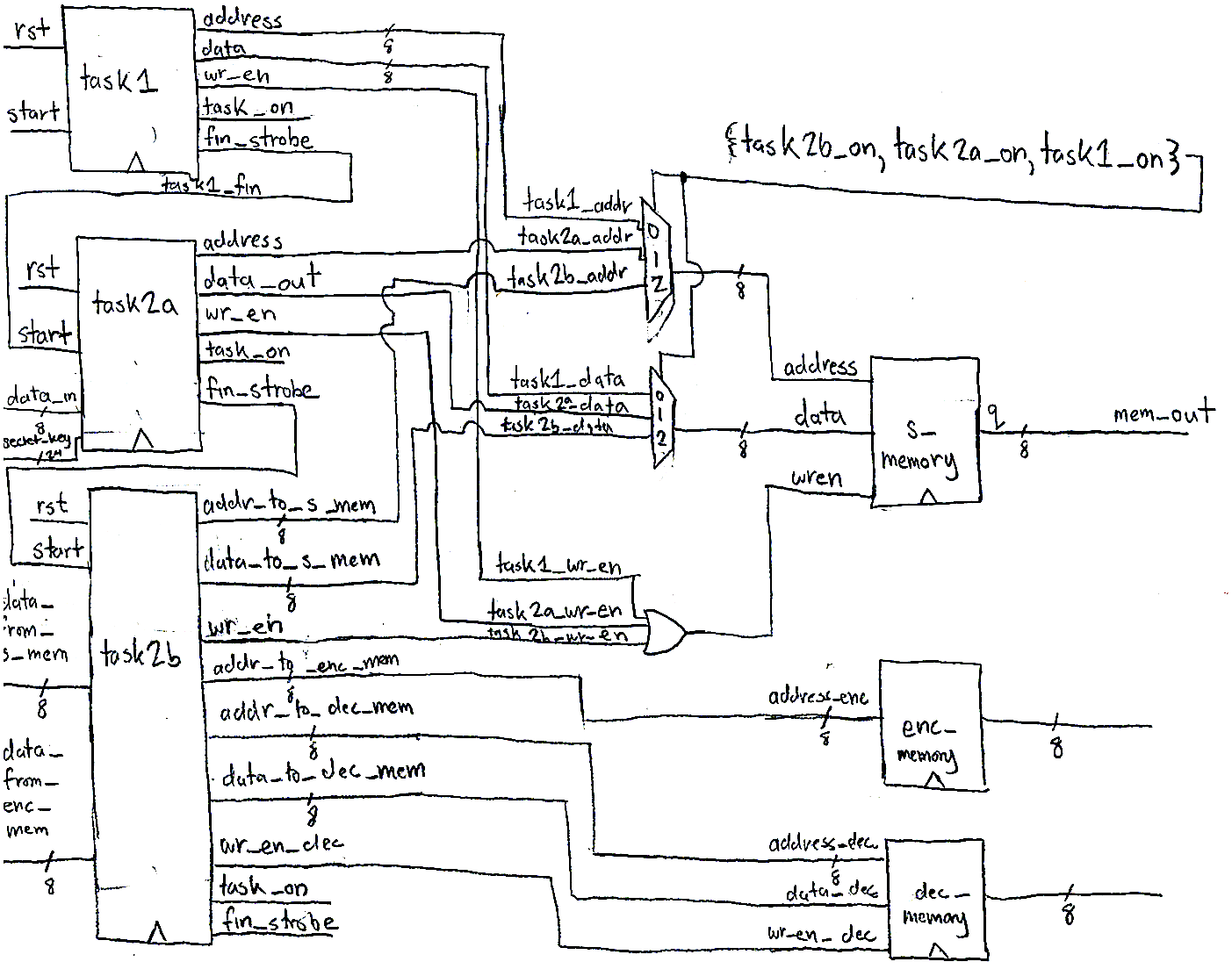

Given a message encrypted using the RC4 algorithm and the secret key that was used, this circuit decrypts the message using 3 finite state machines and datapaths. Here is a schematic of the top-level module:

Task 1

The working memory, s, is initialized:

for i = 0 to 255
  s[i] = i

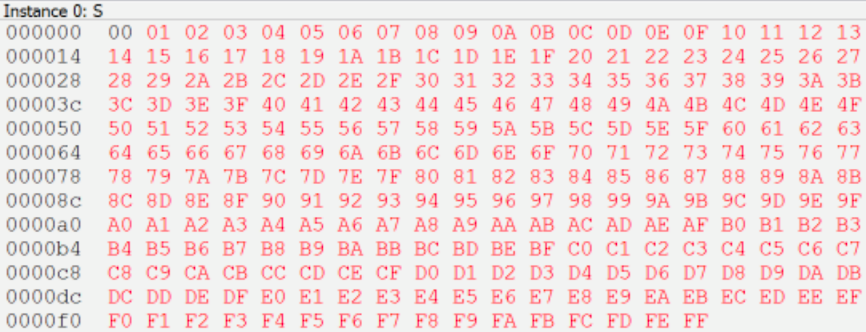

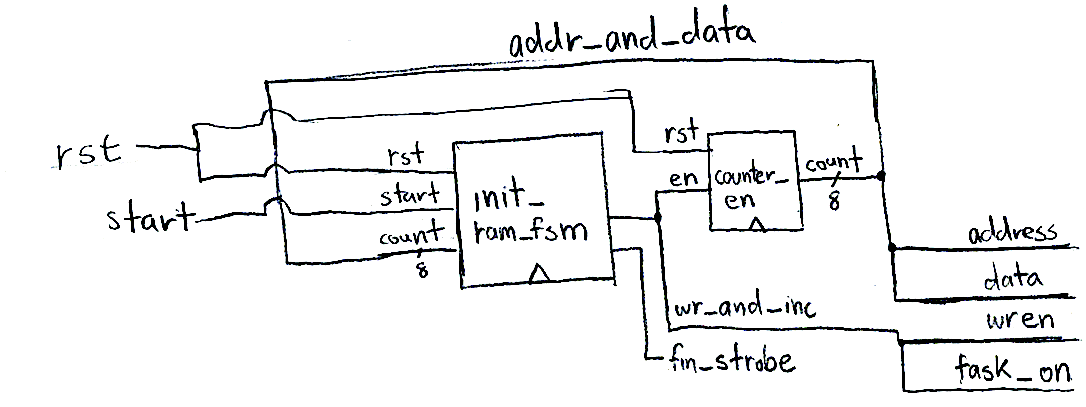

Here are the contents of s after initialization and the schematic for the task1 module:

Task 2

s is shuffled based on the secret key (in this example, 0x000249):

j = 0
for i = 0 to 255
  j = j + s[i] + secret_key[i mod keylength] // keylength = 3 in this implementation
  swap values of s[i] and s[j]

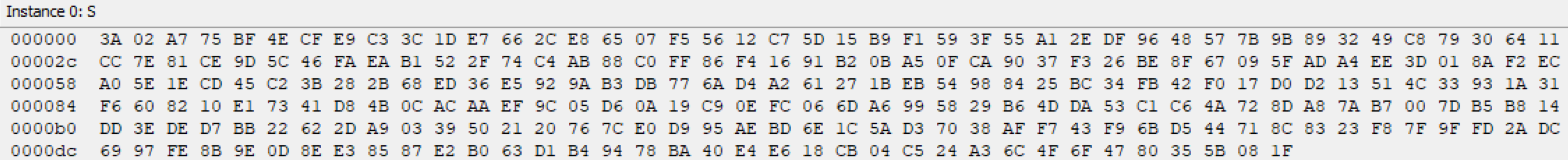

Here are the contents of s after the shuffle:

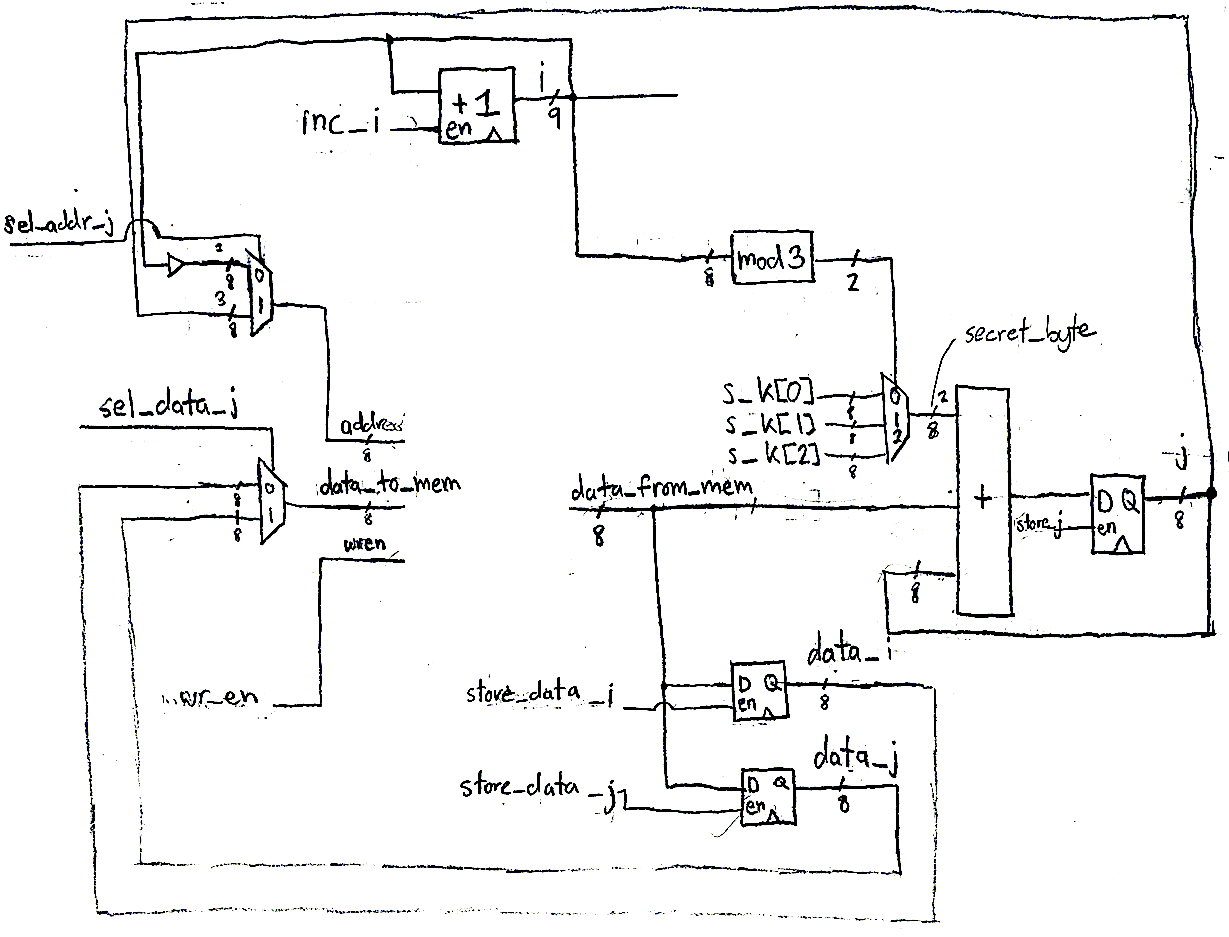

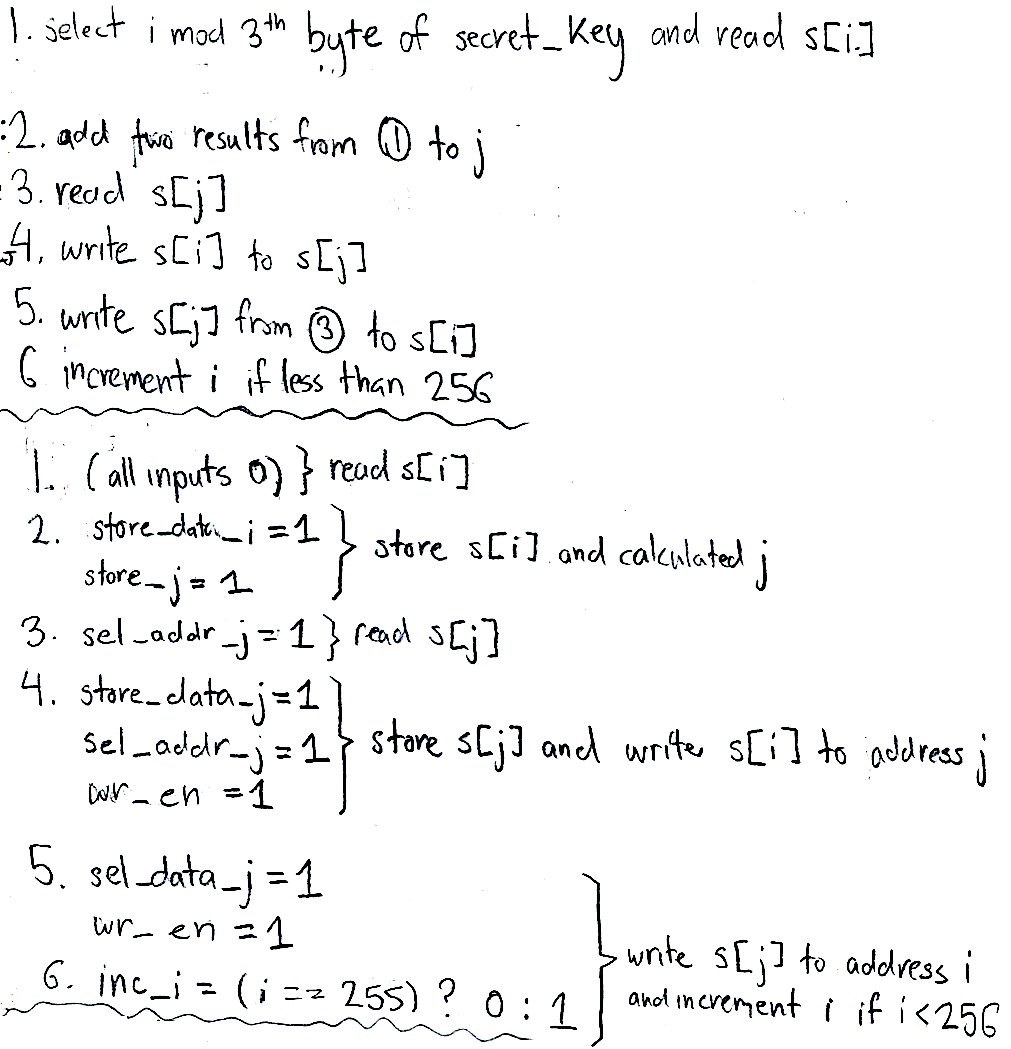

As well as the FSM and datapath schematic for the task2a module:

Task 3

Each character in the decrypted message is computed byte by byte:

i, j = 0
for k = 0 to (message_length - 1) // message_length = 32 in this implementation
  i++
  j += s[i]
  swap values of s[i] and s[j]
  f = s[s[i]+s[j]]
  decrypted_output[k] = f XOR encrypted_input[k] // 8-bit XOR function

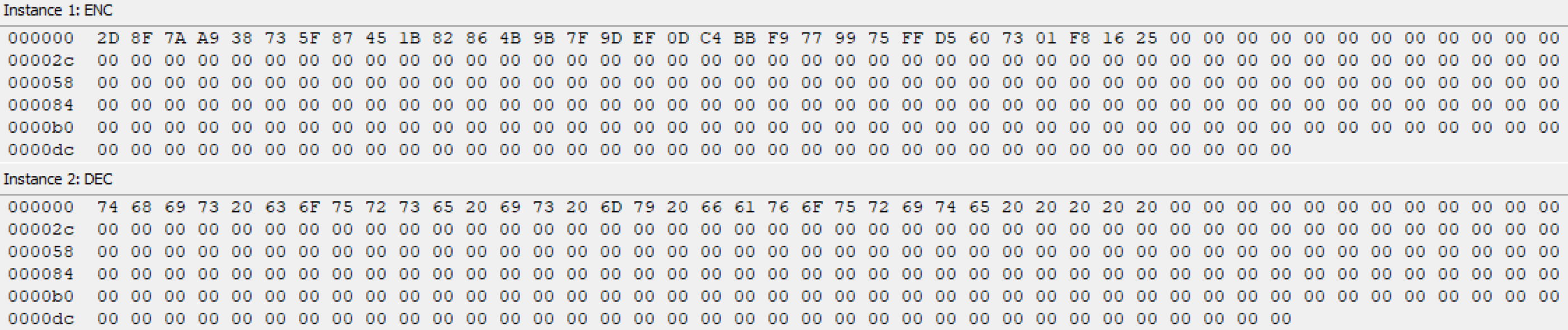

Here are the contents of dec_memory after computation given the message in enc_memory:

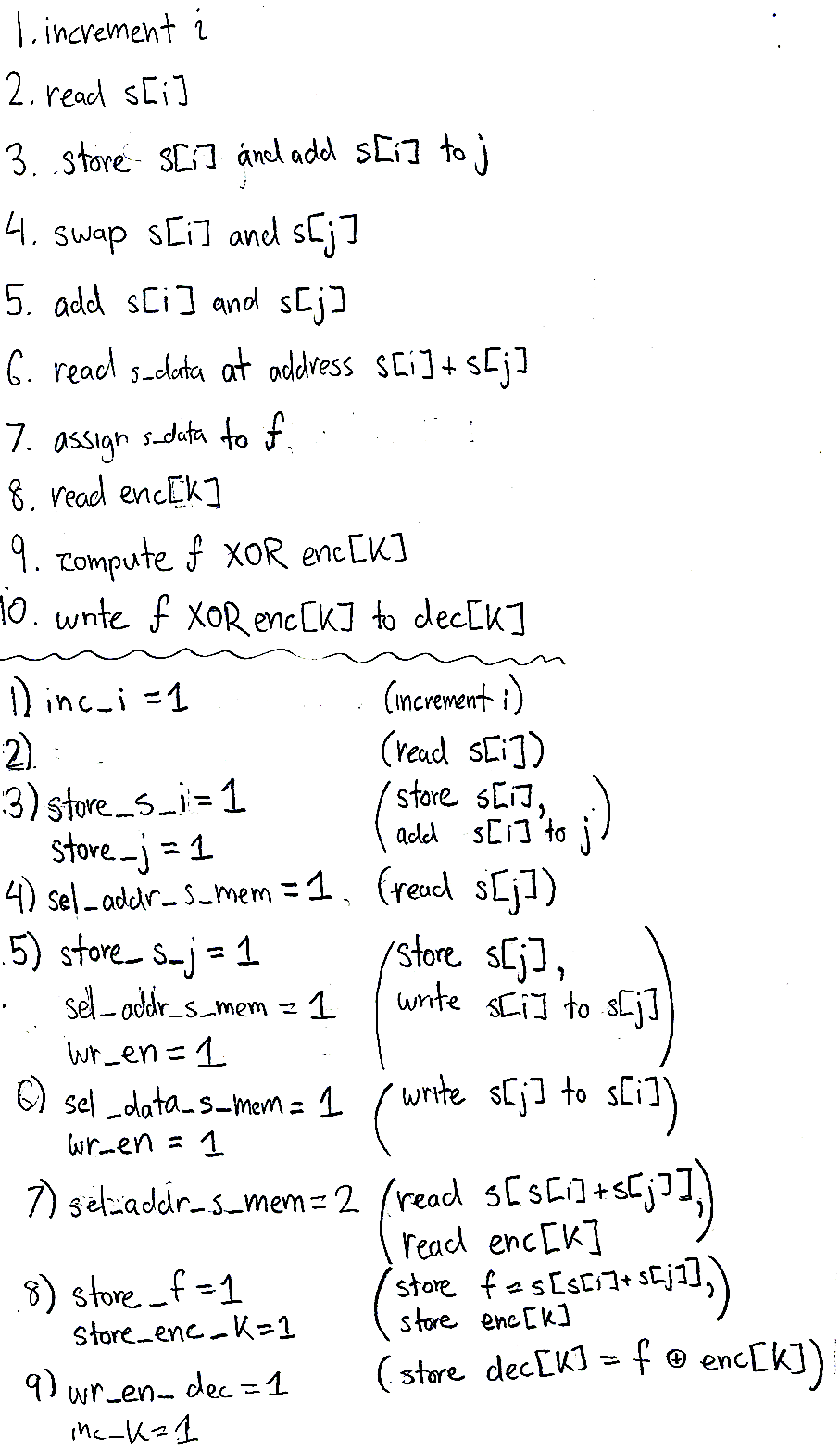

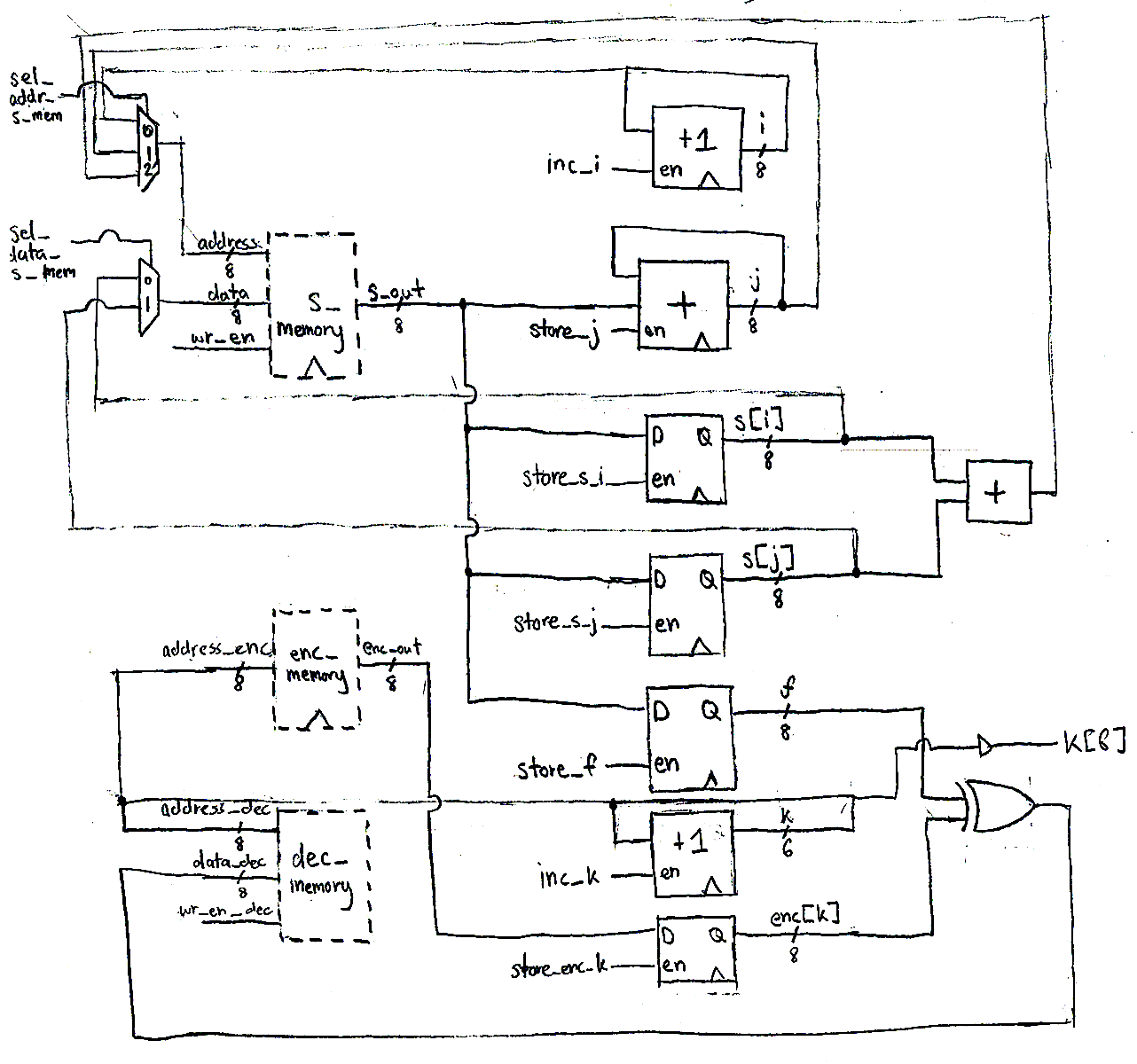

As well as the FSM and datapath for the task2b module:

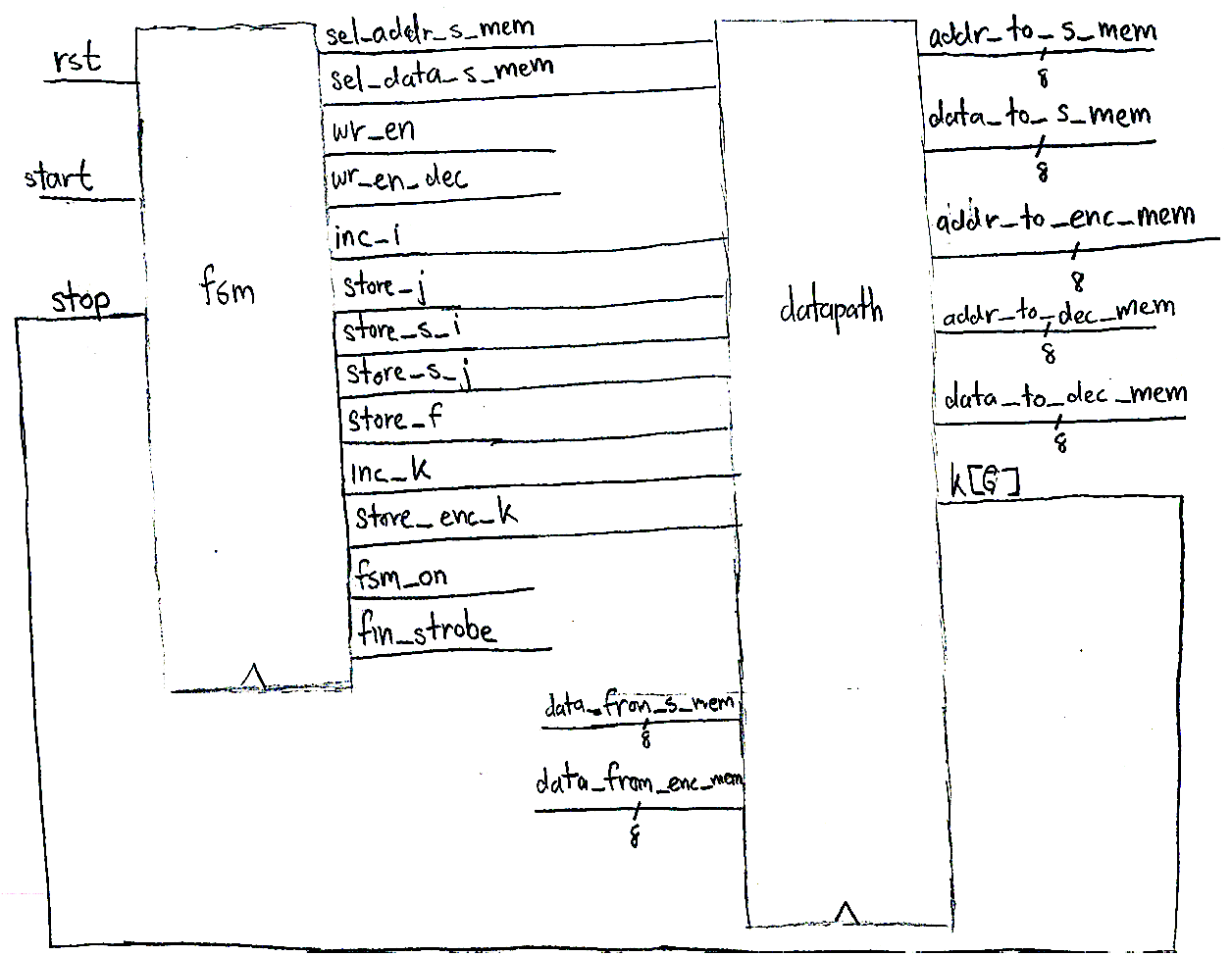

At the top-level view of the module, the FSM and datapath are connected in the following manner:

Simulation

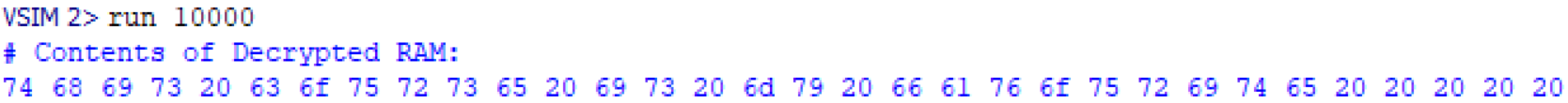

The rc4_tb.sv file is a testbench that simulates each task running and interfacing with memory to execute the algorithm. When the simulation runs, the contents of decrpyted ram are output on the ModelSim console:

Note: that the mod 256 operations in the algorithm are omitted since the wordlength is 1 byte in memory.
