🖐️ WiFi Hand Gesture Recognition using RSSI and MPU6050

A real-time hand gesture recognition system that combines WiFi RSSI sensing and MPU6050 inertial measurements to detect user gestures and visualize them through an interactive 3D web interface.

The project demonstrates how wireless signal variations and motion sensor data can be fused to perform gesture recognition without requiring cameras or expensive wearable gloves.

⚠️ Educational Purpose Only

This project was developed for educational and research purposes to demonstrate alternative human-computer interaction techniques using WiFi sensing and inertial measurement units (IMUs). It is intended as a proof-of-concept and experimental platform.

---

🚀 Features

• Real-time hand gesture recognition
• ESP32 WiFi RSSI sensing
• MPU6050 motion tracking
• FastAPI backend
• WebSocket-based communication
• React-based web dashboard
• Interactive 3D hand visualization
• Low-cost hardware implementation
• Wireless operation
• Real-time gesture updates

---

🏗️ System Overview

The system consists of three major components:

1. ESP32 Sensor Node
2. FastAPI Backend Server
3. React 3D Visualization Interface

The ESP32 continuously collects:

• WiFi RSSI values
• Accelerometer data
• Gyroscope data

The sensor data is transmitted to the backend where gesture detection algorithms classify the current hand motion.

Detected gestures are streamed through WebSockets to the web interface and visualized using a 3D animated hand model.

---

📡 What is RSSI?

RSSI (Received Signal Strength Indicator) is a measurement of the power level received by a wireless receiver.

In WiFi communication:

Higher RSSI  → Stronger signal
Lower RSSI   → Weaker signal

RSSI values are usually represented in dBm:

-30 dBm  → Excellent signal
-50 dBm  → Strong signal
-70 dBm  → Moderate signal
-90 dBm  → Weak signal

---

✋ How RSSI Can Be Used for Gesture Recognition

Human body movements affect wireless signal propagation.

When a hand moves near the ESP32:

• Reflection changes
• Multipath propagation changes
• Signal attenuation changes
• Signal scattering changes

These effects cause measurable RSSI variations.

Different hand gestures produce unique RSSI patterns.

Examples:

Relax

Stable RSSI values.

Pinch

Localized hand movement causing moderate RSSI changes.

Fist

Significant hand contraction resulting in distinct RSSI patterns.

Wrist Flex

Changes in hand orientation affecting signal propagation.

By calibrating RSSI values for different gestures, the system can classify gestures without using cameras.

---

🎯 Gesture Recognition Approach

This project combines:

RSSI-Based Detection

Used for:

• Relax
• Pinch
• Fist
• Wrist Flex

The system performs calibration for each gesture and compares incoming RSSI measurements against learned averages.

---

MPU6050-Based Detection

Used for:

• Wave
• Rotation
• Motion analysis

The MPU6050 provides:

• Accelerometer measurements
• Gyroscope measurements

These values are processed to determine hand movement and orientation.

---

🔧 MPU6050 Working Principle

The MPU6050 is a 6-axis Inertial Measurement Unit (IMU).

It contains:

Accelerometer

Measures:

• X-axis acceleration
• Y-axis acceleration
• Z-axis acceleration

Used for:

• Tilt estimation
• Orientation tracking

Gyroscope

Measures:

• Angular velocity around X-axis
• Angular velocity around Y-axis
• Angular velocity around Z-axis

Used for:

• Rotation detection
• Motion tracking

---

🏛️ System Architecture

Workflow:

ESP32 + MPU6050
        ↓
RSSI + IMU Data
        ↓
UDP Communication
        ↓
FastAPI Backend
        ↓
Gesture Classification
        ↓
WebSocket Server
        ↓
React Dashboard
        ↓
3D Hand Visualization

---

🔌 Hardware Setup

Components Used

• ESP32
• MPU6050
• WiFi Network
• Computer / Laptop

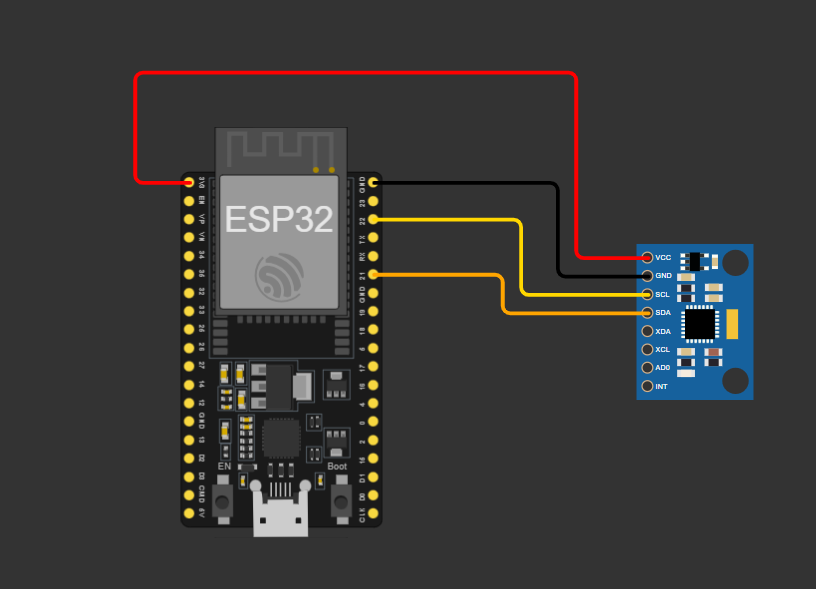

Circuit Diagram

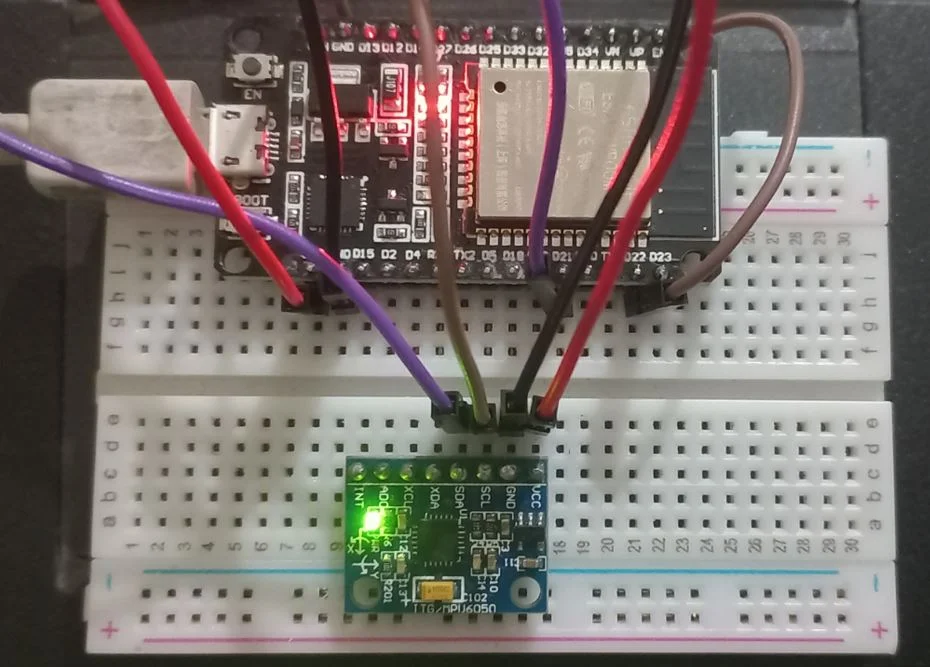

Hardware Prototype

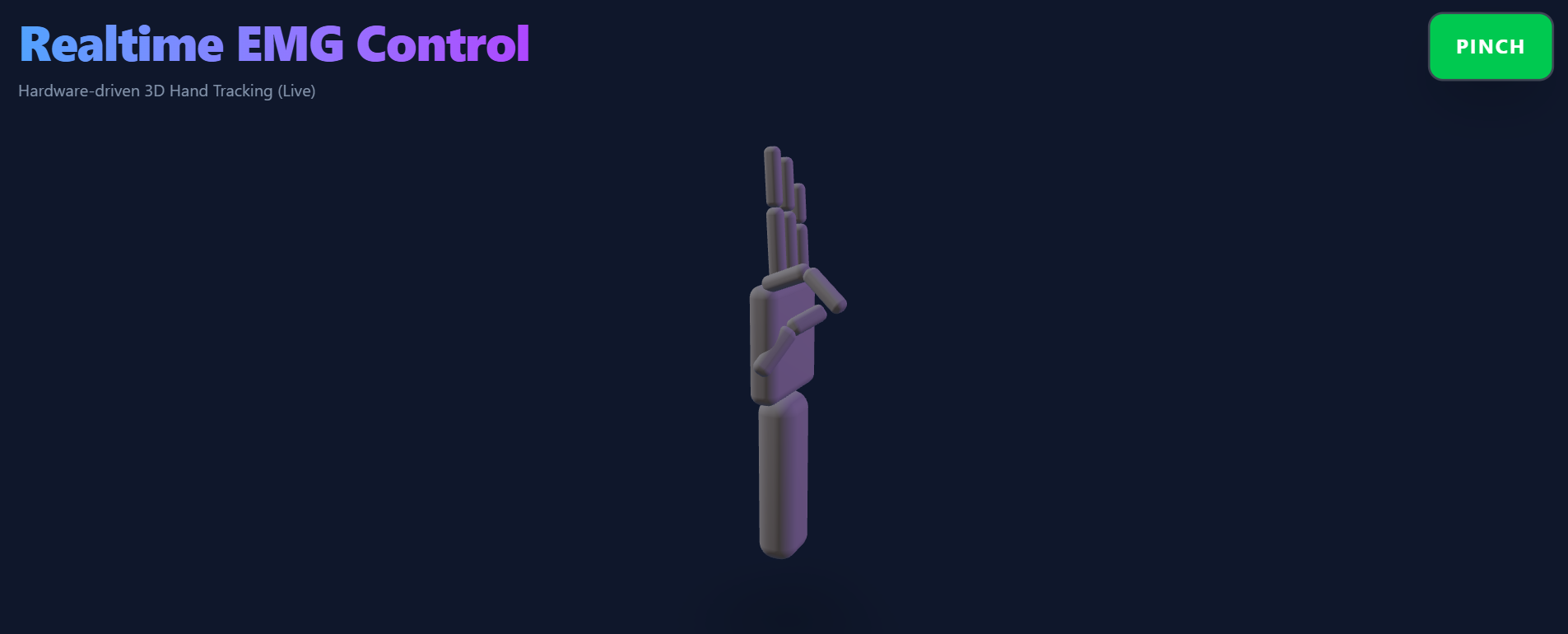

🌐 Web Interface

The frontend displays:

• Connection status
• Live gesture recognition
• Interactive 3D hand model
• Real-time updates

The interface updates instantly whenever a new gesture is detected.

---

🎥 Demonstration

Video demonstration:

Click Here For Demo

---

🧠 Supported Gestures

• Relax
• Wave
• Rotation
• Pinch
• Fist
• Wrist Flex

The backend performs sensor fusion by combining RSSI and MPU6050 information to determine the final gesture state.

---

📂 Project Structure

WifiHandGesture/
│
├── esp32/
│   └── rssi-mpu.ino
│
├── backend/
│   ├── app.py
│   └── requirements.txt
│
├── frontend/
│   ├── src/
│   ├── public/
│   ├── package.json
│   └── ...
│
├── assets/
│   ├── thumbnail.png
│   ├── circuit.png
│   ├── hardware.webp
│   ├── webui.png
│   └── wifigesturedemo.mp4
│
└── README.md

The project structure may evolve over time. Refer to the repository tree for the latest structure.

---

⚙️ Installation

1. Clone Repository

git clone https://github.com/tecrade/WifiHandGesture.git
cd WifiHandGesture

---

2. Setup Backend

Navigate to backend:

cd backend

Install dependencies:

pip install -r requirements.txt

Start FastAPI server:

python app.py

Backend starts WebSocket services for gesture streaming.

---

3. Upload ESP32 Firmware

Open:

esp32/rssi-mpu.ino

Using:

• Arduino IDE
• PlatformIO

Install libraries:

• WiFi
• Wire
• MPU6050

Upload code to ESP32.

📶 Wireless Communication Setup (UDP over WiFi)

The ESP32 communicates with the backend wirelessly using the UDP protocol over a WiFi network.

Unlike serial communication, UDP allows the ESP32 to transmit sensor data to the backend computer without requiring a USB connection for data transfer.

The ESP32 continuously sends:

• RSSI measurements
• Accelerometer data
• Gyroscope data

to the FastAPI backend through UDP packets.

---

Network Architecture

ESP32
  │
  │  UDP Packets
  ▼
Computer Running FastAPI Backend
  │
  ▼
WebSocket Server
  │
  ▼
React Web Dashboard

---

Important Configuration

The UDP IP address and UDP port must match in both:

esp32/rssi-mpu.ino

and

backend/app.py

Example:

ESP32

const char* udpAddress = "192.168.1.100";
const int udpPort = 5005;

Backend

UDP_IP = "0.0.0.0"
UDP_PORT = 5005

The UDP port number must be identical on both sides.

---

Finding Your Computer's IPv4 Address

The ESP32 must send data to the IP address of the computer running the backend.

On Windows:

ipconfig

Look for:

IPv4 Address . . . . . . . . : 192.168.1.100

Use this IPv4 address inside the ESP32 firmware.

Example:

const char* udpAddress = "192.168.1.100";

---

Important Requirements

Before running the system:

• ESP32 and computer must be connected to the same WiFi network.
• The IPv4 address configured in the ESP32 firmware must match the computer's current IPv4 address.
• The UDP port number must match in both the ESP32 firmware and FastAPI backend.
• The FastAPI backend must be running before gesture data can be received.
• Firewall settings should allow UDP communication on the selected port.

---

Troubleshooting

No Data Received

Check:

• ESP32 is powered on.
• ESP32 is connected to WiFi.
• Backend is running.
• Correct IPv4 address is configured.
• UDP ports match.
• Firewall is not blocking UDP packets.

Connection Works Then Stops

If the computer reconnects to WiFi, the IPv4 address may change.

Run:

ipconfig

again and update the ESP32 firmware with the new IPv4 address if necessary.

---

Verification

When everything is configured correctly, the backend should display:

UDP socket listening on 0.0.0.0:5005

and the frontend should show:

Live

indicating successful communication between the ESP32, backend server, and web interface.

---

4. Setup Frontend

Navigate to frontend:

cd frontend

Install packages:

npm install

Run development server:

npm run dev

Open browser:

http://localhost:5173

The web dashboard will connect to:

ws://127.0.0.1:8000/ws/gesture

for real-time gesture updates.

---

🎯 Applications

• Human Computer Interaction
• AR/VR Interfaces
• Smart Home Control
• Robotics Control
• Accessibility Systems
• Sign Language Research
• Gesture-Based Gaming
• Industrial Automation
• Remote Device Control

---

🚧 Future Improvements

• Machine Learning Based Classification
• Multiple User Support
• Dynamic Gesture Training
• Wearable EMG Integration
• Edge AI Deployment
• Higher Accuracy Sensor Fusion
• Mobile Application Support
• Cloud Analytics Dashboard
• Custom Gesture Recording

---

📚 Learning Outcomes

This project demonstrates:

• ESP32 Programming
• WiFi RSSI Sensing
• MPU6050 Integration
• UDP Communication
• FastAPI Development
• WebSocket Communication
• React Development
• Three.js Visualization
• Real-Time Systems
• Gesture Recognition Fundamentals

---

⚠️ Disclaimer

RSSI-based gesture recognition is highly sensitive to environmental conditions.

Factors affecting performance include:

• WiFi interference
• Human movement nearby
• Room geometry
• Signal multipath effects
• Sensor placement

Therefore, recognition accuracy may vary across environments and should be considered experimental.
