Expose render scale and post-stage toggles in the Graphics settings tab - #1754
Merged
Merged
Conversation
Refs #1688 Co-Authored-By: Claude Fable 5.1 <noreply@anthropic.com>
This file contains hidden or bidirectional Unicode text that may be interpreted or compiled differently than what appears below. To review, open the file in an editor that reveals hidden Unicode characters.
Learn more about bidirectional Unicode characters
Sign up for free
to join this conversation on GitHub.
Already have an account?
Sign in to comment
Add this suggestion to a batch that can be applied as a single commit.This suggestion is invalid because no changes were made to the code.Suggestions cannot be applied while the pull request is closed.Suggestions cannot be applied while viewing a subset of changes.Only one suggestion per line can be applied in a batch.Add this suggestion to a batch that can be applied as a single commit.Applying suggestions on deleted lines is not supported.You must change the existing code in this line in order to create a valid suggestion.Outdated suggestions cannot be applied.This suggestion has been applied or marked resolved.Suggestions cannot be applied from pending reviews.Suggestions cannot be applied on multi-line comments.Suggestions cannot be applied while the pull request is queued to merge.Suggestion cannot be applied right now. Please check back later.
Refs #1688 (task 5, graphics part). Every game's built-in Graphics tab now exposes render scale and the four post stages next to the quality tier, resolved onto the
GraphicsProfilethe shell already renders with.packages/core/src/settings/graphicsSettings.ts(new):readGraphicsSettings(store, overrides)resolves tier + stored render scale / stage toggles into aGraphicsProfile;applyGraphicsQualitywrites a tier and re-applies its defaults;GRAPHICS_POST_STAGES, labels,RENDER_SCALE_*bounds. Tests ingraphicsSettings.test.ts.packages/core/src/settings/settingsModel.ts:SETTING_IDSgainsgraphics.renderScaleandgraphics.post.{ao,bloom,dof,smaa}.packages/shell/src/settings/appliedSettings.tsx:useGraphicsSettingsreads throughreadGraphicsSettings, so the canvas dpr andPostProcessingstages follow the player's choices.packages/shell/src/settings/settingsController.ts: Graphics rows are Quality, Render scale, Shadows, AO, Bloom, DoF, SMAA, UI scale; takes the game'sgraphicsoverrides so tier defaults match what renders (Shell3dPresentation.tsxpassesplayable.graphics).scripts/drive-dev.ts:--clickalso matchesaria-labelfor icon-only buttons and prefers the interactive element on a tie, so the stockSettingsTriggerand toggle switches are drivable.bun run gen.Verification:

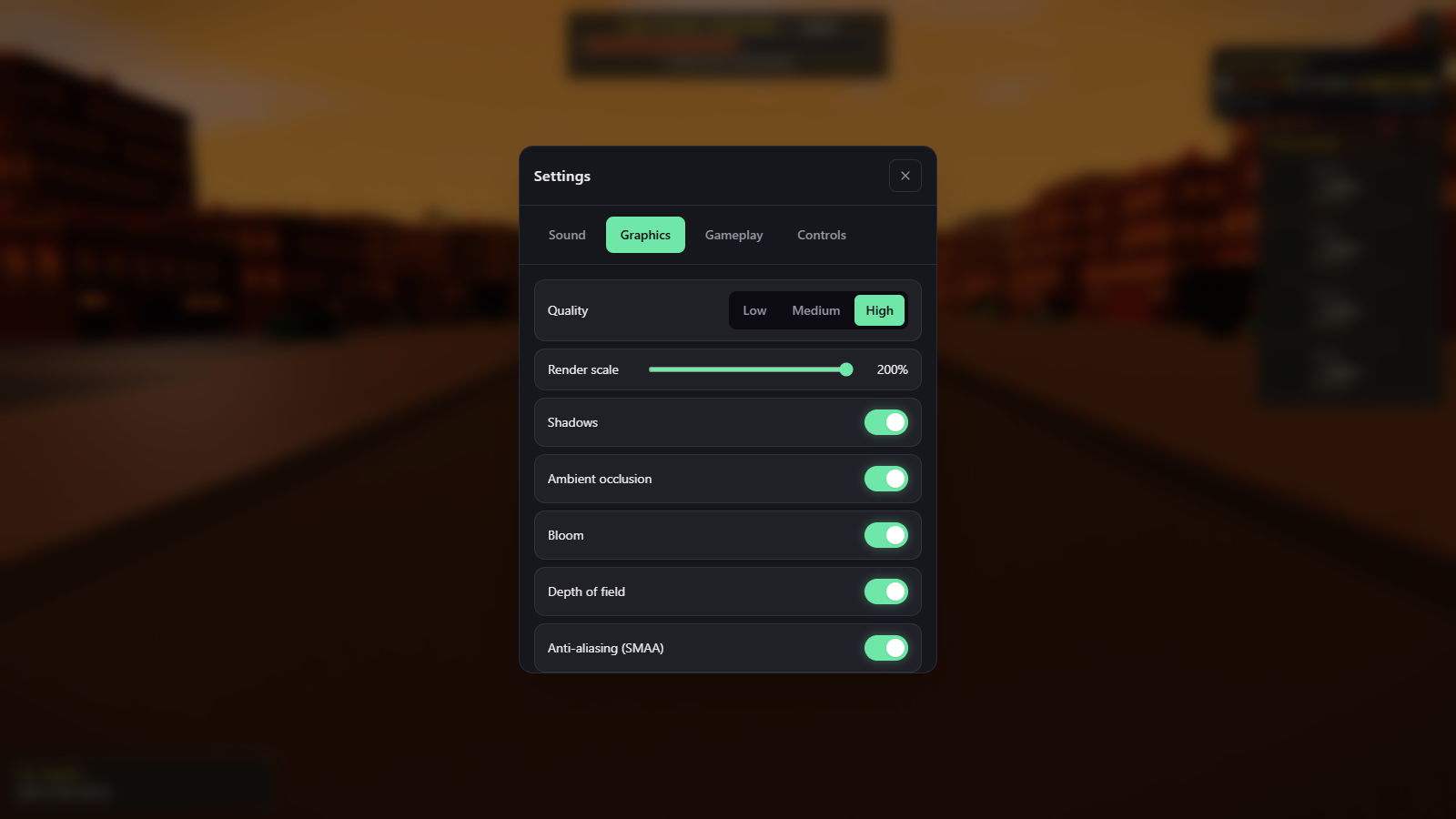

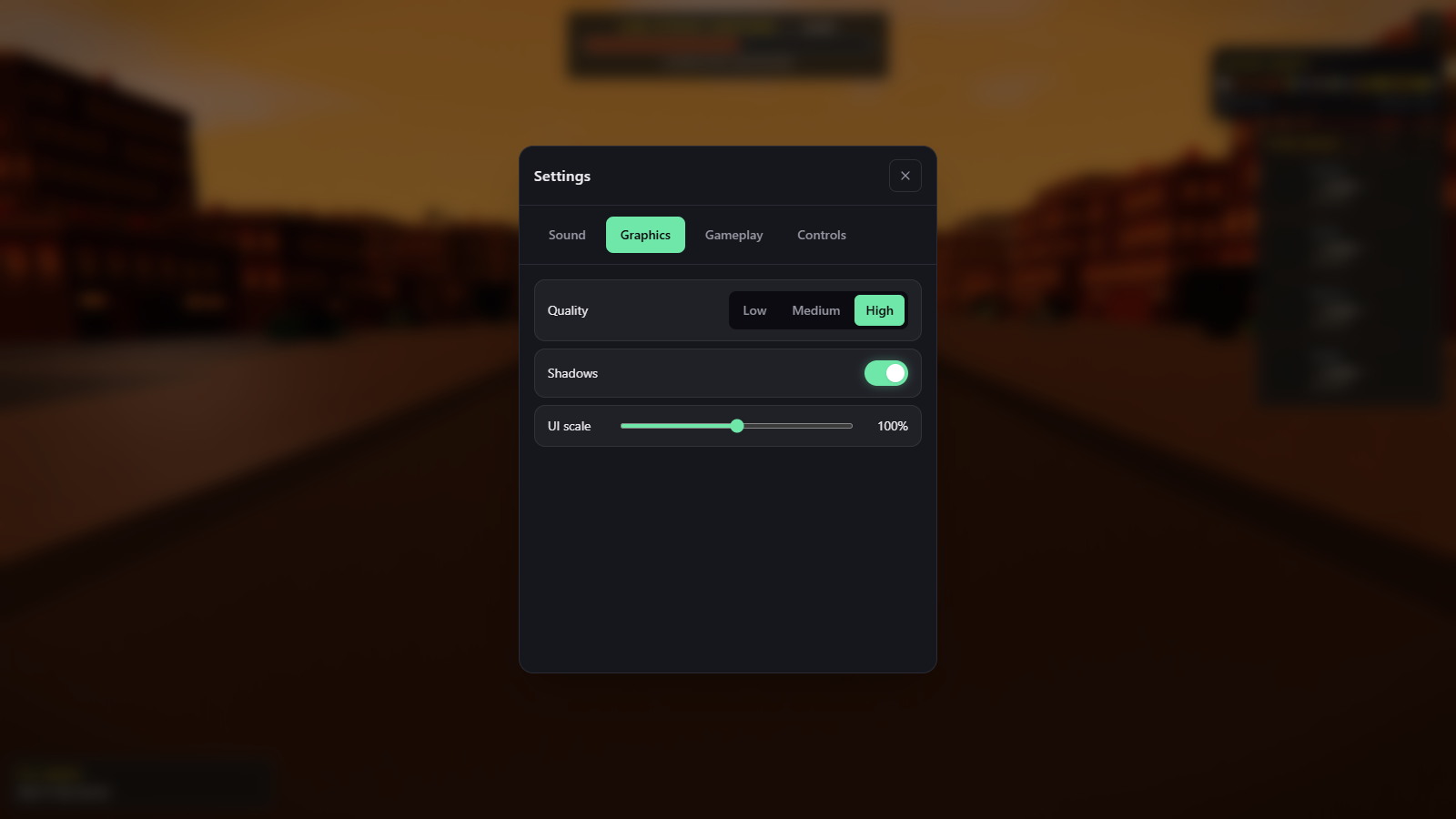

bun --cwd=packages/core run check-types/testpass (5642 tests);bun --cwd=packages/shell run check-types/testpass (485 tests);check-stateful-ratchet,check-doc-symbols,check-orphan-ratchet,check-changelog,check-hud-tokens,genall ok.Graphics tab before / after (

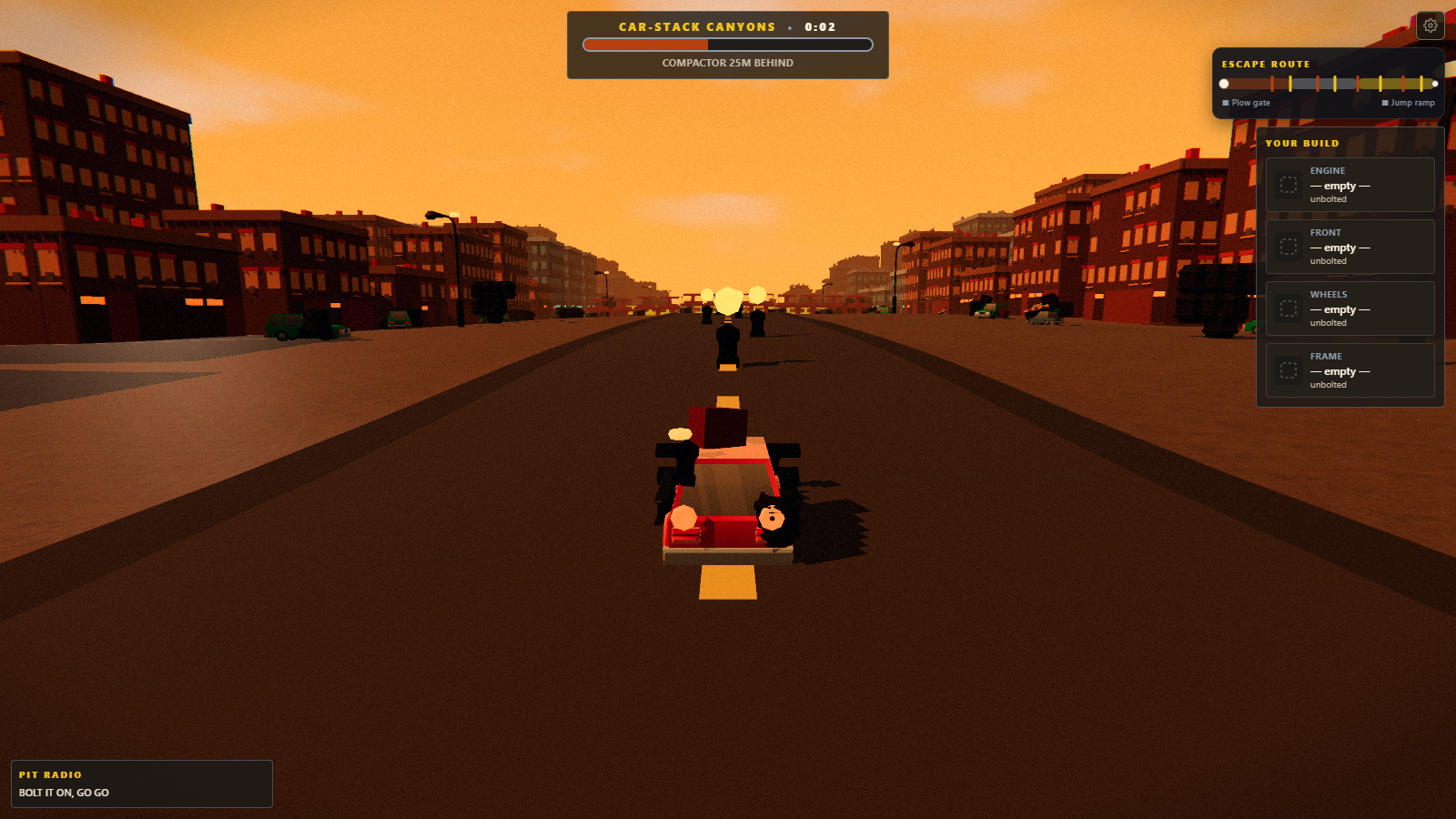

bun run drive wreckway --mode play --click Settings --click Graphics --shot ...):Toggle tried in play: bloom on (default) vs bloom switched off through the menu — the glow on the distant lights and headlights goes away.
Still open on #1688 task 5: frame cap, fullscreen, accessibility and language categories.
🤖 Generated with Claude Code
